HPE NFV Systems: технические характеристики и документация

В архиве
HPE NFV System

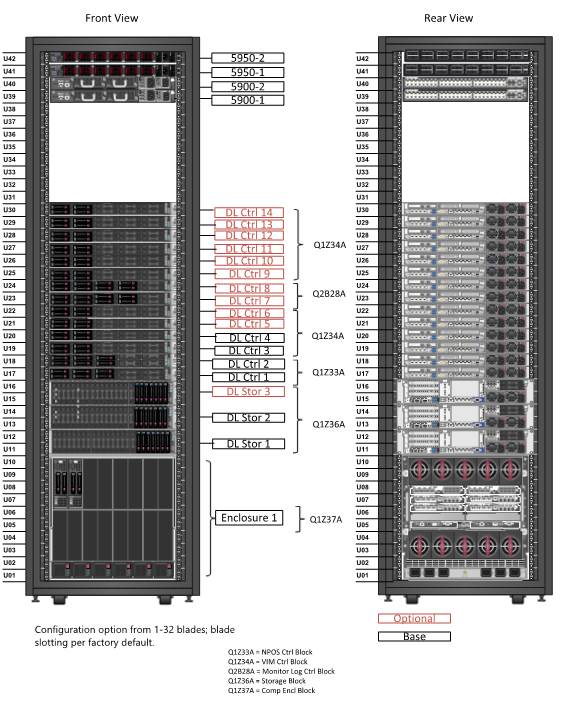

HPE NFV System v1.4 with Helion OpenStack Carrier Grade - Starter Kits

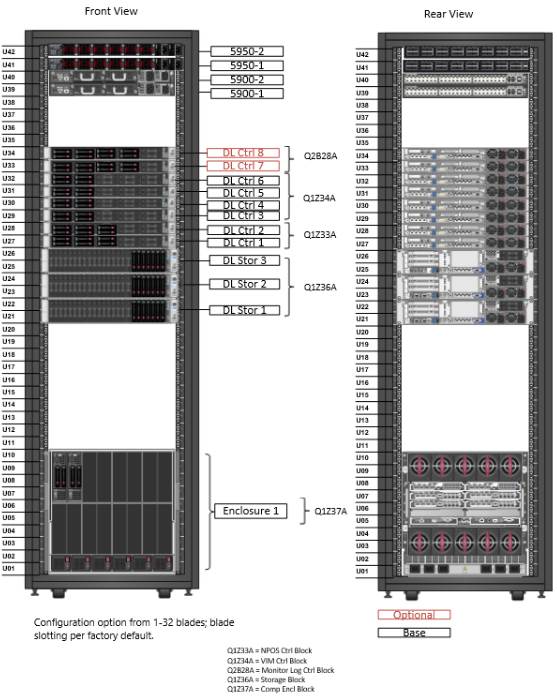

HPE NFV System v1.4 Enclosure Starter Kit - 1 enclosure





Compute & TOR details

Description

Options

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)
  • 2 x 5950 Switch (10G/40G/50G/100G)



1 x C7000 Enclosure

(Compute)


  • 2 x Virtual Connect FlexFabric-20/40 F8 Module
  • 4 x 6125XLG Blade Switch



1-16 x BL460 Gen9
(Compute)

  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M


  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory







Control nodes details

Description

2x DL360 Gen9
(Control - NPOS)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
(2 or 4 or 6 or 8 or 10) x DL360 G9 (Control - VIM)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Options:

  • Qty (8 or 16) x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • Qty (4 or 8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller



Choice of storage

Description

Options

Storage (HCG CEPH)
  • 2x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD


  • Qty (4 or 8) x 16GB (1x 16GB) Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or 1.8 TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty (5-10) for 12G SAS 10K rpm SFF

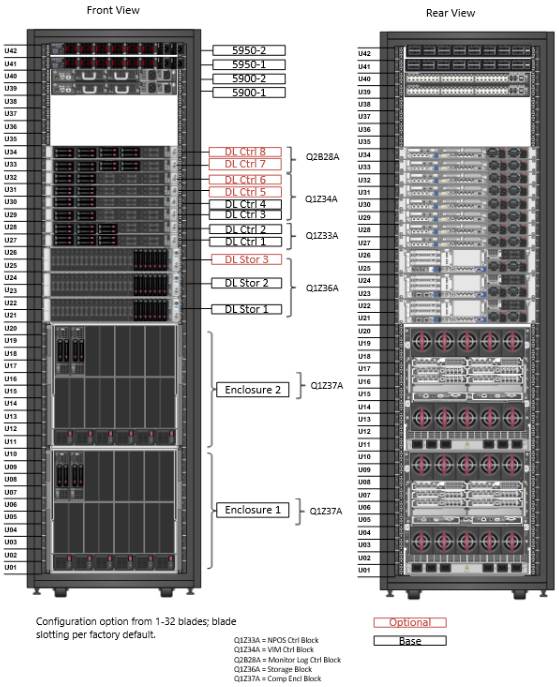

HPE NFV System v1.4 AC/DC Enclosure Starter Kit - 2 enclosure





Compute & TOR details

Description

Options

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)2 x 5950 Switch (10G/40G/50G/100G)



2x C7000 Enclosure

(Compute)
  • 2 x Virtual Connect FlexFabric-20/40 F8 Module4 x 6125XLG Blade Switch



2-32 x BL460 G9

(Compute)
  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M



  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory





Control node details

Description

2 x DL360 G9 (Control -NPOS)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP

1 x Smart Array P440ar/2G FIO Controller

(2 or 4) x DL360 G9

(Control -VIM)


  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Options:

  • Qty (8 or 16) x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • Qty (4 or 8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)



Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller





Choice of storage

Description

Options

Storage (HCG CEPH)
  • 2x DL 380 Server

2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • Qty (4 or  8) x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-10) for 12G SAS 10K rpm SFF

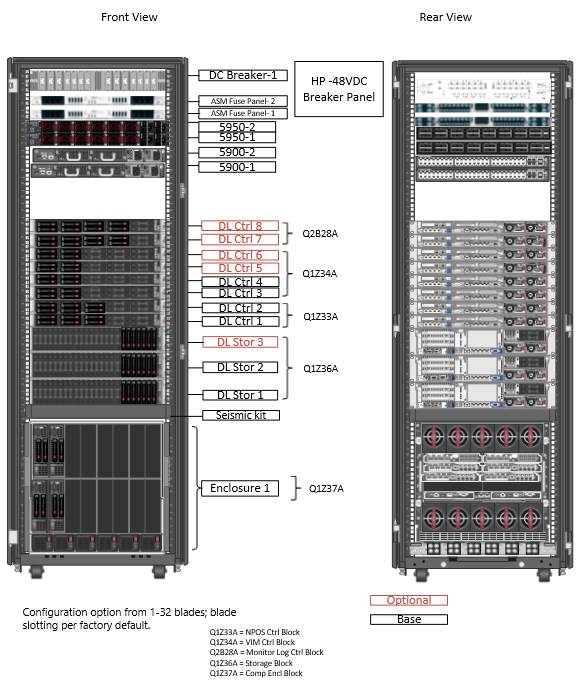

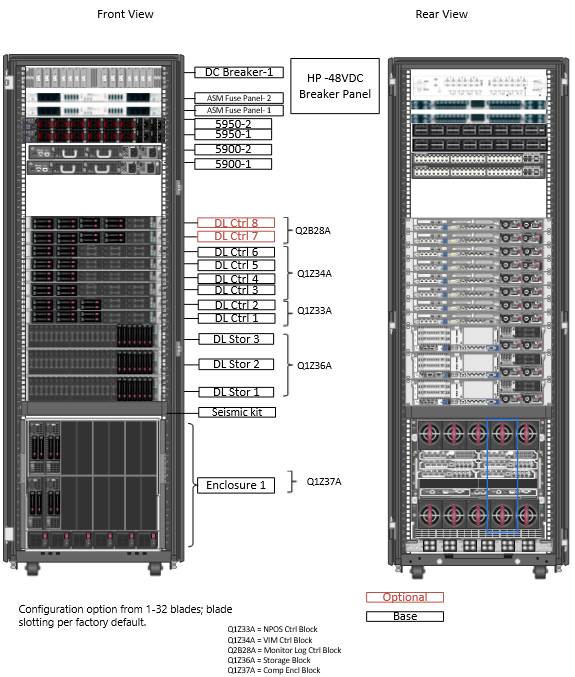

HPE NFV System v1.4 DC/NEBS Enclosure Starter Kit







Compute & TOR details

Description

Options

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)
  • 2 x 5950 Switch (10G/40G/50G/100G)



1 x C7000

Enclosure (Compute)
  • 2 x Virtual Connect FlexFabric-20/40 F8 Module
  • 4 x 6125XLG Blade Switch



(1-16) x BL460 Gen9

(Compute)
  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory















Control node details

Description

2x DL360 G9

(Control -NPOS)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP + Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP

1 x Smart Array P440ar/2G FIO Controller

(2 or 4) x DL360 G9

(Control -VIM)
  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Options:

  • Qty (8 or 16) x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory

Qty (4 or 8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)

Optional:

2x DL360 Gen9

(Control - Centralized Logging)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP

1 x Smart Array P440ar/2G FIO Controller









Choice of storage

Description

Options

Storage (HCG CEPH)
  • 2x DL 380 Server

2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • Qty (4 or  8) x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-10) for 12G SAS 10K rpm SFF

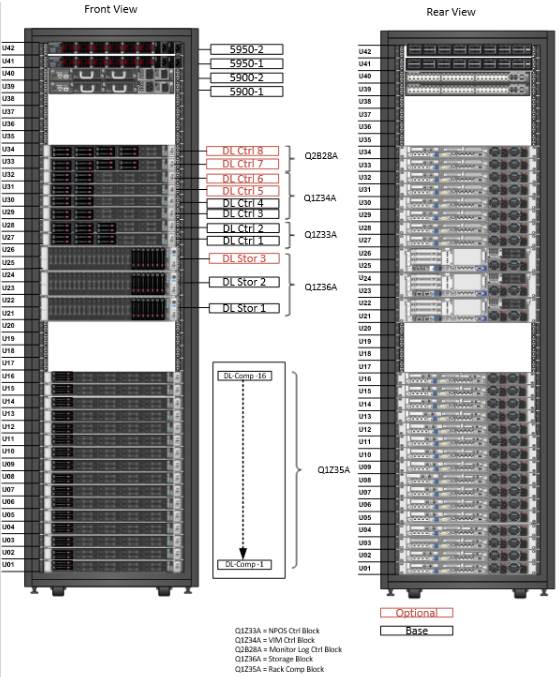

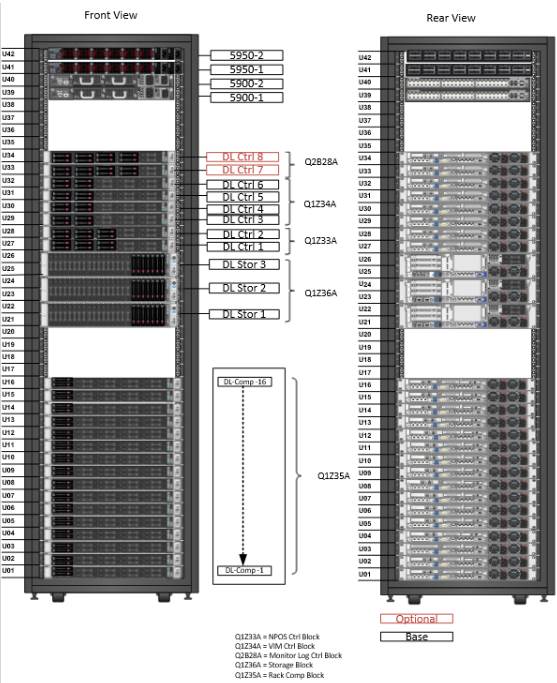

HPE NFV System v1.4 Rackmount Starter Kit





Compute & TOR details

Description

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G) 2 x 5950 Switch (10G/40G/50G/100G)

16 x DL360 G9 (Compute)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 2 x Ethernet 10Gb 2P 560SFP

Options:

  • 2 x Intel Xeon® E5-2640v4 or E5-2695v4 (Non-OEM)
  • Size (16 or 32) GB Dual Rank x4 DDR4-2400 memory Qty (2-8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)









Control node details

Description

2 x DL360 G9 (Control -NPOS)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

(2 or 4) x DL360 G9

(Control -VIM)


  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Options:

  • Qty (8 or 16) x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • Qty (4 or 8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)

Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller









Choice of storage

Description

Options

Storage (HCG CEPH)
  • 2x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • Qty (4 or 8) x 16GB (1x 16GB) Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty (5-10) for 12G SAS 10K rpm SFF



Software and services

Software component

Part number

Notes

OneView

P8B24A

For RACK based Kits

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server

For BLADE based Kits

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server

iLO Advanced



BD505A

(DL Servers)



For RACK based Kits

1 license per NPOS control server

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server

BD505A

(DL server)



BD502A

(BL server)



For BLADE based Kits

1 license per NPOS control server

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server

Storage Choice: HPE HCG Ceph

Q1D33A

(Based on raw capacity - TBs per storage server)

HPE Helion CG Strg 3yr 24x7 RTU

VIM Choice: HPE Helion OpenStack Carrier Grade

Q1D31A

(Based on number of sockets - 1 license per socket)

HPE Helion CG Comp 3yr 24x7 RTU



NFV System Platform Operations Suite (NPOS)

Q0J95A

One instance included in the NFV System control plane (only in starter kits)



HPE NFV System v1.4 with Helion OpenStack Carrier Grade - Compute Kits

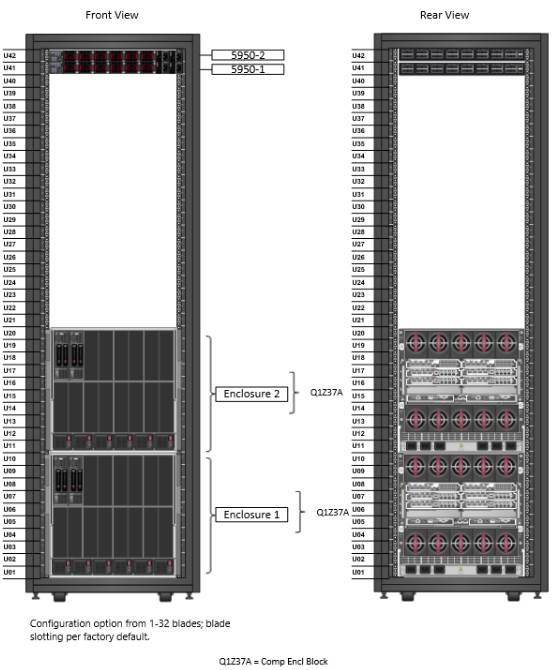

HPE NFV System v1.4 AC/DC Enclosure Compute Kit





Component

Description

Options

2 x C7000 Enclosure


  • 4 x Virtual Connect FlexFabric-20/40 F8 Module
  • 8 x 6125XLG Blade Switch



(2-32) x BL460 G9


  • 2 x Intel® Xeon® E5-2695v4
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory



TOR Switches


  • 2 x 5900AF 48G 4XG 2QSFP+Switch
  • 2 x 5950-32QSFP28 Switch

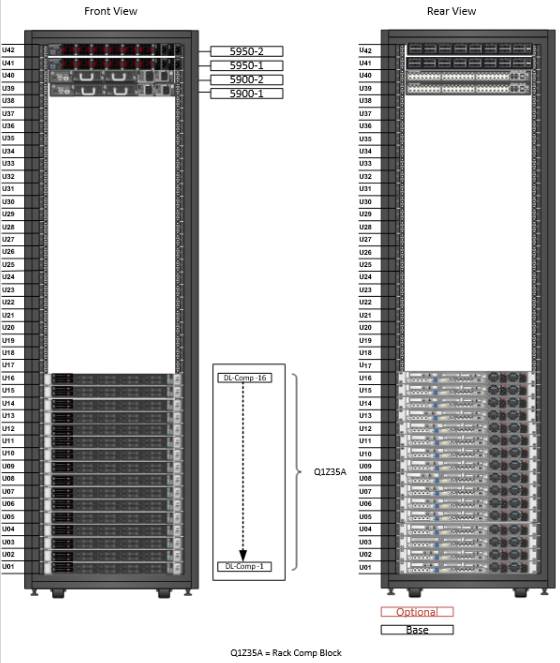

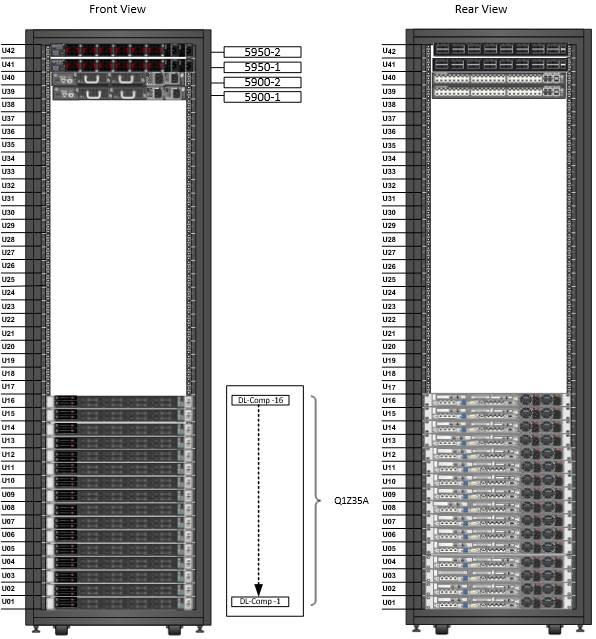

HPE NFV System v1.4 Rackmount Compute Kit





Component

Description

Options

16 x DL360 G9
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 2 x Ethernet 10Gb 2P 560SFP
  • 2 x Intel Xeon® E5-2640v4 or
  • E5-2695v4(Non-OEM)
  • Size (16 or 32) GB Dual Rank x4 DDR4-2400 memory
  • Qty (2-8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches
  • 2 x 5900AF 48G 4XG 2QSFP+ Switch
  • 2 x 5950 32QSFP28 Switch

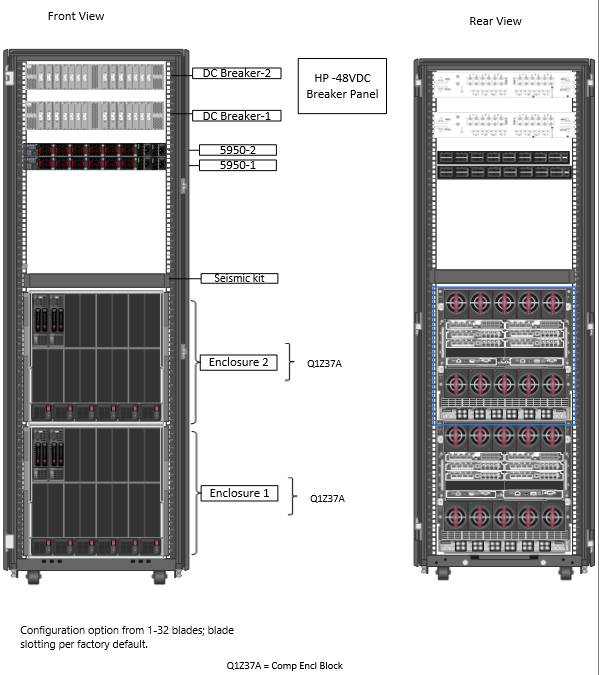

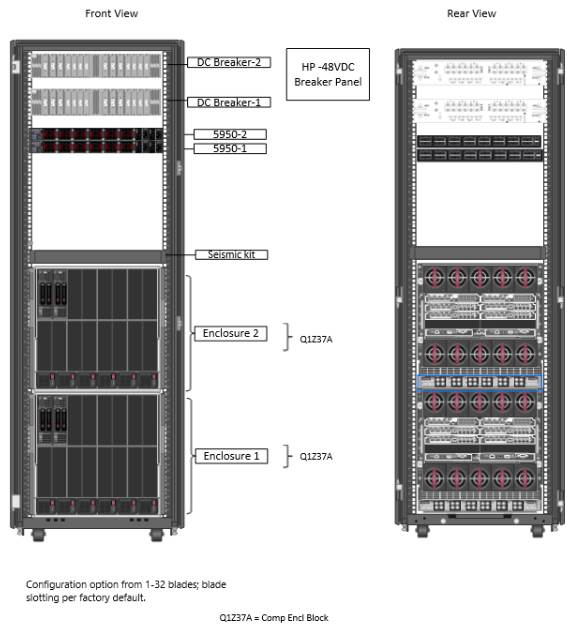

HPE NFV System v1.4 DC/NEBS Enclosure Compute Kit

Component

Description

2 x C7000 Enclosure

  • 4 x Virtual Connect FlexFabric-20/40 F8 Module
  • 8 x 6125XLG Blade Switch

(2-32)  x BL460 G9
  • 2 x  Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory

TOR Switches
  • 2 x 5900AF 48G 4XG 2QSFP+Switch
  • 2 x 5950 32QSFP28 Switch

HPE NFV System v1.4 with Helion OpenStack Carrier Grade - Storage Kits

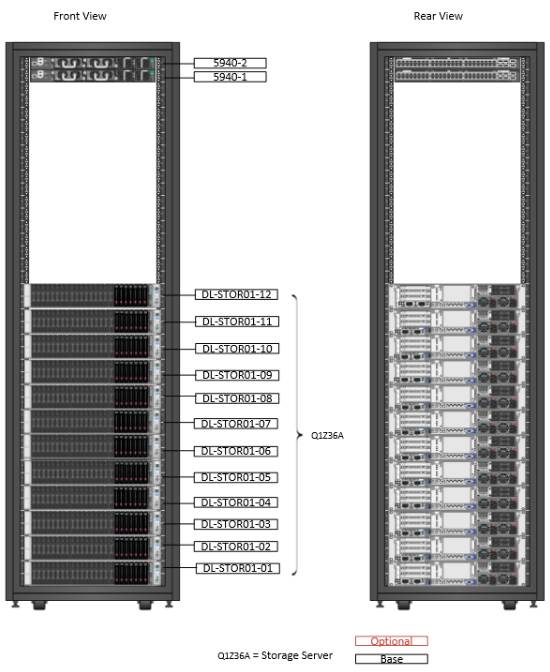

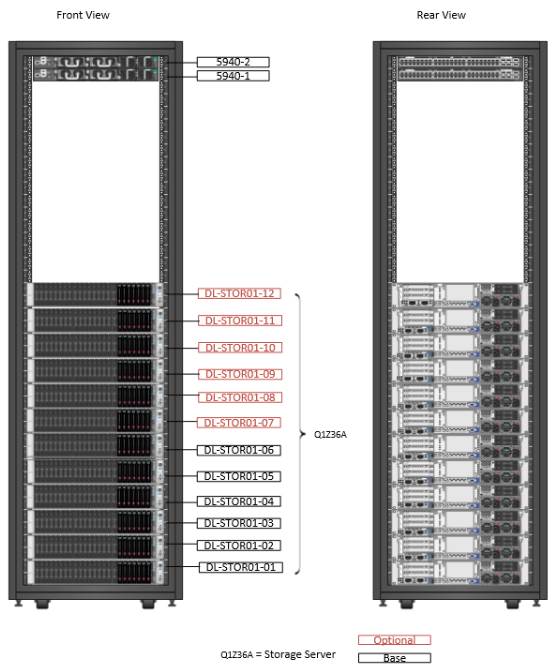

HPE NFV System v1.4 AC/DC Storage Kit - 6 Node





CEPH

Components

Descriptions

Options

Storage

  • 6 x DL 380 Server with HPE VSA
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card
  • Qty (4 or 8) x 16GB Dual Rank v4 DDR4-2400 memory
  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-10) 12G SAS 10K rpm SFF (2.5-inch)

TOR Switches
  • 2 x 5940 48SFP+ 6QSFP+ Switch

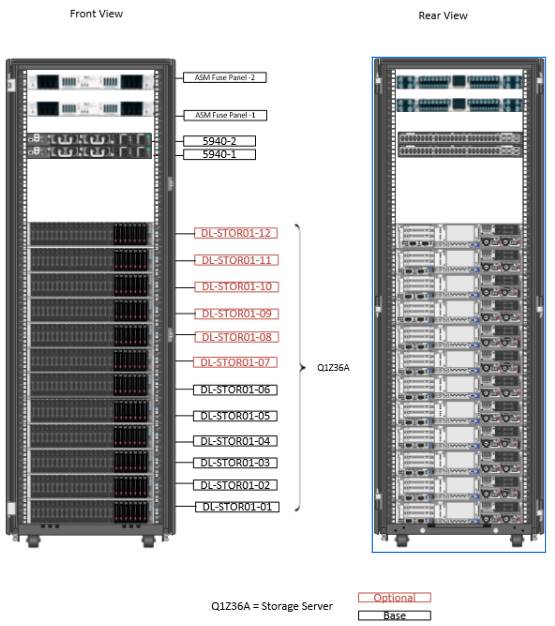

HPE NFV System v1.4 DC/NEBS Storage Kit - 6 Node

HCG CEPH



Components

Description

Options

Storage
  • 6 x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card
  • Qty (4 or 8) x 16GB Dual Rank v4 DDR4-2400 memory
  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty (5-10) 12G SAS 10K rpm SFF (2.5-inch)

TOR Switches
  • 2 x 5940 48SFP+ 6QSFP+ Switch





HPE NFV System v1.4 with Helion OpenStack Carrier Grade - Blade Kits

HPE NFV System v1.4 Single Blade Kit







Component

Description

Options

1  x BL460 Gen9


  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory



Software Licenses
  • OneView
  • iLO Advanced
  • Helion OpenStack Carrier Grade









HPE NFV System with Red Hat OpenStack Platform - Starter Kits

HPE NFV System v1.4 Enclosure Starter Kit with Red Hat - 1 enclosure





Compute & TOR details

Description

Options

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)
  • 2 x 5950 Switch (10G/40G/50G/100G)



1 x C7000 Enclosure (Compute)
  • 2 x Virtual Connect FlexFabric-20/40 F8 Module
  • 4 x 6125XLG Blade Switch



1-16 x BL460 Gen9
(Compute)



  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M



  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory



Control nodes details

Description

2x DL360 Gen9 (Control)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

4 x DL360 G9

(Control - VIM)
  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 8 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller



Choice of storage

Description

Options

Storage (HPE VSA)
  • 3 x DL 380 Server
  • 4 x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • 2 x 1.6TB 12G SAS HE 2.5in EP SC SSD
  • Size 1.2/1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-22) for 12G SAS 10K rpm SFF



Storage

(Red Hat CEPH)
  • 3x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD


  • Qty (4 or 8) x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-22) for 12G 10K SFF





HPE NFV System v1.4 Starter Kit with Red Hat - 2 enclosure





Compute and TOR details

Description

Options

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)
  • 2 x 5950 Switch (10G/40G/50G/100G



2 x C7000 Enclosure

(Compute)


  • 2 x Virtual Connect FlexFabric-20/40 F8 Module
  • 4 x 6125XLG Blade Switch





2 - 32 x BL460 G9

(Compute)


  • 2 x  Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M


  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory









Control node details

Description

2 x DL360 G9

(Control -NPOS)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

4 x DL360 G9

(Control -VIM)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 8 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller









Choice of storage

Description

Options

Storage (HPE VSA)
  • 3 x DL 380 Server
  • 4 x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • 2 x 1.6TB 12G SAS HE 2.5in EP SC SSD
  • Size 1.2/1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-22) for 12G SAS 10K rpm SFF

Storage

Red Hat CEPH)


  • 3x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • Qty (4 or  8) x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-22) for 12G SAS 10K rpm SFF



HPE NFV System v1.4 DC/NEBS Enclosure Starter Kit with Red Hat



Compute and TOR details

Description

Options

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)
  • 2 x 5950 Switch (10G/40G/50G/100G)



1 x C7000 Enclosure

(Compute)


  • 2 x Virtual Connect FlexFabric-20/40 F8 Module
  • 4 x 6125XLG Blade Switch



1-16 x BL460 G9

(Compute)


  • 2 x  Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory











Control node details

Description

2 x DL360 G9

(Control -NPOS)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

4 x DL360 G9

(Control -VIM)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 8 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller









Choice of storage

Description

Options

Storage

(HPE VSA)


  • 3 x DL 380 Server
  • 4 x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • 2 x 1.6TB 12G SAS HE 2.5in EP SC SSD
  • Size 1.2/1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-14) for 12G SAS 10K rpm SFF

Storage

Red Hat CEPH)


  • 3x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • Qty (4 or  8) x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-14) for 12G SAS 10K rpm SFF



HPE NFV System v1.4 Rackmount Starter Kit with Red Hat



Compute and TOR details

Description

TOR Switches
  • 2 x 5900 Switch (1G/10G/40G)
  • 2 x 5950 Switch (10G/40G/50G/100G)

16 x DL360 G9

(Compute)


  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 2 x Ethernet 10Gb 2P 560SFP

Options:

  • 2 x  Intel Xeon® E5-2640v4 or E5-2695v4(Non-OEM)
  • Size (16 or 32) GB Dual Rank x4 DDR4-2400 memory
  • Qty (2-8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)









Control node details

Description

2 x DL360 G9

(Control -NPOS)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 4 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 6 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

4 x DL360 G9

(Control -VIM)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 8 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Ethernet 10Gb 2P 560SFP+ Adptr
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller

Optional:

2 x DL360 G9

(Control-Centralized Logging)


  • 2 x  Intel Xeon® E5-2640v4 (10 cores)
  • 16 x 16GB (1x16GB) Dual Rank x4 DDR4-2400 memory
  • 8 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller









Choice of storage

Description

Options

Storage

(HPE VSA)


  • 3 x DL 380 Server
  • 2 x 1.6TB 12G SAS HE 2.5in EP SC SSD
  • Size 1.2/1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-22) for 12G SAS 10K rpm SFF

Storage

Red Hat CEPH)


  • 3x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD


  • Qty (4 or  8) x 16GB (1x 16GB)Dual Rank v4 DDR4-2400 memory
  • Size 1.2 or1.8 TB 12G SAS 10K rpm SFF  (2.5-inch)
  • Qty (5-22) for 12G SAS 10K rpm SFF



Software and services - Starter Kit





Software component

Part number

Notes

OneView

P8B24A

For RACK based Kits

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server



For BLADE based Kits

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server









iLO Advanced



BD505A

(DL Servers)



For RACK based Kits

1 license per NPOS control server

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server



BD505A

(DL server)



BD502A

(BL server)



For BLADE based Kits

1 license per NPOS control server

1 license per VIM control server

1 license per storage server

1 license per centralized logging server

1 license per compute server



Storage Choice: HPE VSA



Q0J77A

OR

Q0J78A



Based on usable capacity per storage server



HPE StoreVirtual VSA 2014 10TB LTU

OR
HPE StoreVirtual VSA 2014 50TB LTU

Storage Choice: Red Hat Ceph



Q2B20A

HPE NFV v1.4 RH Ceph 1TB 3yr 24x7 LTU

(Based on raw capacity)

 1 license per TB per storage server



VIM Choice: Red Hat OpenStack Platform

Q1F39A

HPE NFV RH OpenStack w/o OS 3yr 24x7 LTU

1 license per VIM control server



NFV System Platform Operations Suite (NPOS)

Q0J95A

One instance included in the NFV System control plane (only in starter kits)



HPE NFV System with Red Hat OpenStack Platform - Compute Kits

HPE NFV System v1.4 Enclosure Compute Kit with Red Hat





Component

Description

Options

2 x C7000 Enclosure


  • 2 x Virtual Connect FlexFabric-20/40 F8 Module
  • 8 x 6125XLG Blade Switch





(2-32) x BL460 G9


  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M




  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory



TOR Switches


  • 2 x 5900AF 48G 4XG 2QSFP+Switch
  • 2 x 5950-32QSFP28 Switch





HPE NFV System v1.4 Rackmount Compute Kit with Red Hat





Component

Description

Options

16 x DL360 Gen9
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 2 x Ethernet 10Gb 2P 560SFP


  • 2 x Intel Xeon® E5-2640v4 or
  • E5-2695v4(Non-OEM)
  • Size (16 or 32) GB Dual Rank x4 DDR4-2400 memory
  • Qty (2-8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)

TOR Switches
  • 2 x 5900AF 48G 4XG 2QSFP+ Switch
  • 2 x 5950 32QSFP28 Switch



16 x DL360 Gen9
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 2 x Ethernet 10Gb 2P 560SFP


  • 2 x Intel Xeon® E5-2640v4 or
  • E5-2695v4(Non-OEM)
  • Size (16 or 32) GB Dual Rank x4 DDR4-2400 memory
  • Qty (2-8) x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)



HPE NFV System v1.4 DC/NEBS Enclosure Compute Kit with Red Hat





Component

Description

Options

2 x C7000 Enclosure

  • 4 x Virtual Connect FlexFabric-20/40 F8 Module
  • 8 x 6125XLG Blade Switch



(2-32)  x BL460 Gen9
  • 2 x Intel® Xeon® E5-2695v4
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory

TOR Switches


  • 2 x 5900AF 48G 4XG 2QSFP+Switch
  • 2 x 5950 32QSFP28 Switch







HPE NFV System with Red Hat OpenStack Platform - Storage Kits



HPE NFV System v1.4 Storage Kit with Red Hat - 6 Node





Red Hat CEPH

Component

Description

Options

Storage
  • 6 x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card


  •
  • Qty (4 or 8) x 16GB Dual Rank v4 DDR4-2400 memory
  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-22) 12G SAS 10K rpm SFF (2.5-inch

TOR Switches
  • 2 x 5940 48 SFP+ 6QSFP+ Switch















HPE VSA

Component

Description

Options

Storage
  • 6 x DL 380 Server
  • 4 x 16GB Dual Rank v4 DDR4-2400 memory
  • 2 x 1.6TB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card


  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-22) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches
  • 2 x 5940 48 SFP+ 6QSFP+ Switch





HPE NFV System v1.4 Storage Kit with Red Hat - 12 Node









Red Hat CEPH

Component

Description

Options

Storage

12 x DL 380 Server with HPE VSA

2 x 200GB 12G SAS HE 2.5in EP SC SSD

1 x FlexFabric 10Gb 2-port 556FLR-SFP

1 x Smart Array P440ar/2G FIO Controller

1 x 12Gb SAS Expander Card



Qty (4 or 8) x 16GB Dual Rank v4 DDR4-2400 memory

Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)

Qty ( 5-22) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches

2 x 5940 48 SFP+ 6QSFP+ Switch















HPE VSA

Component

Description

Options

Storage

12 x DL 380 Server with HPE VSA

4 x 16GB Dual Rank v4 DDR4-2400 memory

2 x 16 TB 12G SAS HE 2.5in EP SC SSD

1 x FlexFabric 10Gb 2-port 556FLR-SFP

1 x Smart Array P440ar/2G FIO Controller

1 x 12Gb SAS Expander Card



Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)

Qty ( 5-22) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches

2 x 5940 48 SFP+ 6QSFP+ Switch









HPE NFV System v1.4 DC/NEBS Storage Kit with Red Hat - 6 Node





Red Hat CEPH

Components

Description

Options

Storage
  • 6 x DL 380 Server
  • 2 x 200GB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card


  • Qty (4 or 8) x 16GB Dual Rank v4 DDR4-2400 memory
  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-14) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches
  • 2 x 5940 48SFP+ 6QSFP+ Switch

















HPE VSA

Components

Description

Options

Storage
  • 6 x DL 380 Server
  • 4 x 16GB Dual Rank v4 DDR4-2400 memory
  • 2 x 1.6 TB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card


  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-14) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches
  • 2 x 5940 48SFP+ 6QSFP+ Switch







HPE NFV System v1.4 DC/NEBS Storage Kit with Red Hat - 12 Node



Red Hat CEPH

Component

Description

Options

 Storage
  • 12 x DL 380 Server with HPE VSA
  • 2 x 200 GB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card
  • Qty (4 or 8) x 16GB Dual Rank v4 DDR4-2400 memory
  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-14) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches


  • 2 x 5940 48SFP+ 6QSFP+ Switch







HPE VSA

Component

Description

Options

 Storage
  • 12 x DL 380 Server with HPE VSA
  • 4 x 16GB Dual Rank v4 DDR4-2400 memory
  • 2 x 1.6 TB 12G SAS HE 2.5in EP SC SSD
  • 1 x FlexFabric 10Gb 2-port 556FLR-SFP
  • 1 x Smart Array P440ar/2G FIO Controller
  • 1 x 12Gb SAS Expander Card


  • Size (1.2 or 1.8) TB 12G SAS 10K rpm SFF (2.5-inch)
  • Qty ( 5-14) 12G SAS 10K rpm SFF (2.5-inch)



TOR Switches


  • 2 x 5940 48SFP+ 6QSFP+ Switch

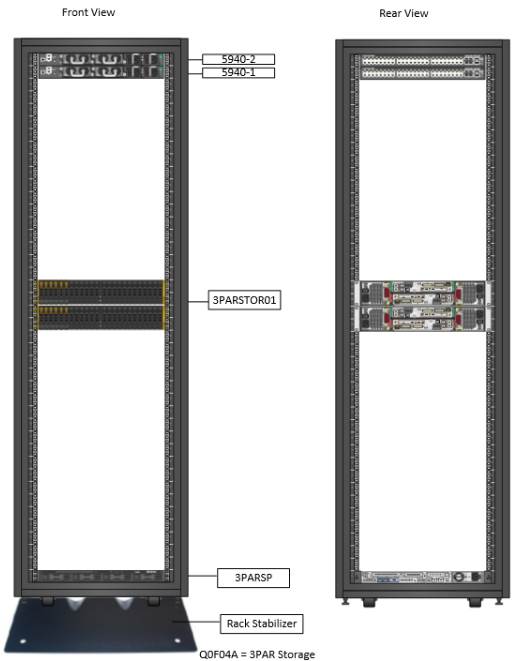

HPE NFV System v1.4 3PAR Storage Kit with Red Hat







Component

Description

Storage
  • 1 x HP 3PAR StoreServ 8440 4N Stor Cent Base
  • 4 x HP 3PAR 8000 2-pt 10Gb iSCSI/FCoE Adptr
  • 12 x HP 3PAR 8000 3.84TB SAS cMLC SFF SSD
  • 1 x HP 3PAR StoreServ SPS Service Processor

TOR Switches
  • 2 x 5940 48 SFP+ 6QSFP+ Switch





HPE NFV System with Red Hat OpenStack Platform - Blade Kits

HPE NFV System v1.4 Single Blade Kit with Red Hat



























Component

Description

Options





1  x BL460 Gen9


  • 2 x Intel® Xeon® E5-2695v4 (18 cores)
  • 2 x 1.2TB 12G SAS 10K rpm SFF (2.5-inch)
  • 1 x Smart Array P244br/1GB FBWC
  • 1 x FlexFabric 20Gb 2-port 650FLB
  • 2 x Ethernet 10Gb 2P 560M
  • Qty (4 or 8) x 32GB Dual Rank x4 DDR4-2400 memory







Software Licenses
  • OneView
  • iLO Advanced
  • Red Hat OSP





Product Features



NFV System Hardware Component List

For more information above HPE NFV System information, see http://www8.hp.com/us/en/products/solutions/product-detail.html?oid=8326286#!tab=features

For more information about HPE BladeSwitch, see http://www8.hp.com/us/en/products/servers/bladesystem/virtual-connect.html

For more information about HPE Virtual Connect, see http://www8.hp.com/us/en/products/servers/bladesystem/virtual-connect.html

For more information about HPE Switch 5900, see

http://www8.hp.com/us/en/products/networking-switches/product-detail.html?oid=5221896

For more information about HPE Switch 5940, see

http://www8.hp.com/us/en/products/networking-switches/product-detail.html?oid=1009148840

For more information about HPE Switch 5950, see

http://www8.hp.com/us/en/products/networking-switches/product-detail.html?oid=1008901778

For more information about HPE DL360 server, see

http://www8.hp.com/us/en/products/proliant-servers/product-detail.html?oid=7252836

For more information about HPE DL 380 server, see

http://www8.hp.com/us/en/products/proliant-servers/product-detail.html?oid=7271241

For more information about HPE C7000 enclosure, see http://www8.hp.com/us/en/products/enclosures/product-detail.html?oid=1844065

For more information about HPE BL460 blade server, see

http://www8.hp.com/us/en/products/proliant-servers/product-detail.html?oid=7271227

For more information about HPE 3PAR 8440 storage, see

https://www.hpe.com/us/en/storage/3par.html

NFV System Software vH4.0.0 and  vR10.0.0 Overview

The NFV System Enclosure Starter Kit and Rackmount Starter Kit use the following software components:

  • HPE Helion OpenStack Carrier Grade

- For more information about HPE HCG, see http://www8.hp.com/us/en/products/solutions/product-detail.html?oid=1008832191#!tab=features

  • Red Hat OpenStack Platform

- For more information about Red Hat OpenStack Platform, see https://www.redhat.com/en/resources/red-hat-openstack-platform

  • OneView

- For more information about HPE OneView, see
http://www8.hp.com/us/en/products/server-software/product-detail.html?oid=5410258

  • VSA/CMC

- For more information about HPE VSA , see https://www.hpe.com/us/en/storage/storevirtual.html

  • Red Hat Ceph

- For more information about Red Hat Ceph
  https://www.redhat.com/en/technologies/storage/ceph



  • iLO Advance

- For more information about iLO Advanced, see http://www8.hp.com/us/en/products/servers/ilo/



  • NFV Platform Operations Suite (NPOS)

- For more information about NPOS, see below



NFV Platform Operations Suite (NPOS):

Every NFV System Starter Kit ships with NPOS software SKU.  This is a purpose-built software package designed to enhance operations and management of the NFV System.  NPOS is delivered as part of the NFV System software stack along with Virtual Infrastructure Management (VIM) software and the Physical Infrastructure Management (PIM) software.

The various components of the NPOS are described below:-

 Master Installer

  • Component includes an automated installer for the entire NFV System software stack including VIM Software (HPE Helion OpenStack Carrier Grade or Red Hat OpenStack Platform), PIM software (OneView, CMC), storage software (VSA,Ceph) and NPOS.

 Control Plane Lifecycle Manager(CPLM)

  • Supports lifecycle operations such as install, configure, backup/restore, upgrade, downgrade, uninstall for all Control Plane elements

NFV System Deployment Schema

  • Centralized data store that reflects current NFV System deployment including starter and any additional kits
  • Provides resource inventory information and platform awareness to Northbound elements

KVM High Availability (HA)

  • Provides carrier grade high availability for control plane elements by using OpenSAF and KVM capabilities
  • Provides enhanced features such as affinity, resource scheduling alongside critical monitoring capabilities and extends the capabilities to CPLM

CLI Tool

  • A centralized, CLI-based way to manage the entire NFV System platform
  • Provides administrators an abstracted set of tools to interact with existing and new components added to the NFV System without having to learn the internals of every new component

NFV System Dashboard

  • Graphical User Interface to provide NFV System operational information
  • Acts as a gateway to operate individual GUIs provided by elements in the control plane
  • Single sign-on capabilities to extend seamless management capabilities

Compute Node Addition

  • An automated way to scale the compute cloud
  • Allows customers to rapidly expand capacity as soon as a new compute element is added

 Centralized Logging

  • An open framework to centrally log all control plane information for auditing and tracking
  • Provides CLI and GUI based access to searchable logs
  • Combines ElasticSearch, LogStash and Kibana to provide fully operational Centralized Logging platform

Network Automation

  • Eliminates configuration errors by providing  automated switch/network configuration
  • Ensures high availability.

NFV System Health Check

  • Provides modular diagnostic services for NFV System.
  • Pre-canned scripts that checks status and availability of each component.



Intelligent Resource Management*

  • An automated way to manage resources within the NFV System
  • Provides a way to reduce VM Sprawl and power off unused and under-utilized nodes beyond a user defined threshold

Intelligent Resource Management*

  • An automated way to manage resources within the NFV System
  • Provides a way to reduce VM Sprawl and power off unused and under-utilized nodes beyond a user defined threshold





HCG 4.0 based NFV System v1.4 w/H4.0.0 Starter Kits Technical Specifications







HPE NFV System v1.4 Starter Kit

( 1 Enclosure, 1-16 blades)



HPE NFV System v1.4 Starter Kit

(2 Enclosure, 2-32 blade)



HPE NFV System v1.4 Starter Kit (Rackmount Based)



Single Blade Kit



Total Compute CPU Cores





36-576





72-1152





576





36



Available Shared Storage Capacity with  CEPH



 3-13TB



3-13TB





3-13TB





N/A



Total Data Throughput (Active -Active)



40-640 Gbps

(20G NIC x 2 x #servers)

80-1280 Gbps

(20G NIC x 2 x #servers )



640 Gbps

20G NIC x 2 x 16 servers

40Gbps

(20G NIC x 2)



HPE NFV System v1.4  w/H4.0.0 Specifications -Add-On Kits

 Available Shared Storage for CEPH









HPE NFV System v1.4  w/ R10.0.0 Technical Specification - Starter Kits





HPE NFV System v1.4 Starter Kit ( 1 Enclosure, 1-16 blades)

HPE NFV System v1.4 Starter Kit (2 Enclosure, 2-32 blade)

HPE NFV System v1.4 Starter Kit (Rackmount Based)

Single Blade Kit



Total Compute CPU Cores

36-576

72-1152

 576

 36



Available Shared Storage Capacity with  VSA

5-50TB

5-50TB

5-50TB

N/A



Available Shared Storage Capacity with  CEPH

3-34 TB

3-34 TB

3-34 TB

N/A



Total Data Throughput (Active -Active)

40-640 Gbps

(20G NIC x 2 x #servers)



80-1280 Gbps

(20G NIC x 2 x #servers )



640 Gbps

(20G NIC x 2 x 16 servers)

40Gbps

(20G NIC x 2)







HPE NFV System v1.4 w/ R10.0.0 Technical Specification - Add-On Kits







HPE NFV System v1.4 Compute Kit (2 Enclosures, 2-32  blades



HPE NFV System v1.4 Compute Kit (Rackmount Based)



HPE NFV System v1.4 6-node Storage Kit (Rackmount Based)



HPE NFV System v1.4 12 node Storage Kit (Rackmount Based)

Total Compute CPU Cores



72-1152

 576



N/A



N/A

Available Shared Storage for VSA

N/A

N/A

10-101 TB

21 -202 TB

 Available Shared Storage for CEPH

N/A

N/A

6-68 TB

13- 136 TB



Total Data Throughput (Active -Active)

80-1280 Gbps

(20G NIC x 2 x #servers )

640 Gbps

(20G NIC x 2 x 16 servers)

N/A

N/A



How to Order

How to order HPE NFV System v1.4

Ordering Guidelines for HPE NFV System v1.4

The HPE NFV System can be ordered by your local account representative through the Watson/SBW tool. All the Kits listed in the table below are setup in the Watson/SBW tool. The Kits will come preinstalled with all the hardware, cabling, and software components.

Account teams will be required to fill out an online customer intent document (CID) to capture the relevant system configuration details. This CID information (IP addressing scheme, vlans, etc.) will be utilized to pre-configure the NFV System components as part of our automated install procedure in the factory. It is essential to have this step completed correctly as soon as the order is placed in order to ensure that order is processed by factory.

Customers will be delivered the NFV System pre-configured on-site to ensure easy integration into existing network environments.

The NFV System v1.4 Kits are listed below:

  • Starter Kits: Includes Control plane, Compute plane and Storage plane elements with associated networking
  • Compute Kits: Include Compute nodes only with associated networking
  • Storage Kits: Includes storage nodes only with associated networking

Starter Kits:

Enclosure (HPE C7000) based Starter Kits

  • AC 1 Enclosure Starter Kit
  • AC 2 Enclosure Starter Kit
  • DC 1 Enclosure Starter Kit
  • DC/NEBS 1 Enclosure Starter Kit

Rackmount Starter Kit

  • fixed configuration 16 compute servers

NOTE: For Enclosure Kits, user will prompted to configure required Compute Blade Servers (1-32).

Expansion Kits:

Compute Add-on Kits

  • AC 2 Enclosure Compute Kit
  • DC 2 Enclosure Compute Kit
  • DC/NEBS Enclosure Compute Kit
  • AC Rackmount Compute Kit

Storage Add-on Kits

  • AC/DC Storage Kits (VSA/Ceph) -  6node
  • AC/DC Storage Kits (VSA/Ceph) - 12 node
  • DC/NEBS Storage Kits (VSA/Ceph) - 6 node
  • DC/NEBS Storage Kits (VSA/Ceph) -12 node
  • 3PAR 8440 Storage Kits

 Blade Kit

  • Single BL460c G9 server with associated accessories and SW licenses

NOTE: NFV System 3PAR Storage Kit has to be ordered separately using 3PAR MENUS



How to order HPE NFV System:

Guidance: Please consult with regional HPE NFV Business Development Leads and/or HPE NFV System PLMs for assistance with orders for NFV System.

Order creation is initiated through the WATSON/SBW tool.

Step 1: Please select the NFV system v1.4 kit option from the Converged Systems selections.

Step 2: Ensure HPE TS Support lead in engaged to determine the right support services; including NFV Solution Support required for the order. TSS will be required to authorize the release of order, therefore engage early.

Step 3: Please select the Starter Kit configuration required - Enclosure based or Rackmount based.

Step 4: Choose power supply for the rack based on the onsite power configurations. Please refer to section xx for further details on options available with the

Step 5: Select the Virtual Infrastructure Management (VIM) solution required for configurations. Options with NFV System v1.4 are

  • HPE Helion Carrier Grade
  • HPE Red Hat OpenStack Platform

For HPE Helion Carrier Grade Option continue with Step 6a

For HPE Red Hat Openstack Platform continue with Step 6b

Step 6a: The HPE HCG option - select the HPE HCG Ceph Option for Storage on Starter Kit and select the number of drives and capacity required for storage cluster in the Starter Kit.

Recommendations:

Min: 5 x 1.2 TB/1.8 TB HDDs

Max: 10 x 1.2 TB/1.8 TB HDDs

Default (recommended):  10 x 1.2 TB HDDs

Step 7a: For Enclosure Starter Kit please select the number of enclosures required 1 or 2.

NOTE:

  • 1 enclosure starter kit system can accommodate up to 10 control servers for 500 compute node support
  • 2 enclosure starter kit system can accommodate up to 4 control servers for 200 compute node support

Step 8a: Choose the number of compute nodes anticipated for the deployments.

NOTE: Every 100 nodes requires additional HCG region hosted on 2 physical control servers.

Step 9a: Select if Centralized logging servers are required for this system

NOTE: These are 2 additional physical servers based on ELK mechanism that consolidates logs from the VIM and PIM components in the NFV system in a central location.

Continue with Step 10



For HPE Red Hat OpenStack Platform Option:

Step 6b: Choose the technology for storage cluster on the Starter Kit - choose between HPE VSA or HPE RedHat Ceph Solution. Select the number of drives and capacity required for storage cluster in the Starter Kit.

Recommendations for VSA and Ceph:

Min: 5 x 1.2 /1.8 TB HDDs

Max (Non-NEBS): 22 x 1.2/1.8 TB HDDs

Max (NEBS): 14 x 1.2/1.8 TB HDDs

Default (recommended): 12 x 1.2 TB HDDs

Step 7b: For Enclosure Starter Kit please select the number of enclosures required 1 or 2.

NOTE: In the case of Red Hat OpenStack platform we should anticipate

Step 8b: Select if Centralized logging servers are required for this system

NOTE: These are 2 additional physical servers based on ELK mechanism that consolidates logs from the VIM and PIM components in the NFV system in a central location.



Continue with Step 10



Step 10: In case of Enclosure Starter Kit, please select number of compute blades required.

NOTE: Rackmount starter kit comes with a fixed configuration of 16 servers

Step 11:  Choose the memory required for Compute nodes

Step 12: Verify and Submit order.

The Watson tool will require manual override from Technology Services team to add in the appropriate service SKU for your NFV System. Please engage with your regional TS contact to select the appropriate services.

Uplinks to datacenter network: The kits do not include uplink cables/transceivers. Please order these separately depending on the site requirements. For additional information please refer to the links below.

HPE 5950 Switch QuickSpecs (for Starter / Compute Kits) :

https://www.hpe.com/h20195/v2/GetPDF.aspx/c05051989.pdf

HPE 5940 Switch QuickSpecs (for VSA Storage Kits) :

https://www.hpe.com/h20195/v2/GetPDF.aspx/c05158726.pdf

Factory Express

Service



With all HPE NFV v1.4 Kits, the following services are included by default as part of the Factory Express Service:

  • Factory services to rack, cable and configure the infrastructure
  • Install, activate, and configure firmware & software for the entire solution being purchased.
  • Coordinate hand-off to onsite network integration teams



HPE NFV System implementation Service (onsite), plus additional services

In addition HPE recommends additional Technical Services for complex integration or implementation services and HPE Education Services (for customer training and education)



For additional information, please contact your HPE sales team.







Warranty & Support

Warranty services

The HPE NFV System includes the standard warranty of the individual Hewlett Packard Enterprise hardware and software components from the Hewlett Packard Enterprise portfolio.



Minimum warranty terms:

  • HPE NFV System hardware: All components of the Hewlett Packard Enterprise System hardware will have a minimum warranty for period of one year for all the hardware components in the system.
  • HPE NFV System software: All component of Hewlett Packard Enterprise System software will have a 90-day limited warranty.

- The Hewlett Packard Enterprise branded software materially conforms to its specifications, if any, and is free of malware at the time of delivery. If you notify Hewlett Packard Enterprise within 90 days of delivery of non-conformance to this warranty, Hewlett Packard Enterprise will replace your copy.



Hewlett Packard Enterprise does not warrant that the operation of software will be uninterrupted or error free, or that software will operate in hardware and software combinations other than as authorized by Hewlett Packard Enterprise in the Supporting Material. To the extent permitted by law, Hewlett Packard Enterprise disclaims all other warranties.

The hardware warranty support provided for HPE NFV System v1.4 Kits is three-year parts and onsite with a targeted response time of 1 business day. Software warranty is based on the software components ordered as part of the system as follows:



  • HPE OneView - Three-years 24x7 support and updates with two-hour response
  • HPE Helion OpenStack Carrier Grade and Ceph - Three-years 24x7 support and updates with two-hour response
  • Red Hat OpenStack Platform and Ceph - Three years 24x7 Support
  • HPE VSA - Three-years 24x7 support and updates with two-hour response.
  • HPE 3PAR - Three-years 24x7 support and updates with two-hour response.



The HPE NFV System v1.4 Kit is covered by a global limited warranty and supported by HPE Services. Hardware diagnostic support and repair is available for three-years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee.



HPE NFV System Support

In addition to the standard warranty included with the HPE NFV System v1.4 Kits, Hewlett Packard Enterprise offers “uplift” HPE Support Packs and contractual services that extend and enhance the warranty service period to support the entire system.



Recommended services for the HPE NFV System v1.4 kits are Hewlett Packard Enterprise’s 3 or 5year Foundation Care CTR Service, which provides a six-hour Call to Repair onsite service for all hardware components, and Foundation Care 24x7 Service for software components that includes a two-hour response.

  • For true Solutions Support service, Hewlett Packard Enterprise highly recommends the NFV Solution Support service, which provides 24x7 hardware and software support delivered by a dedicated support team with enhanced call handling and response times and additional proactive services, including an assigned account team. Contact HPE Services for further details on NFV Solution Support services.





Technical Specification

NFV Systems Kits are qualified with the following PDUs.

Americas and Japan

SKU

HP 8.3kVA 208V 36out NA bPDU

P9Q48A

NOTE: Single phase maximum current :40A



HP 8.6kVA 208V 3Ph 30out NA/JP bPDU

P9Q53A

NOTE:  3 phase maximum current :24A







EMEA, APJ (excluding Japan) and China



HP 11kVA 230V 36out Intl bPDU

P9Q50A

NOTE: Single phase maximum current: 48A



HP 11kVA 400V 3Ph 30out INTL bPDU

P9Q58A

NOTE: 3 phase maximum current: 16A per phase





The regional selection is based on country of shipment in the Watson tool. Single phase versus 3 phase PDUs can be selected via Watson at the time of ordering.



For more information about HPE bPDU, see

http://www8.hp.com/us/en/products/pdu/product-detail.html?oid=5368848#!tab=features





Power Consumption - AC Kits





HPE NFV System v1.4 Starter Kit (Enclosure Based) 1E-16Node



HPE NFV System v1.4 Starter Kit (Enclosure Based) 2E-32Node



HPE NFV System v1.4 Rackmount Starter Kit (Rack Mount)



Total U’s

42

42

42

U’s Used

24

34

30

Total System VA Rating

10843 VA

17109 VA

11297 VA

Total System BTU HR

36463 BTU

57401 BTU

38377 BTU

Utilization Input Power

10693 W

16833 W

11254 W

Idle Input Power

4084 W

6473 W

4097 W

Max Load Input Power

11764 W

18976 W

11254 W

System weight (Kg)

510 Kg

730 Kg

560 Kg

System weight (lbs)

1125 lbs

1608 lbs

1234 lbs







HPE NFV System v1.4 Enclosure Compute Kit



HPE NFV System v1.4 Rackmount Compute Kit



HPE NFV System v1.4 Storage Kit



HPE NFV System v1.4 3PAR Storage Kit



Total U’s

42

42

42

42

U’s Used

22

18

26

7

VA Rating

13606 VA

7794 VA

6597 VA

2860 VA

BTU HR

45524 BTU

26500 BTU

22439 BTU

4761 BTU

Utilization Input Power

13350 W

7771 W

3762.07W

1256 W

Idle Input Power

5094 W

2718 W

3022 W

1172 W

Max Load Input Power

15493 W

7771W

6580 W

1395 W

System weight (Kg)

585 Kg

415 Kg

324 Kg

178 Kg

System weight (lbs)

1289 lbs

915 lbs

713 lbs

392 lbs



Power Consumption - DC Kits



HPE NFV System v1.4 Enclosure Starter Kit

HPE NFV System v1.4 Enclosure Compute Kit

HPE NFV System v1.4 VSA Storage Kit

Total U’s

36

36

36

U’s Used

28

26

30

VA Rating

11218 VA

13014 VA

6711 VA

BTU HR

38254  BTU

44378 BTU

22886 BTU

Utilization Input Power

11218 W

13014 W

6711 W

Idle Input Power

4317 W

5212 W

3098 W

Max Load Input Power

12301 W

15905 W

6711 W

System weight

(Kg)

510 Kg

580 Kg

324 Kg

System weight

(lbs)

1125 lbs

1278 lbs

713 lbs



Environmental-friendly products and approach

End-of-life management and recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/recycle. To recycle your product, please go to: http://www.hpe.com/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.





Summary of Changes

Date

Version History

Action

Description of Change



17-Jul-2017

From Version 12 to 13

Changed

Changes made to the How to Order, Product Features and Blade Kits Sections



05-Jun-2017

From Version 11 to 12

Changed

Changes made throughout the QuickSpecs



03-Apr-2017

From Version 10 to 11

Changed

Changes made to the entire document



27-Mar-2017

From Version 9 to 10

Changed

Changes made to the entire document



28-Nov-2016

From Version 8 to 9

Changed

Changes made to all sections



21-Oct-2016

From Version 7 to 8

Changed

Changes made to the table on page 2.



07-Oct-2016

From version 6 to 7

Changed

Changed made to the Overview Section



26-Sept-2016

From Version 5 to 6

Changed

Changes made to the entire document



05-Aug-2016

From Version 4 to 5

Changed

Changed made to the Standard Features Section



15-Apr-2016

From Version 3 to 4

Changed

Changes made to the entire document



31-Mar-2016

From Version 2 to 3

Changed

Changes made to the entire document



15-Jan-2016

From Version 1 to 2

Changed

Content Updated



17-Feb-2016

Version 1

Created

Document Created















Sign up for updates







© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



Microsoft and Windows are US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.



AMD OpteronTM is a US registered trademark of AMD Corporation.



c04630405 - 15260 - Worldwide  - V13 - 17-July-2017
