HPE Helion CloudSystem built on ConvergedSystem 700x

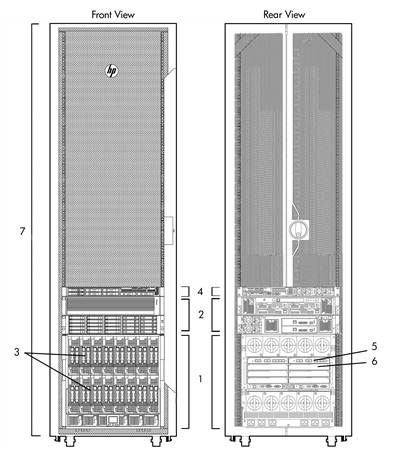

Starter Kit

1.

HPE BladeSystem c7000 enclosure, single phase

2.

Shown above with HPE 3PAR StoreServ 7200 Storage. HPE Fibre Channels SAN supported include3PAR F-Series, T-Series, P10000 and 3PAR StoreServ 7000, 8000, 10000 and 20000

3.

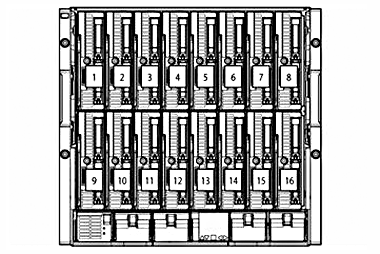

16 half-height device bays available for populating with server blades

4.

Central Management Server (CMS)
HPE ProLiant DL360 Gen9 server (recommended CMS)

5.

HPE Virtual Connect FlexFabric modules (redundant pair)

6.

Interconnect bays 3 & 4 available for additional HPE Virtual Connect FlexFabric modules (redundant pair)

7.

7. HPE Intelligent Series rack, and rack and power options
NOTE: Rack is not included with the CloudSystem Starter Kit

Software and Services (not shown in picture)

1.

Onsite HPE Helion CloudSystem  Solution Installation and Startup  Service

2

HPE Helion CloudSystem Enterprise or HPE Helion CloudSystem Foundation software

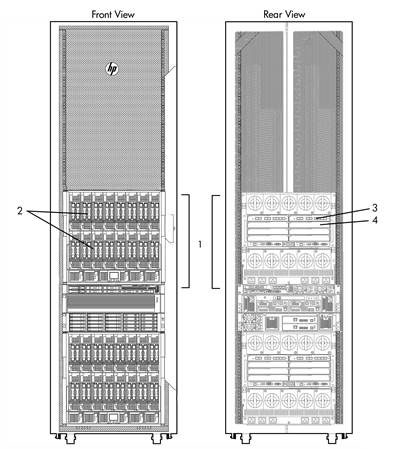

Expansion Kit

1.

HPE BladeSystem c7000 enclosure, single phase

2.

16 half-height device bays available for populating with server blades

3.

HPE Virtual Connect FlexFabric modules (redundant pair)

4.

Interconnect bays 3 & 4 available for additional HPE Virtual Connect FlexFabric modules (redundant pair)

Software and Services (not shown in picture)

1.

Onsite CloudSystem Expansion Kit Implementation Service (for Expansion Kit orders purchased after an initial CloudSystem environment is implemented)

2

HPE Helion CloudSystem Enterprise or HPE Helion CloudSystem Foundation software

Product Features

HPE Helion CloudSystem is the industry's most complete, fully-integrated, end-to-end private cloud solution, delivering automation, orchestration and control, across multiple clouds. Depending on where you are on your cloud journey HPE Helion CloudSystem built on ConvergedSystem 700x offers different cloud software options to address your specific needs from simple to advanced infrastructure cloud services as well as application cloud services along with lifecycle management. Here are the different CloudSystem software options:

HPE Helion CloudSystem Foundation software:

HPE Helion CloudSystem Foundation software is cloud management software designed to deliver core infrastructure services.

• Provision core infrastructure services within minutes, powered by HPE's enterprise-grade OpenStack® technology
• Now built on HPE Helion OpenStack 3.0 version, which utilizes the Liberty OpenStack release.  All OpenStack projects are now exposed by HPE Helion CloudSystem Foundation, as well as all associated API's, for a robust cloud infrastructure management environment.
• Deploy a fast and easy installation via software appliance delivery model
• Manage complex heterogeneous and ever changing datacenter compute node environments through support for Microsoft Hyper-V, VMware ESXi, HPE Linux KVM, and Red Hat KVM hypervisors
• Improved separation of usage by different groups and services through support for availability zones and host aggregation
• Ability to seamlessly upgrade to HPE Helion CloudSystem Enterprise software
• Offers users the rights to use HPE Helion Stackato within the CloudSystem solution.

HPE Helion CloudSystem Enterprise software

HPE Helion CloudSystem Enterprise software is cloud management software designed to deliver advanced infrastructure services, as well as platform and application services.

• Provision advanced infrastructure and application services for multi-tier architectures in minutes
• Provide marketplace portal and full topological designer interfaces through integrated HPE Cloud Service Automation (CSA) and HPE Operations Orchestration (OO)

• Manage multiple OpenStack®-based  resource pools across geographies and data centers
• Implement capacity planning, disaster recovery and bursting to public clouds
• Provide enterprise-class lifecycle management for hybrid cloud services

HPE Helion CloudSystem Enterprise software includes HPE Helion CloudSystem Foundation software and HPE Matrix Operating Environment as resource providers as well as the CloudSystem Enterprise appliance with HPE Cloud Server Automation (CSA) and HPE Operations Orchestration (OO) for advanced infrastructure services.

The platform and application services with lifecycle management are delivered through an optional HPE Helion CloudSystem Enterprise add-on package (not covered in this document).

HPE Helion CloudSystem Enterprise software supports a variety of different hypervisors, such as VMware ESXi, Microsoft Hyper-V, HPE Linux KVM, and Red Hat KVM, as well as HPE and non-Hewlett Packard Enterprise infrastructure. For a detailed overview of supported components, please compare the HPE CloudSystem compatibility web site.

For more information above HPE Helion CloudSystem information, see: http://www.hpe.com/info/cloudsystem
For more information about HPE BladeSystem, see: http://www.hpe.com/info/bladesystem
For more information about HPE OneView, see: http://www.hpe.com/info/oneview
For more information about HPE Insight software, see: http://www.hpe.com/info/insightmanagement
For more information about HPE Virtual Connect, see: http://www.hpe.com/info/virtualconnect
For more information about HPE Storage, see: http://www.hpe.com/info/storage
For more information about Factory Express, see: http:www.hpe.com/info/factoryexpress

How to order HPE Helion CloudSystem built on ConvergedSystem 700x

Ordering HPE Helion CloudSystem built on ConvergedSystem 700x

The method for purchasing HPE Helion CloudSystem built on ConvergedSystem 700x is simple. Start by ordering a HPE Helion CloudSystem built on ConvergedSystem 700x Starter Kit, which contains the infrastructure needed for a fully-working environment supporting up to 16 HPE ProLiant half-height server blades. Add additional kits now or in the future to expand your HPE Helion CloudSystem built on ConvergedSystem 700x infrastructure with additional infrastructure and blades. The central management server (CMS) or Management Server host implemented with the first kit simply extends its domain to manage additional infrastructure that might be added with additional CloudSystem kits.

NOTE: Additional expansion kits may also be purchased separately. Expansion kits ordered separately will come with the CloudSystem Expansion Kit Integration Implementation Service.
NOTE: Additional expansion kits purchased must be co-located with the initial kit to which they are connecting to.
NOTE: For detailed ordering information please see the Configuration Information Factory Integrated Models section of this QuickSpecs.

With all HPE Helion CloudSystem built on ConvergedSystem 700x kit orders, the following services are included:

• Factory services to default configure, rack, and cable the infrastructure in a rack
• Verify and update firmware for the entire solution being purchased (the CloudSystem built on ConvergedSystem 700x kits and the supported blades and options purchased with those kits) to the latest current HPE CloudSystem built on ConvergedSystem 700x firmware release set. This ensures that the HPE CloudSystem built on ConvergedSystem 700x solution will leave the factory with the right levels of firmware needed for the end to end solution to be successful. (For specific version numbers supported and required, please refer to the HPE CloudSystem built on ConvergedSystem 700x Compatibility Chart on http://www.hpe.com/info/cloudsystem/solution/docs
• Coordinate hand-off to Technology Services (TS) or authorized partner. A TS or partner project manager is assigned for managing pre-engagement and assigning a team of engineers to perform the implementation service at the customer's site.

While Factory Integration/Factory Express are building the HPE Helion CloudSystem built on ConvergedSystem 700x environment for a given customer, an assigned project manager from Technology Services (TS) will begin managing a team of TS engineers to start planning the rollout of the implementation service, including engaging with the customer on environmental requirements and related details. TS engineers will start the actual implementation on the HPE CloudSystem built on ConvergedSystem 700x equipment as soon as possible after its arrival date at the customer site.

The Technology Services CloudSystem Starter Kit Implementation Service is detailed in a section below.

HPE Helion CloudSystem Starter Kit Implementation Service (onsite), plus additional services

In addition to the HPE Helion CloudSystem Solution Installation and Startup Service, HPE highly recommends HPE Education Services (for customer training and education) and additional Technical Services, as well as in-depth installation or implementation services as needed. These recommended services are listed in the "HPE Pointnext operational services" section later in this document. The onsite HPE Helion CloudSystem Solution Installation and Startup Service consists of these steps:

• Upon delivery to customers site, unpack and inspect for damages
• Integrate kits (included in the initial kit order, maximum of 5 total CloudSystem built on ConvergedSystem 700x kits. Additional CloudSystem expansion kits on same order require CloudSystem Expansion Kit Implementation Service) hardware in to customers environment, power, network cabling
• Installation and configuration of the central management server (CMS)

- Installation and configuration of the software required for management

• Deployment of operating systems to configured LUNs on the optionally purchased 3PAR or other HPE SAN or an existing SAN

- 1 HPE server blade running a native OS of the customer's choice (Windows, Linux) on a boot LUN

- 2 HPE server blades each running a single hypervisor of the customer's choice (VMware ESX, Microsoft Hyper-V or KVM), each on their own boot LUN (hypervisor licenses are customer provided unless purchased from HPE as part of the order)

NOTE: Installing Matrix from within HPE CloudSystem Enterprise requires the HPE Implementation service for the CloudSystem Matrix Starter Kit in place of the HPE CloudSystem Installation and Startup Services.

NOTE: Installing both Matrix and CloudSystem from HPE CloudSystem Enterprise requires the HPE Implementation service for the CloudSystem Matrix Starter Kit in place of the HPE CloudSystem Installation and Startup Services and in addition the HPE CloudSystem Enterprise Software Installation and Startup Services are needed.



NOTE: Installation and deployment of KVM requires additional service credits. See section on Ordering CloudSystem.

ú Configuration of up to 2 VMs

- 1 HPE server blade installed and configured to be a target for a blade move

• Configure up to two physical target server operating systems to boot from SAN

- Orientation of the CloudSystem solution

- Navigation through installed components and all management software

- Review of the configured hardware components and their configuration

- Review of the completed system topology

- How to call HPE for support

- Availability of additional services, educational services, etc. See: http://www.hp.com/services/insight and http://www.hp.com/learn/proliant and http://www.hpe.com/info/oneview

HPE CloudSystem Expansion Kit Integration Implementation Service (onsite)

Ordering additional HPE Helion CloudSystem built on ConvergedSystem 700x expansion kits after the initial CloudSystem starter kit order or installing more than 5 total kits during the initial installation, includes the CloudSystem Expansion Kit Integration Implementation Service. Each CloudSystem Expansion Kit Implementation Service will integrate up to four CloudSystem built on ConvergedSystem 700x expansion kits to an existing CloudSystem built on ConvergedSystem 700x customer environment (single CMS server). The onsite CloudSystem Expansion Kit Integration Implementation Service for the Expansion Kits consists of these steps:

• Upon delivery to customers site, unpack and inspect for damages
• Integrate HPE Helion CloudSystem built on ConvergedSystem 700x Expansion Kits hardware in to customers environment, power, network cabling

- Change the firmware versions to be compatible with the version requirements of the existing CloudSystem customer environment

• Configure up to one physical target server operating systems to boot from SAN
• Perform one of the CloudSystem demonstrations to verify the Expansion Kits integration is completed successfully.

Warranty services

The support provided for HPE Helion CloudSystem built on ConvergedSystem 700x uplifts the standard BladeSystem warranty to include 24x7 4hr onsite response for CS700x hardware and 2 hr response for software. HPE Helion CloudSystem built on ConvergedSystem 700x customers will have a system identifier that, when provided to the call center by the customer, routes the call to a specially trained team that can expertly support HPE CloudSystem built on ConvergedSystem 700x specifically as well as the necessary software and firmware revisions to support it.

The HPE CS700x for CloudSystem infrastructure is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee.

• Offered for HPE Helion CloudSystem built on ConvergedSystem 700x are "uplift" HPE Pointnext operational services options that extend warranty service period up to 4-, or 5- years across the entire hardware and software infrastructure from the following default included levels of warranty support:

- Platinum Enclosure: Three-year, 24x7 (4 hour response) parts and labor, on-site limited global warranty. Certain restrictions and exclusions apply

ú Platinum Enclosure options: fans, power supplies, Onboard Administrator, covered with the enclosure warranty

ú HPE Virtual Connect interconnects: 3 Year parts and labor, on-site regardless of the warranty period for the system in which they are installed

- HPE Insight software: 3 Year 24 x 7 Technical Support and Update Service

- HPE Storage Fibre Channel switches have a maximum warranty period of one (1) year regardless of the warranty period for the system in which they are installed

NOTE: For additional information, see: http://www.hpe.com/info/bladesystem and http://www.hp.com/services/insight.

HPE CloudSystem Support

HPE Helion CloudSystem Environment includes three years of 24 x 7 HPE Software Technical Support and Update Service. This service provides access to HPE technical resources for help in resolving software implementation or operations problems. The service also provides access to software updates and reference manuals either in electronic form or on physical media as they are made available from HPE.

With this service, HPE Helion CloudSystem users benefit from expedited problem resolution and proactive notification and delivery of software updates.

As part of your implementation service, HPE services personnel or your authorized provider will activate your HPE Software Technical Support and Update Service for CloudSystem at: http://www.hp.com/services/insight.

Your Service Agreement Identifier (SAID) will be delivered to you after registration. After you have received your SAID, you can go to the software update manager (SUM) web page to view your contract online and elect electronic delivery (in addition to standard media-based updates). For more information about this service, see: http://www.hp.com/services/insight.

Hewlett Packard Enterprise offers a number of software support services, many of which are provided to customers at no additional charge.

Join the Discussion at: http://community.hpe.com/

The HPE Support Forum is a community-based, user supported tool for HPE customers to participate in discussions amongst the customer community about Hewlett Packard Enterprise products. For discussions related to HPE Insight software, see the "Management Software and System Tools" area.

HPE Worldwide Customer Service contact numbers are available at:
http://www.hp.com/country/us/en/wwcontact.html.

HPE Financial Services

To support customers' transition, HPE Financial Services (HPFS) can help in a way that you may not have considered. HPFS can help you invest in your business while preserving precious capital.

For more information, contact your local HPE Financial Services Representative. In the United States, call 1-888-277-5942. In Canada, dial 1-800-HPE-LEASE. For more information please visit: http://www.hp.com/hpfinancialservices for links to HPE Financial Services around the world.

Factory Express Portfolio for Servers and Storage

For HPE Helion CloudSystem built on ConvergedSystem 700x, HPE Factory Express services are added if the 3PAR is purchased with the HPE Helion CloudSystem built on ConvergedSystem 700x Starter Kit. If other custom requirements or intents are required for a given customer's HPE CloudSystem built on ConvergedSystem 700x order, Factory Express capabilities may also be called upon. HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include: a wide array of servers and storage: HPE ProLiant servers, HPE ProLiant c-Class BladeSystem server blades, as well as the 3PAR storage products, rackable tape libraries and configurable network switches.

For more information on Factory Express services please contact your sales representative or go to: http://www.hpe.com/info/factoryexpress

Rack Airflow Requirements

HPE rack cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The HPE 10000 G2 Series racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

NOTE: For operation with the DC Input Module the HPE 1200mm deep rack is required to allow DC power cabling to be installed

CAUTION: HPE Helion CloudSystem built on ConvergedSystem 700x infrastructures are best fulfilled with HPE racks. However, if a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

• Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of holes evenly distributed from top to bottom to permit adequate airflow (equivalent to a required 64 percent open area for ventilation).
• The clearance from face of rack to inside of the front door needs to be a minimum of 1.75".
• Side: The clearance between the installed rack component and the side panels of the rack needs to be a minimum of 2.75 inches (7 cm).
• Depth: a minimum of 39.4 inches (1000mm) for AC power, 47 inches (1200mm) for DC power input
• Adjustable rack rails are shipped with each enclosure:

- Minimum rail length: 25 inches (635mm)

- Maximum rail length: 34 inches (864mm)

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.

Configuration Information Factory Integrated Models - HPE Helion CloudSystem built on ConvergedSystem 700x - Starter Kit

NOTE: This section lists the required steps for ordering a HPE CloudSystem built on ConvergedSystem 700x.

NOTE: To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator or contact your local sales representative for additional information on product offerings and requirements.
NOTE: FIO indicates that this option is a Factory Integrated Option.

Step 1: Select HPE Intelligent Series Rack (Recommended, per notes immediately below)
NOTE: For additional HPE Rack information please visit: http://h18004.www1.hp.com/products/servers/proliantstorage/racks/intelligentseries/index.html
NOTE: For additional Rack Options please see the "Additional Options" section of this QuickSpecs.
NOTE: The CloudSystem built on ConvergedSystem 700x Starter Kit is recommended to be ordered with an HPE rack. When not ordering with a rack, it is necessary for the customer to rack any CloudSystem built on ConvergedSystem 700x enclosures in a rack prior to HPE arriving onsite to complete the HPE CloudSystem Solution Installation and Startup Service. You may purchase the HPE Install c7000 Platinum Enclosure and Server Build Service to assist with onsite racking and cabling of HPE CloudSystem built on ConvergedSystem 700x enclosures into a rack. See the "HPE Pointnext operational services" section later in this document for the part numbers.

HPE Rack Series

HPE Intelligent Series racks

HPE 42U 600mm x 1075mm Enterprise Shock Rack

BW904A

HPE 42U 600mm x 1075mm Enterprise Pallet Rack

BW903A

HPE 42U 600mm x 1200mm Enterprise Shock Rack

BW908A

HPE 47U 600mm x 1075mm Enterprise Shock Rack

BW912A

HPE 47U 600mm x 1200mm Enterprise Shock Rack

BW914A

HPE 42U 600mm x 1200mm Enterprise Pallet Rack

BW907A

HPE 47U 600mm x 1075mm Enterprise Pallet Rack

BW911A

HPE 47U 600mm x 1200mm Enterprise Pallet Rack

BW913A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123237
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hpe.com/info/rackandpower.

Step 2: Select Required Configurable HPE CloudSystem Starter Kit (Choose one of the following from each list unless otherwise noted)

HPE Helion CloudSystem built on ConvergedSystem 700x Starter Kit

NOTE: Starter Kit default components means HPE ordering systems will default these selections when any unique HPE CloudSystem built on ConvergedSystem 700x part number is entered. The default selections can be changed to meet customer needs.

NOTE: The HPE Helion CloudSystem built on ConvergedSystem 700x Starter Kit does not include a central management server or CMS (see BladeSystem c-Class server blades section below for CMS server).

Hardware Components

HP CloudSystem Starter (CS700x) Kit

G6X21A

NOTE: The configurable starter kit can be defined as either Starter or Expansion Kit with applicable services applied appropriately when configured.

HPE Helion CloudSystem built on ConvergedSystem 700x Block (Hardware Components) includes:

• HPE BladeSystem c7000 Platinum enclosure and 10 fans
• HPE BladeSystem c7000 Onboard Administrator with KVM (keyboard, video, mouse) option, redundant pair

HPE Virtual Connect Option (required choice of one):

• HPE Virtual Connect FlexFabric 10Gb 24-port Module, redundant pair
• HPE Virtual Connect FlexFabric-20/40 F8 Module, redundant pair

c7000 Power Option (required choice of one):

• Single phase (QTY of 6)
• 3-Phase (QTY of 6)
• DC Power (QTY of 6)

HPE Helion CloudSystem software (required choice of one)

• HPE Helion CloudSystem 10 Foundation 8-server License, 3 year 24/7 support and updates - F9D68C
• HPE Helion CloudSystem 10 Foundation 16-server License, 3 year 24/7 support and updates - D4T97C
• HPE Helion CloudSystem 10 Enterprise 8-server License, 3 year 24/7 support and updates - F9D67C
• HPE Helion CloudSystem 10 Enterprise 16-server License, 3 year 24/7 support and updates - D4T98C

If the customers has ordered a HPE Helion CloudSystem built on ConvergedSystem 700x and wants to upgrade their software, they can order:

D4T99CAE

HPE CloudSystem 10 Enterprise 8-Server upgrade from Foundation E-LTU 3yr 24x7 Supp

D4U00CAE

HPE CloudSystem 10 Enterprise 16-Server upgrade from Foundation E-LTU 3yr 24x7 Supp

NOTE: Additional CloudSystem licenses may be purchased separately.
NOTE: See the HPE Helion CloudSystem QuickSpecs for additional information:
http://www.hpe.com/info/cloudsystem/solution/docs

NOTE: Following are the VC FlexFabric transceiver/SFP options.

HP BladeSystem c-Class 10Gb SFP+ LR Transceiver

455886-B21

HP BladeSystem c-Class 10Gb SFP+ LRM Transceiver

455889-B21

HP BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE 8Gb Shortwave B-series Fibre Channel 1 Pack SFP+ Transceiver

AJ716B

HPE 8Gb Long Wave B-series 10km Fibre Channel 1 Pack SFP+ Transceiver

AJ717A

HPE 8Gb Short Wave Fibre Channel SFP+ 1 Pack

AJ718A

Software Licenses

HPE Helion CloudSystem 10 Foundation 8-server 3yr Support LTU

F9D68C

HPE Helion CloudSystem 10 Foundation 16-server 3yr Support LTU

D4T97C

HPE Helion CloudSystem 10 Enterprise 8-server 3yr Support LTU

F9D67C

HPE Helion CloudSystem 10 Enterprise 16-server 3yr Support LTU

D4T98C

NOTE: One (1) entitlement order number is provided.

NOTE: HPE Helion CloudSystem Foundation software can be used to manage cloud services under per physical server licenses.

When purchased under a per physical server license, you may use the CloudSystem Foundation software to manage cloud services that run on the specified number of licensed physical servers. Your right to use CloudSystem Foundation Software may not be transferred from one licensed physical server to a new or replacement server.


NOTE: For each purchased license, a license entitlement certificate will be delivered. The license entitlement certificate contains information needed to register and redeem license activation key(s) online or via fax.

NOTE: HPE Helion CloudSystem Foundation software can be downloaded at: http://www.hp.com/go/cloudsystem/download

NOTE: HPE Helion CloudSystem Enterprise software can be used to manage cloud services under a per server license.

When purchased under a per server license, you may use the CloudSystem Enterprise software to manage cloud services that run on the specified maximum number of licensed physical servers. The right to use HPE Helion CloudSystem Enterprise software may not be transferred to a new or replacement server.


NOTE: For each purchased license, a license entitlement certificate will be delivered. The license entitlement certificate contains information needed to register and redeem license activation key(s) online or via fax.

NOTE: HPE Helion CloudSystem Enterprise software can be downloaded at: http://www.hpe.com/info/cloudsystem/download

Management Software Licenses and media

HPE OneView Upgrade from Insight Management including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y45AAE

HPE OneView including 3yr 24x7 without iLO Advanced Support Flexible Quantity E-LTU

HPE iLO Advanced including 3yr TS U E-LTU

P8B26AAE

E6U64ABE

NOTE: The right quantities of the OneView SKUs listed above are included by default in the HPE Helion CloudSystem built on ConvergedSystem 700x Ordering menu depending on the Helion CloudSystem software selection. The management software licenses come with or without iLO Advanced Software. If HPE CloudSystem Enterprise software is purchased, iLO Advanced Software is included and not needed with the HPE OneView package.

Implementation Service

HPE CloudSystem Solution Startup Service

H4W57E

HPE Helion CloudSystem Solution Installation and Startup Service, Flexible

HA115A1#5VC

NOTE: Includes the installation & configuration of any CloudSystem built on ConvergedSystem 700x Expansion Kit included in the order.

Management Server

HP CS700 2.0 Virtual Management Kit
NOTE: This is the default part number for the HPE Helion CloudSystem built on ConvergedSystem 700x central management server (CMS), to host the management software. It may be substituted with another server configured per notes below and per CMS sizing, scalability, and redundancy preferences.

L2G46A

HPE ProLiant DL360 Gen9 CMS server (PN L2G46A) is configured as follows:

• 256 GB of memory (16 x 16GB 2Rx4 PC4-2133P-R )
• Two (2) Intel® Xeon® E5-2680v3
• One (1) HPE 2GB Flash Backed Write Cache for P-Series Smart Array
• Eight (8) HPE 600GB 6G SAS 10K 2.5in SC Enterprise Hard Drive
• One (1) HPE DL360 Gen9 SFF DVD-RW/USB Kit
• One (1) HPE FlexFabric 10Gb 2P 556FLR-SFP+ Adptr
• One (1) HPE DL360 Gen9 SFF P440ar/H240ar SAS Cbl
• One (1) HPE Smart Array P440ar/2G FIO Controller
• One (1) HPE 82Q 8Gb Dual Port PCI-e FC HBA

NOTE: Considerations for Central Management Server (CMS) - choice of rack-mount or blade server: Hewlett Packard Enterprise offers a choice of rack-mounted ProLiant server (DL) as central management server host for HPE Helion CloudSystem . Hewlett Packard Enterprise recommends the rack-mounted ProLiant DL360 Gen9 as the CMS host (see configuration above) for those customers who desire to use all available and licensed enclosure blade bays for managed target blades and workloads. When multiple management server hosts are required for scalability and high availability or hosting partner management software, multiple ProLiant DL servers or server blades (or even a combination of blade or rack-mounted servers) can be installed and configured to work together to manage the CloudSystem environment.

This Management Server will be devoted to running the CloudSystem software, HPE OneView; other management software such as VMware vCenter Server should be installed on a separate server.

NOTE: Larger environments may warrant having multiple Management servers for these reasons: scalability, high availability of the management server and data, and separation of database or management components for performance or security access reasons.

NOTE: If the recommended HPE ProLiant DL360 Gen9 configuration above is not purchased, the customer agrees to supply or purchase other HPE ProLiant rack-mount server(s) or HPE ProLiant server blade(s) that meet the requirements.

Target server blades

NOTE: It is highly recommended that at least four (4) additional HPE ProLiant c-Class blades be ordered with each Starter Kit, because the Onsite Implementation Service includes provisioning of up to four (4) HPE ProLiant blades, two of which are directly provisioned as physical servers and two of which are virtual machine hosts. See separate section on "HPE Helion CloudSystem Solution Installation and Startup Service " for details. All shipping HPE ProLiant c-Class blades are supported except the HPE ProLiant BL2x220c server blades and workstation blades.
NOTE: For server blade information, please visit: http://www.hpe.com/info/qs

NOTE: HPE ProLiant server blades should be configured to connect via the Virtual Connect modules included in the CloudSystem built on ConvergedSystem 700x kits. See the sections below on FlexibleLOM and Mezzanine options for further details.

KVM Managed Hosts

CloudSystem supports KVM managed hosts on servers that are generally supported by CloudSystem. Specifically, they can be within CloudSystem built on ConvergedSystem 700x enclosures or ProLiant DL or SL servers. ProLiant blades must be housed in either the HPE Helion CloudSystem built on ConvergedSystem 700x Starter or Expansion Kit. The KVM managed hosts may be contained in the same enclosure as other non-KVM hypervisor hosts, or a separate enclosure.

HPE Interconnect Options

NOTE: The Virtual Connect interconnect modules that are built in to the CloudSystem built on ConvergedSystem 700x Starter and Expansion kits are not removable. Interconnect bays 3 and 4 are available for additional Virtual Connect (VC) FlexFabric modules in HPE Helion CloudSystem built on ConvergedSystem 700x with FlexFabric Starter and Expansion kits. Additional supported interconnected options may be added to the remaining available interconnect bays (bays 5/6 and 7/8).
NOTE: Mixing of Virtual Connect FlexFabric and non-FlexFabric legacy Virtual Connect modules is not permitted.
NOTE: For HPE BladeSystem c-Class Interconnect and Mezzanine Components please visit:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

Step 3: Select HPE Helion CloudSystem  Expansion Kits

HPE Helion CloudSystem  built on ConvergedSystem 700x Expansion Kit

NOTE: Add additional Expansion Kits as your HPE Helion CloudSystem built on ConvergedSystem 700x environments requires or on an as-needed basis.
NOTE: Expansion Kits purchased must be co-located with the Starter Kit(s) to which they are connecting.
NOTE: Add HPE server blades and other recommended options to the Expansion Kit as desired. Depending on quantity of Expansion Kits purchased, additional racks, storage arrays, and other options may also be warranted.
NOTE: Refer to the HPE Helion CloudSystem  compatibility chart at: http://www.hpe.com/info/cloudsystem/solution/docs for details on supported options, operating systems, etc.

Hardware plus software licenses

HP CloudSystem Expansion (CS700x) Kit

G6X22A

HPE ConvergedSystem 700x CloudSystem Expansion Block (Hardware Components) includes:

• HPE BladeSystem c7000 Platinum enclosure and 10 fans
• HPE BladeSystem c7000 Onboard Administrator with KVM option, redundant pair

HPE Virtual Connect Option (required):

• HPE Virtual Connect FlexFabric 10Gb 24-port Module, redundant pair
• HPE Virtual Connect FlexFabric-20/40 F8 Module, redundant pair

c7000 Power Option (required choice of one):

• Single phase (QTY of 6)
• 3-Phase (QTY of 6)
• DC Power (QTY of 6)

HPE Helion CloudSystem  Software (required choice of one)

HPE Helion CloudSystem 10 Foundation 8-server 3yr Support LTU

F9D68C

HPE Helion CloudSystem 10 Foundation 16-server 3yr Support LTU

D4T97C

HPE Helion CloudSystem 10 Enterprise 8-server 3yr Support LTU

F9D67C

HPE Helion CloudSystem 10 Enterprise 16-server 3yr Support LTU

D4T98C

NOTE: HPE Helion CloudSystem Enterprise software can be used to manage cloud services under a per server license.

NOTE: Following are the VC FlexFabric transceiver/SFP options.

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver

455886-B21

HPE BladeSystem c-Class 10Gb SFP+ LRM Transceiver

455889-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver

453154-B21

HPE 8Gb Shortwave B-series Fibre Channel 1 Pack SFP+ Transceiver

AJ716B

HPE 8Gb Long Wave B-series 10km Fibre Channel 1 Pack SFP+ Transceiver

AJ717A

HPE 8Gb Short Wave Fibre Channel SFP+ 1 Pack

AJ718A

HPE 4Gb Short Wave B-series Fibre Channel 1 Pack SFP Transceiver

AJ715A

HP 4Gb Long Wave B-series 30km Fibre Channel SFP Transceiver 1 Pack

AN211A

Implementation Service

HPE CloudSystem Matrix Expansion Kit Implementation Service

UU959E

HPE Helion CloudSystem  Expansion Kit - Implementation Service, Flexible

HA115A1-5P9

NOTE: The Expansion Kit Integration Implementation Service is required for any purchased Expansion Kit being added to an existing CloudSystem built on ConvergedSystem 700x environment. The Expansion Kit Integration Service supports the integration of up to four CloudSystem built on ConvergedSystem 700x Expansion Kits into the existing CloudSystem built on ConvergedSystem 700x environment.

NOTE: The Expansion Kit Integration Implementation Service is required for any purchased Expansion Kit being added to an existing CloudSystem built on ConvergedSystem 700x environment. The Expansion Kit Integration Service supports the integration of up to four CloudSystem built on ConvergedSystem 700x Expansion Kits into the existing CloudSystem built on ConvergedSystem 700x environment.

Step 4: Select Recommended options for HPE Helion CloudSystem  built on ConvergedSystem 700x Kits

NOTE: Supported options may be added to the Starter or Expansion Kit as desired.
NOTE: For additional options, please refer to the "Additional Options" section below. For additional blade enclosures, interconnect options, and power subsystem options, please refer to the following QuickSpecs:
HPE BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/QuickSpecs/12810_div/12810_div.html
and HPE BladeSystem c-Class Interconnect and Mezzanine Components:
http://www.hpe.com/info/cloudsystem/solution/docs

BladeSystem c-Class target server blades

HPE ProLiant server blades
NOTE: All shipping HPE ProLiant c-Class blades are supported except the HPE ProLiant BL2x220c server blades and workstation blades. For server blade information, please visit: http://www.hpe.com/info/qs

NOTE: It is highly recommended that at least four (4) additional HPE ProLiant c-Class blades be ordered with each Starter Kit, because the Onsite Implementation Service includes provisioning of up to four (4) HPE ProLiant blades, two of which are directly provisioned as physical servers and two of which are virtual machine hosts. See separate section on "HPE CloudSystem Solution Installation and Startup Service" for details.
NOTE: HPE ProLiant server blades should be configured to connect via the Virtual Connect modules included in the CloudSystem built on ConvergedSystem 700x kits. See the section below on Mezzanine options for further details.

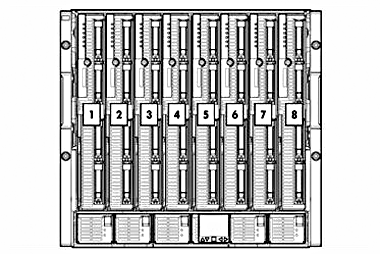

NOTE: The HPE BladeSystem c7000 Enclosure holds up to 16 half-height blades. Server blanks will be shipped in all empty bays.

Interconnect options

NOTE: The Virtual Connect interconnect modules that are built in to the Starter and Expansion kits are not removable. Interconnect bays 3 and 4 are available for additional Virtual Connect (VC) FlexFabric modules in HPE CloudSystem with FlexFabric Starter and Expansion kits. Additional supported interconnected options may be added to the remaining available interconnect bays (bays 5/6 and 7/8).
NOTE: For supported CloudSystem built on ConvergedSystem 700x interconnect options, see the Compatibility Chart at: http://www.hpe.com/info/cloudsystem/solution/docs.
NOTE: For HPE BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

HPE Networking

NOTE: For servers that require one FlexibleLOM to be installed in the FlexibleLOM connector. All FlexibleLOMs are dual port: One port is routed to interconnect module bay 1 and the other to bay 2. For supported CloudSystem FlexibleLOM options, see the Compatibility chart at: http://www.hpe.com/info/cloudsystem/solution/docs.

FlexibleLOM Adapters

HPE FlexFabric 10Gb 2-port 536FLB FIO Adapter

HPE FlexFabric 10Gb 2-port 554FLB FIO Adapter

766491-B21

684212-B21

HPE FlexFabric 20Gb 2-port 630FLB FIO Adapter

HPE FlexFabric 20Gb 2-port 650FLB FIO Adapter

700066-B21

700764-B21

Mezzanine Options

NOTE: For supported CloudSystem mezzanine options, see the Compatibility chart at http://www.hpe/info/cloudsystem/solution/docs

Converged Network Adapter Mezzanines

HP FlexFabric 10Gb 2-port 554M Adapter

647590-B21

HPE FlexFabric 20Gb 2-port 630M Adapter

HPE FlexFabric 20Gb 2-port 650M Adapter

700076-B21

700767-B21

NOTE: Required for each server blade connecting to a VC FlexFabric module in bays 3-4 (i.e. when a CloudSystem built on ConvergedSystem 700x with FlexFabric Starter or Expansion kit is purchased with additional FlexFabric modules).

Proactive Care options for CloudSystem built on ConvergedSystem 700x Starter and Expansion Kits

NOTE: HPE 3Yr Proactive Care is the base support included with a CloudSystem built on ConvergedSystem 700x For additional choices, select from one of the support offers below.

NOTE: 3yr, 4yr and 5yr Care Pack durations are available to match the software subscription durations of the licenses.

HPE Proactive Care - 3yr, 4yr or 5yr
HPE Proactive Care: Keep your systems stabilized and optimized to achieve a high level of appliance availability through a superior call experience with end-to-end case
management, advanced technical expertise, and proactive service management.
Customize your reactive support level by selecting either 6 hour call-to-repair or 24x7 with 4 hour onsite response.

HPE Proactive Care Advanced Support Option: To enhance your Proactive Care
experience, add the Proactive Care Advanced option. With this option, an assigned account services manager (ASM) will provide you personalized support. Operational and technical advice helps you meet your IT objectives. The work is guided through an agreed support plan and reviewed twice a year to enable alignment and proper focus on current and emerging issues.

5yr HPE Proactive Care Advanced 6hr CTR

5yr HPE Proactive Care 6hr CTR
4yr HPE Proactive Care Advanced 6hr CTR

4yr HPE Proactive Care 6hr CTR
3yr HPE Proactive Care Advanced 6hr CTR

3yr HPE Proactive Care 6hr CTR
5yr HPE Proactive Care Advanced 6hr CTR w/DMR

5yr HPE Proactive Care 6hr CTR w/DMR
4yr HPE Proactive Care Advanced 6hr CTR w/DMR

4yr HPE Proactive Care 6hr CTR w/DMR
3yr HPE Proactive Care Advanced 6hr CTR w/DMR

3yr HPE Proactive Care 6hr CTR w/DMR
5yr HPE Proactive Care Advanced 24x7

5yr HPE Proactive Care 24x7
4yr HPE Proactive Care Advanced 24x7

4yr HPE Proactive Care 24x7
3yr HPE Proactive Care Advanced 24x7

3yr HPE Proactive Care 24x7
5yr HPE Proactive Care Advanced 24x7 w/DMR

5yr HPE Proactive Care 24x7 w/DMR
4yr HPE Proactive Care Advanced 24x7 w/DMR

4yr HPE Proactive Care 24x7 w/DMR

3yr HPE Proactive Care Advanced 24x7 w/DMR
3yr HPE Proactive Care 24x7 w/DMR H1K93A3

H1K94A5 +
H8B37A5
H1K94A5
H1K94A4 +
H8B37A4
H1K94A4
H1K94A3+
H8B37A3
H1K94A3
H1K95A5 +
H8B38A5
H1K95A5
H1K95A4 +
H8B38A4
H1K95A4
H1K95A3 +
H8B38A3
H1K95A3
H1K92A5 +
H8B35A5
H1K92A5
H1K92A4 +
H8B35A4
H1K92A4
H1K92A3 +
H8B35A3
H1K92A3
H1K93A5 +
H8B36A5
H1K93A5
H1K93A4 +
H8B36A4
H1K93A4
H1K93A3 +
H8B36A3
H1K93A3

HPE Proactive Select - 3yr, 4yr or 5yr

NOTE: Proactive Select can be added to other support offers to provide an assigned
account support manager focused on technical and operational improvements specific
to your business environment.
NOTE: With HPE Proactive Select, you purchase credits that can be applied to any
proactive service from our extensive menu that spans the entire lifecycle of your IT
environment. For example, help with implementing a new technology, or proactive
notification of critical network service problems.
NOTE: Available in packages of service credits, redeem them as you go, choosing the
proactive services you need to fit your environment and critical IT and business goals.
NOTE: Care Pack Services for different duration and credit sizes are listed below.

HPE 3Y Proactive Select 30 credits SVC
HPE 3Y Proactive Select 90 credits SVC
HPE 3Y Proactive Select 180 credits SVC
HPE 3Y Proactive Select 540 credits SVC
HPE 3Y Add 10 Proactive Select Credit SVC
HPE 4Y Proactive Select 50 credits SVC
HPE 4Y Proactive Select 150 credits SVC
HPE 4Y Proactive Select 300 credits SVC
HPE 4Y Proactive Select 900 credits SVC
HPE 4Y Add 10 Proactive Select Credit SVC
HPE 5Y Proactive Select 50 credits SVC
HPE 5Y Proactive Select 150 credits SVC
HPE 5Y Proactive Select 300 credits SVC
HPE 5Y Proactive Select 900 credits SVC
HPE 5Y Add 10 Proactive Select Credit SVC

HK696A3
HG921A3
HG922A3
HG923A3
HG924A3
HK696A4
HG921A4
HG922A4
HG923A4
HG924A4
HK696A5
HG921A5
HG922A5
HG923A5
HG924A5

Hypervisor
Licensing

VMware vSphere Enterprise Plus licenses for CloudSystem
NOTE: Buy one per HPE Helion CloudSystem built on ConvergedSystem 700x Starter/Expansion kit (supports up to 32 processor sockets).

VMware vSphere Installation & Startup Enterprise Service, Flexible

HA124A1#5NS

HPE Startup Vmware Vsphere Enterprise Service

UK837E

VMware vCenter Server Standard for vSphere

VMware vCenter Standard for vSphere 1yr No Media License
NOTE: vCenter is licensed per instance (one needed per management domain).
NOTE: This does not include VMware vCenter for vSphere implementation services, which may be purchased separately.

571780-B21

VMware vSphere Enterprise Plus individual licenses, per processor socket

VMware vSphere Enterprise Plus 1P 1yr 9x5 No Media License
NOTE: Includes technical support and updates for 1 year. For more information, see: http://h18006.www1.hp.com/products/servers/software/vmware/index.html
NOTE: One instance of VMware vCenter Server (see below) is required to enable vSphere features such as VMware VMotion, VMware Distributed Resource Scheduler, and more.

571774-B21

Microsoft Windows Server 2008 with Hyper-V licenses

Windows Server 2008 Enterprise Edition OS Not Pre-Installed, FIO (includes 4 Hyper-V licenses)

468723-B21

Factory Express

HPE Rack Signal Cable Interconnect Service
NOTE: Required selection when storage or switching is Factory integrated in the same rack.

HA865A1

Step 5: Choose Additional Options for Factory Integration

Power Distribution Units

Modular PDUs 1U/0U (Up to 28 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks).

HPE Basic Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF511A

HPE Basic Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF518A

HPE Basic Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF512A

HPE Basic Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF513A

HPE Basic Modular 8.3kVA/CS8265C 40A/208V Outlets (4) C19/Horizontal NA/JP PDU

252663-D75

HPE Basic Modular 9.2kVA/60309 63A 3-wire 40A/230V Outlets (4) C19/Horizontal INTL PDU

252663-B34

HPE Basic Modular 7.3kVA/60309 3-wire 32A/230V Outlets (4) C19/Horizontal INTL Core Only PDU

252663-B33

HPE Basic Modular 4.9kVA/L6-30P 24A/208V Outlets (4) C19/Horizontal NA/JP Core Only PDU

252663-D74

NOTE: The Core Only Modular Power Distribution Unit Kits excludes the extension bars as they are not required with the HPE BladeSystem.

HPE Two C13 PDU Extension Bar

AF500A

NOTE: Each extension bar has a C19 input and 7 C13 receptacles. The option is ideal for model S348, and, model S332, which both have only C19 outlets (12) and for all Core Only Modular PDUs.

HPE PCI expansion blades

HPE BLc PCI Expansion Blade

448018-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123380
(Worldwide)

HPE BL c-Class PCI Express Mezzanine Pass Thru Option Kit

431643-B21

Signal Cables

Optical Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

NOTE: For VC Ethernet 10Gb uplinks
NOTE: For VC Fibre Channel uplinks
NOTE: For NC550SFP 10Gb dual port NIC uplinks in the CloudSystem CMS
NOTE: Optical transceivers/SFP+ must be purchased to connect these cables.

HPE 10Gb SFP+ cables

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 0.5m Direct Attach Copper Cable

487649-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable

487652-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable

487658-B21

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE ProLiant Inside/Datacenter Extra Large Logistic Service

AC133A

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HPE X244 10G XFP to SFP+ 1m Direct Attach Copper Cable

J9300A

HP 10G X244 XFP to SFP+ 3m Direct Attach Copper Cable

J9301A

HP 10G X244 XFP to SFP+ 5m Direct Attach Copper Cable

J9302A

HPE B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable

AP818A

HPE B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable

AP819A

HPE B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

AP820A

NOTE: For VC stacking between enclosures. 2 short links per Expansion kit, and 2 long links per CloudSystem rack (i.e. VC domain) is recommended.

NOTE: For VC Ethernet module uplinks (if Ethernet switch supports this uplink)
NOTE: For NC550SFP 10Gb dual port NIC uplinks in the CloudSystem CMS (if Ethernet switch supports this uplink)

1Gb Ethernet (CAT5e) cables

HPE 1.2m/4ft CAT5 RJ45 M/M Ethernet Cable

C7533A

HPE RJ45 to RJ45 Cat5e Black M/M 7.6ft 1-pack Data Cable

C7535A

HPE 4.3m/14ft CAT5 RJ45 M/M Ethernet Cable

C7536A

HPE 7.6m/25ft CAT5 RJ45 M/M Ethernet Cable

C7537A

HPE 15.2m/50ft CAT5 RJ45 M/M Ethernet Cable
NOTE:NOTE: For OA/iLO port uplinks to Ethernet switch (2 for each BladeSystem c7000 Enclosure, 1 for each CloudSystem CMS SKU or HPE ProLiant DL server)

C7542A

NOTE: For OA enclosure linking (1 short link per Expansion Kit recommended).
NOTE: For OA/iLO port uplinks to Ethernet switch (2 for each BladeSystem c7000 Enclosure, 1 for each CloudSystem CMS SKU or HPE ProLiant DL server).
NOTE: For 1Gb NIC uplinks to CloudSystem CMS SKU (optional, up to 4).
NOTE: For iSCSI device uplinks when present.

Power cords

HPE C19 - C20 Jumper Cords
NOTE: Default power cord is a 6ft IEC C19 - C20 cord

HPE 2.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK738A

HPE 2.0m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK739A

HPE 2.5m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK740A

HPE 2.5m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK741A

HPE 3.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK742A

HPE 3.0m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK743A

HPE 1.37m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK744A

HPE 1.37m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK745A

HPE HV Power Cords 200 - 240V AC

HPE C19 - Nema 5-15 US/CA 125V 15Amp 3.6m Power Cord

235603-001

HPE 12ft 20A 250V Nema 6-20P/IEC320-C19 Power Cord

235604-001

HPE C19 - C20 WW 250V 16Amp 2.5m Jumper Cord

295633-B22

HPE C19 - BS-1363/A UK/HK/SG 250V 13Amp  3.6m Power Cord

359615-031

HPE C19 - JIS C8303 JP 100V 12Amp 3.6m Power Cord

391222-291

HPE C19 -Nema L6-30P US/CA 250V 16Amp 4.5m Power Cord

E7805A

HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord

AF593A

HPE C19 - NBR-14136 BR 250V 16Amp 2.5m Power Cord

AF592A

HPE C19 - CEE-VII EU 250V 16Amp 3.6m Power Cord

AF576A

HPE C19 - AS3112-3 AU/NZ 250V 15Amp 3.6m Power Cord

AF577A

HPE C19 - SABS-164 ZA 250V 16Amp 3.6m Power Cord

AF579A

HPE C19 - CEI-23-50 IT/CL 250V 16Amp 3.6m Power Cord

AF580A

HPE C19 - IEC-309 DK/SE/AR 250V 16Amp 3.6m Power Cord

AF581A

HPE C19 - IS-1293 IN/PK/BD 250V 16Amp 2.5m Power Cord

AF582A

HPE C19 - ISI-32 IL 250V 16Amp 2.5m Power Cord

AF583A

HPE C19 - GB-1002 CN 250V 16Amp 2.5m Power Cord

AF584A

HPE C19 - CNS-690 TW 250V 16Amp 2.5m Power Cord

AF585A

HP C19 - Nema 5-15P TH-PH 125V 15Amp 3.6m Power Cord

AF586A

HPE C19 - NBR-14136 BR 250V 16Amp 2.5m Power Cord

AF592A

HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord

AF593A

HPE C19 - Nema 5-20P US/CA 125V 20Amp 4.5m Power Cord

E7802A

HPE C19 - C20 WW 250V 16Amp 4.5m Jumper Cord

E7804A

HPE 240 VAC 4.5M Unterminated End NA Power CordHP C19 - CNS-690 TW 250V 16Amp 2.5m Power Cord

E7806AAF585A

HPE Rack Mounted R5500 UPS (single-phase)

HPE 240 VAC 4.5M Unterminated End NA Power Cord

E7806A

HPE Rack Mounted R8000 UPS (3-phase UPS)

HPE R8000/3 8000kVA Three Phase NA 6U Rackmount Uninterruptible Power System

AF431A

HPE R8000/3 8000kVA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF432A

HPE Rack Mounted R12000 UPS (3-phase UPS)

HPE R12000/3 12000VA Three Phase NA 6U Rackmount Uninterruptible Power System

AF429A

HPE R12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF430A

NOTE: For more information on the HPE 3-Phase UPS products please consult the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123376
(Worldwide)

HPE Rack Series

HPE Intelligent Series Rack

HPE 42U 600mm x 1075mm Enterprise Shock Rack

BW904A

HPE 42U 600mm x 1075mm Enterprise Pallet Rack

BW903A

HPE 42U 600mm x 1200mm Enterprise Shock Rack

BW908A

HPE 47U 600mm x 1075mm Enterprise Shock Rack

BW912A

HPE 47U 600mm x 1200mm Enterprise Shock Rack

BW914A

HPE 42U 600mm x 1200mm Enterprise Pallet Rack

BW907A

HPE 47U 600mm x 1075mm Enterprise Pallet Rack

BW911A

HPE 47U 600mm x 1200mm Enterprise Pallet Rack

BW913A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123237
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HPE Rack Options

HPE KVM Switch Options

HP BladeSystem c-Class KVM Interface Adapter

AF605A

HP KVM CAT5 1-pack PS/2 Interface Adapter

262588-B21

NOTE: Cat5e cables are required to connect Interface Adapters to Consoles Switches. Cat52 cables can be found at the following URL: http://www.hp.com/go/kvm

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x4 KVM Console 6ft PS2 Cable

AF612A

HP 1x4 KVM Console 6ft USB Cable
NOTE: required for supporting USB peripherals.

AF613A

NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm

NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.

NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Rack options for HPE 10000 G2 Series racks

HP 10K G2 600W Heavy Duty Graphite Stabilizer Kit

AF064A

Rack options for HPE Intelligent Series racks

HPE Rack Grounding Kit

BW891A

HPE Rack Baying Kit

BW902A

HP 42U 1075mm Side Panel Kit

BW906A

HPE 600mm Rack Tie Down Kit

BW926A

HPE 600mm Rack Stabilizer Kit

BW932A

HPE 42U Front Door Kit

BW934A

HPE Quarter Turn Hook and Loop 10 Pack Kit

BW963A

HPE Quarter Turn Hook and Loop 100 Pack Kit

BW964A

Rack options for HPE Intelligent Series racks

HPE Rack Grounding Kit

BW891A

HPE Rack Baying Kit

BW902A

HPE 600mm Rack Tie Down Kit

BW926A

HPE 600mm Rack Stabilizer Kit

BW932A

HPE 42U Front Door Kit

BW934A

HPE Quarter Turn Hook and Loop 10 Pack Kit

BW963A

HPE Quarter Turn Hook and Loop 100 Pack Kit

BW964A

NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hpe.com/info/rackandpower.

Infrastructure Software On-site Services

HPE Hardware Install c-Class Enclosure and Server Blade Service

UE494E

NOTE: This is recommended to assist with onsite racking and cabling of CloudSystem enclosures into a rack, particularly when CloudSystem kits are purchased without a rack.

HPE Install c7000 Enclosure and Server Build Service, Flexible

HA113A1#5FY

NOTE: This is recommended to assist with onsite racking and cabling of CloudSystem enclosures into a rack, particularly when CloudSystem kits are purchased without a rack.

HPE Additional Technical Assistance

HA334A1

NOTE: This service provides the capability to customize tasks and activities including assistance with design, implementation, migration, and project management.

HPE Education Services Training Credits

NOTE: Hewlett Packard Enterprise recommends the client purchase the optional 13 education credits (SKU# HF385E or HF385A1) found on every CloudSystem quote.

One unit of HF385E/HF385A1 HPE Education Training Credit will cover one day of training per student. Specific training recommendations for a given client will vary depending on the customer's existing knowledge and experience. Adjust the quantity of Education Training Credits -as needed.

Select HPE Helion CloudSystem training from the list below:

WW HPE Education Curriculum map at http://h10076.www1.hp.com/education/curr-helion-cloudsystem.html

Half-height server blade bay numbering

1. Device Bay 1

9. Device Bay 9

2. Device Bay 2

10. Device Bay 10

3. Device Bay 3

11. Device Bay 11

4. Device Bay 4

12. Device Bay 12

5. Device Bay 5

13. Device Bay 13

6. Device Bay 6

14. Device Bay 14

7. Device Bay 7

15. Device Bay 15

8. Device Bay 8

16. Device Bay 16

NOTE: Half-height servers should be populated from top and bottom from left to right (looking at the front of the enclosure). So the first two half-height servers would be placed in bays 1 & 9 the second two half-height servers would be placed in bays 2 & 10 and so on until the enclosure is full.

Full-height server blade bay numbering

1. Device Bay 1

5. Device Bay 5

2. Device Bay 2

6. Device Bay 6

3. Device Bay 3

7. Device Bay 7

4. Device Bay 4

8. Device Bay 8

NOTE: Full-height servers should be populated from left to right.

Mixed Configuration - Full Height and Half-Height Population rules

The BladeSystem c7000 enclosure is divided into 4 zones by the vertical support metalwork. Within each zone a removable divider is used to support half height devices. To install a full-height blade in any zone this divider must be removed. As a consequence a zone can only contain either full-height server blades or half-height server blades.
NOTE: Storage blades and tape blades can be installed in the same zone as both full-height and half-height server blades, a bracket ships with each SB40c tape blade that allows a half-height blade to be mounted on top of the tape blade.
NOTE: The lower tape or storage blade cannot be removed without first removing the upper half-height blade.

HPE BladeSystem
c7000 enclosure

Dimensions

Height

17.4 in (442 mm)

Width

17.6 in (447.04 mm)

Depth

32 in (813 mm)

Shipping dimensions

Height

29.88 in (759 mm)

Width

23.88 in (607 mm)

Depth

39.88 in (1013 mm)

Single-phase enclosure weight

Unboxed

192 lb (87 kg)

Shipping

235 lb (106.6 kg)

Three -phase enclosure NA/JPN weight

Unboxed

222 lb (100.7 kg)

Shipping

265 lb (120.2 kg)

Three-phase enclosure international weight

Unboxed

222 lb (100.7 kg)

Shipping

265 lb (120.2 kg)

DC input enclosure weight

Unboxed

151 lb (68.5 kg)

Shipping

194 lb (88 kg)

Maximum enclosure weight (approximate)

Unboxed

450 lb (204 kg)

Shipping

493 lb (223.6 kg)

Temperature range

Operating

50° to 95° F (10° to 35° C)

Non-Operating

-22° to 140° F (-30° to 60° C)

Relative humidity

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-Operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)maximum wet bulb temperature, non-condensing.

NOTE: Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Power

Input requirements - single-phase model

Rated input frequency

50 to 60 Hz

2250W PSU

Rated input voltage

100 to 120 VAC
200 to 240 VAC

Rated input current
per power supply

12.3A at 100 - 120 VAC
13.1 A at 200 VAC
12.6 A at 208 VAC
11.9 A at 220 VAC

Rated input power
per power supply

2612 VA Max

2400W PSU

Rated input voltage

200 to 240 VAC

Rated input current
per power supply

13.9 A at 200 VAC
13.3 A at 208 VAC
12.6 A at 220 VAC

Rated input power
per power supply

2780 VA

Power cords

Single-Phase

IEC-320 C19-C20 1.22m (6 ft)

3-Phase NA/JPN

2 x NEMA L15-30p 2.44m (10 ft)

3-Phase International

2 x IEC-309 200/346 V - 240/415 V, 5-Pin, 6h 16A 2.44m (10 ft)

-48V DC Power

Terminal lug: 45DG 4AWG 1/4 2H

Two-hole lug
45 degree bend
0.25in. (6.4mm) stud hole size
0.63in. (16mm) hole spacing

Output
specifications
(per power supply)

HPE 2250W Hot-Plug Power Supply

200 - 240 VAC 2250 W
100 - 120 VAC 960 W

HPE 2400W High Efficiency Hot-Plug Power Supply

200 - 240 VAC 2400 W

HPE 2250W -48V DC Hot-Plug Power Supply

2250W

Acoustic noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

LWAd

7.5 Bels

LpAm

57 dB

Idle

LWAd

7.5 Bels

LpAm

57 dB

Environmental-friendly products and approach

End-of-life management and recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HEWLETT PACKARD ENTERPRISE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

NOTE: To review maximum system power ratings for facilities planning purposes use the Active Answers Power Calculator which is available via the online tool located at URL: http://www.hp.com/go/bladesystem/powercalculator

Date

Version History

Action

Description of Change

23-Oct-2017

From Version 9 to 10

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

15-Aug-2016

From Version 8 to 9

Changed

Updated CloudSystem SW ordering numbers, updated descriptions

19-Feb-2016

From Version 7 to 8

Added

Added a title “HPE Education Services Training Credits” on the additional option section

29-Jan-2016

From Version 6 to 7

Changed

Changes made to the Additional Options Section

24-Sept-2015

From Version 5 to 6

Changed

Changes made throughout all QuickSpecs

24-Apr-2015

From Version 4 to 5

Changed

Changes made to the Ordering CloudSystem section

12-Dec-2014

From Version 3 to 4

Added

Add "Helion" to the naming to ensure latest branding guidelines.

Changed

SKUs Descriptions were updated

Removed

Obsolete SKUs were removed

21-Aug-2014

From Version 2 to 3

Changed

Changes made throughout all QuickSpecs. Removed Obsolete SKU´s

16-may-2014

From Version 1 to 2

Changed

Product descriptions were revised throughout Ordering CloudSystem Matrix.
