HPE Storage Multiservice Switch C-series SN6640C QuickSpecs

HPE Storage Multiservice Switch C-series SN6640C (MDS 9220i)

The HPE Storage Multiservice Switch C-series SN6640C is the next generation of highly flexible, industry-leading, proven multiservice switches from the HPE C-series portfolio. It is an optimized platform for deploying high-performance SAN-extension solutions, distributed intelligent fabric services, and cost-effective multiprotocol connectivity for open systems environments. With a compact form factor and advanced capabilities, the HPE Storage Multiservice Switch C-series SN6640C is an ideal solution for departmental and remote branch-office SANs as well as in large-scale SANs in conjunction with HPE SN8700C Series Multilayer Directors.

The HPE Storage Multiservice Switch C-series SN6640C offers up to twelve 32-Gbps Fibre Channel ports, four 1/10-, two 25-, and one 40- Gigabit Ethernet (GbE) IP storage services ports, in a fixed One-Rack-Unit (1RU) form factor. The SN6640C Switch connects to existing native Fibre Channel networks, protecting current investments in storage networks. The SAN Extension over IP application package license is enabled as standard on the two fixed 1/10 GbE IP storage services ports, enabling features such as Fibre Channel over IP (FCIP) and compression on the switch without the need for additional licenses.

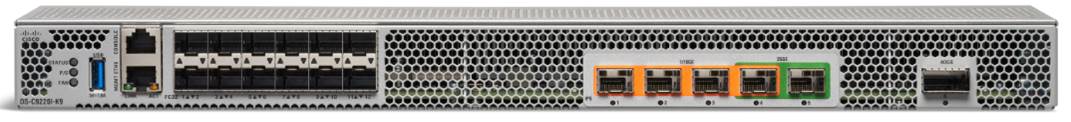

HPE Storage Multiservice Switch C-series SN6640C

Notes: Only one combination of 4 x 1/10GbE or 2x 25GbE or 1x 40GbE FCIP can be used at any time.

Key Features and Benefits

The HPE Storage Multiservice Switch C-series SN6640C provides unique multiservice and multiprotocol functions in a compact 1 RU (Rack Unit) form factor:

- SAN consolidation with integrated multiprotocol support

• Available in a base configuration of four ports of 32-Gbps Fibre Channel for high-performance SAN connectivity and two ports of 1/10 GbE for FCIP storage services, running at a maximum speed of 1-Gbps.

- SAN switch with 32-Gbps connectivity in 1RU form factor

• Scales up to 12 ports with speeds up to 32-Gbps Fibre Channel in a fixed configuration switch. The base configuration comes with four ports of 32 Gbps Fibre Channel enabled for high-performance SAN connectivity, and it can be upgraded on site and online to enable an additional eight ports of 32-Gbps Fibre Channel by adding the Cisco MDS 9220i on-demand upgrade license. The upgrade license also enables 10 Gigabit speed on the initial two Ethernet ports, two additional 1/10 GbE ports, two 25 GbE ports, and one 40 GbE port.

- Flexible FCIP port speed

• Provides flexible connectivity options toward datacenter switches, routers or DWDM systems, including 25GbE speed. Both the 25GbE and 40GbE options can be very valuable for data with a lower level of compressibility, while the 1GbE and 10GbE options can well satisfy the needs of small-medium organizations.

- Intelligent application services engine

• The HPE SN6640C Switch includes, as standard, a single application-services engine that enables the included SAN Extension over IP software solution package to run on the two or more 1/10, or 25 or 40 GbE storage-services ports. The SAN Extension over IP package provides an integrated, cost-effective, and reliable business-continuance solution that uses IP infrastructure by offering FCIP for remote SAN extension, along with a variety of advanced features to optimize the performance and manageability of FCIP links.

Network-based Intelligent Storage Applications

- Integrated hardware-based VSANs and Inter-VSAN Routing (IVR) (with optional SN6640C Advantage License activated)

- Data replication and backup

- Smart Zoning

Security

Supports role-based access control, VSANs, hardware-enforced Zoning, FC-SP, ACLs, RADIUS authentication and TACACS+, LDAP, SNMPv3, SSH, SFTP, and IPsec. Please note that the SN6640C Advantage License may be required.

Remote SAN extension with high-performance FCIP

- Simplifies data protection and business-continuance strategies by enabling backup, remote replication, and other disaster-recovery services over WAN distances using open-standards FCIP tunneling.

- Optimizes utilization of WAN resources for backup and replication by enabling hardware-based compression, hardware-based encryption, FCIP write acceleration, and FCIP tape read and write acceleration; up to 12 virtual Inter-Switch Link (ISL) connections are provided on the Ethernet ports through tunneling (3 tunnels for 1/10G or 4 tunnels for 40G IPS ports).

- Leverages a powerful service engine chipset coupled with optimized software stack to push up to 40Gbps of traffic on the WAN link

Traffic management

The following advanced traffic-management capabilities are integrated as standard on the SN6640C switch:

- Virtual Output Queue (VOQ): Helps ensure line-rate performance on each port, independent of traffic pattern, by eliminating head-of-line blocking

- PortChannels: Allow users to aggregate up to 12 physical ISLs into a single logical bundle, providing optimized bandwidth utilization across all links. The bundle can consist of any speed-matched ports from any module in the chassis, helping ensure that the bundle can remain active even in the event of a module failure.

- Fabric Shortest Path First (FSPF)-based multipathing: Provides the intelligence to load balance across up to 12 equal-cost paths and, in the event of a switch failure, dynamically reroute traffic

- Up to 8191 buffer-to-buffer extended credits (500 default)

- Extended credits can be assigned to an individual port for optimal bandwidth utilization across long distances

The following additional advanced traffic-management capabilities are available on the HPE Storage Multiservice Switch C-series SN6640C with the optional SN6640C Advantage License to simplify deployment and optimization of large-scale fabrics:

- QoS: Can be used to manage bandwidth and control latency, to prioritize critical traffic for specific applications

- IVR: Eliminates the need for external routing appliances, greatly increasing routing scalability while delivering line-rate routing performance, simplifying management, and eliminating the challenges associated with maintaining separate systems

- SCSI flow statistics: Collects Logical Unit Number (LUN)-level SCSI flow statistics, including read, write, and error statistics, for any combination of initiators and targets

Management modes

- Cisco MDS 9000 Family Command Line Interface (CLI)

- Nexus Dashboard Fabric Controller (NDFC) which requires SN6640C Advantage License

IP Version 6 (IPv6) capable

The HPE Storage Multiservice Switch C-series SN6640C supports IPv6 as mandated by the U.S. Department of Defense (DoD), Japan, and China. IPv6 support is provided for FCIP, and management traffic routed in-band and out-of-band.

FIPS compliance

The HPE Storage Multiservice Switch C-series SN6640C will be FIPS 140-2 compliant as mandated by the U.S. federal government.

Interoperability

Offers compatibility with a broad range of Hewlett Packard Enterprise servers and operating systems, as well as disk and tape storage devices.

Product Family Models

- HPE SN8700C 16-slot 16/32/64Gb FC Director (MDS 9718)

• Intelligent, multi-protocol 16-slot Director with up to 768 64/32/16/8/4 Gb Fibre Channel ports in a single chassis. Also, the HPE SN8700C 48-port 32Gb FC Module or 64Gb FC Module provide up to 768 ports of full 16/32/64Gbps line-rate performance across all ports in a single chassis. The 16-slot director comes with six Fabric-3 modules to support full line-rate 32Gb or 64Gb speeds across all ports.

- HPE SN8700C 8-slot 16/32/64Gb FC Director (MDS 9710)

• Intelligent, multi-protocol 8-slot Director with up to 384 64/32/16/8/4 Gb Fibre Channel ports in a single chassis. Also, the HPE SN8700C 48-port 32Gb FC Module or 64Gb FC Module provide up to 384 ports of full 16/32/64Gbps line-rate performance across all ports in a single chassis. The 8-slot director comes with 3 Fabric-3 modules by default which can support 32Gb traffic on all ports; an additional 3 Fabric 3 modules must be added to support 64Gb traffic.

- HPE SN8700C 4-slot 16/32/64Gb FC Director (MDS 9706)

• Intelligent, multi-protocol 4-slot Director with up to 192 64/32/16/8/4 Gb Fibre Channel ports in a single chassis. Also, the HPE StoreFabric SN8500C/SN8700C 48-port 32Gb FC Module or SN8700C 64Gb FC Module provide up to 192 ports of full 16/32/64 Gbps line-rate performance across all ports. The 4-slot director comes with 3 Fabric-3 modules by default which can support 32Gb traffic on all ports; an additional 3 Fabric 3 modules must be added to support 64Gb traffic.

- HPE SN6610C 32Gb Fibre Channel Switch (MDS 9132T)

• With up to 32 Auto-Sensing 32/16/8 Gb Fibre Channel ports
• "Pay as you grow" scalability starting at 8 ports

- HPE SN6620C 32Gb Fibre Channel Switch (MDS 9148T)

• With up to 48 Auto-Sensing 32/16/8 Gb Fibre Channel ports
• "Pay as you grow" scalability starting at 24 ports

- HPE SN6630C 32Gb Fibre Channel Switch (MDS 9396T)

• With up to 96 Auto-Sensing 32/16/8/4 Gb Fibre Channel ports
• "Pay as you grow" scalability starting at 48 ports

- HPE SN6640C 32Gb Multiservice Switch (MDS 9220i)

• Intelligent multi-protocol Fabric Switch with twelve 32-Gbps Fibre Channel ports, four 1/10-, two 25-, and one 40Gbps IP storage services ports, in a fixed One-Rack Unit (1RU) form factor.

- HPE SN6710C 64Gb Fibre Channel Switch (MDS 9124V)

• With 24 Auto-Sensing 64/32/16/8 Gb Fibre Channel ports
• "Pay as you grow" scalability starting at 8 ports

- HPE SN6720C 64Gb Fibre Channel Switch (MDS 9148V)

• With 48 Auto-Sensing 64/32/16/8 Gb Fibre Channel ports
• "Pay as you grow" scalability starting at 24 ports

- HPE Storage Fibre Channel Switch C-series SN6730C (MDS 9396V)

• With 96 Auto-Sensing 64/32/16/8 Gb Fibre Channel ports
• "Pay as you grow" scalability starting at 48 ports

Software Components, Standard

NX-OS

New MDS 9000 NX-OS provides deterministic hardware performance and a comprehensive feature set that allows virtual machines to have the same SAN attributes as a physical server. The SN6640C supports NX-OS 8.5(1) or later.

Software Components, Optional

HPE SN6640C FC/FCIP Upgrade E-LTU

This license is required to enable any additional ports (8x 32Gb FC, 2x 1/10GbE, 2x 25GbE, 1x 40GbE) on the SN6640C Multi-service Switch.

Cisco Smart Licensing and Subscription Licenses

Starting from Cisco NX-OS 9.2(2), Smart Licensing Using Policy is available for HPE C-series switches. This enables the customer to purchase subscription-based licenses for a period of time. HPE strongly recommends postponing an upgrade to NX-OS 9.2(2) or later until after all traditional (PAK-based) licenses have been installed so that their migration to Smart licenses will occur more smoothly. Please note that as of 9/1/2025, the C-series legacy software licenses (DCNM and Enterprise Package) are obsolete, and these C-series Subscription licenses offer the same license features bundled for your convenience; see details below.

For more information, refer to Cisco MDS Licensing Guide, Smart Licensing Using Policy: https://www.cisco.com/c/en/us/td/docs/dcn/mds9000/sw/9x/configuration/licensing/cisco-mds-9000-nx-os-licensing-guide-9x/smart-licensing-using-policy.html?dtid=osscdc000283

Cisco Nexus Dashboard Fabric Controller

Cisco Data Center Network Manager (DCNM) is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC) from Release 12.0.1a. Cisco NDFC is designed with an HTML-based web User Interface (UI), which is the main interface for the product. There is also a fully integrated device manager used for visualizing and managing each individual switch or director. Customers having an existing DCNM license, or the HPE C-series Advantage License below may use these features.

The daily SAN operations, such as In-Service Software Upgrades (ISSU), Zoning, Event management, Port Monitoring (PMON), etc., are managed and maintained from the simplified web UI. The application is a platform providing historical data that can be used to help during day-to-day troubleshooting, viewing analytics data, and looking for SAN congestion through slow-drain analysis. NDFC is also critically important for reviewing event data, SNMP traps, syslogs, and consolidated auditing and reporting. Customers having an existing DCNM license or the HPE C-series Advantage License below may use these features.

HPE C-series Advantage License (Subscription License: 1/3/5 yrs)

The HPE C-series Advantage License is a combination of Network Dashboard Fabric Controller (NDFC) and Enterprise Package license features. It comes with 1, 3, or 5 year terms and is provisioned through Cisco Smart Licensing.

NDFC includes advanced features such as historical performance data collection for network traffic hot-spot analysis, centralized management services and advanced application integration. NDFC is integrated into ND (Nexus Dashboard) in the latest versions and is available for download from the HPE Support Center. The Enterprise package license features include a set of advanced traffic engineering and advanced security features that are recommended for all Enterprise SANs.

Notes: NX-OS 9.2(2) is the minimum required version for C-series Advantage Licenses.

Warranty

The HPE SN6640C Multiservice Switch offers 1-year parts, 1-year labor, and 1-year on-site support (8x5, next business day response).

Notes: The hardware warranty covers firmware and embedded non-saleable software. Hardware or Software product installation is not included in the warranty, but is available and highly recommended.

HPE Services

No matter where you are in your transformation journey, HPE Services provide expert support across planning, deployment, and operations. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.HPE.com/services

Consulting services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.HPE.com/services/consulting

SAN Fabric Integration and Migration service

HPE Data Storage Services - SAN Fabric Integration and Migration simplifies the introduction of and migration to new HPE C-series SAN fabric devices. It helps maximize the value of your investment in your new HPE C-series SAN fabric devices by leveraging HPE Services expertise and best practices.

https://www.HPE.com/psnow/doc/a50011015enw

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.HPE.com/services/operational

Recommended Services

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.HPE.com/services/techcare

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

- A complete coverage approach -- edge to cloud

- An assigned HPE team

- Modular and fully personalized engagement

- Enhanced Incident Management experience with priority access

- Digitally enabled and AI driven customer experience

https://www.HPE.com/services/completecare

Other related services from HPE Services

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

- Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.

- HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.

- HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.

- Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.

- HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.
https://www.HPE.com/services/lifecycle

- For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

HPE SAN Deployment Service

Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components.

Learn more: https://www.HPE.com/psnow/doc/5981-8527enw?jumpid=in_lit-psnow-red

HPE Installation Service

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

Learn more: https://h20195.www2.HPE.com/v2/Getdocument.aspx?docname=5981-9356enw

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.HPE.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to purchase services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

- Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.

- Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.HPE.com/hpesc/public/home/signin

Consume IT on your terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

- Get faster time to market

- Save on TCO, align costs to business

- Scale quickly, meet unpredictable demand

- Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html

For more information: http://www.HPE.com/services

Step 1 - Base Configurations (Select one)

Description

SKU

HPE SN6640C 32Gb 6-port FC/FCIP Multiservice Switch

R8M66A

Notes: Base Switch comes with 4 x 32G FC ports, 2 x 1GbE FCIP Ports. By default, the FCIP ports 1 and 2 operate at 1GbE speed on the base SKU using 1GbE transceiver (R8M68A).

HPE SN6640C 32Gb 18-port FC/FCIP Multiservice Switch

R8M67A

Notes: 18-port Switch with 12x 32G FC ports, 4x 1/10GbE FCIP, 2x25GbE FCIP, 1x40GbE FCIP Ports. Only one combination of 4 x 1/10GbE or 2x 25GbE or 1x 40GbE FCIP can be used at any time.

Step 2 - Options

Select each type of required options with quantities specified:

32Gb FC Transceivers

Description

SKU

HPE C-series 32 Gb Fibre Channel Short Wave SFP+ Transceiver

Q9D30A

HPE C-series 32 Gb Fibre Channel Long Wave SFP+ Transceiver

Q9D31A

Notes: Compatible with SFP28 MSA spec

16Gb FC Transceivers

HPE C-series 16 Gb Fibre Channel SW SFP+ Transceiver

C8S72A

HPE C-series 16 Gb Fibre Channel LW SFP+ Transceiver

C8S73A

8Gb FC Transceivers

HPE MDS 9000 8Gb FC SFP+ Short Range Transceiver

AJ906A

HPE MDS 9000 8Gb FC SFP+ Long Range Transceiver

AJ907A

1000BASE Transceiver

HPE C-series 1000BASE-SX SFP Transceiver

R8M68A

10GbE Transceivers

HPE C-series 10GbE Short Range SFP+ Transceiver

AP783A

HPE C-series 10GbE Long Range SFP+ Transceiver

E7Y65A

25GbE Transceivers

HPE C-series 25GbE SFP Short Range Transceiver

R8M69A

HPE C-series 10/25GbE SFP28 Long Range Transceiver

R8M70A

40GbE Transceivers

HPE C-series 40GbE QSFP Short Range 300m Transceiver

R8M71A

HPE C-series 40GbE QSFP Long Range 10km Transceiver

R8M72A

Notes: Please use only the above Cisco SFP optical transceivers; no substitutions allowed. Using other transceivers may void product warranty. Use SFP transceivers that match the intended link speed to ensure proper operation and avoid compatibility issues.

Step 3 - Optional Software Licenses

Description

SKU

HPE SN6640C FC/FCIP Upgrade E-LTU

R8J40AAE

Notes: One upgrade license to activate all FC, FCIP ports

HPE SN6640C Advantage 1-year E-LTU

R9N33AAE

HPE SN6640C Advantage 3-year E-LTU

R9N37AAE

HPE SN6640C Advantage 5-year E-LTU

R9N41AAE

Notes: Advantage license is a combination of Nexus Dashboard Fabric Controller (NDFC) and Enterprise Package license features.

Step 4 - Additional Options

Recommended Cables

HPE PremierFlex OM4+ Fiber Optic Cables

Description

SKU

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable

QK737A

HPE OM3 LC-LC Optical Cables

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE PremierFlex MPO to 4xLC Splitter Cables

HPE Multi Fiber Push On to 4 x Lucent Connector 5m Cable

K2Q46A

HPE Multi Fiber Push On to 4 x Lucent Connector 15m Cable

K2Q47A

HPE PremierFlex MPO to MPO Cables

HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 1m Cable

Q1H63A

HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 2m Cable

Q1H64A

Fibre Channel Protocols

- FC-PH, Revision 4.3 (ANSI INCITS 230-1994)

- FC-PH, Amendment 1 (ANSI INCITS 230-1994/AM1-1996)

- FC-PH, Amendment 2 (ANSI INCITS 230-1994/AM2-1999)

- FC-PH-2, Revision 7.4 (ANSI INCITS 297-1997)

- FC-PH-3, Revision 9.4 (ANSI INCITS 303-1998)

- FC-PI, Revision 13 (ANSI INCITS 352-2002)

- FC-PI-2, Revision 10 (ANSI INCITS 404-2006)

- FC-PI-3, Revision 4 (ANSI INCITS 460-2011)

- FC-PI-4, Revision 8 (ANSI INCITS 450-2008)

- FC-PI-5, Revision 6 (ANSI INCITS 479-2011)

- FC-FS, Revision 1.9 (ANSI INCITS 373-2003)

- FC-FS-2, Revision 1.01 (ANSI INCITS 424-2007)

- FC-FS-2, Amendment 1 (ANSI INCITS 424-2007/AM1-2007)

- FC-FS-3, Revision 1.11 (ANSI INCITS 470-2011)

- FC-LS, Revision 1.62 (ANSI INCITS 433-2007)

- FC-LS-2, Revision 2.21 (ANSI INCITS 477-2011)

- FC-SW-2, Revision 5.3 (ANSI INCITS 355-2001)

- FC-SW-3, Revision 6.6 (ANSI INCITS 384-2004)

- FC-SW-4, Revision 7.5 (ANSI INCITS 418-2006)

- FC-SW-5, Revision 8.5 (ANSI INCITS 461-2010)

- FC-GS-3, Revision 7.01 (ANSI INCITS 348-2001)

- FC-GS-4, Revision 7.91 (ANSI INCITS 387-2004)

- FC-GS-5, Revision 8.51 (ANSI INCITS 427-2007)

- FC-GS-6, Revision 9.4 (ANSI INCITS 463-2010)

- FCP, Revision 12 (ANSI INCITS 269-1996)

- FCP-2, Revision 8 (ANSI INCITS 350-2003)

- FCP-3, Revision 4 (ANSI INCITS 416-2006)

- FCP-4, Revision 2b (ANSI INCITS 481-2011)

- FC-SB-2, Revision 2.1 (ANSI INCITS 349-2001)

- FC-SB-3, Revision 1.6 (ANSI INCITS 374-2003)

- FC-SB-3, Amendment 1 (ANSI INCITS 374-2003/AM1-2007)

- FC-SB-4, Revision 3.0 (ANSI INCITS 466-2011)

- FC-SB-5

- FC-BB-2, Revision 6.0 (ANSI INCITS 372-2003)

- FC-BB-3, Revision 6.8 (ANSI INCITS 414-2006)

- FC-BB-4, Revision 2.7 (ANSI INCITS 419-2008)

- FC-BB-5, Revision 2.0 (ANSI INCITS 462-2010)

- FC-BB-6

- FC-VI, Revision 1.84 (ANSI INCITS 357-2002)

- FC-SP, Revision 1.8 (ANSI INCITS 426-2007)

- FC-SP-2, Revision 2.71 (ANSI INCITS 496-2012)

- FAIS, Revision 1.03 (ANSI INCITS 432-2007)

- FAIS-2, Revision 2.23 (ANSI INCITS 449-2008)

- FC-IFR, Revision 1.06 (ANSI INCITS 475-2011)

- FC-FLA, Revision 2.7 (INCITS TR-20-1998)

- FC-PLDA, Revision 2.1 (INCITS TR-19-1998)

- FC-Tape, Revision 1.17 (INCITS TR-24-1999)

- FC-MI, Revision 1.92 (INCITS TR-30-2002)

- FC-MI-2, Revision 2.6 (INCITS TR-39-2005)

- FC-MI-3, Revision 1.03 (INCITS TR-48-2012)

- FC-DA, Revision 3.1 (INCITS TR-36-2004)

- FC-DA-2, Revision 1.06 (INCITS TR-49-2012)

- FC-MSQS, Revision 3.2 (INCITS TR-46-2011)

- Fibre Channel classes of service: Class 2, Class 3, and Class F

- Fibre Channel standard port types: E, F, FL, and B

- Fibre Channel enhanced port types: SD, ST, and TE

- IP over Fibre Channel (RFC 2625)

- IPv6, IPv4, and Address Resolution Protocol (ARP) over Fibre Channel (RFC 4338)

- Extensive IETF-standards based TCP/IP, SNMPv3, and remote monitoring (RMON) MIBs

- IP standards

- RFC 791 IPv4

- RFC 793 and 1323 TCP

- RFC 894 IP/Ethernet

- RFC 1041 IP/802

- RFC 792, 950, and 1256 ICMP

- RFC 1323 TCP performance enhancements

- RFC 2338 VRRP

- RFC 2460 and 4291 IPv6

- RFC 2463 and 4443 ICMPv6

- RFC 2461 and 2462 IPv6 neighbor discovery and stateless autoconfiguration

- RFC 2464 IPv6/Ethernet

- RFC 3643 and 3821 FCIP

- Ethernet standards

- IEEE Std 802.3-2005 Ethernet

- IEEE Std 802.1Q-2005 VLAN

- IPsec

- RFC 2401 and 4301 security architecture for IP

- RFC 2403 and 2404 HMAC

- RFC 2405, 2406, 2451, and 4303 IP ESP

- RFC 2407 and 2408 ISAKMP

- RFC 2412 OAKLEY Key Determination Protocol

- RFC 3566, 3602, and 3686 AES

- Internet Key Exchange (IKE)

- RFC 2409 IKEv1

- RFC 4306 IKEv2

Environmental

- Temperature, ambient operating: 32 to 104°F (0 to 40°C)

- Temperature, ambient nonoperating and storage: 40 to 158°F (-40 to 70°C)

- Relative humidity, ambient (noncondensing) operating: 10 to 90%

- Relative humidity, ambient (noncondensing) nonoperating and storage: 10 to 95%

- Altitude, operating: -197 to 6500 ft (-60 to 2000 m)

Physical dimensions

- Width: 17.30 in; Length: 20.12 in; Height: 1.72 in

Power and cooling

- Power supply: 500W (Exhaust), 80Plus Platinum certified

- Power cord: Notched C15 socket connector connecting to C16 plug on power supply

- Typical power consumption: 240W

- AC input characteristics

- 100 to 240V AC (10% range)

- 50 to 60 Hz (nominal)

- Airflow (front to back)

- 200 linear feet per minute (LFM) through system fan assembly

Approvals and compliance

- Safety compliance

- CE Marking

- UL 60950

- CAN/CSA-C22.2 No. 60950

- EN 60950

- IEC 60950

- TS 001

- AS/NZS 3260

- IEC60825

- EN60825

- 21 CFR 1040

- EMC compliance

- FCC Part 15 (CFR 47) Class A

- ICES-003 Class A

- EN 55022 Class A

- CISPR 22 Class A

- AS/NZS 3548 Class A

- VCCI Class A

- EN 55024

- EN 50082-1

- EN 61000-6-1

- EN 61000-3-2

- EN 61000-3-3

Shape the Future of QuickSpecs - Your Input Matters

Chat now

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

a50002591enw - 16746 - Worldwide - V9 - 10-November-2025

HEWLETT PACKARD ENTERPRISE

HPE.com
