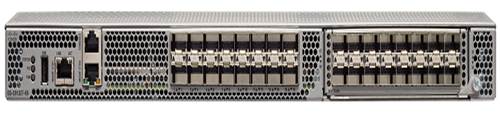

HPE Storage Fibre Channel Switch C-series SN6610C QuickSpecs
The HPE Storage Fibre Channel Switch C-series SN6610C can be provisioned, managed, monitored, and troubleshot using Nexus Dashboard Fabric Controller (NDFC) (previously called Data Center Network Manager (DCNM), which currently manages the entire suite of Cisco data center products and is now integrated into Nexus Dashboard (ND). |
|
|
The HPE Storage Fibre Channel Switch C-series SN6610C (MDS 9132T) is the next generation 32 Gbps Fibre Channel Switch providing high-speed Fibre Channel connectivity from the server rack to the SAN core. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation all in a compact one-rack-unit (1RU) form factor. The switch offers state-of-art analytics and telemetry capability built into its next generation ASIC platform. For ultimate flexibility, the HPE Storage Fibre Channel Switch C-series SN6610C scales from eight to thirty-two ports. Additionally, investing in this switch for the lower-speed (8- or 16-Gbps) server rack gives you the option to upgrade to 32-Gbps server connectivity in the future.
The HPE Storage Fibre Channel Switch C-series SN6610C can be provisioned, managed, monitored, and troubleshot using Nexus Dashboard Fabric Controller (NDFC) (previously called Data Center Network Manager (DCNM)), which currently manages the entire suite of Cisco data center products and is now integrated into Nexus Dashboard (ND). Powered by C-series MDS 9000 NX-OS Software, it includes storage networking features and functions and is compatible with C-series SN8500C/SN8700C (MDS 9700) Series Multilayer Directors, C-series SN6620C (MDS 9148T) Multilayer Fabric Switches, C-series SN6630C (MDS 9396T) Multilayer Fabric Switches, C-series SN6710C (MDS 9124V) Multilayer Fabric Switches, C-series SN6720C (MDS 9148V) Multilayer Fabric Switches, C-series SN6730C (MDS 9396V) Multilayer Fabric Switches, and C-series SN6640C (MDS 9220i) Multi-service Fabric Switches providing transparent, end-to-end service delivery in core-edge deployments. |
|
|
|
HPE Storage Fibre Channel Switch C-series SN6610C |
|
|
|
Key Features and Benefits |
|
- High Performance for AFA and virtualized workloads
- Intelligent network services for modern SAN
- High Availability Platform
- Simplified Management
|
|
|
|
Industry leading 32-Gb Performance Capability The switch offers full non-blocking 32-Gbps Fibre Channel performance on 32 line-rate ports and an aggregate bandwidth of 1024 Gbps in each direction in a 1 Rack unit form factor. |
|
|
|
Scalability The HPE Storage Fibre Channel Switch C-series SN6610C comes in three preconfigured models of 8-port 16 Gb SFPs bundled, 8-port 32Gb SFPs bundled, or 24-port 32Gb SFPs bundled. The SN6610C model can grow by 8 ports to 16 ports by installing the 8-port FC Upgrade License (additional SFPs required.) Customers who require more than 16 active ports must install the port expansion module which is equipped with 16 active 32-Gpbs ports to gain either 24 or the full 32 active ports available with the SN6610C switch. Again, additional SFPs would be required; please see the supported C-series SFPs below. |
|
|
|
Cost Effective Intelligent Storage networking The HPE Storage Fibre Channel Switch C-series SN6610C comes standard in a compact, extremely cost-effective design that simplifies deployment and administration of small and medium-scale storage-area networks (SANs) and as an edge switch in a larger enterprise. Please note that some services listed require the optional HPE C-series SN6000C Advantage License, or HPE C-series SN6610C/SN6620C Premier License. |
|
|
|
N-Port ID Virtualization NPIV N-Port ID Virtualization (NPIV), a standard Fibre Channel protocol feature, individual virtual machines assume a full identity on the SAN so that Fibre Channel services such as zoning, Quality of Service (QoS), performance monitoring, and security can be provided to each virtual machine. |
|
|
|
VSANs VSAN, an industry standard for fabric virtualization capabilities, enables more efficient storage network use by creating hardware-based isolated environments within a single physical SAN fabric or switch. Up to 32 VSANs are supported per switch. Each VSAN can be zoned as a typical SAN and maintains its own fabric services and management domains for added scalability and resilience. VSANs allow the cost of SAN infrastructure to be shared among more users, while helping ensure segregation of traffic and retaining independent control of configuration on a VSAN-by-VSAN basis. |
|
|
|
PortChannels PortChannels allow users to aggregate up to 16 physical ISLs into a single logical bundle, providing optimized bandwidth use across all links. The bundle can consist of any port from the switch, helping ensure that the bundle remains active even in the event of a port failure. |
|
|
|
High Availability The HPE Storage Fibre Channel Switch C-series SN6610C is designed for environments in which downtime is unacceptable. It offers:
|
|
|
|
Simplified Storage Management
Single-pane management The HPE Storage Fibre Channel Switch C-series SN6610C can be provisioned, managed, monitored, and troubleshot using Nexus Dashboard Fabric Controller (NDFC) (previously called Data Center Network Manager (DCNM)), which currently manages the entire suite of Cisco data center products and is now integrated into Nexus Dashboard (ND). |
|
|
|
Interoperability Offers compatibility with a broad range of Hewlett Packard Enterprise servers and operating systems, as well as disk and tape storage devices; see current compatibility matrix. Please refer to the Single Point of Connectivity Knowledge (SPOCK) website for more details: https://h20272.www2.hpe.com/spock/. |
|
|
|
Diagnostics
|
|
|
|
Software Components, Included NX-OS HPE Storage Fibre Channel Switch C-series SN6610C includes the Cisco MDS 9000 NX-OS Software operating system version 9.2(1a) or higher, and a set of configuration, maintenance and diagnostics tools. It also includes VSAN support, PortChannels, extended fabrics, and hardware-enforced zoning. Advanced traffic management features, such as zone-based quality of service (QoS) and Inter-VSAN Routing (IVR), among others, are included with the optional Advantage or Premier Licenses shown below. |
|
|
|
Software Components, Optional
HPE SN6610C 8-Port Upgrade E-LTU The flexibility of the HPE Storage Fibre Channel Switch C-series SN6610C is provided by the C-series SN6610C 8-port 32Gb FC Upgrade license, which allows the addition of eight 32-Gbps ports.
|
|
Cisco Smart Licensing and Subscription Licenses Starting from Cisco NX-OS 9.2(2), Smart Licensing Using Policy is available for HPE C-Series switches. This enables the customer to purchase subscription-based licenses for a period of time. HPE strongly recommends postponing an upgrade to NX-OS 9.2(2) or later until after all traditional (PAK-based) licenses have been installed so that their migration to Smart licenses will occur more smoothly. Please note that as of 9/1/2025, the C-series legacy software licenses (DCNM, Enterprise Package and SAN Insights) are obsolete, and these C-series Subscription licenses offer the same license features bundled for your convenience; see details below. For more information, refer to Cisco MDS Licensing Guide, Smart Licensing Using Policy: https://www.cisco.com/c/en/us/td/docs/dcn/mds9000/sw/9x/configuration/licensing/cisco-mds-9000-nx-os-licensing-guide-9x/smart-licensing-using-policy.html?dtid=osscdc000283
|
|
Cisco Nexus Dashboard Fabric Controller Cisco Data Center Network Manager (DCNM) is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC) from Release 12.0.1a. Cisco NDFC is designed with an HTML-based web User Interface (UI), which is the main interface for the product. There is also a fully integrated device manager used for visualizing and managing each individual switch or director. Customers having an existing DCNM license, or the HPE C-series Advantage or Premier Licenses below may use these features. NDFC is fully integrated with Nexus Dashboard (ND) as of ND 3.2.1; this comment extends throughout this document. |
|
The day-to-day SAN operations, such as In-Service Software Upgrades (ISSU), Zoning, Event management, Port Monitoring (PMON), etc., are managed and maintained from the simplified web UI. The application is a platform providing historical data that can be used to help during day-to-day troubleshooting, viewing analytics data, and looking for SAN congestion through slow-drain analysis. NDFC is also critically important for reviewing event data, SNMP traps, syslogs, and consolidated auditing and reporting. These features are available with the C-series Advantage and Premier Licenses described below.
|
|
HPE C-series Advantage License (Subscription License: 1/3/5 yrs) The HPE C-series Advantage License is a combination of Nexus Dashboard Fabric Controller (NDFC) and Enterprise Package license features. It comes with 1, 3, or 5 year terms and is provisioned through Cisco Smart Licensing. NDFC includes advanced features such as historical performance data collection for network traffic hot-spot analysis, centralized management services and advanced application integration. NDFC is integrated into ND (Nexus Dashboard) in the latest versions and is available for download from the HPE Support Center. The Enterprise package license features include a set of advanced traffic engineering and advanced security features that are recommended for all Enterprise SANs.
|
|
HPE C-series Premier License (Subscription License: 1/3/5 yrs) The HPE C-series Advantage License is a combination of Nexus Dashboard Fabric Controller (NDFC), Enterprise Package and SAN Insights license features. It comes with 1, 3, or 5 year terms and is provisioned through Cisco Smart Licensing. NDFC and Enterprise Package license features are described above. SAN Insights offers end-to-end visibility into Fibre Channel block storage traffic. SAN Insights delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays that are integrated with Nexus Dashboard Fabric Controller (NDFC). Notes: - NX-OS 9.2(2) is the minimum required version for C-series Advantage and Premier Licenses. - Starting from 12.0.1a, DCNM is renamed Nexus Dashboard Fabric Controller (NDFC). Read more at, https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/prime-data-center-network-manager/san-innovation-ndfc-so.html |
|
|
|
Warranty (1-1-1) Hardware Warranty; 1-year parts; 1-year on-site (8x5, next business day response) and 1-year labor. Notes: The hardware warranty covers firmware and embedded non-saleable software. Hardware or Software product installation is not included in the warranty but it is available and is highly recommended. |
|
|
|
HPE Services No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
Consulting services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
SAN Fabric Integration and Migration service HPE Data Storage Services - SAN Fabric Integration and Migration simplifies the introduction of and migration to new HPE C-series SAN fabric devices. It helps maximize the value of your investment in your new HPE C-series SAN fabric devices by leveraging HPE Services expertise and best practices. https://www.hpe.com/psnow/doc/a50011015enw
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational |
|
|
|
Recommended Services HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare |
|
|
|
Other related services from HPE Services HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
https://www.hpe.com/services/lifecycle - For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu |
|
HPE SAN Deployment Service Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components. Learn more: https://www.hpe.com/psnow/doc/5981-8527enw?jumpid=in_lit-psnow-red
|
|
HPE Installation Service Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
Learn more: https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw
|
|
HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training
|
|
Defective Media Retention An
option available with HPE Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. How to purchase services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT on your terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world. - Get faster time to market - Save on TCO, align costs to business - Scale quickly, meet unpredictable demand - Simplify IT operations across your data centers and clouds To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information: http://www.hpe.com/services |
|
|
|
The HPE Storage Fibre Channel Switch C-series SN6610C comes in three preconfigured models of 8-ports with eight (8) 16 Gb SFPs bundled, 8-ports with eight (8) 32Gb SFPs bundled, or 24-ports with twenty-four (24) 32Gb SFPs bundled. The 8-port SN6610C bundles can grow by 8 ports to 16 ports by installing the 8-port FC Upgrade license. Thereafter, users must install the port expansion module with sixteen 32-Gbps ports to get to 32 ports.
Step 1 - Base Configurations | |
|
HPE SN6610C 32Gb 8-port 16Gb Short Wave SFP+ Fibre Channel Switch | |
|
Description |
SKU |
|
HPE SN6610C 32Gb 8-port 16Gb Short Wave SFP+ Fibre Channel Switch |
Q9D34A |
|
- 32-Port Fabric Switch with 8 active ports bundled with 8x16Gb SW SFP+, 1 Power Supply, Power Cords (configurable by ship-to country) and 2 Fans, VSANs, PortChannels, firmware, accessory kit and documentation. | |
|
| |
|
HPE SN6610C 32Gb 8-port 32Gb Short Wave SFP+ Fibre Channel Switch |
|
|
HPE SN6610C 32Gb 8-port 32Gb Short Wave SFP+ Fibre Channel Switch |
Q9D35A |
|
HPE SN6610C 32Gb 32/8 32Gb Short Wave SFP+ Fibre Channel v2 Switch* |
Q9D35B* |
|
- 32-Port Fabric Switch with 8 active ports bundled with 8x32Gb SW SFP+, 1 Power Supply, Power Cords (configurable by ship-to country) and 2 Fans, VSANs, PortChannels, firmware, accessory kit and documentation. | |
|
|
|
|
HPE SN6610C 32Gb 24-port 32Gb Short Wave SFP+ Fibre Channel Switch |
|
|
HPE SN6610C 32Gb 32/24 32Gb Short Wave SFP+ Fibre Channel Switch |
S1R84A |
|
HPE SN6610C 32Gb 32/24 32Gb Short Wave SFP+ Fibre Channel v2 Switch* |
S1R84B* |
|
- 32-Port Fabric Switch with 24 active ports bundled with 24x32Gb SW SFP+, 2 Power Supplies, Power Cords (configurable by ship-to country) and 4 Fans, VSANs, PortChannels, firmware, accessory kit and documentation. Please note that this configuration includes an 8-port base switch and the 16-port Expansion Module for a total of 24 active ports populated with 24 32Gb SFPs; simply add the 8-port FC Upgrade license and additional SFPs to get the full 32 ports. | |
|
Notes: - To order factory integration, add OD1 after the part number on your sales order - *Q9D35B and S1R84B part numbers include built-in discounts. No additional cost relief available. | |
|
| |
|
Step 2 - Optional Software | |
|
On Demand Port Activation License |
|
|
Description |
SKU |
|
HPE SN6610C 32Gb 8-port Fibre Channel Upgrade E-LTU |
Q9Z41AAE |
|
Management Software |
|
|
HPE SN6000C Advantage 1-year E-LTU |
R9N32AAE |
|
HPE SN6000C Advantage 3-year E-LTU |
R9N36AAE |
|
HPE SN6000C Advantage 5-year E-LTU |
R9N40AAE |
|
Notes: The Advantage license is a combination of Nexus Dashboard Fabric Controller (NDFC) and Enterprise Package license features. |
|
|
Description |
SKU |
|
HPE SN6610C/SN6620C Premier 1-year E-LTU |
R9N44AAE |
|
HPE SN6610C/SN6620C Premier 3-year E-LTU |
R9N47AAE |
|
HPE SN6610C/SN6620C Premier 5-year E-LTU |
R9N50AAE |
|
Notes: Premier license is a combination of Nexus Dashboard Fabric Controller (NDFC), Enterprise Package and SAN Insights license features. |
|
|
| |
|
Step 3 - Options | |
|
Select each required option with quantities specified: | |
|
| |
|
32Gb FC Transceivers* | |
|
Description |
SKU |
|
HPE C-series 32 Gb Fibre Channel Short Wave SFP+ Transceiver |
Q9D30A |
|
HPE C-series 32 Gb Fibre Channel Long Wave SFP+ Transceiver |
Q9D31A |
|
Notes: * Compatible with SFP28 MSA spec | |
|
16Gb FC Transceivers |
|
|
HPE C-series 16 Gb Fibre Channel SW SFP+ Transceiver |
C8S72A |
|
HPE C-series 16 Gb Fibre Channel LW SFP+ Transceiver |
C8S73A |
|
|
|
|
8Gb FC Transceivers |
|
|
HPE MDS 9000 8Gb FC SFP+ Short Range Transceiver |
AJ906A |
|
HPE MDS 9000 8Gb FC SFP+ Long Range Transceiver |
AJ907A |
|
Notes: There are three SN6610C switch bundles available: one populated with 8 16Gb SFPs, one populated with 8 32Gb SFPs, and one populated with 24 32Gb SFPs. For the remaining ports in all these configurations, please use only the above Cisco SFP optical transceivers; no substitutions allowed. Using other transceivers may void the product's warranty. | |
|
Fan Tray |
|
|
HPE SN6610C Fan Tray |
Q9D38A |
|
Power Supply |
|
|
HPE SN6610C 650W Power Supply |
Q9D37A |
|
Expansion Module (required to accommodate more than 16 active ports; SFPs must also be added) | |
|
HPE SN6610C 16-port Fibre Channel Expansion Module |
Q9D33A |
|
Installation and Deployment Services |
|
|
For complete design and implementation of Fibre Channel connectivity components, select: HPE SAN Deployment Service
| |
|
For basic hardware installation, select: HPE Installation Service | |
|
| |
|
Cables |
| |
|
HPE OM3 LC-LC Optical Cables |
||
|
Description |
SKU | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A | |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A | |
|
|
| |
|
HPE PremierFlex OM4+ Fiber Optic Cables |
||
|
HPE Premier Flex MPO/MPO Multi-mode OM4 12 Fiber 10m Cable |
QK729A | |
|
HPE Premier Flex MPO/MPO Multi-mode OM4 8 Fiber 50m Cable |
QK731A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable |
QK732A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable |
QK733A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable |
QK734A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable |
QK735A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable |
QK736A | |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable |
QK737A | |
|
|
| |
|
HPE PremierFlex MPO to 4xLC Splitter Cables |
| |
|
HPE Multi Fiber Push On to 4 x Lucent Connector 5m Cable |
K2Q46A | |
|
HPE Multi Fiber Push On to 4 x Lucent Connector 15m Cable |
K2Q47A | |
|
| ||
|
Family Information
| ||||||||||||||||||||||||||||||||||||
|
|
|
|
Notes: For additional switch support information, refer to the C-series FC Switch Connectivity Stream on the Single Point of Connectivity Knowledge (SPOCK) website at: https://h20272.www2.hpe.com/spock/. You must sign up for a Hewlett Packard Enterprise Passport to enable access. Once logged in, click Support Documents under Documents in the left navigation panel, then select Switches under Other Hardware to access the Fibre Channel Switch Streams. Finally, click on the C-Series FC Switch Connectivity Stream to open the document. |
|
|
|
Minimum software requirements MDS 9000 NX-OS Software Release 8.2(1) |
|
|
|
Performance and port configuration
|
|
|
|
Security - VSANs - FC-SP for host-to-switch and switch-to-switch authentication - Secure FTP (SFTP) - Port security - Control-plane security - Management access
|
|
|
Compatibility Fibre Channel protocols
|
|
|
|
|
|
Fabric Services
|
|
|
|
Advanced Services Please note that some services require the optional HPE C-series SN6000C Advantage License or HPE C-series SN6610C/SN6620C Premier License to be activated. - NPIV - VSAN - PortChannels - NPV mode - Flow-based and zone-based QoS
|
|
|
|
Diagnostic and Troubleshooting
|
|
|
|
Management - Access methods
|
|
- Access protocols
- Security
|
|
|
|
Management Applications
|
|
|
|
Availability
|
|
|
|
Serviceability
|
|
|
|
Environmental
|
|
|
|
Power and Cooling - Power supplies (650W AC) (maximum of 2 per switch) - AC Input: 100 to 240 VAC nominal (+/-10% for full range) - Frequency: 50 to 60 Hz nominal (+/-3 Hz for full range) - Typical power consumption:
- Airflow: Rear to front (toward ports) - Cisco recommends maintaining a minimum airspace of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating |
|
|
|
Safety
|
|
|
|
EMC
|
|
|
|
Date |
Version History |
Action |
Description of Change |
|
03-Nov-2025 |
Version 22 |
Changed |
Configuration Information section was updated - Updated the Base Configuration Notes, removed 2 SKUs going OBS. |
|
Removed |
Obsolete SKUs were removed - Q9D36A, R7L02A | ||
|
02-Sep-2025 |
Version 21 |
Changed |
Overview, Standard Features, Configuration Information and Technical Specifications sections were updated. - Removed SN6010C and C-series legacy licenses and updated cables section. |
|
03-Mar-2025 |
Version 20 |
Changed |
Overview, Standard Features, Service and Configuration Information sections were updated. Configuration Information maintenance. Updated firmware version included with switches. General maintenance. |
|
04-Nov-2024 |
Version 19 |
Changed |
Overview, Standard Features, Service and Support, Configuration Information and Technical Specifications sections were updated. Configuration Notes updated. General Maintenance |
|
03-Sep-2024 |
Version 18 |
Changed |
Service and Support section was updated |
|
15-Apr-2024 |
Version 17 |
Changed |
Rebranding Series Name applied |
|
13-Nov-2023 |
Version 16 |
Changed |
HPE Services Rebranding |
|
02-Oct-2023 |
Version 15 |
Changed |
HPE Re-branding - Series name and HPE Services information updated |
|
05-Jun-2023 |
Version 14 |
Changed |
Overview, Standard Features, Service and Support, Configuration Information and Technical Specifications sections were updated. Added Volume Program PNs Added 64Gb Switch references updates |
|
04-Apr-2022 |
Version 13 |
Changed |
Added NDFC and Subscription licenses |
|
04-Oct-2021 |
Version 12 |
Changed |
Service and Support section was updated Obso SKU was removed |
|
02-Aug-2021 |
Version 11 |
Changed |
Service and Support section was updated. |
|
01-Mar-2021 |
Version 10 |
Changed |
Added 32Gb Starter Kit information |
|
17-Aug-2020 |
Version 9 |
Changed |
Corrected tech specs and added SN8700C product family information |
|
03-Aug-2020 |
Version 8 |
Changed |
QuickSpecs layout was updated, and Branding Refresh was applied. |
|
04-May-2020 |
Version 7 |
Changed |
Added SAN Insights 1/5 yr licenses |
|
03-Feb-2020 |
Version 6 |
Changed |
Added SAN Insights and DCNM Switch based licenses |
|
15-Jul-2019 |
Version 5 |
Added |
Family Information and Configuration Information sections were updated. |
|
02-Apr-2019 |
Version 4 |
Changed |
Configuration Information section was updated. |
|
03-Dec-2018 |
Version 3 |
Changed |
DCNM information was updated Product Highlights, Service and Support, Family Information and Technical Specifications were revised |
|
01-Oct-2018 |
Version 2 |
Changed |
Configuration Information was revised. |
|
02-Jul-2018 |
Version 1 |
Created |
New QuickSpecs. |
|
|
|
