HPE Storage Director Switch C-series SN8700C QuickSpecs
The HPE Storage Director Switch C-series SN8700C is the next-gen MDS 9700 V2/V3 Directors that delivers many unique innovations for constructing powerful, large scale storage networks. With these innovations, users can build highly scalable, always available, high performance storage network solutions with comprehensive security and unified management. |
|
|
HPE Storage Director Switch C-series SN8700C (MDS 9700 "V2" & "V3" Directors), HPE C-series Family.
Today's mission-critical storage environments require greater consistency, predictability, and performance to keep pace with growing business demands. Faced with explosive data growth, data centers need more IO capacity to accommodate the massive amounts of data, applications, and workloads. In addition to this surge in data, collective expectations for availability continue to rise. Users expect applications to be available and accessible from anywhere, at any time, on any device. To meet these dynamic and growing business demands, organizations need to deploy and scale up applications quickly. As a result, many are moving to higher Virtual Machine (VM) densities to enable rapid deployment of new applications and deploying flash storage to help those applications scale to support thousands of users.
These developments of next-gen, more capable servers, increased server virtualization, adoption of Flash-based Storage and emerging technologies like NVMe, could cause the existing networking infrastructure to bottleneck.
To increase agility, reduce expenses, and realize the full benefits of flash-based architectures, organizations need the network to deliver the performance required by today's server and storage environments. In addition, storage networks are becoming increasingly important to application performance, which means that they also must become easier to administer and manage. By treating the network as a strategic part of a highly virtualized environment, organizations can increase optimization and efficiency even as they rapidly scale their environments.
The HPE Storage Director Switch C-series SN8700C is the next-gen MDS 9700 V2/V3 Directors that delivers many unique innovations for constructing powerful, large scale storage networks. With these innovations, users can build highly scalable, always available, high performance storage network solutions with comprehensive security and unified management. The HPE Storage Director Switch C-series SN8700C supports 4/8/16/32/64 Gb FC and delivers industry-leading scalability and performance (up to 48 Tbps front panel FC switching bandwidth), high port density (up to 768-ports in an SN8700C 16-Slot Director) and high availability to lower TCO and enable integrated SAN infrastructures. HPE delivers the C-series SN8700C 16-slot FC Director with high availability features inherent in the design. All the major components, Supervisor-4, Fabric-3 and Power Supplies, are redundant.
The HPE Storage Director Switch C-series SN8700C provides redundancies on all major hardware components, including the supervisor and fabric modules as well as the power supplies. The 16-slot chassis come with 2 hot swappable redundant Supervisor-4 Modules, and 8 hot swappable redundant 3000W Power Supplies and 6 hot swappable Fabric-3 Modules. The 8-slot chassis come with 2 hot swappable redundant Supervisor-4 Modules, and 4 hot swappable redundant 3000W Power Supplies and 3 hot swappable Fabric-3 Modules. The 4-slot chassis come with 2 hot swappable redundant Supervisor-4 Modules, and 4 hot swappable redundant 3000W Power Supplies and 3 hot swappable Fabric-3 Modules. The open expansion slots of the HPE Storage Director Switch C-series SN8700C can be filled by HPE C-series FC Modules, which include a 48-port 32Gb or 64Gb FC Modules. |
|
|
|
|
|
HPE Storage Director Switch C-series SN8700C |
|
|
|
Key Features and Benefits - Reduced Total Cost of Ownership (TCO) for SAN Infrastructure
- High Port Density
o Up to 1152 4/8/16/32/64-Gbps Fibre Channel ports in a standard rack - Scalable
o Offers 48 to 768 Fibre Channel ports in a single chassis - Highly Available
- Interoperable
- Integrated Management
- Comprehensive network security framework
|
|
|
|
Scalable Ports - Supports up to 768 ports capable of 64/32/16/8/4 Gbps (with the use of the SN8500C/SN8700C 48 port FC Modules) |
|
|
|
Network-based Intelligent Storage Applications
|
|
|
|
Security Supports VSANs, hardware-enforced zoning, ACLs, per-VSAN Role-Based Access Control (RBAC), RADIUS and TACACS+, FC-SP, SFTP, SSH, and SNMPv3. Please note that the SN8700C Advantage or SN8700C Premier Subscription Licenses may be required. |
|
|
|
High Performance
|
|
|
|
Intelligent network services Please note that some services require the optional SN8700C Advantage or SN8700C Premier Subscription Licenses to be activated.
|
|
|
|
High Availability
|
|
|
|
Embedded Diagnostics Provides intelligent diagnostics, protocol decoding and network analysis tools including Fibre Channel ping and trace route, SPAN, Zone and VSAN merge analysis. |
|
|
|
Port Channels Allows users to aggregate up to 16 physical links into one logical bundle. The bundle can consist of any port in the chassis, ensuring that the bundle remains active in the event of a port, ASIC, or module failure. The bundle can sustain the failure of any physical link without causing a reset. Additionally, Fabric Shortest Path First (FSPF) multipath provides the intelligence to load balance across up to 16 FC equal cost paths and, in the event of a switch failure, to dynamically reroute traffic. |
|
|
|
Access Control
|
|
|
|
Traffic management - Virtual Output Queue (VOQ)
- Up to 16,000 maximum credits on an individual port (with optional SN8700C Advantage or SN8700C Premier Subscription Licenses activated) Buffer credits: 48-port line-rate 32Gbps advanced Fibre Channel modules:
- Port Channels (up to 16 ISLs) - Fabric Shortest Path (FSPF) based multipathing |
|
|
|
Management modes
|
|
|
|
Interoperability Offers compatibility with a broad range of Hewlett Packard Enterprise servers and operating systems, as well as disk and tape storage devices. |
|
|
|

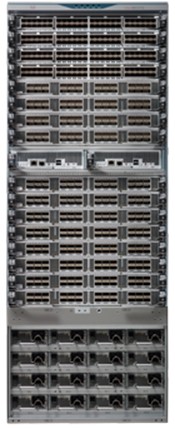

Product Family Models - HPE SN8700C 16-slot 16/32/64Gb FC Director (MDS 9718)
Notes: - Base unit includes a 26U, (16) slot chassis with two hot swappable redundant Supervisor-4 Modules, six hot swappable Fabric-3 Modules, eight hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to sixteen optional expansion port modules. The 6 Fabric-3 modules provide full line rate 32Gb or 64Gb performance. - For help configuring your C-series SN8700C Director, please visit: How to Configure your C-series Director
- HPE SN8700C 8-slot 16/32/64Gb FC Director (MDS 9710)
|
|
Notes: - Base unit includes a 13U, (8) slot chassis with two hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, four hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to eight optional expansion port modules. The 3 Fabric-3 Modules included provide full line rate 32Gb performance. For full line rate 64Gb, 6 Fabric-3 modules are required. - For help configuring your C-series SN8700C Director, please visit: How to Configure your C-series Director
- HPE SN8700C 4-slot 16/32/64Gb FC Director (MDS 9706)
Notes: - Base unit includes a 9U, (4) slot chassis with two hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, two hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to four optional expansion port modules. The 3 Fabric-3 Modules included provide full line rate 32Gb performance. For full line rate 64Gb, 6 Fabric-3 modules are required. - For help configuring your C-series SN8700C Director, please visit: How to Configure your C-series Director
- HPE SN6610C 32Gb Fabric Switch (MDS 9132T)
- HPE SN6620C 32Gb Fabric Switch (MDS 9148T)
- HPE SN6630C 32Gb Fabric Switch (MDS 9396T)
- HPE SN6640C 32Gb Fabric Switch (MDS 9220i)
- HPE SN6710C 64Gb Fabric Switch (MDS 9124V)
- HPE SN6720C 64Gb Fabric Switch (MDS 9148V)
- HPE SN6730C 64Gb Fabric Switch (MDS 9396V)
|
|
|
|
Software Components, Included NX-OS NX-OS (Nexus Operating System) provides a rich set of software intelligent features (VSAN, Zoning, Inter-VSAN routing, IPSec encryption, etc.) for a high-performance switch fabric. The Cisco MDS NX-OS operating system is shipped with the Cisco MDS 9000 Series switches and directors. The SN8700C Director with 2 Supervisor-4 modules and 3 Fabric-3 modules supports NX-OS 8.x or later. |
|
|
|
Software Components, Optional |
|
Cisco Smart Licensing and Subscription Licenses Starting from Cisco NX-OS 9.2(2), Smart Licensing Using Policy is available for HPE C-Series switches. This enables the customer to purchase subscription-based licenses for a period of time. HPE strongly recommends postponing an upgrade to NX-OS 9.2(2) or later until after all traditional (PAK-based) licenses have been installed so that their migration to Smart licenses will occur more smoothly. For more information, refer to Cisco MDS Licensing Guide, Smart Licensing Using Policy: https://www.cisco.com/c/en/us/td/docs/dcn/mds9000/sw/9x/configuration/licensing/cisco-mds-9000-nx-os-licensing-guide-9x/smart-licensing-using-policy.html?dtid=osscdc000283 |
|
|
|
HPE C-series Advantage License (Subscription License: 1/3/5 years) The HPE C-series Advantage License is a combination of Nexus Dashboard Fabric Controller (NDFC) and Enterprise Package license features. It comes with 1-, 3-, or 5-year terms and is provisioned through Cisco Smart Licensing. NDFC includes advanced features such as historical performance data collection for network traffic hot-spot analysis, centralized management services and advanced application integration. NDFC is integrated into ND (Nexus Dashboard) in the latest versions and is available for download from the HPE Support Center. The Enterprise package license features include a set of advanced traffic engineering and advanced security features that are recommended for all Enterprise SANs. |
|
|
|
HPE C-series Premier License (Subscription License: 1/3/5 years) The HPE C-series Premier License is a combination of Nexus Dashboard Fabric Controller (NDFC), Enterprise Package and SAN Analytics license features. It comes with 1-, 3-, or 5-year terms and is provisioned through Cisco Smart Licensing. NDFC and Enterprise Package license features are described above. SAN Insights offers end-to-end visibility into Fibre Channel block storage traffic. SAN Insights delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays that are integrated with Nexus Dashboard Fabric Controller (NDFC).
Notes: - NX-OS 9.2(2) is the minimum required version for C-series Advantage and Premier Licenses. - HPE C-series Advantage and Premier Licenses include maintenance and support for the duration of the license. - At the end of the license period, customers will need to purchase a new license to continue using the software. Software renewal via HPE Services is not allowed/supported. |
|
|
|
Warranty The SN8500C/SN8700C 16/32/64Gb Director offers (3-3-3) Hardware Warranty - Three-year warranty, 24x7, 4-hour remote response, installation not included.
The SN8500C/SN8700C FCoE Module, SN8500C/SN8700C FC Module (3-3-3) Hardware Warranty - Three-year warranty, 24x7, 4-hour remote response, installation not included.
Notes: - The hardware warranty covers firmware and embedded non-saleable software. Saleable software carries its own warranty, see below. - Software Warranty - Hewlett Packard Enterprise warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery. - Exclusive remedy: The entire liability of HPE and its suppliers and your exclusive remedy for software that does not conform to this Limited Warranty shall be the repair or replacement of the defective media. This warranty and remedy are subject to your returning the defective media during the warranty period to HPE in the country in which you obtained the software. |
|
|
|
HPE Services No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
Consulting services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
SAN Fabric Integration and Migration service HPE Data Storage Services - SAN Fabric Integration and Migration simplifies the introduction of and migration to new HPE C-series SAN fabric devices. It helps maximize the value of your investment in your new HPE C-series SAN fabric devices by leveraging HPE Services expertise and best practices. https://www.hpe.com/psnow/doc/a50011015enw
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE |
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational |
|
|
|
Recommended Services
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
| |
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare |
|
|
|
|
|
Other related services from HPE Services
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
|
|
|
- Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums. -
HPE
Service Credits: Access to prepaid services for flexibility to choose
from a variety of specialized service activities, including assessments,
performance maintenance reviews, firmware management, professional services,
and operational best practices. - For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu | ||
|
|
| |
|
HPE SAN Deployment Service Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components. Learn more: https://www.hpe.com/psnow/doc/5981-8527enw?jumpid=in_lit-psnow-red |
| |
|
| ||
|
HPE Installation Service Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
Learn more: https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw |
| |
|
| ||
|
HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
| |
|
| ||
|
Defective Media Retention An
option available with HPE Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options |
| |
|
|
| |
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
| |
|
How to purchase services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.
https://support.hpe.com/hpesc/public/home/signin |
|
|
|
|
|
Consume IT on your terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed by you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world. - Get faster time to market - Save on TCO, align costs to business - Scale quickly, meet unpredictable demand - Simplify IT operations across your data centers and clouds To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information: http://www.hpe.com/services |
|
|
|
|
|
Step 1 - Base Configurations (Select one) | |
|
Description |
SKU |
|
HPE SN8700C 16-slot 16/32/64Gb Fibre Channel Director Switch |
R7L00B |
|
Notes: Base unit includes a 26U, (16) slot chassis with two hot swappable redundant Supervisor-4 Modules, six hot swappable Fabric-3 Modules, eight hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to sixteen optional expansion port modules. |
|
|
HPE SN8700C 8-slot 16/32/64Gb Fibre Channel Director Switch |
R6M36B |
|
Notes: Base unit includes a 14U, (8) slot chassis with 2 hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, 4 hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to eight optional expansion port modules. | |
|
HPE SN8700C 4-slot 16/32/64Gb Fibre Channel Director Switch |
R6M35B |
|
Notes: - Base unit includes a 9U, (4) slot chassis with 2 hot swappable redundant Supervisor-4 Modules, three hot swappable Fabric-3 Modules, 2 hot swappable redundant 3000W Power Supplies, fans, firmware, accessory kit, and documentation. Supports up to four optional expansion port modules. - FICON support is available only on the SN8700C 4-slot and 8-slot chassis (MDS 9706/9710). | |
|
| |
|
Step 2 - Options | |
|
Select each type of required options with quantities specified: Notes: - For help configuring your SN8700C Director, please reference the Configuring C-series SN8700C Director table below. - For a complete list of supported switching modules in the SN8700C Director, please refer to the C-series FC Switch Connectivity Stream on the Single Point of Connectivity Knowledge (SPOCK) website at: https://h20272.www2.hpe.com/spock/. | |
|
| |
|
Description |
SKU |
|
HPE SN8700C 64Gb 48-port Fibre Channel Director Module |
S1V08A |
|
Notes: SFPs required; supports 16, 32 and 64Gb FC SFPs. 64Gb FC SFPs require NX-OS 9.3(1) or later |
|
|
HPE SN8700C 64Gb 48-port 64Gb SFP+ Fibre Channel Director Module |
S0W90A |
|
Notes: 48 x 64Gb SFPs included, 64Gb FC SFPs require NX-OS 9.3(1) or later |
|
|
HPE SN8700C 64Gb 48-port 32Gb SFP+ Fibre Channel Director Module |
R9F23B |
|
Notes: 48 x 32Gb SFPs included |
|
|
HPE SN8500C/SN8700C 48-port 32Gb Fibre Channel Director Module |
Q9D32B |
|
Notes: SFPs required; supports 8, 16 and 32Gb FC SFPs. Module requires NX-OS 8.1(1) or later | |
|
Description |
SKU | |||||||||||||||
|
HPE C-series 64Gb SFP+ Short Wave Fibre Channel Transceiver |
S0W91A | |||||||||||||||
|
HPE Storage C-series 64Gb SFP+ Long Wave Fibre Channel Transceiver |
S6G53A | |||||||||||||||
|
Notes: 64Gb SFPs compatible with SFP28 MSA spec |
| |||||||||||||||
|
HPE C-series 32 Gb Fibre Channel Short Wave SFP+ Transceiver |
Q9D30A | |||||||||||||||
|
HPE C-series 32 Gb Fibre Channel Long Wave SFP+ Transceiver |
Q9D31A | |||||||||||||||
|
Notes: 32Gb SFPs compatible with SFP28 MSA spec |
| |||||||||||||||
|
HPE C-series 16 Gb Fibre Channel SW SFP+ Transceiver |
C8S72A | |||||||||||||||
|
HPE C-series 16 Gb Fibre Channel LW SFP+ Transceiver |
C8S73A | |||||||||||||||
|
HPE MDS 9000 8Gb FC SFP+ Short Range Transceiver |
AJ906A | |||||||||||||||
|
HPE MDS 9000 8Gb FC SFP+ Long Range Transceiver |
AJ907A | |||||||||||||||
|
HPE SN8700C Supervisor-4 Module |
R6M32B | |||||||||||||||
|
HPE SN8700C 16-slot Director Fabric-3 Module |
R7L01B | |||||||||||||||
|
HPE SN8700C 8-slot Director Fabric-3 Module |
R6M34B | |||||||||||||||
|
HPE SN8700C 4-slot Director Fabric-3 Module |
R6M33B | |||||||||||||||
|
HPE SN8500C/SN8700C 3000W 240VAC Director Power Supply |
K2Q20A | |||||||||||||||
|
Notes: Please refer to the table below to determine if additional Fabric-3 modules for your HPE SN8700C director are required to meet your bandwidth and line-rate requirements. | ||||||||||||||||
|
| ||||||||||||||||
| ||||||||||||||||
|
|
| |||||||||||||||
|
Optional Software Licenses |
||||||||||||||||
|
HPE SN8700C Advantage 1-year E-LTU |
R9N35AAE | |||||||||||||||
|
HPE SN8700C Advantage 3-year E-LTU |
R9N39AAE | |||||||||||||||
|
HPE SN8700C Advantage 5-year E-LTU |
R9N43AAE | |||||||||||||||
|
Notes: Advantage license is a combination of Nexus Dashboard Fabric Controller (NDFC) and Enterprise Package license features | ||||||||||||||||
|
HPE SN8700C Premier 1-year E-LTU |
R9N46AAE | |||||||||||||||
|
HPE SN8700C Premier 3-year E-LTU |
R9N49AAE | |||||||||||||||
|
HPE SN8700C Premier 5-year E-LTU |
R9N52AAE | |||||||||||||||
|
Notes: Premier license is a combination of Nexus Dashboard Fabric Controller (NDFC), Enterprise Package and SAN Analytics license features | ||||||||||||||||
|
Installation Services | |
|
For complete design and implementation of Fibre Channel connectivity components, select HPE SAN Deployment Service https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=5981-9356enw http://h20195.www2.hpe.com/V2/GetPDF.aspx/5981-8527ENW.pdf
For basic hardware installation, select the service noted below. Notes: 1 per switch | |
|
Description |
SKU |
|
MDS9506/9509/SN8500C/SN8700C Install |
HA113A1#5D1 |
|
| |
| |||||||||||||||||||||
|
|
| ||||||||||||||||||||
|
Step 3 - Additional Options | |
|
Recommended Cables |
|
|
Description |
SKU |
|
HPE PremierFlex OM4+ Fiber Optic Cables |
|
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable |
QK732A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable |
QK733A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable |
QK734A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable |
QK735A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable |
QK736A |
|
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable |
QK737A |
|
|
|
|
HPE OM3 LC-LC Optical Cables |
|
|
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable |
AJ833A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable |
AJ834A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable |
AJ835A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable |
AJ836A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable |
AJ837A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable |
AJ838A |
|
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable |
AJ839A |
|
|
|
|
Copper SFP+ Cables |
|
|
HPE C-series 3M Passive Copper SFP+ Cable |
K2Q21A |
|
HPE C-series 5M Passive Copper SFP+ Cable |
K2Q22A |
|
| |
|
Family Information
| ||||||||||||||||||||||||||||||||||||
Notes: For additional switch support information, refer to the C-series FC Switch Connectivity Stream on the Single Point of Connectivity Knowledge (SPOCK) website at: https://h20272.www2.hpe.com/spock/. You must sign up for a Hewlett Packard Enterprise Passport to enable access. Once logged in, click Support Documents under Documents in the left navigation panel, then select Switches under Other Hardware to access the Fibre Channel Switch Streams. Finally, click on the C-Series FC Switch Connectivity Stream to open the document. | ||||||||||||||||||||||||||||||||||||
|
|
|
Fibre Channel Protocols |
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Notes: - Dimension convention is as follows:
- Packaging dimensions are referenced as if you were looking at the front of the chassis in the packaging if you could see through the packaging. |
||||||||||||||||||||
|
|
|
|
|
