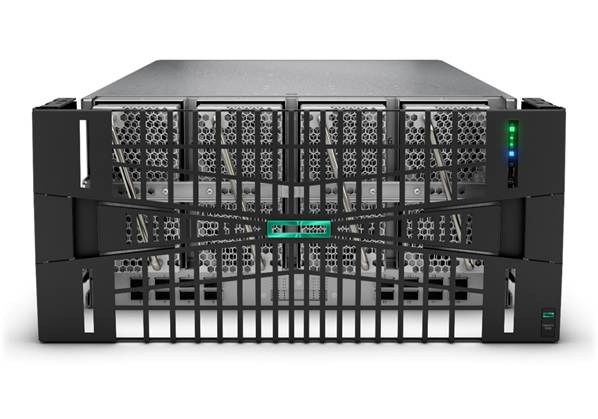

HPE Compute Scale-up Server 3200

QuickSpecs

A high-performance x86-based mission-critical platform

It delivers high reliability, performance, and scale for your mission-critical workloads. The HPE Compute Scale-up Server 3200 is the newest model in the HPE Compute Scale-up family of servers. This highly reliable, scalable, and secure server starts with four processors and scales up to 32, using 4th Gen Intel® Xeon® Scalable processors, in 4-socket increments. Its modular architecture scales cost-efficiently to meet your data growth needs. To support growth of in-memory databases and data-intensive workloads, HPE Compute Scale-up Server 3200 offers large, shared memory capacity ranging from 128 GB to 64 TB.

HPE Compute Scale-up Server 3200

The HPE Compute Scale-up Server 3200 utilizes ultra-fast DDR5 DIMMs with speeds up to 4800 MT/s and 16 DIMM slots per processor, delivering twice the memory bandwidth compared to prior generations. Its flexible I/O subsystem, based on PCIe 5.0, delivers 4x I/O bandwidth compared to prior models. Extreme RAS including advanced memory resiliency, "firmware first", analysis engine, and self-healing ensures the highest reliability for mission critical apps. Superior security, including HPE Silicon Root of Trust and two TPM modules, protects your workloads and data against firmware attacks and malware. Complementary clustering software, HPE Serviceguard for Linux provides rapid and automatic high application availability and disaster recovery capabilities. Optional deployment with GreenLake provides flexible as-a-service consumption while maintaining on-premises control.

HPE Compute Scale-up Server 3200

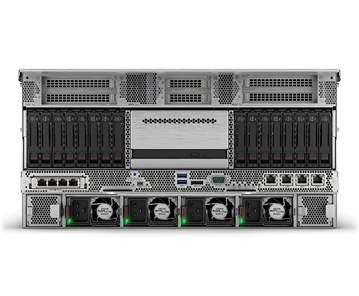

Base Chassis rear view (16-slot)

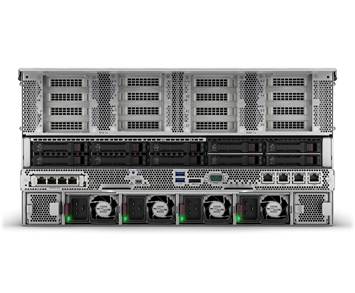

Base Chassis rear view (12-slot)

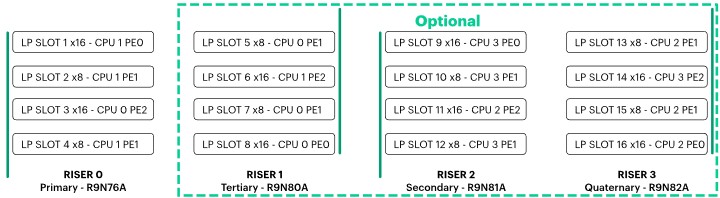

16 x LP PCIe I/O slots

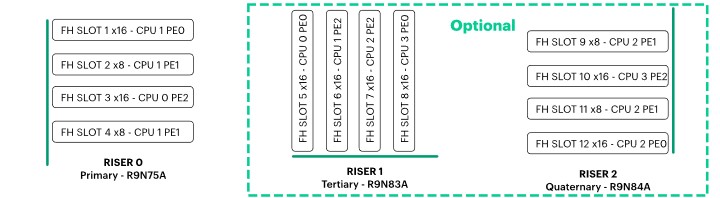

12 x FH/LP PCIe I/O slots

10 x HDD/SSD bays (options available)

DVD (not shown - option available)

8 x HDD/SSD bays +DVD (options available)

OCP Card Slot

OCP Card slot

4 x Power supplies

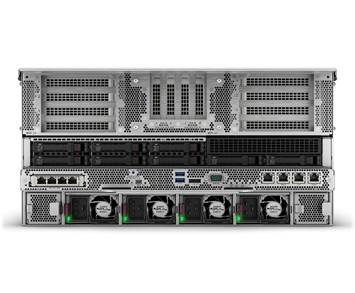

Base Chassis rear view (6-slot)

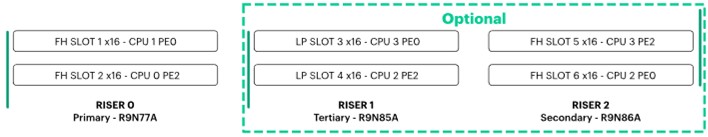

6 x FH/LP PCIe I/O slots

16 x HDD/SSD bays (options available)

OCP Card slot

4 x Power supplies

DVD (optional)

Storage Backplane 10 x 2.5" SFF drive bays

Storage Backplane 8 x 2.5" SFF drive bays

Storage Backplane 8 x 2.5" SFF drive bays and Optional DVD

Storage Backplane 16 x SFF Drive bays and Optional DVD

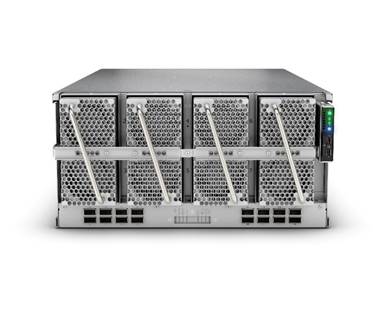

Base chassis front view

8 x Cooling Fans with handles

16 x NUMAlink connectors

Front Panel Management

At a Glance Features

HPE Compute Scale-up Server 3200 is designed to power mission critical applications and databases, and specialized HPC and AI workloads. It offers:

- Support for 4 to 32-sockets of Intel® Xeon® Scalable processors in a single system with up to 60-cores per socket for a maximum of 1920 cores

- Up to 4 UPI links per socket providing unparalleled bandwidth and performance

- 64 DIMM slots of DDR5 memory per chassis

- 32 GB - 128 GB DDR5 with up to 64 TB of shared memory

- 16 half-height IO slots OR 8 full-height + 4 half-height IO slots, OR 4 full-height + 2 half-height IO slots per four-socket chassis

- Base I/O includes support for one PCIe Gen 4 x 16 OCP slot, 8SATA drives via VROC, two (2) system USB 3.0 ports on the back, one (1) system USB and one (1) RMC USB port on the front panel. The RMC USB can be connected to USB to ethernet adapter as a management LAN connection.

- Internal storage up to 24 EDSFF E3.S or 24 SFF drive bays and optional DVD, varies based on I/O support selected

- HPE Compute Scale-up Server 3200 Error Analysis Engine for better diagnostics, self-healing, and mission-critical reliability.

General

The HPE Compute Scale-up Server 3200 is built using 4-socket, 5U chassis that are cabled together to create systems from 4-sockets (1 chassis) to 16 sockets (4 chassis). A 32 socket (8 chassis) is also available with limited configurations. Each chassis supports 8 fans, 4 power supplies, associated power cords, and connecting cables.

Power Supply (2400 W)

R9P00A - HPE Compute Scale-up Server 3200 2x 2400 W Platinum Hot Plug Power Supply Kit (kit of 2)

80PLUS Platinum Power Supply
Loading	100% maximum	50% of maximum
Minimum Efficiency@230VAC	91%	94%

Rated Specifications	Value	Units
Input Voltage	200-240	Volts
Input Current (max)	13.5	Amps
Input Frequency (Typical)	50/60	Hz
Rated Output Power	2400	Watts

Notes:

- Mixing of Power Supplies within a chassis or system is not allowed

- Each SKU contains 2 power supplies, 2 kits are required per chassis

Power Supply (2400 W) Optional

R9P01A - HPE Compute Scale-up Server 3200 2x 2400 W Titanium Hot Plug Power Supply Kit (kit of 2)

80PLUS Titanium Power Supply
Loading	100% maximum	50% of maximum
Minimum Efficiency @230VAC	91%	96%

Rated Specifications	Value	Units
Input Voltage	200-240	Volts
Input Current (max)	13.3	Amps
Input Frequency (Typ)	50/60	Hz
Rated Output Power	2400	Watts

Notes:

- Mixing of Power Supplies within a chassis or system is not allowed

- Each SKU contains 2 power supplies, 2 kits are required per chassis

System

The system can support up to four (4) chassis. An (8) chassis system with limited configurations is offered.

Notes: Ordering rules can be found in the HPE Compute Scale-up Server 3200 menu and in the ordering and configuration tools.

Chassis

Each chassis has the following specifications:

- Support for four (4) Intel® Xeon® Scalable processors

- Supports up to 64 DDR5 DIMM slots (16 DIMMs per processor)

- Supports up to sixteen (16) PCIe Gen 5 slots

Eight (8) x16 PCIe Gen 5 slots and Eight (8) x8 PCIe Gen 5 slots

- Supports additional IO capability in a Base I/O chassis (OCP Slot)

Base and expansion chassis

- Every HPE Compute Scale-up Server 3200 system starts with one 4-socket capable Base Chassis (with boot support). Up to three (3) Expansion Chassis can be added to expand the system from 4-sockets to 8, 12, or 16-sockets. A 32-socket system with (1) Base Chassis and (7) Expansion Chassis is available in limited configurations.

Processors

Each server chassis supports four (4) Intel® Xeon® Scalable processors:

- Intel® Xeon®-Platinum 8490H 1.9 GHz 60-core 350 W Processor Kit for HPE Compute Scale-up Server 3200

- Intel® Xeon®-Platinum 8468H 2.1 GHz 48-core 330 W Processor Kit for HPE Compute Scale-up Server 3200

- Intel® Xeon®-Platinum 8460H 2.2 GHz 40-core 330 W Processor Kit for HPE Compute Scale-up Server 3200

- Intel® Xeon®-Platinum 8454H 2.1 GHz 32-core 270 W Processor Kit for HPE Compute Scale-up Server 3200

- Intel® Xeon®-Platinum 8450H 2.0 GHz 28-core 250 W Processor Kit for HPE Compute Scale-up Server 3200

- Intel® Xeon®-Platinum 8444H 2.9 GHz 16-core 270 W Processor Kit for HPE Compute Scale-up Server 3200

- Intel® Xeon®-Gold 6434H 3.7 GHz 8-core 195 W Processor Kit for HPE Compute Scale-up Server 3200

Notes:

- All processors can be utilized to scale to 32 sockets

- All processors within a chassis, partition and chassis must be identical

Chipset

Intel® C741 Chipset

Notes: For more information regarding Intel® chipsets, refer to the following URL: https://www.intel.com/content/www/us/en/products/details/chipsets/server-chipsets.html

Upgradability and scalability

Scalable from 4-socket configurations to 32-socket configurations.

A 32-socket system offering is available in limited configurations which can be scaled up to 64 TB of memory.

- The 32-socket system is not an option in the OCA configuration tool and will require 'expert mode' to quote.

- Preferred configuration BOMs are available to build 32-socket systems

- 32-socket system configuration will require a CSG approval prior to quoting.

- Systems above 16-socket are limited to a 32-socket offering. System configurations of 20, 24, or 28-socket are not available.

Memory type Registered

- HPE Compute Scale-up Server 3200 32 GB (1x32GB) Single Rank x4 DDR5-4800 Registered Std Memory Kit

- HPE Compute Scale-up Server 3200 64 GB (1x64GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit

- HPE Compute Scale-up Server 3200 96 GB (1x96GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit

- HPE Compute Scale-up Server 3200 128 GB (1x128GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit

- HPE Compute Scale-up Server 3200 128 GB (1x128GB) Quad Rank x4 DDR5-4800 Registered 3DS Memory Kit

Memory protection

- DDR5 ECC correction with monitoring of Error Check and Scrub

- Post Package Repair PPR as needed on power up

- ADDDC and memory page retire for online resiliency

Operating System

- Red Hat Enterprise Linux (RHEL)

- SUSE Linux Enterprise Server (SLES)

- Oracle Linux

- VMware

- Microsoft Windows Server 2022 Standard and Datacenter

- Microsoft Windows Server 2025 Standard and Datacenter

Notes:

- HPE Foundation Software is required for all Linux O/S environments

- SLES, RHEL, and Oracle Linux certifications include KVM certification

- Minimum OS levels may be required for certain features and hardware options

Product SKU	Description	Windows 2022	Windows 2025	RHEL 8.6+	RHEL 9	SLES 15	VMWare 8	Oracle
P45641-H23	HPE InfiniBand NDR/Ethernet 400 GB 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter	E	E	X	X	X	X	X
P21106-B21	Intel I350-T4 Ethernet 1 GB 4-port BASE-T Adapter for HPE	X	X	X	X	X	X	X
P26253-B21	Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T Adapter for HPE	X	X	X	X	X	X	X
P26259-B21	Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ Adapter for HPE	X	X	X	X	X	X	X
P08443-B21	Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE	X	X	X	X	X	X	X
P08458-B21	Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE	X	X	X	X	X	X	X
P21112-B21	Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 Adapter for HPE	X	X	X	X	X	X
P26264-B21	Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE	X	X	X	X	X	X
R4K46A	HPE Slingshot SA210S Ethernet 200 GB 1-port PCIe NIC			X	X	X	X
P42041-B21	Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE	X	X	X	X	X	X
P08449-B21	Intel I350-T4 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE	X	X	X	X	X	X	X
P10097-B21	Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE	X	X	X	X	X	X	X

Product SKU	Description	Windows 2022	Windows 2025	RHEL 8.6+	RHEL9	SLES15	VMWare 8	Oracle
P9D93A	HPE SN1100Q 16 GB Single Port Fibre Channel Host Bus Adapter	X	X	X	X	X	X	X
P9D94A	HPE SN1100Q 16 GB Dual Port Fibre Channel Host Bus Adapter	X	X	X	X	X	X	X
R2J62A	HPE SN1610E 32 GB 1-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X	X
R2J63A	HPE SN1610E 32 GB 2-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X	X
R2E08A	HPE SN1610Q 32 GB 1-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X	X
R2E09A	HPE SN1610Q 32 GB 2-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X	X
R7N77A	HPE SN1700E 64 GB 1-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X
R7N78A	HPE SN1700E 64 GB 2-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X
R7N86A	HPE SN1700Q 64 GB 1-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X
R7N87A	HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter	X	X	X	X	X	X

R4R52A	HPE SR3258p-32i/e 32-port 8 GB Cache Tri-Mode 24G PCIe4 x 16 Encrypted Controller	X		X	X	X	X	X
R9P58A	HPE SR3258p-16i/e 16-port 8 GB Cache Tri-Mode 24G PCIe4 x 16 Encrypted Controller	X		X	X	X	X	X
R9N96A	HPE MR9660-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller	X	X	X	X	X	X	X
R9N97A	HPE MR9670-24i 24-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller	X	X	X	X	X	X
R9N98A	HPE MR9670W-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x 16 Controller	X	X	X	X	X	X	X
R9N99A	HPE SR3254-16e/e 16-port 4 GB Cache External 24G PCIe4 x 16 Encrypted Controller	X		X	X	X	X	X

S0K89C	NVIDIA L4 24 GB PCIe Accelerator for HPE	X		X	X	X	X
S2L70C	NVIDIA L40S 48 GB PCIe Accelerator	X		X	X	X	X
Notes: - X = Supported - E = Ethernet Mode Only - Minimum OS levels are required for support of some processors and options - HPE Compute Scale-up Server 3200 I/O Oracle Linux Support: Hewlett Packard Enterprise only supports the use of in distribution drivers with Oracle Linux and UEK update releases. All controllers tested above used the driver located on the source media for their respective Oracle product. Out of distribution drivers are not supported with Oracle Linux, or UEK. - HPE Compute Scale-up Server 3200 I/O VMware Support: I/O configurations with VMware must adhere to the "vSphere Configuration Maximums" as documented by VMware per controller type and manufacturer. - For more information on the HPE Certified and Supported Hewlett Packard Enterprise servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.HPE.com/info/ossupport

Partitioning - Multiple electrically isolated HPE nPartitions (HPE nPars) supported per system. - Please refer to the table below for HPE nPars Partition Options. - All Processors and Memory must be the same within a Partition. - Repartitioning does not require recabling. - 32-socket configurations are limited to a single HPE nPartition

Solution ID. 11 partitioning configurations.
	1 Chassis	1 Config
1	4s
	2 Chassis	2 Configs
2	4s	4s
3	8s

	3 Chassis	3 Configs
4	4s	4s	4s
5	8s		4s
6	12s

	4 Chassis	5 Configs
7	4s	4s	4s	4s
8	8s		4s	4s
9	8s		8s
10	12s			4s
11	16s

I/O Slots

Chassis support either 16 half-height PCIe slots (8 x 16 slots and 8 x8 slots); 12 slots with eight full-height slots (4 x 16 slots and 4 x8 slots) + 4 half-height slots (4 x 16 slots); 6 slots with four full-height (4 x 16) + two half-height (2 x16) or a compute-only configuration (no PCIe slots). The compute-only configuration is only supported with the Expansion Chassis.

Max I/O

Max GPU

Max Storage



Base Chassis Base I/O - One OCP Card Access - One Reset switch - One RMC console (mini USB-B) - Two external USB 3.0 ports - One Display Port - One serial port (9-pin Dsub) - Set of System Indicator lights - Three RJ45 ports for inter-chassis management connection - One RJ45 RMC Management port Notes: HPE Compute Scale-up Server 3200 chassis does not come with embedded networking, hence the requirement to configure with either a FlexibleLOM or select PCIe networking adapter.

Form Factor 5U Base Chassis or Expansion Chassis

High availability-standard server features - 2N (N+N) redundant (2400 W) power supplies - N+1 fans (or greater depending on the load) - Hot-Swappable and redundant fans, power supplies - HPE Analysis Engine Logging and Reporting - Full Support for Fault Resilient boot with indications and deconfigures - Enhanced MCA Gen2 recovery - Post Package Repair (PPR) with ADDDC memory options - ECC, retries, and Link Width Reduction on data paths - Automatic de-configuration of DIMMs. Processor de-configuration - I/O Advanced Error Recovery - Enhanced Downstream Port Containment - PCIe Isolation - Redundant and Failover in Fabric Lanes; Automatic rerouting; Error correction - Resilient Internal Management LAN - Front Panel Management device

Standard Warranty Three-year parts, three-year labor, and three-year on-site limited global warranty. Protected by HPE Services operational services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hewlett Packard Enterprise branded hardware and options qualified for the HPE Compute Scale-up Server 3200 are covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners. The HPE branded hardware and options diagnostic support and repair is available for three years from date of purchase, or the warranty length of the server they are attached to, whichever is greater. Additional support may be covered under the warranty or available through additional support packages. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Additional information regarding worldwide limited warranty and technical support is available at: https://support.HPE.com/hpsc/doc/public/display?docId=c01865770

Physical and Environmental Information Systems are comprised of the following components: Base chassis plus Expansion chassis. Enclosure The system can be field racked. However, it is strongly recommended that customers order the systems racked from the factory. This provides the customer the benefit of extensive system testing and avoids possible premium service charges for field racking service. Field racking requires the use of an appropriate material lift capable of lifting 125+ lbs. Systems are supported in HPE 600 mm and 800 mm racks, and the HPE D-rack. Rack availability is dependent on size of system complex. Other products may be placed in the same rack as the system. Placement of these other products must not result in moving the server chassis. All racks in the same order must be the same height and width.
	Hardware Configuration
	Number of chassis per compute system	1/2/3/4/8
	Number of processor modules per compute system (min/max)	4/8/12/16/32
	Number of DIMMs (min/max)	1, 4, 8, 12 or 16 per socket
	Number of I/O slots	16 Low-profile per chassis Or 8 Full-height and 4 Low-profile per chassis Or 4 Full-height and 2 Low-profile per chassis Or Compute only 0-slot (Expansion Chassis only)
	Number of RMCs	1 per chassis. Base chassis is primary controller
	Number of Base I/O	1
	SAS/SATA drives per Chassis	Up to 24 depending on number of IO slots selected
	DVD module per Base I/O	0-1 (depending on number of drives)
	Fans	8 per chassis front, 2 in rear
	Power Supplies (2400 W)	2N: 4 per chassis
The system is supported in the HPE 600 mm and 800 mm series racks and the HPE D-rack with a standard rack door.

Configuration Rules The chassis is the basic building block. - A single system can be supported in 1-Chassis to 8-Chassis configurations. An embedded Rack Management Controller is included with Base chassis. - Each system starts with one (1) Base Chassis. Up to three (3) Expansion Chassis can be added to scale the system. A (1) Base Chassis (7) Expansion Chassis system is available in limited configurations. - There are single phase and three phase power distribution options. - Mixing of Power Supplies within a chassis or system is not allowed - All processors within a chassis, partition or system must be of the same processor type - Default boot slots dependent on what IO selection is made and slot is populated with a bootable PCIe card 12-slot/16-slot: 3,1,11 6-slot: 2,1,6 - One (1) Additional/Customizable boot slot available for a total of four (4) boot slots

Racking Choices HPE Compute Scale-up Server 3200 can be racked in many of the HPE G2 Enterprise Series and Advanced Series racks, and the HPE D-Rack. Complete ordering rules can be found in the HPE Compute Scale-up Server 3200 menu and in the ordering and configuration tools. The HPE Compute Scale-up Server 3200 can also be rack mounted in 3rd party rack. Specific rules and guidelines for this are available here: HPE Compute Scale-up Server 3200 Rack Planning Checklist HPE Compute Scale-up Server 3200 Rackmounting Guide The following racks are supported with HPE Compute Scale-up Server 3200-refer to the server menu for ordering and configuration rules: - HPE 22U 600x1075mm Adv G2 Shock Rack - HPE 36U 600x1075mm Adv G2 Kit Shock Rack - HPE 42U 600x1200mm Adv G2 Kit Shock Rack - HPE 42U 600x1075mm Adv G2 Kit Shock Rack - HPE 42U 600x1075 Ent G2 Shock Rack - HPE 42U 600x1200 Ent G2 Shock Rack - HPE 42U 800x1075 Ent G2 Shock Rack - HPE 42U 800x1200 Ent G2 Shock Rack - HPE 48U 600x1075 Ent G2 Shock Rack - HPE 48U 600x1200 Ent G2 Shock Rack - HPE 48U 800x1200 Ent G2 Shock Rack - HPE 42U 610 mm x 1156 mm D-Rack - HPE D-Rack 42U 610 mm x 1156 mm Extended
The default assumption is that chassis are loaded in the rack at the bottom. It is recommended that 1U is left below the bottom of the compute enclosure in the 42U rack to provide PDU and cabling exit space. Supported configurations have the system located at the bottom of the rack with peripherals located above all chassis. - HPE G2 Enterprise Series Racks QuickSpecs: https://www.HPE.com/h20195/v2/GetDocument.aspx?docname=a00002907enw - HPE G2 Advanced Series Racks QuickSpecs: https://www.HPE.com/h20195/v2/GetDocument.aspx?docname=c05324689 - Enlogic by nVent G3 Enterprise Power Distribution Units for HPE QuickSpecs: https://h20195.www2.HPE.com/v2/GetDocument.aspx?docname=c05324691 - HPE G2 Metered Power Distribution Units QuickSpecs: https://www.HPE.com/psnow/doc/a00002908enw.pdf?jumpid=in_pdp-psnow-qs

G2 and G3 PDUs supported on HPE Compute Scale-up Server 3200
P9R80A	HPE G2 Metered Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208 V Outlets (6) C19/1U Horizontal NA/JP PDU
P9R81A	HPE G2 Metered Modular 3Ph 22kVA/60309 5-wire 32A/230 V Outlets (6) C19/1U Horizontal INTL PDU
P59420-B21	Enlogic by nVent G3 Basic 1-phase 4.9kVA/24A/200-240 V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE
P59421-B21	Enlogic by nVent G3 Basic 1-phase 7.3kVA/32A/200-240 V Outlets (4) C13 (8) Combo C13/C19 PDU for HPE

PDU Model	Region	Power Phase	Input Voltage Range	Input Current	Circuit Breakers	Input Plug Type	Input Cord Length	Outlet	Dimensions
S0P01A	NA/JP	Three	200 - 240 V	48A derated	6 x 20A	IEC 60309/ 460P9W	12'	6 x IEC320 C19	22.5"H x 2.0"W x 6.5"D
S0P02A	INTL	Three	380 - 415 V	32A	6 x 16A	IEC 60309/ 532C6W	12'	6 x IEC320 C19	22.5"H x 2.0"W x 6.5"D
S0P03A	NA/JP	Single	200 - 240 V	24A derated	2 x 20A	NEMA L6-30	12'	2 x IEC320 C19	11.6"H x 1.8"W x 3.9"D
S0P04A	INTL	Single	200 - 240 V	32A	2 x 20A	IEC 60309/ 332C6W	12'	2 x IEC320 C19	11.6"H x 1.8"W x 3.9"D

HPE Destination Rack (D-Rack)

The HPE D-Rack is available for HPE Compute Scale-up Server 3200 in two models:

- HPE 42U 610 mm x 1156 mm D-Rack (H7C27A)

- HPE D-Rack 42U 610 mm x 1156 mm Extended (Q2T97A) The extended rack includes a 2U extension for a total of 44 rack units (44U).

HPE Destination Rack (D-Rack)
Dimensions for a single 24-inch wide 42U rack	Height: 78.75 in. (200 cm)
	Width: 24.0 in. (60.9 cm)
	Depth: 46.0 in. (116.8 cm)
Shipping dimensions (single rack)	Height: 88.88 in. (225.8 cm)
	Width: 44.0 in. (111.8 cm)
	Depth: 62.75 in. (159.4 cm)
Weight (single rack)	386 lb. (175.1 kg)
Shipping weight (single rack)	856 lb. (388.3 kg)
Static load (max)	2400 lb. (1088.6 kg)
Dynamic load (max rolling)	2500 lb. (1134 kg)
42U rack access requirements	Front: 48 in. (121.9 cm)
	Rear: 48 in. (121.9 cm)
	Top: 18 in. (45.7 cm)

HPE Power Advisor

The HPE Power Advisor is a tool provided by Hewlett-Packard to assist in the estimation of power consumption at a system, rack, and multi-rack level.

Available at: https://poweradvisorext.it.HPE.com/?Page=Index

Processor Support

HPE Compute Scale-up Server 3200 systems support Intel® Xeon® 4^th Generation 84xXH and 64XXH as specified in the following table.

Notes:

- Maximum memory per socket includes DDR5 memory within the system

- Maximum memory is 2 TB per socket

- Minimum OS levels are required for support of some processors and options

Supported Processor Matrix
Intel® Xeon® Scalable Processor Family 4^th Generation
Processor	# of cores per processor	Frequency	Cache	Power
Intel® Xeon® Platinum 8490H Processor	60c	1.9 GHz	112.5 MB	350 W
Intel® Xeon® Platinum 8468H Processor	48c	2.1 GHz	105 MB	330 W
Intel® Xeon® Platinum 8460H Processor	40c	2.2 GHz	105 MB	330 W
Intel® Xeon® Platinum 8454H Processor	32c	2.1 GHz	82.5 MB	270 W
Intel® Xeon® Platinum 8450H Processor	28c	2.0 GHz	75 MB	250 W
Intel® Xeon® Platinum 8444H Processor	16c	2.9 GHz	45 MB	270 W
Intel® Xeon® Gold 6434H Processor	8c	3.7 GHz	22.5 MB	195 W

Processor Mixing Support

Governing rules for mixing processors are as follows:

- No mixing of processor types within the same system

- All processors within all nPars within a complex must be identical in order to maximize repartitioning options

DDR5 Memory Support

Systems will use DDR5 DIMM technology.

The following DIMMs are supported in the chassis:

- 32 GB 1Rx4 DDR5-4800R Registered DIMM

- 64 GB 2Rx4 DDR5-4800R Registered DIMM

- 96 GB 2Rx4 DDR5-4800R Registered DIMM

- 128G 4Rx4 DDR5-4800R 3DS Registered DIMM

- 128 GB 2Rx4 DDR5-4800R Registered DIMM

Notes:

- Only DIMMs that Hewlett Packard Enterprise has qualified are supported.

- Each chassis supports up to 64 DIMMs. This breaks down to sixteen DIMMs per socket, 8 memory channels.

- General memory configuration rules:

o For best performance, the amount of memory on each chassis within the system should be the same.

o Must use the same amount of memory on each processor module within a partition.

- 128 GB Quad Rank DDR5 3DS Memory is no longer sold to be configured with new systems. The memory remains available only as an option for upgrade. HPE Does not support mixing 128 GB Dual Rank and Quad Rank (3DS) memory within the same complex/system. Ensure when adding 128 GB DIMMs to an existing system that the same memory type either R9Q20A or S3Q76A as the original system is configured.

HPE Compute Scale-up Server 3200 Memory DIMM Configurations
Memory Slot Configuration	DIMMS per Socket	Data Rate	Capacity per Socket	Total System Memory Capacity (TB)
Memory Slot Configuration	DIMMS per Socket	Data Rate	Capacity per Socket	4S	8S	12S	16S	32S
32 GB RDIMM	1	4800 MT/s	32 GB	128 GB	256 GB	384 GB	512 GB	1 TB
	4	4800 MT/s	128 GB	512 GB	1 TB	1.5 TB	2 TB	4 TB
	8	4800 MT/s	256 GB	1.TB	2.TB	3 TB	4 TB	6 TB
	12	4400 MT/s	384 GB	1.5 TB	3 TB	4.5 TB	6 TB	8 TB
	16	4400 MT/s	512 GB	2 TB	4 TB	6 TB	8 TB	16 TB
64 GB RDIMM	1	4800 MT/s	64 GB	256 GB	512 GB	768 GB	1 TB	2 TB
	4	4800 MT/s	256 GB	1 TB	2 TB	3 TB	4 TB	4 TB
	8	4800 MT/s	512 GB	2 TB	4 TB	6 TB	8 TB	8 TB
	12	4400 MT/s	768 GB	3 TB	6 TB	9 TB	12 TB	24 TB
	16	4400 MT/s	1 TB	4 TB	8 TB	12 TB	16 TB	32 TB
96 GB RDIMM	8	4800 MT/s	768 GB	3 TB	6 TB	9 TB	12 TB	24 TB
96 GB RDIMM	16	4400 MT/s	1.5 TB	6 TB	12 TB	18 TB	24 TB	48 TB
128 GB RDIMM	8	4800 MT/s	1 TB	4 TB	8 TB	12 TB	16 TB	32 TB
128 GB RDIMM	16	4400 MT/s	2 TB	8 TB	16 TB	24 TB	32 TB	64 TB
128 GB RDIMM 3DS	1	4800 MT/s	128 GB	512 GB	1 TB	1.5 TB	2 TB	4 TB
	4	4800 MT/s	512 GB	2 TB	4 TB	6 TB	8 TB	16 TB
	8	4800 MT/s	1 TB	4 TB	8 TB	12 TB	16 TB	32 TB
	12	4400 MT/s	1.5 TB	6 TB	12 TB	18 TB	24 TB	48 TB
	16	4400 MT/s	2 TB	8 TB	16 TB	24 TB	32 TB	64 TB

Internal storage configurations 1U
Storage Option	Backplane SKU	RAID controller/ SKU	Lanes / Bay	Slot usage	Controller slot to Drive mapping	Cable SKUs	Chassis options / Drives
No internal storage	N/A	N/A	N/A	N/A	N/A	N/A	Base & Expan, 0, 12 or 16 slots, 0 drives
8 drive standard 1U storage, Intel® VROC (SATA RAID), No Encryption, SATA only	R9N87A	Emmitsburg PCH	x1	No PCIe slots used	PCH: Box1/Drv 1-8	1x R9N93A	Base Only, 0, 12 or 16 slots, 8 drives
8 drive standard 1U storage, HW RAID, Encryption, x1 NVMe/SAS/SATA	R9N87A	R9P58A / 3258p-16i /e	x1	1 LP x16 slot and 1 LP x8 slot**	PCIe 3: Box1/Drv 1-8	1x R4S25A	Base & Expan, 12 or 16 slots, 8 drives
8 drive premium 1U storage, HW RAID, Encryption, x4 NVME/SAS/SATA	R9N88A	R4R52A / 3258p-32i /e	x4	1 FH x16 slot and 1 LP x8 slot**	PCIe 3: Box1/Drv 1-8	2x R4S25A 2x R4R40A	Base & Expan, 12 slots, 8 drives
8 drive premium 1U storage, HW RAID, Encryption, x2 NVME/SAS/SATA	R9N88A	R9P58A / 3258p-16i /e	x2	1 LP x16 slot and 1 LP x8 slot**	PCIe 3: Box1/Drv 1-8	1x R4R41A 1x R4R42A	Base & Expan, 12 or 16 slots, 8 drives
8 drive premium 1U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA	R9N88A	R9N96A / 9660-16i	x2	2 LP x8 slots**	PCIe 3: Box1/Drv 1-8	1x R4R41A 1x R4R42A	Base & Expan, 12 or 16 slots, 8 drives
8 drive premium 1U storage, Intel® CPU Direct-Attach, No Encryption, x4 NVMe	R9N88A	Intel® CPU	x4	No PCIe slots used	CPU: 0/3 Box1/Drv 1-8	1x R9Q28A	Base & Expan, 0 or 12 slots, 8 drives
10 drive premium 1U storage, HW RAID, Encryption, Intel® VROC (SATA RAID), x4 NVMe / SAS / SATA	R9N88A R9N89A	R4R52A / 3258p-32i /e Emmitsburg PCH	x4	1 FH x16 slot and 1 LP x8 slot**	PCIe 3: Box1/Drv 1-8 #PCH: Box2/Drv 1-2	2x R4S25A 2x R4R40A 1x R9N94A	Base Only, 12 slots, 10 drives
10 drive premium 1U storage, HW RAID, Encryption, x2 NVMe / SAS / SATA	R9N88A R9N89A	R4R52A / 3258p-32i /e	x2/x4	1 FH x16 slot and 1 LP x8 slot**	PCIe 3: Box1/Drv 1-8 PCIe 3: Box2/Drv 1-2	1x R4R41A 1x R4R42A 1x R4R40A	Base & Expan, 12 slots, 10 drives
10 drive premium 1U storage, HW RAID, Encryption with SED drives, Intel® VROC (SATA RAID), x2 NVMe / SAS / SATA	R9N88A R9N89A	R9N96A / 9660-16i Emmitsburg PCH	x2/x4	2 LP x8 slots**	PCIe 3: Box1/Drv 1-8 #PCH: Box2/Drv 1-2	1x R4R41A 1x R4R42A 1x R9N94A	Base Only, 12 or 16 slots, 10 drives
10 drive premium 1U storage, Intel® CPU/PCH Direct-Attach, No Encryption, x4 NVMe / SATA	R9N88A R9N89A	Intel® CPU, Emmitsburg PCH	x4	No PCIe slots used	CPU0/3: Box1/Drv 1-8 #PCH: Box2/Drv 1-2	1x R9Q28A 1x R9N94A	Base Only, 0 or 12 slots, 10 drives

Internal storage configurations 2U
Storage Option	Backplane SKU	RAID controller/ SKU	Lanes / Bay	Slot usage	Controller slot to Drive mapping	Cable SKUs	Chassis options / Drives
8 drive standard 2U storage, Intel® VROC (SATA RAID), No Encryption, x1 SATA Only	R9N90A	Emmitsburg PCH	x1	No PCIe slots used	PCH: Box1/Drv 1-8	1x R9N95A	Base Only, 0 or 6 slots, 8 drives
8 drive standard 2U storage, HW RAID, Encryption, x1 NVMe / SAS / SATA	R9N90A	R9P58A / 3258p-16i /e	x1	1 LP x16 slot*	PCIe 2: Box1/Drv 1-8	1x R4S25A	Base & Expan, 6 slots, 8 Drives
16 drive standard 2U storage, HW RAID, Encryption, x1 NVMe / SAS / SATA	2x R9N90A	R9P58A / 3258p-16i /e	x1	1 LP x16 slot*	PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8	1x R4S25A 1x R4R40A	Base & Expan, 6 slots, 16 drives
16 drive standard 2U storage, HW RAID, Encryption with SED drives, x1 NVMe / SAS / SATA	2x R9N90A	R9N96A / 9660-16i	x1	1 LP x8 slot*	PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8	1x R4S25A 1xR4R40A	Base & Expan, 6 slots, 16 drives
24 drive standard 2U storage, HW RAID, Encryption, x1 NVMe / SAS / SATA	3x R9N90A	R4R52A / 3258p-32i /e	X1	1 FH x16 slot and 1 LP x8 slot**	PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8 PCIe 3 Box 2/Drv 1-8	1x R4S25A 2xR4R40A	Base & Expan, 6 slots, 24 drives
8 drive premium 2U storage, HW RAID, Encryption, x4 NVMe / SAS / SATA	R9N91A	R4R52A / 3258p-32i /e	x4	1 FH x16 slot*	PCIe 2: Box1/Drv 1-8	4x R4S25A	Base & Expan, 6 slots, 8 drives
8 drive premium 2U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA	R9N91A	R9N96A / 9660-16i	x2	1 LP x8 slot*	PCIe 2: Box1/Drv 1-8	2x R4R41A	Base & Expan, 6 slots, 8 drives
8 drive premium 2U storage, Intel® CPU Direct-Attach, No Encryption, x4 NVMe	R9N91A	Intel® CPU	x4	No PCIe slots used	CPU0/3: Box1/Drv 1-8	1x R9Q29A	Base & Expan, 0 or 6 slots, 8 drives
16 drive premium 2U storage, HW RAID, Encryption, x4 NVMe / SAS / SATA	2x R9N91A	2 x R4R52A / 3258p-32i /e	x4	2 FH x16 slots*	#PCIe 2: Box1/Drv 1-8 PCIe 1: Box3/Drv 1-8	4x R4S25A 4x R4R40A	Base & Expan, 6 slots, 16 drives
16 drive premium 2U storage, HW RAID, Encryption, x2 NVMe / SAS / SATA	2x R9N91A	R4R52A / 3258p-32i /e	x2	1 FH x16 slot*	PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8	2x R4R41A 2x R4R42A	Base & Expan, 6 slots, 16 drives (single RAID set)
16 drive premium 2U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA	2x R9N91A	2x R9N98A / 9670 W -16i	x2	2 FH x16 slots*	#PCIe 2: Box1/Drv 1-8 PCIe 1: Box3/Drv 1-8	2x R4R41A 2x R4R42A	Base & Expan, 6 slots, 16 drives
16 drive premium 2U storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe	2x R9N91A	Intel® CPU	x4	No PCIe slots used	#CPU0/1: Box1/Drv 1-8 CPU3: Box3/Drv 1-8	1x R9Q29A 1x R9Q30A	Base & Expan, 0 or 6 slots, 16 drives
24 drive premium 2U storage, HW RAID, Encryption with SED drives, x2 NVMe / SAS / SATA	3x R9N91A	R4R52A / 3258p-32i /e; R9P58A/3258p-16i /e	x2	1 FH x16 slot and 1 LP x8 slot** 1 LP x16	PCIe 2: Box1/Drv 1-8 PCIe 2: Box3/Drv 1-8 PCIe2 Box 2/Drv 1-8	2x R4R41A 4x R4R42A	Base & Expan, 6 slots, 24 drives
24 drive premium 2U storage, Intel® CPU Direct-Attach, No encryption, x4 NVMe	3x R9N91A	Intel® CPU	x4	No PCIe slots used	#CPU0/1: Box1/Drv 1-8 CPU3: Box3/Drv 1-8	1x R9Q29A 1x R9Q30A	Base & Expan, 0 slots, 24 drives
12 drive premium 2U EDSFF storage, HW RAID, Encryption, x2 NVMe	1x R9N92A	R4R52A 3258p-32i /e	X2	1 FH x16 slot and 1 LP x8 slot**	PCIe 2: Box1 / Drv1-12	3x R4R41A	Base & Expan, 6 slots, 12 drives
12 drive premium 2U EDSFF storage, HW RAID, Encryption with SED drives, x4 NVMe	1x R9N92A	2 x R9N97A MR 9670-24i	X4	2 FH x8/x16	#PCIe 2: Box1 / Drv1-6 PCIe 1: Box1 / Drv7-12	6x R4S25A	Base & Expan, 6 slots, 12 drives
8 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach¹, No encryption, x4 NVMe	1x R9N92A	Intel® CPU	X4	No PCIe slots used	CPU0/1: Box1 / Drv1-8	1x R9Q29A	Base & Expan, 6 slots, 8 drives
12 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach¹, No Encryption, x4 NVMe	1x R9N92A	Intel® CPU	X4	No PCIe slots used	CPU0/1: Box1 / Drv1-12	1x R9Q29A 1x R9Q32A	Base & Expan, 6 slots, 12 drives
24 drive premium 2U EDSFF storage, HW RAID, Encryption, x2 NVMe	2x R9N92A	R4R52A 3258p-32i /e + R9P58A 3258p-16i /e	X2	1 FH x16 slot and 1 LP x8 slot** 1 LP x16	#PCIe 2: Box1 / Drv1-12 #PCIe 2: Box3 / Drv1-4 PCIe 1: Box3 / Drv5-12	3x R4R41A 3x R4R42A	Base & Expan, 6 slots, 24 drives
24 drive premium 2U EDSFF storage, HW RAID, Encryption with SED drives, x2 NVMe	2x R9N92A	2x R9N97A MR9670-24i	X2	2 FH x16 slots*	#PCIe 2: Box1 / Drv1-12 PCIe 1: Box3 / Drv1-12	3x R4R41A 3x R4R42A	Base & Expan, 6 slots, 24 drives
16 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach¹, No Encryption, x4 NVMe	2x R9N92A	Intel® CPU	X4	No PCIe slots used	CPU0/1: Box1 / Drv1-8 CPU2/3: Box3 / Drv1-8	1x R9Q29A 1x R9Q30A	Base & Expan, 6 slots, 16 drives
24 drive premium 2U EDSFF storage, Intel® CPU Direct-Attach¹, Encryption, x4 NVMe	2x R9N92A	Intel® CPU	X4	No PCIe slots used	CPU0/1: Box1 / Drv1-12 CPU2/3: Box3 / Drv1-12	1x R9Q29A 1x R9Q32A 1x R9Q30A 1x R9Q33A	Base & Expan, 0 slots, 24 drives

Notes:

- Indicates one or two tethered super-caps are mounted in center DVD bay

- **Indicates adjacent slot used for tethered super-cap in mount PN P0006347-001

- # If more than one controller, this indicates the primary boot controller.

- ¹CPU Direct-Attach NVMe optionally supports RAID through the Intel® VROC Premium E-RTU SKU - see Intel® VROC for HPE QuickSpecs

Backplane type	Storage controller	Drive interface	Data lanes per drive bay	Data transfer rate	Maximum throughput
Standard	Emmitsburg PCH	SATA	1	6 Gb/s	600 MB/s
Standard	SmartRAID 32xx or MegaRAID 96xx	SATA	1	6 Gb/s	600 MB/s
Standard	SmartRAID 32xx or MegaRAID 96xx	SAS-3	1	12 Gb/s	1.2 GB/s
Standard	SmartRAID 32xx or MegaRAID 96xx	SAS-4	1	22.5 Gb/s	2.4 GB/s
Standard	SmartRAID 32xx or MegaRAID 96xx	NVMe (PCIe4)	1	16 GT/s	1.969 GB/s
Standard	Emmitsburg PCH or SmartRAID 32xx or MegaRAID 96xx	SATA	1	6 Gb/s	600 MB/s
Premium	SmartRAID 32xx or MegaRAID 96xx	SAS-3	1	12 Gb/s	1.2 GB/s
Premium	SmartRAID 32xx or MegaRAID 96xx	SAS-3 wide	2	24 Gb/s	2.4 GB/s
Premium	SmartRAID 32xx or MegaRAID 96xx	SAS-4	1	22.5 Gb/s	2.4 GB/s
Premium	SmartRAID 32xx or MegaRAID 96xx	SAS-4 wide	2	45 Gb/s	4.8 GB/s
Premium	Emmitsburg PCH	NVMe (PCIe3)	4	32 GT/s	3.938 GB/s
Premium	SmartRAID 32xx or MegaRAID 96xx	NVMe (PCIe4)	2	32 GT/s	3.938 GB/s
Premium	SmartRAID 32xx or MegaRAID 96xx	NVMe (PCIe4)	4	64 GT/s	7.877 GB/s
Premium	Intel® CPU Direct-Attach	NVMe (PCIe4)	4	64 GT/s	7.877 GB/s
Premium	Intel® CPU Direct-Attach	NVMe (PCIe5)	4	128 GT/s	15.754 GB/s
Notes: - The speeds above are based on storage interface data transfer rates and are NOT measured performance. - When multiple controller cards are used, there will be multiple RAID groups because drives on different controllers can't be in the same RAID group. - When multiple controller cards are used, the first controller listed is the default boot controller. - RAID 0, 1, 10, 5, 50, 6, and 60 supported - The Base I/O includes the embedded Intel® Emmitsburg PCH with VROC (Virtual RAID on Chip) SATA RAID controller for 6 GB SATA support of up to eight (8) 2.5" SATA drives (HDD/SSD). The 8-bay standard backplane or 2-bay premium backplane is connected to the Base I/O for this configuration. VMware does not support the RAID mode of Intel® Emmitsburg SATA AHCI Controller in VMware ESXi. VROC is not supported on WINDOWS 2025 on this platform.

Security

HPE Compute Scale-up Server 3200 provides important architectural security features not found in other industry standard servers. HPE Compute Scale-up Server 3200 Mission Critical focus provides unique customer benefits without exposure to many vulnerabilities found
in common server firmware.

- UEFI Secure Boot and Secure Start support, Enabled by default

- Immutable HPE iLO Silicon Root of Trust

- IDevID - Factory provisioned server identity

- IPv6 self-certified on RMC

- Auto secure FW recovery. RMC & PDHC watchdogs are fully enabled allowing RMC and PDHC to automatically reboot to recover from unexpected hangs.

- Tamper-free updates - components digitally signed and verified

- Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware (per NIST SP800-193)

- Firmware rollback protection for critical Vulnerability fixes

- System TPM (Trusted Platform Module) 2.0 tamper-resistant and soldered down for all systems

- Manageability TPM for RMC

- Manageability Flash Encryption

- Chassis Intrusion detection standard

- FW update protected by RMC Admin authentication

- Firewalled Manageability Network

- Secure Out-of-Box passwords

- Code Signing uses CSNA--level crypto

- Directory access control (LDAP/Active Directory)

- Alternatives to PXE (Directed LAN Boot, HTTP Boot)

- Ability to disable HOST and RMC USB ports

Platform Management

The HPE Compute Scale-up Server 3200 delivers system administration, control, and platform management both via a Web GUI, a programmable Redfish API or a comprehensive and concise command-line interface. The Redfish® API can be used in many ways including:

- Directly in simple scripts to obtain inventory and monitoring information

- With HPE OneView for a graphical user interface, as well as manage multiple HPE systems concurrently in the datacenter at once

- With Openstack Ironic for Provisioning the OS

The Rack Management Controller in HPE Compute Scale-up Server 3200 is an embedded option (the "RMC") running within the Base Chassis.

The HPE Compute Scale-up Server 3200 has a built-in and always available platform management system. By integrating the management into the server platform, Hewlett Packard Enterprise ensures that every HPE Compute Scale-up Server 3200 comes with the full set of management features, and simplifies the task of integrating HPE Compute Scale-up Server 3200 into the data center. The purpose of the HPE Compute Scale-up Server 3200 management system is to:

- Provide built-in tools to manage hardware and provide mission-critical system availability (inventory, monitor, diagnose, configure, maintain, and self-healing)

- Make it easier for users and applications to manage the system (inventory, start, stop, connect console, and so on)

The HPE Compute Scale-up Server 3200 manageability system provides a very powerful control point for the system, and the RMC makes managing the HPE Compute Scale-up Server 3200 much easier by centralizing the control and building the management into the hardware and firmware of the system. It provides the following features:

- Web GUI for RMC - Redfish driven. Covers:

System inventory, health, configuration
Launch vMedia, vKVM (HTML5)
Configure UEFI reboot, power
RMC security settings
RMC LAN settings

- CLI for easy access to all RMC functions, providing potential scripting and power user convenience

- Console, and console logs

- Built-in Error Analysis Engine constantly monitors all system hardware, analyzes log and telemetry data, and determines corrective actions for highest system uptime (often performing corrective actions automatically)

- HPE Compute Scale-up Server 3200 RMC will interface directly with the HPE Remote Support software for data center wide fault management visibility and tie-in to HPE support services, such as the Insight Online portal

- Front Panel Management device functionality that provides, Power Button, System status Indicator LEDs including Power, UID and RMC indicator.

- The RMC accepts all valid update requests. FW update will be done immediately if possible. If the update requires power off, but one or more nPARs are powered on, the RMC will perform the update when all nPARs are powered off. In the case of single nPAR, the RMC will also update the complex when the nPAR reboots

The HPE Compute Scale-up Server 3200 supports full nPar (Partitioning).

- An nPartition is a set of HPE Compute Scale-up Server chassis defined to work together to form a single computer system, capable of running a bare metal OS. It is electrically isolated from other nPartitions in the complex.

- Once created, an nPartition behaves as an independent server, and can also be managed as an independent server. It has its own console for OS and can be independently reset and power-cycled. The RMP or RMC manages all nPartitions in the complex and management access remains the same as nPartitions are created, modified, or deleted.

- An HPE Compute Scale-up Server complex contains one or more HPE Compute Scale-up Server chassis in a rack that each contain individual compute, memory, networking, and storage resources. An nPartition is created and managed using the Rack Management Controller (RMC)

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

Ordering and Configuration This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. Notes: - Configure-to-order servers must start with a CTO Chassis - FIO indicates that this option is a Factory Installable Option. Additional Technical documentation may be found at: http://www.HPE.com/support/computescaleup3200-docs

Configuring HPE Compute Scale-up Server 3200

Rack choice If No Rack Option is selected then a Virtual Rack should be selected	SKU
HPE Virtual Rack	M0S66A

Base Chassis	SKU
HPE Compute Scale-up Server 3200 4-socket XNC Base Chassis	R9N70A
HPE Compute Scale-up Server 3200 Data Solutions 4-socket XNC Base Chassis	R9N71A
Notes: - Every HPE Compute Scale-up Server 3200 system must have min 1/max 1 Base Chassis - Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order) - Chassis bezel is Optional and is not included
Expansion Chassis	SKU
HPE Compute Scale-up Server 3200 4-socket XNC Expansion Chassis	R9N72A
HPE Compute Scale-up Server 3200 Data Solutions 4-socket XNC Expansion Chassis	R9N73A
Notes: - Adding Option code "#0D1" to the chassis will integrate the chassis into the rack (which must be on the same order) - Chassis bezel is Optional and is not included

Scale Activation Kits	SKU
HPE Compute Scale-up Server 32X0 Internal UPI Cable Kit	R9Y98A
HPE Compute Scale-up Server 32X0 4-socket Scale Activation Kit	R9P06A
HPE Compute Scale-up Server 32X0 8-socket Scale Activation Kit	R9P07A
HPE Compute Scale-up Server 32X0 12-socket Scale Activation Kit	R9P08A
HPE Compute Scale-up Server 32X0 16-socket Scale Activation Kit	R9P09A
Notes: Any chassis configured with Platinum processors requires 1 x R9Y98A per chassis

Processors		SKU
Intel Xeon-Platinum 8490H 1.9 GHz 60-core 350 W Processor Kit for HPE Compute Scale-up Server 3200		R9P59A
Intel Xeon-Platinum 8468H 2.1 GHz 48-core 330 W Processor Kit for HPE Compute Scale-up Server 3200		R9P60A
Intel Xeon-Platinum 8460H 2.2 GHz 40-core 330 W Processor Kit for HPE Compute Scale-up Server 3200		R9P61A
Intel Xeon-Platinum 8454H 2.1 GHz 32-core 270 W Processor Kit for HPE Compute Scale-up Server 3200		R9P62A
Intel Xeon-Platinum 8450H 2.0 GHz 28-core 250 W Processor Kit for HPE Compute Scale-up Server 3200		R9P63A
Intel Xeon-Platinum 8444H 2.9 GHz 16-core 270 W Processor Kit for HPE Compute Scale-up Server 3200		R9P64A
Intel Xeon-Gold 6434H 3.7 GHz 8-core 195 W Processor Kit for HPE Compute Scale-up Server 3200		R9Q34A
Notes: - No mixing of processors within a single chassis, partition, or system - Each Chassis requires minimum four (4) processors

DDR5 Memory			SKU
HPE Compute Scale-up Server 3200 32 GB (1x32GB) Single Rank x4 DDR5-4800 Registered Std Memory Kit			R9Q18A
HPE Compute Scale-up Server 3200 64 GB (1x64GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit			R9Q19A
HPE Compute Scale-up Server 3200 96 GB (1x96GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit			S3L10A
HPE Compute Scale-up Server 3200 128 GB (1x128GB) Dual Rank x4 DDR5-4800 R Standard Memory Kit			S3Q76A
Notes: - Memory kits contain a single DIMM - The 32 GB, 64 GB and 128 GB Memory can be loaded either as 1, 4, 8, 12 or 16 per socket - The 96 GB Memory can be loaded either as 8 or 16 per socket only. - 128 GB Quad Rank DDR5 3DS Memory is no longer sold to be configured with new systems. The memory remains available only as an option for upgrade. HPE Does not support mixing 128 GB Dual Rank and Quad Rank (3DS) memory within the same complex/system. Ensure when adding 128 GB DIMMs to an existing system that the same memory type either R9Q20A or S3Q76A as the original system is configured.

Optical Drives			SKU
HPE Compute Scale-up Server 3200 9.5 mm SATA 1U Internal DVD-RW Optical Drive			R9P03A
HPE Compute Scale-up Server 3200 9.5 mm SATA 1U Internal DVD-ROM Optical Drive			R9Q25A
HPE Compute Scale-up Server 3200 9.5 mm SATA 2U Internal DVD-ROM Optical Drive			R9Q26A
HPE Compute Scale-up Server 3200 9.5 mm SATA 2U Internal DVD-RW Optical Drive			R9P04A
Notes: - One (1) DVD is optional in Base Chassis and is not available in the Expansion Chassis - DVD option is not allowed if optional 3rd Storage backplane is configured to Base Chassis

Storage Backplanes		SKU
HPE Compute Scale-up Server 32X0 1U 8SFF Tri-Mode 24G U.3 BC Standard Backplane Kit		R9N87A
HPE Compute Scale-up Server 32X0 1U 8SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit		R9N88A
HPE Compute Scale-up Server 32X0 1U 2SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit		R9N89A
HPE Compute Scale-up Server 3200 2U 8SFF Tri-Mode 24G U.3 BC Standard Backplane Kit		R9N90A
HPE Compute Scale-up Server 3200 2U 8SFF Tri-Mode 24Gx4 U.3 BC Premium Backplane Kit		R9N91A
HPE Compute Scale-up Server 3200 2U 12EDSFF NVMe 32Gx4 E3.S Premium Backplane Kit		R9N92A
Notes: Internal storage cables will be added to the configuration as required. No user selection is needed.

Drives
Internal SATA Solid State Drives		SKU
HPE 480 GB SATA 6G Mixed Use SFF BC Multi Vendor SSD		P40502-H21
HPE 960 GB SATA 6G Mixed Use SFF BC Multi Vendor SSD		P40503-H21
HPE 1.92 TB SATA 6G Mixed Use SFF BC Multi Vendor SSD		P40504-H21
HPE 3.84 TB SATA 6G Mixed Use SFF BC Multi Vendor SSD		P40505-H21
HPE 960 GB SATA 6G Mixed Use SFF BC Self-encrypting 5400 m SSD		P58244-B21

Internal SAS Hard Disk Drives		SKU
HPE 1.8 TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD		P53562-H21

Internal SAS Solid State Drives			SKU
HPE 800 GB SAS 24G Mixed Use SFF BC Multi Vendor SSD			P49047-H21
HPE 1.6 TB SAS 24G Mixed Use SFF BC Multi Vendor SSD			P49049-H21
HPE 3.2 TB SAS 24G Mixed Use SFF BC Multi Vendor SSD			P49053-H21
HPE 6.4 TB SAS 24G Mixed Use SFF BC Multi Vendor SSD			P49057-H21
HPE 7.68 TB SAS 24G Read Intensive SFF BC Multi Vendor SSD			P49041-H21
HPE 15.36 TB SAS 24G Read Intensive SFF BC Multi Vendor SSD			P49045-H21
HPE 1.6 TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD			P83344-B21

NVMe U.3 Drives			SKU
HPE 800 GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD			P64999-H21
HPE 1.6 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD			P65007-H21
HPE 3.2 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD			P65015-H21
HPE 6.4 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD			P65023-H21
HPE 1.6 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD			P50227-B21
HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD			P50230-B21
HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD			P50233-B21
HPE 7.68 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD			P64848-H21
HPE 15.36 TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi Vendor SSD			P84236-B21
HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD			P70426-B21
HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD			P70428-B21
HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD			P70434-B21
HPE 15.36 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD			P70436-B21

NVMe EDSFF Drives	SKU
HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD	P57799-B21
HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD	P57803-B21
HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD	P57807-B21
HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD	P61191-B21
HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD	P61195-B21
HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD	P61179-B21
HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD	P61183-B21
HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD	P61187-B21
HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD	P85114-B21
HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD	P85117-B21
HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD	P85119-B21
HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD	P85121-B21
HPE 3.84 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD	P85124-B21
HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD	P85126-B21
HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD	P85128-B21

PCIe Infrastructure	SKU
Notes: - Each chassis requires exactly one (1) PCIe option: R9N75A, R9N76A, R9N77A, R9N78A, or R9N79A - The Base Chassis requires either R9N75A, R9N76A, or R9N77A
HPE Compute Scale-up Server 3200 PCIe Full-height 12-slot Bulkhead with 1x 4-slot 2x8/2x16 Riser Kit	R9N75A
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Secondary Riser for 2U PCIe 12-slot Bulkhead	R9N84A
HPE Compute Scale-up Server 32X0 4x16 4-slot PCIe Tertiary Riser for 2U PCIe 12-slot Bulkhead	R9N83A
Notes: R9N75A includes two (2) Full-height x8 and two (2) Full-height x16 - Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5". R9N75A also accommodates both Full-height and Low-profile cards
HPE Compute Scale-up Server 3200 PCIe Low-profile 16-slot Bulkhead with 1x 4-slot 2x8/2x16 Riser Kit	R9N76A
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Secondary Riser for 2U PCIe 16-slot Bulkhead	R9N81A
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Tertiary Riser for 2U PCIe 16-slot Bulkhead	R9N80A
HPE Compute Scale-up Server 32X0 2x8/2x16 4-slot PCIe Quaternary Riser for 2U PCIe 16-slot Bulkhead	R9N82A
Notes: R9N76A includes two (2) Low-profile x8 and two (2) Low-profile x16 - Maximum Length of PCIe card when installed in 16-slot Bulkhead = 6.6".
HPE Compute Scale-up Server 3200 PCIe Full-height 6-slot Bulkhead with 1x 2-slot 2x16 Riser Kit	R9N77A
HPE Compute Scale-up Server 32X0 2x16 2-slot PCIe Secondary Riser for 1U PCIe 6-slot Bulkhead	R9N86A
HPE Compute Scale-up Server 32X0 2x16 2-slot PCIe Tertiary Riser for 1U PCIe 6-slot Bulkhead	R9N85A
Notes: R9N77A includes two (2) Full-height x16 - Maximum Length of PCIe card when installed in 12-slot Bulkhead = 10.5". R9N75A also accommodates both Full-height and Low-profile cards
HPE Compute Scale-up Server 3200 PCIe 2U 0-slot Compute Only Bulkhead	R9N78A
HPE Compute Scale-up Server 3200 PCIe 1U 0-slot Compute Only Bulkhead	R9N79A

RAID Controllers	SKU
HPE SR3258p-32i/e 32-port 8 GB Cache Tri-Mode 24G PCIe4 x 16 Encrypted Controller	R4R52A
HPE SR3258p-16i/e 16-port 8 GB Cache Tri-Mode 24G PCIe4 x 16 Encrypted Controller	R9P58A
HPE MR9660-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller	R9N96A
HPE MR9670-24i 24-port 8 GB Cache Tri-Mode 24G PCIe4 x8 Controller	R9N97A
HPE MR9670W-16i 16-port 8 GB Cache Tri-Mode 24G PCIe4 x 16 Controller	R9N98A
HPE SR3254-16e/e 16-port 4 GB Cache External 24G PCIe4 x 16 Encrypted Controller	R9N99A
Notes: R4R52A and R9P58A require a second PCIe slot for a tethered supercap

Fibre Channel HBAs	SKU
HPE SN1100Q 16 GB Single Port Fibre Channel Host Bus Adapter	P9D93A
HPE SN1100Q 16 GB Dual Port Fibre Channel Host Bus Adapter	P9D94A
HPE SN1610E 32 GB 1-port Fibre Channel Host Bus Adapter	R2J62A
HPE SN1610E 32 GB 2-port Fibre Channel Host Bus Adapter	R2J63A
HPE SN1610Q 32 GB 1-port Fibre Channel Host Bus Adapter	R2E08A
HPE SN1610Q 32 GB 2-port Fibre Channel Host Bus Adapter	R2E09A
HPE SN1700E 64 GB 1-port Fibre Channel Host Bus Adapter	R7N77A
HPE SN1700E 64 GB 2-port Fibre Channel Host Bus Adapter	R7N78A
HPE SN1700Q 64 GB 1-port Fibre Channel Host Bus Adapter	R7N86A
HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter	R7N87A
Notes: Max eight (8) per chassis/ Max 16 per system

Networking Controller cards - PCIe	SKU
Intel I350-T4 Ethernet 1 GB 4-port BASE-T Adapter for HPE	P21106-B21
Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T Adapter for HPE	P26253-B21
Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ Adapter for HPE	P26259-B21
Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE	P08443-B21
Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE	P08458-B21
Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 Adapter for HPE	P21112-B21
Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE	P26264-B21
HPE Slingshot SA210S Ethernet 200 GB 1-port PCIe NIC	R4K46A
Notes: - Max eight (8) per chassis. Max 16 of any given card per system. Total 32 NICs per system. Exceptions listed below. - P08458-B21 which is Max four (4) per chassis/Max 16 per system - R4K46A is Max 2 per chassis/Max 8 per system - Server networking transceiver and cable compatibility matrix can be found here

Network Controller cards - OCP	SKU
Intel I350-T4 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE	P08449-B21
Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE	P10097-B21
Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE	P42041-B21
Notes: - Max one (1) per chassis - Server networking transceiver and cable compatibility matrix can be found here

InfiniBand cards	SKU
HPE InfiniBand NDR/Ethernet 400 GB 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter	P45641-H23
Notes: - Max eight (8) per chassis/Max 16 per system - No mixing of InfiniBand card types in the same system

GPU Accelerators	SKU
NVIDIA L4 24 GB PCIe Accelerator for HPE	S0K89C
NVIDIA L40S 48 GB PCIe Accelerator	S2L70C
HPE Compute Scale-up Server 32X0 12-pin/12-pin PCIe 600 W High Power Accelerator Cable Kit	S0A88A
Notes: - For L4, Max four (4) per chassis/Max 12 per system. One per PCIe riser - For H100 NVL and L40S, Max four (4) per chassis/Max 8 per system - No mixing of GPU controller types in the same chassis, system or partition - S0A88A is required for each H100 NVL and L40S Accelerator. - R9N75A or R9N77A is required to be in the same Chassis for the H100 NVL or L40S - Inner node peer-to-peer communication is not supported - Depending on total number of GPUs, installed power may be reduced to N+1

Foundation Software	SKU
HPE Foundation Software 2 for Red Hat Enterprise Linux Media FIO LTU	Q7N13A
HPE Foundation Software 2 for SUSE Linux Enterprise Server Media FIO LTU	Q7N14A
HPE Foundation Software 2 for Red Hat Enterprise Linux Media	Q7Y82A
HPE Foundation Software 2 for SUSE Linux Enterprise Server Media	Q7Y83A
HPE Foundation Software 2 for Oracle Linux Media	Q7Y84A
HPE Foundation Software 2 for Red Hat Enterprise Linux Media License RTU	Q7N11A
HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU	Q7N12A
HPE Foundation Software 2 for Oracle License RTU	Q7N16A
Notes: - Exactly one (1) RTU is required per system with a Linux O/S distribution - Minimum one (1) Foundation SW FIO or Media is required per system with a Linux O/S distribution - Selected RTU must match selected FIO and/or Media option

System Expansion and Upgrades	SKU
System Expansion Kits are utilized when scaling up a HPE Compute Scale-up 3200. When adding Expansion chassis, select the appropriate beginning and ending size of your system
HPE Compute Scale-up Server 3200 4-socket to 8-socket Scale Activation Kit	R9P65A
HPE Compute Scale-up Server 3200 4-socket to 12-socket Scale Activation Kit	R9P66A
HPE Compute Scale-up Server 3200 4-socket to 16-socket Scale Activation Kit	R9P67A
HPE Compute Scale-up Server 3200 8-socket to 12-socket Scale Activation Kit	R9P74A
HPE Compute Scale-up Server 3200 8-socket to 16-socket Scale Activation Kit	R9P75A
HPE Compute Scale-up Server 3200 12-socket to 16-socket Scale Activation Kit	R9P80A


Chassis Options	SKU
HPE Compute Scale-up Server 3200 Chassis Bezel	R9N74A
Notes: One per chassis, all chassis should have the same option.

This section describes the physical and environmental information for a chassis.

HPE Compute Scale-up Server 3200 chassis
Physical Information
Site planning and installation included	Yes
Maximum Heat dissipation (fully populated chassis, no GPUs)	13.5 kBTU/hr
Depth (handle to handle)	905 mm / 35.63"
Width (not including mounting rails)	445 mm / 17.5"
Height	219.2 mm / 8.63" (5U)
Weight - Maximum (fully populated)	Range between 40.8 kg / 90 lb to 56.7 kg / 125 lb
Electrical and Environmental Characteristics
Single phase (200/240)	4 x IE320-C19
Maximum Input Power total	4.74 KVA (no GPUs)
Environmental Characteristics
Cooling airflow (front to back)	750 CFM (maximum)
Acoustics	91 dBA (maximum) 84 dBA (typical)
Temperature - Recommended Operating Range^1,2	+18°C to +27°C
Temperature - Allowable Operating Range^1,2	+5°C to +35°C
Maximum rate of temperature change	20°C/hr non-condensing
Non-operating temperature (storage)	-40°C to +60°C
Air quality	Gaseous contaminants must be at the G1 level or less as defined by ISA Standard ISA-71.04-1985
Humidity - Recommended Operating Range (non-condensing)¹	-9°C DP to 15°C DP and 60% RH
Humidity - Allowable Operating Range (non-condensing)¹	-12°C DP and 8% RH to 24°C DP and 85% RH
Non-operating relative humidity (storage)	8% RH to 90% RH and 32°C DP
Maximum Operating altitude	3050 m (10,000 ft)
Maximum Non-operating altitude (storage)	4500 m (15,000 ft) non-pressurized

Notes:

- (1) The Recommended Operating Range is recommended for continuous operation. Operating within the Allowable Operating Range is supported but may result in a decrease in system performance.

- (2) All temperature ratings shown are for sea level. An altitude de-rating of 1°C per 300 m above 1524 m is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft).

Regulatory model numbers:

- Chassis (R9N70A, R9N71A, R9N72A, R9N73A) RMN: CHPF-074

Additional Power Data

The maximum power figures given were developed with the maximum configuration running applications designed to draw the maximum power possible. It is highly unlikely that any real-world application will result in this level of power use for any significant period.

Date	Version History	Action	Description of Change
06-Jul-2026	Version 16	Added	- Added new NVMe Gen5 Mainstream Performance Mixed Use and Read Intensive E3.S EC1 SPDM 7600 SSD options across multiple capacities (1.6TB to 15.36TB) in Drives section. - Updated At a Glance features to include support for EDSFF E3.S or 24 SFF drive configurations.
		Changed	- Drive options updated to align with Gen5 NVMe naming; replaced abbreviated MU/RI descriptions with full "Mainstream Performance Mixed Use" and "Read Intensive" terminology. - Updated Drives table properties to reflect revised product naming conventions and ensure consistency across entries. - Updated DDR5 memory support from 4 to 5.
		Removed	- Removed legacy abbreviated NVMe MU and RI drive naming entries for corresponding SKUs.
16-Mar-2026	Version 15	Added	- Added updated product entries for Intel Ethernet adapters (PCIe and OCP), Intel Xeon-Platinum and Xeon-Gold processor kits, and Networking Controller cards. - Added new 15.36 TB NVMe Gen4 Read Intensive SSD (P84236-B21).
		Changed	- Updated drive configuration in "Drives" section (2 to 3). Replaced SKU P63871-B21 with P83344-B21.
		Removed	- Removed multiple discontinued or obsolete items from Operating System, Networking, InfiniBand, GPU Accelerator, and Memory sections, including SKUs P45642-H22, P13188-B21, S2D86C, and R9Q20A per RASKeeper source data.
01-Dec-2025	Version 14	Changed	- Standard Features and Configuration Information sections were updated.
01-Dec-2025	Version 14	Removed	- HPE InfiniBand obsolete SKUs.
28-Jul-2025	Version 13	Changed	- The survey link was updated.
23-Jun-2025	Version 12	Removed	- This SKU P25960-B21 was removed
09-Jun-2025	Version 11	Removed	- These two SKUs were removed from the standard features section on page 7, P23666-H21 and P23665-H21 - These SKUs were removed from the Configuration Information section, under Internal SAS Solid State Drives and NVMe U.3 Drives on page 31; P49049-H21,P49053-H21,P49057-H21,P49041-H21,P49045-H21, P65007-H21,P65015-H21,P65023-H21,P69255-B21 - These SKUs were removed from the Configuration Information section, under InfiniBand cards on page 34. P23665-H21 and P23666-H21
12-May-2025	Version 10	Changed	- Overview and Standard Features sections were updated.
14-Apr-2025	Version 9	Changed	- Overview and Standard Features sections were updated.
13-Jan-2025	Version 8	Changed	- Standard Features section was updated.
02-Dec-2024	Version 7	Changed	- Standard Features and Configuration Information sections were updated.
09-Sep-2024	Version 6	Changed	- Standard Features section was updated.
05-Aug-2024	Version 5	Changed	- Added new storage and drive options, added additional processor and memory options. - Added partitioning support. Added GPU support. Added additional IO options for NICs, HBAs, Fc and IB.
18-Mar-2024	Version 4	Changed	- Overview, Standard Features and Configuration Information sections were updated.
06-Nov-2023	Version 3	Changed	- Standard Features, Service and Support, Configuration Information and Technical Specifications sections were updated.
02-Oct-2023	Version 2	Changed	- Overview, Standard Features, Configuration Information, and Technical Specifications sections were updated.
05-Sep-2023	Version 1	New	- New QuickSpecs

		Have feedback on QuickSpecs? We're listening

		Chat now
		© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein. a50004268enw - 16872 - Worldwide - V16 - 06-July-2026
		HEWLETT PACKARD ENTERPRISE HPE.com

HPE Compute Scale-up Server 3200: технические характеристики и документация
