HPE Storage SAN Extension Switch B-series SN4700B QuickSpecs
As businesses increasingly embrace digital business, data becomes more valuable than ever and users expect that data to be accessible from anywhere, at any time, with uninterrupted service. HPE Storage SAN Extension Switch B-series SN4700B addresses these challenges by providing a powerful, reliable, secure solution for disaster recovery. This cyber-resilient replication connectivity solution for enterprise storage securely moves more data, faster, over distance for continuous data protection. |
|
|
As businesses increasingly embrace digital business, data becomes more valuable than ever and users expect that data to be accessible from anywhere, at any time, with uninterrupted service. Any downtime or disruption to that data can result in significant financial losses, damaged reputations, and in some cases, regulatory fines. This puts tremendous pressure on organizations to ensure that critical business operations can continue in the face of adverse events such as natural disasters, ransomware, cyber-attacks, or system failures. Data center outages happen, and organizations need to be prepared for malicious intrusion and unexpected disasters to ensure their valuable information is protected. Data replication between data centers is critical for disaster recovery, but it can also be challenging, particularly when dealing with large volumes of data. Companies need their disaster recovery infrastructure to ensure the fast, continuous, and secure replication of mission-critical data anywhere in the world, to prevent data loss or data breaches when in-flight across the WAN. HPE Storage SAN Extension Switch B-series SN4700B addresses these challenges by providing a powerful, reliable, secure solution for disaster recovery. This cyber-resilient replication connectivity solution for enterprise storage securely moves more data, faster, over distance for continuous data protection. With ample replication performance, up to 100Gb/s over distance, and built-in technology that overcomes the inherent challenges of latency and packet loss over long distance, the HPE Storage SAN Extension Switch B-series SN4700B provides high-speed connectivity between locations to dramatically speed up replication performance - even over intercontinental distances. This makes it easier for organizations to move large amounts of data quickly and efficiently, to ensure critical data is available in the event of a disaster. In addition, the HPE Storage SAN Extension Switch B-series SN4700B includes a suite of features, from pre-deployment validation to advanced network failure recovery technologies, to protect data from WAN disruptions and outages for continuous availability over the WAN. Moreover, data-in-flight security, coupled with the B-series hardware and software robust security features, secures connections between data centers to safeguard data from threats over the WAN and to protect data from unauthorized access. The HPE Storage SAN Extension Switch B-series SN4700B is an excellent choice for businesses looking to protect their critical data from cyber threats and ensure business continuity in the event of a disaster. The HPE Storage SAN Extension Switch B-series SN4700B is purpose-built to handle the replication demands of large enterprise customers. This switch is designed to deliver the most outstanding data protection and performance regardless of distance. With twenty- four 64G Fibre Channel ports, sixteen 1/10/25GbE ports, and two 100GbE ports, data centers can achieve the bandwidth, port density, and throughput needed for maximum replication performance over WAN connections. Industry-leading port density and performance packed into a 1U form factor enables organizations to consolidate high-speed Fibre Channeland IP storage replication traffic between data centers while ensuring plenty of headroom for future growth. HPE Storage SAN Extension Switch B-series SN4700B comes unlocked with full bandwidth and all ports enabled, leaving no limitations on throughput. In addition, it includes an innovative collection of software capabilities that optimize WAN utilization and protect data from WAN disruptions and outages, including Fabric Vision technology, Extension Trunking, Adaptive Rate Limiting (ARL), encryption (IPsec), and integrated routing. |
|
|
|
|
|

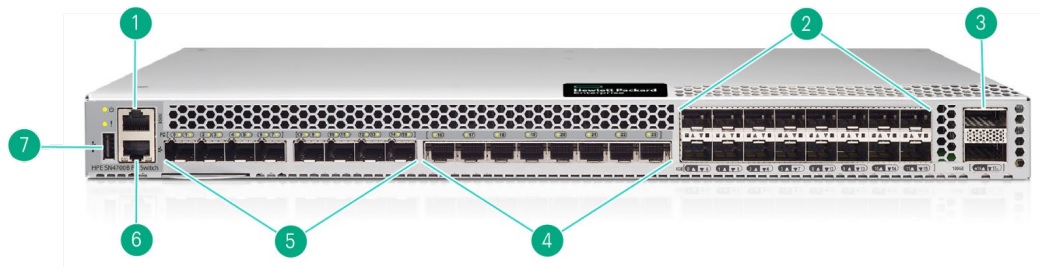

HPE Storage SAN Extension Switch B-series SN4700B |
|
|
|
Item |
Description |
Item |
Description |
|
1. |
Serial console port (RJ-45) |
5. |
64Gb/s SFP-DD FC ports (0-15) |
|
2. |
1/10/25GbE ports (XGE 0-15) |
6. |
Ethernet management port (RJ-45) |
|
3. |
100GE QSFP ports (100GE 16-17) |
7. |
USB Port |
|
4. |
64Gb/s SFP56 FC ports (16-23) |
|
|
|
Notes: All the ports are connected to a single Gen7 ASIC. |
|
|
|
Key Features
Maximize the Value of SANs - FCIP Extension of Fibre Channel SANs provides connectivity over longer distances that would otherwise be technologically not possible, impractical, and too expensive with native Fibre Channel or when dark fiber resources are unavailable. - Achieve bandwidth savings and higher bandwidth utilization via data compression by compressing FC frames before they are encapsulated into FCIP packets. - Extensive diagnostics, system-monitoring capabilities, and performance monitoring (including extensive and granular TCP statistics graphing in Webtools). Superior Performance - TCP acceleration helps to overcome latency between source and target locations by adjusting the TCP window size and performing selective acknowledgements. - Advanced Quality of Service (QoS) techniques can be used to prioritize traffic and guarantee that necessary bandwidth requirements are met. - Key protocol features are enabled in the FCIP implementation to optimize performance of SAN extension over IP networks, including Storage-Optimized TCP. Outstanding Scalability and operational flexibility - FCIP Trunking feature allows multiple IP source and destination address pairs (defined as FCIP circuits) to provide high bandwidth FCIP tunnel and failover resiliency. - Adaptive Rate Limiting feature meets minimum bandwidth guarantee for each tunnel while allowing full utilization of the available network bandwidth without adverse impact to throughput performance during high traffic loads. - FC Routing delivers fabric isolation in conjunction with FCIP, enabling separate fabrics to share devices without merging across the IP network. |
|
|
|
HPE Storage SAN Extension Switch B-series SN4700B - 24 Fibre Channel ports with link speeds of 8, 16, 32, and 64 Gbps, (8x64Gb Fibre Channel, 8x64Gb DD Fibre Channel i.e. a total of 24x64 Gbps-capable ports), compatible with short wavelength (SWL), long wavelength (LWL) and extended long wavelength (ELWL) SFP+ transceivers - Sixteen 1 GbE/10 GbE/25 GbE ports, compatible with short reach (SR) and long reach (LR) SFP+ transceivers - Two 100 GbE ports, compatible with short reach (SR) QSFP transceivers - Rack-mountable 1U chassis - One RJ-45 Ethernet management port with 10/100/1000 Mbps auto negotiating capability - One USB port that provides storage for firmware updates, switch support data, and storage for configuration uploads and downloads |
|
|
|
Configuration Support The HPE Storage SAN Extension Switch B-series SN4700B is fully compatible with the B-series FC switches and directors. The SN4700B is also fully compatible connecting via FCIP to the SN2600B and SX6 Extension Blade, but is not compatible connecting via FCIP to the SN4000B. For complete interoperability information please check: https://support.hpe.com/hpsc/doc/public/display?docId=c00403562 |
|
|
|
Simplified Management Brocade Fabric Vision technology provides a breakthrough hardware and software solution that helps simplify monitoring, maximize network availability, and dramatically reduce costs. Featuring innovative monitoring, management, and diagnostic capabilities, Fabric Vision technology enables administrators to avoid problems before they impact operations, helping their organizations meet SLAs. |
|
The HPE Storage SAN Extension Switch B-series SN4700B supports the following Fabric Vision technology features for storage extension management: - Monitoring and Alerting Policy Suite (MAPS): Provides a pre-built, policy-based threshold monitoring and alerting tool that proactively monitors storage extension network health based on a comprehensive set of metrics at tunnel, circuit, and QoS layers. Administrators can configure multiple fabrics at one time using pre-defined or customized rules and policies for specific ports or switch elements. - Fabric Performance Impact (FPI) Monitoring: Uses pre-defined thresholds and alerts in conjunction with MAPS to automatically detect and alert administrators to severe levels of latency and identifies slow drain devices that might impact the network. This feature uses advanced monitoring capabilities and intuitive MAPS dashboard reporting to indicate various latency severity levels, pinpointing exactly which devices are causing or impacted by a bottlenecked port. - Dashboards: Provides integrated dashboards that display an overall SAN health view, along with details on out-of-range conditions, to help administrators easily identify trends and quickly pinpoint issues occurring on a switch or in a fabric. |
|
|
|
Hardware Based Compression Hardware-based compression delivers the ability to maximize throughput over lower bandwidth links in the wide area network, optimizing the cost efficiencies of FCIP. The HPE Storage SAN Extension Switch B-series SN4700B Provides multiple modes to optimize compression ratios for various throughput requirements. |
|
|
|
IPSec The HPE Storage SAN Extension Switch B-series SN4700B IPSec function is capable of supporting both Ipv4 and Ipv6, mix of secure and non-secure tunnels on the same GE port, jumbo frames, and VLAN tagged connections. |
|
|
|
Scalability Refer to the guidelines described in the Heterogeneous Open SAN Design Reference Guide available at: https://support.hpe.com/hpsc/doc/public/display?docId=c00403562 |
|
|
|
Cabinet Support HPE (22U, 36U and 42U) 10000 G2 Series and the Intelligent Series racks and HPE (14U, 22U, 36U, 42U, and 47U) 11000 G2 Series racks. Notes: To order factory integration, add 0D1 after the part number on your sales order. |
|
|
|
Software Components, Standard |
|
Fabric Vision Fabric Vision offers innovative diagnostic, monitoring and management capabilities to help accelerate new application deployments, address SAN problems before they impact operations, and reduce operational costs. It Includes - Monitoring and Alerting Policy Suite: A policy-based monitoring tool with pre-built rules and automation that simplifies fabric-wide threshold configuration and monitoring. - Flow Vision: A comprehensive tool that enables administrators to identify, monitor, and analyze specific application data flows without using taps to ensure optimized performance - Health and performance dashboard: A single customizable screen displayed in HPE SANnav Management Portal that contains all critical SAN information for convenient review and analysis Extended Fabric The HPE Storage SAN Extension Switch B-series SN4700B extends all of the scalability, reliability, and performance benefits of Fibre Channel Storage Area Networks (SANs) beyond the native 10 km distance specified by the Fibre Channel standard. |
|
|
|
ISL Trunking For high performance enhanced Trunking this optional license, which comes bundled with the SN4700B, logically aggregates E-ports to provide a high bandwidth trunk between two switches. Each 16Gb switch needs its own license. The switch operating system views the trunk as a single, high bandwidth resource (up to 128Gb) when routing connections between 16G switches. |
|
|
|
WebTools Web Tools is an intuitive and easy-to-use graphical interface that enables organizations to monitor and manage SAN fabrics. Tasks can be performed through a Java-capable Web browser from a standard laptop, desktop PC or workstation from any location within the enterprise. |
|
|
|
Integrated Routing Integrated Routing provides native Fibre Channel Routing (FCR) on a per port basis, rather than limiting routing ports to those on a dedicated routing blade or switch. Just like traditional FCR, Integrated Routing uses EX_Ports to import/export devices between fabrics, enabling selective device sharing while maintaining remote fabric isolation. Integrated Routing provides architecture flexibility to route on a port-by-port basis, enabling increased scalability and faulty isolation. |
|
Notes: The HPE Storage SAN Extension Switch B-series SN4700B comes fully license with full bandwidth and does not require any additional licensing. does not have any licensing options, the base offering Software Components, Optional |
|
|
|
HPE SANnav Management Software HPE SANnav Management Software is the next-generation SAN management application suite for HPE B-series SAN environments. It consists of SANnav Management Portal Software and SANnav Global View Software: - SANnav Management Portal is a next-generation SAN management application with a simple browser-based user interface (UI) streamlining common workflows, such as configuration, zoning, deployment, troubleshooting, and reporting. - SANnav Global View helps administrators visualize the health, performance and inventory of multiple SANnav Management Portal instances at data centers across the globe or a single multi-tenant data center using a simple, intelligent dashboard. SANnav Management Portal and SANnav Global View not only transform SAN telemetry data into useful insights, such as health and performance scores, but also enable administrators to quickly associate real-time data with historical metrics and logs for in-depth analysis. This can help with spotting trends, establishing baselines, and identifying any behavioral changes over time. HPE SANnav Management Software is available as a term-license for 1-year, 3-years and 5-years period as well as a one-year renewal licenses. . It supports 8Gb, 16Gb, 32Gb and 64Gb FC Switches and Directors. |
|
|
|
|
|
HPE Smart SAN for 3PAR HPE Smart SAN, optional software for HP 3PAR, makes end-to-end SAN configuration and management simple and reduces the probability of errors through automation. It is an application embedded in SAN components (array, hosts and switches) that enables 3PAR arrays to orchestrate configuration, settings and policies across the SAN. Smart SAN is only supported with B-series Switches, HPE Fibre Channel Adapters (HBAs) and 3PAR storage. HPE Smart SAN for 3PAR through its Target Driven Peer Zoning (TDPZ) feature enables customers to automate peer zoning, resulting in the creation of fewer zones and enables configuration of zones in minutes and not in hours. Through automation, it reduces the probability of errors and potential downtime. Additional information can be found here: https://www.hpe.com/us/en/product-catalog/storage/storage-software/pip.hpe-smart-san-for-3par.8295863.html Notes: - Supports B-series Brocade 16/8Gb FC switches with FOS 8.2.0 or later. - A list of supported HPE FC Adapters can be found at: https://h20272.www2.hpe.com/spock/ - Supports 3PAR StoreServ storage with 3.2.2 or later with only 16Gb target ports on HPE 3PAR StoreServ storage. |
|
|
|
