Dell PowerEdge XR8620t: руководство по обслуживанию

Sled dimensions

This figure shows the dimensions of the XR8620t server sled. — Figure 1. Sled dimensions

Table 1. PowerEdgeXR8620t sled dimensionsThis table provides the dimensions of the sled:
X	Y	Z (handle closed).
184.8 mm (7.28 inches)	83.28 mm (3.28 inches)	433.5 mm (17.07 inches)

System weight

Table 1. PowerEdge XR8620t system weightThe table below shows the maximum weight of the system.
System configuration	Maximum weight
1x DIMM, 1x M.2 NVMe SSDs on M.2 riser	5.197 kg (11.45 lb)
8x DIMMS, 2x M.2 NVMe SSDs on M.2 riser	5.326 kg (11.74 lb)
1x DIMM, Riser1, Riser2 without PCIe cards	4.071 kg (8.97 lb)
8x DIMMS, Riser1, Riser2 with PCIe cards	7.071 kg (15.58 lb)
8x DIMMS, 2x M.2 NVMe SSDs on M.2 riser, Riser1, Riser2 with PCIe cards	7.149 kg (15.76 lb)

Processor specifications

Table 1. PowerEdge XR8620t processor specifications This table provides processor specifications for the system.
Supported processor	Number of processors supported
5^th Generation Intel Xeon Scalable and Edge-Enhanced processors with up to 16 cores or 4^th Generation Intel Xeon Scalable and Edge-Enhanced processors with up to 32 cores	One

NOTE:It is recommended to use a maximum of two add-in cards with SPR EE-LCC CPU. Three add-in cards are supported, but this may result in an overall system performance degradation. .

Cooling fan specifications

The PowerEdge XR8620t system supports up to eight cabled cooling fans for airflow.

Supported operating systems

The PowerEdge XR8620t system supports the following operating systems:

Red Hat Enterprise Linux
SUSE Linux Enterprise Linux
VMware ESXi
WindRiver Solution
Dell NativeEdge OS

For more information, go to OS support.

System battery specifications

The PowerEdge XR8620t system supports CR 2032 3.0-V lithium coin cell system battery.

Memory specifications

The PowerEdge XR8620t system supports the following memory specifications for optimized operation.

Table 1. Memory specificationsThe table below shows the memory specifications:
DIMM type	DIMM rank	DIMM capacity	Single processor
DIMM type	DIMM rank	DIMM capacity	Minimum RAM	Maximum RAM
RDIMM	Single rank	16 GB	32 GB	128 GB
	Dual rank	32 GB	64 GB	256 GB
	Dual rank	64 GB	128 GB	512 GB
	Dual rank	96 GB	192 GB	768 GB

Table 2. Memory module socketsThe table below shows the memory module sockets for the system:
Memory module sockets	Speed
8, 288-pin	6400 MT/s, 5600 MT/s, 4800 MT/s

NOTE:The processor may reduce the performance of the rated DIMM speed.

NOTE:Memory DIMM slots are not hot swappable.

Heater Solution

Heater Solution Summary

XR8000 needs to support an operating temperature range of ‐20°C to 65°C with a non‐operational range of ‐40°C to 65°C. The following major components do not support an industrial range and may need to be heated before they can be powered on:

Intel Xeon‐SP SPR CPU – minimum temperature is 0°C.
Intel Emmitsburg PCH south bridge – minimum temperature is 0°C.
iDRAC temperature range of 0°C to 70°C
CPLD temperature range of 0°C to 85°C
DIMM memory – minimum temperature is 0°C.
M.2 drives – temperature range is 85°C with selected range of 0°C to 85°C.
Adapter cards – temperature ranges vary depending on the manufacturer.

NOTE:Only XR8620t supports Heater Solution configuration.

NOTE:After pressing the power button, it takes approximately 5.5 minutes for the heater to warm the system from -20°C to 5°C before the power is applied to initiate system startup.

NOTE:Heater Manger is tested to -20°C.

NOTE:The heater Manager will monitor and maintain each heater zone's temperature while system is on.

NOTE:Jumper cables should be installed in XR8620t heater solution configuration only. Jumper cables are to be installed only when there is no heater module installed in the system, and since the heater slots on 2U PDB continue to provide power in the absence of heater module, or jumper cables, it can cause a short circuit.

NOTE:The jumper cables from heater slots 8,9 and 10 have to be transferred to the new PDB if the current PDB is being replaced and if the heater is not installed on the new PDB. The jumper cables are to be installed in heater 8, heater 9 and heater 10 slots on 2U PDB. For more details, see installing the jumper cables.

Sub-System details

In cold environments components need to be heated to an operational temperature range before they can be powered up. A small industrial range microcontroller that is called the heater manager is needed to measure the temperature by strategically placed temperature sensors and to apply current to one or more heating pads.

System heating is separated into a maximum of ten zones for different parts of the system. Each zone has one or more heating pads (connected in parallel) and one or more temperature sensors. Each zone can have a different minimum temperature but in general they are all the same and above 0C. The below table shows a potential list of heater modules in the Dell PowerEdge XR8000. Heaters in the top U connect to the 2U_PDB for easy serviceability.

Once the heater manager has power, it turns on the green heater LED (HM_SYS_PH_LED_N) and determines the temperature of each zone. Any zone below the threshold (for example, 4°C) will have its heater turned on until the zone is up to temperature. The heater manager should continue to monitor the temperature and turn on the heater pad if the temperature ever drops below a threshold (for example, 2°C). If no heating is required because the system is already above the heating thresholds, then the LED should still be flashed briefly for visible feedback that the system is in fact starting up. A jumper can be used to power the system without heating.

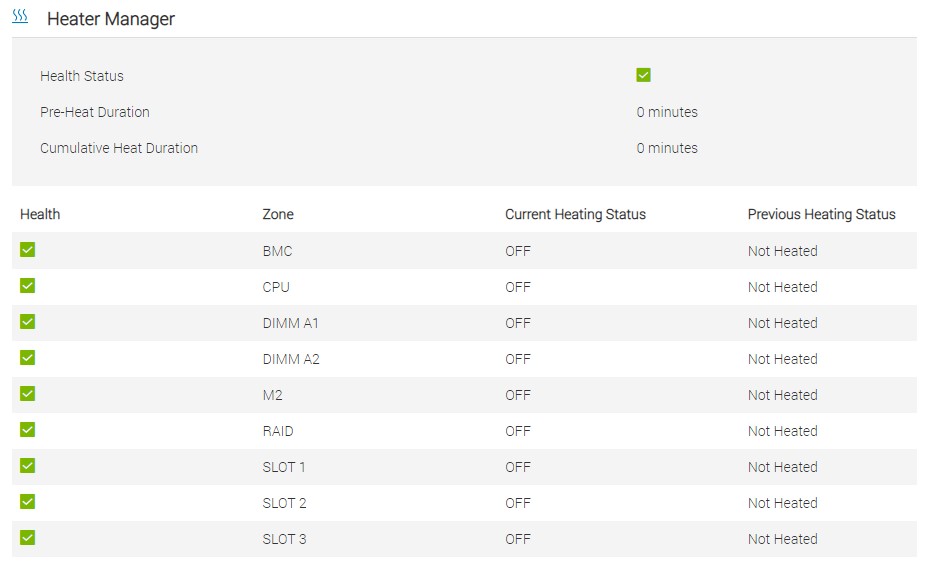

The image shows the iDRAC interface for heater manager — Figure 1. iDRAC interface for Heater Manager

NOTE:Be advised not to rely on the heat duration data for your assessment, as this information will be excluded in the upcoming iDRAC release.

NOTE:See Table - Zone Definition and Location in the next topic for Zone details.

Monitoring is added in each zone to ensure that the heating pad is present. A blinking amber heater LED (HM_SYSTEM_PH_FAULT_LED_N) indicates a problem with the heating sub‐system. This flashing LED is the only indication of a problem because iDRAC is not yet available for problem logging. Any failure in the heating system, flashes the amber heater status LED, and initiates a system shutdown if the temperature starts to drop below the temperature threshold. If the ambient temperature is high enough (for example, 10°C), then the iDRAC and shared NIC is powered to ensure that the problem is logged with iDRAC and is available on a remote iDRAC console.

NOTE: All heater modules for XR8620t should be at the point of sale.

NOTE:No APOS Cust kit for heater modules is available. The XR8620t heater module (ET) involves complex hardware connections, including thermal/heater pad/sensors, etc. Due to this complexity, it is not easy for customers to modify the configuration after shipment or change any M.2s connected to ROR-N1.

Troubleshooting- Heater Manager

Heater Manager Error Check Allocation

Step 1: Heater Error LED

LED lights Green when system pre‐heating is enabled and will turn off when system pre‐heating is completed. The heater manager will continue to maintain the proper temperature on the system after preheating, but the LED will stay off while the system is on.
LED flashes Amber with one blink per second frequency when any required heater or thermal sensor is absent or has failed.

Step 2: Check the iDRAC Life Cycle Log:

The Lifecycle log can be accessed via iDRAC GUI -> Maintenance -> Lifecycle Log.

HM Errors and Troubleshooting Guide

Table 1. HM Errors and Troubleshooting GuideThis table shows HM errors and troubleshooting guide.
Message ID	Severity	Zone (N)	Message/ Description	Action Required
HTR0000	Informational	-	Heater Manager is detected. The firmware version is x.x.x.x.	No response action is required.
HTR0005	Informational	-	The health status of the Heater Manager is OK.	No response action is required.
HTR0010	Critical	-	The health of the Heater Manager is in a Critical state.	Review one or more corresponding additional messages for the cause of the critical state and its recommended response action below.
HTR0020	Critical	-	An unrecoverable hardware issue with Error Code <2009/3005/3006> is detected in the Heater Manager Subsystem.	Restart the server If the issue persists, check all the sensor cables and heater cables connections in the sled. If the issue persists, replace 2U PDB If the issue persists, replace the planar. Most likely not to happen in factory.
HTR0022	Critical	-	An unrecoverable hardware issue with Error Code <2002/2003/3004/5008> is detected in the Heater Manager Subsystem.	Replace planar. Most not likely to happen in a factory.
HTR0030	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The required sensor < sensorNum > for the < zoneName > zone is not present.	Power off the server and ensure that the sensor cable is connected to the zone identified in the message. If the issue persists, replace the sensor cable that is connected to the zone.
HTR0040	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The < zoneName > zone has reported a high-temperature error.	Power off the server and ensure that the heater cable assembly for the identified zone is properly attached and not loose or hanging. If the issue persists, replace both Heater and Sensor cable of that zone. If the issue persists, replace the board that the heater cable is connected to accordingly.
HTR0051	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The required heater for <zoneName> zone is not present.	Power off the server and ensure that the heater for the zone that is identified in the message is connected. If the issue persists, replace the board that the heater cable is connected to accordingly.
HTR0052	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The heater control for <zoneName> zone has stopped functioning.	Power off the server and replace 2U PDB for <Zone 7/8/9/10> or replace 1U PDB for <Zone 4> or replace planar for <Zone 1/2/3/5>.
HTR0053	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The heater control for <zoneName> zone is not working correctly.	Power off the server and replace 2U PDB for <Zone 7/8/9/10> or replace 1U PDB for <Zone 4> or replace planar for <Zone 1/2/3/5>.
HTR0054	Critical	Zone	A hardware mismatch is identified for the <ZoneName> zone in the Heater Manager Subsystem.	Power off the server and ensure that the heater and sensor cable assembly for the zone that is identified in the message are plugged into the correct connectors and the sensors are properly positioned.
HTR0055	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The heater for <zoneName> zone may not be heating correctly.	Power off the server and ensure that the heater and sensor cable assembly for the zone identified in the message are plugged into the correct connectors and the sensor cable assembly is properly positioned. If the issue persists, replace both heater and sensor of that zone.
HTR0060	Critical	Zone	A hardware issue has occurred in the Heater Manager Subsystem. The required sensor < sensorNum > for the < zoneName > zone is shorted.	Power off the server and ensure that the sensor cable assembly for the zone identified in the message is properly positioned. If the issue persists, replace the sensor cable of that zone.

Table 2. Zone Definition and LocationXR8620t Zone Definition and Location
System	Zone	Heating Item	Heater pad location
Lower U	1	CPU	Top of CPU heatsink
	2	DIMM	Back of PCB
	3	DIMM	Back of PCB
	4	Lower U PCIe Riser Slot3	PCIe back of PCB
	5	PCH, BMC, CPLD, and LOM	Back of PCB
	6	Not Used	-
Upper U	7	ROR-N1 or M.2 NVMe A side	Under AL plate & beneath M.2
	7	ROR-N1 or M.2 NVMe B side	Under AL plate & beneath M.2
	8	ROR-N1 RAID chip	Top of Raid Controller
	9	Upper U PCIE Riser Slot2	On the back of a PCIe Card
	10	Upper U PCIE Riser Slot1	On back of Bracket

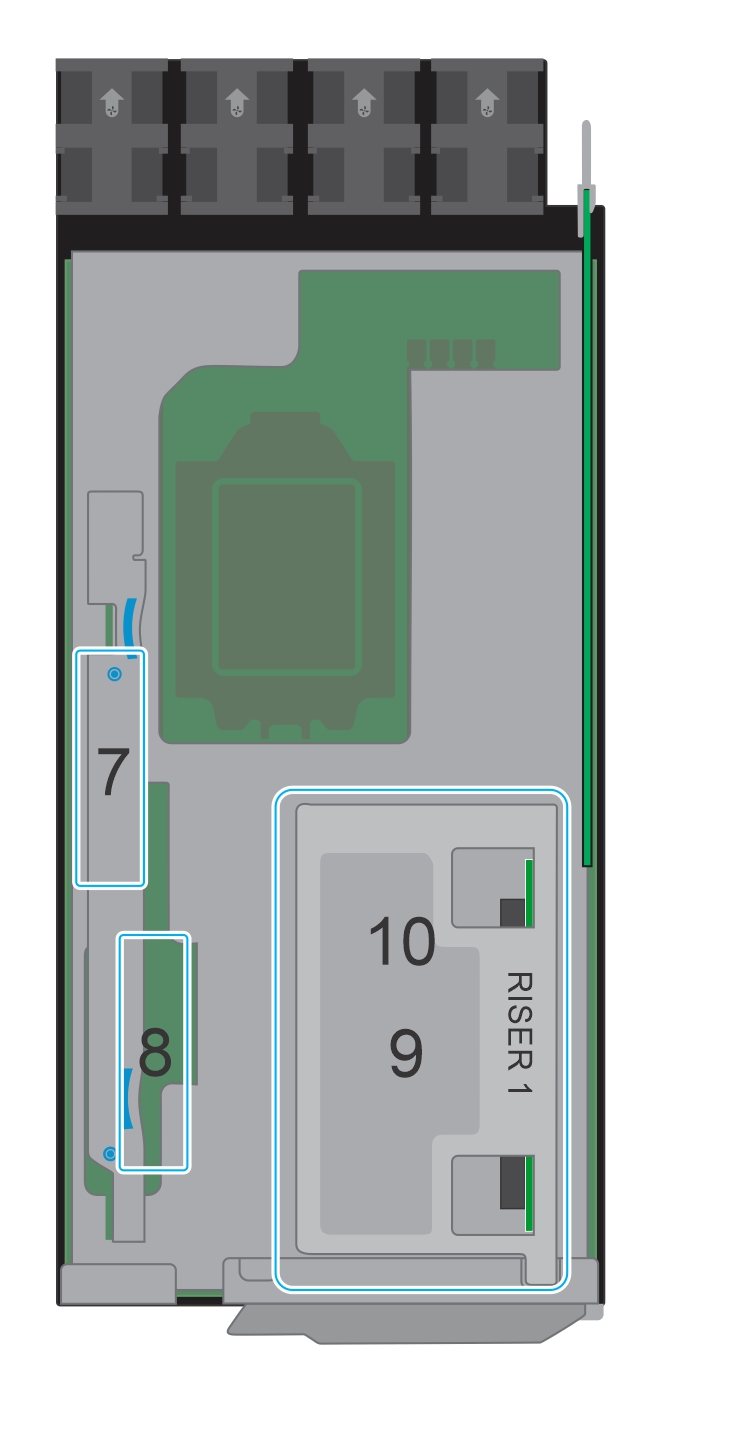

This image shows zone definition and location for HM - Upper U — Figure 1. Zone Definition and Location - Upper U

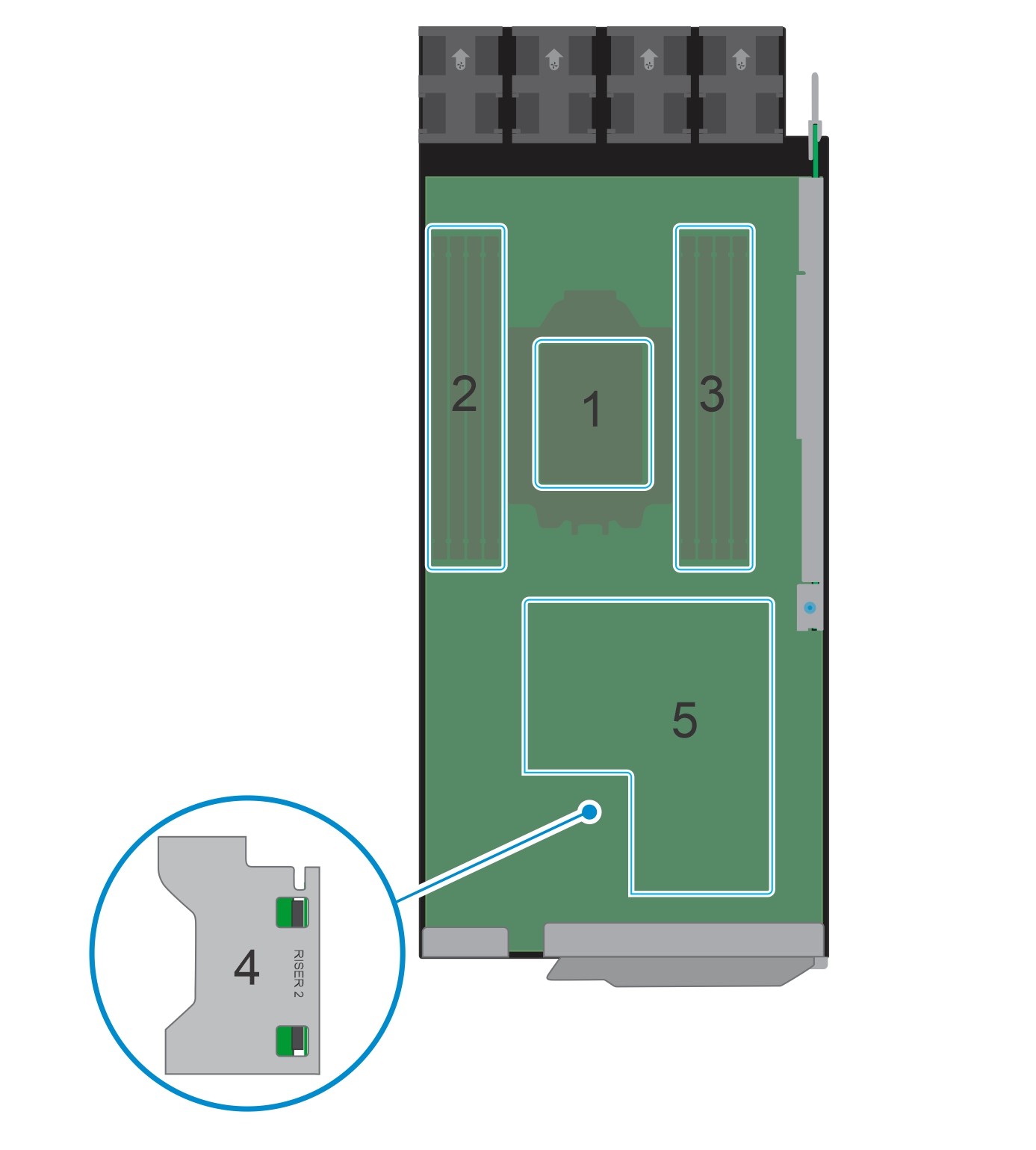

This image shows zone definition and location for HM - Lower U — Figure 2. Zone Definition and Location - Lower U

Expansion card riser specifications

WARNING:Consumer-Grade GPU should not be installed or used in the Enterprise Server products.

The PowerEdge XR8620t system supports three PCI express (PCIe) expansion card risers.

Table 1. Expansion card slots supported on the 2U sledThis table provides information about the expansion card slots that are supported on the 2U sled.
PCIe slots	Expansion card riser	Processor connection	Height	Length	Slot width
Slot 1	R1A	Processor 1	Full Height	Half Length	x16 PCIe (Gen 5)
Slot 2	R1A	Processor 1	Full Height	Half Length	x16 PCIe (Gen 5)
Slot 3	R2A	Processor 1	Full Height	Half Length	x16 PCIe (Gen 5)

Drives

The PowerEdge XR8620t system supports either 2 x M.2 NVMe SSDs (M.2 2280 and M.2 22110) on the M.2 riser or 2 x M.2 NVMe SSDs (M.2 2280) installed on BOSS-N1 card or optional 1 x M.2 2280 SSD on single M.2 riser.

USB ports specifications

Table 1. PowerEdge XR8620t USB specificationsThe following table shows the USB specifications for the system:
Front
USB port type	No. of ports
USB 3.0-compliant port	One
iDRAC Direct port (Micro-AB USB 2.0-compliant port)	One

NOTE:The micro USB 2.0 compliant port can only be used as an iDRAC Direct or a management port.

Network port specifications

The PowerEdge XR8620t system supports two (optional) SFP28 LAN on Motherboard (LOM) ports.

Table 1. Network port specification for the systemThis table describes the Network port specification for the system.
Feature	Specifications
LOM	2 x 25 GbE SFP 28 LOM connectors (optional).

Serial connector specifications

The PowerEdge XR8620t system supports one Micro USB Type B serial connector, on front of the system.

Display port

The PowerEdge XR8620t system supports One Mini-DisplayPort on front of the system.

iDRAC port specifications

The PowerEdge XR8620t system supports one RJ45 with port status LEDs for iDRAC remote management (dedicated port only) on front of the system.

RJ-45 dry contact port

The PowerEdgeXR8620tsystem supports 1 x RJ45 for dry contact on front of the system.

To enhance usage in the IoT space, the XR8620t comes with a dry input sensor. Each input is configurable and manageable in the iDRAC interface. These are interruptible inputs to iDRAC. Dry means that no energy is supplied to the contacts. The dry contact connection cable with RJ45 connector on one end is custom to each installation and must be provided by the end user.

The image shows the iDRAC interface for dry input sensors — Figure 1. iDRAC interface for Dry Input sensors

NOTE:The RJ45 for dry contact does not support IP function.

The default states of the dry inputs are off/disabled. The user has seven (one for each dry input) enable/disable (default) control that must be enabled before logging occurs.

This image shows the dry input connection diagram — Figure 2. Dry input connection diagram

The seven dry inputs are interruptible inputs to iDRAC. They have the following characteristics:

Monitored by iDRAC for state transition and LC event are for each state transition.
NOT modeled as IPMI sensors but LC event only sensors. The current state of the input is not monitored or displayed anywhere.
Event log - transitions (Open to close or close to Open) are logged in LC only.

Debounce — A debounce of 100mseconds is provided on all inputs.

Table 1. Event and Error Messages Event and Error Messages
Message ID	Message	RRA	DD	Severity
DCI1000	Dry input <input index> is transitioned to Open state.	None.	None	Severity -3 (Info)
DCI1001	Dry input <input index> is transitioned to Close state.	None.	None	Severity -3 (Info)

Video specifications

The PowerEdge XR8620t system supports integrated Matrox G200 graphics controller embedded in the iDRAC (BMC) chip with 16 MB of video frame buffer.

Table 1. Supported video resolution options This table describes the supported front video resolution options for the system.
Resolution	Refresh rate (Hz)	Color depth (bits)
640 x 480	60	8, 16, 32
800 x 600	60	8, 16, 32
1024 x 768	60	8, 16, 32
1152 x 864	60	8, 16, 32
1280 x 800	60	8, 16, 32
1280 x 1024	60	8, 16, 32
1360 x 768	60	8, 16, 32
1400 x 1050	60	8, 16, 32
1440 x 900	60	8, 16, 32
1600 x 1200	60	8, 16, 32
1680 x 1050	60	8, 16, 32
1920 x 1080	60	8, 16, 32
1920 x 1200	60	8, 16, 32

Environmental specifications

The PowerEdge XR8620t operates in these environmental categories: ASHRAE A2, NEBS3, GR3108C1+, GR3108C1-L, and NEBS3-H.

NOTE:For additional information about environmental certifications, see the Product Environmental Datasheet located with the Documentation > Regulatory Information on Dell Support.

Table 1. Continuous operation specifications for ASHRAE A2 This table describes the operational climatic range for category A2.
Feature	Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	10–35°C (50–95°F) with no direct sunlight on the equipment
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 80% RH with 21°C (69.8°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/300 m (1.8°F/984 Ft) above 900 m (2953 Ft)

Table 2. Continuous operation specifications for NEBS3 This table describes the operational climatic range for NEBS3.
Feature	Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	-5° to 55°C (23 °F–131°F) with no direct sunlight on the equipment
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 90% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/80 m (1.8°F/263 Ft) above 900 m (2953 Ft)

Table 3. Continuous operation specifications for GR3108C1+ This table describes the operational climatic range for GR3108C1+.
Feature	Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	-20° to 65°C (-4°F to 149°F) with no direct sunlight on the equipment. Cold boot support at - 20°C
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 90% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/58 m (1.8°F/190 Ft) above 900 m (2953 Ft)

Table 4. Continuous operation specifications for GR3108C1-L This table describes the operational climatic range for GR3108C1-L.
Feature	Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	-20° to 55°C (-4°F to 131°F) with no direct sunlight on the equipment. Cold boot support at - 20°C
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 90% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/80 m (1.8°F/263 Ft) above 900 m (2953 Ft)

Table 5. Continuous operation specifications for NEBS3-H This table describes the operational climatic range for NEBS3-H.
Feature	Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	-5° to 65°C (23 °F–149°F) with no direct sunlight on the equipment
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 90% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/58 m (1.8°F/190 Ft) above 900 m (2953 Ft)

Table 6. Common environmental specifications for ASHRAE A2, NEBS3, GR3108C1+, GR3108C1-L, and NEBS3-H This table describes the shared requirements across all categories.
Feature	Allowable continuous operations
Maximum temperature gradient (applies to both operation and non-operation).	20°C in an hour* (36°F in an hour) and 5°C in 15 minutes (9°F in 15 minutes), 5°C in an hour* (9°F in an hour) for tape hardware
Non-operational temperature limits	-40°C to 65°C (-40°F to 149°F).
Non-operational humidity limits (Non-Condensing at all times)	5% to 95%RH with 27°C (80.6°F) maximum dew point
Maximum non-operational altitude	12,000 meters (39,370 feet)
Maximum operational altitude	3,050 meters (10,006 feet)

Table 7. Maximum vibration specificationsThe maximum vibration specification of an operational system is 0.21 Grms at 5 Hz to 500 Hz (all operation orientations).The maximum vibration specification of a nonoperational system is 1.88 Grms at 10 Hz to 500 Hz for 15 minutes (all six sides tested).
Maximum vibration	Specifications
Operating	0.21 G_rms at 5 Hz to 500 Hz (all operation orientations)
Storage	1.88 G_rms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)

Table 8. Maximum shock pulse specificationsThe maximum shock specification of an operational system is six consecutively performed shock pulses in the positive and negative x, y, and z axis of 6 G for up to 11 ms (4 pulse on each side on the system). The maximum shock specification of a nonoperational system is six consecutively performed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms.
Maximum shock pulse	Specifications
Operating	Six consecutively performed shock pulses in the positive and negative x, y, and z axis of 6 G for up to 11 ms (4 pulse on each side on the system)
Storage	Six consecutively performed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms

Environmental considerations

The PowerEdge system is targeted for edge deployments and it meets all the additional standards for thermal, shock, and vibration parameters.

Table 1. Environmental considerationsThis table describes environmental considerations.
Industry	Configuration	Description
Telco	GR-1089-CORE	Electromagnetic Compatibility and Electrical Safety – Generic Criteria for Network Telecommunications Equipment
	GR-63-CORE	NEBS Requirements: Physical Protection
	SR-3580 (NEBS Level 3)	NEBS Criteria Levels
	GR-3108-CORE (Class 1)	Network Equipment in the Outside Plant (OSP). An exception is made for cold boot at +5C instead of -5C for systems without the Heater Manager subsystem enabled.
Military	N/A
Marine	N/A
Power Industry	N/A
Safety	N/A	LDV, IEC/EN, CFR, CSA
EMC	N/A	EN, CISPR, ES, DTAG, CFR, ICES, VCCI
EMV	N/A	RoHS, WEEE, EN, ECE

Environmental Requirements for installing XR8000

A proper installation of XR8000 protects the system and its components from damage that is caused by external environmental conditions. So, to ensure normal operation and avoid any unplanned downtime and maintenance activity it is highly imperative that there is a proper planning and preparation of the site before installing the XR8000 . Also, it is to be noted that the same site sanity must be maintained during the entire life cycle of the XR8000 server to ensure smooth operations.

General guidelines for maintaining the XR8000:

It is recommended to keep the system from heat sources and obstructions blocking the airflow.
It is recommended not to allow spillage of liquid into the system and not to operate when the system is wet.
If there are any openings in the system, it is recommended not to insert any objects into those points.
It is highly advised not to tamper and modify any power cables or PSUs as it could potentially damage the systems.

Site Planning Recommendation:

The site should have proper cooling facilities to take care of the operating temperature range of the server.
The rack or cabinet where the server is going to be installed should have adequate space for cable routing.
The Rack or cabinet should have enough strength to hold the weight of the server.
For Conductive dust, the air must be free of conductive dust, zinc whiskers, or other conductive particles. This protects the system from any contamination.
For corrosive dust, the air must be free from any corrosive dust and the Residual dust present in the air must have a deliquescent point less than 60% relative humidity. Note this condition applies for both data center and non-data center environments.
The system is best found to operate at -5C to 55C and for some conditions from -20C to 65C , so the site conditions could maintain the optimum operating condition.
For protection of the system from humidity it is expected to have an environment with a humidity percent range of 8% RH with -12°C minimum dew point to 80% RH with 21°C (69.8°F) maximum dew point.
For seismic zones , the maximum operating vibration is 0.21 G _rms at 5 Hz to 500 Hz (all operation orientations).

Particulate and gaseous contamination specifications

The following table defines the limitations that help avoid any equipment damage or failure from particulates and gaseous contamination. If the levels of particulates or gaseous pollution exceed the specified limitations and result in equipment damage or failure, you must rectify the environmental conditions. Remediation of environmental conditions is the responsibility of the customer.

Table 1. Particulate contamination specificationsAir filtration specification: Data center air filtration as defined by ISO Class 8 per ISO 14644-1 should have a 95% upper confidence limit. Note: This condition applies only to data center environments. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor. Note: Air entering the data center must have MERV11 or MERV13 filtration. Conductive dust specification: Air must be free of conductive dust, zinc whiskers, or other conductive particles. Note: This condition applies to data center and non-data center environments. Corrosive dust specification: Air must be free of corrosive dust. Residual dust present in the air must have a deliquescent point less than 60% relative humidity. Note: This condition applies to data center and non-data center environments.
Particulate contamination	Specifications
Air filtration: Conventional Data Center only	Data center air filtration as defined by ISO Class 8 per ISO 14644-1 with a 95% upper confidence limit NOTE: Filtering room air with a MERV8 filter, as specified in ANSI/ASHRAE Standard 127, is a recommended method for achieving the necessary environmental conditions. NOTE:Air entering the data center must have MERV11 or MERV13 filtration. NOTE:This condition applies to data center environments only. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor.
Walk-Up Edge Data Center or Cabinet (sealed, closed loop environment)	Filtration is not required for cabinets that are anticipated to be opened six times or less per year. Class 8 per ISO 1466-1 filtration as defined above is required otherwise. NOTE: In environments commonly above ISA-71 Class G1 or that may have known challenges, special filters may be required.
Conductive dust: data center and non-data center environments	Air must be free of conductive dust, zinc whiskers, or other conductive particles. NOTE: Conductive dust, which can interfere with equipment operation, can originate from various sources, including manufacturing processes and zinc whiskers that may develop on the plating of raised floor tiles. NOTE:This condition applies to data center and non-data center environments.
Corrosive dust: data center and non-data center environments	Air must be free of corrosive dust. Residual dust present in the air must have a deliquescent point less than 60% relative humidity. NOTE:This condition applies to data center and non-data center environments.

Table 2. Gaseous contamination specificationsThe copper coupon corrosion rate is <300 Å/month per Class G1 as defined by ANSI/ISA71.04. The silver coupon corrosion rate is <200 Å/month as defined by ANSI/ISA71.04.
Gaseous contamination	Specifications	Notes
Copper coupon corrosion rate	ISA-71 Class G1: <300 Å/month	Per ANSI/ISA71.04
Silver coupon corrosion rate	ISA-71 Class G1: <200 Å/month	Per ANSI/ISA71.04

Thermal restriction matrix

Table 1. XR8620t Thermal Restriction - CPU and Memory The table describes Thermal Restriction - CPU and Memory for XR8620t:
Sled Config			XR8620t Thermal Restriction
Ambient Temperature			ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
CPU	Intel® Xeon® Gold 4514Y	150 W	Supported	Supported	Supported	Not Supported	Not Supported
CPU	Intel® Xeon® Gold 6433N	205 W	Supported	Supported	Supported	Not Supported	Not Supported
	Intel® Xeon® Gold 6423N	195 W	Supported	Supported	Supported	Supported	Supported
	Intel® Xeon® Gold 6403N	185 W	Supported	Supported	Supported	Supported	Supported
	Intel® Xeon® Gold 4510	150 W	Supported	Supported	Supported	Supported	Supported
	Intel® Xeon® Gold 5423N	145 W	Supported	Supported	Supported	Supported	Supported
	Intel® Xeon® Gold 4509Y	125 W	Supported	Supported	Supported	Supported	Supported
CPU	Intel® Xeon® Gold 6438N	205 W	Supported	Supported	Supported	Not Supported	Not Supported
	Intel® Xeon® Gold 6421N	185 W	Supported	Supported	Supported	Supported	Supported
	Intel® Xeon® Gold 5411N	165 W	Supported	Supported	Supported	Supported	Supported
Memory	DDR5 RDIMM 4800 MT/s 64G		Supported	Supported	Supported	Not Supported	Not Supported
	DDR5 RDIMM 4800 MT/s 32G		Supported	Supported	Supported	Supported	Supported
	DDR5 RDIMM 4800 MT/s 16G		Supported	Supported	Supported	Supported	Supported
	DDR5 RDIMM 5600 MT/s 96G		Supported	Supported	Supported	Not Supported	Not Supported
	DDR5 RDIMM 5600 MT/s 64G		Supported	Supported	Supported	Not Supported	Not Supported
	DDR5 RDIMM 5600 MT/s 32G		Supported	Supported	Supported	Supported	Supported
	DDR5 RDIMM 5600 MT/s 16G		Supported	Supported	Supported	Supported	Supported

NOTE:The heater manager subsystem is required for “GR3108C1L” and “GR3108C1+” environment class.

NOTE:The heater manager subsystem is required for the system to perform a cold startup below 5°C.

Table 2. XR8620t Thermal Restriction - Raid Controller and Storage(ROR-N1) The table describes Thermal Restriction - Raid Controller and Storage (ROR-N1) for XR8620t:
Sled Config				XR8620t Thermal Restriction
Ambient temperature				ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
ROR-N1	Hynix M.2	480G	PE8010 2280	Supported	Supported	Supported	Supported	Supported
		480G	PE9010 2280	Supported	Supported	Supported	Supported	Supported
		800G	PE8030 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	PE8010 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	PE9010 2280	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	PE9010 2280	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	PE8110 22110	Supported	Supported	Supported	Not Supported	Not Supported
		3.84T	PE8110 22110	Supported	Supported	Supported	Not Supported	Not Supported
	Micron M.2	480G	7400 2280	Supported	Supported	Supported	Supported	Supported
		480G	7450 2280	Supported	Supported	Supported	Supported	Supported
		800G	7400 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	7400 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	7450 2280	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	7400 22110	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	7450 22110	Supported	Supported	Supported	Not Supported	Not Supported
		3.84T	7400 22110	Supported	Supported	Supported	Not Supported	Not Supported
		3.84T	7450 22110	Supported	Supported	Supported	Not Supported	Not Supported

NOTE:The heater manager subsystem is required for “GR3108C1L” and “GR3108C1+” environment class.

Table 3. XR8620t Thermal Restriction - Raid Controller and Storage(Non-Raid Riser) The table describes Thermal Restriction - Raid Controller and Storage (Non-Raid Riser) for XR8620t:
Sled Config				XR8620t Thermal Restriction
Ambient temperature				ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
Non RAID Riser	Hynix M.2	480G	PE8010 2280	Supported	Supported	Supported	Supported	Supported
		480G	PE9010 2280	Supported	Supported	Supported	Supported	Supported
		800G	PE8030 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	PE8010 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	PE9010 2280	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	PE9010 2280	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	PE8110 22110	Supported	Supported	Supported	Not Supported	Not Supported
		3.84T	PE8110 22110	Supported	Supported	Supported	Not Supported	Not Supported
	Micron M.2	480G	7400 2280	Supported	Supported	Supported	Supported	Supported
		480G	7450 2280	Supported	Supported	Supported	Supported	Supported
		800G	7400 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	7400 2280	Supported	Supported	Supported	Not Supported	Not Supported
		960G	7450 2280	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	7400 22110	Supported	Supported	Supported	Not Supported	Not Supported
		1.92T	7450 22110	Supported	Supported	Supported	Not Supported	Not Supported
		3.84T	7400 22110	Supported	Supported	Supported	Not Supported	Not Supported
		3.84T	7450 22110	Supported	Supported	Supported	Not Supported	Not Supported

NOTE:The heater manager subsystem is required for “GR3108C1L” and “GR3108C1+” environment class.

Table 4. XR8620t Thermal Restriction - Raid Controller and Storage(Mancini BOSS-N1) The table describes Thermal Restriction - Raid Controller and Storage (Mancini BOSS-N1) for XR8620t:
Sled Config				XR8620t Thermal Restriction
Ambient temperature				ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
BOSS-N1	Hynix M.2	480G	PE8010 2280	Supported	Supported	Not Supported	Supported	Not Supported
		480G	PE9010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	PE8030 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	PE9010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	PE9010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
	Micron M.2	480G	7400 2280	Supported	Supported	Not Supported	Supported	Not Supported
		480G	7450 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7450 2280	Supported	Supported	Not Supported	Not Supported	Not Supported

NOTE:BOSS-N1 only supports 2280 form factor M.2 SSD.

Table 5. XR8620t Thermal Restriction - Raid Controller and Storage(Non-Raid Riser) + Single M.2 riser The table describes Thermal Restriction - Raid Controller and Storage (Non-Raid Riser) + Single M.2 riser for XR8620t:
Sled Config				XR8620t Thermal Restriction
Ambient temperature				ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
Non-RAID riser + Single M.2 riser	Hynix M.2	480G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	PE8030 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	PE8110 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		3.84T	PE8110 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
	Micron M.2	480G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7450 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	7400 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	7450 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		3.84T	7400 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		3.84T	7450 22110	Supported	Supported	Not Supported	Not Supported	Not Supported

Table 6. XR8620t Thermal Restriction - Raid Controller and Storage BOSS-N1 + Single M.2 riser The table describes Thermal Restriction - Raid Controller and Storage BOSS-N1 + Single M.2 riser for XR8620t:
Sled Config				XR8620t Thermal Restriction
Ambient temperature				ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
BOSS-N1 + Single M.2 riser	Hynix M.2	480G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	PE8030 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
	Micron M.2	480G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7450 2280	Supported	Supported	Not Supported	Not Supported	Not Supported

NOTE:The heater manager subsystem is required for “GR3108C1L” and “GR3108C1+” environment class.

NOTE:The single riser only supports 2280 form factor M.2 SSD.

NOTE:The heater manager subsystem is not supported when a single M.2 riser is installed.

Table 7. XR8620t Thermal Restriction - Raid Controller and Storage ROR-N1 riser + Single M.2 riser The table describes Thermal Restriction - Raid Controller and Storage ROR-N1 riser for XR8620t:
Sled Config				XR8620t Thermal Restriction
Ambient temperature				ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
ROR-N1 riser + Single M.2 riser 2280/22110 M.2 SSDs	Hynix M.2	480G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	PE8030 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	PE8010 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	PE8110 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		3.84T	PE8110 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
	Micron M.2	480G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		800G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7400 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		960G	7450 2280	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	7400 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		1.92T	7450 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		3.84T	7400 22110	Supported	Supported	Not Supported	Not Supported	Not Supported
		3.84T	7450 22110	Supported	Supported	Not Supported	Not Supported	Not Supported

NOTE:The heater manager subsystem is required for “GR3108C1L” and “GR3108C1+” environment class.

NOTE:The single riser only supports 2280 form factor M.2 SSD.

NOTE:The heater manager subsystem is not supported when a single M.2 riser is installed.

Table 8. XR8620t Thermal Restriction - RAN DPU The table describes Thermal Restriction - RAN DPU for XR8620t:
Sled Config	XR8620t Thermal Restriction
Ambient Temperature	ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
Nvidia GPU L4	Supported	Supported	Not Supported	Not Supported	Not Supported
Qualcomm X100 DPU	Supported	Supported	Not Supported	Not Supported	Not Supported
Minerva 3 DPU	Supported	Supported	Not Supported	Not Supported	Not Supported
Nokia Rinline 2 DPU	Supported	Supported	Not Supported	Not Supported	Not Supported

Table 9. XR8620t Thermal Restriction - Commodities The table describes Thermal Restriction - Commodities for XR8620t:
Sled Config	XR8620t Thermal Restriction
Ambient Temperature	ASHRAE A2 (Max 35°C)	NEBS3 (Max 55°C)	GR3108C1-L (Max 55°C)	NEBS3-H (Max 65°C)	GR3108C1+ (Max 65°C)
PCIe Card	Above 55°C only PCIe cards with Extended Operating Temperature (EOT) Range is supported for “NEBS3-H” & “GR3108C1+.” Non-Dell PCIe cards are not supported.
Active Optical Cables/ Transceivers	Optic cables/transceivers with 70C spec is not supported for “NEBS3-H” & “GR3108C1+.” Optic cables / transceivers with 85C spec can support up to 65°C.
PSU	-	Dual PSUs are required. Only e-Temp range PSU is supported for NEBS3-H, GR3108C1L and GR3108C1+.
