Dell XPS 16 DA16260: характеристики и спецификации

Processor

The following table lists the details of the processors supported by your XPS 16 DA16260.

Table 1. Processor
The following table provides the various processor options that are supported for XPS 16 DA16260.
Description		Option one	Option two	Option three	Option four	Option five
Processor type		Intel Core Ultra 5 325	Intel Core Ultra 7 355	Intel Core Ultra X7 358H	Intel Core Ultra X9 388H	Intel Core Ultra X9 388H vPro NOTE:Available at a later date.
Processor wattage		25 W base power consumption 45 W at maximum turbo power	25 W base power consumption 45 W at maximum turbo power	25 W base power consumption 65 W maximum turbo power	25 W base power consumption 65 W maximum turbo power	25 W base power consumption 65 W maximum turbo power
Processor total core count		8	8	16	16	16
Performance-cores		4	4	4	4	4
Efficient-cores		4 low-power efficiency cores	4 low-power efficiency cores	8 efficient cores 4 low-power efficiency cores	8 efficient cores 4 low-power efficiency cores	8 efficient cores 4 low-power efficiency cores
Processor total thread count NOTE:Intel Hyper-Threading Technology is only available on Performance-cores.		8	8	16	16	16
Processor speed		Up to 4.5 GHz	Up to 4.7 GHz	Up to 4.8 GHz	Up to 5.1 GHz	Up to 5.1 GHz
Performance-cores frequency
	Processor base frequency	2.1 GHz	2.3 GHz	1.9 GHz	2.1 GHz	2.1 GHz
	Maximum turbo frequency	4.5 GHz	4.7 GHz	4.8 GHz	5.1 GHz	5.1 GHz
Efficient-cores frequency
	Processor base frequency	1.6 GHz for low-power efficiency cores	1.7 GHz for low-power efficiency cores	1.5 GHz for efficient cores	1.6 GHz for efficient cores	1.6 GHz for efficient cores
	Maximum turbo frequency	3.4 GHz for low-power efficiency cores	3.5 GHz for low-power efficiency cores	3.5 GHz for efficient cores 3.3 GHz for low-power efficiency cores	3.8 GHz for efficient cores 3.7 GHz for low-power efficiency cores	3.8 GHz for efficient cores 3.7 GHz for low-power efficiency cores
Processor cache		12 MB	12 MB	18 MB	18 MB	18 MB
Integrated graphics		Intel Graphics	Intel Graphics	Intel Arc B390 graphics	Intel Arc B390 graphics	Intel Arc B390 graphics
AI technology		Intel AI Boost	Intel AI Boost	Intel AI Boost	Intel AI Boost	Intel AI Boost
Neural Processing Units (NPUs)		One NPU, supporting up to 47 TOPs	One NPU, supporting up to 49 TOPs	One NPU, supporting up to 50 TOPs	One NPU, supporting up to 50 TOPs	One NPU, supporting up to 50 TOPs
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Chipset

The following table lists the details of the chipset that is supported by your XPS 16 DA16260.

Table 1. Chipset The following table lists the details of the chipset that is supported by your XPS 16 DA16260.
Description	Values
Chipset	Integrated in the processor
Processor	Intel Core Ultra 5 325 Intel Core Ultra 7 355 Intel Core Ultra X7 358H Intel Core Ultra X9 388H Intel Core Ultra X9 388H vPro (Available at a later date)
DRAM bus width	128 bit
Flash EPROM	Not applicable NOTE:Integrated Flash EPROM not present in CPU
PCIe bus	PCIe 5.0

Memory

The following table lists the memory specifications that are supported by your XPS 16 DA16260.

Table 1. Memory specificationsThe following table lists the memory specifications of your computer.
Description	Values
Memory slots	Dual-channel on-board memory NOTE:The memory is integrated on the system board and is not upgradeable.
Memory type	LPDDR5X
Memory speed	7467 MT/s: For computers shipped with Intel Core Ultra 5 325 or Intel Core Ultra U7 355 processors 9600 MT/s: For computers shipped with Intel Core Ultra X7 358H or Intel Core Ultra X9 388H processors
Maximum memory configuration	64 GB
Minimum memory configuration	16 GB
Memory size per slot	16 GB (4 x 4 GB) 32 GB (4 x 8 GB) 64 GB (4 x 16 GB)
Memory configurations supported	For computers shipped with Intel Core Ultra 5 325 or Intel Core Ultra U7 355 processors 16 GB (4 x 4 GB) LPDDR5X at 7467 MT/s For computers shipped with Intel Core Ultra X7 358H or Intel Core Ultra X9 388H processors: 32 GB (4 x 8 GB) LPDDR5X at 9600 MT/s 64 GB (4 x 16 GB) LPDDR5X at 9600 MT/s

Storage

This section lists the storage options on your XPS 16 DA16260.

Your computer supports one M.2 2230 or M.2 2280 solid-state drive.

Table 1. Storage specifications
The following table provides the different storage options available on XPS 16 DA16260.
Storage type	Interface type	Capacity
M.2 2230 solid-state drive	Gen 4 x4 PCIe NVMe	512 GB
M.2 2230 solid-state drive	Gen 4 x4 PCIe NVMe	1 TB
M.2 2280 solid-state drive, SED-Ready	Gen 5 x4 PCIe NVMe	2 TB
M.2 2280 solid-state drive, SED-Ready	Gen 5 x4 PCIe NVMe	4 TB

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 16 DA16260.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of XPS 16 DA16260.
Controller	Memory size	Processor
Intel Graphics	Shared system memory	Intel Core Ultra 5 325 Intel Core Ultra 7 355
Intel Arc B390 Graphics	Shared system memory	Intel Core Ultra X7 358H Intel Core Ultra X9 388H

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your XPS 16 DA16260.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of XPS 16 DA16260.
Description	Values
Model number	Intel Wi-Fi 7 (BE211) NOTE:The wireless module is integrated onto the system board and is non-upgradable.
Transfer rate	Up to 5000 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6/6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)
Encryption	802.1X SAE GCMP-256 AES-CCMP WPA2-Personal/WPA2-Enterprise WPA3-Personal/WPA3-Enterprise
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 6

Internal slots

The following table lists the internal slots of your XPS 16 DA16260.

Table 1. Internal slotsThe following table lists the internal slots on your XPS 16 DA16260.
Description	Values
M.2	One M.2 slot for M.2 2230 or M.2 2280 solid-state drive NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

External ports and slots

The following table lists the external ports and slots on your XPS 16 DA16260.

Table 1. External ports and slots
The following table lists ports and connectors available on XPS 16 DA16260.
Description	Values
USB ports	Three Thunderbolt 4 USB-C ports with support for USB4 v1.0, DisplayPort 2.1, and USB Power Delivery 3.2 NOTE: Connect the USB-C power adapter to only one of the three USB-C ports. NOTE:The first device connected to a Thunderbolt 4 USB-C port can receive up to 15 W (3 A) of power. Each additional port can provide up to 7.5 W (1.5 A). If the first device uses less than 15 W, any unused power is shared with other ports (within their limits). NOTE:After resuming from hibernate state, your computer restores USB-C power in stages: The right-side port receives 15 W first, followed by the left-upper and left-bottom ports receiving 7.5 W each. This ensures system stability and prevents power surges.
Audio port	Three Thunderbolt 4 USB-C ports with support for USB4 v1.0, DisplayPort 2.1, and USB Power Delivery 3.2 One headset (headphone and microphone combo) port
Video port(s)	Three Thunderbolt 4 USB-C ports with support for USB4 v1.0, DisplayPort 2.1, and USB Power Delivery 3.2 NOTE: A USB-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Media-card reader	None
Power-adapter port	DC-IN through one of the three Thunderbolt 4 USB-C ports
Security-cable slot	Supported through USB-C ports

Display

The following table lists the display specifications of your XPS 16 DA16260.

Table 1. Display specifications
The following table provides the detailed display specifications of XPS 16 DA16260.
Description		Option one	Option two
Display type		16 inch (40.64 cm), FHD, Low Blue Light	16 inch (40.64 cm), OLED, Low Blue Light
Touch options		No	Yes
Display-panel technology		White Light Emitting Diode (WLED)	Organic Light Emitting Diode (OLED)
Display-panel dimensions (active area):
	Height	215.43 mm (8.48 in.)	215.40 mm (8.48 in.)
	Width	344.68 mm (13.57 in.)	344.64 mm (13.57 in.)
	Diagonal	406.4 mm (16 in.)	406.42 mm (16 in.)
Display-panel native resolution		1920 x 1200	3200 x 2000
Luminance (typical)		500 nits	400 nits typical; 500 nits peak
Megapixels		2.3	6.4
Color gamut		sRGB 100% typical; 95% minimum	DCI-P3 100% typical; 95% minimum
Pixels Per Inch (PPI)		142	235.8
Contrast ratio (minimum)		2000:1 typical; 1600:1 minimum	1,000,000:1 typical with SR-UL2
Response time (maximum)		35 ms	1 ms, typical; 2 ms, maximum
Refresh rate		1 Hz (PR); 20 to 120 Hz (VRR) NOTE:The display's Panel Refresh Rate (PR) may drop to 1 Hz under certain conditions, such as when displaying static content to reduce power consumption. NOTE:Variable Refresh Rate (VRR) synchronizes the display's refresh rate with the frame rate produced by the GPU. VRR is typically used when displaying dynamic content, such as games or video, to provide smoother motion and reduce visual artifacts.	20 Hz to 120 Hz (VRR) NOTE:Variable Refresh Rate (VRR) synchronizes the display's refresh rate with the frame rate produced by the GPU. VRR is typically used when displaying dynamic content, such as games or video, to provide smoother motion and reduce visual artifacts.
Horizontal view angle		+/- 88 degrees	+/- 88 degrees
Vertical view angle		+/- 88 degrees	+/- 88 degrees
Pixel pitch		0.1795 mm	0.1077 mm
Power consumption (maximum)		3.17 W at 120 Hz	7.54 W
Anti-glare vs glossy finish		Anti-glare	Anti-Reflective, Anti-Smudge

Dell low blue light display

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
Take an extended break for 20 minutes every two hours.

Keyboard

The following table lists the keyboard specifications of your XPS 16 DA16260.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of XPS 16 DA16260.
Description	Values
Keyboard type	Backlit keyboard
Keyboard layout	QWERTY
Number of keys	Arabic, Canada (Bilingual) (MUI), English International, English US, Hebrew, Korean, Traditional Chinese keyboard: 80 keys Belgian, Czech/Slovakian (MUI), English UK, French (European), German, Italian, Nordic (MUI), Spanish (Latin America), Swiss/European (MUI), Turkish, Portuguese Iberian, Spanish (Castillian) keyboard: 81 keys Portuguese Brazilian keyboard: 82 keys Japanese keyboard: 84 keys
Key pitch	X = 19.05 mm key pitch Y = 18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternative characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out.

Touchpad

The following table lists the touchpad specifications of your XPS 16 DA16260.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of XPS 16 DA16260.
Description		Values
Touchpad resolution:		300 DPI
Touchpad dimensions:
	Horizontal	150 mm (5.91 in.)
	Vertical	90 mm (3.54 in.)

Camera

The following table lists the camera specifications of your XPS 16 DA16260.

Table 1. Camera specifications
The following table provides the detailed camera specifications of XPS 16 DA16260.
Description		Values
Number of cameras		Two
Camera type		8M MIPI RGB and IR camera
Camera location		Front (Top of bezel)
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	8 megapixels
	Video	2560 x 1440 at 30 fps NOTE:Maximum video resolution is 3840 × 2160 at 30 fps when the Microsoft Windows Studio Effects driver is not installed.
Infrared camera resolution:
	Video	480 x 360 at 15 fps
Diagonal viewing angle:
	Camera	84.7 degrees
	Infrared camera	79.1 degrees

Audio

The following table lists the audio specifications of your XPS 16 DA16260.

Table 1. Audio specifications
The following table provides the detailed audio specifications of XPS 16 DA16260.
Description		Values
Audio controller		CirrusLogic CS42L45
Stereo conversion		Waves MaxxAudio
Internal audio interface		SoundWire interface
External audio interface		Three Thunderbolt 4 USB-C ports with Power Delivery and DisplayPort One headset (headphone and microphone combo) port
Number of speakers		Woofers (two channels) Tweeters (two channels)
Internal-speaker amplifier		Cirrus Logic SmartAmp
External volume controls		Media control keys on capacitive touch function row
Speaker output:
	Average	10 W total: 3 W woofer x 2 channels 2 W tweeter x 2 channels
	Peak	10 W total: 3 W woofer x 2 channels 2 W tweeter x 2 channels
Microphone		Dual digital-array microphones; IntelliGo noise reduction

Operating system

Your XPS 16 DA16260 supports the following operating systems:

Windows 11 Pro
Windows 11 Pro Education
Windows 11 Home
Windows 11 Enterprise

Power adapter

The following table lists the power adapter specifications of your XPS 16 DA16260.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of XPS 16 DA16260.
Description		Values
Type		100 W AC small form factor
Power-adapter dimensions:
	Height	26.50 mm (1.04 in.)
	Width	60 mm (2.36 in.)
	Depth	122 mm (4.80 in.)
Input voltage		100 VAC–240 VAC
Input frequency		50 Hz–60 Hz
Input current (maximum)		1.70 A
Output current (continuous)		20 V/3 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)
Rated output voltage		20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-20°C to 70°C (-4°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your XPS 16 DA16260

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your XPS 16 DA16260.
Description	Value
Power that is required from a power adapter to achieve optimal performance	100 W
Power that charges the computer at a slower speed NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 75 W
Minimum power that is required from a power adapter to operate the computer and charge the battery NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	45 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer with a 70 Wh battery is connected to a 100 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your XPS 16 DA16260.

Table 1. Battery specifications
The following table provides the detailed battery specifications of XPS 16 DA16260.
Description		Values
Battery type		3-cell lithium-ion polymer, 70 Wh
Battery voltage		11.49 VDC
Battery weight (maximum)		0.252 kg (0.56 lb)
Battery dimensions:
	Height	5.14 mm (0.2 in.)
	Width	243.2 mm (9.57 in.)
	Depth	90.15 mm (3.55 in.)
Temperature range:
	Operating	Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0°C to 70°C (32°F to 158°F)
	Storage	-20°C to 60°C (-4°F to 140°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the Dell Power Manager application. For more information about Dell Power Manager, search Dell Support Site.		ExpressCharge Boost (for 100 W adapter): Charge from 0% to 35% in 20 minutes, 0% to 80% in one hour, 0% to 100% in two hours
Coin-cell battery		Not supported
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Power requirements (for computers shipped with integrated graphics)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 93 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Dimensions and weight

The following table lists the height, width, depth, and weight of your XPS 16 DA16260.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your XPS 16 DA16260.
Description		Values
Height:
	Front height	15.4 mm (0.60 in.) for computers shipped with FHD display 14.62 mm (0.58 in.) for computers shipped with OLED display
	Rear height	15.4 mm (0.60 in.) for computers shipped with FHD display 14.62 mm (0.58 in.) for computers shipped with OLED display
Width		352.58 mm (13.88 in.)
Depth		237.47 mm (9.35 in.)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		1.74 kg (3.85 lb) for computers shipped with FHD display 1.65 kg (3.65 lb) for computers shipped with OLED display

Operating and storage environment

This table lists the operating and storage specifications of your XPS 16 DA16260.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of XPS 16 DA16260.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Aesthetics and build

This section details the Color, Material, and Finish (CMF) specifications of your computer.

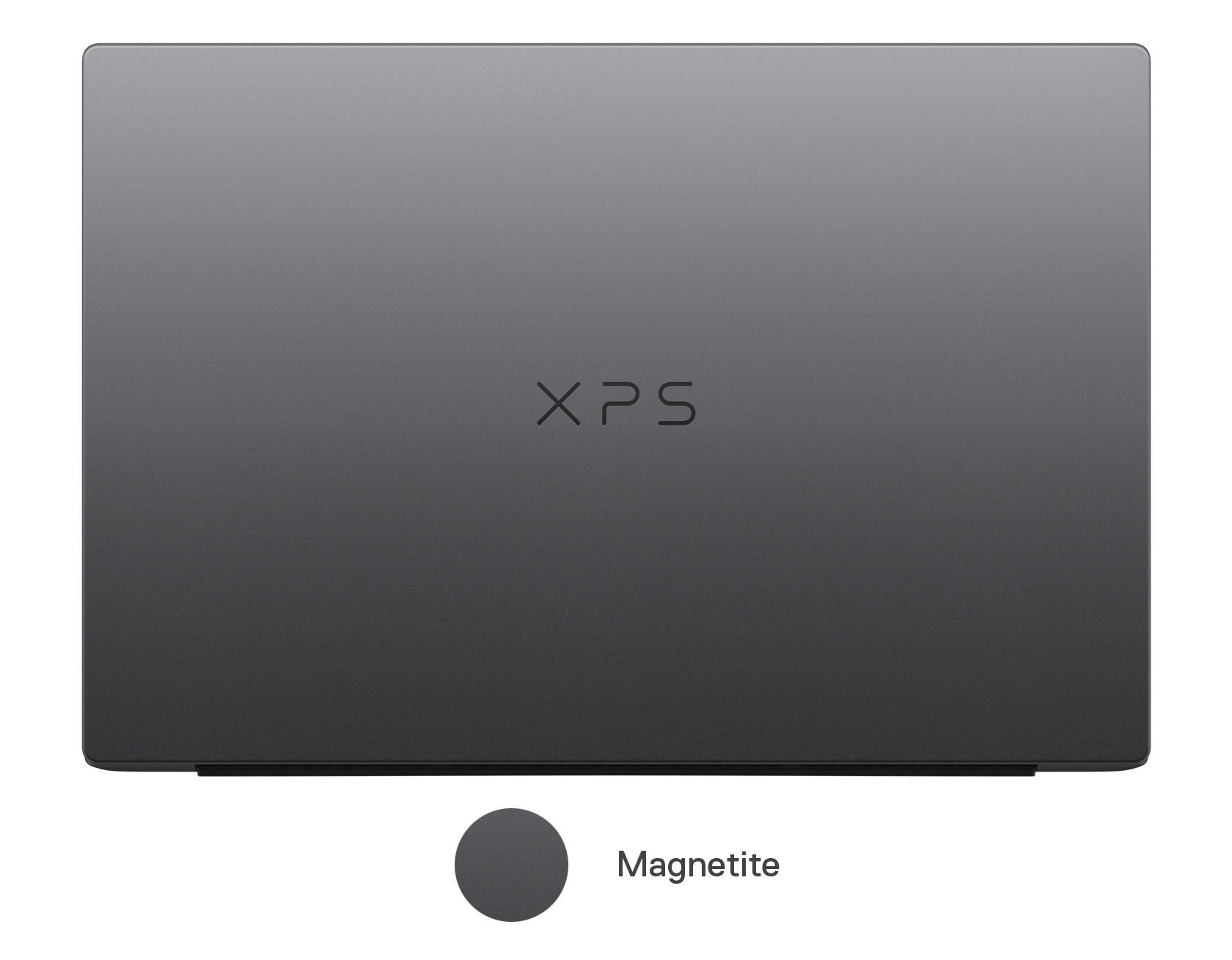

CMF of XPS 16 DA16260 — Figure 1. Color, Material, and Finish (CMF) of XPS 16 DA16260

Table 1. Color, Material, and Finish (CMF) specificationsThe following table lists the CMF specifications of your XPS 16 DA16260.
Component	CMF description
A Cover (Top)	Aluminum Anodized Magnetite, Beadblast 10+/-3 Gloss Units (GU)
B Cover (Hinge up)	SUS Dell Standard Black, Matte Matte 5.5+/-1.5 GU
C Cover (Palmrest)	Keyboard side: Plastic Painted Solid Magnetite, Matte Matte 4+/-1 GU Touchpad side: Glass Solid Magnetite, Matte 4+/-1 GU
D Cover (Bottom)	Aluminum Anodized Magnetite, Beadblast 10+/-3 GU

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell XPS 16 DA16260: технические характеристики и спецификации
