Dell XPS 13 DX13260: характеристики и спецификации

Processor

The following table lists the details of the processors that are supported on your XPS 13 DX13260.

Table 1. Processor The following table lists the details of the processors that are supported on your XPS 13 DX13260.
Description	Option one	Option two	Option three
Type	Intel Core 5 320	Intel Core Ultra 5 325	Intel Core Ultra 7 355
Wattage	15 W base power consumption 35 W at maximum turbo power	15 W base power consumption 35 W at maximum turbo power	15 W base power consumption 35 W at maximum turbo power
Total cores	6	8	8
Number of Performance-cores	2	4	4
Number of Efficient-cores	4 low-power efficiency cores	4 low-power efficiency cores	4 low-power efficiency cores
Total threads	6	8	8
Speed	Up to 4.60 GHz	Up to 4.50 GHz	Up to 4.70 GHz
Performance-core frequency
Base frequency	1.50 GHz	2.10 GHz	2.30 GHz
Maximum turbo frequency	4.60 GHz	4.50 GHz	4.70 GHz
Efficient-core frequency
Base frequency	1.40 GHz	1.60 GHz	1.70 GHz
Maximum turbo frequency	3.40 GHz	3.40 GHz	3.50 GHz
Cache	6 MB	12 MB	12 MB
Integrated graphics	Intel Graphics	Intel Graphics	Intel Graphics
Neural Processing Units (NPUs)	One NPU, supporting up to 16 TOPs	One NPU, supporting up to 47 TOPs	One NPU, supporting up to 49 TOPs
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Chipset

The following table lists the details of the chipset that is supported by your XPS 13 DX13260.

Table 1. Chipset The following table lists the details of the chipset that is supported by your XPS 13 DX13260.
Description	Values
Chipset	Integrated in the processor
Processor	Intel Core 5 320 Intel Core Ultra 5 325 Intel Core Ultra 7 355
DRAM bus width	64 bit (Computers shipped with Intel Core processor) 128 bit (Computers shipped with Intel Core Ultra processor)
Flash EPROM	Not applicable NOTE:Integrated Flash EPROM not present in CPU
PCIe bus	PCIe 4.0

Memory

The following table lists the memory specifications that are supported by your XPS 13 DX13260.

Table 1. Memory specificationsThe following table lists the memory specifications of your computer.
Description	Values
Memory slots	Single-channel on-board memory (Computers shipped with Intel Core processor) Dual-channel on-board memory (Computers shipped with Intel Core Ultra processor) NOTE:The memory is integrated on the system board and is not upgradeable.
Memory type	LPDDR5X
Memory speed	7467 MT/s
Maximum memory configuration	16 GB (Computers shipped with Intel Core processor) 64 GB (Computers shipped with Intel Core Ultra processor)
Minimum memory configuration	8 GB (Computers shipped with Intel Core processor) 16 GB (Computers shipped with Intel Core Ultra processor)
Memory size	For computers shipped with Intel Core processor: 8 GB 16 GB For computers shipped with Intel Core Ultra processor: 16 GB 32 GB 64 GB
Memory configurations supported	For computers shipped with Intel Core processor: 8 GB LPDDR5X at 7467 MT/s 16 GB LPDDR5X at 7467 MT/s For computers shipped with Intel Core Ultra processor: 16 GB LPDDR5X at 7467 MT/s 32 GB LPDDR5X at 7467 MT/s 64 GB LPDDR5X at 7467 MT/s

Storage

This section lists the storage options on your XPS 13 DX13260.

Your XPS 13 DX13260 supports one M.2 2230 solid-state drive.

Table 1. Storage specifications
The following table provides the different storage options available on XPS 13 DX13260.
Storage type	Interface type	Capacity
M.2 2230 solid-state drive	Gen 4 x4 PCIe NVMe	256 GB (Available only for computers shipped with Intel Core processor)
		512 GB
		1 TB (Available only for computers shipped with Intel Core Ultra processor)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 13 DX13260.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of XPS 13 DX13260.
Controller	Memory size	Processor
Intel Graphics	Shared system memory	Intel Core 5 320 Intel Core Ultra 5 325 Intel Core Ultra 7 355

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your XPS 13 DX13260.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of XPS 13 DX13260.
Description	Values
Model number	Intel Wi-Fi 7 (BE213) (Computers shipped with Intel Core processor) Intel Wi-Fi 7 (BE211) (Computers shipped with Intel Core Ultra processor)
Transfer rate	Up to 2800 Mbps (Computers shipped with Intel Core processor) Up to 5800 Mbps (Computers shipped with Intel Core Ultra processor)
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6/6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)
Encryption	802.1X SAE GCMP-256 AES-CCMP WPA2-Personal/WPA2-Enterprise WPA3-Personal/WPA3-Enterprise
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 6.0

Internal slots

The following table lists the internal slots of your XPS 13 DX13260.

Table 1. Internal slotsThe following table lists the internal slots on your XPS 13 DX13260.
Description	Values
M.2	One M.2 slot for M.2 2230 solid-state drive NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

External ports and slots

The following table lists the external ports and slots on your XPS 13 DX13260.

Table 1. External ports and slots
The following table lists ports and connectors available on XPS 13 DX13260.
Description	Values
USB ports	Two USB 3.2 Gen 2 ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core processor) Two Thunderbolt 4 USB-C ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core Ultra processor)
Audio port	Two USB 3.2 Gen 2 ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core processor) Two Thunderbolt 4 USB-C ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core Ultra processor)
Video port(s)	Two USB 3.2 Gen 2 ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core processor) Two Thunderbolt 4 USB-C ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core Ultra processor) NOTE: A USB-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Media-card reader	None
Power-adapter port	DC-IN through one of the two USB-C ports
Security-cable slot	Supported through USB-C ports

Display

The following table lists the display specifications of your XPS 13 DX13260.

Table 1. Display specifications
The following table provides the detailed display specifications of XPS 13 DX13260.
Description		Values
Display type		34cm (13.4"), Touch, Eyesafe, Low blue light
Touch options		Yes
Display-panel technology		White Light Emitting Diode (WLED)
Display-panel dimensions (active area):
Height		288 mm (11.34 in.)
Width		180 mm (7.09 in.)
Diagonal		339.60 mm (13.37 in.)
Display-panel native resolution		2560 x 1600
Luminance (typical)		500 nits
Megapixels		2.3
Color gamut		DCI-P3 100% Typical , 95% minimum
Pixels Per Inch (PPI)		225
Contrast ratio (minimum)		1600:1
Response time (maximum)		35 ms
Refresh rate		VRR 30 to 120Hz
Horizontal view angle (minimum)		+/- 88 degrees
Vertical view angle (minimum)		+/- 88 degrees
Pixel pitch		0.1125 mm
Power consumption (maximum)		4.17 W
Anti-glare vs glossy finish		Anti-glare

Dell low blue light display

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
Take an extended break for 20 minutes every two hours.

Keyboard

The following table lists the keyboard specifications of your XPS 13 DX13260.

Table 1. Keyboard specificationsThe following table lists the keyboard specifications of your XPS 13 DX13260.
The following table provides the detailed keyboard specifications of XPS 13 DX13260.
Description	Values
Keyboard type	Backlit keyboard with Copliot key NOTE: The top row of the keyboard can display standard Function buttons or media and display control buttons.
Keyboard layout	QWERTY
Number of keys	80 keys (Arabic, Canada Bilingual [MUI], Chinese Traditional, English International, English US, Hebrew, Korean) 81 keys (Belgian, Czech & Slovakian [MUI], English UK, French European, German, Italian, Nordic [MUI], Portuguese Iberian, Spanish Castilian, Spanish Latin America, Swiss European [MUI], Turkish) 82 keys (Portuguese Brazilian) 84 keys (Japanese)
Key pitch	Horizontal = 19.05 mm key pitch Vertical = 18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search Dell Support site. For more information, see Use keyboard shortcuts.

Touchpad

The following table lists the touchpad specifications of your XPS 13 DX13260.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of XPS 13 DX13260.
Description		Values
Touchpad resolution:		>300 DPI
Touchpad dimensions:
	Horizontal	118.5 mm (4.67 in.)
	Vertical	68.5 mm (2.70 in.)

Camera

The following table lists the camera specifications of your XPS 13 DX13260.

Table 1. Camera specificationsThe following table provides the detailed camera specifications of XPS 13 DX13260.
Description			Values
Number of cameras			Two
Camera type			FHD MIPI RGB and IR camera
Camera location			Front (Top of bezel)
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			2 megapixels
Video			1920 x 1080 at 30 fps
Infrared camera resolution:
Video			360 x 360 at 15 fps
Diagonal viewing angle:
Camera			93.9 degrees
Infrared camera			82.7 degrees

Audio

The following table lists the audio specifications of your XPS 13 DX13260.

Table 1. Audio specificationsThe following table provides the detailed audio specifications of XPS 13 DX13260.
Description		Values
Audio controller		Cirrus Logic CS42L43
Stereo conversion		Waves MaxxAudio 13
Internal audio interface		SoundWire interface
External audio interface		Two USB 3.2 Gen 2 ports with support for DisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core processor) Two Thunderbolt 4 USB-C ports with support forDisplayPort 2.1 and Power Delivery 3.1 (Computers shipped with Intel Core Ultra processor)
Number of speakers		Woofers (two channels) Tweeters (two channels)
Internal-speaker amplifier		Cirrus Logic SmartAmp
External volume controls		Media control keys on function-key row
Speaker output:
Average		10 W total: 3 W woofers x 2 channels 2 W tweeter x 2 channels
Peak		10 W total: 3 W woofers x 2 channels 2 W tweeter x 2 channels
Microphone		Dual digital-array microphones

Operating system

Your XPS 13 DX13260 supports the following operating systems:

Windows 11 Home
Windows 11 Professional

Power adapter

The following table lists the power adapter specifications of your XPS 13 DX13260.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of XPS 13 DX13260.
Description	Option one	Option two
Type	65 W AC adapter, USB Type-C, AC Cable	65 W AC adapter, USB Type-C, 2-pin
Power-adapter dimensions:
Height	31 mm (1.22 in.)	31 mm (1.22 in.)
Width	41 mm (1.61 in.)	41.5 mm (1.63 in.)
Depth	63 mm (2.48 in.)	48.5 mm (1.91 in.)
Input voltage	100 VAC–240 VAC	100 VAC - 240 VAC
Input frequency	50 Hz–60 Hz	50 Hz–60 Hz
Input current (maximum)	1.70 A	1.70 A
Output current (continuous)	Operating: 20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9 V/ 3 A (Continuous) 5 V/3 A (Continuous)	Operating: 20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9 V/ 3 A (Continuous) 5 V/3 A (Continuous)
Rated output voltage	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your XPS 13 DX13260.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your XPS 13 DX13260.
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 55 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer with a 52 Wh battery is connected to a 65 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your XPS 13 DX13260.

Table 1. Battery specifications
The following table provides the detailed battery specifications of XPS 13 DX13260.
Description		Values
Battery type		3-cell lithium-ion polymer, 52 Wh, ExpressCharge
Battery voltage		11.70 VDC
Battery weight (maximum)		0.20 kg (0.44 lb)
Battery dimensions:
Height		4.50 mm (0.18 in.)
Width		236 mm (9.29 in.)
Depth		88 mm (3.46 in.)
Temperature range:
Operating		Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 60°C (32°F to 149°F)
Storage		-20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the settings on the Dell Optimizer application. For more information about Dell Optimizer application, search Dell Support Site.		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Coin-cell battery		Not supported
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Power requirements

NOTE: The information in this section is applicable to the European Union (EU) countries.

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 65 Watts in order to achieve the maximum charging speed.

Dimensions and weight

The following table lists the height, width, depth, and weight of your XPS 13 DX13260.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your XPS 13 DX13260.
Description		Values
Front height		12.75 mm (0.50 in.)
Rear height		12.75 mm (0.50 in.)
Width		296.90 mm (11.69 in.)
Depth		200.70 mm (7.90 in.)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		1 kg (2.2 lb)

Operating and storage environment

This table lists the operating and storage specifications of your XPS 13 DX13260.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of XPS 13 DX13260.
Description	Operating	Storage
Temperature range	0°C to 35°C (32 °F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	5% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	140 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10,000 ft)	-15.2 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Aesthetics and build

This section details the Color, Material, and Finish (CMF) specifications of your computer.

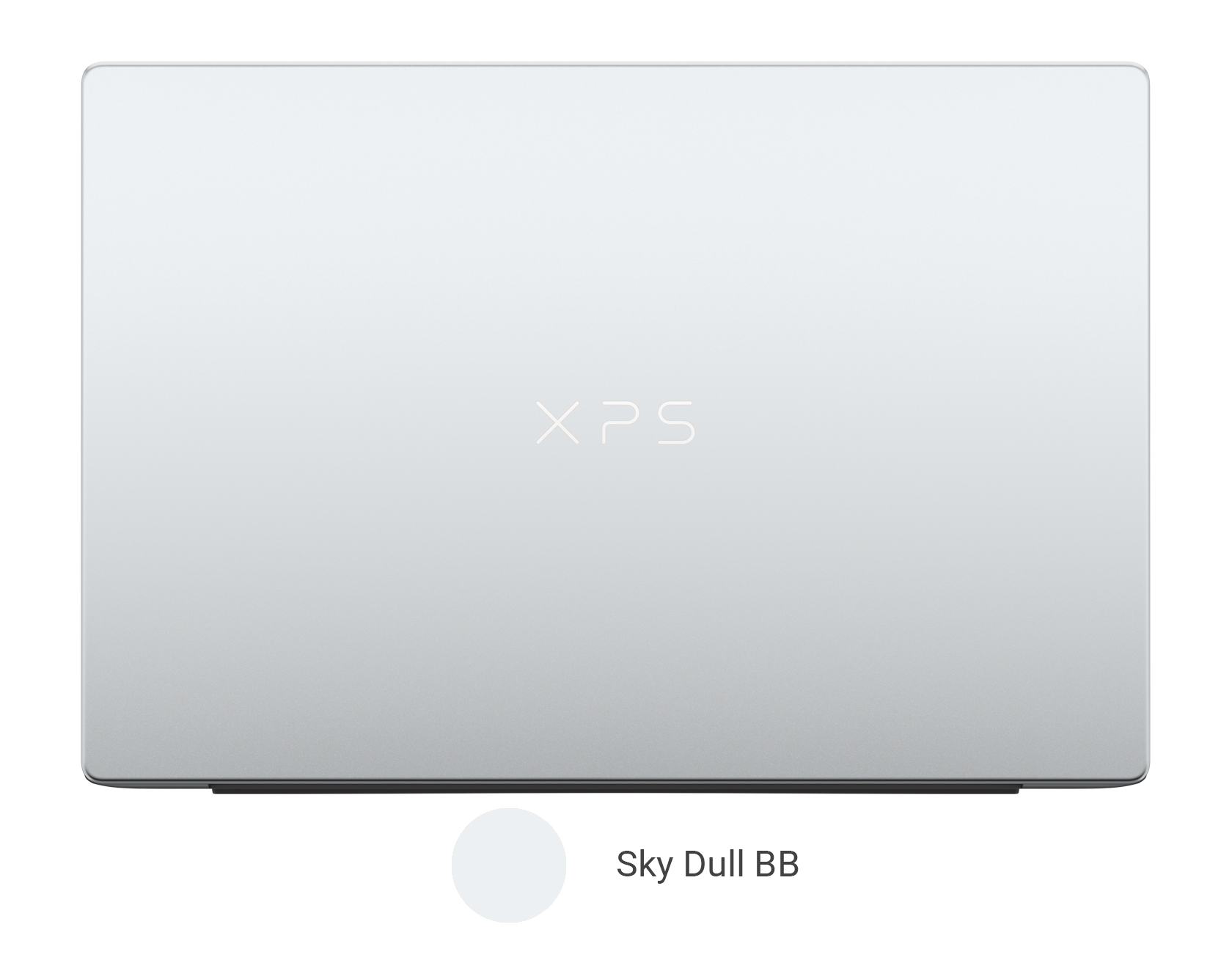

Figure 1. CMF of XPS 13 DX13260 (Sky Dull BB)

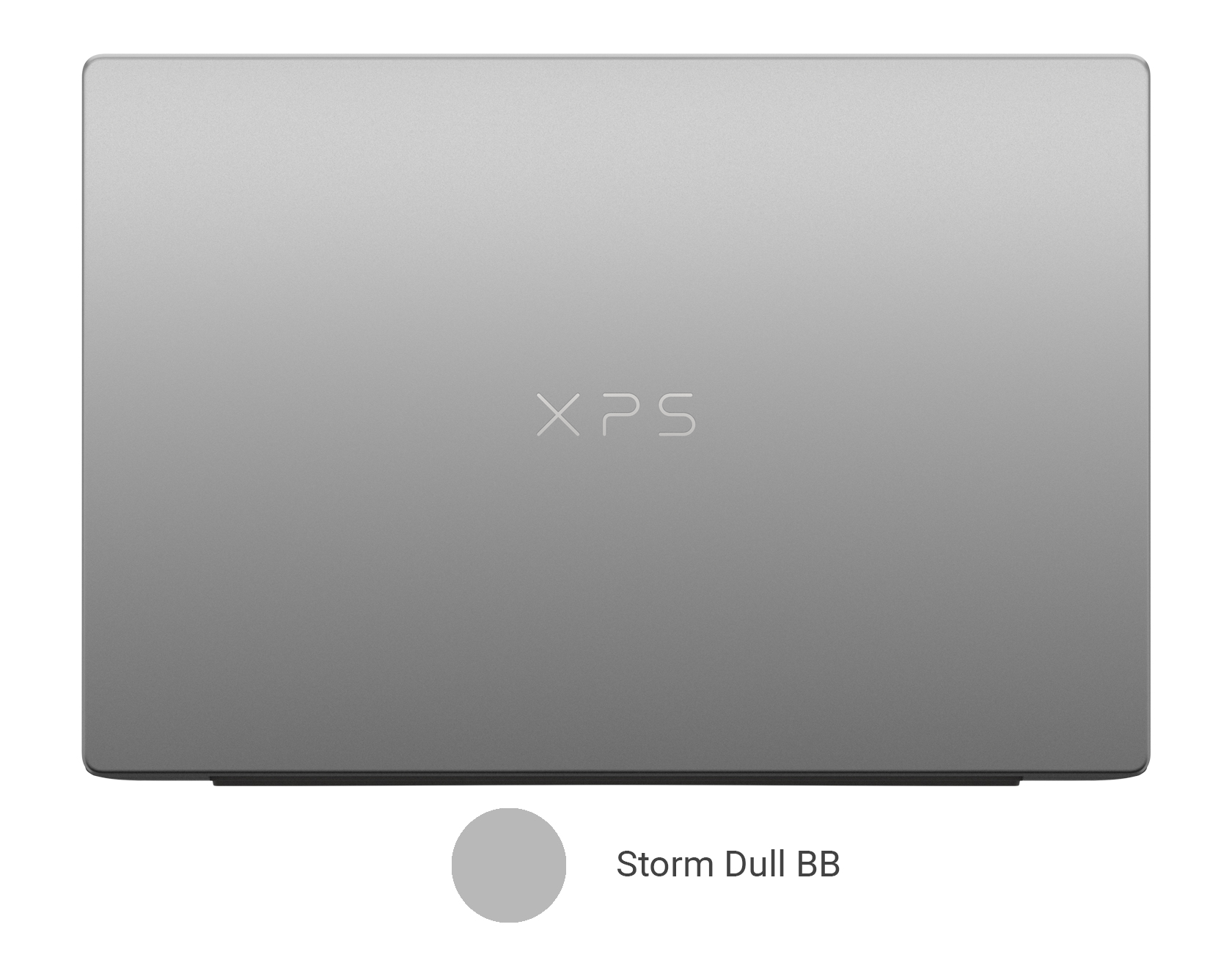

Figure 2. CMF of XPS 13 DX13260 (Storm Dull BB)

Table 1. CMF specificationsThe following table lists the CMF specifications of your XPS 13 DX13260.
Component	Option one	Option two
A Cover (Top)	Aluminum Sky Dull BB 10+/-3 Gloss Units (GU)	Aluminum Storm Dull BB 10+/-3 Gloss Units (GU)
B Cover (Display bezel)	SUS Dell Standard Black, Matte Matte 5.5+/-1.5 GU	SUS Dell Standard Black, Matte Matte 5.5+/-1.5 GU
C Cover (Palmrest)	Aluminium Sky Dull BB 10+/-3 Gloss Units (GU)	Aluminum Storm Dull BB 10+/-3 Gloss Units (GU)
D Cover (Bottom)	Aluminum Sky Dull BB 10+/-3 GU	Aluminum Storm Dull BB 10+/-3 Gloss Units (GU)

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell XPS 13 DX13260: технические характеристики и спецификации
