Notes, cautions, and warnings

NOTE: : A NOTE indicates important information that helps you make better use of your product.

CAUTION: : A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: : A WARNING indicates a potential for property damage, personal injury, or death.

Set up your XPS 13 9370

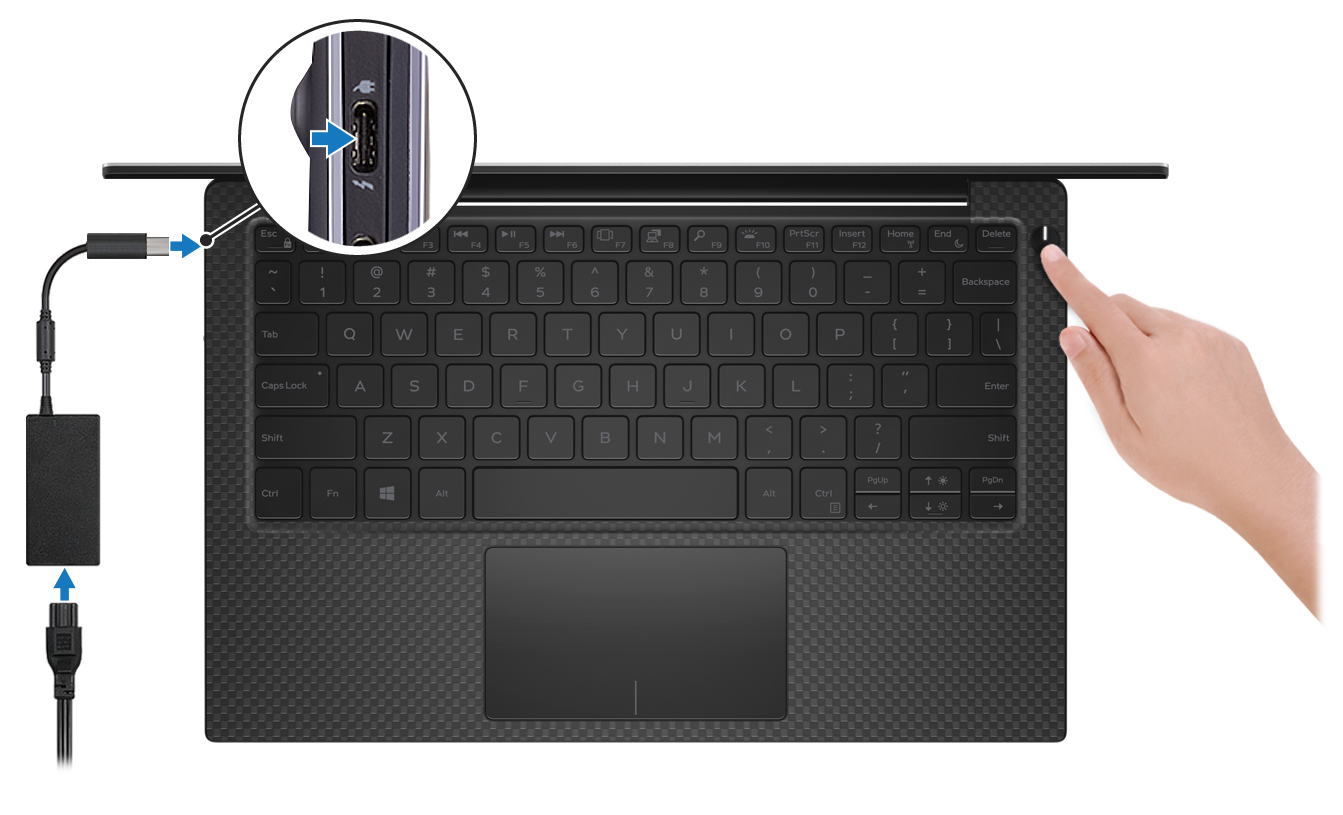

Connect the power adapter and press the power button.
NOTE: : The Dell Adapter USB-C to USB-A 3.0 is shipped with this computer. Use this adapter to connect legacy USB 3.0 accessories to USB (Type-C) ports on your computer.
NOTE: : To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.
Finish operating system setup.
For Ubuntu:
Follow the instructions on the screen to finish setup.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
- Connect to a network for Windows updates.
  NOTE: : If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
- If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
- On the Support and Protection screen, enter your contact details.

Locate and use Dell apps from the Windows Start menu—Recommended

Table 1. Locate Dell appsProvides the list of Dell apps on XPS 13 9370.
Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist Pro-actively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: : In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.

Create recovery drive for Windows.
NOTE: : It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
For more information, see Create a USB recovery drive for Windows.

Create a USB recovery drive for Windows

Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive.

NOTE: : This process may take up to an hour to complete.

NOTE: : The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for latest instructions.

Connect the USB flash drive to your computer.
In Windows search, type Recovery.
In the search results, click Create a recovery drive.
The User Account Control window is displayed.
Click Yes to continue.
The Recovery Drive window is displayed.
Select Back up system files to the recovery drive and click Next.
Select the USB flash drive and click Next.
A message appears, indicating that all data in the USB flash drive will be deleted.
Click Create.
Click Finish.
For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals.

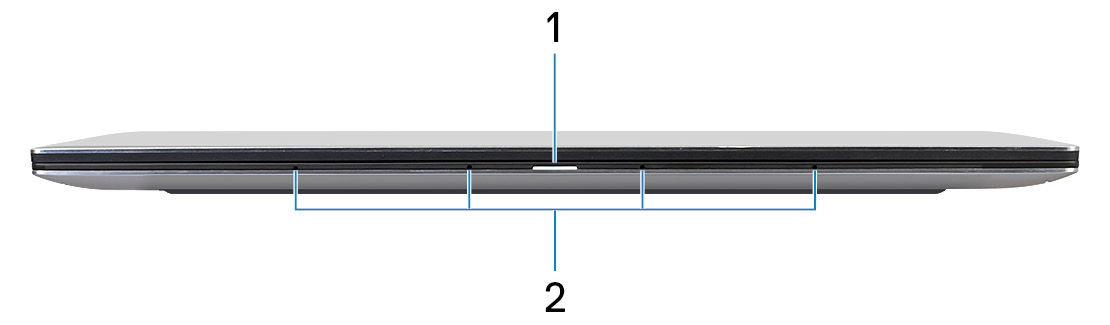

Front

Power and battery-status light
Indicates the power state and battery state of the computer.
Solid white—Power adapter is connected and the battery is charging.
Solid amber—Battery charge is low or critical.
Off—Battery is fully charged.
NOTE: : On certain computer models, the power and battery-status light is also used for system diagnostics. For more information, see the Troubleshooting section in your computer’s Service Manual.
Microphones (4)
Provide digital sound input for audio recording, voice calls, and so on.

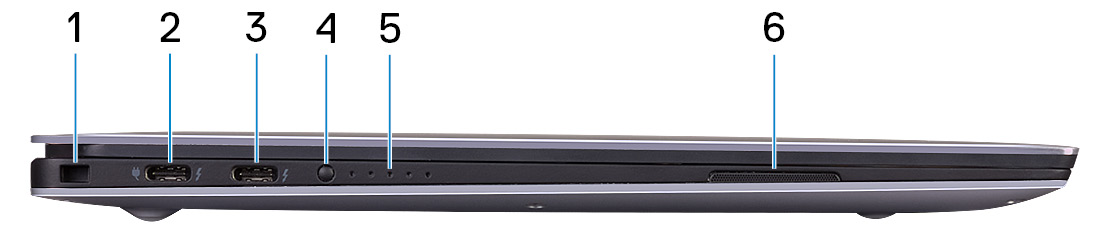

Left

Security-cable slot (for Noble locks)
Connect a security cable to prevent unauthorized movement of your computer.
Thunderbolt 3 (USB Type-C) port with Power Delivery (Primary)
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE: : A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Thunderbolt 3 (USB Type-C) port with Power Delivery
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE: : A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Battery-charge status button
Press to check the charge remaining in the battery.
Battery-charge status lights (5)
Turns on when the battery-charge status button is pressed. Each light indicates approximately 20% charge.
Left speaker
Provides audio output.

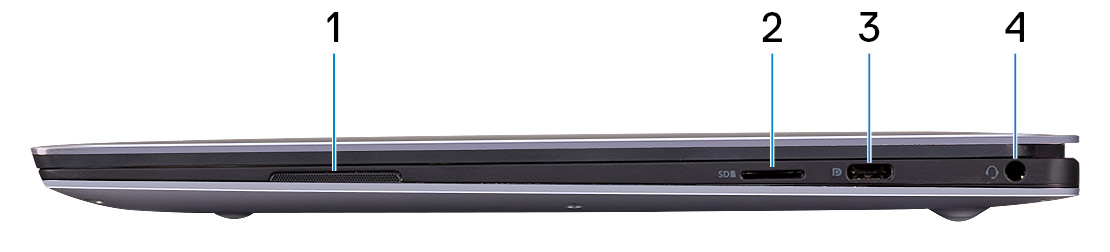

Right

Right speaker
Provides audio output.
microSD-card slot
Reads from and writes to the microSD-card.
USB 3.1 Gen 1 (Type-C) port with Power Delivery/DisplayPort
Connect peripherals such as external storage devices, printers, and external displays.
Supports Power Delivery that enables two-way power supply between devices. Provides up to 7.5 W power output that enables faster charging.
NOTE: : The Dell Adapter USB-C to USB-A 3.0 is shipped with this computer. Use this adapter to connect legacy USB 3.0 accessories to USB (Type-C) ports on your computer.
NOTE: : A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Headset port
Connect headphones or a headset (headphone and microphone combo).

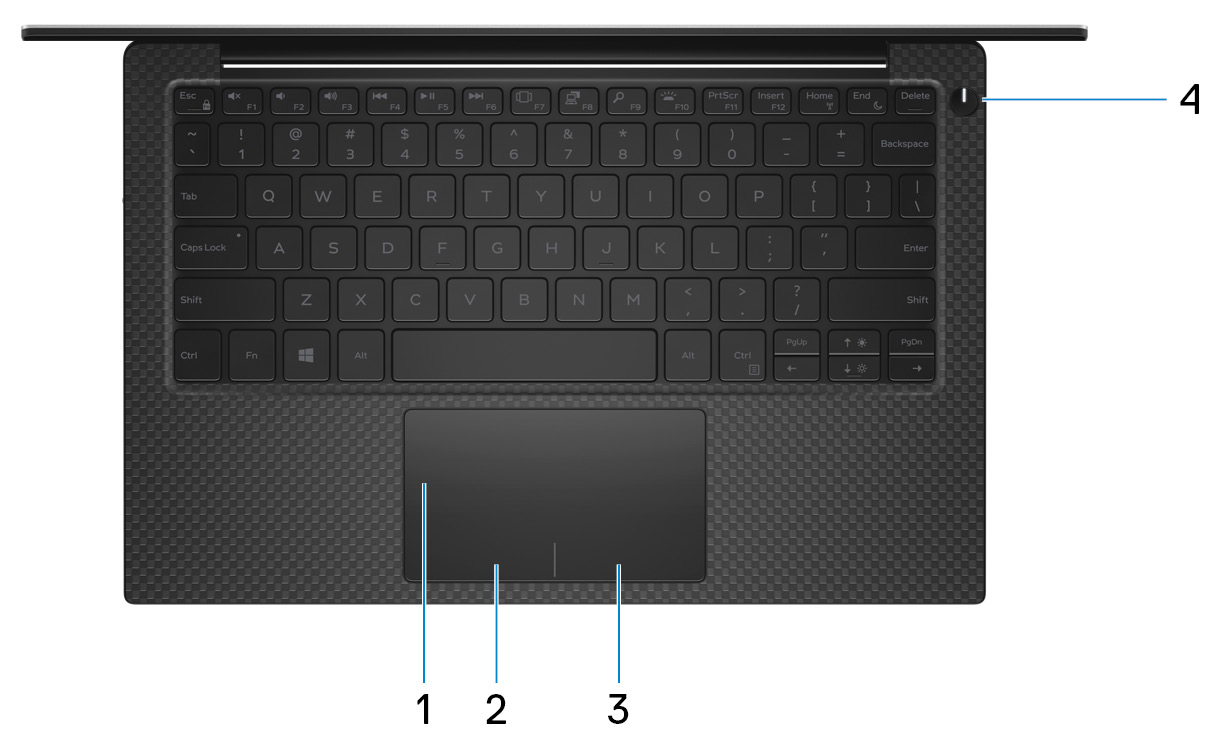

Base

Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
Left-click area
Press to left-click.
Right-click area
Press to right-click.
Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: : You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
NOTE: : The power-status light on the power button is available only on computers without the fingerprint reader. Computers shipped with the fingerprint reader integrated on the power button will not have the power-status light on the power button.

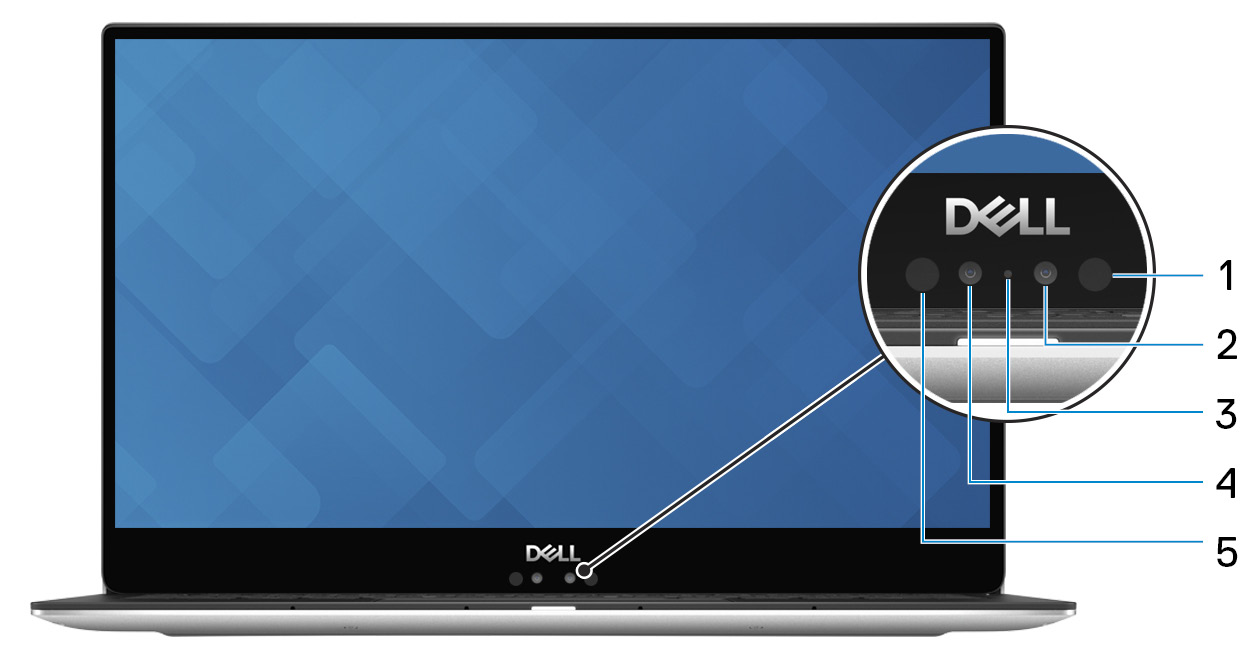

Infrared emitter
Emits infrared light, which enables the infrared camera to sense and track motion.
Infrared camera
Enhances security when paired with Windows Hello face authentication.
Camera-status light
Turns on when the camera is in use.
Camera
Enables you to video chat, capture photos, and record videos.
Infrared emitter
Emits infrared light, which enables the infrared camera to sense and track motion.

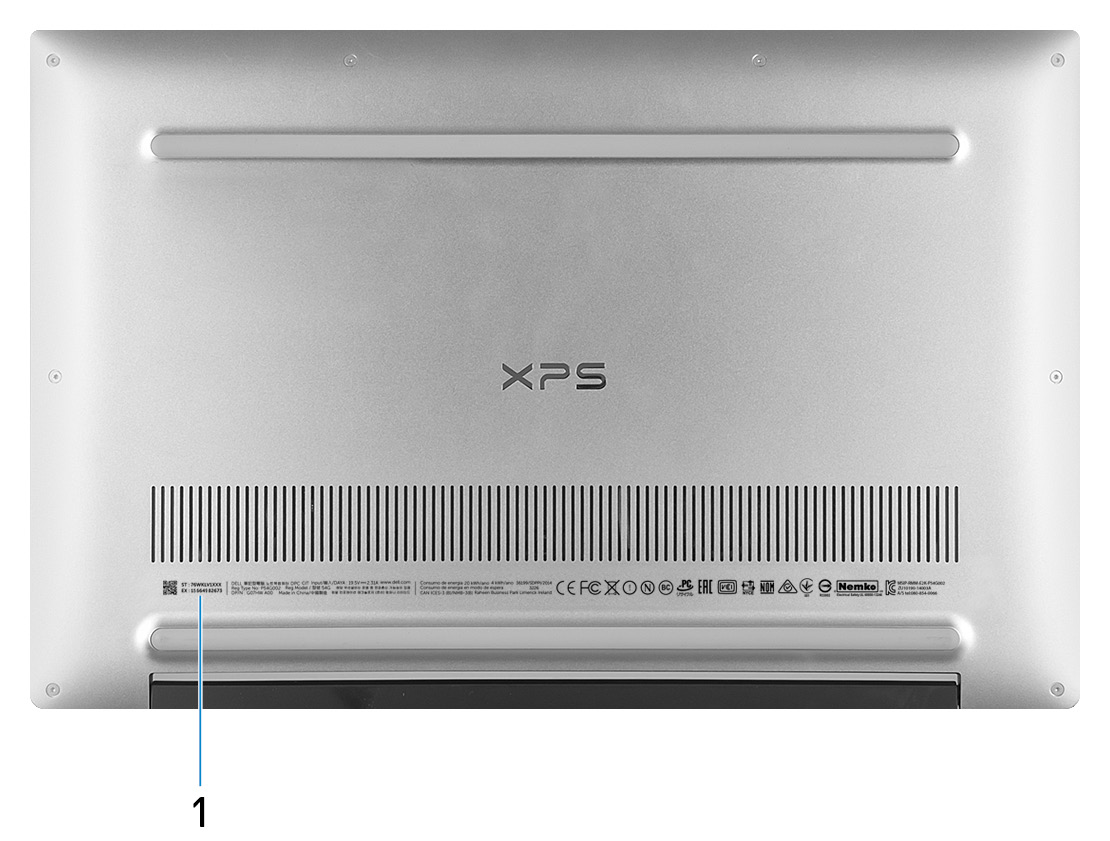

Bottom

Service Tag
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

System information

Table 1. System information The following table provides the detailed system information specifications of the XPS 13 9370.
Processor	8^th Generation Intel Core i5/i7
Chipset	Integrated in the processor

Dimensions and weight

Table 1. Dimensions and weight The following table provides the detailed dimension and weight specifications of the XPS 13 9370.
Height	7.80 mm to 11.63 mm (0.30 in to 0.46 in)
Width	301.76 mm (11.88 in)
Depth	199.24 mm (7.84 in)
Weight	1.27 kg (2.8 lb)
	NOTE: : The weight of your laptop varies depending on the configuration ordered and the manufacturing variability.

Operating system

Table 1. Operating system The following table provides the detailed operating system specifications of the XPS 13 9370.
Operating systems supported	Windows 10 Home 64-bit Windows 10 Professional 64-bit Ubuntu

Memory

Table 1. Memory specifications The following table provides the detailed memory specifications of the XPS 13 9370.
Slots	N/A NOTE: : The memory is integrated on the system board from the factory and it cannot be upgraded later.
Type	Dual-channel LPDDR3
Total memory supported	4 GB, 8 GB and 16 GB
Speed supported	1866 MHz and 2133 MHz
Configurations supported:
	4 GB	1866 MHz
	8 GB	1866 MHz
	16 GB	2133 MHz

Ports and connectors

Table 1. Ports and connectors The following table provides the detailed external ports and connector specifications of the XPS 13 9370.
External:
USB/Video	Two Thunderbolt 3 (USB Type-C) ports with Power Delivery One USB 3.1 Gen 1 (USB Type-C) port with Power Delivery/DisplayPort
Audio	One headset (headphone and microphone combo) port

Table 2. Ports and connectors The following table provides the detailed internal ports and connector specifications of the XPS 13 9370.
Internal:
M.2 card	One M.2 slot for Solid-State Drive (SSD)

Communications

Table 1. Supported communications The following table provides the detailed communications specifications of the XPS 13 9370.
Wireless	Wi-Fi 802.11a/b/g/n/ac Bluetooth 4.2 Miracast NOTE: : Windows 10 currently supports up to Bluetooth 4.1.

Wireless

Table 1. Wireless The following table provides the detailed wireless specifications of the XPS 13 9370.
Transfer rate (maximum)	867 Mbps
Frequency bands	2.4 GHz/5 GHz
Encryption	64-bit/128-bit WEP

Audio

Table 1. Audio specifications The following table provides the detailed audio specifications of the XPS 13 9370.
Controller	Realtek ALC3271-CG with Waves MaxxAudio Pro
Speakers	Two
Speaker output	Average: 2 W Peak: 2.5 W
Microphone	Digital-array microphones

Storage

Table 1. Storage specifications The following table provides the detailed storage specifications of the XPS 13 9370.
Type	Interface	Capacity
One M.2 2280 Solid-State Drive (SSD)	SATA AHCI, Up to 6 Gbps PCIe Gen 3x4 NVME, Up to 32 Gbps	Up to 128 GB Up to 1 TB
NOTE: : RAID SATA support in the BIOS Settings menu is only available on computers supporting Windows 10. NOTE: : AHCI SATA support in the BIOS settings menu is only available on computers supporting Ubuntu.

Media-card reader

Table 1. Media-card reader specifications The following table provides the detailed media-card reader specifications of the XPS 13 9370.
Type	One microSD-card slot
Cards supported	mSD mSDHC mSDXC

Keyboard

Table 1. Keyboard specifications The following table provides the detailed keyboard specifications of the XPS 13 9370.
Type	Backlit keyboard
Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: : Press Fn+Esc to switch the primary behavior of the function keys (F1-F12) between two modes - multimedia key mode and function key mode. Keyboard shortcuts

Camera

Table 1. Camera specifications The following table provides the detailed camera specifications of the XPS 13 9370.
Resolution
	Camera	Still image: 0.92 megapixels Video: 1280 x 720 at 30 fps
	Infrared camera	340 x 340 Still image: 0.30 megapixels Video: 340 x 340 at 60 fps
Diagonal viewing angle
	Camera	86.7 degrees
	Infrared camera	70 degrees

Touchpad

Table 1. Touchpad The following table provides the detailed touchpad specifications of the XPS 13 9370.
Resolution	Horizontal: 305 Vertical: 305
Dimensions	Width: 105 mm (4.13 in) Height: 60 mm (2.36 in)

Touchpad gestures

For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Fingerprint reader

Table 1. Fingerprint reader specifications The following table provides the detailed fingerprint reader specifications of the XPS 13 9370.
Sensor technology	Capacitive
Sensor resolution	363 dpi
Sensor area	8 mm x 8 mm
Sensor pixel size	114 x114 pixels

Power adapter

Table 1. Power adapter specifications The following table provides the detailed power adapter specifications of the XPS 13 9370.
Type	45 W USB Type-C
Dimensions (connector)	8.25 mm x 2.4 mm
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.30 A
Output current (continuous)	20 VDC/2.25 A 15 VDC/3 A 9 VDC/3 A 5 VDC/3 A
Rated output voltage	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range (operating)	0°C to 40°C (32°F to 104°F)
Temperature range (storage)	–40°C to 70°C (–40°F to 158°F)

Battery

Table 1. Battery specifications The following table provides the detailed battery specifications of the XPS 13 9370.
Type	52 WHr "smart" lithium-ion
Dimension:
	Width	257.60 mm (10.14 in)
	Depth	98.60 mm (3.88 in)
	Height	4.30 mm (0.17 in)
Weight (maximum)	0.22 kg (0.49 lb)
Voltage	7.60 VDC
Charging time when the computer is off (approximate)	4 hours
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Life span (approximate)	300 discharge/charge cycles
Temperature range: Operating	0°C to 35°C (32°F to 95°F)
Temperature range: Storage	–40°C to 65°C (–40°F to 149°F)
Coin-cell battery	ML1220 NOTE: : It is recommended that you use a Dell coin-cell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Display

Table 1. Display specifications The following table provides the detailed display specifications of the XPS 13 9370.
Type	13.3-inch FHD touchscreen/13.3-inch FHD non-touchscreen	13.3-inch UHD touchscreen
Resolution (maximum)	1920 x 1080	3840 x 2160
Viewing angle (Left/Right/Down/Up)	85/85/85/85 degrees	85/85/85/85 degrees
Pixel pitch	0.0765 mm	0.0765 mm
Refresh rate	60 HZ	60 HZ
Operating angle	0 degrees (closed) to 135 degrees	0 degrees (closed) to 135 degrees
Controls	Brightness can be controlled using shortcut keys	Brightness can be controlled using shortcut keys
Dimension:
	Height (excluding bezel)	165.24 mm (6.51 in)	165.24 mm (6.51 in)
	Width (excluding bezel)	293.76 mm (11.57 in)	293.76 mm (11.57 in)
	Diagonal (excluding bezel)	337.82 mm (13.30 in)	337.82 mm (13.30 in)

Video

Table 1. Video specifications The following table provides the detailed video specifications of the XPS 13 9370.
Type	Integrated
Controller	Intel UHD Graphics 620
Memory	Shared system memory

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment The following table provides the detailed operating and storage environment conditions of the XPS 13 9370.
	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	–40°C to 65°C (–40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G^†	160 G^‡
Altitude (maximum)	–15.2 m to 3048 m (–50 ft to 10,000 ft)	–15.2 m to 10,668 m (–50 ft to 35,000 ft)

^{* Measured using a random vibration spectrum
that simulates user environment.}

^{† Measured
using a 2 ms half-sine pulse when the hard drive is in use.}

^{‡ Measured using a 2 ms half-sine pulse when
the hard-drive head is in parked position.}

Keyboard shortcuts

NOTE: : Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Table 1. List of keyboard shortcuts
The following table lists the keyboard shortcuts and their descriptions.
Keys	Description
	Mute audio
	Decrease volume
	Increase volume
	Play previous track/chapter
	Play/Pause
	Play next track/chapter
	Launch Task View
	Switch to external display
	Search
	Toggle keyboard backlight
	Printscreen
	Insert
	Turn off/on wireless
	Sleep
	Increase brightness
	Decrease brightness
	Open application menu
	Toggle Fn-key lock

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 1. Self-help resourcesProvides help information on Dell products and services.
Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concerns.	Go to www.dell.com/support. Type the subject or keyword in the Search box. Click Search to retrieve the related articles.
Learn and know the following information about your product: Product specifications Operating system Setting up and using your product Data backup Troubleshooting and diagnostics Factory and system restore BIOS information	See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: Select Detect Product. Locate your product through the drop-down menu under View Products. Enter the Service Tag number or Product ID in the search bar.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: : Availability varies by country and product, and some services may not be available in your country.

NOTE: : If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell XPS 13 9370: технические характеристики и спецификации
