Dell EMC PowerEdge XE2420: технические характеристики и спецификации

Chassis dimensions

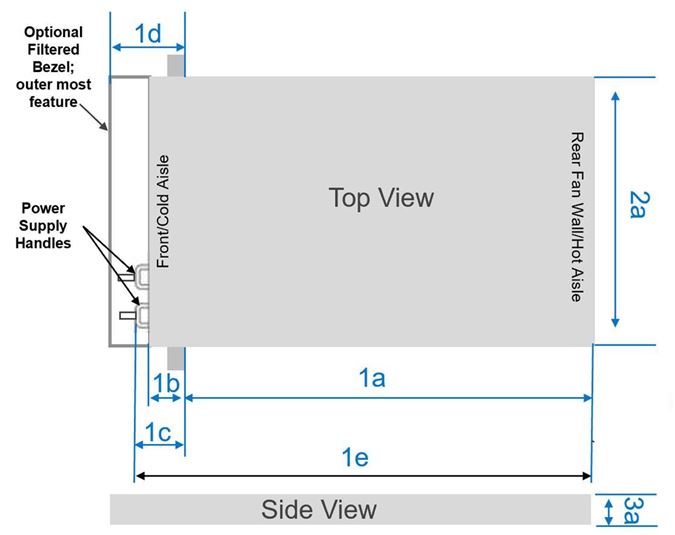

Figure 1. Chassis dimensions

The image shows system dimensions.

Table 1. PowerEdgeXE2420 chassis dimensionsThis table provides the dimensions of the PowerEdgeXE2420system:
System configurations 1a 1b 1c 1d 1e 2a 3a
2 x 2.5-inches or 4 x 2.5-inches 410.5 mm

(16.16-inch)

73.45 mm

(2.89-inch)

85.6 mm

(3.37-inch)

152.15 mm

5.99-inch

496.1 mm

(19.53-inch)

444 mm

(17.48-inch)

86.92 mm

(3.42-inch)

System weight

Table 1. PowerEdge XE2420 system weightsystem weight of PowerEdge XE2420 is as mentioned in the table below:.
System configuration Maximum weight (with all drives)
2 x 2.5-inch configuration 17.36 kg (38.19 lb)
4 x 2.5-inch configuration 16.65 kg (36.63 lb)
6 x EDSFF E1.L configuration 18.93 kg (41.65 lb)

Processor specifications

Table 1. PowerEdge XE2420 processor specificationsThis table provides processor specifications for the PowerEdge XE2420 system:
Supported processor Number of processors supported
Intel® Xeon® Scalable processors with up to 24 cores per processor Two

PSU specifications

Table 1. PowerEdge XE2420 PSU specificationsThe table lists the power supply specifications
PSU Class Heat dissipation (maximum) Frequency Voltage Current
1100 W DC N/A 4416 BTU/hr N/A -(48 V to 60 V DC),autoranging 32 A
2000 W AC Platinum 7500 BTU/hr 50/60 Hz 100-240 V AC, autoranging 12 A- 10 A
NOTE: This system is also designed to connect to the IT power systems with a phase-to-phase voltage not exceeding 230 V.
NOTE: When selecting or upgrading the system configuration, to ensure optimum power utilization, verify the system power consumption with the Dell Energy Smart Solution Advisor available at Dell.com/ESSA.

Cooling fans specifications

The PowerEdge XE2420 system supports up to six dual rotor fans.

System battery specifications

The PowerEdge XE2420 system supports CR 2032 3.0-V lithium coin cell system battery.

Expansion card riser specifications

The PowerEdge XE2420 system supports up to two PCI express (PCIe) expansion cards:
Table 1. Expansion card slots supported on the system boardThis table provides information about the expansion card slots supported on the PowerEdge XE2420 system
Configurations PCIe slot Riser PCIe slot height PCIe slot length Slot width
1A Cabled riser Slot 1 Riser Full-height Half-length or Full-length Double-wide x16 (Gen 3) or 2 Single-wide x 8(Gen 3)
2C Cabled riser Slot 1 Riser(PERC) Full-height Half-length Single-wide x 8 (Gen 3)
3A Cabled riser Slot 1 Riser Full-height Half-length or Full-length Double-wide x16 (Gen 3) or 2 Single-wide x 8(Gen 3)
All Slot 4 Slot 4 Riser Full-height Half-length or Full-height Double-wide x16 (Gen 3) or 2 Single-wide x 8(Gen 3)

Memory specifications

The PowerEdge XE2420 system supports the following memory specifications for optimized operation.
Table 1. Memory specificationsThe table below shows the memory specifications for the PowerEdge XE2420 system :
DIMM type DIMM rank DIMM capacity Single processor Dual processor
Minimum RAM Maximum RAM Minimum RAM Maximum RAM
RDIMM Single rank 8 GB 8 GB 64 GB 16 GB 128 GB
Dual rank 16 GB 16 GB 128 GB 32 GB 256 GB
32 GB 32 GB 256 GB 64 GB 512 GB
64 GB 64 GB 512 GB 128 GB 1 TB
LRDIMM Quad rank 64 GB 64 GB 512 GB 128 GB 1 TB
Octa rank 128 GB 128 GB 1 TB 256 GB 1792 GB
Table 2. Memory module socketsThe table below shows the memory module sockets for the PowerEdge XE2420 system:
Memory module sockets Speed
Sixteen 288-pin 2933 MT/s, 2666 MT/s

Storage controller specifications

The PowerEdge XE2420 system supports the following controller cards:
Table 1. PowerEdge XE2420 system controller cardsThis table provides the controller cards supported by PowerEdge XE2420 system:
Internal controllers External controllers
  • PERC H740P
  • PERC H730P+
  • PERC H330+
  • S140
  • HBA330
  • Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs

External controller is not supported.

Drives

The PowerEdge XE2420 system supports the following drive configurations:
Table 1. Supported drivesThe following table shows the PowerEdge XE2420 system supports the following drive configurations:
Configuration Number of drives Drive types
1A up to 2 x 2.5-inch SATA/NVME
2C up to 4 x 2.5-inch SATA/NVME/SAS
3A up to 6 x SSDs Enterprise and Data Center SSD Form Factor (EDSFF)
NOTE: In 2C configuration, hard drive slots 2 and 3 do not support NVMe drives if only one processor is installed.
NOTE: For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Expres> Browse all Products > Data Center Infrastructure >  Storage Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Documentation > Manuals and Documentss Flash NVMe PCIe SSD User's Guide at https://www.dell.com/support.

USB ports specifications

Table 1. PowerEdge XE2420 system USB specificationsThe following table shows the USB specifications for the PowerEdge system.
Front Rear Internal
USB port type No. of ports USB port type No. of ports USB port type No. of ports
USB 3.0-compliant port Two N/A N/A Internal USB 3.0-compliant port One
Micro USB 2.0-compliant port for iDRAC Direct One
NOTE: The micro USB 2.0 compliant port can only be used as an iDRAC Direct or a management port.

NIC ports specifications

The PowerEdge XE2420 system supports up to two 1 Gb LAN on motherboard with 10/100/1000 Mbps Network Interface Controller (NIC) ports that are located on the front panel. The system also supports LAN on Motherboard (LOM) on an optional riser card.

Serial connector specifications

The PowerEdge XE2420 system supports one serial connector on the front panel, which is a 9-pin connector, Data Terminal Equipment (DTE), 16550-compliant.

VGA ports specifications

The PowerEdge XE2420 system supports one 15-pin VGA ports on the front panel.

IDSDM

The PowerEdge XE2420 system supports Internal Dual SD module (IDSDM) with the below storage capacity:
  • 16 GB
  • 64 GB
NOTE: One IDSDM card slot is dedicated for redundancy.
NOTE: Use Dell EMC branded microSD cards that are associated with the IDSDM configured systems.

Video specifications

The PowerEdge XE2420 system supports integrated Matrox G200eR2 graphics controller with 16 MB of video frame buffer.
Table 1. Supported front video resolution optionsThis table describes the supported front video resolution options.
Resolution Refresh rate (Hz)
1600 x 900 (HD+) 60
1366 x 768 (HD) 60
1680 x 1050 (WSXGA+) 60
1280 x 1024 (SXGA) 60
1440 x 900 (WXGA+) 60
1920 x 1080 (FHD) 60
1280 x 800 (WXGA) 60

Environmental specifications

NOTE: For additional information about environmental certifications, see the Product Environmental Datasheet located with the Manuals and Documents on https://www.dell.com/support.

Operational climatic range category A2

Table 1. Operational climatic range category A2This table describes the Operational climatic range category A2.
Allowable continuous operations
Temperature ranges for altitude <900 meters (<2,953 ft. 10°C–35°C (50°F–95°F) with no direct sunlight on the platform
Humidity percent ranges (Noncondensing always) 8% RH with -12°C minimum dew hover over 80% RH with 21°C (69.8°F) maximum dew point
Operational altitude derating Maximum temperature is reduced by 1°C/300 meters (1.8°F/984 ft) above 900 meters (2,953 ft)

Operational climatic range category A3

Table 2. Operational climatic range category A3This table describes the Operational climatic range category A3.
Allowable continuous operations
Temperature ranges for altitude <900 meters (<2,953 ft) 5°C–40°C (41°F–104°F) with no direct sunlight on the platform
Humidity percent ranges (Noncondensing always) 8% RH with -12°C minimum dew hover over 85% RH with 24°C (75.2°F) maximum dew point
Operational altitude derating Maximum temperature is reduced by 1°C/175 meters (1.8°F/574 ft) above 900 meters (2,953 feet)

Thermal restriction for ASHRAE A3/Environment

  • CPU TDP greater than 150 W are not supported.

Shared requirements across all categories

Table 3. Shared requirements across all categoriesThis table describes Shared requirements across all categories.
Allowable operations
Maximum temperature gradient (applies to both operation and nonoperation) 20°C in an hour* (36°F in an hour) and 5°C in 15 minutes (9°F in 15 minutes), 5°C in an hour* (9°F in an hour) for tape hardware
Non-operational temperature limits -40°C to 65°C (-40°F to 149°F)
Non-operational humidity limits 5% to 95% RH with 27°C (80.6°F) maximum dew point Atmosphere must be noncondensing always.
Maximum Non-operational altitude 12,000 meters (39,370 ft)
Maximum operational altitude 3,048 meters (10,000 ft)

*: Per ASHRAE thermal guidelines, these are not instantaneous rates of temperature change.

Table 4. Temperature specifications When the system is in continuous operation (for altitude less than 950 m or 3117 ft), the temperature specification ranges 10°C–35°C (50–95°F) with no direct sunlight on the equipment. When the system is not in operation, the temperature specification is -40°C to 65°C (-40°F to149°F). For more information about fresh air, see the Expanded operating temperature section. The maximum temperature gradient for both operation and Non-operational systems is 20°C/h (36°F/h). Information about fresh air specification is described in the Expanded operating temperature section.
Temperature Specifications
Storage -40–65°C (-40–149°F)
Continuous operation (for altitude less than 900 m or 2953 ft) 10–35°C (50–95°F) with no direct sunlight on the equipment
Expanded operating temperature For information about Expanded operating temperature, see the Expanded operating temprature section.
Maximum temperature gradient (operating and storage) 20°C/h (68°F/h)
Table 5. Maximum vibration specificationsThe maximum vibration specification of an operational system is 0.26 Grms at 5 Hz to 350 Hz (all operation orientations).The maximum vibration specification of a Non-operational system is 1.88 Grms at 10 Hz to 500 Hz for 15 minutes (all six sides tested).
Maximum vibration Specifications
Operating 0.21 Grms at 5 Hz to 500 Hz (all operation orientations)
Storage 1.88 Grms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)
Table 6. Maximum shock pulse specificationsThe maximum shock specification of an operational system is 24 consecutively executed shock pulses in the positive and negative x, y, and z axis of 40 G for up to 2.3 ms (4 pulse on each side of the system). The maximum shock specification of a Non-operational system is six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms.
Maximum shock pulse Specifications
Operating Six consecutively executed shock pulses in the positive and negative x, y, and z axes of 6 G for up to 11 ms.(4 pulse on each side of the system)
Storage Six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms.
Table 7. Maximum altitude specificationsThe maximum altitude specification for an operational system is 3048 m (10,000 ft). The maximum altitude specification for a Non-operational system is 12,000 m (39,370 ft).
Maximum altitude Specifications
Operating 3048 m (10,000 ft)
Storage 12,000 m (39,370 ft)
Table 8. Operating temperature derating specificationsIf the operating temperature of a system is up to 35°C (95°F), the maximum temperature is reduced by 1°C/300 m (1°F/547 ft) above 950 m (3,117 ft). If the operating temperature of a system is 35°C–40°C (95°F–104°F), the maximum temperature is reduced by 1°C/175 m (1°F/319 ft) above 950 m (3,117 ft). If the operating temperature of a system is 40°C–45°C (104°F–113°F), the maximum temperature is reduced by 1°C/125 m (1°F/228 feet) above 950 m (3,117 feet).
Operating temperature derating Specifications
Up to 35°C (95°F) Maximum temperature is reduced by 1°C/300 m (1°F/547 ft), above 900 m (2,953 ft).
35–40°C (95–104°F) Maximum temperature is reduced by 1°C/175 m (1°F/319 ft), above 900 m (2,953 ft).
40–45°C (104–113°F) Maximum temperature is reduced by 1°C/125 m (1°F/228 ft), above 900 m (2,953 ft).

Standard operating temperature

Table 1. Standard operating temperature specifications

The standard operating temperature for altitude less than 950 m or 3117 feet ranges 10°C to 35°C with no direct sunlight on the equipment.

Standard operating temperature Specifications
Continuous operation (for altitude less than 950 m or 3117 ft) 10–35°C (50–95°F) with no direct sunlight on the equipment.

Expanded operating temperature

NOTE: When operating in the expanded temperature range, the performance of the system may be impacted.
NOTE: When operating in the expanded temperature range, ambient temperature warnings may be reported on the System Event Log.

Expanded operating temperature restrictions

Thermal Restriction for ASHRAE A4 Environment
  • CPU TDP greater than 150 W are not supported within A4.
  • Capacity greater than 128 GB of LRDIMMs are not supported within A4.
  • Processor with TDP=150 W and 18 cores is not supported within A4.
  • Processor with TDP=130 W and 8 cores is not supported within A4.
  • PCIe card with TDP greater than 25 W is not supported.
  • Intel N3000 FPGA card is not supported above 35°C ambient temperature.
  • NVIDIA V100 is not supported above 40°C ambient temperature.
  • Single PSU failure is not supported. Two PSUs are required in redundant mode.
Thermal Restriction for ASHRAE A3 Environment
  • CPU TDP greater than 150 W are not supported within A3.
  • Greater than 128 GB capacity LRDIMMs are not supported within A3.
  • Processor with TDP=150 W and 24 cores is not supported within A3.
  • Processor with TDP=150 W and 8 cores is not supported within A3.
  • PCIe card with TDP greater than 25 W is not supported.
  • Intel N3000 FPGA card is not supported above 35°C ambient temperature.
  • Single PSU failure is not supported. Two PSUs are required in redundant mode.
Thermal Restriction for ASHRAE A2 Environment
  • CPU TDP greater than 150 W are not supported within A2.
  • Greater than 128 GB capacity LRDIMMs are not supported within A2.
  • Processor with TDP=150 W and 8 cores is supported to ASHRAE A2 when turbo boost is disabled.
  • Processor with TDP=150 W and 8 cores, with turbo boost will have over temperature event at 35°C ambient temperature. This is because the CPU's power consumption is instantly raised up to 160 W to 170 W.
  • PCIe card with TDP greater than 25 W is not supported.
  • Single PSU failure is not supported. Two PSUs are required in redundant mode.

Particulate and gaseous contamination specifications

The following table defines the limitations that help avoid any damages to the IT equipment and/or, or both failure from particulate and gaseous contamination. If the levels of particulate or gaseous pollution exceed the specified limitations and results in equipment damage or failure, you must rectify the environmental conditions. Remediation of environmental conditions is the responsibility of the customer.
Table 1. Particulate contamination specifications Air filtration specification: Data center air filtration as defined by ISO Class 8 per ISO 14644-1 should have a 95% upper confidence limit. This condition applies only to data center environments. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor. Air entering the data center must have MERV11 or MERV13 filtration. Conductive dust specification: Air must be free of conductive dust, zinc whiskers, or other conductive particles. This condition applies to data center and non-data center environments. Corrosive dust specification: Air must be free of corrosive dust. Residual dust present in the air must have a deliquescent point less than 60% relative humidity. This condition applies to data center and non-data center environments.
Particulate contamination Specifications
Air filtration

Data center air filtration as defined by ISO Class 8 per ISO 14644-1 with a 95% upper confidence limit.

NOTE: This condition applies to data center environments only. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor.
NOTE: Air entering the data center must have MERV11 or MERV13 filtration.
NOTE: Air filtering can also be accomplished by filtering room air with MERV8 filter per ANSI/ASHARE Standard 127.

Conductive dust

Air must be free of conductive dust, zinc whiskers, or other conductive particles.

NOTE: This condition applies to data center and non-data center environments.
NOTE: Common sources of conductive dust include manufacturing processes, and zinc whiskers from the plating on the bottom of raised floor tiles.

Corrosive dust

  • Air must be free of corrosive dust.
  • Any remaining dust present in the air shall have a deliquescent point less than 60% relative humidity.
NOTE: This condition applies to data center and non-data center environments.
Table 2. Gaseous contamination specifications The copper coupon corrosion rate is <300 Å/month per Class G1 as defined by ANSI/ISA71.04-2013. The silver coupon corrosion rate is <200 Å/month as defined by ANSI/ISA71.04-2013.
Gaseous contamination Specifications
Copper Coupon Corrosion rate <300 Å/month per Class G1 as defined by ANSI/ISA71.04-2013
Silver Coupon Corrosion rate <200 Å/month as defined by ANSI/ISA71.04-2013
NOTE: Maximum corrosive contaminant levels measured at ≤50% relative humidity.

Thermal restriction matrix

Table 1. Thermal restriction matrix for processor and fansThis table describes the thermal restriction for processor and fans for XE2420
Features, processor type and specifications Configuration type, and ambient temperature support
Storage configuration 2 x 2.5-inch drives 4 x 2.5-inch drives 6 x SSDs (EDSFF E1.L)
Fan type: Very High Performance fan (VHP fan)
TDP (W) Ambient = 35°C Ambient = 35°C
150 Yes (VHP fan) Yes (VHP fan)
Table 2. Thermal restriction matrix for GPGPU This table describes the thermal restriction for GPGPU for XE2420
Riser configurations Configuration type and ambient temperature support
2 x 2.5-inch drives 4 x 2.5-inch drives 6 x SSDs (EDSFF E1.L)
Fan type: Very High Performance fan (VHP fan)
Ambient = 30°C
1A (Slot 1 Riser) VHP fan VHP fan
2C (Slot 1 Riser_PERC) VHP fan VHP fan
3A (Slot 1 Riser) VHP fan VHP fan
All (Slot 4 Riser) VHP fan VHP fan
Table 3. Thermal limitations of supported processorsThis table describes the thermal limitations of supported processors for XE2420
CPU TDP HSK type Fan type Config 1A Config 2C Config 3A
ASHARE A4 ASHARE A3 ASHARE A2 ASHARE A4 ASHARE A3 ASHARE A2 ASHARE A4 ASHARE A3 ASHARE A2
6525 N, 24 Core, 150 W High performance Very high performance Not supported Max 35°C Not supported Max 35°C Not supported Max 35°C
6244, 8 Core, 150 W
6240 Y, 18 Core, 150 W Not supported Max 40°C Not supported Max 40°C Not supported Max 40°C
6252, 24 Core, 150 W Max 45°C Max 45°C Max 45°C
6238, 22 Core, 140 W
6262 V, 8 Core, 135 W
6234, 8 Core, 130 W Not supported Not supported Not supported
125 W Max 45°C Max 45°C Max 45°C
110 W
100 W
85 W
Table 4. Thermal limitations of PCI-E cardsThis table describes the thermal limitations of PCI-E cards for XE2420
PCI-E card type Config 1A Config 2C Config 3A
ASHARE A4 ASHARE A3 ASHARE A2 ASHARE A4 ASHARE A3 ASHARE A2 ASHARE A4 ASHARE A3 ASHARE A2
nVIDIA V100 GPU Not supported Max 40°C Max 35°C Not supported Max 40°C Max 35°C Not supported Max 40°C Max 35°C
nVIDIA T4 GPU Max 45°C Max 45°C Max 45°C
nVIDIA RTX6000 passive GPU
Intel N3000 FPGA Not supported Max 35°C Not supported Max 35°C Not supported Max 35°C
U200 FPGA Max 45°C Max 40°C Max 45°C Max 40°C Max 45°C Max 40°C
