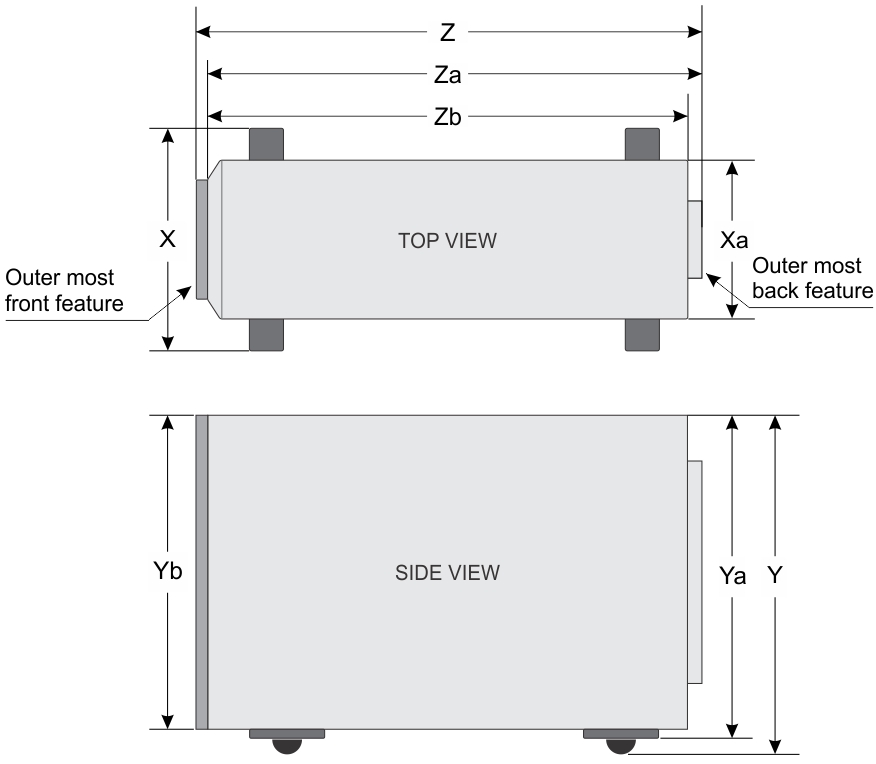

Processor

Specification

Type

The PowerEdge T330 supports any one of the processors listed here:

• Intel E3-1200 v5 or v6 series
• Intel Core i3 6100 series
• Intel Celeron G3900 series
• Intel Celeron G3930
• Intel Pentium G4500 series
• Intel Pentium G4600 series

PCI Express expansion slots

Specification

Slot 1

One full-height, half-length x8 PCIe Gen3 card slot connected to processor

Slot 2

One full-height, half-length x16 PCIe Gen3 card slot connected to processor

Slot 3

One full-height, half-length x1 PCIe Gen3 card slot connected to Platform Controller Hub (PCH)

Slot 4

One full-height, half-length x8 PCIe Gen3 card slot connected to PCH

Memory

Specification

Architecture

1600 MT/s, 1866 MT/s, 2133 MT/s, or 2400 MT/s DDR4 Unbuffered DIMMs

Support for advanced ECC or memory optimized operation

Memory module sockets

Four 288-pin sockets

Memory module capacities (UDIMM)

4 GB (single-rank), 8 GB (single- and dual-rank), 16 GB (single- and dual-rank)

Minimum RAM

4 GB

Maximum RAM

64 GB

Power supply unit

Specification

Power rating per hot swappable power supply unit (PSU)

495 W (Platinum) AC (100–240 V, 50/60 Hz, 6.5 A–3 A)

Power rating per cabled PSU

350 W (Bronze) AC (100–240 V, 50/60 Hz, 5.5 A–3 A)

Heat dissipation

NOTE: Heat dissipation is calculated by using the power supply unit wattage rating.

1357 BTU/hr maximum (350 W PSU)

1908 BTU/hr maximum (495 W PSU)

Voltage

NOTE: This system is also designed to be connected to IT power systems with a phase-to-phase voltage not exceeding 230 V.

100–240 V AC, autoranging, 50/60 Hz

Storage controller

Specification

Storage controller type

PERC H730, PERC H330, PERC H830, PERC S130.

NOTE: Your system supports software RAID S130 and a PERC card.

For more information on software RAID, see the Dell PowerEdge RAID Controller (PERC) documentation at Dell.com/storagecontrollermanuals.

NOTE: The upgrade from embedded controller or Software RAID controller to Hardware RAID controller is not supported.

The PowerEdge T330 system supports SAS, SATA, Nearline SAS hard drives and Solid State Drives (SSDs).

Drives

Specification

Eight hard drive systems

Up to eight 3.5-inch hot swappable SATA, or nearline SAS hard drives

NOTE: 2.5-inch hard drives in 3.5-inch carriers are supported for SAS, and SATA SSD hard drives

Four hard drive systems

Up to four 3.5-inch hot swappable SATA, or nearline SAS hard drives

NOTE: 2.5-inch hard drives in 3.5-inch carriers are supported for SAS, and SATA SSD hard drives

The PowerEdge T330 system supports up to two optional 5.25-inch tape drives

The PowerEdge T330 system supports Integrated Matrox G200 with iDRAC8 and 16 MB application memory.

Expanded operating temperature

Specifications

Continuous operation

5°C to 40°C (40°F to 104°F) at 5% to 85% RH with 29°C (84.2°F)dew point.

NOTE: Outside the standard operating temperature (10°C to 35°C(50°F to 95°F)), the system can operate continuously down to 5°C (40°F) or as high as 40°C (104°F).

For temperatures between 35°C( 95°F) and 40°C(104°F), de-rate maximum allowable temperature by 1°C per 175 m (33.8°F per 574.14 ft) above 950 m (3116.8 ft).

≤ 1% of annual operating hours

–5°C to 45°C (23°F to 113°F) at 5% to 90% RH with 29°C (84.2°F) dew point.

NOTE: Outside the standard operating temperature (10°C to 35°C(50°F to 95°F)),, the system can operate down to –5°C (23°F)or up to 45°C (113°F) for a maximum of 1% of its annual operating hours.

For temperatures between 40°C (104°F) and 45°C (113°F), de-rate maximum allowable temperature by 1°C per 125 m (33.8°F per 410.105ft) above 950 m (3116.8 ft).

Expanded Operating Temperature Restrictions

• The operating temperature specified is for a maximum altitude of 3048 m (10,000 ft).
• Non-redundant power supply units are not supported.
• Cabled power supply units are not supported.
• Non Dell qualified peripheral cards and/or peripheral cards greater than 25 W are not supported.
• Internal Tape backup drive (TBU) is not supported.
• Do not perform a cold startup below 5°C (40°F).
• Enable processor performance degrade.

Temperature

Specifications

Storage

–40°C to 65°C (–40°F to 149°F)

Continuous operation (for altitude less than 950 m or 3117 ft)

10°C to 35°C (50°F to 95°F) with no direct sunlight on the equipment.

Fresh air

For information on fresh air, see Expanded Operating Temperature section.

Maximum temperature gradient (operating and storage)

20°C/h (68°F/h)

Relative humidity

Specifications

Storage

5% to 95% RH with 33°C (91°F) maximum dew point. Atmosphere must be non-condensing at all times.

Operating

10% to 80% Relative Humidity with 29°C (84.2°F) maximum dew point.

Maximum vibration

Specifications

Operating

0.26 G_rms at 5 Hz to 350 Hz (operation orientation).

Storage

1.88 G_rms at 10 Hz to 500 Hz for 15 min (all six sides tested).

Maximum shock

Specifications

Operating

Six consecutively executed shock pulses in the positive and negative x, y, and z axes of 40 G for up to 2.3 ms.

Storage

Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 ms.

Maximum altitude

Specifications

Operating

30482000 m (10,0006560 ft).

Storage

12,000 m (39,370 ft).

Operating temperature de-rating

Specifications

Up to 35 °C (95 °F)

Maximum temperature is reduced by 1°C/300 m (33.8°F/984.25 ft) above 950 m (3,117 ft)

35 °C to 40 °C (95 °F to 104 °F)

Maximum temperature is reduced by 1°C/175 m (1°F/574.14 ft) above 950 m (3,117 ft).

40 °C to 45 °C (104 °F to 113 °F)

Maximum temperature is reduced by 1°C/125 m (1°F/410.1 ft) above 950 m (3,117 ft).

The following section defines the limits to help avoid IT equipment damage and/or failure from particulates and gaseous contamination. If the levels of particulates or gaseous pollution are beyond the specified limits and cause equipment damage or failure, you may need to rectify the environmental conditions. Remediation of environmental conditions is the responsibility of the customer.

Particulate contamination

Specifications

Air filtration

Data center air filtration as defined by ISO Class 8 per ISO 14644-1 with a 95% upper confidence limit.

NOTE: Applies to data center environments only. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor.

NOTE: Air entering the data center must have MERV11 or MERV13 filtration.

Conductive dust

Air must be free of conductive dust, zinc whiskers, or other conductive particles.

NOTE: Applies to data center and non-data center environments.

Corrosive dust

• Air must be free of corrosive dust.
• Residual dust present in the air must have a deliquescent point less than 60% relative humidity.

NOTE: Applies to data center and non-data center environments.

Gaseous contamination

Specifications

Copper coupon corrosion rate

<300 Å/month per Class G1 as defined by ANSI/ISA71.04-1985.

Silver coupon corrosion rate

<200 Å/month as defined by AHSRAE TC9.9.
