Dell EMC PowerEdge R650xs: технические характеристики и спецификации

Chassis dimensions

Figure 1. Chassis dimensions

The image shows system dimensions.

Table 1. PowerEdgeR650xs Chassis dimensionsThis table provides the dimensions of the PowerEdgeR650xssystem:
Drives Xa Xb Y Za Zb Zc
10 or 8 NVMe drives, 4 SATA/SAS/ NVMe drives 482 mm (18.97 inches)434 mm (17.08 inches)42.8 mm (1.68 inches)22 mm (0.86 inches)Without bezel

35.84 mm (1.41 inches)With bezel

677.8 mm (26.68 inches)Ear to PSU surface wall

691.07 mm (27.20 inches)Ear to butterfly L bracket housing

712.95 mm (28.06 inches) Ear to PSU handle without velcro strap
8 SATA/SAS drives, Zero drives 482 mm (18.97 inches)434 mm (17.08 inches)42.8 mm (1.68 inches)22 mm (0.86 inches)Without bezel

35.84 mm (1.41 inches)With bezel

627.03 mm (24.68 inches)Ear to PSU surface wall

640.3 mm (25.20 inches)Ear to butterfly L bracket housing

662.19 mm (26.07 inches)Ear to PSU handle without velcro strap
NOTE Zb is the nominal rear wall external surface where the system board I/O connectors reside.

System weight

Table 1. PowerEdge R650xs system weightThe table below shows the maximum weight of the.
System configuration Maximum weight (with all drives/SSDs/bezel)
10 x 2.5-inch NVMe 17.12 Kg (37.74 pound)
4 x 3.5-inch 18.62 Kg (41.05 pound)
8 x 2.5-inch SATA/SAS 16.58 Kg (36.55 pound)
8 x 2.5-inch NVMe 17.12 Kg (37.74 pound)

Processor specifications

Table 1. PowerEdge R650xs processor specificationsThis table provides processor specifications for the system.
Supported processor Number of processors supported
3rd Generation Intel Xeon Scalable processors with up to 32 cores Up to two

PSU specifications

The PowerEdge R650xs system supports up to two AC or DC power supply units (PSUs).

Table 1. PSU specificationsThe table lists the specifications for 800 W, 1400 W power supplies.
PSU Class Heat dissipation (maximum) Frequency Voltage AC DC Current
High line 200–240 V Low line 100–120 V
1400 W Mixed Mode Platinum 5406 BTU/hr 50/60 Hz 100–240 V AC, autoranging 1400 W 1050 W NA 12 A–8 A
NA 5406 BTU/hr NA 240 V DC, autoranging NA NA 1400 W 6.6 A
1100 W Mixed Mode Titanium 4299 BTU/hr 50/60 Hz 100–240 V AC, autoranging 1100 W 1050 W NA 12 A–6.3 A
NA 4299 BTU/hr NA 240 V DC, autoranging NA NA 1100 W 5.2 A
1100 W DC NA 4265 BTU/hr NA -48–(-60) V NA NA 1100 W 27 A
800 W Mixed Mode Platinum 3000 BTU/hr 50/60 Hz 100–240 V AC, autoranging 800 W 800 W NA 9.2 A-4.7 A
NA 3000 BTU/hr NA 240 V DC, autoranging NA NA 800 W 3.8 A
600 W Mixed Mode Platinum 2250 BTU/hr 50/60 Hz 100–240 V AC, autoranging 600 W 600 W NA 7.1 A-3.6 A
NA 2250 BTU/hr NA 240 V DC, autoranging NA NA 600 W 2.9 A
NOTE This system is also designed to connect to the IT power systems with a phase-to-phase voltage not exceeding 240 V.
NOTE Heat dissipation is calculated using the PSU wattage rating.
NOTE When selecting or upgrading the system configuration, to ensure optimum power utilization, verify the system power consumption with the Dell Energy Smart Solution Advisor available at Dell.com/ESSA.

Supported operating systems

The PowerEdge R650xs system supports the following operating systems:

  • Canonical Ubuntu Server LTS
  • Citrix Xen Server
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi

For more information, go to www.dell.com/ossupport.

Cooling fans specifications

The PowerEdgeR650xssystem supports up to seven Standard (STD) fans, High performance SLVR fans, or High performance (HPR) gold fans.

NOTE For more information about the fan support configuration or matrix, see Thermal restriction matrix.
Table 1. Cooling fan specificationsCooling fan specifications:
Fan type Abbreviation Also known as Label color Label image
High performance (Gold grade) fanHPR (Gold) VHP - Very High Performance Gold

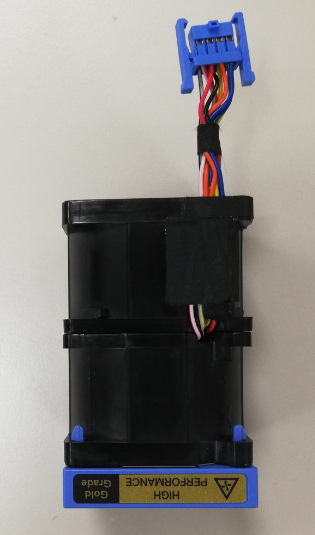

Figure 1. High performance (Gold grade) fan
This image shows the High performance (Gold grade) fan
Standard fanSTD STD No label

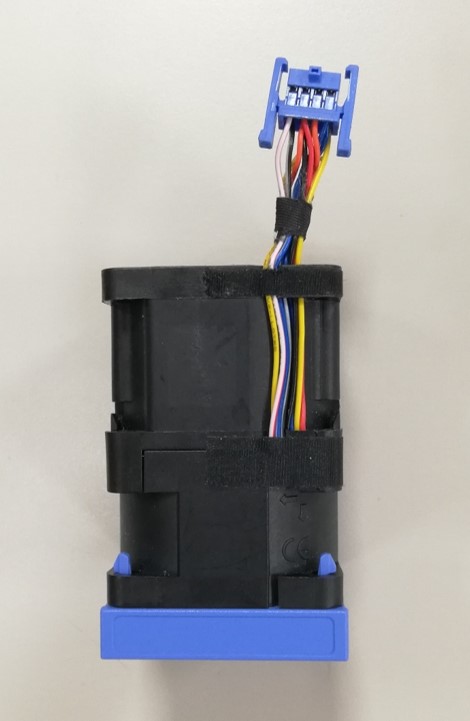

Figure 2. Standard fan
This image shows Standard fan module.
High performance (Silver grade) fan HPR (SLVR) HPR Silver

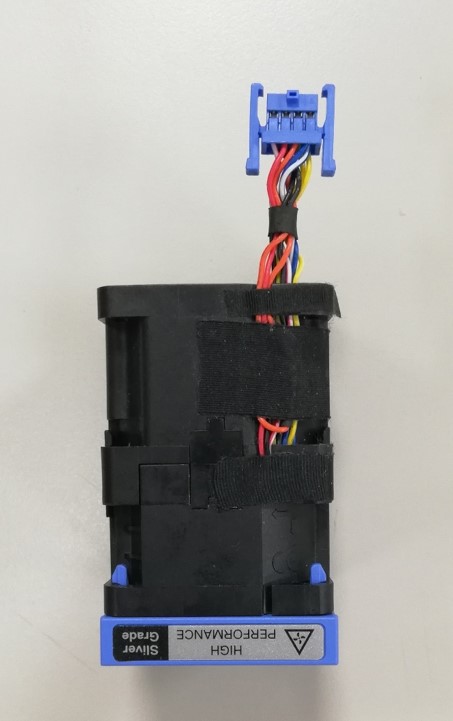

Figure 3. High performance (Silver grade) fan
This image shows the High performance fan

System battery specifications

The PowerEdge R650xs system supports CR 2032 3.0-V lithium coin cell system battery.

Expansion card riser specifications

The PowerEdge R650xs system supports up to three PCI express (PCIe) Gen 4 expansion cards.
Table 1. Expansion card slots supported on the system boardThis table provides information about the expansion card slots that are supported on the system.
PCIe slot Riser PCIe slot height PCIe slot length PCIe slot width
Slot 1 Riser 1 Low Profile Half length x16
Slot 2 and 3 Riser 2a Low Profile Half length x8 + x8
Slot 3 Riser 2b (SNAPI) Low Profile Half length x16
Slot 3 Riser 2c Low Profile Half length x16
NOTE For information on the expansion card installation guidelines, see the system specific Installation and Service Manual available at https://www.dell.com/poweredgemanuals.

Memory specifications

The PowerEdge R650xs system supports the following memory specifications for optimized operation.
Table 1. Memory specificationsThe table below shows the memory specifications:
DIMM type DIMM rank DIMM capacity Single processor Dual processors
Minimum DIMM capacity Maximum DIMM capacity Minimum DIMM capacity Maximum DIMM capacity
RDIMM Single rank 8 GB 8 GB 64 GB 16 GB 128 GB
Dual rank 16 GB 16 GB 128 GB 32 GB 256 GB
32 GB 32 GB 256 GB 64 GB 512 GB
64 GB 64 GB 512 GB 128 GB 1 TB
Table 2. Memory module socketsThe table below shows the memory module sockets for the system:
Memory module sockets Speed
16, 288-pin 3200 MT/s, 2933 MT/s, 2666 MT/s

Storage controller specifications

The PowerEdge R650xs system supports the following controller cards:
Table 1. Storage controller cardsThis table provides the controller cards supported on the system:
Internal controllers External controllers
  • PERC H345
  • PERC H355
  • PERC H745
  • PERC H755
  • PERC H755N
  • HBA355i
  • S150
  • Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
  • HBA355e
  • PERC H840
NOTE The software RAID S150 is supported on either SATA drives with chipset SATA only backplane or NVMe drives in universal slots with processor direct PCIe cable connected backplane.

Drives

The PowerEdge R650xs system supports:
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) drives
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives
NOTE For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Express Flash NVMe PCIe SSD User's Guide at https://www.dell.com/support > Browse all Products > Data Center Infrastructure >  Storage Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Documentation > Manuals and Documents.

USB ports specifications

Table 1. PowerEdge R650xs system USB ports specifications The following table shows the USB ports specifications :
Front Rear Internal (Optional)
USB port type No. of ports USB port type No. of ports USB port type No. of ports
USB 2.0-compliant port One USB 2.0-compliant port One Internal USB 3.0-compliant port One
iDRAC Direct port (Micro-AB USB 2.0) One USB 3.0-compliant ports One
NOTE The micro USB 2.0 compliant port can only be used as an iDRAC Direct or a management port.
NOTE The USB 2.0 specifications provide a 5 V supply on a single wire to power connected USB devices. A unit load is defined as 100 mA in USB 2.0, and 150 mA in USB 3.0. A device may draw a maximum of 5 unit loads (500 mA) from a port in USB 2.0; 6 (900 mA) in USB 3.0.
NOTE The USB 2.0 interface can provide power to low-power peripherals but must adhere to USB specification. An external power source is required for higher-power peripherals to function, such as external CD/DVD Drives.

NIC port specifications

The PowerEdge R650xs system supports up to two 10/100/1000 Mbps Network Interface Controller (NIC) ports embedded on the LAN on Motherboard (LOM) and integrated on the optional Open Compute Project (OCP) cards.
Table 1. NIC port specification for the systemThis table describes the NIC port specification for the system.
Feature Specifications
LOM 1 GB x 2
OCP card (OCP 3.0) 1 GbE x 4, 10 GbE x 2, 25 GbE x 2, 25 GbE x 4

Serial connector specifications

The PowerEdge R650xs system supports one optional card type serial connector on rear of the system, which is a 9-pin connector, Data Terminal Equipment (DTE), 16550-compliant .

The process to install the optional serial connector card is similar to an expansion card filler bracket.

VGA ports specifications

The PowerEdge R650xs system supports two DB-15 VGA ports, one each on the front and rear panels of the system.

IDSDM

The PowerEdge R650xs system supports Internal Dual SD module (IDSDM).

The IDSDM supports two SD cards and is available in the following configurations:

Table 1. Supported SD card storage capacityThis table lists the storage capacity of the supported SD cards
IDSDM card
  • 16 GB
  • 32 GB
  • 64 GB
NOTE One IDSDM card slot is dedicated for redundancy.
NOTE Use Dell EMC branded SD cards that are associated with the IDSDM configured systems.

Video specifications

The PowerEdge R650xs system supports integrated Matrox G200 graphics controller with 16 MB of video frame buffer.
Table 1. Supported video resolution options for the systemThis table describes the supported front video resolution options for the system.
Resolution Refresh rate (Hz) Color depth (bits)
1024 x 768 60 8, 16, 32
1280 x 800 60 8, 16, 32
1280 x 1024 60 8, 16, 32
1360 x 768 60 8, 16, 32
1440 x 900 60 8, 16, 32
1600 x 900 60 8, 16, 32
1600 x 1200 60 8, 16, 32
1680 x 1050 60 8, 16, 32
1920 x 1080 60 8, 16, 32
1920 x 1200 60 8, 16, 32

Environmental specifications

NOTE For additional information about environmental certifications, refer to the Product Environmental Datasheet located with the Documentation > Regulatory Information on www.dell.com/support/home.
Table 1. Operational climatic range category A2 This table describes the operational climatic range for category A2.
Temperature Specifications
Allowable continuous operations
Temperature ranges for altitudes <= 900 m (<= 2953 ft) 10–35°C (50–95°F) with no direct sunlight on the equipment
Humidity percent ranges (non-condensing at all times) 8% RH with -12°C minimum dew point to 80% RH with 21°C (69.8°F) maximum dew point
Operational altitude de-rating Maximum temperature is reduced by 1°C/300 m (1.8°F/984 Ft) above 900 m (2953 Ft)
Table 2. Operational climatic range category A3 This table describes the operational climatic range for category A3.
Temperature Specifications
Allowable continuous operations
Temperature ranges for altitudes <= 900 m (<= 2953 ft) 5–40°C (41–104°F) with no direct sunlight on the equipment
Humidity percent ranges (non-condensing at all times) 8% RH with -12°C minimum dew point to 85% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating Maximum temperature is reduced by 1°C/175 m (1.8°F/574 Ft) above 900 m (2953 Ft)
Table 3. Operational climatic range category A4 This table describes the operational climatic range for category A4.
Temperature Specifications
Allowable continuous operations
Temperature ranges for altitudes <= 900 m (<= 2953 ft) 5–45°C (41–113°F) with no direct sunlight on the equipment
Humidity percent ranges (non-condensing at all times) 8% RH with -12°C minimum dew point to 90% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating Maximum temperature is reduced by 1°C/125 m (1.8°F/410 Ft) above 900 m (2953 Ft)
Table 4. Shared requirements across all categories This table describes the shared requirements across all categories.
Temperature Specifications
Allowable continuous operations
Maximum temperature gradient (applies to both operation and non-operation) 20°C in an hour* (36°F in an hour) and 5°C in 15 minutes (9°F in 15 minutes), 5°C in an hour* (9°F in an hour) for tape
NOTE * - Per ASHRAE thermal guidelines for tape hardware, these are not instantaneous rates of temperature change.
Non-operational temperature limits -40 to 65°C (-40 to 149°F)
Non-operational humidity limits 5% to 95% RH with 27°C (80.6°F) maximum dew point
Maximum non-operational altitude 12,000 meters (39,370 feet)
Maximum operational altitude 3,048 meters (10,000 feet)
Table 5. Maximum vibration specifications
Maximum vibration Specifications
Operating 0.26 Grms at 5 Hz to 350 Hz (all operation orientations)
Storage 1.88 G rms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)
Table 6. Maximum shock pulse specificationsThe maximum shock specification of an operational system is six consecutively executed shock pulses in the positive and negative x, y, and z axis of 6 G for up to 11 ms. The maximum shock specification of a nonoperational system is six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms.
Maximum shock pulse Specifications
Operating Six consecutively executed shock pulses in the positive and negative x, y, and z axis of 6 G for up to 11 ms
Storage Six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms

Particulate and gaseous contamination specifications

The following table defines the limitations that prevent the damage to the IT equipment and/or, or both failure from particulate and gaseous contamination. If the levels of particulate or gaseous pollution exceed the specified limitations and results in equipment damage or failure, you must rectify the environmental conditions. Remediation of environmental conditions is the responsibility of the customer.
Table 1. Particulate contamination specifications Air filtration specification: Data center air filtration as defined by ISO Class 8 per ISO 14644-1 should have a 95% upper confidence limit. This condition applies only to data center environments. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor. Air entering the data center must have MERV11 or MERV13 filtration. Conductive dust specification: Air must be free of conductive dust, zinc whiskers, or other conductive particles. This condition applies to data center and non-data center environments. Corrosive dust specification: Air must be free of corrosive dust. Residual dust present in the air must have a deliquescent point less than 60% relative humidity. This condition applies to data center and non-data center environments.
Particulate contamination Specifications
Air filtration

Data center air filtration as defined by ISO Class 8 per ISO 14644-1 with a 95% upper confidence limit.

NOTE This condition applies to data center environments only. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor.
NOTE Air entering the data center must have MERV11 or MERV13 filtration.

Conductive dust

Air must be free of conductive dust, zinc whiskers, or other conductive particles.

NOTE This condition applies to data center and non-data center environments.

Corrosive dust

  • Air must be free of corrosive dust.
  • Residual dust present in the air must have a deliquescent point less than 60% relative humidity.
NOTE This condition applies to data center and non-data center environments.
Table 2. Gaseous contamination specifications The copper coupon corrosion rate is <300 Å/month per Class G1 as defined by ANSI/ISA71.04-2013. The silver coupon corrosion rate is <200 Å/month as defined by ANSI/ISA71.04-2013.
Gaseous contamination Specifications
Copper Coupon Corrosion rate <300 Å/month per Class G1 as defined by ANSI/ISA71.04-2013
Silver Coupon Corrosion rate <200 Å/month as defined by ANSI/ISA71.04-2013
NOTE Maximum corrosive contaminant levels measured at ≤50% relative humidity.

Thermal restrictions

Other Thermal restrictions

Table 1. Thermal restriction matrix for processor and fansThis table describes the thermal restriction for processor and fans.
Configuration / Processor TDP 4 x 3.5-inch configuration with Maximum Ambient Temperature 8 x 2.5-inch SAS/SATA configuration 8 x 2.5-inch NVMe configuration 10 x 2.5-inch SAS/SATA configuration 10 x 2.5-inch NVMe configuration
Rear Storage Rear 3 LP 1 LP + 2 Rear drives Rear 3 LP Rear 3 LP Rear 3 LP 1 LP + 2 Rear drives Rear 3 LP
105 W STD fan

STD HSK

40 °C

HPR (Silver) fan

STD HSK

35 °C

STD fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

45 °C

HPR (Silver) fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

35 °C

HPR (Gold) fan

STD HSK

45 °C

120 W STD fan

STD HSK

40 °C

HPR (Silver) fan

STD HSK

35 °C

STD fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

45 °C

HPR (Silver) fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

35 °C

HPR (Gold) fan

STD HSK

45 °C

135 W STD fan

STD HSK

40 °C

HPR (Silver) fan

STD HSK

35 °C

STD fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

45 °C

HPR (Silver) fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

35 °C

HPR (Gold) fan

STD HSK

45 °C

150 W STD fan

STD HSK

40 °C

HPR (Silver) fan

STD HSK

35 °C

STD fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

40 °C

HPR (Silver) fan

STD HSK

40 °C

HPR (Gold) fan

STD HSK

35 °C

HPR (Gold) fan

STD HSK

40 °C

165 W STD fan **

STD HSK *

35 °C

HPR (Silver) fan

STD HSK *

35 °C

STD fan **

STD HSK *

35 °C

HPR (Gold) fan

STD HSK *

40 °C

HPR (Silver) fan***

STD HSK *

40 °C

HPR (Gold) fan

STD HSK *

35 °C

HPR f(Gold) an

STD HSK *

40 °C

185 W / 190 W HPR (Silver) fan

HPR HSK

35 °C

HPR (Silver) fan

HPR HSK

35 °C

HPR (Silver) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

205 W HPR (Silver) fan

HPR HSK

35 °C

HPR (Silver) fan

HPR HSK

35 °C

HPR (Silver) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

220 W HPR (Silver) fan

HPR HSK

35 °C

HPR (Silver) fan

HPR HSK

35 °C

HPR (Silver) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

HPR (Gold) fan

HPR HSK

35 °C

NOTE

* For Intel 165 W 8 core 3.6 GHz QXRQ processor, HPR HSK is required. For all the other 165 W processor, use STD HSK.

** For Intel 165 W 8 core 3.6 GHz QXRQ processor, use HPR Silver fan (HPR) for the SKU with ** marked.

*** For Intel 165W 8 core 3.6 GHz QXRQ processor, use HPR Gold fan (VHP) for the SKU with *** marked.

**** HDD Blank is required for empty HDD slot.

Table 2. Label referenceThis table describes the label references used in the restriction tables.
Label Description
LP Low Profile
HPR (Gold) High performance (gold grade)
HPR (Silver) High Performance (silver grade)
HSK Heat sink
  • 10 x 2.5-inch NVMe configuration requires HPR (Gold) fan. 7 fans are required for dual processor configuration.
  • DIMM blank is not required.
  • Processor blank is required for single processor configuration.
  • Two fan blanks are required to be installed on fan slot 1 and fan slot 2 for 5 fans configuration.
Table 3. Thermal restriction matrix for processor and configurationsThis table describes the thermal restriction for processor and configurations.
Parameters Configurations
Front storage 2 x 3.5-inch SAS/SATA configuration 4 x 2.5-inch NVMe configuration 6 x 3.5-inch SAS/SATA configuration
Fan type and quantity HPR (Silver) fan x 7 HPR (Gold) fan x 7 HPR (Gold) fan x 7
Rear configuration OCP, PCIe slot 1 only OCP, BOSS, PCIe slot1 and slot 3 OCP, BOSS, PCIe slot1, slot 2 and slot 3
Processor TDP 250 W HPR HSK HPR HSK HPR HSK
270 W HPR HSK HPR HSK HPR HSK
Maximum Ambient Temperature 35°C 35°C 35°C
NOTE DIMM blank is not required.

Thermal Restriction for ASHRAE A2/A3/A4

Table 4. 4 x3 .5-inch SAS/SATA and 8 x 2.5-inch SAS/SATA and No BP Configuration

Dell EMC PowerEdge Server Standard Operating Support (ASHRAE A2 compliant) All options supported unless otherwise noted.
Dell EMC PowerEdge Server Extended Inletient 40° C Operating Support (ASHRAE A3 compliant) Dell EMC PowerEdge Server Extended Inletient 45° C Operating Support (ASHRAE A4 compliant)
  • HPR Gold Fan is required for Processor TDP >165 W
  • HPR Gold Fan is required for with RM configuration
  • 10 x 2.5-inch SAS/SATA config Processor TDP >220 W SM only support 6 x 2.5-inch SAS/SATA at HDD#0~ HDD#5 and SM Blank x 2 are required at HDD#6 ~HDD#9
  • With RM Config do not support Processor TDP >220 W
  • The Following OCP3.0 NIC only support optic cable with thermal Spec 85C and power <=1.2 W
    • Broadcom Thor QP 25G SFP28
    • Solarflare Medford2 DP 25GbE SFP28
    • Channel devices Intel E810-XXVDA4 100G 4P DPN: 6C2NG
  • The Following OCP3.0 NIC only support optic cable with thermal Spec 85C and power <=2.5W ( DPN:4WGYD)
    • Channel devices Intel E810-CQDA2 100G QSF28 DPN: N8PW5
  • The Following PCIe NIC only support optic cable with thermal Spec 85C and power <=1.2W ( DPN: M14MK)
    • Broadcom 100G 2P QSF DPN: 61PR9
    • Mellonax 25G DP OCP3 CX6 LX SPF28 DPN: 9XCTH
    • Mellonax 25G 2P OCP3 CX6 LX SPF28 DPN: DN78C
  • The Following PCIe NIC only support optic cable with thermal Spec 85C and power <=2.5 W
    • Channel Devices Intel Columbiaville DP 100GbE
    • Intel Columbiaville 100G 2P Q28 DPN: DWNRF
  • The following NVMe /SAS/SATA could not be support in Rear Module
    • Samsung PM1735 Capacities > 6.4 TB
    • Samsung PM1733 Capacities > 7.68 TB
    • Kioxia CM6 all capacities
    • Kioxia PM6 SAS all capacities
    • Hynix PE8010 >3.84T capacities
  • Not support processor TDP > 150 W
  • Not support BOSS M.2 Module
  • Not support Non-Dell qualified peripheral cards and Channel devices (FW) cards
  • Not support NIC consuming power >= 25 W.
  • Not Support Config with RM
  • Not support OCP transfer rate >25 G or cooling tier > 10
  • Optic Cable with spec 85°C is required.
  • Two PSUs are required. System performance may be reduced in the event of a PSU failure
A4 environment not support
Table 5. 10 x 2.5-inch NVMe and 8 x 2.5-inch NVMe configuration
Dell EMC PowerEdge Server Standard Operating Support (ASHRAE A2 compliant) All options supported unless otherwise noted. Dell EMC PowerEdge Server Extended Inletient 40°C Operating Support (ASHRAE A3 compliant) Dell EMC PowerEdge Server Extended Inletient 45°C Operating Support (ASHRAE A4 compliant)
  • HPR Gold Fan is required
  • 10 x 2.5-inch NVMe config Processor TDP >220 W SM only support 4x2.5 NVMe at HDD#0~ HDD#3 and SM Blank x 3 are required at HDD#4 ~HDD#9
  • 10 x 2.5-inch NVMe config Processor TDP >220 W, RIO do not support PCIe2
  • 8 x 2.5-inch NVMe config do not support Processor TDP >220 W
  • The Following OCP3.0 NIC only support optic cable with thermal Spec 85C and power <=1.2W
    • Broadcom Thor QP 25G SFP28
    • Solarflare Medford2 DP 25GbE SFP28 in both configuration
    • Channel devices Intel E810-XXVDA4 100G 4P DPN: 6C2NG in 10x2.5 NVMe config. only (8x2.5 NVMe do not support channel devices)
  • The Following OCP3.0 NIC only support optic cable with thermal Spec 85C and power <=2.5W ( DPN:4WGYD)
    • Channel devices Intel E810-CQDA2 100G QSF28 DPN: N8PW5 in 10x2.5 NVMe config. only (8x2.5 NVMe do not support channel devices)
  • The Following PCIe NIC only support optic cable with thermal Spec 85C and power <=1.2W ( DPN: M14MK)
    • Broadcom 100G 2P QSF DPN: 61PR9
    • Mellonax 25G DP OCP3 CX6 LX SPF28 DPN: 9XCTH
    • Mellonax 25G 2P OCP3 CX6 LX SPF28 DPN: DN78C
  • The Following PCIe NIC only support optic cable with thermal Spec 85C and power <=2.5 W
    • Channel Devices Intel Columbiaville DP 100GbE
    • Intel Columbiaville 100G 2P Q28 DPN: DWNRF in both configs.

  • Not support CPU TDP > 165W
  • Not support BOSS M.2 Module
  • Not support Non-Dell qualified peripheral cards and Channel devices (FW) cards
  • Not support NIC consuming power >= 25W.
  • Not Support Config with RM
  • Not support OCP transfer rate >25 G or cooling tier > 10
  • Optic Cable with spec 85°C is required.
  • Two PSUs are required. System performance may be reduced in the event of a PSU failure
A4 environment not Support
Table 6. 10 x 2.5-inch NVMe storage configuration
Dell EMC PowerEdge Server Standard Operating Support (ASHRAE A2 compliant) All options supported unless otherwise noted. Dell EMC PowerEdge Server Extended Inletient 40°C Operating Support (ASHRAE A3 compliant) Dell EMC PowerEdge Server Extended Inletient 45°C Operating Support (ASHRAE A4 compliant)
  • HPR Gold fan is required
  • 10 x 2.5-inch NVMe config processor TDP > 220 W SM only support 4x2.5 NVMe at HDD#0~ HDD#3 and SM Blank x 3 are required at HDD#4 ~HDD#9.
  • 10 x 2.5-inch NVMe config processor TD P >220W, RIO do not support PCIe2
  • 8 x 2.5-inch NVMe config do not support processor TDP >220W
  • The Following OCP 3.0 NIC only support optic cable with thermal Spec 85°C and power <=1.2 W
    • Broadcom Thor QP 25G SFP28
    • Solarflare Medford2 DP 25GbE SFP28 in both configs.
  • The Following PCIe NIC only support optic cable with thermal Spec 85C and power <=2.5 W
    • Channel Devices Intel Columbiaville DP 100GbE
  • Not support processor TDP > 165W
  • Not support BOSS M.2 Module
  • Not support Non-Dell qualified peripheral cards and Channel devices (FW) cards
  • Not support NIC consuming power >= 25W.
  • Not Support Config with RM
  • Not support OCP transfer rate >25 G or cooling tier > 10
  • Optic Cable with spec 85°C is required.
  • Two PSUs are required. System performance may be reduced in the event of a PSU failure
  • Not support processor TDP > 135 W
  • Not support BOSS M.2 Module
  • Not support Non-Dell qualified peripheral cards and Channel devices (FW) cards
  • Not support NIC consuming power >= 25 W.
  • Not Support Config with RM
  • Not support OCP transfer rate >25 G or cooling tier > 10
  • Optic Cable with spec 85°C is required.
  • Two PSUs are required. System performance may be reduced in the event of a PSU failure
Table 7. Thermal Solution Configuration
Configurations Rear drive configurations Processor (TDP) Fan type Heat sink type Air Shroud Memory Blank Processor Blank Fan Counts Fan Blank
4 x 3.5-inch drives without rear drives TDP <= 165 W **STD fan *STD HSK Yes No Only required on processor 2 for 1 processor Configuration 7 x fans for 2 processors Configuration

5 x fans for 1 processors Configuration

Only required on fan Slot 1 and slot 2 for 1 processor configuration
165 W < TDP <= 220 W HPR Silver Fan (HPR) HPR HSK
with rear dries TDP <= 165 W HPR Silver Fan (HPR) *STD HSK
165 W < TDP <= 220 W HPR HSK
8 x 2.5-inch SAS/SATA drives without rear drives TDP <= 165 W **STD fan *STD HSK
165 W < TDP <= 220 W HPR Silver Fan (HPR) HPR HSK
10 x 2.5-inch SAS/SATA drives without rear drives TDP <= 165 W ***HPR Silver Fan (HPR) *STD HSK
165 W < TDP <= 220 W HPR Gold Fan (VHP) HPR HSK
with rear dries TDP <= 165 W HPR Gold Fan (VHP) *STD HSK
165 W < TDP <= 220 W HPR HSK
8 and 10 x 2.5-inch NVMe drives without rear drives TDP <= 165 W HPR Gold Fan (VHP) *STD HSK
165 W < TDP <= 220 W HPR HSK
No Backplane without rear drives TDP <= 165 W **STD fan *STD HSK
165 W < TDP <= 220 W HPR Silver Fan (HPR) HPR HSK
NOTE

* For Intel 165 W 8 core 3.6 GHz QXRQ processor, HPR HSK is required. For all the other 165 W processor, use STD HSK.

** For Intel 165 W 8 core 3.6 GHz QXRQ processor, use HPR Silver fan (HPR) for the SKU with ** marked.

*** For Intel 165W 8 core 3.6 GHz QXRQ processor, use HPR Gold fan (VHP) for the SKU with *** marked.
