Processor specifications
OptiPlex 7050 systems are shipped with Intel 6th generation and 7th generation core processor technology.
NOTE:The clock speed
and performance varies depending on the workload and other variables.
Total cache up to 8 MB cache depending on processor type.
- Feature
- Specification
- Processor type
- Intel Core i3-6100 (DC/3MB/4T/3.7GHz/65W)
- Intel Core i5-6400 (QC/ 6MB/4T/2.7GHz/65W)
- Intel Core i5-6500 (QC/6MB/4T/3.2GHz/65W)
- Intel Core i5-6600 (QC/6MB/4T/3.3GHz/65W)
- Intel Core i7-6700 (QC/8MB/8T/3.4GHz/65W)
- Intel Core i3-7100 (DC/3MB/4T/3.9GHz/65W)
- Intel Core i3-7300 (DC/4MB/4T/4.0GHz/51W)
- Intel Core i5-7400 (QC/6MB/4T/3.0GHz/ 65W)
- Intel Core i5-7500 (QC/6MB/4T/3.4GHz/65W)
- Intel Core i5-7600 (QC/6MB/4T/3.5GHz/65W)
- Intel Core i7-7700 (QC/8MB/8T/3.6GHz/65W)
- Total cache
- Up to 8 MB cache depending on processor type
Memory specifications
- Feature
- Specification
- Type
- 2400 MHzNOTE:For 6th Generation processors, memory of 2400 MHz operates at 2133 MHz.
- Connectors
- Four DDR4 UDIMM slots
- Memory capacity per slot
- 4 GB, 8 GB, and 16 GB
- Minimum Memory
- 4 GB
- Maximum Memory
- 64 GB
Video specifications
- Feature
- Specification
- Video Controller - Integrated
- For Intel 7th generation processors:
- Intel HD 630 Graphics [with 7th Generation Core i3/i5/i7 CPU-GPU combo]
- Intel HD 530 Graphics [with 6th Generation Core i3/i5/i7 CPU-GPU combo]
- Video Controller - Discrete
- 1 GB AMD Radeon R5 430 (optional)
- 2 GB AMD Radeon R5 430 (optional)
- 4 GB AMD Radeon R7 450 (optional)
- Video Memory
- independent card offering
Audio specifications
- Feature
- Specification
- Controller
- Realtek ALC3234 High Definition Audio Codec (integrated, supports multiple streaming)
- Internal speaker amplifier
- Integrated
Communication specifications
| Feature | Specification | |
|---|---|---|
| Network adapter | Integrated | Intel® i219-V Gigabit1 Ethernet LAN 10/100/1000 (Remote Wake Up, PXE and support) |
| Wireless (optional) | Intel® Dual-Band Wireless-AC 8265 Wi-Fi + BT 4.2 Wireless Card (2x2), MU-MIMO (optional) |
Storage specifications
- Feature
- Specification
- Hard drive
- Two 2.5-inch drives, one 3.5-inch drive
- SD card
- One (optional)
- Solid State Drive
- One M.2 Solid State Drive
- Optical drive
- One 5.25-inch drive
NOTE:The system can accommodate either 5.25–inch optical drive or 3.5–inch hard drive.
- RAID
- The system does not support RAID 0 or RAID 1 capability.
Ports and connectors specifications
| Feature | Specification | |
|---|---|---|
| Front I/O ports | Universal audio jack | One |
| USB 3.1 Gen 1 | Two (one with Type-C) | |
| USB 2.0 | Two (one with PowerShare) | |
| Rear I/O ports | USB 3.1 Gen 1 | Four |
| USB 2.0 | Two | |
| Serial | One | |
| Line out | One | |
| HDMI Port | One | |
| DisplayPort | Two | |
| Network port RJ-45 | One | |
| Power connector port | One | |
| PS/2 | Two | |
| VGA (optional) | One |
Power supply specifications
- Feature
- Specification
- Type
- 240 W
- Frequency
- 47 Hz - 63 Hz
- Voltage
- 90 VAC - 264 VAC
- Input current
- 4 A / 2 A
- Coin cell battery
- 3 V CR2032 lithium coin cell
Physical dimension specifications
- Feature
- Specification
- Height
- 350.52 mm (13.8 inches)
- Width
- 154. mm (6.1 inches)
- Depth
- 274.32 mm (10.8 inches)
- Weight
- 9.43 kg (20.96 lb)

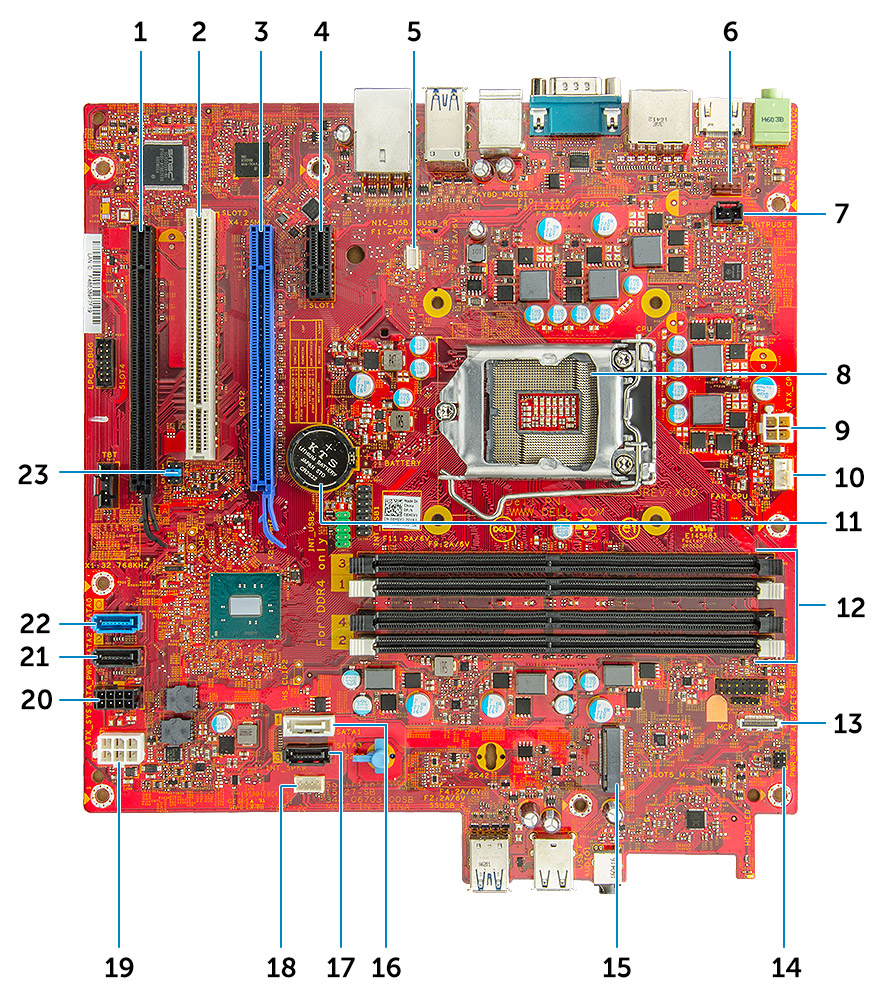

System board layout
- PCIe x16(wire x4) connector (slot4)
- PCI connector (slot3)
- PCIe x16 connector (slot2)
- PCI-eX1 connector (slot 1)
- VGA Daughter Board Connector (VGA)
- System fan connector
- Intrusion switch connector
- Processor
- CPU power connector
- CPU fan connector
- Coin cell battery
- Memory module connectors
- Card reader connector
- Power switch connector
- M.2 SSD connector
- SATA 1 connector
- SATA 3 connector
- Speaker connector
- ATX power connector
- HDD and ODD power connector
- SATA 2 connector
- SATA 0 connector
- CMOS_CLR/Password/Service_Mode Jumper
Controls and lights specifications
- Feature
- Specification
- Power button light
- White light — Solid white light indicates power-on state; blinking white light indicates sleep state of the computer.
- Hard Drive activity light
- White light — Blinking white light indicates that the computer is reading data from or writing data to the hard drive.
- Back panel:
- Link integrity light on integrated network adapter :
- Green — a good 10 Mbps or 100 Mbps connection exists
between the network and the computer.
Orange — a good 1000 Mbps connection exists between the network and the computer.
Off (no light) — the computer is not detecting a physical connection to the network.
- Network activity light on integrated network adapter
- Yellow light — A blinking yellow light indicates that network activity is present.
- Power supply diagnostic light
- Green light — The power supply is turned on and is functional. The power cable must be connected to the power connector (at the back of the computer) and the electrical outlet.
Environmental specifications
Airborne contaminant level: ISA-71 G1**: <300 A/month copper coupon corrosion AND <200 A/month of silver coupon corrosion
| Description | Operating | Storage |
|---|---|---|
| Temperature range | 10°C to 35°C (50°F to 95°F) | -40°C to 65°C (-40°F to 149°F) |
| Relative humidity (maximum) | 20% to 80% (non-condensing) | 5% to 95% (non-condensing) |
| Vibration (maximum) * | 0.26 GRMS | 1.37 GRMS |
| Shock (maximum) | 40 G† | 105 G‡ |
| Altitude range | -15.20 m to 3048 m
(-50 ft to 10,000 ft) |
–15.20 m to 10,668 m
(–50 ft to 35,000 ft) |
* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.
‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position.
