Dell OptiPlex 5050 Tower: руководство по обслуживанию

OptiPlex 5050 systems are shipped with Intel 6th generation and 7th generation core processor technology.

Feature

Specification

Processor type

• 6th Generation Intel® Core™ i3-6100
• 6th Generation Intel® Core™ i5-6400
• 6th Generation Intel® Core™ i5-6500
• 6th Generation Intel® Core™ i5-6600
• 6th Generation Intel® Core™ i7-6700
• Intel® Pentium® G4400
• Intel® Pentium® G4500
• 7th Generation Intel® Core™ i3-7100
• 7th Generation Intel® Core™ i3-7300
• 7th Generation Intel® Core™ i5-7400
• 7th Generation Intel® Core™ i5-7500
• 7th Generation Intel® Core™ i5-7600
• 7th Generation Intel® Core™ i7-7700
• Intel® Pentium® G4560

Total cache

Up to 8 MB cache depending on processor type

Feature

Specification

Type

DDR4 DRAM Non-ECC

Connectors

Four DIMM slots

Memory module capacity

4 GB, 8 GB, and 16 GB

Minimum Memory

4 GB

Maximum Memory

64 GB

Memory speed

2133 MHz / 2400 MHz

NOTE: If this product is purchased with Intel 6th Gen CPUs or 7th Gen Celeron dual core CPU, the maximum MHz this product can achieve is 2133, though the memory material used is 2400 MHz.

Memory configurations

4 GB - 1x 4 GB
8 GB - 2x 4GB
8 GB-  1x 8 GB
16 GB - 2x 8 GB
32 GB - 4x 8 GB
64 GB - 4x 16 GB

Feature

Specification

Video Controller - Integrated

For Intel 7th generation processors:

• Intel HD 630 Graphics [with 7th Generation Core i3/i5/i7 CPU-GPU combo]
• Intel HD 610 Graphics [with 7th Generation Pentium CPU-GPU combo]

For Intel 6th generation processors:

• Intel HD 530 [with 6th Generation Core i3/i5/i7 CPU-GPU combo]
• Intel HD 510 Graphics [with 6th Generation Pentium CPU-GPU combo]

Video Controller - Discrete

• 1 GB AMD Radeon™ R5 430 (optional)
• 2 GB AMD Radeon™ R5 430 (optional)
• 4 GB AMD Radeon™ R7 450 (optional)

Feature

Specification

Controller

Realtek ALC3234 High Definition Audio Codec (integrated, supports multiple streaming)

Internal speaker amplifier

Integrated

Feature

Specification

Hard drive

• One 2.5-inch drive

  Options supported:

  • 2.5” 500 GB SATA3 5400 RPM HDD
  • 2.5” 500 GB SATA3 7200 RPM HDD
  • 2.5” 500 GB SATA3 Solid State HYBRID HDD W/8GB FLASH
  • 2.5” 500 GB SATA3 7200 RPM SELF ENCRYPTING DRIVE (OPAL v2.0 compliant)
  • 2.5” 1 TB SATA3 7200RPM HDD
  • 2.5” 1 TB SATA3 Solid State HYBRID HDD W/8GB FLASH
  • 2.5” 2 TB SATA3 5400 RPM HDD
  • 2.5” 256 GB SOLID STATE DRIVE Class 20
  • 2.5” 512 GB SOLID STATE DRIVE Class 20
• One 3.5–inch hard drive

  Options supported:

  • 3.5” 500 GB 7.2K
  • 3.5” 1.0 TB 7.2K
  • 3.5” 2.0 TB 7.2K

One M.2 PCIe SSD

• M.2 SATA 128 GB Solid State Drive Class 20
• M.2 PCIe 256 GB Solid State Drive Class 40
• M.2 PCIe 512 GB Solid State Drive Class 40
• M.2 PCIe 1 TB Solid State Drive Class 40

Optical drive

One

RAID

The system does not support RAID 0 or RAID 1 capability.

Feature

Specification

Type

240 W

Frequency

47 Hz - 63 Hz

Voltage

90 VAC - 264 VAC

Input current

4 A / 2 A

Coin cell battery

3 V CR2032 lithium coin cell

Feature

Specification

Height

350.52 mm (13.8 inches)

Width

154. mm (6.1 inches)

Depth

274.32 mm (10.8 inches)

Weight

7.93 kg (17.49 lb)

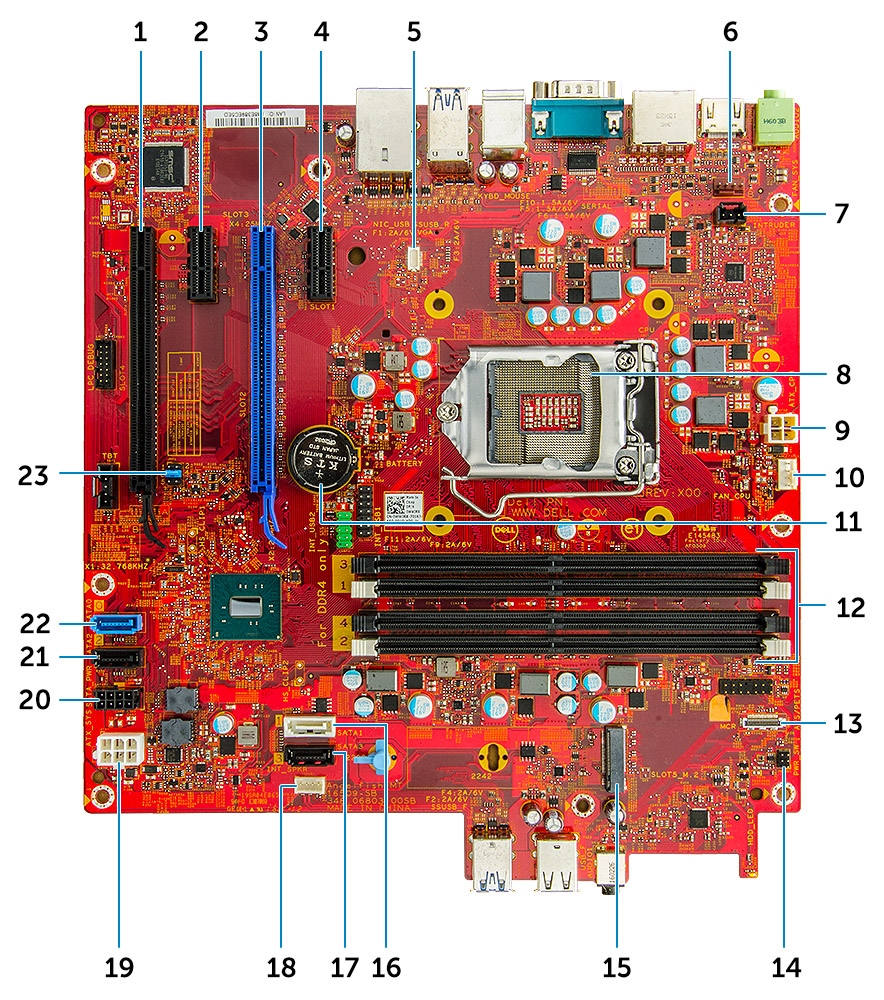

1. PCIe x16(wire x4) Connector (Slot4)
2. PCIe x1 Connector (Slot3)
3. PCIe x16 Connector (Slot2)
4. PCI-eX1 connector (slot 1)
5. VGA Daughter Board Connector (VGA)
6. System fan connector
7. Intrusion switch connector
8. CPU socket connector
9. CPU power connector
10. CPU fan connector
11. Coin cell battery
12. Memory module connectors
13. Card reader connector
14. Power switch connector
15. M.2 SSD connector
16. SATA 1 connector
17. SATA 3 connector
18. Speaker connector
19. ATX power connector
20. HDD and ODD power connector
21. SATA 2 connector
22. SATA 0 connector
23. CMOS_CLR/Password/service_Mode Jumper

Feature

Specification

Power button light

White light — Solid white light indicates power-on state; blinking white light indicates sleep state of the computer.

Hard Drive activity light

White light — Blinking white light indicates that the computer is reading data from or writing data to the hard drive.

Back panel:

Link integrity light on integrated network adapter :

Green — a good 10 Mbps or 100 Mbps connection exists between the network and the computer.

Orange — a good 1000 Mbps connection exists between the network and the computer.

Off (no light) — the computer is not detecting a physical connection to the network.

Network activity light on integrated network adapter

Yellow light — A blinking yellow light indicates that network activity is present.

Power supply diagnostic light

Green light — The power supply is turned on and is functional. The power cable must be connected to the power connector (at the back of the computer) and the electrical outlet.

Temperature

Specifications

Operating

0°C to 35°C (32°F to 95°F)

Storage

–40°C to 65°C (–40°F to 149°F)

Relative humidity (maximum)

Specifications

Operating

10 % to 90 % (non condensing)

Storage

5 % to 95 % (non condensing)

Maximum vibration:

Specifications

Operating

0.66 GRMS

Storage

1.30 GRMS

Maximum shock:

Specifications

Operating

110 G

Storage

160 G

Altitude (maximum)

Specifications

Operating

–15.2 m to 30482000 m (–50 to 10,0006560 ft)

Storage

–15.20 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level

G2 or lower as defined by ANSI/ISA-S71.04-1985
