Dell OptiPlex 3280 All-in-One: характеристики и спецификации

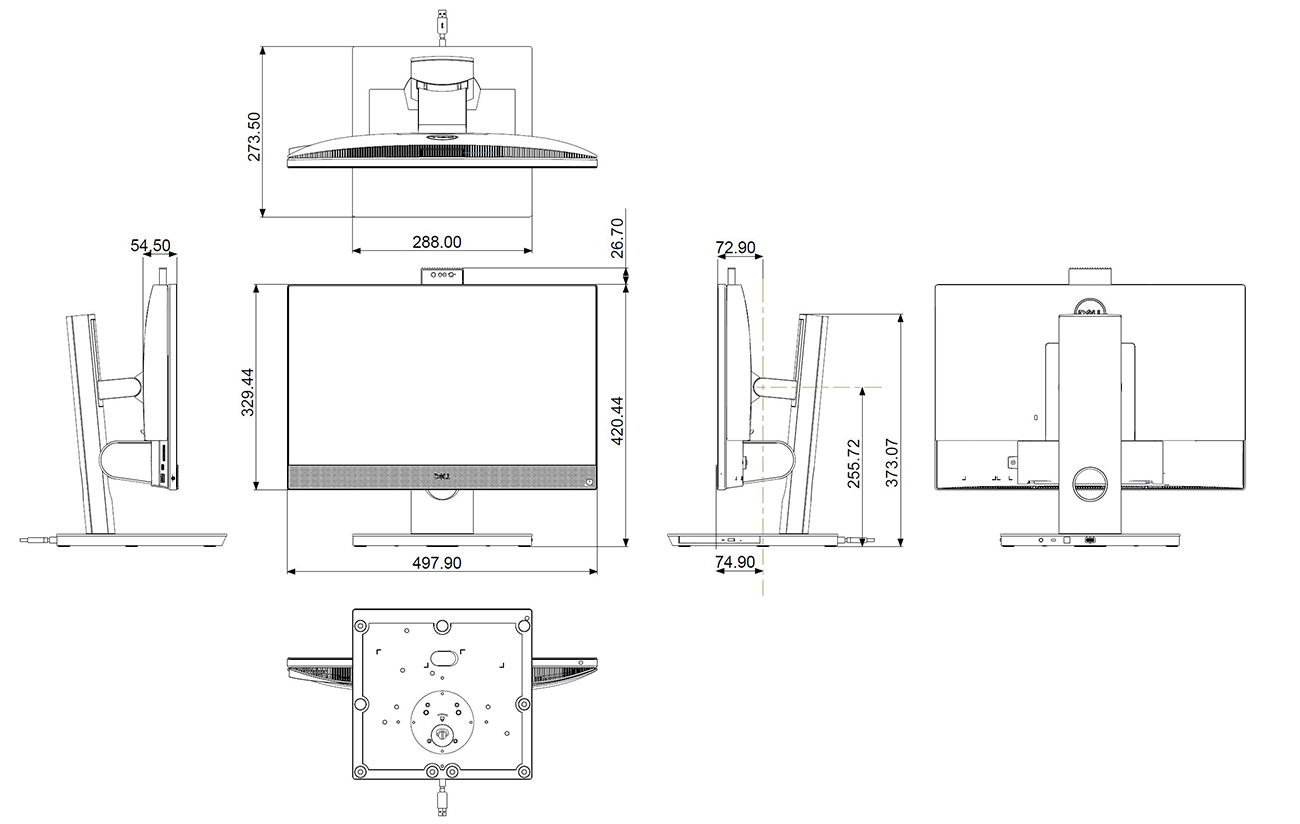

Dimensions and weight

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Dell Optiplex 3280 All-in-One .
Description	Values for touch display	Values for non-touch display
Height	329.40 mm (12.96 in.)	329.40 mm (12.96 in.)
Width	497.90 mm (19.60 in.)	497.90 mm (19.60 in.)
Depth	54.50 mm (2.14 in.)	54.50 mm (2.14 in.)
Weight (maximum)	5.11 kg (11.26 lb)	4.68 kg (10.31 lb)
Weight (minimum)	4.75 kg (10.47 lb)	4.34 kg (9.56 lb)
NOTE:The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors

NOTE:Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards by locking in specific product configurations worldwide.

Device Guard (DG) and Credential Guard (CG) are the new security features that only available on Windows 10 Enterprise today. Device Guard is a combination of enterprise-related hardware and software security features. When you configure together, it locks a device down so that it can only run trusted applications. If it is not a trusted application, it cannot run. Credential Guard uses virtualization-based security to isolate secrets (credentials) so that only privileged system software can access them. Unauthorized access to these secrets can lead to credential theft attacks. Credential Guard prevents these attacks by protecting NTLM password hashes and Kerberos Ticket Granting Tickets.

NOTE:Processor numbers are not a measure of performance. Processor availability subject to change and may vary by region/country.

Table 1. ProcessorsProcessors
Processors	Wattage	Core count	Thread count	Speed	Cache	Integrated graphics
10^th Generation Intel Celeron G5905T	35 W	2	2	3.3 GHz	4 MB	Intel UHD Graphics 610
10^th Generation Intel Pentium Gold G6405T	35 W	2	4	3.5 GHz	4 MB	Intel UHD Graphics 610
10^th Generation Intel Pentium Gold G6505T	35 W	2	4	3.6 GHz	4 MB	Intel UHD Graphics 630
10^th Generation Intel Core i3-10105T	35 W	4	8	3.0 GHz to 3.9 GHz	6 MB	Intel UHD Graphics 630
10^th Generation Intel Core i3-10305T	35 W	4	8	3.0 GHz to 4.0 GHz	8 MB	Intel UHD Graphics 630
10^th Generation Intel Core i5-10400T	35 W	6	12	2.0 GHz to 3.6 GHz	12 MB	Intel UHD Graphics 630
10^th Generation Intel Core i5-10500T	35 W	6	12	2.3 GHz to 3.8 GHz	12 MB	Intel UHD Graphics 630
10^th Generation Intel Core i5-10600T	35 W	6	12	2.4 GHz to 4.0 GHz	12 MB	Intel UHD Graphics 630

Chipset

Table 1. Chipset
The following table provides the chipset specifications for Dell Optiplex 3280 All-in-One .
Description	Values
Chipset	Intel B460
Processor	10^th Generation Intel Core i3, Intel Celeron, and Intel Pentium Gold
DRAM bus width	64-bit (for single channel) 128-bit (for dual channel)
Flash EPROM	32 MB
PCIe bus	Up to Gen 3
Non-volatile memory	Yes
BIOS configuration Serial Peripheral Interface (SPI)	256 Mbit (32 MB) located at SPI_FLASH
Trusted Platform Module (TPM) 2.0 (Discrete TPM Enabled)	24 KB located at TPM 2.0 on chipset
Firmware-TPM (Discrete TPM disabled)	By default the Platform Trust Technology feature is visible to the operating system.
NIC EEPROM	LOM configuration contained within SPI flash ROM instead of LOM e-fuse

Operating system

Your Dell Optiplex 3280 All-in-One supports the following operating systems:

Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Pro National Academic, 64-bit
Windows 10 Home, 64-bit
Windows 10 Pro, 64-bit
Windows 10 Pro Education, 64-bit
Windows 10 IoT Enterprise 2019 LTSC (OEM only)
Ubuntu 18.04 LTS, 64-bit
Neokylin 7.0

Memory

The following table lists the memory specifications of your Dell Optiplex 3280 All-in-One :

Table 1. Memory specificationshe following table lists the memory specifications
Description		Values
Slots		Two SO-DIMM slots
Type		DDR4, Non-ECC
Speed		2666 MHz
Maximum memory		64 GB
Minimum memory		4 GB
Memory size per slot		4 GB, 8 GB, 16 GB, 32 GB
Configurations supported		4 GB, 1 x 4 GB, DDR4, 2666 MHz 8 GB, 1 x 8 GB, DDR4, 2666 MHz 8 GB, 2 x 4 GB, DDR4, 2666 MHz 16 GB, 1 x 16 GB, DDR4, 2666 MHz 16 GB, 2 x 8 GB, DDR4, 2666 MHz 32 GB, 2 x 16 GB, DDR4, 2666 MHz 32 GB, 1 x 32 GB, DDR4, 2666 MHz 64 GB, 2 x 32 GB, DDR4, 2666 MHz

Ports and connectors

Table 1. External ports and connectors
The following table lists ports and connectors available on Dell Optiplex 3280 All-in-One .
Description	Values
External:
Network	One RJ-45 Port 10/100/1000 Mbps (rear)
USB	One USB 3.2 Gen 1 Type-C port (side) One USB 3.2 Gen 1 Type-A port with PowerShare (side) Two USB 2.0 ports with Smart Power On (rear) Two USB 3.2 Gen 1 Type-A ports (rear)
Audio	One Universal audio jack (side) One Line-out audio port (rear)
Video	One DP++ 1.4/HDCP 2.3 port (rear) NOTE:The Display Port is a Single Output port and supports Video Output only.
Media card reader	One SD 3.0 card slot
Docking port	Not supported
Power adapter port	130 W, 7.4 mm x 5.1 mm
Security	One Kensington security-cable slot

Table 2. Internal storage ports and connectors
The following table lists ports and connectors available on Dell Optiplex 3280 All-in-One .
Description	Values
Internal:
M.2	One M.2 2230 slot for Wi-Fi and Bluetooth card One M.2 2230/2280 slot for SSD/Intel Optane NOTE:To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Communications

Ethernet

Table 1. Ethernet specifications
The following table provides the specifications of ethernet that is supported by your Dell Optiplex 3280 All-in-One .
Description	Values
Model number	REALTEK RTL8111HSD-CG
Transfer rate	10/100/1000 Mbps

Wireless module

Table 2. Wireless module specifications
The following table provides the wireless module specifications of Dell Optiplex 3280 All-in-One .
Description	Values
Model number	Intel Wi-Fi 6 AX200	Qualcomm QCA61x4A	Intel 3165
Transfer rate	Up to 2400 Mbps	Up to 867 Mbps	Up to 433 Mbps
Frequency bands supported	2.4 GHz/5 GHz	2.4 GHz/5 GHz	2.4 GHz/5 GHz
Wireless standards	Wi-Fi 802.11 a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)	Wi-Fi 802.11 a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac)	Wi-Fi 802.11 a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5.1	Bluetooth 5.0	Bluetooth 4.2

Audio

Table 1. Audio specifications
The following table provides the detailed audio specifications of Dell Optiplex 3280 All-in-One .
Description		Values
Controller		Realtek codec ALC3246
Stereo conversion		Supported
Internal interface		High definition audio interface
External interface		Universal audio jack
Speakers		Two
External volume controls		Not supported
Speaker output:
	Average	2 W
	Peak	2.5 W
Subwoofer output		Not supported
Microphone		Two

Storage

Your computer supports one of the following configurations:

One 2.5-inch hard-disk drive
One M.2 2230/2280 solid-state drive (class 35, 40)
One M.2 2230/2280 solid-state drive (class 35, 40) and one 2.5-inch hard-disk drive
Dual M.2 2230/2280 solid-state drives (class 35, 40)
Dual M.2 2230/2280 solid-state drives (class 35, 40) and one 2.5-inch hard-disk drive
One 2.5-inch hard-disk drive and one M.2 16 GB Intel Optane Memory

The primary drive of your computer varies with the storage configuration. For computers:

With a M.2 drive, the M.2 drive is the primary drive
Without a M.2 drive, the 2.5-inch hard-disk drive is the primary drive
With a M.2 16 GB Intel Optane memory, the 2.5-inch hard-disk drive is the primary drive

Table 1. Storage specifications
The following table provides the different storage options available on Dell Optiplex 3280 All-in-One .
Storage type	Interface type	Capacity
2.5-inch, 7200 RPM, Hard-disk drive	SATA	Up to 1 TB
2.5-inch, 7200 RPM, Opal Self-Encrypting Hard-disk drive	FIPS SATA	Up to 500 GB
2.5-inch, 5400 RPM, Hard-disk drive	SATA	Up to 2 TB
M.2 2230, PCIe NVMe, Class 35 solid-state drive	Gen 3 PCIe x4 NVMe	Up to 512 GB
M.2 2230, PCIe NVMe, Opal Self-Encrypting Class 35 solid-state drive	Gen 3 PCIe x4 NVMe	Up to 256 GB
M.2 2280, PCIe NVMe, Class 40 solid-state drive	Gen 3 PCIe x4 NVMe	Up to 2 TB
M.2 2280, PCIe NVMe, Opal Self-Encrypting Class 40 solid-state drive	Gen 3 PCIe x4 NVMe	Up to 1 TB

Intel Optane memory

Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.

NOTE:Intel Optane memory is supported on computers that meet the following requirements:

7^th Generation or higher Intel Core i3/i5/i7 processor
Windows 64-bit version or higher
Latest version of Intel Rapid Storage Technology driver

Table 1. Intel Optane memory
The following table provides the Intel Optane memory information for Dell Optiplex 3280 All-in-One .
Description	Values
Type	Memory
Interface	Gen 3 PCIe x4 NVMe
Connector	M.2 2280
Configurations supported	16 GB
Capacity	Up to 16 GB

Media-card reader

Table 1. Media-card reader specifications
The following table provides the media-card specifications of Dell Optiplex 3280 All-in-One .
Description	Values
Type	One Secure Digital (SD) 3.0 card
Cards supported	Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC) Secure Digital (SD) 3.0 SD UHS-I (UHS50)

Camera

Table 1. Full HD Infrared Webcam (with Windows Hello support)The following table provides specifications for Full HD Infrared Webcam:
Description			Values
Number of cameras			Two
Type			FHD RGB camera/VGA Infrared camera
Location			Front camera
Sensor type			CMOS sensor technology
Resolution
	Camera
		Still image	2.07 megapixel
		Video	1920 x 1080 (FHD) at 30 fps
	Infrared camera
		Still image	0.30 megapixel
		Video	640 x 480 (VGA) at 30 fps
Diagonal viewing angle
	Camera		77.5 degrees
	Infrared camera		82.8 degrees

Table 2. Full HD Webcam The following table provides specifications for Full HD Webcam with Pop-up privacy feature:
Description			Values
Number of cameras			One
Type			FHD RGB camera
Location			Front camera
Sensor type			CMOS sensor technology
Resolution
	Camera
		Still image	2.07 megapixels
		Video	1920 x 1080 (FHD) at 30 fps
Diagonal viewing angle			77.4 degrees

Power adapter

Table 1. Power adapter specifications
The following table provides the detailed power adapter specifications of Dell Optiplex 3280 All-in-One .
Description		Values
Type		130 W
Diameter (connector)		7.4 mm x 5.1 mm
Input voltage		100 VAC x 240 VAC
Input frequency		50 Hz x 60 Hz
Input current (maximum)		1.80 A
Output current (continuous)		6.70 A
Rated output voltage		19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)

Display

Table 1. Display specifications
The following table provides the detailed display specifications of Dell Optiplex 3280 All-in-One .
Description		Values for touch display	Values for non-touch display
Type		Full High Definition (FHD)	Full High Definition (FHD)
Panel technology		Wide Viewing Angle (WVA)/In-Plane Switching (IPS)	Wide Viewing Angle (WVA)/In-Plane Switching (IPS)
Luminance		250 Nits (typical) 200 Nits (minimum)	250 Nits (typical) 200 Nits (minimum)
Dimensions (Active area):
	Height	287 mm (11.29 in.)	287 mm (11.29 in.)
	Width	489.3 mm (19.26 in.)	489.3 mm (19.26 in.)
	Diagonal	546.1 mm (21.5 in.)	546.1 mm (21.5 in.)
Native resolution		1920 x 1080	1920 x 1080
Megapixels		16.7 million colors	16.7 million colors
Color gamut		72% NTSC typical	72% NTSC typical
Pixels per inch (PPI)		102	102
Contrast ratio		1000:1:00	1000:1:00
Response time		14 ms (typical) 25 ms (maximum)	14 ms (typical) 25 ms (maximum)
Refresh rate		60 Hz	60 Hz
Horizontal view angle		170 +/-degrees (minimum) 178 +/-degrees (typical)	170 +/-degrees (minimum) 178 +/-degrees (typical)
Vertical view angle		170 +/-degrees (minimum) 178 +/-degrees (typical)	170 +/-degrees (minimum) 178 +/-degrees (typical)
Pixel pitch		0.24 x 0.24 mm	0.24 x 0.24 mm
Power consumption (maximum)		14.7 W	14.7 W
Anti-glare vs glossy finish		Truelife	Anti-glare
Hardness level		7H	3H
Environmental		44.4% Post-Consumer Content (PCC) and no ocean-bound plastics	44.4% Post-Consumer Content (PCC) and no ocean-bound plastics

Video

Table 1. Integrated graphics specifications
The following table provides the detailed integrated graphics specifications of Dell Optiplex 3280 All-in-One .
Integrated graphics
Controller	External display support	Memory size	Processor
Intel UHD 610 Graphics	DP++1.4/HCCP 2.3	Shared system memory	10^th Generation Intel Celeron G5900T 10^th Generation Intel Pentium Gold G6400T
Intel UHD 630 Graphics	DP++1.4/HCCP 2.3	Shared system memory	10^th Generation Intel Core i3/i5 and Intel Pentium Gold G6500T
NOTE:The Display Port is a Single Output port and supports Video Output only.

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Optiplex 3280 All-in-One .
Description	Operating	Storage
Temperature range	10°C to 35°C (50°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	20% to 80% (non-condensing)	5% to 95% (non-condensing)
Vibration (maximum)^*	0.26 GRMS	1.37 GRMS
Shock (maximum)	40 G†	105 G†
Altitude (maximum)	0 m to 3048 m (0 ft to 10000 ft)	0 m to 10668 m (0 ft to 35000 ft)

^{* Measured using a random vibration spectrum
that simulates user environment.}

^{† Measured
using a 2 ms half-sine pulse when the hard drive is in use.}

Security

Table 1. Security The following table provides the hardware security detail for your computer:
Security options
Kensington lock
Dell Lockable port cover (optional)
Chassis lock slot support
Noble Custom AIO Plate Lock (optional)
Supply chain tamper alerts
Chassis intrusion switch
Trusted Platform Module (Discrete TPM Enabled)
SafeBIOS including Dell Off-host BIOS Verification
BIOS Resilience
BIOS Recovery, and additional BIOS Controls
SafeID including Trusted Platform Module (TPM) 2.0
Self-Encrypting Drives (SED)
Smart card keyboard (FIPS)
D-Pedigree (Secure Supply Chain Functionality)
Dell wired mouse with fingerprinter reader

Data security

Table 1. Data securityThe following table provides the list of Dell data security options:
Data security options
McAfee® Small Business Security 30 Day Free Trial
McAfee® Small Business Security 12-month subscription
McAfee® Small Business Security 36-month Subscription
SafeGuard and Response, which is powered by VMware Carbon Black and Secureworks
Next Generation Anti-virus (NGAV)
Endpoint Detection and Response (EDR)
Threat Detection and Response (TDR)
Managed Endpoint Detection and Response
Incident Management Retainer
Emergency Incident Response
SafeData

Environmental

Table 1. Environmental specificationsThe following table provides the environmental details for your system:
Feature	Values
Recyclable packaging	Yes
BFR/PVC—free chassis	No
Vertical orientation packaging support	Yes
Multi-Pack packaging	No
Energy-Efficient Power Supply	Standard
ENV0424 compliant	Yes

NOTE: Wood‐based fiber packaging contains a minimum of 35% recycled content by total weight of wood‐based fiber. Packaging that contains without wood‐based fiber can be claimed as Not Applicable. The anticipated required criteria for EPEAT 2018.

Regulatory

Table 1. RegulatoryRegulatory
Regulatory compliance
EPEAT registered configurations available
ENERGY STAR compliant configurations available
TCO 8.0 certified configurations available
CEL
WEEE
Japan Energy Law
South Korea E-standby
South Korea Eco-label
EU RoHS
China RoHS

Accessories

Table 1. AccessoriesAccessories
Accessories
Audio Optional external speakers, Dell Pro Stereo Headset UC350
Keyboard Dell wired keyboard, Dell wireless keyboard, Dell Smart Card keyboard
Mouse Dell wired mouse, Dell wireless mouse, Dell USB Laser mouse, Dell Fingerprint Reader mouse
Stylus Targus Stylus for Capacitive Touch Devices
Additional Monitor Qualified with select Dell UltraSharp, Professional, and E-series monitors
Locks Noble custom AIO Plate Lock, Dell Combination Lock LC300, Dell Premium Lock LP500, KensingtonTwin Head Lock, Dell Lockable Port Cover
Stands Fixed Stand Articulating Stand Height Adjustable Stand Height Adjustable Stand with Optical Disk Drive

Height Adjustable Stand with Optical Disk Drive

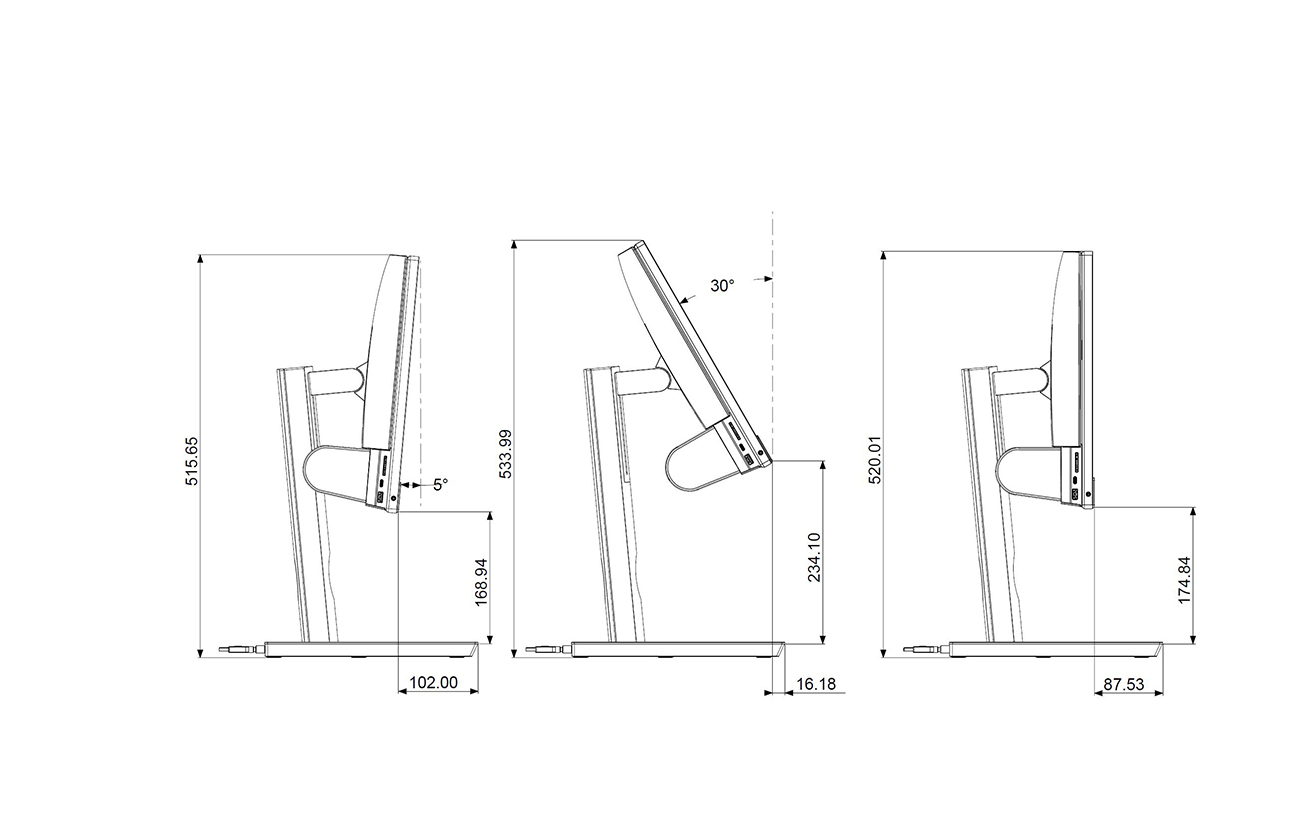

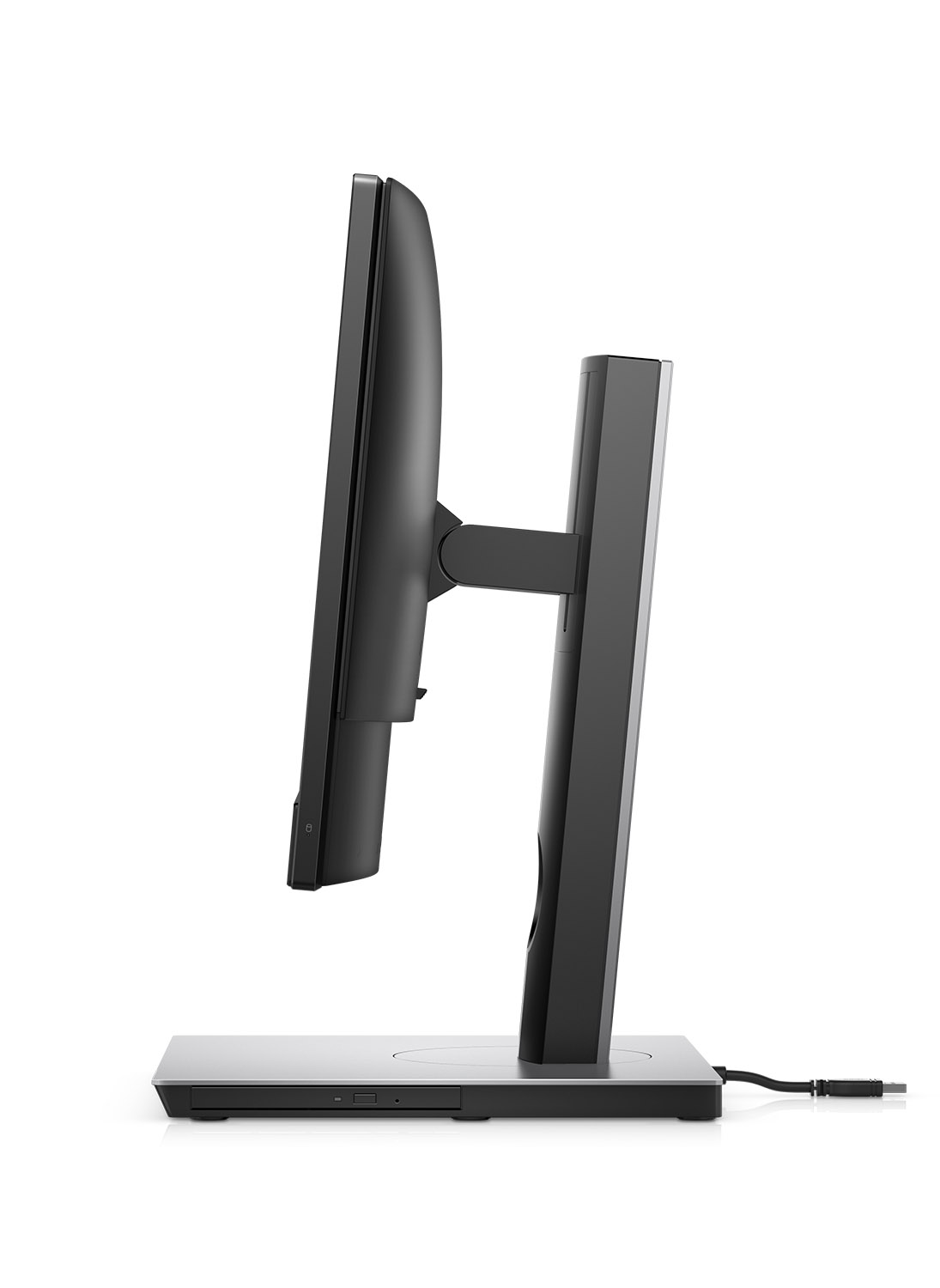

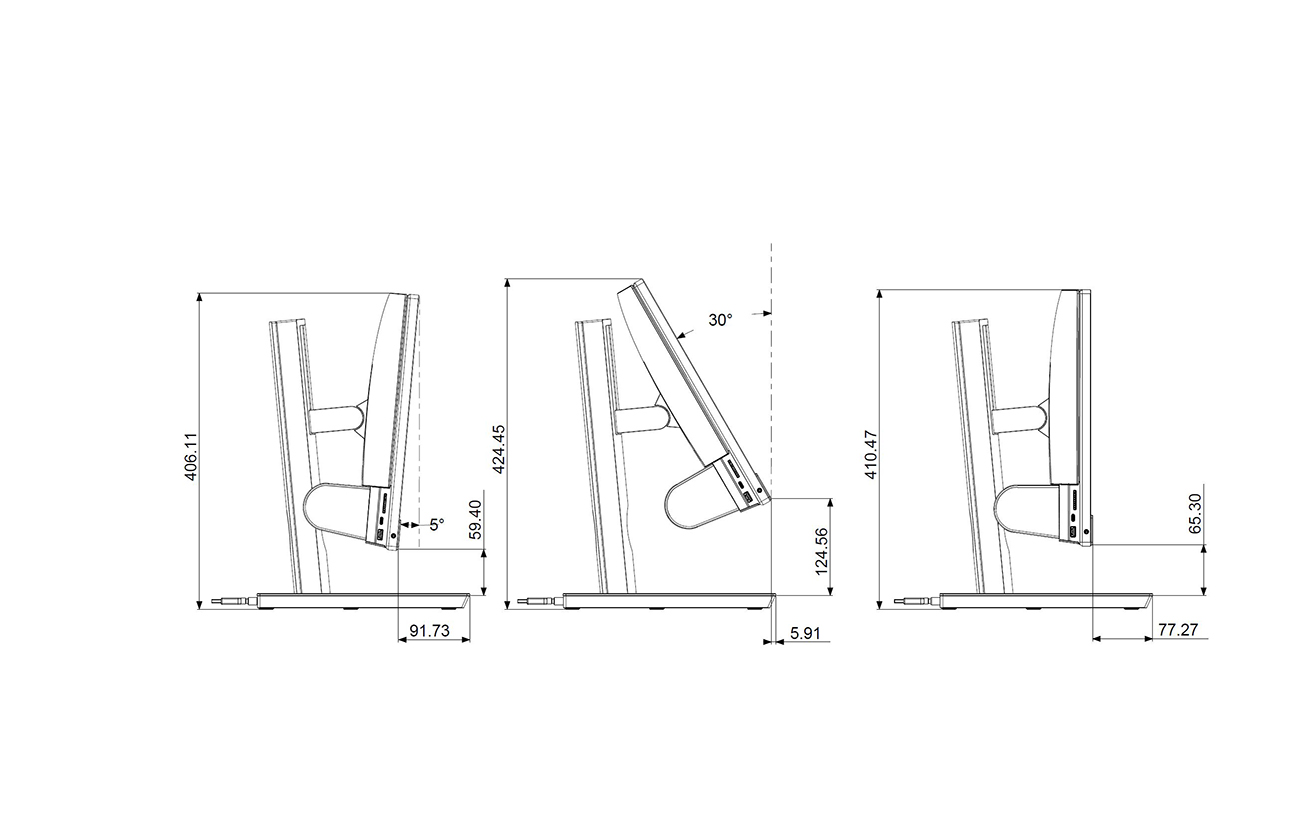

OptiPlex 3280 All-in-One—Height Adjustable Stand with Optical Disk Drive

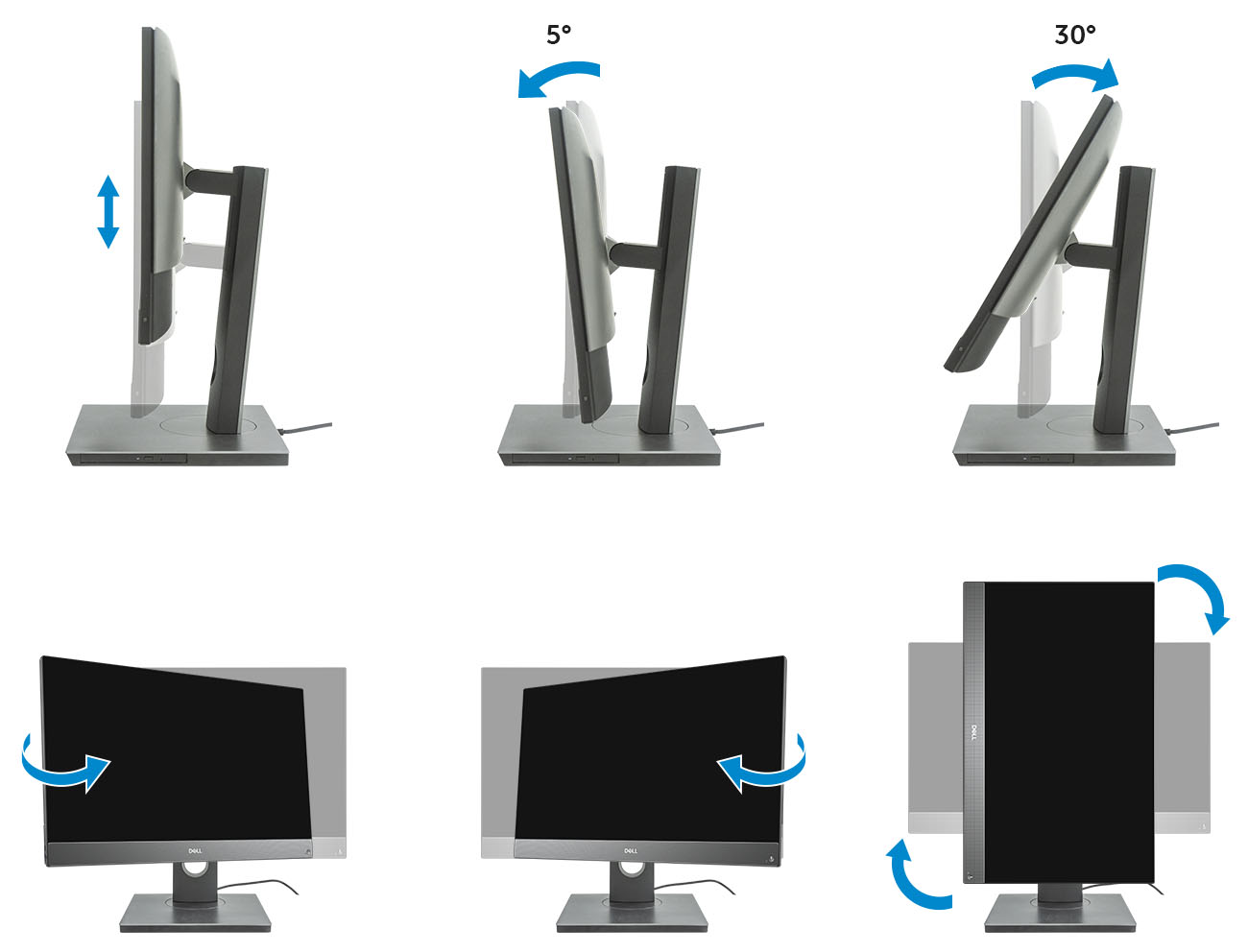

Height Adjustable Stand with Optical Disk Drive position
