Dell Precision 7530: характеристики и спецификации

Base

Table 1. BaseBase
Base
Dell Precision 7530 CTO Type C SC Base
Dell Precision 7530 TAA Type C SC Base
Dell Precision 7530 BTX Type C SC Base

System information

Table 1. System informationSystem information
Features	Specifications
Chipset	Intel CM246 chipset
DRAM bus width	64-bit per channel (total 128 bit)
FLASH EPROM	48 kHz
PCIe bus	8 Gbps
External bus frequency	DMI 3.0-8GT/s

Processor

NOTE Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/country.

Table 1. Processor specificationsProcessor specifications
Type	UMA Graphics
Intel Core Processor i5-8300H, 4 Core, 8M Cache, 2.30GHz up to 4.0GHz Turbo, 45W	Integrated Intel UHD 630
Intel Core Processor i5-8400H, 4 Core, 8M Cache, 2.50GHz up to 4.1GHz Turbo, 45W, vPro	Integrated Intel UHD 630
Intel Core Processor i7-8750H, 6 Core, 9M Cache, 2.20GHz up to 4.1GHz Turbo, 45W	Integrated Intel UHD 630
Intel Core Processor i7-8850H, 6 Core, 9M Cache, 2.60GHz up to 4.3GHz Turbo, 45W, vPro	Integrated Intel UHD 630
Intel Core Processor i9-8950HK, 6 Core, 12MB Cache, 2.90GHz up to 4.60GHz Turbo, 45W	Integrated Intel UHD 630
Intel Xeon E-2176M, 6 Core Xeon, 12M Cache, 2.70GHz up to 4.40GHz Turbo, 45W, vPro	Integrated Intel UHD P630
Intel Xeon E-2186M, 6 Core Xeon, 12M Cache, 2.90GHz up to 4.60GHz Turbo, 45W, vPro	Integrated Intel UHD P630

Memory

Table 1. Memory specificationsMemory specifications
Feature	Specifications
Minimum memory configuration	8 GB
Maximum memory configuration	64 GB
Number of slots	4 SODIMM
Maximum memory supported per slot	32 GB
Memory options	8 GB - 1 x 8 GB 16 GB - 1 x 16 GB 16 GB - 2 x 8 GB 32 GB - 1 x 32 GB 32 GB - 2 x 16 GB 32 GB - 4 x 8 GB 64 GB - 4 x 16 GB 64 GB - 2 x 32 GB
Type	DDR4 SDRAM ECC and Non-ECC memory NOTE ECC memory requires Xeon processors.
Speed	2400 MHz 2666 MHz 2933 MHz

Table 2. Memory population rulesMemory population rules
DIMM Sku	Implementation
X1	B
X2	B+D
X3	A+B+C+D

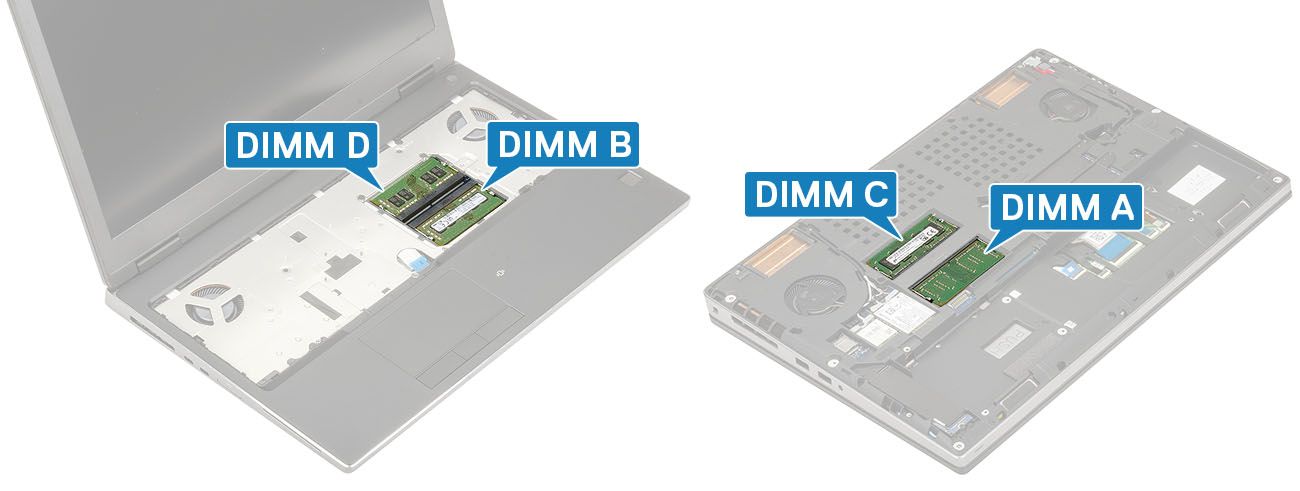

Location of channel A, B, C, D:

B and D under Keyboard– Slot B close to touchpad and Slot D close to LCD
A and C under Base– Slot C close to rear Input/Output and Slot A close to the battery

Storage

Table 1. Storage specificationsStorage specifications
Type	Form factor	Interface	Security option	Capacity
Three Solid-State Drive (SSD)	M.2 2280	SATA AHCI, Up to 6 Gbps PCIe 4x4 NVMe, Up to 32 Gbps	SED	Up to 512 GB Up to 2 TB
One 2.5" Hard-Disk Drive (HHD) with 4 cell battery only	Approximately (2.760 x 3.959 x 0.374 inches)	SATA AHCI, Up to 6 Gbps	SED FIPS	Up to 2 TB

System board connectors

Table 1. System board connectors System board connectors
Features	Specifications
M.2 Connectors	Slot 1 3030 socket 1 key A Slot 2 3042 socket 2 key B Slot 3 2280 socket 3 key M Slot 4 2280 socket 3 key M Slot 5 2280 socket 3 key M
Serial ATA (SATA) connector	1 (with 4 cell battery only)

Media card-reader

Table 1. Media-card reader specificationsMedia-card reader specifications
Features	Specifications
Type	One SD-card slot
Supported cards	SD SDHC SDXC

Audio

Table 1. Audio specificationsAudio specifications
Features	Specifications
Controller	Realtek ALC3281
Type	Four-channel high-definition audio
Speakers	Two (Directional speakers)
Interface	Universal audio jack Stereo headphone Stereo headset Stereo line in Microphone in Stereo line out
Internal speaker amplifier	2W (RMS) per channel

Video

Table 1. Video specificationsVideo specifications
Controller	Type	CPU Dependency	Graphics memory type	Capacity	External display support	Maximum resolution
Intel UHD Graphics 630	UMA	Intel Core Processor i5 Intel Core Processor i7 Intel Core Processor i9	Integrated	Shared system memory	eDP/mDP/HDMI/ Type-C	‎4096×2304
Intel UHD Graphics P630	UMA	Intel Xeon	Integrated	Shared system memory	eDP/mDP/HDMI/ Type-C	‎4096×2304
Radeon Pro WX 4150	Discrete	NA	GDDR5	4 GB	HDMI/mDP/eDP/ USB-C	Single DisplayPort 1.4 - 7680 x 4320 (8k) @ 30 Hz Dual DisplayPort 1.4 - 7680 x 4320 (8k) @ 60 Hz HDMI 2.0 - 4096 x 2160 (4K) @ 60 Hz
NVIDIA Quadro P1000	Discrete	NA	GDDR5	4 GB	eDP/mDP/HDMI/Type-C	Max Digital: Single DisplayPort 1.4 - 7680 x 4320 (8k) @ 30 Hz (mDP/type-c to DP) Dual DisplayPort 1.4 - 7680 x 4320 (8k) @ 60 Hz (mDP/type-c to DP)
NVIDIA Quadro P2000	Discrete	NA	GDDR5	4 GB	eDP/mDP/HDMI/Type-C	Max Digital: Single DisplayPort 1.4 - 7680 x 4320 (8k) @ 30 Hz (mDP/type-c to DP) Dual DisplayPort 1.4 - 7680 x 4320 (8k) @ 60 Hz (mDP/type-c to DP)
NVIDIA Quadro P3200	Discrete	NA	GDDR5	6 GB	eDP/mDP/HDMI/Type-C	Max Digital: Single DisplayPort 1.4 - 7680 x 4320 (8k) @ 30 Hz (mDP/type-c to DP) Dual DisplayPort 1.4 - 7680 x 4320 (8k) @ 60 Hz (mDP/type-c to DP)

Camera

Table 1. Camera specificationsCamera specifications
Features	Specifications
Resolution	Camera: Still image: 0.92 megapixels Video: 1280x720 at 30 fps Infrared camera (optional on FHD non-touch): Still image: 0.30 megapixels Video: 340x340 at 60 fps
Diagonal viewing angle	Camera - 86.7 degrees Infrared camera - 70 degrees

Wireless

Table 1. Wireless specificationsWireless specifications
Maximum transfer rate	867 Mbps
Frequency bands	2.4 GHz/5 GHz
Encryption	64-bit/128-bit WEP

Ports and connectors

Table 1. Ports and connectorsPorts and connectors
Features	Specifications
Memory card reader	SD 4.0 memory card reader
Smart card reader	Standard
USB	Two USB 3.1 Gen 1 ports
Security	Noble wedge lock slot
Docking port	Cable dock support
Audio	Headset port Noise reduction array microphones
Video	Mini DisplayPort 1.4 HDMI 2.0 NOTE For the systems with DisplayPort 1.4 HBR3 is applicable, and HBR2 for every system that has DisplayPort 1.2.
Network adapter	One RJ-45 connector
Thunderbolt	Two thunderbolt 3 Type-C ports

Communications

Table 1. CommunicationsCommunications
Features	Specifications
Network adapter	Integrated Intel i219LM10/100/1000 Mb/s Ethernet (RJ-45 ) with Intel Remote Wake UP and PXE
Wireless	Wi-Fi 802.11n/ac via M.2 Bluetooth

Contactless smart card

Table 1. Contactless smartcard Contactless smartcard reader
Title	Description	Dell ControlVault 3 Contactless Smartcard reader with NFC
Felica Card Support	Reader and software capable of supporting Felica contactless cards	Yes
Prox (Proximity) (125kHz) Card support	Reader and software capable of supporting Prox/Proximity/125kHz contactless cards	No
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC compliant tag information	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer to Peer mode	Yes
EMVCo Compliant	Compliant with EMVCO smartcard standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smartcard standards	Yes
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for OS to utilize	Yes
PC/SC OS interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for OS level drivers	Yes
Windows Certified	Device certified by Microsoft WHCK	Yes
Dell ControlVault support	Device connects to Dell ControlVault for usage and processing	Yes

NOTE 125 Khz proximity cards are not supported.

Table 2. Supported cardsSupported cards
Manufacturer	Card	Supported
HID	jCOP readertest3 A card (14443a)	Yes
	1430 1L
	DESFire D8H
	iClass (Legacy)
	iClass SEOS
NXP/Mifare	Mifare DESFire 8K White PVC Cards	Yes
	Mifare Classic 1K White PVC Cards
	NXP Mifare Classic S50 ISO Card
G&D	idOnDemand - SCE3.2 144K	Yes
	SCE6.0 FIPS 80K Dual+ 1 K Mifare
	SCE6.0 nonFIPS 80K Dual+ 1 K Mifare
	SCE6.0 FIPS 144K Dual + 1K Mifare
	SCE6.0 nonFIPS 144K Dual + 1 K Mifare
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K	Yes
Oberthur	ID-One Cosmo 64 RSA D V5.4 T=0 card	Yes

Display

Table 1. Display specificationsDisplay specifications
Type	15.6-inch FHD WVA, 1920x1080 AG, NT, 45% color NTSC gamut 15.6-inch FHD WVA, 1920x1080 AG, NT, 72% color NTSC gamut 15.6-inch FHD WVA, 1920x1080 TL, Touch, 72% NTSC color gamut 15.6-inch UHD WVA, 1920x1080 AG, NT, 100% Adobe color gamut
Luminance/Brightness (typical)	220 nits (FHD 45% color gamut ) 300 nits (FHD 72% color gamut ) 350 nits (UHD Adobe 100% color gamut)
Height (Active area)	FHD - 193.59 mm (7.62 inches) UHD - 194.40 mm (7.65 inches)
Width (Active area)	FHD - 344.16 mm (13.55 inches) UHD - 345.60 mm (13.61 inches)
Diagonal	FHD - 394.87 mm (15.60 inches) UHD - 396.52 mm (15.60 inches)
Megapixels	FHD - 2.07 UHD - 8.29
Pixels Per Inch (PPI)	FHD - 141 UHD - 282
Contrast ratio	FHD - 700:1 UHD - 1000:1
Refresh rate	60 Hz
Horizontal viewing angle (min)	80/80 degrees
Vertical viewing angle (min)	80/80 degrees
Pixel pitch	FHD - 0.179 mm UHD - 0.090 mm
Power consumption (max)	4.2 W (FHD 45% color gamut ) 6.2 W (FHD 72% color gamut )

Keyboard

Table 1. Keyboard specificationsKeyboard specifications
Features	Specifications
Number of keys	103 (U.S. and Canada) 104 (Europe) 106 (Brazil) 107 (Japan)
Size	Full sized X= 19.00 mm key pitch Y= 19.00 mm key pitch
Backlit keyboard	Optional
Layout	QWERTY/AZERTY/Kanji

Touchpad

Table 1. Touchpad specificationsTouchpad specifications
Features	Specifications
Resolution	Horizontal: 1048 Vertical: 984
Dimensions	Width: 3.92 inches (99.50 mm ) Height: 2.09 inches (53 mm)
Multi-touch	Configurable single finger and multi-finger gestures

NOTE For more information about touchpad gestures for Windows 10, see the knowledge base article 4027871

Operating system

Table 1. Operating systemOperating system
Features	Specifications
Operating systems supported	Windows 10 Home (64 bit) Windows 10 Professional (64 bit) Windows 10 Pro for Workstations (64 bit) Ubuntu 16.04 LTS (64bit) Red Hat Linux Enterprise 8.0

Battery

Table 1. BatteryBattery
Type	64 WHr Lithium ion 4 cell battery with ExpressCharge 97 WHr Lithium ion 6 cell battery with ExpressCharge 97 WHr Lithium ion 6 cell battery with three year warranty
Dimension	64 WHr "smart" lithium-ion Length - 222.40 mm (8.76 in) Width - 73.80 mm (2.90 in) Height - 11.15 mm (0.44 in) Weight - 298.00 g 97 WHr "smart" lithium-ion Length - 332.00 mm (13.07 in) Width - 73.80 mm (2.90 in) Height - 11.15 mm (0.439 in) Weight - 445.00 g
Weight (maximum)	64 WHr - 2.98 kg (0.66 lb) 97 WHr - 4.45 kg (0.98 lb)
Voltage	64 WHr - 7.8 VDC 97 WHr - 11.4 VDC
Life span	300 discharge/recharge cycles
Charging time when the computer is off (approximate)	4 hours
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Temperature range: Operating	0°C to 35°C (32°F to 95°F)
Temperature range: Storage	-40°C to 65°C (-40°F to 149°F)
Coin-cell battery	ML1220

Power adapter

Table 1. Power adapter specificationsPower adapter specifications
Features	Specifications
Type	180 W adapter
Input Voltage	100 to 240 VAC
Input current (maximum)	180 W - 2.34 A
Input frequency	50 Hz to 60 Hz
Output current	180 W - 9.23 A (continuous)
Rated output voltage	19.5 VDC
Temperature range (Operating)	0º to 40º C (32º to 104º F)
Temperature range (Non-Operating)	40º to 70º C (-40º to 158º F)

Dimensions and weight

Table 1. Dimensions and weightDimensions and weight
Features	Specifications
Height	Front height (Touch) - 1.02 inches (25.9 mm) Rear height (Touch) - 1.21 inches (30.85 mm) Front height (Non-touch) - 0.98 inches (25.0 mm) Rear height (Non-touch) - 1.18 inches (29.97 mm)
Width	14.87 inches (377.60 mm)
Depth	9.89 inches (251.30 mm)
Weight	Starting 5.57 lbs (2.52 kg)

Security

Table 1. SecuritySecurity
Trusted Platform Module (TPM) 2.0	Integrated on system board
Smartcard	Yes
