Dell Latitude 7230 Rugged Extreme Tablet: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Latitude 7230 Rugged Extreme Tablet.
Description		Values
Height:
	Front height	0.94 in. (23.90 mm)
	Rear height	0.94 in. (23.90 mm)
Width		11.65 (296.00 mm)
Depth		7.99 (203.00 mm)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		Minimum—1.26 kg (2.78 lbs) Maximum—1.59 kg (3.49 lbs)

Processor

The following table lists the details of the processors that are supported on your Latitude 7230 Rugged Extreme Tablet.

Table 1. Processor The following table lists the details of the processors that are supported in your Latitude 7230 Rugged Extreme Tablet.
Description	Option one	Option two	Option three
Type	12^th Generation Intel Core i3-1210U	12^th Generation Intel Core i5-1240U	12^th Generation Intel Core i7-1260U
Wattage	9 W	9 W	9 W
Core count	6	10	10
Thread count	8	12	12
Speed	Up to 4.40 GHz	Up to 4.40 GHz	Up to 4.70 GHz
Cache	10 MB	12 MB	12 MB
Integrated graphics	Intel UHD Graphics	Intel Iris X^e Graphics	Intel Iris X^e Graphics

Chipset

The following table lists the details of the chipset that is supported by your Latitude 7230 Rugged Extreme Tablet.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Latitude 7230 Rugged Extreme Tablet.
Description	Values
Chipset	Intel ADL-P PCH
Processor	12^th Generation Intel Core i3/i5/i7
DRAM bus width	64-bit
Flash EPROM	32 MB/48 MB
PCIe bus	Up to Gen4

Operating system

Your Latitude 7230 Rugged Extreme Tablet supports the following operating systems:

Windows 11 2022H2 Pro
Windows 11 2021H2 Pro
Windows 10 2021H2 Pro
Windows 10 2021H1 Pro

Memory

The following table lists the memory specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Values
Memory slots		Two integrated on system board
Memory type		Dual-channel LPDDR5 (Non-ECC)
Memory speed		5200 MHz
Maximum memory configuration		32 GB
Minimum memory configuration		8 GB
Memory configurations supported		8 GB, 2 x 4 GB, LPDDR5, 5200 MHz 16 GB, 2 x 8 GB, LPDDR5, 5200 MHz 32 GB, 2 x 16 GB, LPDDR5, 5200 MHz

External ports and slots

The following table lists the external ports and slots on your Latitude 7230 Rugged Extreme Tablet.

Table 1. External ports and slots
The following table lists ports and connectors available on Latitude 7230 Rugged Extreme Tablet.
Description	Values
Network port	Ethernet connection is available through optional Expansion Module or dock
USB ports	Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery One optional I/O bay (Choose from: HDMI/USB Type-A USB3.2 Gen1) One USB 3.2 Gen 1 port with PowerShare One optional I/O bay (Choose from: RJ-45/Fischer USB 3.0/Mini-serial RS232/1D-2D barcode scanner/Blank)
Audio port	One headset (headphone and microphone combo) port
Video port(s)	Supported through a dock or directly through USB Type-C/HDMI
Media-card reader	One microSD-card slot
Power-adapter port	65 W/90 W adapter USB-C
Security-cable slot	One wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Internal slotsThe following table lists the internal slots on your Latitude 7230 Rugged Extreme Tablet.
Description	Values
M.2	One M.2 2230 slot for solid-state drive One M.2 2230 slot for Wi-Fi and Bluetooth card One M.2 3042 slot for WWAN card NOTE:To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at Dell Support Site.

Ethernet

The following table lists the wired ethernet Local Area Network (LAN) specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Ethernet specifications
The following table provides the specifications of ethernet that is supported by your Latitude 7230 Rugged Extreme Tablet.
Description	Values
Model	Intel Ethernet i219LM
Transfer rate	10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Latitude 7230 Rugged Extreme Tablet.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Latitude 7230 Rugged Extreme Tablet.
Description	Option one	Option two
Model number	Qualcomm WCN6856-DBS	Intel AX211
Transfer rate	Up to 3571 Mbps	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.3	Bluetooth 5.2

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 7230 Rugged Extreme Tablet.

NOTE:Customers can select eSIM or non-eSIM configuration at the time of purchase. All WWAN configurations include a WWAN card and a physical SIM slot, regardless of eSIM availability.

Table 1. WWAN module specificationsThe following table provides the WWAN module specifications of your computer.
Description	Option one	Option two
Model number	Qualcomm Snapdragon X20 Global Gigabit LTE, CAT16	Qualcomm Snapdragon X55 Global 5G Modem
Form factor	M.2 3042 Key-B	M.2 3042 Key-B
Host interface	USB 3.0/2.0	PCIe Gen3
Network standard	LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Beidou/Galileo	NR FR1(Sub6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Beidou/Galileo
Transfer data rate	Up to 1 Gbps DL (CAT16) Up 150 Mbps UL	Up to 3 Gbps DL (3GPP Release15 NR/LTE CAT20) Up to 250 Mbps UL
Operating Frequency Bands	LTE(B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B42, B43, B46, B66) HSPA+ (1, 2, 4, 5, 6, 8, 9, 19)	NR(n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79) LTE(B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71) HSPA+ (1, 2, 4, 5, 6, 8, 9,19) Only enabled on specific platforms
Power supply	DC 3.135 V to 4.4 V, Typical 3.3 V	DC 3.13 V to 3.63 V, Typical 3.3 V
SIM card	Supported through external SIM slot	Supported through external SIM slot
eSIM with Dual SIM (DSSA)	Supported (the availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)	Supported (the availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)
Antenna Diversity	Supported	Supported
Radio On/Off	Supported	Supported
Wake On Wireless	Supported	Not supported
Temperature	Normal operating temperature: -30°C to + 70°C Extended Operating temperature: -40°C to +85°C	-Normal operating temperature: -30°C to + 70°C -Extended Operating temperature: -40°C to +85°C
Antenna connector	WWAN Main Antenna x 1 WWAN Diversity Antenna x 1 4 x 4 MIMO Antenna x 2	WWAN ANT0 x 1 WWAN ANT1 x 1 WWAN ANT2 x 1 WWAN ANT3 X 1

Optional GPS module

The following table lists the u-blox NEO-M9N module that is supported on your Latitude 7230 Rugged Extreme Tablet.

Table 1. u-blox NEO-M9N module specificationsNEO-M9N-00B module specifications
u-blox NEO-M9N module
Interface	UART (default), SPI, I2C, USB
Performance
Receiver type	92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F, BeiDou B1l, Galileo E1 B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Navigation update rate (maximum)	25 Hz (four concurrent GNSS modes)
Position accuracy	2.0 m CEP (four concurrent GNSS modes)
Supported protocol	UBX NMEA 4.10 (default), 4.0, 2.3, and 2.1 RTCM 3.3
Security features	Anti-jamming Anti-spoofing Configuration lockdown Message integrity Secure boot JTAG debug port (locked by default)
Baud rate	38400
Absolute maximum ratings
Power supply voltage	-0.5 V (minimum) 3.6 V (maximum)
Storage temperature	-40°C to 85°C (-40°F to 185°F)
Operating conditions
Power supply voltage	2.7 V (minimum) 3.6 V (maximum)
Operating temperature	-40°C to 85°C (-40°F to 185°F)

Audio

The following table lists the audio specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Values
Audio controller		Realtek ALC3254
Stereo conversion		Supported
Internal audio interface		High definition audio interface
External audio interface		Universal Audio Jack/HDMI 1.4b port
Number of speakers		2
Internal-speaker amplifier		Supported
External volume controls		Supported
Speaker output:
	Average	2 W
	Peak	2.5 W
Microphone		Dual-array

Storage

This section lists the storage options on your Latitude 7230 Rugged Extreme Tablet.

Your Latitude 7230 Rugged Extreme Tablet supports the following storage configuration:

One M.2 2230 solid-state drive

Table 1. Storage specifications
The following table provides the different storage options available on Latitude 7230 Rugged Extreme Tablet.
Storage type	Interface type	Capacity
M.2 2230 solid-state drive	PCIe NVMe Gen4 x4	256 GB/512 GB/1 TB
M.2 2230 solid-state drive, Self-encrypting, Opal 2.0	PCIe NVMe Gen3 x4	256 GB
M.2 2230 solid-state drive, Self-encrypting, Opal 2.0	PCIe NVMe Gen4 x4	256 GB

Media-card reader

The following table provides the specification of media cards that are supported by your Latitude 7230 Rugged Extreme Tablet.

Table 1. Media-card reader specificationsThe following table provides the specification of media cards that are supported by your Latitude 7230 Rugged Extreme Tablet.
Description	Values
Media-card slot type	One microSD 4.0 card
Media-cards supported	Micro Secure Digital (mSD) Micro Secure Digital High Capacity (mSDHC) Micro Secure Digital Extended Capacity (mSDXC)
NOTE:The maximum capacity of the media-card reader varies depending on the standard of the media card that is inserted in your computer.

Keyboard

The following table lists the keyboard specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Latitude 7230 Rugged Extreme Tablet.
Description	Values
Keyboard type	1-zone RGB backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 82 keys United Kingdom: 83 keys Japan: 86 keys
Key pitch	X=19.05 mm key pitch Y=19.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS Setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, see the Knowledge Base Resource at the Dell Support site.

Camera

The following table lists the camera specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Front camera specifications
The following table provides the detailed camera specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Values
Number of cameras		Two
Camera type		5M RGB camera/VGA IR camera
Camera location		Front camera
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	2592 x 1944 megapixel
	Video	1920 x 1080 (VGA/HD) at 30 fps
Infrared camera resolution:
	Still image	640 x 480 megapixel
	Video	640 x 480 (VGA/HD) at 30 fps
Diagonal viewing angle:
	Camera	92.0 degrees
	Infrared camera	77.3 degrees

Table 2. Rear camera specifications
The following table provides the detailed camera specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Values
Number of cameras		One
Camera type		11M RGB camera
Camera location		Rear camera
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	3976 x 2736 megapixel
	Video	1920 x 1080 (VGA/HD) at 30 fps
Diagonal viewing angle:
	Camera	97.0 degrees

Touchpad

The following table lists the touchpad specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Values
Touchpad resolution:
	Horizontal	>300 dpi
	Vertical	e.g. 749
Touchpad dimensions:
	Horizontal	104.4 mm
	Vertical	54.9 mm
Touchpad gestures		For more information about the touchpad gestures available on Windows, see the Microsoft Knowledge Base article at Microsoft Support Site.

Battery

The following table lists the battery specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Option one	Option two
Battery type		35.6 Wh 2-cell battery, ExpressCharge^TM	35.6 Wh 2-cell battery, Long Lifecycle ExpressCharge^TM
Battery voltage		7.6 VDC	7.6 VDC
Battery weight (maximum)		0.17 kg	0.17 kg
Battery dimensions:
	Height	103.98 mm	103.98 mm
	Width	62.83 mm	62.83 mm
	Depth	15.15 mm	15.15 mm
Temperature range:
	Operating	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
	Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)		0°C~15°C—4 hours (when the computer is off) 16°C~45°C—2 hours (when the computer is off) 46°C~50°C—3 hours(when the computer is off)	0°C~15°C—4 hours (when the computer is off) 16°C~45°C—2 hours (when the computer is off) 46°C~50°C—3 hours(when the computer is off)
Coin-cell battery		CR2032	CR2032
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption. If your battery charge is depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. NOTE:For more information about the battery FAQs, search in the Knowledge Base Resource at Dell Support Site.

Power requirements

NOTE: The information in this section is applicable to the European Union (EU) countries.

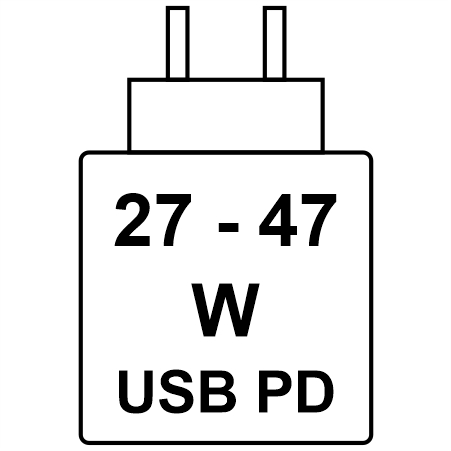

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 47 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power adapter

The following table lists the power adapter specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Option one	Option two
Type		65 W adapter USB-C	90 W adapter USB-C
Power-adapter dimensions:
	Height	28 mm (1.1 in.)	22 mm (0.87 in.)
	Width	51 mm (2.01 in.)	66 mm (2.6 in.)
	Depth	112 mm (4.41 in.)	130 mm (5.12 in.)
Input voltage		100 VAC to 240 VAC	100 VAC to 240 VAC
Input frequency		50 Hz to 60 Hz	50 Hz to 60 Hz
Input current (maximum)		1.7 A	1.5 A
Output current (continuous)		20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9.0 V/3 A (Continuous) 5.0 V/3 A (Continuous)	20 V/4.5 A (Continuous) 15 V/3 A (Continuous) 9.0 V/3 A (Continuous) 5.0 V/3 A (Continuous)
Rated output voltage		20 VDC/15 VDC/9 VDC/5 VDC	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements:

Table 1. Power adapter requirements The following table lists the power adapter for your Latitude 7230 Rugged Extreme Tablet.
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported NOTE:Ensure that the computer is connected to a 65 W power adapter for this feature to be supported.
ExpressCharge mode	Supported NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen by selecting Power > Battery Configuration > ExpressCharge, then pressing Enter. NOTE:Ensure that the computer is connected to a 65 W power adapter to achieve ExpressCharge .

Display

The following table lists the display specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Display specifications
The following table provides the detailed display specifications of Latitude 7230 Rugged Extreme Tablet.
Description		Values
Display type		Full High Definition Plus (FHD+)
Touch options		Capacitive 10 fingers touch
Display-panel technology		Wide View Angle (WVA), Color Active Matrix TFT LCD, LED Backlight
Display-panel dimensions (active area):
	Height	162.00 mm
	Width	259.20 mm
	Diagonal	305.70 mm
Display-panel native resolution		1920 x 1200
Luminance (typical)		1200 nits (with touch glass)
Megapixels		2.304 megapixels
Color gamut		100% (sRGB)
Pixels Per Inch (PPI)		188
Contrast ratio (minimum)		1000:1
Response time (maximum)		35 ms
Refresh rate		60 Hz
Horizontal view angle		88 +/- degrees
Vertical view angle		88 +/- degrees
Pixel pitch		0.135 mm x 0.135 mm
Power consumption (maximum)		8.15 W
Anti-glare vs glossy finish		Anti-glare touch glass surface

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Latitude 7230 Rugged Extreme Tablet.
Description	Values
Sensor technology	Capacitive
Sensor resolution	363 dpi
Sensor pixel size	76 mm x 100 mm

Sensors

The following table lists the sensors of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Sensor The following table lists the sensor of your Latitude 7230 Rugged Extreme Tablet.
Sensor support
Hall Effect Sensor
Accelerometer+Gyroscope
eCompass/Magnetometer
Ambient Light Sensor
Proximity Sensor (SAR)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 7230 Rugged Extreme Tablet.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Latitude 7230 Rugged Extreme Tablet.
Controller	Memory size	Processor
Intel UHD Graphics	Shared system memory	12^th Generation Intel Core i3
Intel Iris Xe Graphics	Shared system memory	12^th Generation Intel Core i5/i7

Multiple display support matrix

The following table lists the multiple display support matrix for your Latitude 7230 Rugged Extreme Tablet.

Table 1. Multiple display support matrixThe following table provides the multiple display support matrix for your Latitude 7230 Rugged Extreme Tablet.
Graphics Card	Supported external displays with computer internal display on	Supported external displays with computer internal display off
Intel UHD Graphics	3	4
Intel Iris X^e Graphics	3	4

Hardware security

The following table lists the hardware security of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Hardware security The following table provides the hardware security details on your Latitude 7230 Rugged Extreme Tablet.
Hardware security
Wedge-shaped lock slot
Trusted Platform Module (TPM) 2.0 discrete
ControlVault 3 Advanced Authentication with FIPS 140-2 Level 3 Certification
FIPS (Federal Information Processing Standards) 140-2 certification for Trusted Platform Module (TPM)
Trusted Computing Group(TCG) Certification for TPM
Fingerprint Reader with Control Vault 3
Contacted Smart Card and Control Vault 3
Optional Contactless Smart Card, NFC, and Control Vault 3
Self Encrypting Drive (SED), Opal 2.0 only - PCIe Interface
Chassis Intrusion Detection
Battery Removal Detection
RPMC SPI flash
SPI Flash Tamper Detection/Prevention Shunt Circuit

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Contactless smart-card reader specificationsThe following table lists the contactless smart-card reader specifications on your Latitude 7230 Rugged Extreme Tablet.
Title	Description	Dell ControlVault 3 contactless smart-card reader with NFC
Felica Card Support	Reader and software capable of supporting Felica contactless cards	Yes
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC compliant tag information	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer to Peer mode	Yes
EMVCo Compliant	Compliant with EMVCO smart card standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart card standards	Yes
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for OS to utilize	Yes
PC/SC OS interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for OS level drivers	Yes
Windows Certified	Device certified by Microsoft WHCK	Yes
Dell ControlVault support	Device connects to Dell ControlVault for usage and processing	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC	Yes

NOTE:125 Khz proximity cards are not supported.

Table 2. Supported cardsThe following table lists the supported cards on your Latitude 7230 Rugged Extreme Tablet.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	iClass (Legacy)
	iClass SEOS
NXP/Mifare	Mifare DESFire 8K White PVC Cards
	Mifare Classic 1K White PVC Cards
	NXP Mifare Classic S50 ISO Card
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80K Dual+ 1 K Mifare
	SCE6.0 nonFIPS 80K Dual+ 1 K Mifare
	SCE6.0 FIPS 144K Dual + 1K Mifare
	SCE6.0 nonFIPS 144K Dual + 1 K Mifare
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K
Oberthur	ID-One Cosmo 64 RSA D V5.4 T=0 card

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Latitude 7230 Rugged Extreme Tablet.

Table 1. Contacted smart-card reader specificationsThe following table lists the contacted smart-card reader specifications on your Latitude 7230 Rugged Extreme Tablet.
Title	Description	Dell ControlVault 3 smart-card reader
ISO 7816 -3 Class A Card Support	Reader capable of reading 5V powered smart card	Yes
ISO 7816 -3 Class B Card Support	Reader capable of reading 3V powered smart card	Yes
ISO 7816 -3 Class C Card support	Reader capable of reading 1.8V powered smart card	Yes
ISO 7816-1 Compliant	Specification for the reader	Yes
ISO 7816 -2 Compliant	Specification for smart card device physical characteristics (size, location of connection points, etc.)	Yes
T=0 support	Cards support character level transmission	Yes
T=1 support	Cards support block level transmission	Yes
EMVCo Compliant	Compliant with EMVCo (for electronic payment standards) smart card standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart card standards	Yes
PC/SC OS interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for OS level drivers.	Yes
Windows Certified	Device certified by WHCK	Yes
FIPS 201-2/FIPS 201-3 (PIV/HSPD-12) Compliant via GSA	Device compliant with FIPS 201-2/FIPS 201-3 (PIV/HSPD-12) requirements	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC	Yes

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 7230 Rugged Extreme Tablet.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Latitude 7230 Rugged Extreme Tablet.
Description	Operating	Storage
Temperature range	-29°C to 63°C (-20.2°F to 145.4°F)	-51°C to 71°C (-59.8°F to 159.8°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	5% to 95% (non-condensing)
Vibration (maximum)^*	0.20 GRMS	1.37 GRMS
Shock (maximum)	40 G†	30 G†
Altitude range	12192 (40,000 ft)	12192 (40,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell Latitude 7230 Rugged Extreme Tablet: технические характеристики и спецификации
