Dell Latitude 7030 Rugged Extreme Tablet: руководство по обслуживанию

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Latitude 7030 Rugged Extreme Tablet.
Description		Values
Front height		25.40 mm (1 in.)
Rear height		25.40 mm (1 in.)
Width		262.50 mm (10.33 in.)
Depth		188 mm (7.40 in.)
Weight NOTE:The weight of your tablet depends on the configuration ordered and manufacturing variability.		1.01 kg (2.24 lb)

Processor

The following table lists the details of the processors that are supported on your Latitude 7030 Rugged Extreme Tablet.

Table 1. Processor The following table lists the details of the processors that are supported in your Latitude 7030 Rugged Extreme Tablet.
Description	Option one	Option two	Option three
Type	12th Generation Intel Core i3-1210U	12th Generation Intel Core i5-1240U	12th Generation Intel Core i7-1260U
Wattage	9 W	9 W	9 W
Core count	6	10	10
Thread count	8	12	12
Speed	Up to 4.40 GHz	Up to 4.40 GHz	Up to 4.70 GHz
Cache	10 MB	12 MB	12 MB
Integrated graphics	Intel UHD Graphics	Intel Iris X^e Graphics	Intel Iris X^e Graphics

Chipset

The following table lists the details of the chipset that is supported by your Latitude 7030 Rugged Extreme Tablet.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Latitude 7030 Rugged Extreme Tablet.
Description	Values
Chipset	Intel ADL-M
Processor	12th Generation Intel Core i3/i5/i7
DRAM bus width	64-bit
Flash EPROM	32 MB/48 MB
PCIe bus	Up to Gen4 (from processor for solid-state drive only) Up to Gen3 (from PCH only)

Operating system

Your Latitude 7030 Rugged Extreme Tablet supports the following operating systems:

Windows 11 2022H2 Pro
Windows 11 2021H2 Pro
Windows 10 2022H2 Pro

Memory

The following table lists the memory specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Latitude 7030 Rugged Extreme Tablet.
Description		Values
Memory slots		On-board memory
Memory type		Dual-channel LPDDR5/LPDDR5x (Non-ECC)
Memory speed		5200 MT/s
Maximum memory configuration		32 GB
Minimum memory configuration		8 GB
Memory configurations supported		8 GB, 2 x 4 GB, LPDDR5, 5200 MT/s 16 GB, 2 x 8 GB, LPDDR5x, 5200 MT/s 32 GB, 2 x 16 GB, LPDDR5x, 5200 MT/s

External ports

The following table lists the external ports of your Latitude 7030 Rugged Extreme Tablet.

Table 1. External ports
The following table lists ports and connectors available on Latitude 7030 Rugged Extreme Tablet.
Description	Values
Network port	Ethernet connection available through optional expansion module or dock
USB ports	With internal battery - Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery With hot‐swappable battery - Two USB 3.2 Gen 2 Type-C ports with DisplayPort Alt Mode/USB4/Power Delivery USB 3.2 Gen 1 port with PowerShare
Audio port	One optional universal audio jack
Video port	Supported through a dock or directly through USB Type-C ports
Media-card reader	One microSD-card slot
Power-adapter port	65W/90W adapter, USB Type-C
SIM slot	One microSIM-card slot
Security-cable slot	One wedge-shaped lock slot
Optional ports	One optional I/O bay (Choose from: RJ45/USB 3.2 Gen 1 port/universal audio jack/1D‐2D barcode scanner/blank)

Internal slots

The following table lists the internal slots of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Internal slotsThe following table lists the internal slots on your Latitude 7030 Rugged Extreme Tablet.
Description	Values
M.2	One M.2 2230 slot for solid-state drive One M.2 2230 slot for Wi-Fi and Bluetooth card One M.2 3042 slot for WWAN card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Ethernet (optional)

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Ethernet specifications
The following table provides the specifications of Ethernet that is supported by your Latitude 7030 Rugged Extreme Tablet.
Description	Values
Model number	Intel Ethernet i219LM
Transfer rate	10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Latitude 7030 Rugged Extreme Tablet.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Latitude 7030 Rugged Extreme Tablet.
Description	Option one	Option two
Model number	Qualcomm WCN6856-DBS	Intel AX211
Transfer rate	Up to 3571 Mbps	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card	Bluetooth 5.3 wireless card	Bluetooth 5.3 wireless card
NOTE:The version of the Bluetooth wireless card may vary depending on the operating system that is installed on your tablet.

Mobile broadband

The following table lists the Mobile broadband supported on your Latitude 7030 Rugged Extreme Tablet.

Table 1. Mobile broadband specificationsThe following table provides the Mobile broadband specifications of Latitude 7030 Rugged Extreme Tablet.
Description	Option one	Option two	Option three
Model number	Qualcomm Snapdragon X12 Global LTE‐Advanced (DW5825e), eSIM	Dell 5G 5000 Global Gigabit NR/LTE (DW5931e), eSIM	Qualcomm Snapdragon X62 Global 5G Modem (DW5932e)
Form factor	M.2 3042 Key-B	M.2 3052 Key-B	M.2 3042 Key-B
Host interface	USB 3.0/2.0	PCIe Gen3	PCIe Gen3
Network standard	LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Beidou/Galileo	NR FR1(Sub6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Galileo/BDS/QZSS	NR FR1(Sub6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Galileo/Beidou
Transfer data rate	Up to 600 Mbps DL (CAT12) Up 150 Mbps UL	SA: DL 4.67 Gbps/UL 1.25 Gbps NSA: DL 3.74 Gbps/UL 700 Mbps LTE: DL 1.6 Gbps (CAT19)/UL 150 Mbps UMTS: DL 384kbps/UL 384 kbps DL DC-HSPA+: 42 Mbps (CAT24)/UL 11.5 Mbps (CAT7)	5G NR: DL 3.5Gbps/ UL 900 Mbps LTE: DL 1.6 Gbps (CAT19)/ UL 211 Mbps (CAT18) UMTS: DL DC-HSPA+ Rel8:42Mbps/UL 5.76 Mbps
Operating Frequency Bands	LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66, B71) HSPA+ (1,2,4,5,6,8,19)	NR (n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8) Modem hardware supports, but currently disabled.	NR(n1, n2, n3, n5, n7, n8, n12, n13, n14, 18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n53, n66, n70, n71, n75, n76, n77, n78, n79) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8)
Power supply	DC 3.135 V to 4.4 V, typical 3.3 V	DC 3.135 V to 4.4 V, typical 3.3 V	DC 3.135 V to 3.63 V, typical 3.3 V
SIM card	Supported through external SIM slot	Supported through external SIM slot	Supported through external SIM slot
eSIM with Dual SIM (DSSA)	Supported (the availability of eSIM functionality that is embedded on the module depends the region and specific carrier requirements)	Supported (the availability of eSIM functionality that is embedded on the module depends the region and specific carrier requirements)	Supported (the availability of eSIM functionality that is embedded on the module depends the region and specific carrier requirements)
Antenna Diversity	Supported	Supported	Supported
Radio On/Off	Supported	Supported	Supported
Wake On Wireless	Supported	Supported	Supported
Temperature	Normal operating temperature: -10°C to +55°C Extended Operating temperature: -30°C to +75°C	Normal operating temperature: -10°C to +55°C Extended operating temperature: -30°C to +75°C Storage temperature: -40°C to +85°C	Normal operating temperature: –30°C to +70°C Extended operating temperature: –40°C to +85°C Storage temperature: –40°C to +85°C
Antenna connector	WWAN Main Antenna x 1 WWAN Diversity Antenna x 1	WWAN Antenna x 4 Supports 4x4 MIMO	WWAN Main Antenna X 1 WWAN Diversity Antenna X 1 4 x 4 MIMO Antenna x 2

GPS module

The following table lists the u-blox NEO-M9N module that is supported on your Latitude 7030 Rugged Extreme Tablet.

Table 1. u-blox NEO-M9N module specificationsNEO-M9N-00B module specifications
u-blox NEO-M9N module
Interface	UART (default), SPI, I2C, USB
Performance
Receiver type	92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F, BeiDou B1l, Galileo E1 B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Navigation update rate (maximum)	25 Hz (four concurrent GNSS modes)
Position accuracy	2.0 m CEP (four concurrent GNSS modes)
Supported protocol	UBX NMEA 4.10 (default), 4.0, 2.3, and 2.1 RTCM 3.3
Security features	Anti-jamming Anti-spoofing Configuration lockdown Message integrity Secure boot JTAG debug port (locked by default)
Baud rate	38400
Absolute maximum ratings
Power supply voltage	-0.5 V (minimum) 3.6 V (maximum)
Storage temperature	-40°C to 85°C (-40°F to 185°F)
Operating conditions
Power supply voltage	2.7 V (minimum) 3.6 V (maximum)
Operating temperature	-40°C to 85°C (-40°F to 185°F)

Audio

The following table lists the audio specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Latitude 7030 Rugged Extreme Tablet.
Description		Values
Audio controller		Realtek ALC3254
Stereo conversion		Supported
Internal audio interface		High-definition audio interface
External audio interface		Universal audio jack
Number of speakers		2
Internal-speaker amplifier		Supported
External volume controls		Supported
Speaker output:
Average		2 W
Peak		2.5 W
Microphone		Dual-array

Storage

This section lists the storage options on your Latitude 7030 Rugged Extreme Tablet.

Your Latitude 7030 Rugged Extreme Tablet supports the following storage configuration:

One M.2 2230 solid-state drive

Table 1. Storage specifications
The following table provides the different storage options available on Latitude 7030 Rugged Extreme Tablet.
Storage type	Interface type	Capacity
M.2 2230 solid-state drive	PCIe NVMe Gen4 x4	256 GB/512 GB/1 TB
M.2 2230 solid-state drive, Opal 2.0 Self‐Encrypting Drive	PCIe NVMe Gen4 x4	256 GB/512 GB
M.2 2230 solid-state drive, QLC	PCIe NVMe Gen4 x4	2 TB

Media-card reader

The following table provides the specification of media cards that are supported by your Latitude 7030 Rugged Extreme Tablet.

Table 1. Media-card reader specificationsThe following table provides the specification of media cards that are supported by your Latitude 7030 Rugged Extreme Tablet.
Description	Values
Media-card slot type	One micro-SD card
Media-cards supported	Micro Secure Digital (mSD) Micro Secure Digital High Capacity (mSDHC) Micro Secure Digital Extended Capacity (mSDXC) USH-I USH-II Multi-Media
NOTE:The maximum capacity of the media-card reader varies depending on the standard of the media card that is inserted in your computer.

Camera

The following table lists the camera specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Front camera specifications
The following table provides the detailed camera specifications of Latitude 7030 Rugged Extreme Tablet.
Description			Values
Number of cameras			Two
Camera type			5M RGB camera/VGA IR camera
Camera location			Front camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			2592 x 1944 megapixel
Video			1920 x 1080 (FHD) at 30 fps
Infrared camera resolution:
Still image			640 x 480 megapixel
Video			640 x 480 (VGA) at 30 fps
Diagonal viewing angle:
Camera			92.0 degrees
Infrared camera			77.3 degrees

Table 2. Rear camera specifications
The following table provides the detailed camera specifications of Latitude 7030 Rugged Extreme Tablet.
Description			Values
Number of cameras			One
Camera type			11M RGB camera
Camera location			Rear camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			3976 x 2736 megapixel
Video			1920 x 1080 (FHD) at 30 fps
Diagonal viewing angle:
Camera			97.0 degrees

Battery

The following table lists the battery specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Latitude 7030 Rugged Extreme Tablet.
Description	Option one	Option two	Option three	Option four
Battery type	4‐cell, 36 Wh, Polymer, ExpressCharge Capable, internal	4‐cell, 36 Wh, Polymer, ExpressCharge Capable, Long life cycle, internal	2‐cell, 18 Wh, Polymer, ExpressCharge Capable, hot‐swappable	2‐cell, 18 Wh, Polymer, ExpressCharge Capable, Long life cycle, hot‐swappable
Battery voltage	8.96 VDC	8.96 VDC	8.96 VDC	8.96 VDC
Battery weight (maximum)	0.165 kg (0.36 lb)	0.165 kg (0.36 lb)	0.103 kg (0.22 lb)	0.103 kg (0.22 lb)
Battery dimensions:
Height	11.61 mm (0.45 in.)	11.61 mm (0.45 in.)	12 mm (0.47 in.)	12.00 mm (0.47 in.)
Width	149 mm (5.86 in.)	149 mm (5.86 in.)	95.65 mm (3.76 in.)	95.65 mm (3.76 in.)
Depth	48.40 mm (1.90 in.)	48.40 mm (1.90 in.)	53.00 mm (2.08 in.)	53 mm (2.08 in.)
Temperature range:
Operating	-26°C to 60°C (-14.8°F to 140°F)	-26°C to 60°C (-14.8°F to 140°F)	-26°C to 60°C (-14.8°F to 140°F)	-26°C to 60°C (-14.8°F to 140°F)
Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)	0°C~15°C — 4 hours (when the computer is off) 16°C~45°C — 2 hours (when the computer is off) 46°C~50°C — 3 hours (when the computer is off)	0°C~15°C — 4 hours (when the computer is off) 16°C~45°C — 2 hours (when the computer is off) 46°C~50°C — 3 hours (when the computer is off)	0°C~15°C — 4 hours (when the computer is off) 16°C~45°C — 2 hours (when the computer is off) 46°C~50°C — 3 hours (when the computer is off)	0°C~15°C — 4 hours (when the computer is off) 16°C~45°C — 2 hours (when the computer is off) 46°C~50°C — 3 hours (when the computer is off)
Coin-cell battery	CR2025	CR2025	CR2025	CR2025
User replaceable	No	No	Yes	Yes
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your tablet, and then restart your tablet to reduce the power consumption. NOTE:Battery charging is not supported when the temperature is below 0°C (32°F) or above 50°C (122°F). During these conditions, the power button and user-programmable buttons may flash amber and green. Move the tablet to a location of suitable battery temperature to resume charging. If moving the tablet is not feasible, connect the tablet to the power adapter for continuous operation or replace the depleted battery with a fully charged one.

Power requirements (for computers shipped with 2-cell, 18 Wh battery, hot-swappable)

NOTE: The information in this section is applicable to the European Union (EU) countries.

NOTE:The information in this section is applicable only to computers shipped with two units of the 2-cell, 18 Wh hot-swappable battery.

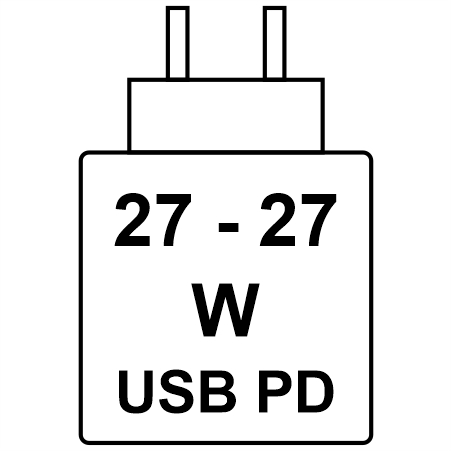

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 27 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

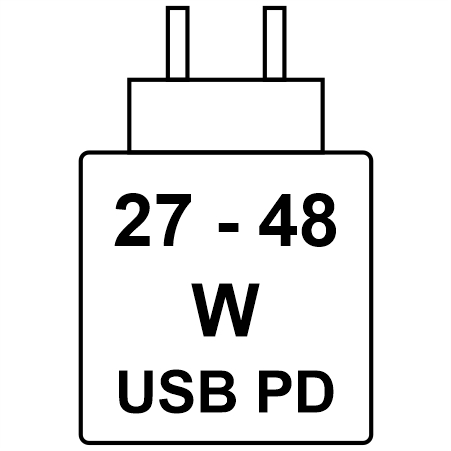

Power requirements (for computers shipped with 4-cell, 36 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 48 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power adapter

The following table lists the power adapter specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Latitude 7030 Rugged Extreme Tablet.
Description	Option one	Option two
Type	65W adapter USB Type-C	90W adapter USB Type-C
Power-adapter dimensions:
Height	28.00 mm (1.10 in.)	22.00 mm (0.87 in.)
Width	51.00 mm (2.01 in.)	66.00 mm (2.60 in.)
Depth	112.00 mm (4.41 in.)	130.00 mm (5.12 in.)
Input voltage	100 VAC–240 VAC	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz	50 Hz–60 Hz
Input current (maximum)	1.70 A	1.50 A
Output current (continuous)	20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9.0 V/3 A (Continuous) 5.0 V/3 A (Continuous)	20 V/4.50 A (Continuous) 15 V/3 A (Continuous) 9.0 V/3 A (Continuous) 5.0 V/3 A (Continuous)
Rated output voltage	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements (for computers shipped with 2-cell, 18 Wh battery, hot-swappable)

NOTE: The information in this section is applicable only to computers shipped with two units of the 2-cell, 18 Wh hot-swappable battery.

If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements:

Table 1. Power adapter requirements The following table lists the power adapter for your Latitude 7030 Rugged Extreme Tablet (for computers that are shipped with a 2-cell, 18 Wh battery).
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported NOTE:Ensure that the computer is connected to a 65 W power adapter for this feature to be supported.
ExpressCharge mode	Supported NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen by selecting Power > Battery Configuration > ExpressCharge, then pressing Enter. NOTE:Ensure that the computer is connected to a 65 W power adapter to achieve ExpressCharge .

Power adapter requirements (for computers shipped with 4-cell, 36 Wh battery)

If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements:

Table 1. Power adapter requirements The following table lists the power adapter for your Latitude 7030 Rugged Extreme Tablet (for computers that are shipped with a 4-cell, 36 Wh battery).
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported NOTE:Ensure that the computer is connected to a 65 W power adapter for this feature to be supported.
ExpressCharge mode	Supported NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen by selecting Power > Battery Configuration > ExpressCharge, then pressing Enter. NOTE:Ensure that the computer is connected to a 65 W power adapter to achieve ExpressCharge .

Display

The following table lists the display specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Display specificationsThe following table provides the detailed display specifications of your Latitude 7030 Rugged Extreme Tablet.
Description		Values
Display type		10.1-inch, Full High Definition Plus (FHD+)
Touch options		Capacitive 10 fingers touch
Display-panel technology		Wide Viewing Angle (WVA), Color Active Matrix TFT LCD, LED Backlight
Display-panel dimensions (active area):
	Height	136.080 mm (5.357 in.)
	Width	217.728 mm (8.571 in.)
	Diagonal	256.755 mm (10.108 in.)
Display-panel native resolution		1920 x 1200
Luminance (typical)		1000 nits
Megapixels		2.304
Color gamut		100% (sRGB) typical
Pixels Per Inch (PPI)		224
Contrast ratio (minimum)		1000:1
Response time (maximum)		35 ms
Refresh rate		60 Hz
Horizontal view angle		88 +/- degrees minimum
Vertical view angle		88 +/- degrees minimum
Pixel pitch		0.1134 x 0.1134 mm
Power consumption (maximum)		6.37 W
Anti-glare vs glossy finish		Anti-glare

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Latitude 7030 Rugged Extreme Tablet.
Description	Values
Sensor technology	Capacitive
Sensor resolution	362.86 dpi
Sensor pixel size	0.07 x 0.07

Sensors

The following table lists the sensors of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Sensor The following table lists the sensor of your Latitude 7030 Rugged Extreme Tablet.
Sensor support
Hall Effect Sensor
Accelerometer + Gyroscope
eCompass/Magnetometer
Ambient Light Sensor
Proximity Sensor (SAR)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 7030 Rugged Extreme Tablet.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Latitude 7030 Rugged Extreme Tablet.
Controller	Memory size	Processor
Intel UHD Graphics	Shared system memory	12th Generation Intel Core i3
Intel Iris X^e Graphics	Shared system memory	12th Generation Intel Core i5/i7

Multiple display support matrix

The following table lists the multiple display support matrix for your Latitude 7030 Rugged Extreme Tablet.

Table 1. Multiple display support matrixThe following table provides the multiple display support matrix for your Latitude 7030 Rugged Extreme Tablet.
Graphics Card	Supported external displays with tablet internal display on	Supported external displays with tablet internal display off
Intel UHD Graphics	3	4
Intel Iris X^e Graphics	3	4

Hardware security

The following table lists the hardware security of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Hardware security The following table provides the hardware security details on your Latitude 7030 Rugged Extreme Tablet.
Hardware security
Wedge-shaped lock slot
Trusted Platform Module (TPM) 2.0 discrete
ControlVault 3 Advanced Authentication with FIPS 140-2 Level 3 Certification
FIPS (Federal Information Processing Standards) 140-2 certification for Trusted Platform Module (TPM)
Trusted Computing Group (TCG) Certification for TPM
Fingerprint reader with ControlVault 3
Contacted smart-card and ControlVault 3
Optional contactless smart-card, NFC, and ControlVault 3
Self-Encrypting Drive (SED), Opal 2.0 only - PCIe Interface
Chassis Intrusion Detection
Battery Removal Detection
RPMC SPI flash
SPI Flash Tamper Detection/Prevention Shunt Circuit

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Contactless smart-card reader specificationsThe following table lists the contactless smart-card reader specifications on your Latitude 7030 Rugged Extreme Tablet.
Title	Description	Dell ControlVault 3 contactless smart-card reader with NFC
Felica Card Support	Reader and software capable of supporting Felica contactless cards	Yes
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC-compliant tag information.	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode.	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode.	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer- to-Peer mode.	Yes
EMVCo Compliant	Compliant with EMVCO smart-card standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart-card standards	Yes
NFC Proximity operating system Interface	Enumerates NFP (Near Field Proximity) device for operating system to use.	Yes
PC/SC operating system interface	Personal Computer/Smart-card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit-card Interface Device for operating system level drivers.	Yes
Windows Certified	Device certified by Microsoft WHCK	Yes
Dell ControlVault support	Device connects to Dell ControlVault for usage and processing.	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC.	Yes

NOTE:125 Khz proximity cards are not supported.

Table 2. Supported cardsThe following table lists the supported cards on your Latitude 7030 Rugged Extreme Tablet.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	iClass (Legacy)
	iClass SEOS
NXP/Mifare	Mifare DESFire 8K White PVC Cards
	Mifare Classic 1K White PVC Cards
	NXP Mifare Classic S50 ISO Card
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80 K Dual+ 1 K Mifare
	SCE6.0 non-FIPS 80K Dual+ 1 K Mifare
	SCE6.0 FIPS 144 K Dual + 1 K Mifare
	SCE6.0 non-FIPS 144 K Dual + 1 K Mifare
	SCE7.0 FIPS 144 K
Oberthur	idOnDemand - OCS5.2 80K
Oberthur	ID-One Cosmo 64 RSA D V5.4 T = 0 card

Table 3. RFID card RFID card
RFID card description	Card type
HID jCOP readertest3 A card (14443a)	ISO/IEC 14443A (Type 4)
NXP/Mifare-Mifare DESFire 8K White PVC Cards	ISO/IEC 14443A (Type 4)
NXP/Mifare-Mifare Classic 1K White PVC Cards	ISO/IEC 14443A (Type 2)
NXP/Mifare-NXP Mifare Classic S50 ISO Card	ISO/IEC 14443A (Type 2)
NXP/Mifare-NXP Mifare Mifare DESFire	ISO/IEC 14443A (Type 4)
G&D idOnDemand-SCE3.2 144K	ISO/IEC 14443A (Type 4)
idOnDemand-Oberthur OCS5.2 80K	ISO/IEC 14443A (Type 4)
HID 1430 1L	ISO/IEC 14443A (Type 2)
HID DESFire D8H	ISO/IEC 14443A (Type 4)
OBERTHUR-Oberthur ID-One Cosmo 64 RSA D V5.4 T=0 card	ISO/IEC 14443 (Type 4)
G&D-SCE6.0 FIPS 80K Dual+ 1 K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE6.0 non-FIPS 80K Dual+ 1 K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE6.0 FIPS 144K Dual + 1K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE6.0 non-FIPS 144K Dual + 1 K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE7.0 FIPS 144K	ISO/IEC 14443A (Type 4)
FeliCa Standard RC-S962 (RC-S888 chip)	6319-4 (Type 3)
FeliCa Lite-S RC-S966 (RC-S966 chip)	6319-4 (Type 3)
HID DESFIRE 4K Standard - 1450NGGNN	ISO/IEC 14443A (Type 4)
iClass 16K/16 - 2002PGGMN	ISO/IEC 15693 (iClass)
iClass SR 16K/16 - 2002HPGGMN	ISO/IEC 15693 (iClass)
ISO Card MiFARE 1K - 1430NGGNN	ISO/IEC 14443A (Type 2)
iClass 2k Tag - 2060PKSMN	ISO/IEC 15693 (iClass)
iClass Clamshell - 2080PMSMV	ISO/IEC 15693 (iClass)
iClass Prox 16K/16 - 2022BGGMNN	ISO/IEC 15693 (iClass)
NIST PIV1	ISO/IEC 14443A (Type 4)
Oberthur ID-One PIV	ISO/IEC 14443A (Type 4)
OBERTHUR-Oberthur ID-One Cosmo 128K V5.4 card	ISO/IEC 14443A (Type 4)
Gemalto TOP DL GX4 144K card	ISO/IEC 14443A (Type 4)
HID Seos Card	ISO/IEC 14443A (Type 4)

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Latitude 7030 Rugged Extreme Tablet.

Table 1. Contacted smart-card reader specificationsThe following table lists the contacted smart-card reader specifications on your Latitude 7030 Rugged Extreme Tablet.
Title	Description	Dell ControlVault 3 smart-card reader
ISO 7816 -3 Class A Card Support	Reader capable of reading 5 V powered smart-card	Yes
ISO 7816 -3 Class B Card Support	Reader capable of reading 3 V powered smart-card	Yes
ISO 7816 -3 Class C Card support	Reader capable of reading 1.8 V powered smart-card	Yes
ISO 7816-1 Compliant	Specification for the reader	Yes
ISO 7816 -2 Compliant	Specification for smart-card device physical characteristics (size, location of connection points, etc.)	Yes
T = 0 support	Cards support character level transmission	Yes
T = 1 support	Cards support block level transmission	Yes
EMVCo Compliant	Compliant with EMVCo (for electronic payment standards) smart-card standards as posted to the EMVCo Sitewww.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart-card standards	Yes
PC/SC operating system interface	Personal Computer/Smart-card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit-card Interface Device for operating system level drivers.	Yes
Windows Certified	Device certified by WHCK	Yes
FIPS 201-2/FIPS 201-3 (PIV/HSPD-12) Compliant via GSA	Device compliant with FIPS 201-2/FIPS 201-3 (PIV/HSPD-12) requirements	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC	Yes

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 7030 Rugged Extreme Tablet.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Latitude 7030 Rugged Extreme Tablet.
Description	Operating	Storage
Temperature range	-29°C to 63°C (-20.2°F to 145.4°F)	-51°C to 71°C (-59.8°F to 159.8°F)
Relative humidity (maximum)	10% to 95% (maximum dew point temperature = 26°C)	5% to 95% (maximum dew point temperature = 33°C)
Vibration (maximum)^*	Vertical - 1.08 GRMS Transverse - 0.21 GRMS Longitudinal - 0.76 GRMS	7.70 GRMS (each axis)
Shock (maximum)	40 G††	185 G†
Altitude range	12192 m (40,000 ft)	12192 m (40,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. NOTE:Battery charging is not supported when the temperature is below 0°C (32°F) or above 50°C (122°F). During these conditions, the power button and user-programmable buttons may flash amber and green. Move the tablet to a location of suitable battery temperature to resume charging. If moving the tablet is not feasible, connect the tablet to the power adapter for continuous operation or replace the depleted battery with a fully charged one. NOTE:When operating on battery power at temperatures below –20°C (–4°F), the tablet may not complete startup or system performance may be reduced. Allow the tablet to warm up or move it to a warmer area (above –15°C/5°F) within 15 minutes. Alternatively, you may also connect the power adapter to ensure that the tablet completes startup properly and achieve optimal system performance.

^{* Measured using a random vibration spectrum that simulates user environment.}

^{† Measured using a 2 ms half-sine pulse.}

^{†† Measured using a 11 ms saw-tooth pulse.}
