Dell Precision 7960 Tower: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Precision 7960 Tower.

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Precision 7960 Tower.
Description		Values
Height		430.70 mm (16.96 in.) / 434.20 mm (17.09 in.) with rubber feet
Width		218.00 mm (8.58 in.)
Depth		538.30 mm (21.19 in.) / 569.15 mm (22.41 in.) with lock structure
Weight NOTE:The weight of your computer depends on the configuration that is ordered and manufacturing variability.		37.56 kg (82.82 lbs.) —maximum 23.81 kg (52.50 lbs.)—typical 21.04 kg (46.39 lbs.)—minimum

Processor

The following table lists the details of the processors that are supported by your Precision 7960 Tower.

Table 1. Processor
The following table provides the various processor options that are supported for Precision 7960 Tower.
Processor type	Processor wattage	Processor core count	Processor thread count	Processor speed	Processor cache
Intel Xeon W5-3423	220 W	12	24	2.10 GHz to 4.20 GHz	30 MB
Intel Xeon W5-3425	270 W	12	24	3.20 GHz to 4.60 GHz	30 MB
Intel Xeon W5-3433	220 W	16	32	2.0 GHz to 4.20 GHz	45 MB
Intel Xeon W5-3435X	270 W	16	32	3.10 GHz to 4.70 GHz	45 MB
Intel Xeon W7-3445	270 W	20	40	2.60 GHz to 4.80 GHz	52.5 MB
Intel Xeon W7-3455	270 W	24	48	2.50 GHz to 4.80 GHz	67.5 MB
Intel Xeon W7-3465X	300 W	28	56	2.50 GHz to 4.80 GHz	75 MB
Intel Xeon W9-3475X	300 W	36	72	2.20 GHz to 4.80 GHz	82.5 MB
Intel Xeon W9-3495X	350 W	56	112	1.90 GHz to 4.80 GHz	105 MB
Intel Xeon W5-3525	290 W	16	32	3.20 GHz to 4.80 GHz	45 MB
Intel Xeon W5-3535X	300 W	20	40	2.90 GHz to 4.80 GHz	52.5 MB
Intel Xeon W7-3545	310 W	24	48	2.70 GHz to 4.80 GHz	67.5 MB
Intel Xeon W7-3555	325 W	28	56	2.70 GHz to 4.80 GHz	75 MB
Intel Xeon W7-3565X	335 W	32	64	2.50 GHz to 4.80 GHz	82.5 MB
Intel Xeon W9-3575X	340 W	44	88	2.20 GHz to 4.80 GHz	97.5 MB
Intel Xeon W9-3595X	385 W	60	120	2.00 GHz to 4.80 GHz	112.5 MB

Chipset

The following table lists the details of the chipset supported by your Precision 7960 Tower.

Table 1. Chipset
The following table provides the chipset specifications for Precision 7960 Tower.
Description	Values
Chipset	Intel W790
Processor	Intel Xeon W5/W7/W9 processors
DRAM bus width	64-bit (for single-channel) 128-bit (for dual-channel)
Flash EPROM	16 MB (nRPMC) 32 MB (RPMC)
PCIe bus	Up to Gen5
Non-volatile memory	Yes
BIOS configuration Serial Peripheral Interface (SPI)	256 Mbit (32 MB) located at SPI_FLASH
Trusted Platform Module (TPM) 2.0 (Discrete TPM Enabled)	24 KB located at TPM 2.0 on chipset
Firmware-TPM (Discrete TPM disabled)	By default the Platform Trust Technology feature is visible to the operating system.
NIC EEPROM	LOM configuration contained within SPI flash ROM instead of LOM e-fuse

Operating system

Your Precision 7960 Tower supports the following operating systems:

Windows 11 Pro for Workstations
Windows 11 Pro for Workstations Downgrade (Windows 10 Pro for Workstations Image-factory installed)
Windows 10 CMIT Government Edition, 64-bit (China only)
Ubuntu 22.04 LTS, 64-bit
Ubuntu 24.04 LTS, 64-bit
Red Hat Enterprise Linux 8.6 and 9.3 (depending on the processor)

Memory

The following table lists the memory specifications of your Precision 7960 Tower.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Precision 7960 Tower.
Description	Values
Memory slots	16 DIMMS
Memory type	DDR5
Memory speed	4800 MT/s
Maximum memory configuration	4 TB
Minimum memory configuration	16 GB
Memory size per slot	16 GB, 32 GB, 64 GB, 128 GB, 256 GB
Memory configurations supported	16 GB, 1 x 16 GB, DDR5 RDIMM, 4800 MT/s 32 GB, 1 x 32 GB, DDR5 RDIMM, 4800 MT/s 32 GB, 2 x 16 GB, DDR5 RDIMM, 4800 MT/s 64 GB, 1 x 64 GB, DDR5 RDIMM, 4800 MT/s 64 GB, 2 x 32 GB, DDR5 RDIMM, 4800 MT/s 64 GB, 4 x 16 GB, DDR5 RDIMM, 4800 MT/s 96 GB, 6 x 16 GB, DDR5 RDIMM, 4800 MT/s 128 GB, 1 x 128 GB, DDR5 RDIMM, 4800 MT/s 128 GB, 2 x 64 GB, DDR5 RDIMM, 4800 MT/s 128 GB, 4 x 32 GB, DDR5 RDIMM, 4800 MT/s 128 GB, 8 x 16 GB, DDR5 RDIMM, 4800 MT/s 192 GB, 6 x 32 GB, DDR5 RDIMM, 4800 MT/s 192 GB, 12 x 16 GB, DDR5 RDIMM, 4800 MT/s 256 GB, 1 x 256 GB, DDR5 RDIMM, 4800 MT/s 256 GB, 2 x 128 GB, DDR5 RDIMM, 4800 MT/s 256 GB, 4 x 64 GB, DDR5 RDIMM, 4800 MT/s 256 GB, 8 x 32 GB, DDR5 RDIMM, 4800 MT/s 256 GB, 16 x 16 GB, DDR5 RDIMM, 4800 MT/s 384 GB, 6 x 64 GB, DDR5 RDIMM, 4800 MT/s 384 GB, 12 x 32 GB, DDR5 RDIMM, 4800 MT/s 512 GB, 2 x 256 GB, DDR5 RDIMM, 4800 MT/s 512 GB, 4 x 128 GB, DDR5 RDIMM, 4800 MT/s 512 GB, 8 x 64 GB, DDR5 RDIMM, 4800 MT/s 512 GB, 16 x 32 GB, DDR5 RDIMM, 4800 MT/s 768 GB, 6 x 128 GB, DDR5 RDIMM, 4800 MT/s 768 GB, 12 x 64 GB, DDR5 RDIMM, 4800 MT/s 1 TB, 4 x 256 GB, DDR5 RDIMM, 4800 MT/s 1 TB, 8 x 128 GB, DDR5 RDIMM, 4800 MT/s 1 TB, 16 x 64 GB, DDR5 RDIMM, 4800 MT/s 1.5 TB, 6 x 256 GB, DDR5 RDIMM, 4800 MT/s 1.5 TB, 12 x 128 GB, DDR5 RDIMM, 4800 MT/s 2 TB, 8 x 256 GB, DDR5 RDIMM, 4800 MT/s 2 TB, 16 x 128 GB, DDR5 RDIMM, 4800 MT/s 3 TB, 12 x 256 GB, DDR5 RDIMM, 4800 MT/s 4 TB, 16 x 256 GB, DDR5 RDIMM, 4800 MT/s

NOTE:

When 12^th or 16^th memory DIMM slots are populated in your computer, the 4800 MT/s memory speed will clock down to 4400 MT/s.
Intel Xeon W5-3423 and W5-3433 processors support memory speed up to 4400 MT/s on all configurations.
ACPI S3 is disabled by default in high-capacity memory configurations (3 TB & 4TB in all Speeds) due to the risk of DIMM thermal protection activation under elevated ambient, extended S3 conditions.

Memory matrix

The following table lists the memory configurations supported on your Precision 7960 Tower.

NOTE:Ensure that you install the memory module starting from DIMM 1 slot.

Table 1. Memory matrixThe following table provides the detailed memory configurations that are supported for your Precision 7960 Tower.
Configurations	DIMM 8	DIMM 16	DIMM 2	DIMM 10	DIMM 6	DIMM 14	DIMM 4	DIMM 12	DIMM 9	DIMM 1	DIMM 15	DIMM 7	DIMM 11	DIMM 3	DIMM 13	DIMM 5
16 GB DDR5	-	-	-	-	-	-	-	-	-	16	-	-	-	-	-	-
32 GB DDR5	-	-	-	-	-	-	-	-	-	32	-	-	-	-	-	-
32 GB DDR5	-	-	16	-	-	-	-	-	-	16	-	-	-	-	-	-
64 GB DDR5	-	-	-	-	-	-	-	-	-	64	-	-	-	-	-	-
64 GB DDR5	-	-	32	-	-	-	-	-	-	32	-	-	-	-	-	-
64 GB DDR5	-	-	16	-	-	-	16	-	-	16	-	-	-	16	-	-
96 GB DDR5	-	-	16	-	16	-	16	-	-	16	-	-	-	16	-	16
128 GB DDR5	-	-	-	-	-	-	-	-	-	128	-	-	-	-	-	-
128 GB DDR5	-	-	64	-	-	-	-	-	-	64	-	-	-	-	-	-
128 GB DDR5	-	-	32	-	-	-	32	-	-	32	-	-	-	32	-	-
128 GB DDR5	16	-	16	-	16	-	16	-	-	16	-	16	-	16	-	16
192 GB DDR5	-	-	32	-	32	-	32	-	-	32	-	-	-	32	-	32
192 GB DDR5	16	-	16	16	16	-	16	16	16	16	-	16	16	16	-	16
256 GB DDR5	-	-	-	-	-	-	-	-	-	256	-	-	-	-	-	-
256 GB DDR5	-	-	128	-	-	-	-	-	-	128	-	-	-	-	-	-
256 GB DDR5	-	-	64	-	-	-	64	-	-	64	-	-	-	64	-	-
256 GB DDR5	32	-	32	-	32	-	32	-	-	32	-	32	-	32	-	32
256 GB DDR5	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16
384 GB DDR5	-	-	64	-	64	-	64	-	-	64	-	-	-	64	-	64
384 GB DDR5	32	-	32	32	32	-	32	32	32	32	-	32	32	32	-	32
512 GB DDR5	-	-	256	-	-	-	-	-	-	256	-	-	-	-	-	-
512 GB DDR5	-	-	128	-	-	-	128	-	-	128	-	-	-	128	-	-
512 GB DDR5	64	-	64	-	64	-	64	-	-	64	-	64	-	64	-	64
512 GB DDR5	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32
768 GB DDR5	-	-	128	-	128	-	128	-	-	128	-	-	-	128	-	128
768 GB DDR5	64	-	64	64	64	-	64	64	64	64	-	64	64	64	-	64
1 TB DDR5	-	-	256	-	-	-	256	-	-	256	-	-	-	256	-	-
1 TB DDR5	128	-	128	-	128	-	128	-	-	128	-	128	-	128	-	128
1 TB DDR5	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64
1.5 TB DDR5	-	-	256	-	256	-	256	-	-	256	-	-	-	256	-	256
1.5 TB DDR5	128	-	128	128	128	-	128	128	128	128	-	128	128	128	-	128
2 TB DDR5	256	-	256	-	256	-	256	-	-	256	-	256	-	256	-	256
2 TB DDR5	128	128	128	128	128	128	128	128	128	128	128	128	128	128	128	128
3 TB DDR5	256	-	256	256	256	-	256	256	256	256	-	256	256	256	-	256
4 TB DDR5	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256

External ports and slots

The following table lists the external ports and slots on your Precision 7960 Tower.

Table 1. External ports and slots
The following table lists ports and connectors available on Precision 7960 Tower.
Description	Values
Network port	One RJ45 Ethernet port, 1 GbE One RJ45 Ethernet port, 10 GbE
USB ports	Front: Two USB 3.2 Gen 1 ports One USB 3.2 Gen 2x2 Type-C port with PowerShare One USB 3.2 Gen 2 Type-C port Rear: Three USB 3.2 Gen 2 Type-C ports Two USB 3.2 Gen 1 ports One USB 3.2 Gen 1 port with Smart Power On
Audio port	One universal audio jack One Line-out port
Video port(s)	Not supported
Media-card reader	Not supported
Power-adapter port	Not supported
Security-cable slot	One kensington security-cable slot One padlock ring

Internal slots

The following table lists the internal slots of your Precision 7960 Tower.

Table 1. Internal slotsThe following table lists the internal slots on your Precision 7960 Tower.
Description	Values
Expansion	Two full-height Gen5 PCIe x16 slots Two full-height Gen4 PCIe x16 slots Two full-height Gen4 PCIe x8 slots Two full-height, half-length Gen4 PCIe x8 slots wired as x4 electrically
mSATA	NA
SATA/SAS/NVMe	Eight externally facing (four front and four rear) storage flexbays with optical drive configuration Ten externally facing (six front and four rear) storage flexbays without optical drive configuration Up to 8 M.2 NVMe drives (four front and four rear)
M.2	NA

Slot capabilities of Precision 7690 Tower

The following table provides the slot capabilities of your Precision 7960 Tower.

Table 1. Slot capabilities of Precision 7690 TowerThe following table provides the slot capabilities of your Precision 7960 Tower.
Slot number	Precision 7690 Tower	Note
Slot1	PCIe G5 x16 (Processor)	PCIe x16 Slot G5
Slot2	PCIe Gen4 x4 (PCH)	PCIe x8 Slot Gen4 (wired x4--open ended)
Slot3	PCIe Gen4 x4 (PCH)	PCIe x8 Slot Gen4 (wired x4--open ended)
Slot4	PCIe Gen4 x16 (Processor)	PCIe x16 Slot G4
Slot5	PCIe G5 x16 (Processor)	PCIe x16 Slot G5
Slot6	PCIe Gen4 x8 (Processor)	PCIe x8 Slot Gen4 (wired x8--open ended)
Slot7	PCIe Gen4 x8 (Processor)	PCIe x8 Slot Gen4 (wired x8--open ended)
Slot8	PCIe Gen4 x16 (Processor)	PCIe x16 Slot G4

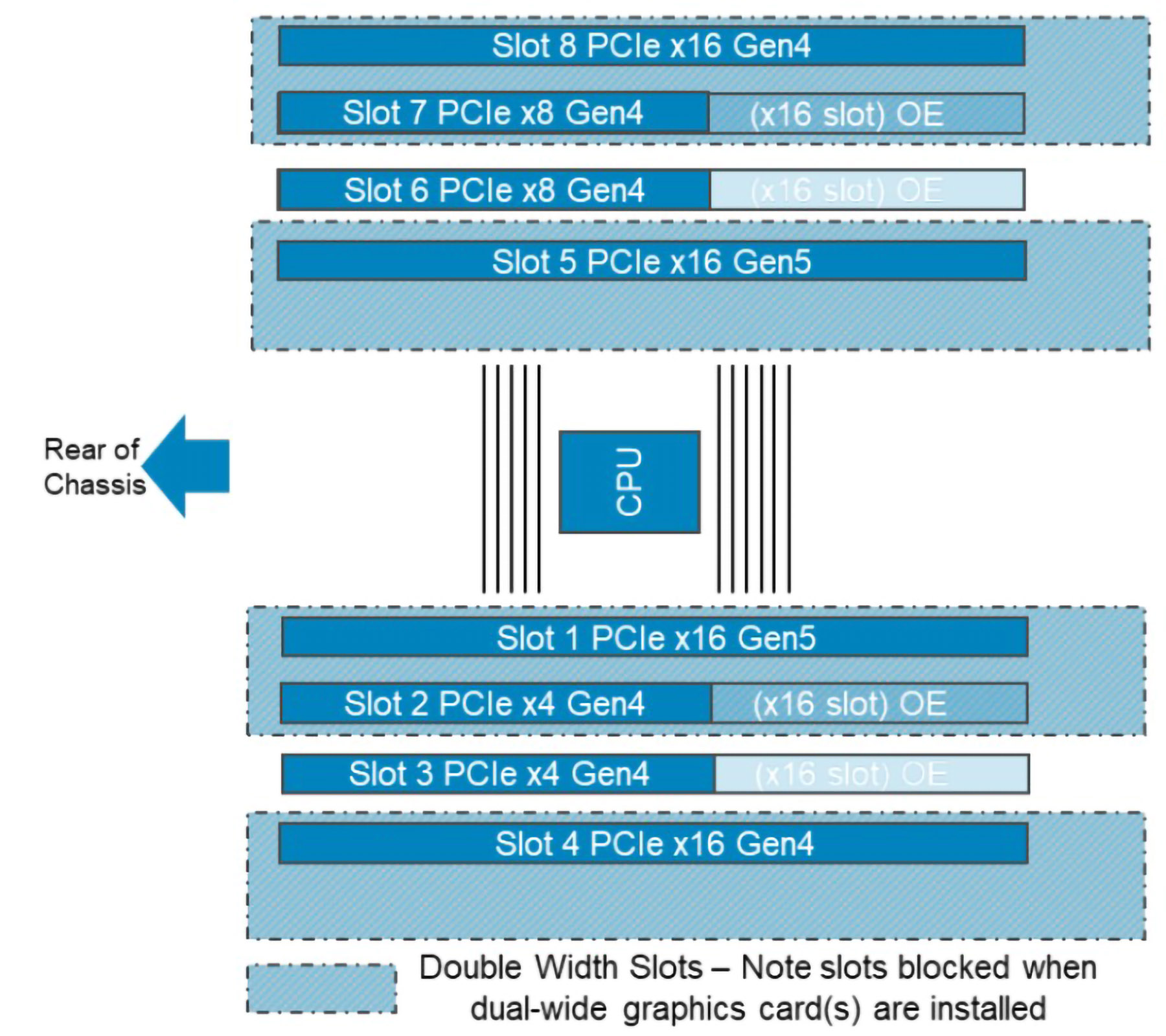

Figure 1. Precision 7690 Tower—PCIe slot layout

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Precision 7960 Tower.

Table 1. Ethernet specifications
The following table provides the specifications of Ethernet that is supported by your Precision 7960 Tower.
Description	Option 1	Option 2
Model number	Intel i219-LM	Marvell AQC113
Transfer rate	10/100/1000 Mbps	10/100/1000/10000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Precision 7960 Tower.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Precision 7960 Tower.
Description	Values
Model number	Qualcomm WCN6856-DBS
Transfer rate	Up to 3571 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.3

Audio

The following table lists the audio specifications of your Precision 7960 Tower.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Precision 7960 Tower.
Description		Values
Audio controller		Realtek ALC3246-CGT
Stereo conversion		Supported (Front panel single universal audio jack)
Internal audio interface		High definition audio interface
External audio interface		Line-out (re-taskable)
Number of speakers		One
Internal-speaker amplifier		Supported
External volume controls		No hardware volume buttons
Speaker output:
Average		2 W
Peak		2.5 W
Microphone		Not applicable

Storage

This section lists the storage options on your Precision 7960 Tower.

Table 1. Storage specifications
The following table provides the different storage options available on Precision 7960 Tower.
Storage type	Interface type	Capacity
2.5-inch, 7200 RPM, HDD	SATA 3.0	500 GB
3.5-inch, 7200 RPM, HDD	SATA 3.0	1 TB
M.2 2280, Class 40 SSD	PCIe NVMe Gen4 x4	Up to 4 TB
M.2 2280, Class 40 SSD, Self Encrypting Opal 2.0	PCIe NVMe Gen4 x4	512 GB/1 TB
2.5-inch, 10000 RPM, SAS, Enterprise HDD	SATA 3.0	Up to 2.4 TB
2.5-inch, 15000 RPM, SAS, Enterprise HDD	SATA 3.0	600 GB
3.5-inch, 7200 RPM, SATA, Enterprise HDD	SATA 3.0	Up to 12 TB
2.5-inch, MU, SATA, SSD	SATA	1.92 TB
8x DVD-ROM 9.5mm optical drive	SATA	Standard
8x DVD+/-RW 9.5mm optical drive	SATA	Standard
16x DVD+/-RW half-height optical drive	SATA	Standard

Storage matrix

The following table lists the storage configurations supported on your Precision 7960 Tower.

Table 1. Storage matrix—1The following table provides the storage configurations that are supported for your Precision 7960 Tower.
Storage description	Flex 0		Flex 1		Flex 2		Flex 3		Flex 4		Zoom
Description	HDD0	HDD1	HDD2	HDD3	HDD4	HDD5	Rear HDD0	Rear HDD1	Rear HDD2	Rear HDD3	-
Flex PCIe Non-RAID Boot (Intel)	PCIe	PCIe	PCIe	PCIe	ODD/NA		PCIe	PCIe	PCIe	PCIe	N
Flex PCIe Non-RAID Boot (Intel) + SATA (Intel) - 4 pcs PCIe	PCIe	PCIe	PCIe	PCIe	ODD/NA SATA		SATA/SAS	SATA/SAS	SATA/SAS	SATA/SAS	N
Flex PCIe Non-RAID Boot (Intel) + SATA (Intel) - 2 pcs PCIe	SATA	SATA	PCIe	PCIe	NA		SATA/SAS	SATA/SAS	SATA/SAS	SATA/SAS	N
Flex PCIe Non-RAID Boot (Intel)	PCIe	PCIe	PCIe	PCIe	ODD/NA		NA				N
Flex PCIe RAID Boot (Intel)	PCIe	PCIe	PCIe	PCIe	ODD/NA		NA				N
Zoom Boot JBOD + SATA (Intel)	SATA	SATA	SATA	SATA	ODD/NA		SATA	SATA	SATA	SATA	Y
Zoom Boot JBOD + SATA/SAS (MegaRAID)	SATA/SAS	SATA/SAS	SATA/SAS	SATA/SAS	ODD/NA SATA/SAS		SATA/SAS	SATA/SAS	SATA/SAS	SATA/SAS	Y

Table 2. Storage matrix—2The following table provides the storage configurations that are supported for your Precision 7960 Tower.
Zoom	SSD location
Description	SSD0	SSD1	SSD2	SSD3
Zoom2 Non-RAID	Yes	No	No	No
Zoom2 Non-RAID	Yes	Yes	No	No
Zoom4 Non-RAID	Yes	No	No	No
Zoom4 Non-RAID	Yes	Yes	No	No
Zoom4 Non-RAID	Yes	Yes	Yes	No
Zoom4 Non-RAID	Yes	Yes	Yes	Yes

Table 3. Storage matrix—3The following table provides the storage configurations that are supported for your Precision 7960 Tower.
Zoom Boot	SSD location
Description	SSD0	SSD1	SSD2	SSD3
Zoom2 Non-RAID Boot	Yes (Boot)	No	No	No
Zoom2 Non-RAID Boot	Yes (Boot)	Yes	No	No
Zoom4 Non-RAID Boot	Yes (Boot)	No	No	No
Zoom4 Non-RAID Boot	Yes (Boot)	Yes	No	No
Zoom4 Non-RAID Boot	Yes (Boot)	Yes	Yes	No
Zoom4 Non-RAID Boot	Yes (Boot)	Yes	Yes	Yes

RAID (Redundant Array of Independent Disks)

For optimal performance when configuring drives as a RAID volume, Dell Technologies recommends drive models that are identical.

RAID 0 (Striped, Performance) volumes benefit from higher performance when drives are matched because the data is split across multiple drives: any I/O operations with block sizes larger than the stripe size splits the I/O and become constrained by the slowest of the drives. For RAID 0 I/O operations where block sizes are smaller than the stripe size, whichever drive the I/O operation targets determine the performance, which increases variability and results in inconsistent latencies. This variability is particularly pronounced for write operations, and it can be problematic for applications that are latency sensitive. One such example of this is any application that performs thousands of random writes per second in small block sizes.

RAID 1 (Mirrored, Data Protection) volumes benefit from higher performance when drives are matched because the data is mirrored across multiple drives: all I/O operations must be performed identically to both drives, thus variations in drive performance when the models are different, results in the I/O operations completing only as fast as the slowest drive. While this does not suffer the variable latency issue in small random I/O operations as with RAID 0 across heterogeneous drives, the impact is nonetheless large because the higher performing drive becomes limited in all I/O types. One of the worst examples of constrained performance here is when using unbuffered I/O. To ensure that writes are fully committed to nonvolatile regions of the RAID volume, unbuffered I/O bypasses cache (for example by using the Force Unit Access bit in the NVMe protocol) and the I/O operation will not complete until all the drives in the RAID volume have completed the request to commit the data. This kind of I/O operation completely negates any advantage of a higher performing drive in the volume.

RAID 5 provides better performance by using data striping and protection through parity. The disadvantage of RAID 5 is that rebuilding a large RAID 5 volume requires a longer time. The following are the key features of RAID 5:

Requires at least three drives.
Data is available even if one of the drives present in the volume fails. The failed drive must be replaced, and the volume must be rebuilt for the data to be accessible.
The total capacity is N-1, where N is the total capacity of the drives in the array. For example, if you use three 1 TB drives in a RAID 5 array, the total volume size is 2 TB.

RAID 10 is a stripe of mirrors that combines the features of RAID 0 and RAID 1. As the blocks are striped and mirrored, the performance and redundancy are higher. The disadvantage of RAID 10 is that it is more expensive than other RAID levels, with a higher number of drives required. The following are the key features of RAID 10:

Requires a minimum of four drives. Only an even number of drives can be used, and an odd number of drives are not possible.
The total volume capacity is half the sum of individual drive capacity. For example, when you use four drives of 1 TB, you get a RAID 10 volume of 2 TB.

Care must be taken to match not only the drive vendor, capacity, and class, but also the specific model. Drives from the same vendor, with the same capacity, and even within the same class, can have different performance characteristics for certain types of I/O operations. Thus, matching by model ensures that the RAID volumes are consisted of a homogeneous array of drives that deliver all the benefits of a RAID volume without incurring the additional penalties when one or more drives in the volume are lower performing.

Precision 7960 Tower supports RAID with more than one hard drive configuration.

Disk Coercion :

Intel VROC family of product provides support for Disk Coercion. When a RAID volume is created, this feature analyzes the hard drives and automatically adjusts (round down) the capacity of the disks to 95% of the smallest hard drive. This allows for the variances in the hard drive capacities from different vendors.

The VROC UI either Windows VROC Application UI or CLI tool for manufacturing provides you with an option to manually override to allow you to use all available disk space.

MegaRAID 9660-16i card

The following table lists the MegaRAID 9660-16i card specifications.

Table 1. MegaRAID 9660-16i specificationsThe following table lists the MegaRAID 9660-16i card specifications.
Description	Values
Adapter type	MegaRAID
Ports	16 internal
Storage controller	SAS4116 ROC
PCIe host interface	x8, Gen 4.0
Storage interface	Gen 4.0 PCIe (NVMe), 24 Gb/s SAS, 6 Gb/s SATA
RAID levels	0, 1, 10, 5, 50, 6, 60
Max SAS/SATA PDs	240
Max NVMe PDs	32
Connectors	2 ×8 SFF-8654
Form factor	LP-MD2
Dimensions	155.52 mm (± 0.13 mm) x 68.77 mm (± 0.13 mm)
Typical power	20 W
Operating conditions	250 LFM at 55°C
Energy backup	CVPM05 (FBU345)
Security	HW Secure Boot and Attestation
Driver	Unified MPI3 Driver
Operating system supported	Windows VMware vSphere/ESXi Red Hat Enterprise Linux SuSE Linux Ubuntu Linux Citrix XenServer CentOS Linux Debian Linux Oracle Enterprise Linux Fedora FreeBSD

MegaRAID 9540-8i card

The following table lists the MegaRAID 9540-8i card specifications.

Table 1. MegaRAID 9540-8i specificationsThe following table lists the MegaRAID 9540-8i card specifications.
Description	Values
Adapter type	MegaRAID
Ports	8 internal
Storage controller	SAS3808
PCIe host interface	x8 PCIe Gen 4.0
Storage interface	12 Gb/s SAS, 6 Gb/s SATA, Gen 4.0 PCIe (NVMe)
RAID levels	0, 00, 1, 10
Max Devices Per Controller	SAS/SATA: 63 NVMe: 4
Connectors	One x8 SFF-8654
Dimensions	155.52 mm (± 0.13 mm) x 68.77 mm (± 0.13 mm)
Typical power	6.0 W
Operating conditions	12 V ±8%; 3.3 V ±9%
Operating system supported	Windows VMware vSphere/ESXi Red Hat Enterprise Linux SuSE Linux Ubuntu Linux Citrix XenServer CentOS Linux Debian Linux Oracle Enterprise Linux Fedora FreeBSD

Media-card reader

The following table provides the specification of media cards that are supported by your Precision 7960 Tower.

Table 1. Media-card reader specificationsThe following table provides the specification of media cards that are supported by your Precision 7960 Tower.
Description	Values
Media-card slot type	One SD card slot
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)
NOTE:The maximum capacity of the media-card reader varies depending on the standard of the media card that is inserted in your computer.

Power ratings

The following table lists the power rating specifications of Precision 7960 Tower.

Table 1. Power ratings
The following table provides the power rating specifications of Precision 7960 Tower.
Description	Option one	Option two
Type	1100 W/1400 W Gold internal power supply unit	1500 W/2200 W Platinum internal power supply unit
PSU dimension
Hieght	63 mm (2.48 in.)	63 mm (2.48 in.)
Width	160 mm (6.29 in.)	160 mm (6.29 in.)
Depth	225 mm (8.85 in.)	225 mm (8.85 in.)
Input voltage	90 Vac - 264 Vac	90 Vac - 264 Vac
Input frequency	47 Hz - 63 Hz	47 Hz - 63 Hz
Input current (maximum)	15 A	16 A
Output current (continuous)	90 Vac~180 Vac (1100 W) 12 VDC/91.6 A -12 VDC/0.5 A 12 VSBDC/8 A 180.1 Vac~264 Vac (1400 W) 12 V/116.7 A -12 VDC/0.5 A 12 VSBDC/8 A	90 Vac~114.9 Vac (1200 W) 12 VDC/98.37 A -12 VDC/0.5 A 12 VSBDC/8 A 115 Vac~179.9 Vac (1500 W) 12 V/122.96 A -12 VDC/0.5 A 12 VSBDC/8 A 180 Vac~264 Vac (2200 W) 12 VDC/180.33 A -12 VDC/0.5 A 12 VSBDC/8 A
Rated output voltage	12 VDC -12 VDC 12 VSBDC	12 VDC -12 VDC 12 VSBDC
Temperature range
Operating	5°C to 50°C (41°F to 122°F ) Standby—40°C (104°F)	5°C to 50°C (41°F to 122°F ) Standby—40°C (104°F)
Storage Minimum	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)

Power cord

This section lists the power-cord plug types for 1500 W/2200 W PSU on your Precision 7960 Tower that is based on the countries shipped.

NOTE:The 1500 W/2200 W PSUs have C20 cords and require a 20 A circuit at 115 V or a 220 V circuit. The power supply units are externally accessible, removal, and lockable.

Table 1. Power-cord plug typesThe following table lists the Power-cord plug types for 1500 W/2200 W PSU on your Precision 7960 Tower that is based on the countries shipped.
Power-cord style	Plug type	Affected countries
Argentina	Figure 1. Argentina	Argentina
Australia	Figure 2. Australia	Australia Christmas Island Cook Islands Fiji Kiribati Nauru New Zealand Papua New Guinea Pitcairn Tonga Tuvalu Uruguay
Brazil	Figure 3. Brazil	Brazil
China	Figure 4. China	China
Italy	Figure 5. Italy	Chile Holy See Italy Uruguay
Japan—250 V	Figure 6. Japan—250 V	Japan
North America—125 V	Figure 7. North America—125 V	Anguilla American Samoa Aruba Bahamas Barbados Belize Bermuda British Virgin Islands Canada Cayman Islands Colombia Costa Rica Dominican Republic Ecuador El Salvador Guam Guatemala Haiti Honduras Jamaica North Mariana Marshall Island Mexico Nicaragua Palau Panama Philippines Puerto Rico Samoa St. Maarten Trinidad and Tobago Turks and Caicos United States US Virgin Islands Venezuela Vietnam
North America—250 V	Figure 8. North America—250 V
Switzerland	Figure 9. Switzerland	Liechtenstein Switzerland
India	Figure 10. India	India

Power supply connector

The following table lists the Power supply connector specifications of your Precision 7960 Tower.

Table 1. Power supply connector The following table lists the Power supply connector specifications of your Precision 7960 Tower.
Power supply unit	PSU's connection	Power Distribution Board
1100 W/1400 W Gold internal power supply unit	PCB Golden finger to conduct with power distribution board	Four 8-pin (6+2) auxiliary connectors for expansion cards One 20-pin power cable connection with system board One 24-pin power cable connection with SAS/Optical drive One dedicated PSU connector
1500 W/2200 W Platinum internal power supply unit	PCB Golden finger to conduct with power distribution board	Eight 8-pin (6+2) auxiliary connectors for expansion cards One 20-pin power cable connection with system board One 24-pin power cable connection with SAS/Optical drive One dedicated PSU connector

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Precision 7960 Tower.

Table 1. GPU—Discrete
The following table provides the detailed discrete graphics specifications of Precision 7960 Tower.
Controller	Memory size	Memory type
AMD Radeon PRO W6300	2 GB	GDDR6
AMD Radeon PRO W6400	4 GB	GDDR6
AMD Radeon PRO W6600	8 GB	GDDR6
AMD Radeon PRO W7400	8 GB	GDDR6
AMD Radeon PRO W7500	8 GB	GDDR6
AMD Radeon PRO W7600	8 GB	GDDR6
AMD Radeon PRO W6800	16 GB	GDDR6
AMD Radeon PRO W7700	16 GB	GDDR6
AMD Radeon PRO W7900	48 GB	GDDR6
NVIDIA T400	4 GB	GDDR6
NVIDIA T1000	8 GB	GDDR6
NVIDIA RTX A400	4 GB	GDDR6
NVIDIA RTX A1000	8 GB	GDDR6
NVIDIA RTX A2000	12 GB	GDDR6
NVIDIA RTX A4000	16 GB	GDDR6
NVIDIA RTX A4500	20 GB	GDDR6
NVIDIA RTX A5500	24 GB	GDDR6
NVIDIA RTX A6000	48 GB	GDDR6
NVIDIA RTX 4000 Ada	20 GB	GDDR6
NVIDIA RTX 4500 Ada	24 GB	GDDR6
NVIDIA RTX 5000 Ada	32 GB	GDDR6
NVIDIA RTX 6000 Ada	48 GB	GDDR6
NVIDIA A800	40 GB	HBM2
NVIDIA RTX PRO 2000 Blackwell	16 GB	GDDR7
NVIDIA RTX Pro 4000 Blackwell	24 GB	GDDR7
NVIDIA RTX Pro 4500 Blackwell	32 GB	GDDR7
NVIDIA RTX Pro 5000 Blackwell	48 GB	GDDR7
NVIDIA RTX Pro 6000 Blackwell Max-Q	96 GB	GDDR7

Video port resolution

The following table lists the video port resolution for your Precision 7960 Tower.

Table 1. Video port resolutionThe following table provides the video port resolution for your Precision 7960 Tower.
Graphics card	Video ports	Maximum supported resolution
AMD Radeon PRO W6300	Two DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W6400	Two DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W6600	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W7400	Four mini-DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz
AMD Radeon PRO W7500	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W7600	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W6800	Six mini-DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W7700	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
AMD Radeon PRO W7900	Three DP 1.4 ports and One mini-DP port	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA T400	Three mini-DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA T1000	Four mini-DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX A400	Four mini-DP 1.4a ports	5120 x 2880 @ 60 Hz
NVIDIA RTX A1000	Four mini-DP 1.4a ports	7680 x 4320 at 60 Hz
NVIDIA RTX A2000	Four mini-DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX A4000	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX A4500	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX A5500	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX A6000	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX 4000 Ada	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX 4500 Ada	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX 5000 Ada	Four DP 1.4 ports	7680 x 4320 @ 24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX 6000 Ada	Four DP 1.4 ports	7680 x 4320 @ 60 Hz
NVIDIA A800	N/A	N/A
NVIDIA RTX Pro 2000 Blackwell	Four mini-DP 2.1b	7680 x 4320 @ 24 bpp at 165 Hz NOTE:Requires two DPs 1.4a and DSC.
NVIDIA RTX Pro 4000 Blackwell	Four DP 2.1b ports	7680 x 4320 @ 100 Hz
NVIDIA RTX Pro 4500 Blackwell	Four DP 2.1b ports	7680 x 4320 @ 100 Hz
NVIDIA RTX Pro 5000 Blackwell	Four DP 2.1b ports	7680 x 4320 @ 100 Hz
NVIDIA RTX Pro 6000 Blackwell Max-Q	Four DP 2.1b ports	7680 x 4320 @ 100 Hz

Hardware security

The following table lists the hardware security of your Precision 7960 Tower.

Table 1. Hardware security The following table provides the hardware security details on your Precision 7960 Tower.
Hardware security
Kensington security-cable slot
Padlock loop
Chassis lock support - Coin locker
Chassis intrusion switch
Optional lockable bezels for externally-facing front and rear storage flexbays
TPM 2.0 Discrete Hardware

Environmental

The following table lists the environmental specifications of your Precision 7960 Tower.

Table 1. Environmental The following table lists the environmental specifications of your Precision 7960 Tower.
Feature	Values
Recyclable packaging	Yes
EPEAT 2018 Gold for selected configuration	Yes
BFR/PVC—free	No
Vertical orientation packaging support	Yes
Multi-Pack packaging	No
Energy-Efficient Power Supply	Standard
ENV0424 compliant	Yes

NOTE: Wood‐based fiber packaging contains a minimum of 35% recycled content by total weight of wood‐based fiber. Packaging that contains without wood‐based fiber can be claimed as Not Applicable. The anticipated required criteria for EPEAT 2018.

Regulatory compliance

The following table lists the regulatory compliance of your Precision 7960 Tower.

Table 1. Regulatory complianceThe following table lists the regulatory compliance of your Precision 7960 Tower.
Regulatory compliance
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home page
Dell and the Environment

Operating and storage environment

This table lists the operating and storage specifications of your Precision 7960 Tower.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Precision 7960 Tower.
Description	Operating	Storage
Temperature range	10°C to 35°C (50°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell Precision 7960 Tower: технические характеристики и спецификации
