Dell Precision 7960 Rack: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Precision 7960 Rack.

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Precision 7960 Rack.
Description	Values
Width
Front width	482.00 mm (18.98 in.)
Rear width	434.00 mm (17.08 in.)
Height	86.80 mm (3.42 in.)
Depth with bezel	772.13 mm (30.40 in.)
Weight NOTE:The weight of your computer depends on the ordered configuration and manufacturing variability.	Minimum: 20.98 kg (46.25 lb) Maximum: 29.64 kg (65.36 lb)

Processors

The following table lists the details of the processors supported by your Precision 7960 Rack

Table 1. Processors
The following table provides the various processor options that are supported for Precision 7960 Rack.
Processor type	Processor wattage	Processor core count	Processor thread count	Processor speed	Processor cache
Intel Xeon Silver 4410Y	150 W	12	24	2.0 GHz to 3.9 GHz Turbo	30 MB
Intel Xeon Silver 4416+	165 W	20	40	2.0 GHz to 3.9 GHz Turbo	37.5 MB
Intel Xeon Silver 4509Y	125 W	8	16	2.6 GHz to 4.1 GHz Turbo	22.5 MB
Intel Xeon Silver 4510	150 W	12	24	2.4 GHz to 4.1 GHz Turbo	30 MB
Intel Xeon Silver 4514Y	150 W	16	32	2.0 GHz to 3.4 GHz Turbo	30 MB
Intel Xeon Gold 5415+	150 W	8	16	2.9 GHz to 4.1 GHz Turbo	22.5 MB
Intel Xeon Gold 5418Y	185 W	24	48	2.0 GHz to 3.8 GHz Turbo	45 MB
Intel Xeon Gold 5420+	205 W	28	56	2.0 GHz to 4.1 GHz Turbo	52.5 MB
Intel Xeon Gold 6426Y	225 W	16	32	2.6 GHz to 4.0 GHz Turbo	37.5 MB
Intel Xeon Gold 6430	270 W	32	64	2.1 GHz to 3.4 GHz Turbo	60 MB
Intel Xeon Gold 6434	195 W	8	16	3.7 GHz to 4.1 GHz Turbo	22.5 MB
Intel Xeon Gold 6442Y	225 W	24	48	2.6 GHz to 4.0 GHz Turbo	60 MB
Intel Xeon Gold 6444Y	270 W	16	32	3.6 GHz to 4.0 GHz Turbo	45 MB
Intel Xeon Gold 6448Y	225 W	32	64	2.1 GHz to 4.1 GHz Turbo	60 MB
Intel Xeon Gold 6526Y	195 W	16	32	2.8 GHz to 3.9 GHz Turbo	37.5 MB
Intel Xeon Gold 6534	195 W	8	16	3.9 GHz to 4.2 GHz Turbo	22.5 MB
Intel Xeon Gold 6542Y	250 W	24	48	2.9 GHz to 4.1 GHz Turbo	60 MB
Intel Xeon Gold 6548Y+	250 W	32	64	2.5 GHz to 4.1 GHz Turbo	60 MB
Intel Xeon Platinum 8452Y	300 W	36	72	2.0 GHz to 3.2 GHz Turbo	67.5 MB
Intel Xeon Platinum 8460Y+	300 W	40	80	2.0 GHz to 3.7 GHz Turbo	105 MB
Intel Xeon Platinum 8462Y+	300 W	32	64	2.8 GHz to 4.1 GHz Turbo	60 MB
Intel Xeon Platinum 8468	300 W	48	96	2.1 GHz to 3.8 GHz Turbo	105 MB
Intel Xeon Platinum 8470	350 W	52	104	2.0 GHz to 3.8 GHz Turbo	105 MB
Intel Xeon Platinum 8480+	350 W	56	112	2.0 GHz to 3.8 GHz Turbo	105 MB
Intel Xeon Platinum 8562Y+	300 W	32	64	2.8 GHz to 4.1 GHz Turbo	60 MB
Intel Xeon Platinum 8568Y+	350 W	48	96	2.3 GHz to 4.0 GHz Turbo	300 MB
Intel Xeon Platinum 8580	350 W	60	120	2.0 GHz to 4.0 GHz Turbo	300 MB
Intel Xeon Platinum 8592+	350 W	64	128	1.9 GHz to 3.9 GHz Turbo	320 MB

Chipset

The following table lists the details of the chipset supported by your Precision 7960 Rack.

Table 1. Chipset
The following table provides the chipset specifications for Precision 7960 Rack.
Description	Values
Chipset	Intel C741
Processor	Intel
DRAM bus width	64-bit
Flash EPROM	32 MB + 16 MB
PCIe bus	Up to Gen 3.0
Non-volatile memory	Yes
BIOS configuration Serial Peripheral Interface (SPI)	256 Mbit (32 MB) located at SPI_FLASH
Trusted Platform Module (TPM) 2.0 (Discrete TPM Enabled)	24 KB located at TPM 2.0 on chipset
Firmware-TPM (Discrete TPM disabled)	By default the Platform Trust Technology feature is visible to the operating system.
NIC EEPROM	LOM configuration contained within SPI flash ROM instead of LOM e-fuse

Operating system

Your Precision 7960 Rack supports the following operating systems:

Windows 11 Pro for Workstations
Windows 11 Pro for Workstations Downgrade (Windows 10 Pro for Workstations Image-factory installed)
Windows 10 CMIT Government Edition, 64-bit (China only)
Ubuntu 22.04 LTS, 64-bit
Red Hat Enterprise Linux 8.6

Memory

The following table lists the memory specifications that are supported by your Precision 7960 Rack.

Table 1. Memory specificationsThe following table lists the memory specifications of your computer.
Description	Values
Memory slots	Single processor - has 8 memory channels with 16 DIMM slots. Dual processors - have 8 memory channels per processor with total of 32 DIMM slots.
Memory type	DDR5
Memory speed	5600 MT/s NOTE:This computer operates at 5600 MT/s.
Maximum memory configuration	2 TB
Minimum memory configuration	16 GB
Memory size per slot	16 GB, 32 GB, 64 GB
Memory configurations supported	16 GB, 1 x 16 GB, DDR5, 5600 MT/s 32 GB, 1 x 32 GB, DDR5, 5600 MT/s 32 GB, 2 x 16 GB, DDR5, 5600 MT/s 64 GB, 1 x 64 GB, DDR5, 5600 MT/s 64 GB, 2 x 32 GB, DDR5, 5600 MT/s 64 GB, 4 x 16 GB, DDR5, 5600 MT/s 96 GB, 6 x 16 GB, DDR5, 5600 MT/s 128 GB, 1 x 128 GB, DDR5, 5600 MT/s 128 GB, 2 x 64 GB, DDR5, 5600 MT/s 128 GB, 4 x 32 GB, DDR5, 5600 MT/s 128 GB, 8 x 16 GB, DDR5, 5600 MT/s 192 GB, 6 x 32 GB, DDR5, 5600 MT/s 192 GB, 12 x 16 GB, DDR5, 5600 MT/s 256 GB, 1 x 256 GB, DDR5, 5600 MT/s 256 GB, 2 x 128 GB, DDR5, 5600 MT/s 256 GB, 4 x 64 GB, DDR5, 5600 MT/s 256 GB, 8 x 32 GB, DDR5, 5600 MT/s 256 GB, 16 x 16 GB, DDR5, 5600 MT/s 384 GB, 6 x 64 GB, DDR5, 5600 MT/s 384 GB, 12 x 32 GB, DDR5, 5600 MT/s 384 GB, 24 x 16 GB, DDR5, 5600 MT/s 512 GB, 2 x 256 GB, DDR5, 5600 MT/s 512 GB, 4 x 128 GB, DDR5, 5600 MT/s 512 GB, 8 x 64 GB, DDR5, 5600 MT/s 512 GB, 32 x 16 GB, DDR5, 5600 MT/s 768 GB, 6 x 128 GB, DDR5, 5600 MT/s 768 GB, 12 x 64 GB, DDR5, 5600 MT/s 768 GB, 24 x 32 GB, DDR5, 5600 MT/s 1 TB, 4 x 256 GB, DDR5, 5600 MT/s 1 TB, 8 x 128 GB, DDR5, 5600 MT/s 1 TB, 16 x 64 GB, DDR5, 5600 MT/s 1 TB, 32 x 32 GB, DDR5, 5600 MT/s 1.5 TB, 6 x 256 GB, DDR5, 5600 MT/s 1.5 TB, 12 x 128 GB, DDR5, 5600 MT/s 1.5 TB, 24 x 64 GB, DDR5, 5600 MT/s 2 TB, 8 x 256 GB, DDR5, 5600 MT/s 2 TB, 16 x 128 GB, DDR5, 5600 MT/s 2 TB, 32 x 64 GB, DDR5, 5600 MT/s 3 TB, 12 x 256 GB, DDR5, 5600 MT/s 3 TB, 24 x 128 GB, DDR5, 5600 MT/s 3 TB, 32 x 64 GB, DDR5, 5600 MT/s 4 TB, 16 x 256 GB, DDR5, 5600 MT/s 4 TB, 32 x 128 GB, DDR5, 5600 MT/s 6 TB, 24 x 256 GB, DDR5, 5600 MT/s 8 TB, 32 x 256 GB, DDR5, 5600 MT/s NOTE: When 12 or 16 memory DIMM slots are populated in a single processor system, 5600 MT/s memory will clock down to 4400 MHz. When 24 or 32 memory DIMM slots are populated in a dual processor system, 5600 MT/s memory will clock down to 4400 MHz. Memory speed that is supported will vary according to the processor selected. 128 GB and 256 GB RDIMMs will require limiting the environment temperature up to 30°C to gain the best system thermal and acoustic performance.

Memory matrix

The following table lists the memory configurations that are supported on your Precision 7960 Rack.

16 GB configuration

The Precision 7960 Rack memory matrix outlines an order by Channel or DIMM-number in which DIMMs are populated in the memory slots.

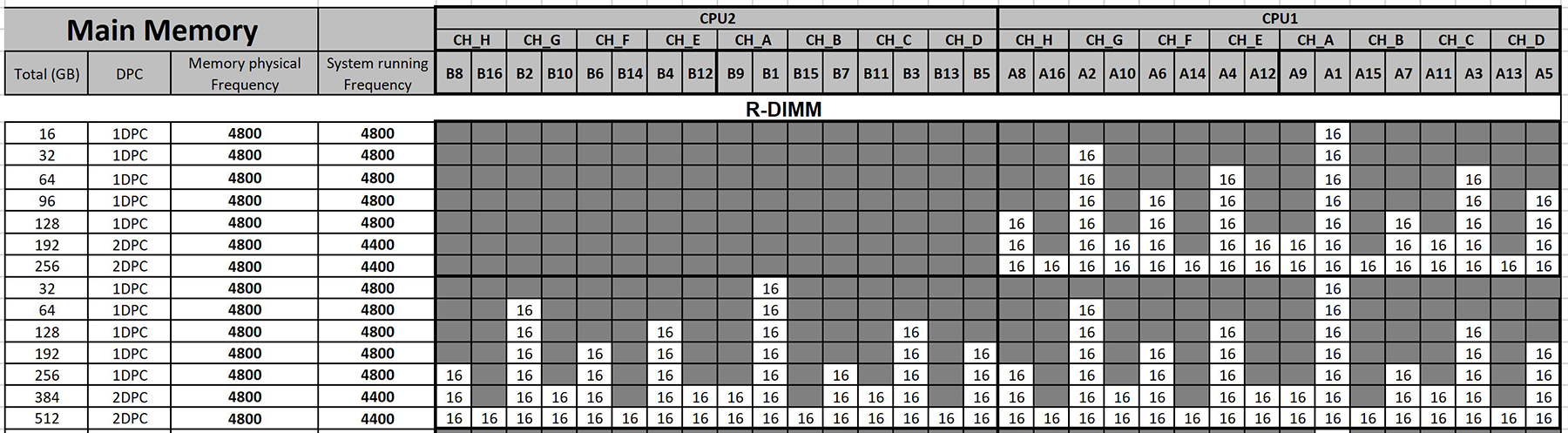

16 GB memory matrix

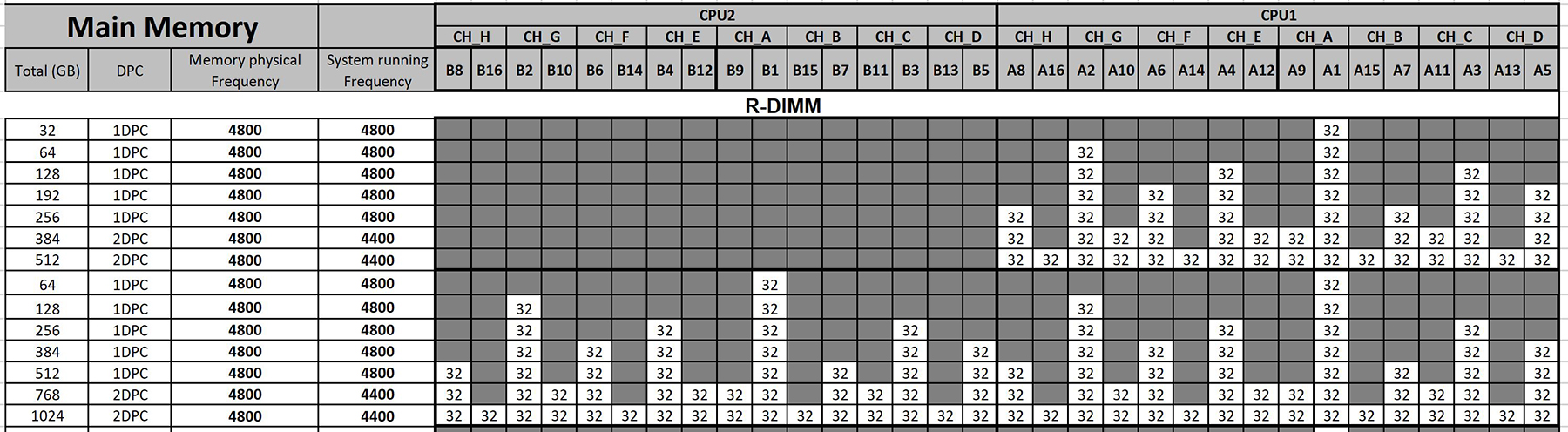

32 GB memory matrix

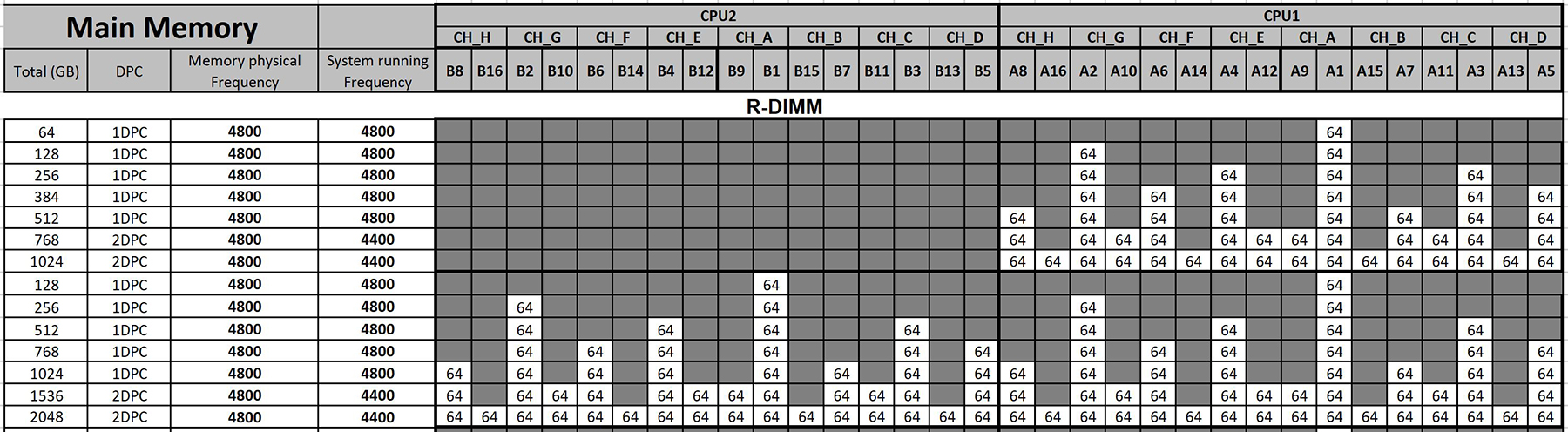

64 GB memory matrix

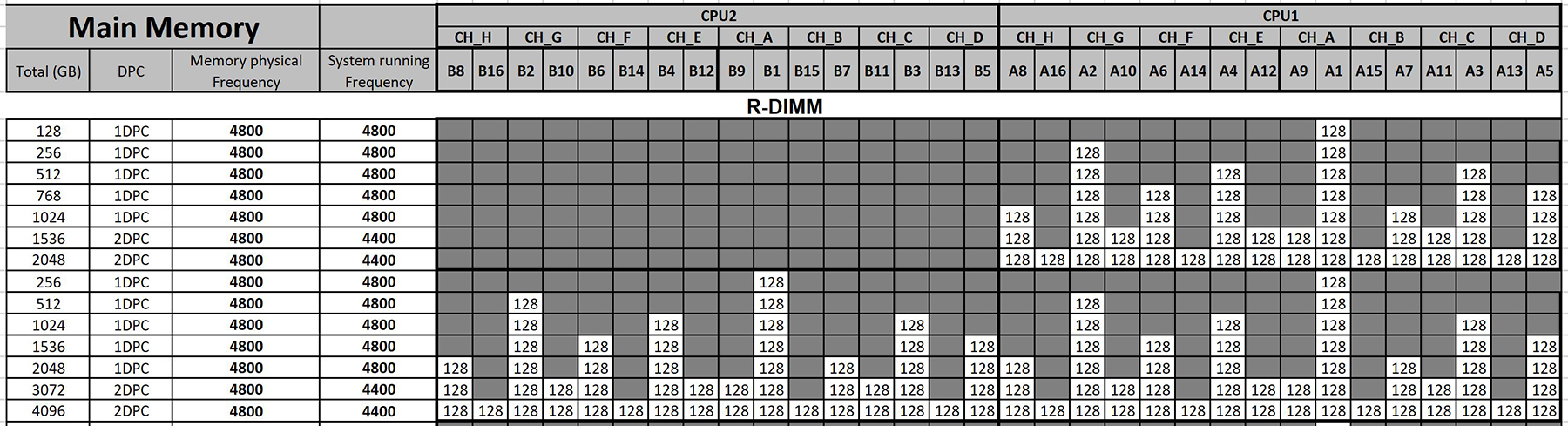

128 GB memory matrix

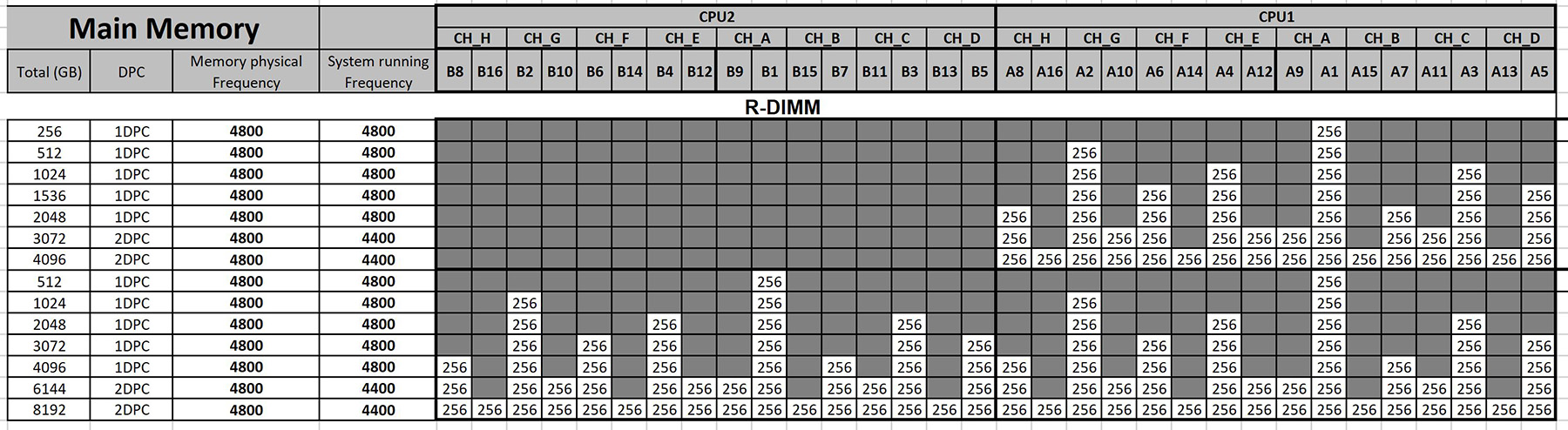

256 GB memory matrix

External ports and slots

The following table lists the external ports and slots on your Precision 7960 Rack.

Table 1. External ports and slots
The following table lists ports and connectors available on Precision 7960 Rack.
Description	Values
Network port	One iDRAC9 Enterprise Dedicated Network connector (rear) 2 RJ45 Ethernet ports, 1 GbE (LOM card option) 4 RJ45 Ethernet ports, 1 GbE (OCP3 card option) 4 RJ45 Ethernet ports, 10 GbE (OCP3 card option) 4 SFP28 Ethernet ports, 25 GbE (OCP3 card option)
USB ports	One iDRAC Direct port (front) One USB 2.0 port (front) One USB 2.0 port (rear) One USB 3.0 Gen 1 port (rear)
Audio port	N/A
Video port(s)	One VGA port (front) One VGA port (rear) via Discrete GPU
Media-card reader	N/A
Power-adapter port	Not supported
Security-cable slot	Chassis lock support - Coin locker

Storage bays

The following table lists the storage bays of your Precision 7960 Rack.

Table 1. Storage baysThe following table lists the storage bays on your Precision 7960 Rack.
Description	Values
SATA/SAS	Eight storage bays for 3.5-inch or 2.5-inch HDD Drive bays support SATA and SAS drives with VROC or optional PERC RAID controller.

Ethernet

The following table lists the wired ethernet Local Area Network (LAN) specifications of your Precision 7960 Rack.

Table 1. Ethernet specifications
The following table provides the specifications of Ethernet that is supported by your Precision 7960 Rack.
Description	Values
Model	Broadcom BCM5720 (optional)
Transfer rate	1 GbE x2

Storage

This section lists the storage options on your Precision 7960 Rack.

Your system supports one or more of the following storage drives:

Eight storage bays for 3.5-inch or 2.5-inch hard drive
Drive bays support SATA and SAS drives with optional PERC RAID controller.

Table 1. Storage specifications
The following table provides the different storage options available on Precision 7960 Rack.
Storage type	Interface type	Capacity
2.5-inch, 15k RPM, Enterprise hard-disk drive	SAS	600 GB
2.5-inch, 10k RPM, Enterprise hard-disk drive	SAS	Up to 2.4 TB
3.5-inch, 7200 RPM, Enterprise hard-disk drive	SATA	Up to 12 TB
2.5-inch, MU, SSD	SATA	1.92 TB

Storage Matrix

This section lists the storage options on your Precision 7960 Rack.

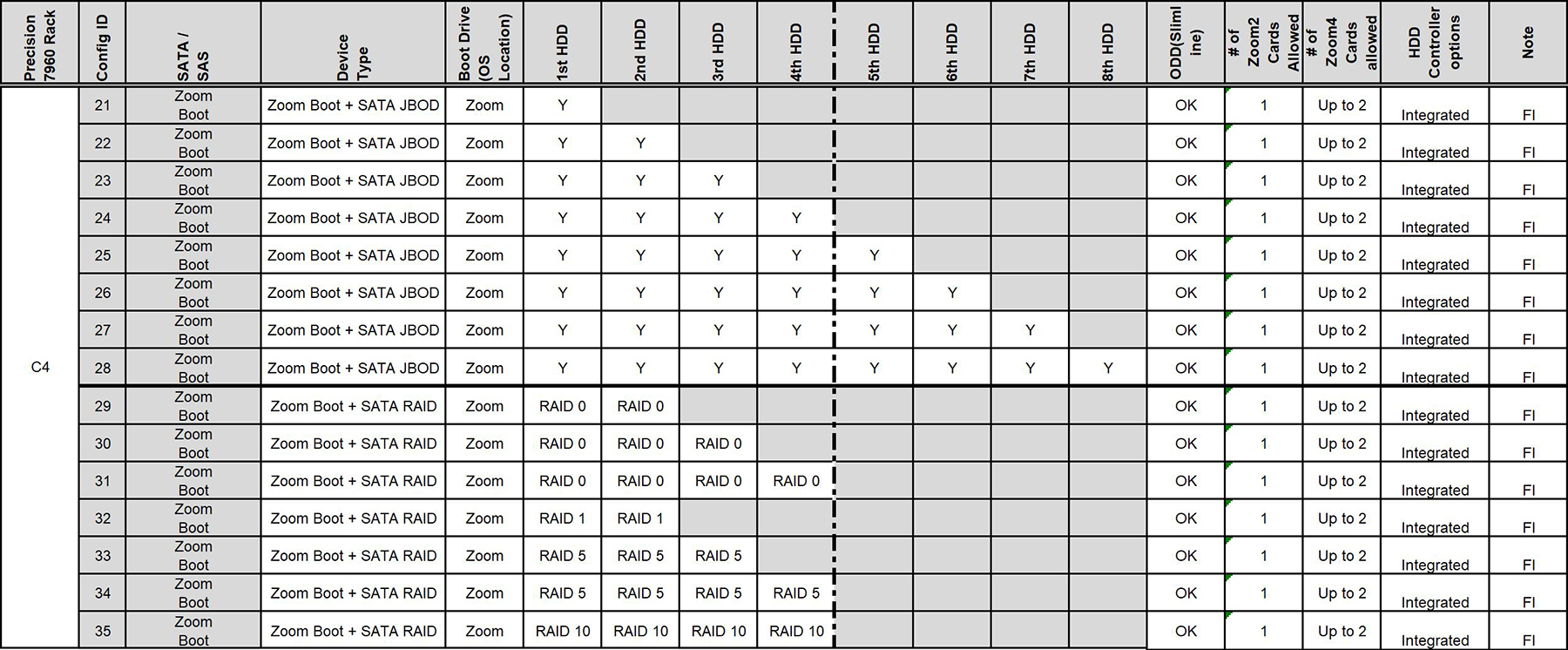

C4 configuration

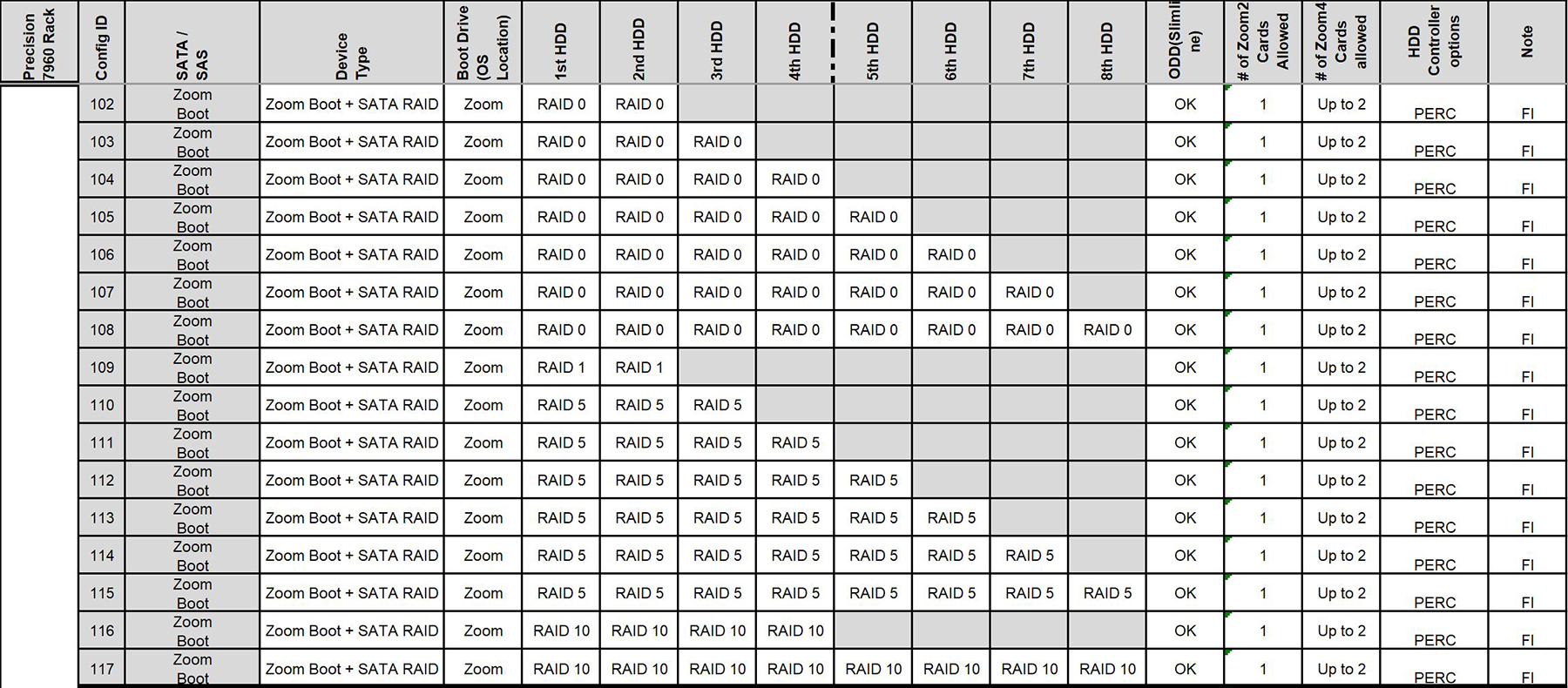

C10 configuration_1

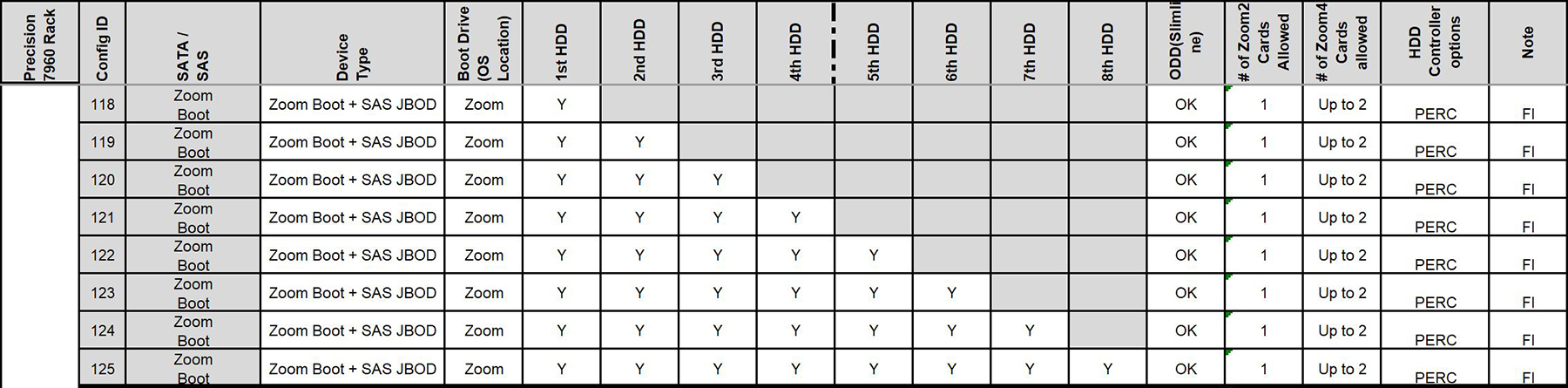

C10 configuration_2

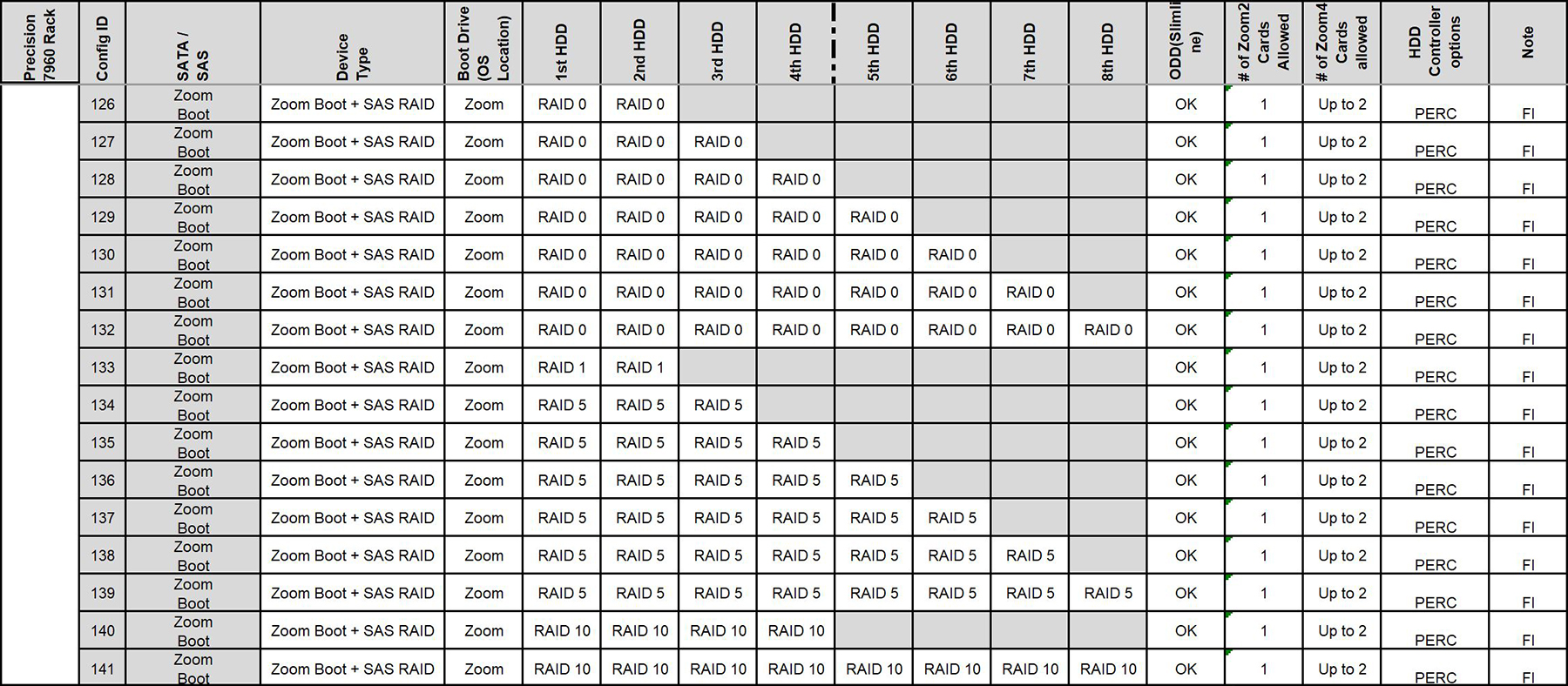

C10 configuration_3

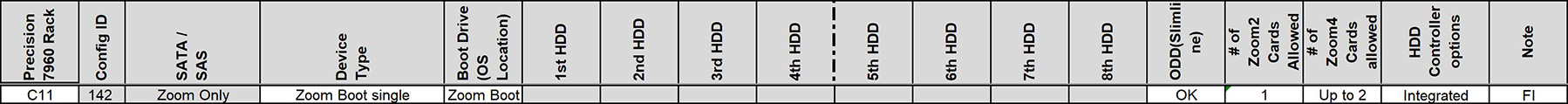

C11 configuration

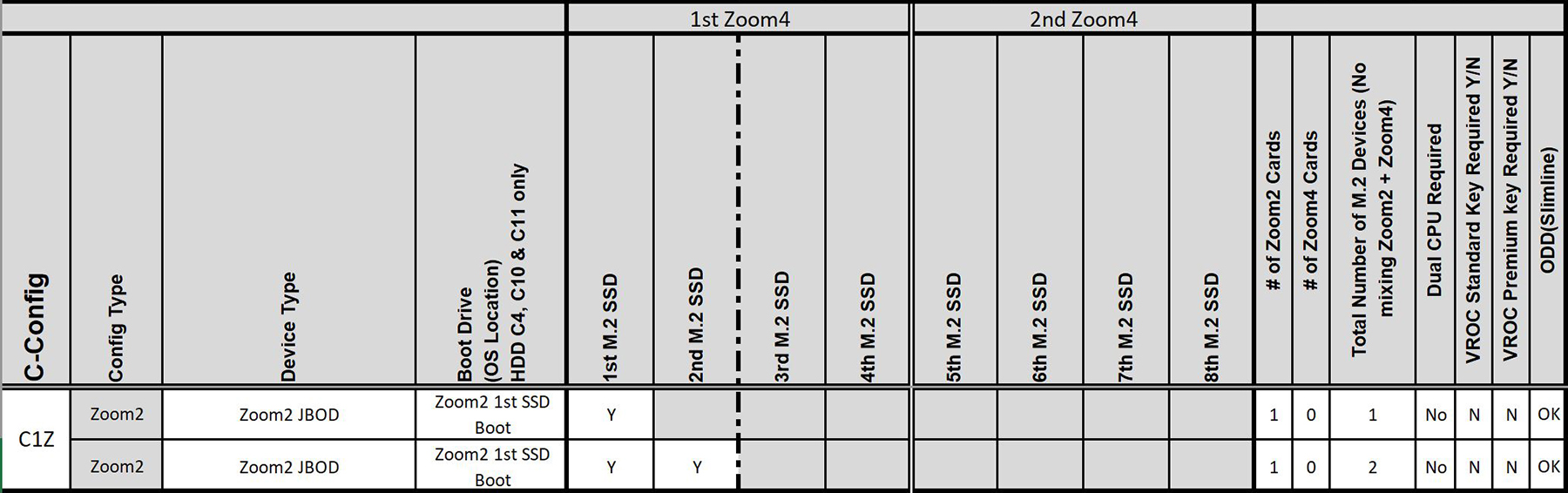

C1Z - Dell Ultra Speed Duo card configuration

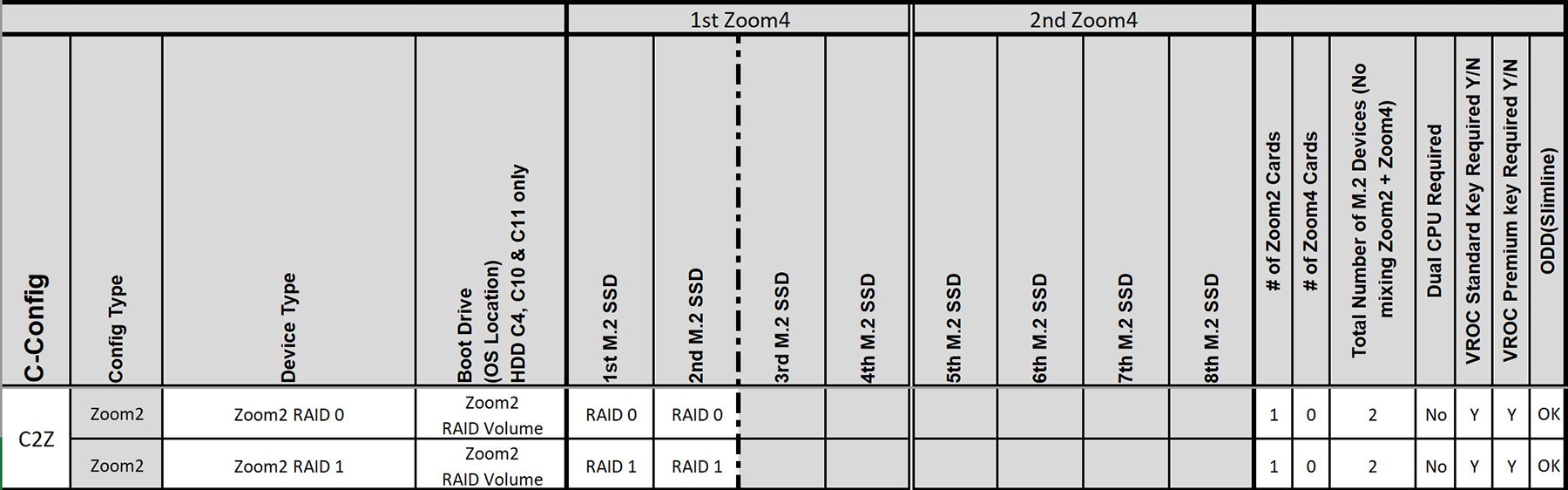

C2Z - Dell Ultra Speed Duo card configuration

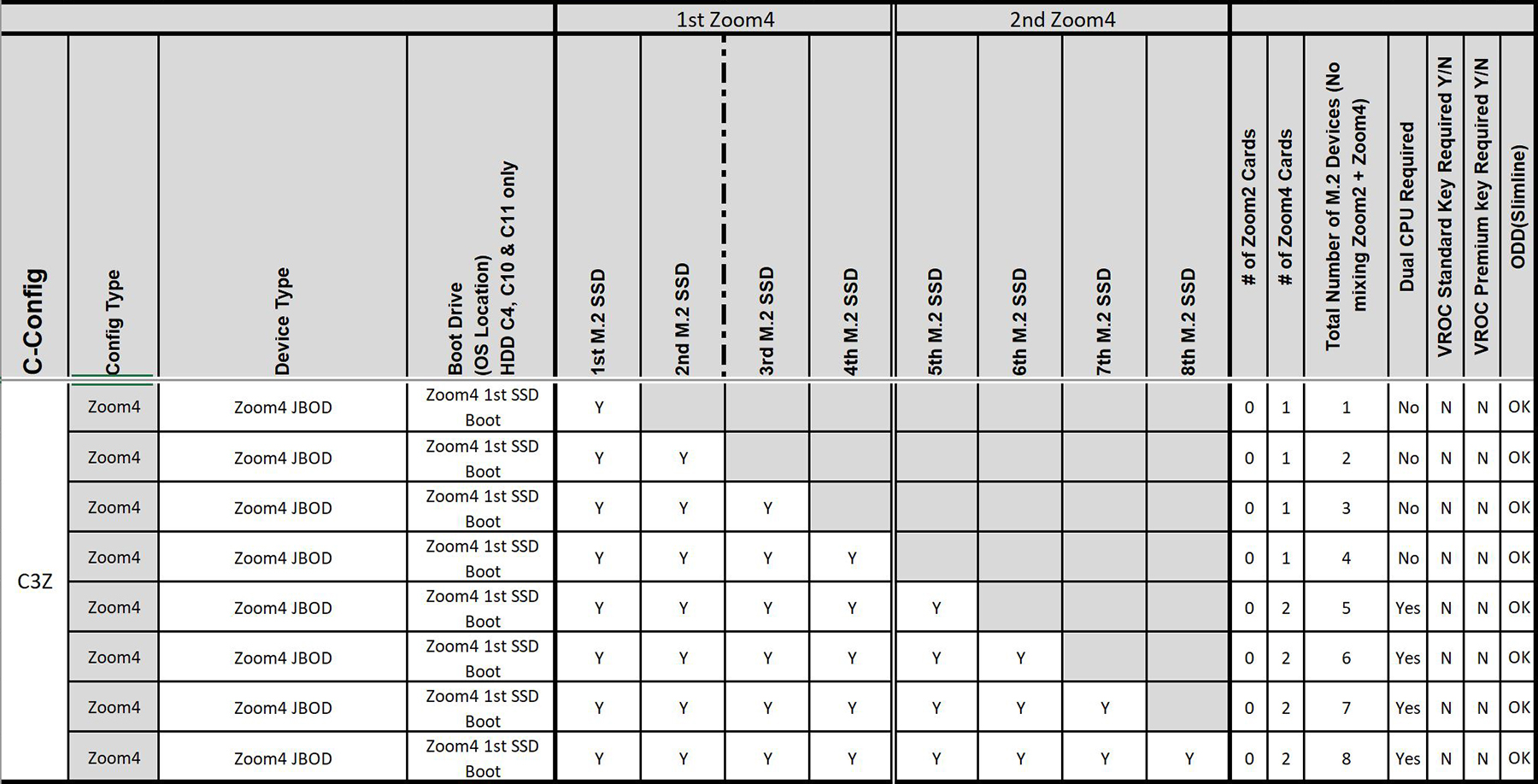

C3Z - Dell Ultra Speed Quad card configuration

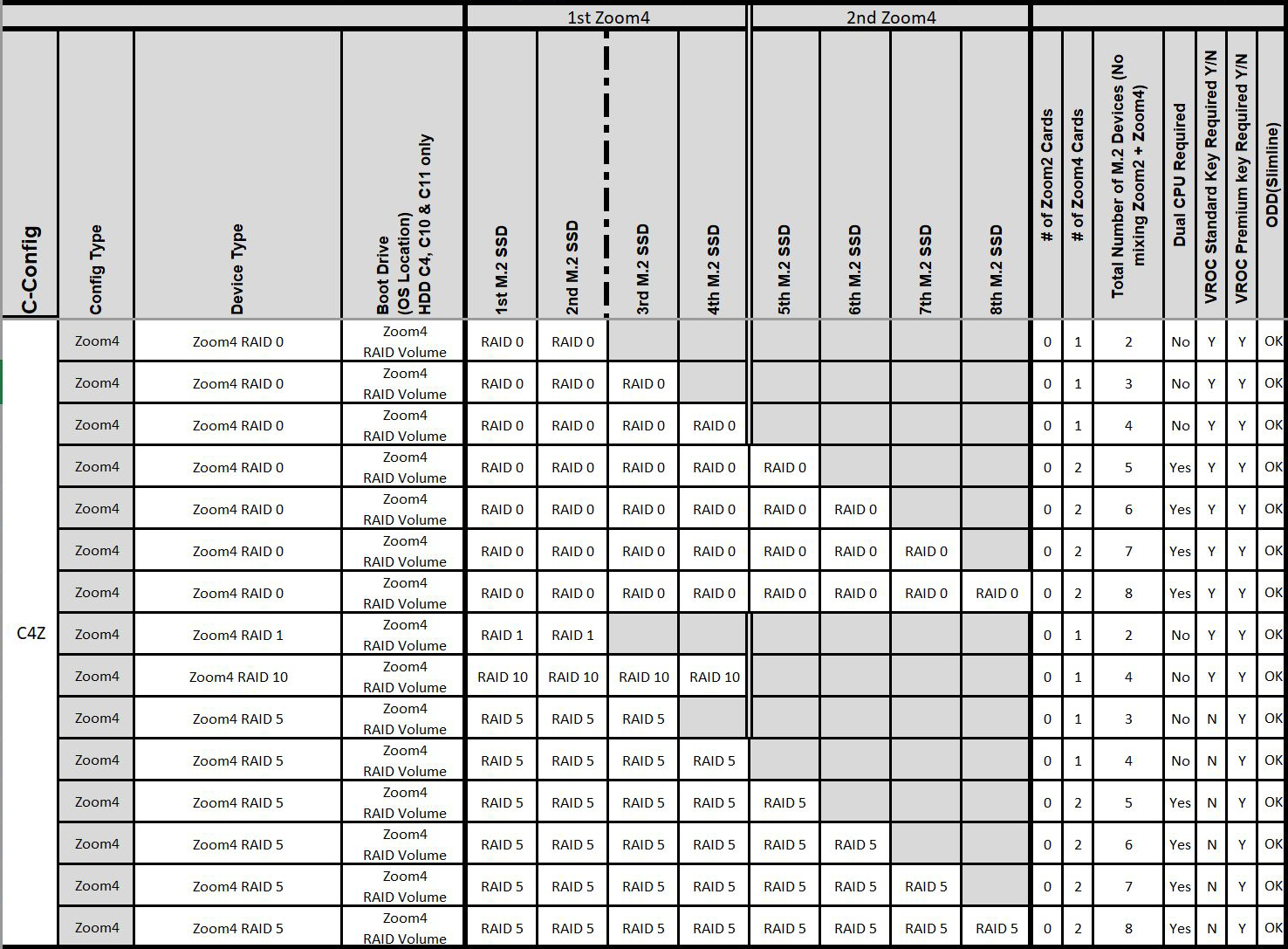

C4Z - Dell Ultra Speed Quad card configuration

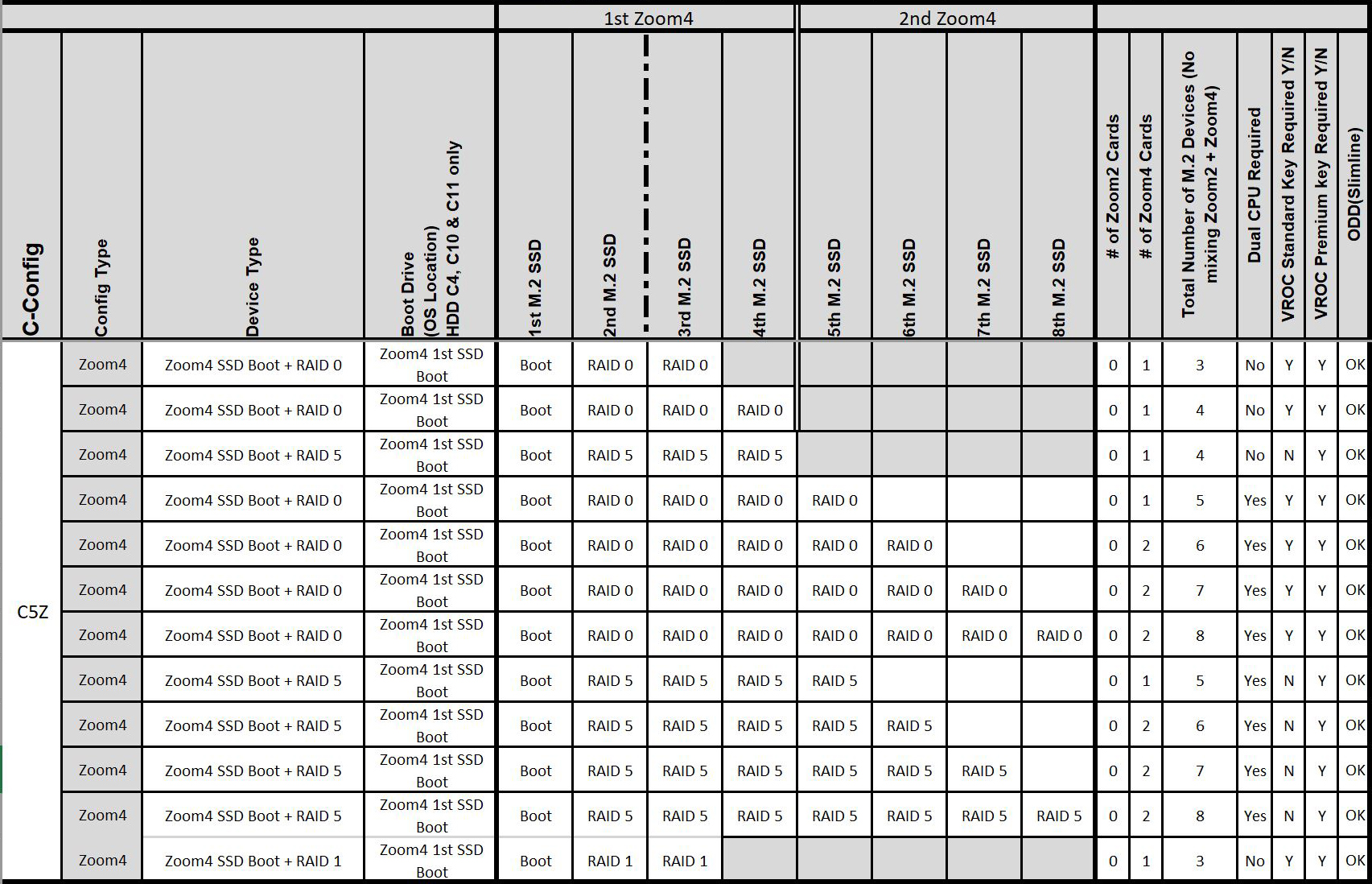

C5Z - Dell Ultra Speed Quad card configuration

RAID (Redundant Array of Independent Disks)

For optimal performance when configuring drives as a RAID volume, Dell Technologies recommends drive models that are identical.

The Dell Technologies PowerEdge RAID Controller (PERC) H755 is a RAID disk array controller made by Dell for the Precision 7960 Rack. It has the following characteristics:

Provides reliability, high performance, and fault-tolerant disk subsystem management.
Offers RAID control capabilities including support for RAID levels 0, 1, 5, 10.
Complies with Serial Attached SCSI (SAS) 3.0 providing up to 12 Gb/sec throughput.
Supports Dell-qualified Serial Attached SCSI (SAS), SATA hard drives, and solid state drives (SSDs).

NOTE:Mixing disks of different speeds (7,200 RPM, 10,000 RPM, or 15,000 RPM) and bandwidth (3 Gbps, 6 Gbps, or 12 Gbps) while maintaining the same drive type (SAS or SATA) and technology (hard drive or SSD) is supported.

NOTE:Mixing SAS and SATA is not supported. Also, mixing hard drives and SSDs in a virtual disk is not supported.

NOTE:For the safety, regulatory, and ergonomic information that is associated with these devices, and for more information about the Integrated Dell Remote Access Controller (iDRAC) or Lifecycle Controller (LC) remote management, see your platform documentation.

The Precision 7960 Rack system supports Intel VROC RAID Controller. It has the following characteristics:

NVMe drives can be directly connected to the CPU PCIe slots using the Dell Ultra-Speed Quad or Dell Ultra- Speed Duo add-in cards.
Intel VMD is the storage controller used by drives directly attached to the CPU.
Intel VROC is the software stack that manages drives attached to Intel VMD.
The integrated Intel VROC pass-through allows for NVMe SSDs to be installed onto CPU PCIe connections in JBOD mode only. The Intel VROC Standard upgrade allows drives connected to Intel VMD to be configured into RAID 0, RAID1, or RAID10 arrays, The Intel VROC Premium upgrade allows drives connected to Intel VMD to be configured into RAID 0, RAID1, RAID10 and RAID5 arrays.
Boot is supported for RAID arrays attached to Intel® VMD controllers this generation. RAID arrays can be spanned across Intel® VMD controllers, but boot is not supported on those arrays. It is not recommended to span RAID arrays across the Intel® VMD controllers on different CPUs.
Intel VROC will provide support for Disk Coercion. When a RAID volume is created, this feature will analyze the physical disks and will automatically adjust (round down) the capacity of the disks to 95% of the smallest physical disk. This allows for the variances in the physical disk capacities from different vendors. The VROC UI (either Windows VROC Application GUI or CLI tool for manufacturing) will provide an option to manually override this to be able to use all available disk space.

Table 1. RAID configurations The table provides more details of supported RAID configurations on Precision 7960 Rack:
Type	Supported
RAID 0	Yes
RAID 1	Yes
RAID 5	Yes
RAID 10	Yes

PERC H755 front SAS

The following table lists the PERC H755 front SAS card specifications.

Table 1. Technical specifications of PERC H755 front SAS cardThe following table lists the PERC H755 front SAS card specifications.
Feature	PERC H755 front SAS
RAID levels	0, 1, 5, 6, 10, 50, 60
Non–RAID	Yes
Enclosures per port	Not applicable
Processor	Broadcom RAID-on-chip, SAS3916 chipset
Battery backup unit	Yes
Local Key Management security	Yes
Controller queue depth	5120
Secure enterprise key manager security	Yes
Non-volatile cache	Yes
Cache memory	8 GB DDR4 2666 MT/s cache
Cache function	Write back, write through, no read ahead, and read ahead
Max no of VDs in RAID mode	240
Max no of disk groups	240
Max no of VDs per disk group	16
Hot swap devices supported	Yes
Autoconfig	Yes
Hardware XOR engine	Yes
Online capacity expansion	Yes
Dedicated and global hot spare	Yes
Drives types	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
VD strip size	64 KB, 128 KB, 256 KB, 512 KB, 1 MB
PCIe support	Gen 4
SAS/SATA maximum drive support	Without SAS Expander: 16 drives per controller With SAS Expander: Limited by platform offerings
NVMe maximum drive support	Not applicable

NOTE:PERC H755 adapter supports either SAS or SATA drives, depending on the backplane/server configuration.

Power ratings

The following table lists the power rating specifications of Precision 7960 Rack.

Table 1. Power ratings
The following table provides the power rating specifications of Precision 7960 Rack.
Type	800 W Platinum	1100 W Titanium		2400 W Platinum
Type	800 W Platinum	1050W	1100W	1400W	2400W
Input voltage
Minimum	90 VAC	90 VAC	180 VAC	90 VAC	180 VAC
Maximum	264 VAC	132 VAC	264 VAC	132 VAC	264 VAC
Input frequency
Minimum	47 Hz	47 Hz	47 Hz	47 Hz	47 Hz
Maximum	63 Hz	63 Hz	63 Hz	63 Hz	63 Hz
Maximum input current	10.4 A	13.5 A	7 A	18 A	14.9 A
Input voltage
Minimum	192 VDC	N/A	192 VDC	N/A	192 VDC
Maximum	288 VDC	N/A	288 VDC	N/A	288 VDC
Maximum input current	4.9 A	N/A	6.7 A	N/A	14.3 A
Output current, continuous	+12 V/65.57 A STBY/2 A	+12 V/86.07 A STBY/2 A	+12 V/90.16 A STBY/2 A	+12 V/114.75 A STBY/2 A	+12 V/196.72 A STBY/2 A
Rated Output Voltage	+12V: 12.2 V STBY: 12 V	+12V: 12.2 V STBY: 12 V	+12V: 12.2 V STBY: 12 V	+12V: 12.2 V STBY: 12 V	+12V: 12.2 V STBY: 12 V
Minimum operating temperature	0°C	0°C	0°C	0°C	0°C
Maximum operating temperature	55°C	55°C	55°C	55°C	55°C
Minimum storage temperature	-40°C	-40°C	-40°C	-40°C	-40°C
Maximum storage temperature	70°C	70°C	70°C	70°C	70°C

Power cord

This section lists the power-cord plug types for 2400 W PSU on your Precision 7960 Rack based on the countries shipped.

Table 1. Power-cord plug typesThe following table provides the power cord plug type information:
Power-cord style	Plug type	Affected countries
Argentina		Argentina
Australia		Australia Christmas Island Cook Islands Fiji Kiribati Nauru New Zealand Papua New Guinea Pitcairn Tonga Tuvalu Uruguay
Brazil		Brazil
China		China
Italy		Chile Holy See Italy Uruguay
Japan—250 V		Japan
North America—250 V		Anguilla American Samoa Aruba Bahamas Barbados Belize Bermuda British Virgin Islands Canada Cayman Islands Colombia Costa Rica Dominican Republic Ecuador El Salvador Guam Guatemala Haiti Honduras Jamaica North Marianas Marshall Island Mexico Nicaragua Palau Panama Philippines Puerto Rico Samoa St. Maarten Trinidad and Tobago Turks and Caicos United States US Virgin Islands Venezuela Vietnam
Switzerland		Liechtenstein Switzerland
India		India
UK	Only support jump power cord.	Antigua and Barbuda Bahrain Bangladesh Botswana British Indian Ocean Territory Brunei Darussalam Curacao Cyprus Falkland Islands Gambia Gibraltar Ghana Grenada Guyana Hong Kong Iraq Ireland Jordan Kenya Kuwait Lebanon Macau Malawi Malaysia Malta Mauritius Montserrat Myanmar Nigeria Oman Pakistan Qatar Saudi Arabia Seychelles Sierra Leone Singapore Sri Lanka St. Kitts and Nevis St. Lucia St. Vincent and Grenadines Tanzania Uganda United Arab Emirates United Kingdom Vanuatu Yemen Zambia and Zimbabwe
Denmark	Only support jump power cord.	Denmark and Greenland

Power supply connector

The following table lists the Power supply connector specifications of your Precision 7960 Rack.

Table 1. Power supply connector The following table lists the Power supply connector specifications of your Precision 7960 Rack.
PSU type	PSU connector
800 W Platinum	Golden finger design without cable
1050 W/1100 W Titanium	Golden finger design without cable
1400 W/2400 W Platinum	Golden finger design without cable

GPU—Integrated

The Precision 7960 Rack system supports an integrated Matrox G200eW3 graphics controller.

Table 1. GPU—IntegratedGPU—Integrated
Graphics card	Video ports	Maximum supported resolution
Integrated Matrox G200eW3 graphics controller	Front: One VGA port Back: One VGA port NOTE:The front and rear VGA ports cannot be used simultaneously. If both are connected, the front port takes priority.	1024 x 768

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Precision 7960 Rack.

Table 1. GPU—Discrete
The following table provides the detailed discrete graphics specifications of Precision 7960 Rack.
Controller	Memory size	Memory type
NVIDIA T400 LP/FH	4 GB	GDDR6
NVIDIA T1000 LP/FH	8 GB	GDDR6
NVIDIA RTX A2000	12 GB	GDDR6
NVIDIA RTX A4000	16 GB	GDDR6
NVIDIA RTX A4500	20 GB	GDDR6
NVIDIA RTX A5500	24 GB	GDDR6
NVIDIA RTX A6000	48 GB	GDDR6
NVIDIA RTX 4000 Ada Generation	20 GB	GDDR6
NVIDIA RTX 4500 Ada Generation	24 GB	GDDR6
NVIDIA RTX 5000 Ada Generation	32 GB	GDDR6
NVIDIA RTX 6000 Ada Generation	48 GB	GDDR6
NVIDIA RTX PRO 2000 Blackwell	16 GB	GDDR7
NVIDIA RTX Pro 4000 Blackwell	24 GB	GDDR7
NVIDIA RTX Pro 4500 Blackwell	32 GB	GDDR7
NVIDIA RTX Pro 5000 Blackwell	48 GB	GDDR7
NVIDIA RTX Pro 6000 Blackwell Max-Q	96 GB	GDDR7
NVIDIA A800	40 GB	HBM2
AMD Radeon W6400 LP/FH	4 GB	GDDR6
AMD Radeon W6600	8 GB	GDDR6

Video port resolution

The following table lists the video port resolution for your Precision 7960 Rack.

Table 1. Video port resolutionThe following table provides the video port resolution for your Precision 7960 Rack.
Graphics card	Video ports	Maximum supported resolution
NVIDIA T400 LP/FH	Three mini-DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA T1000 LP/FH	Four mini-DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires three DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX A2000	Four mini-DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX A4000	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX A4500	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX A5500	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX A6000	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX 4000 Ada Generation	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX 4500 Ada Generation	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX 5000 Ada Generation	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX 6000 Ada Generation	Four DP 1.4 ports	7680 x 4320 @24 bpp at 120 Hz NOTE:Requires two DPs 1.4a and DSC NOTE:DisplayPort 1.2 Certified, DisplayPort 1.3 and 1.4 ready
NVIDIA RTX Pro 2000 Blackwell	Four mini-DP 2.1b	7680 x 4320 @ 24 bpp at 165 Hz NOTE:Requires two DPs 1.4a and DSC
NVIDIA RTX Pro 4000 Blackwell	Four DP 2.1b ports	7680 x 4320 @100 Hz
NVIDIA RTX Pro 4500 Blackwell	Four DP 2.1b ports	7680 x 4320 @100 Hz
NVIDIA RTX Pro 5000 Blackwell	Four DP 2.1b ports	7680 x 4320 @ 60 Hz
NVIDIA RTX Pro 6000 Blackwell Max-Q	Four DP 2.1b ports	7680 x 4320 @ 60 Hz
NVIDIA A800	N/A	N/A
AMD Radeon Pro W6400 LP/FH	Two DP 1.4 ports	7680 x 4320 @ 60 Hz
AMD Radeon Pro W6600	Four DP 1.4 ports	4096 x 2304 @ 60 Hz

Hardware security

The following table lists the hardware security of your Precision 7960 Rack.

Table 1. Hardware security The following table provides the hardware security details on your Precision 7960 Rack.
Hardware security
Chassis lock support - Coin locker
Chassis intrusion switch
Lockable bezel for externally-facing storage flexbay (included with M.2 NVMe drives, optional with SATA drives)
TPM 2.0 Discrete Hardware

Environmental

The following table lists the environmental specifications of your Precision 7960 Rack.

Table 1. Environmental The following table lists the environmental specifications of your Precision 7960 Rack.
Feature	Values
Recyclable packaging	Yes
BFR/PVC—free chassis	No
Vertical orientation packaging support	No
Multi-Pack packaging	No
Energy-Efficient Power Supply	Standard
ENV0425 compliant	Yes

NOTE:Wood‐based fiber packaging contains a minimum of 35% recycled content by total weight of wood‐based fiber. Packaging that contains without wood‐based fiber can be claimed as Not Applicable. The anticipated required criteria for EPEAT 2018.

Regulatory compliance

The following table lists the regulatory compliance of your Precision 7960 Rack.

Table 1. Regulatory complianceThe following table lists the regulatory compliance of your Precision 7960 Rack.
Regulatory compliance
US CEC MEPS compliant configurations available
WEEE
Japan Energy Law
EU RoHS
China RoHS

Operating and storage environment

This table lists the operating and storage specifications of your Precision 7960 Rack.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Precision 7960 Rack.
Description	Operating	Storage
Temperature range	10°C – 35°C (50°F – 95°F)	-40°C-65°C (-40°F-149°F)
Relative humidity (maximum)	20% to 80% (non-condensing, Max dew point temperature = 26°C)	5% to 95% (non-condensing, Max dew point temperature = 33°C)
Vibration (maximum)^*	0.21 G_rms at 5 Hz to 500 Hz for 10 minutes (all operation orientations)	1.88 G_rms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)
Shock (maximum)	Six consecutively executed shock pulses in the positive and negative x, y, and z axis of 6 G for up to 11 millisecond	Six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 millisecond
Altitude range	-15.2 m to 3050 m (-49 ft to 10,006 ft)	-15.2 m to 12,000 m (-49 ft to 39,370 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell Precision 7960 Rack: технические характеристики и спецификации
