Dell Precision 3650 Tower: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Precision 3650 Tower.

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Precision 3650 Tower.
Description		Values
Height:
	Front	355.00 mm (13.18 in.)
	Rear	355.00 mm (13.18 in.)
Width		176.60 mm (6.95 in.)
Depth		345.00 mm (13.60 in.)
Weight (minimum)		8.50 kg (18.74 lb)
Weight (maximum)		10.22 kg (22.53 lb) NOTE:The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors

The following table lists the details of the processors supported by your Precision 3650 Tower

NOTE:Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards by locking in specific product configurations worldwide.

Device Guard (DG) and Credential Guard (CG) are the new security features that are only available on Windows 10 Enterprise today.

Device Guard is a combination of enterprise-related hardware and software security features that, when configured together, will lock a device down so that it can only run trusted applications. If it is not a trusted application, it cannot run.

Credential Guard uses virtualization-based security to isolate secrets (credentials) so that only privileged system software can access them. Unauthorized access to these secrets can lead to credential theft attacks. Credential Guard prevents these attacks by protecting NTLM password hashes and Kerberos Ticket Granting Tickets.

NOTE:Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/country.

When upgrading from a 65 W processor to a 80/125 W processor, a VR Heatsink specific to the wattage of the processor is required to be installed.

VR Heatsink part numbers:
- 80 W VR heatsink (DPN : 47P6W)
- 125 W VR heatsink (DPN : 7NPYV)
  NOTE:VR Heatsink is not included with the 65 W processor kit and needs to be ordered separately.

Table 1. Processors
The following table provides the various processor options supported for Precision 3650 Tower.
Processors	Wattage	Core count	Thread count	Speed	Cache	Integrated graphics	GSP	DG/CG Ready
10^th Generation Intel Core i3-10100	65 W	4	8	3.6 GHz to 4.3 GHz	6 MB	Intel UHD Graphics 630	No	Yes
10^th Generation Intel Core i3-10105	65 W	4	8	3.70 GHz to 4.40 GHz	6 MB	Intel UHD Graphics 630	No	Yes
10^th Generation Intel Core i5-10500	65 W	6	12	3.1 GHz to 4.5 GHz	12 MB	Intel UHD Graphics 630	No	Yes
10^th Generation Intel Core i5-10600	65 W	6	12	3.3 GHz to 4.8 GHz	12 MB	Intel UHD Graphics 630	No	Yes
10^th Generation Intel Core i5-10600K	125 W	6	12	4.1 GHz to 4.8 GHz	12 MB	Intel UHD Graphics 630	Yes	Yes
10^th Generation Intel Core i7-10700	65 W	8	16	2.9 GHz to 4.8 GHz	16 MB	Intel UHD Graphics 630	Yes	Yes
10^th Generation Intel Core i7-10700K	125 W	8	16	3.8 GHz to 5.1 GHz	16 MB	Intel UHD Graphics 630	Yes	Yes
10^th Generation Intel Core i9-10900	65 W	10	20	2.8 GHz to 5.2 GHz	20 MB	Intel UHD Graphics 630	Yes	Yes
10^th Generation Intel Core i9-10900K	125 W	10	20	3.7 GHz to 5.3 GHz	20 MB	Intel UHD Graphics 630	Yes	Yes
10^th Generation Intel Xeon W-1250	80 W	6	12	3.3 GHz to 4.7 GHz	12 MB	Intel UHD Graphics P630	Yes	Yes
10^th Generation Intel Xeon W-1250P	125 W	6	12	4.1 GHz to 4.8 GHz	12 MB	Intel UHD Graphics P630	Yes	Yes
10^th Generation Intel Xeon W-1270	80 W	8	16	3.4 GHz to 5.0 GHz	16 MB	Intel UHD Graphics P630	Yes	Yes
10^th Generation Intel Xeon W-1270P	125 W	8	16	3.8 GHz to 5.1 GHz	16 MB	Intel UHD Graphics P630	Yes	Yes
10^th Generation Intel Xeon W-1290	80 W	10	20	3.2 GHz to 5.2 GHz	20 MB	Intel UHD Graphics P630	Yes	Yes
10^th Generation Intel Xeon W-1290P	125 W	10	20	3.7 GHz to 5.3 GHz	20 MB	Intel UHD Graphics P630	Yes	Yes
11^th Generation Intel Core i5-11500	65 W	6	12	2.70 GHz to 4.60 GHz	12 MB	Intel UHD Graphics 750	No	Yes
11^th Generation Intel Core i5-11600	65 W	6	12	2.80 GHz to 4.80 GHz	12 MB	Intel UHD Graphics 750	No	Yes
11^th Generation Intel Core i5-11600K	125 W	6	12	3.90 GHz to 4.90 GHz	12 MB	Intel UHD Graphics 750	Yes	Yes
11^th Generation Intel Core i7-11700	65 W	8	16	2.50 GHz to 4.90 GHz	16 MB	Intel UHD Graphics 750	Yes	Yes
11^th Generation Intel Core i9-11700K	125 W	8	16	3.60 GHz to 5.00 GHz	16 MB	Intel UHD Graphics 750	Yes	Yes
11^th Generation Intel Core i9-11900	65 W	8	16	2.50 GHz to 5.20 GHz	16 MB	Intel UHD Graphics 750	Yes	Yes
11^th Generation Intel Core i9-11900K	125 W	8	16	3.50 GHz to 5.30 GHz	16 MB	Intel UHD Graphics 750	Yes	Yes
11^th Generation Intel Xeon W-1350	80 W	6	12	3.30 GHz to 5.00 GHz	12 MB	Intel UHD Graphics P750	Yes	Yes
11^th Generation Intel Xeon W-1350P	125 W	6	12	4.00 GHz to 5.10 GHz	16 MB	Intel UHD Graphics P750	Yes	Yes
11^th Generation Intel Xenon W-1370	80 W	8	16	2.9 GHz to 5.1 GHz	16 MB	Intel UHD Graphics P750	Yes	Yes
11^th Generation Intel Xenon W-1370P	125 W	8	16	3.6 GHz to 5.2 GHz	16 MB	Intel UHD Graphics P750	Yes	Yes
11^th Generation Intel Xenon W-1390	80 W	8	16	2.8 GHz to 5.2 GHz	16 MB	Intel UHD Graphics P750	Yes	Yes
11^th Generation Intel Xenon W-1390P	125 W	8	16	3.5 GHz to 5.3 GHz	16 MB	Intel UHD Graphics P750	Yes	Yes

Chipset

The following table lists the details of the chipset supported by your Precision 3650 Tower.

Table 1. Chipset
The following table provides the chipset specifications for Precision 3650 Tower.
Description	Values
Chipset	Intel W580
Processor	10^th Generation Intel Core i3/i5/i7/i9/Xeon-W 11^th Generation Intel Core i5/i7/i9/Xeon-W
DRAM bus width	64 bit (for single channel)
Flash EPROM	256 MB
PCIe bus	PCIe Gen3

Operating system

Your Precision 3650 Tower supports the following operating systems:

Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Pro National Academic, 64-bit
Windows 11 Pro for Workstations, 64-bit
Windows 10 Home, 64-bit
Windows 10 Pro, 64-bit
Windows 10 IoT Enterprise 2019 LTSC (OEM only)
Windows 10 CMIT Government Edition, 64-bit (China only)
Red Hate Enterprise Linux 8.4
Ubuntu 20.04 LTS, 64-bit
Kylin v10.1

Memory

The following table lists the memory specifications of your Precision 3650 Tower.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Precision 3650 Tower.
Description		Values
Memory slots		Four UDIMM
Memory type		DDR4
Maximum Memory speed		2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors
Maximum memory configuration		128 GB
Minimum memory configuration		8 GB
Memory size per slot		8 GB, 16 GB, 32 GB
Memory configurations supported		ECC Memory 8 GB, (1 x 8 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 16 GB, (2 x 8 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 16 GB, (1 x 16 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 32 GB, (4 x 8 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 32 GB, (2 x 16 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 64 GB, (4 x 16 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 64 GB, (2 x 32 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 128 GB, (4 x 32 GB), DDR4, 2666 MHz for 10th Generation Intel Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Xeon W-1270/W-1270P/W1290/W1290P processors ,2933 MHz for 11th Generation Intel Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors Non-ECC memory 8 GB, (2 x 4 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 8 GB, (1 x 8 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 16 GB, (2 x 8 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 32 GB, (4 x 8 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 32 GB, (2 x 16 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 64 GB, (2 x 32 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 64 GB, (4 x 16 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,3200 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors 128 GB, (4 x 32 GB), DDR4, 2666 MHz for 10th Generation Intel Core i3/i5/Xeon W-1250/W-1250P processors, 2933 MHz for 10th Generation Intel Core i7/i9/Xeon W-1270/W-1270P/W1290/W1290P processors ,2933 MHz for 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors

Memory configuration matrix

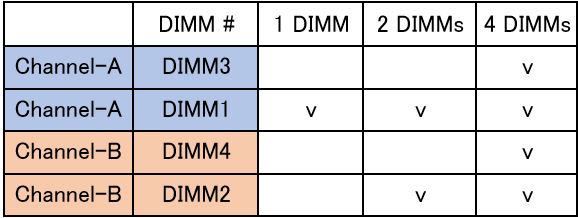

DIMM configuration to avoid memory speed reduction:

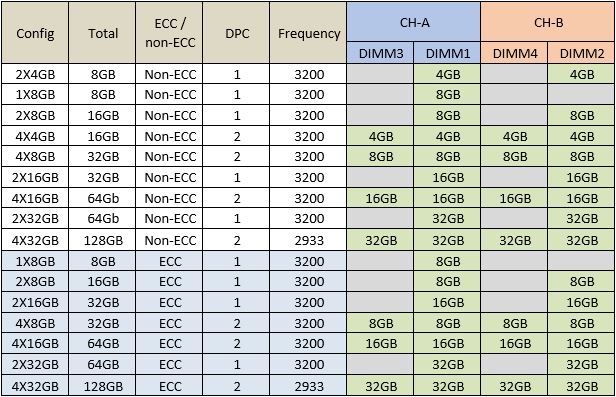

Memory config matrix

Following memory configurations are recommended from Dell to avoid memory speed reduction on 11th generation Rocket Lake processors.:

NOTE: Different processor and dual rank will cause memory speed down to 2933MHz or 2666MHz.
NOTE: At least 2 memory modules are required for non-ECC 4GB memory in system.
NOTE: Different Memory Vendors mixing within a channel is not allowed and it would cause memory speed down to 2666Mhz or below.
NOTE: 128 GB configuration can only support up to 2933MHz on 11th Generation Intel Core i5/i7/i9/Xeon W-1350/W-1350P/W-1370/W-1370P/W1390/W1390P processors.

External ports

The following table lists the external ports of your Precision 3650 Tower.

Table 1. External ports
The following table lists ports and connectors available on Precision 3650 Tower.
Description	Values
Network port	One RJ-45 port 10/100/1000 Mbps (rear) One optional 2nd RJ-45 2.5 Gbps port (rear)
USB ports	Standard Front I/O: Two USB 2.0 ports One USB 3.2 Gen 1 port with PowerShare (5 Gbps) One USB 3.2 Gen 2x1 Type-C port (10 Gbps) Advanced Front I/O: One USB 3.2 Gen 1 port (5 Gbps) One USB 3.2 Gen 2 port with PowerShare (10 Gbps) One USB 3.2 Gen 2 port (10 Gbps) One USB 3.2 Gen 2x2 Type-C port (20 Gbps) Rear I/O: Two USB 2.0 ports with SmartPower on Two USB 3.2 Gen 1 ports (5 Gbps) One USB 3.2 Gen 2 port (10 Gbps) One USB 3.2 Gen 2 Type-C Alt-Mode (optional)
Audio port	One Universal Audio Jack (front) One Line-out audio port (rear)
Video port	Two DisplayPort 1.4 ports (rear) One VGA Port/DisplayPort 1.4a Port/HDMI 2.0b Port/ USB 3.2 Gen2 Type-C Port with Alt-mode (optional) NOTE:Download and install the latest Intel Graphics driver from www.dell.com/support to enable multiple displays.
Media-card reader	One SD-card slot NOTE:Advanced Front I/O only
Power-adapter port	NA
Security-cable slot	One Kensington cable lock

Internal slots

The following table lists the internal slots of your Precision 3650 Tower.

Table 1. Internal slotsThe following table lists the internal slots on your Precision 3650 Tower.
Description	Values
Expansion	For 10th Generation processors: One full-height Gen 3 PCIe x16 slot. NOTE:CPU PCIe lanes are only validated for discrete graphics (x16), for other AIC types: Ethernet, USB, WLan, Serial, Parallel and TBT cards are not supported on PEG Slot. One full height PCI-32 (legacy) slot. One full-height Gen 3 PCIe x4 slot. For 11th Generation processors: One full-height Gen 4 PCIe x16 slot. NOTE:CPU PCIe lanes are only validated for discrete graphics (x16), for other AIC types: Ethernet, USB, WLan, Serial, Parallel and TBT cards are not supported on PEG Slot One full height PCI-32 (legacy) slot. One full-height Gen 3 PCIe x4 slot.
SATA	Four SATA slots for 2.5-inch Hard disk drive/Solid-state drive/Optical Disk Drive
M.2	Two M.2 2280 slot for solid-state drive with 10th Generation Intel processors Three M.2 2280 slot for solid-state drive with 11th Generation Intel processors NOTE:To learn more about the features of different types of M.2 cards, see the knowledge base article 000144170 at www.dell.com/support.

Communications

Ethernet

Table 1. Ethernet specifications
The following table provides the Ethernet specifications of Precision 3650 Tower.
Description	Option one	Option two	Option three
Model number	Ethernet controller integrated on system board NOTE:Optional 2.5GbE RJ-45 available at the time of purchase	Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) network card	Intel X710-T2L-t 10 GbE dual port PCIe (Gen 3 x8) network card
Transfer rate	10/100/1000 Mbps NOTE:2.5 Gbps speed available with the optional 2nd RJ-45 port.	100Mb/1GbE/2.5GbE/5GbE/10GbE	1/10 GbE

NOTE:Wake on LAN (WoL) on the Intel X550-T2 and the Intel X710-T2L-t network card is not supported.

Wireless module

Table 2. Wireless module specifications
The following table provides the wireless module specifications of Precision 3650 Tower.
Description	Values
Model number	Qualcomm QCA6174a	Intel Wi-Fi 6 AX210
Transfer rate	Up to 867 Mbps	Up to 2402 Mbps
Frequency bands supported	2.4 GHz/5 GHz	2.4 GHz/5 GHz/6 GHz
Wireless standards	802.11ac	802.11ax
Encryption	64-bit and 128-bit WEP 128-bit AES-CCMP TKIP	128-bit AES-CCMP 256-bit AES-GCMP
Bluetooth	5.0	5.2

Audio and Speaker

The following table lists the audio specifications of your Precision 3650 Tower.

Table 1. Audio specificationsProvides the audio specification of your computer.
Description	Values
Type	4 Channel High Definition Audio
Controller	Realtek ALC3246
Stereo conversion	24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital)
Internal interface	Intel HDA (high-definition audio)
External interface	One Universal Audio Jack (front) One Line-out audio port (rear)
Speakers	One (optional)
Internal speaker amplifier	Integrated in ALC3246 (Class-D 2 W)
External volume controls	Keyboard shortcut controls.
Speaker output average	2 W
Speaker output peak	2.5 W
Subwoofer output	Not supported
Microphone	Not supported

Storage

This section lists the storage options on your Precision 3650 Tower.

Your computer supports one of the following storage configurations:

M.2 solid-state drive Boot + Optional M.2 solid-state drive – This configuration enables boot on M.2 NVMe solid-state drive with up to three additional NVMe solid-state drives depending on the processor installed. No SATA HDDs are configured in this option.
2.5-inch SATA hard-disk drive Boot + Optional 2.5-inch SATA hard-disk drive – This configuration enables boot on 2.5-inch SATA hard-disk drive with up to three additional 2.5-inch SATA hard-disk drives.
3.5-inch hard-disk drive Boot + Optional 3.5-inch hard-disk drive – This configuration enables boot on 3.5-inch hard-disk drive with up to two additional 3.5-inch hard-disk drives.
M.2 solid-state drive Boot + Optional M.2 solid-state drive + 2.5-inch SATA hard-disk drive – This configuration enables boot on M.2 NVMe solid-state drive with up to three additional NVMe solid-state drives depending on the processor installed and up to four 2.5-inch SATA hard-disk drives.
M.2 SSD Boot + Optional M.2 SSD + 3.5-inch hard-disk drive – This configuration enabled boot on M.2 NVMe solid-state drive with up to three additional NVMe solid-state drives depending on the processor installed and up to three 3.5-inch hard-disk drives.

NOTE: M.2 solid-state drive in slot 1 cannot build RAID disk with M.2 slot 2 and slot 3 M.2 solid-state drive.

NOTE: M.2 solid-state drive cannot build RAID disk with any SATA drive.

The primary drive of your computer varies with the storage configuration. For computers:

with a M.2 solid-state drive, the M.2 solid-state drive is the primary drive
without a M.2 drive, either the 3.5-inch hard-disk drive or one of the 2.5-inch hard-disk drive is the primary drive

Table 1. Storage specifications
The following table provides the different storage options available on Precision 3650 Tower.
Storage type	Interface type	Capacity
2.5-inch, 5400 RPM, hard-disk drive	SATA 3.0	Up to 2 TB
2.5-inch, 7200 RPM, hard-disk drive	SATA 3.0	Up to 1 TB
2.5-inch, 7200 RPM, FIPS Self Encrypting Opal 2.0, hard-disk drive	SATA 3.0	Up to 500 GB
3.5-inch, 5400 RPM, hard-disk drive	SATA 3.0	4 TB
3.5-inch, 7200 RPM, hard-disk drive	SATA 3.0	Up to 8 TB
M.2 2280 solid-state drive	PCIe Gen 3 x 4 NVMe, Class 50 PCIe Gen 3 x 4 NVMe, Class 40 PCIe Gen 4 x 4 NVMe, Class 40	Up to 1 TB Up to 2 TB
M.2 2280 Opal Self-Encrypting solid-state drive	PCIe Gen 3 x 4 NVMe, Class 40	Up to 1 TB

Preloaded components included with storage drives

NOTE:Users/Customers would need to install thermal pad for M.2 NVMe drives, SATA cable and tray to install 2.5" or 3.5" SATA hard drives.

Following customer kits are sold separately for 3rd party storage drive installation:

Thermal pad for M.2 NVMe Solid state drive
2.5-inch SATA Tray and cable for 2.5-inch Hard drive
3.5-inch SATA Tray and cable for 3.5-inch Hard drive

Power supply ratings

Table 1. Power supply ratings The following table provides the detailed power supply specifications of Precision 3650 Tower.
Description		Values
Type		300 W typical 90% Efficient PSU, 80 Plus Gold	460 W typical 90% Efficient PSU, 80 Plus Gold	550 W typical 90% Efficient PSU, 80 Plus Gold	1000 W typical 90% Efficient PSU, 80 Plus Gold
Input voltage		90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Input frequency		47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz
Input current (maximum)		6 A	8 A	8 A	14 A
Output current (continuous)		5.1 V /13 A 12 VA1/16.5 A 12 VA2/16.5 A 12 VB/16 A 3.3 V/10 A 5.1 Vaux/4 A	5.1 V /20 A 12 VA1/18 A 12 VA2/18 A 12 VB/16 A 12 VC/18 A 3.3 V/15 A 5.1 Vaux/4 A	5.1 V /20 A 12 VA1/18 A 12 VA2/18 A 12 VB/16 A 12 VC1/18 A 12 VC2/18 A 3.3 V/15 A 5.1 Vaux/4 A	12 VA / 42 A 12 VB / 52 A 12 D / 16 A 3.3 V / 20 A 5.1 V / 20 A -12 V / 0.5 A 5.1 Vaux / 4 A
Rated output voltage		5.1 V 12 VA1 12 VA2 12 VB 3.3 V 5.1 Vaux	5.1 V 12 VA1 12 VA2 12 VB 12 VC 3.3 V 5.1 Vaux	5.1 V 12 VA1 12 VA2 12 VB 12 VC1 12 VC2 3.3 V 5.1 Vaux	12 VA 12 VB 12 D 3.3 V 5.1 V -12 V 5.1 Vaux
Temperature range:
	Operating	5°C to 50°C (41°F to 122°F)	5°C to 50°C (41°F to 122°F)	5°C to 50°C (41°F to 122°F)	5°C to 50°C (41°F to 122°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Precision 3650 Tower.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Precision 3650 Tower.
Controller	External display support	Memory size	Processor
Intel UHD Graphics 630	Two DisplayPort 1.4 port One DisplayPort 1.4 port (optional)	Shared system memory	10^th Generation Intel Core i3
Intel UHD Graphics 750	Two DisplayPort 1.4 port One DisplayPort 1.4 port (optional)	Shared system memory	11^th Generation Intel Core i5/i7/i9
Intel UHD Graphics P750	Two DisplayPort 1.4 port One DisplayPort 1.4 port (optional)	Shared system memory	11^th Generation Intel Xeon-W

GPU — Discrete

The following table lists the specifications of the discrete graphics processing unit (GPU) supported by your Precision 3650 Tower.

Table 1. GPU — Discrete
The following table provides the detailed discrete graphics specifications of Precision 3650 Tower.
Controller	External display support	Memory size	Memory type
NVIDIA RTX A5000	Four DisplayPort 1.4a ports	24 GB	GDDR6X
NVIDIA RTX A4000	Four DisplayPort 1.4a ports	16 GB	GDDR6X
NVIDIA Quadro A2000	Four mini DisplayPort (mDP) ports	6 GB	GDDR6X
NVIDIA Quadro RTX 5000	Four DisplayPort 1.4 ports One USB-C port	16 GB	GDDR6
NVIDIA Quadro RTX 4000	Three DisplayPort 1.4 ports One USB-C port	8 GB	GDDR6
NVIDIA Quadro P2200	Four DisplayPort 1.4 ports	5 GB	GDDR5X
NVIDIA Quadro P1000	Four mini DisplayPort (mDP) ports	4 GB	GDDR5
NVIDIA Quadro P620	Four mini DisplayPort (mDP) ports	2 GB	GDDR5
NVIDIA Quadro P400	Three mini DisplayPort (mDP) ports	2 GB	GDDR5
NVIDIA Quadro T1000	Four mini DisplayPort (mDP) ports	4 GB	GDDR6X
NVIDIA Quadro T600	Four mini DisplayPort (mDP) ports	4 GB	GDDR6
NVIDIA Quadro T400	Three mini DisplayPort (mDP) ports	2 GB	GDDR6
AMD Radeo Pro W5700	Five mini DisplayPort (mDP) ports One USB-C port	8 GB	GDDR6
AMD Radeo Pro W5500	Four DisplayPort 1.4 ports	8 GB	GDDR6
AMD Radeon Pro W3200	Four mini DisplayPort (mDP) ports	4 GB	GDDR6
AMD Radeon Pro W6600	Four DisplayPort 1.4 ports	8 GB	GDDR6
AMD Radeon Pro W6800	Six mini DisplayPort (mDP) ports	32 GB	GDDR6

Multiple display support matrix

Table 1. Integrated - Multiple display support matrixThis table provides the multiple display support matrix for integrated graphics on your system:
Graphics Card	Intel 630	Intel 750	Intel P750
Memory	UMA	UMA	UMA
Video Ports on Graphics Card	Two DisplayPorts 1.4 One optional DisplayPort 1.4	Two DisplayPorts 1.4 One optional DisplayPort 1.4	Two DisplayPorts 1.4 One optional DisplayPort 1.4
Max Displays (direct connect)	Two Displays with standard configuration Three Displays with optional DisplayPorts 1.4	Two Displays with standard configuration Three Displays with optional DisplayPorts 1.4	Two Displays with standard configuration Three Displays with optional DisplayPorts 1.4
Max Displays (DP multi-stream)	1	1	1
Number of displays	3	3	3
Supported Resolution	DP: 4096 x 2304 @60 Hz, 24 bpp	DP: 5120 x 3200 @60 Hz, 24 bpp	DP: 5120 x 3200 @60 Hz, 24 bpp
Total Power	65 W	65 W 125 W	80 W 125 W

Environmental

The following table lists the environment specifications supported by your Precision 3650 Tower.

Table 1. Environmental specificationsThe following table provides the environmental details for your system:
Feature	Precision 3650 Tower
Recyclable packaging	Yes
BFR/PVC—free chassis	No
MultiPack packaging	Yes (US only) (optional)
Energy-Efficient Power Supply	Standard
ENV0424 compliant	Yes

NOTE:Wood‐based fiber packaging contains a minimum of 35% recycled content by total weight of wood‐based fiber. Packaging that contains without wood‐based fiber can be claimed as Not Applicable.

Energy Star, EPEAT and Trusted Platform Module (TPM)

Table 1. Energy Star, EPEAT and TPMEnergy Star, EPEAT and TPM
Features	Specifications
Energy Star 8.0	Compliant configurations available
EPEAT	Gold compliant configurations worldwide (except India) Silver compliant configurations available in India
Trusted Platform Module (TPM) 2.0^1,2	Integrated on system board
Firmware-TPM (Discrete TPM disabled)	Optional

NOTE:

¹TPM 2.0 is FIPS 140-2 certified.

²TPM is not available in all countries.

Operating and storage environment

This table lists the operating and storage specifications of your Precision 3650 Tower.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Precision 3650 Tower.
Description	Operating	Storage
Temperature range	5°C–35°C (41°F–95°F)	-40°C-65°C (-40°F-149°F)
Relative humidity (maximum)	20% to 80% (non-condensing, Max dew point temperature = 26°C)	5% to 95% (non-condensing, Max dew point temperature = 33°C)
Vibration (maximum)^*	0.26 GRMS random at 5 Hz to 350 Hz	1.37 GRMS random at 5 Hz to 350 Hz
Shock (maximum)	Bottom half-sine pulse with a change in velocity of 50.8 cm/sec (20 in./sec)	105G half-sine pulse with a change in velocity of 133 cm/sec (52.5 in./sec)
Altitude range	3048 m (10,000 ft)	10,668 m (35,000 ft)

CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates user environment.}

^{† Measured using a 2 ms half-sine pulse when the hard drive is in use.}

Dell Precision 3650 Tower: технические характеристики и спецификации
