Dell Precision 3930 Rack: характеристики и спецификации

System dimensions - physical

NOTE:System Weight and Shipping Weight are based on a typical configuration and may vary based on personal computer configuration. A typical configuration includes: Integrated graphics, two hard drives.

Table 1. System dimensions (Physical) The following table provides the system dimension details for your computer
	Tower
Chassis Weight (lb/kg)	27.38 / 12.42
Chassis Dimensions (H x W x D)
Height (inch/cm)	1.68 / 4.28
Width (inch/cm)	18.97 / 48.2
Depth (inch/cm)	22.73 / 57.75 23.19 / 58.91 (With Bezel)
Shipping Weight (lb/kg – includes packaging materials)	42.63 / 19.34
Packaging Dimensions (H x W x D)
Height (inch/cm)	8.38 / 21.3
Width (inch/cm)	23.42 / 59.5
Depth (inch/cm)	31.61 / 80.3

NOTE: The rails are compatible with a 4 - post EIA-310 standard compatible rack.

System information

Table 1. System informationSystem information
Feature	Specification
Chipset	Intel C246 chipset
DRAM bus width	64-bit
FLASH EPROM	SPI 256 MB
PCIe bus	100 MHz
External bus frequency	DMI 3.0-8GT/s

Power supply unit

This topic lists the power supply units information.

Table 1. 550 WattsThe following table contains the power supply details
Feature	Specifications
Power Supply Wattage	550 W
AC input Voltage Range	100–240 VAC
AC input current (low AC range/high AC range)	7.4 A / 3.7 A
AC input Frequency	50 HZ / 60 HZ.

Table 2. 3.0 V CMOS BatteryThe following table contains the CMOS battery specifications
Brand	Type	Voltage	Composition	Life
PANASONIC	CR-2302L/BN	3 V	Lithium Manganese Dioxide	Continuous Discharge Under 15 kΩ Load to 2.0 V End-Voltage: 1000 hours or longer
Varta	6032-101-501	3V	Lithium Manganese Dioxide	Continuous Discharge Under 15 kΩ Load to 2.0V End-Voltage: 1000 hours or longer
Duracell	DL2032	3V	Lithium Manganese Dioxide	Continuous Discharge Under 15 kΩ Load to 2.0 V End-Voltage: 1000 hours or longer
Maxwell	CR2032	3V	Lithium Manganese Dioxide	Continuous Discharge Under 15 kΩ Load to 2.0 V End-Voltage: 1000 hours or longer

Processor

NOTE:Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/country.

Table 1. Processor specificationsThe following table contains the processor specifications
Type	UMA Graphics
Intel Xeon E Processor E-2288G (8 Core, 3.7 GHz, 16 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2286G (6 Core, 4.0 GHz, 12 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2278G (8 Core, 3.4 GHz, 16 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2276G (6 Core, 3.8 GHz, 12 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2246G (6 Core, 3.6 GHz, 12 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2236 (6 Core, 3.4 GHz, 12 MB Cache)	Not Supported
Intel Xeon E Processor E-2226G (6 Core, 3.4 GHz, 12 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2224G (4 Core, 3.5 GHz, 8 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2224 (4 Core, 3.4 GHz, 8 MB Cache)	Not Supported
Intel Xeon E Processor E-2186G (6 Core HT 3.8 Ghz, 4.7 GHz Turbo, 8 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2176G (6 Core HT 3.7 Ghz, 4.7 GHz Turbo, 8 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2174G (4 Core HT 3.8 Ghz, 4.7 GHz Turbo, 8 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2146G (6 Core HT 3.5 GHz, 4.5 Ghz Turbo, 8 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2136 (6 Core HT 3.3 Ghz, 4.5 Ghz Turbo, 8 MB Cache)	Not Supported
Intel Xeon E Processor E-2134 (4 Core HT 3.5 Ghz, 4.5 Ghz Turbo, 8 MB Cache)	Not Supported
Intel Xeon E Processor E-2124G (4 Core, 3.4 GHz, 4.5 Ghz Turbo, 8 MB Cache)	Integrated Intel UHD P630
Intel Xeon E Processor E-2124 (4 Core 3.4 GHz, 4.5 Ghz Turbo, 8 MB Cache)	Not Supported
Intel Core i3-8100 Processor (4 Core, 3.6 GHz, 6 MB Cache)	Integrated Intel UHD 630
Intel Core i5-8500 Processor (6 Core, 3.0 GHz up to 4.1 GHz Turbo, 9 MB Cache)	Integrated Intel UHD 630
Intel Core i5-8600 Processor (6 Core, 3.1 GHz up to 4.3 GHz Turbo, 9 MB Cache)	Integrated Intel UHD 630
Intel Core i5-8600K Processor (6 Core, 3.6 GHz up to 4.3 GHz Turbo, 9 MB Cache)	Integrated Intel UHD 630
Intel Core i7-8700 Processor (6 Core, 3.2 GHz up to 4.6 GHz Turbo, 12 MB Cache)	Integrated Intel UHD 630
Intel Core i7-8700K Processor (6 Core, 3.7 GHz up to 4.7 GHz Turbo, 12 MB Cache)	Integrated Intel UHD 630
Intel Core i3-9100 Processor (4 Core, 3.6 GHz, 6 MB Cache)	Integrated Intel UHD 630
Intel Core i5-9400 Processor (8 Core, 2.9 GHz, 9 MB Cache)	Integrated Intel UHD 630
Intel Core i5-9500 Processor (6 Core, 3.0 GHz, 9 MB Cache)	Integrated Intel UHD 630
Intel Core i5-9600 Processor (6 Core, 3.1 GHz, 9 MB Cache)	Integrated Intel UHD 630
Intel Core i7-9700 Processor (8 Core, 3.0 GHz, 12 MB Cache)	Integrated Intel UHD 630
Intel Core i7-9700K Processor (8 Core, 3.6 GHz, 12 MB Cache)	Integrated Intel UHD 630
Intel Core i9-9900 Processor (8 Core, 3.1 GHz, 16 MB Cache)	Integrated Intel UHD 630
Intel Core i9-9900K Processor (8 Core, 3.6 GHz, 16 MB Cache)	Integrated Intel UHD 630

Memory

Dell Precision 3930 rack memory matrix

Table 1. Memory specificationsThis table contains the memory specifications
Specification
4 GB
128 GB
4
UDIMM
32 GB
4 GB - 1 x 4 GB (Non-ECC) 8 GB - 2 x 4 GB (Non-ECC) 8 GB - 1 x 8 GB (ECC) 16 GB - 2 x 8 GB (Non-ECC) 16 GB - 2 x 8 GB (ECC) 32 GB - 4 x 8 GB (Non-ECC) 32 GB - 4 x 8 GB (ECC) 64 GB - 2 x 32 GB (Non-ECC) 64 GB - 4 x 16 GB (Non-ECC) 64 GB - 4 x 16 GB (ECC) 128 GB - 4 x 32 GB (Non-ECC) NOTE:ECC memory is only supported with Xeon E Processor and Core i3 Processor SKUs.
DDR4 UDIMM Non-ECC/ECC memory
3200 MHz

Table 2. Dell Precision 3930 rack memory population order The Dell Precision 3930 rack memory matrix outlines an order by Channel/DIMM-number in which DIMMs are populated in the memory slots
Main memory configuration					Channel A		Channel B		MOD
Configuration	ECC/non-ECC	Total memory	DPC	Frequency	DIMM1	DIMM0	DIMM1	DIMM0
2x8 GB	ECC	16	1	2667		8 GB		8 GB	4879G
4x8 GB	ECC	32 GB	2	2667	8 GB	8 GB	8 GB	8 GB	H5JK2
4x16 GB	ECC	64 GB	2	2667	16 GB	16 GB	16 GB	16 GB	YGNTR

2x4 GB	non-ECC	8 GB	1	2667		4 GB		4 GB	Y5GVC
2x8 GB	non-ECC	16 GB	1	2667		8 GB		8 GB	R3YC2
4x8 GB	non-ECC	32 GB	2	2667	8 GB	8 GB	8 GB	8 GB	XJRPK
4x16 GB	non-ECC	64 GB	2	2667	16 GB	16 GB	16 GB	16 GB	3F5PX
2x32 GB	non-ECC	64 GB	1	2667		32 GB		32 GB	983D4
4x32 GB	non-ECC	128 GB	2	2667	32 GB	32 GB	32 GB	32 GB	983D4
2x4 GB	non-ECC	8 GB	1	3200		4 GB		4 GB	M4MDV
2x8 GB	non-ECC	16 GB	1	3200		8 GB		8 GB	R3YT4
2x8 GB	non-ECC	16 GB	1	3200		8 GB		8 GB	8KM6C
2x8 GB	non-ECC	16 GB	1	3200		8 GB		8 GB	TVMC6
4x8 GB	non-ECC	32 GB	2	3200	8 GB	8 GB	8 GB	8 GB	Y9VY9
4x8 GB	non-ECC	32 GB	2	3200	8 GB	8 GB	8 GB	8 GB	8KM6C
4x8 GB	non-ECC	32 GB	2	3200	8 GB	8 GB	8 GB	8 GB	TVMC6
4x16 GB	non-ECC	64 GB	2	3200	16 GB	16 GB	16 GB	16 GB	9GCW0
2x32 GB	non-ECC	64 GB	1	3200		32 GB		32 GB	N6R0K
4x32 GB	non-ECC	128 GB	2	3200	32 GB	32 GB	32 GB	32 GB	DKNHC
Population order					Fourth	Second	Third	First

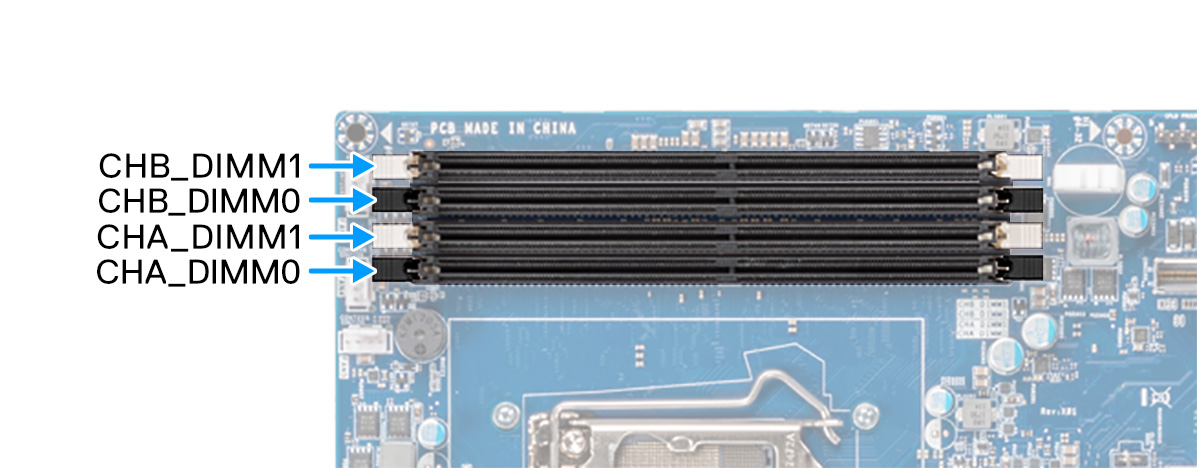

Memory slots call outs

NOTE:To achieve optimized memory performance a single DIMM needs to be populated in both Channels A and Channel B regardless of the DIMM-number. Mixing of memory DIMM sizes is not supported.

Storage

Table 1. Storage specificationsStorage specifications
Type	Form factor	Interface	Security option	Capacity
Four 2.5 inches Front load Hard-Disk Drives (HDD)	Approximately (2.76 x 3.959 x 0.276 inches)	Up to 6Gb/s (SATA 3.0)	OPAL /SED FIPS	Up to 8 TB
Two 3.5 inches Front load Hard-Disk Drives (HDD)	Approximately (5.79 x 4 x 1)	Up to 6Gb/s (SATA 3.0)	NA	Up to 16 TB
Two solid state drives (SSD)	M.2 2280	2x PCIe x4 NVMe on the system board (not in a bay), Up to 32 Gbps 2x M.2 PCIe x4 NVMe on Dell Ultraspeed Drive Duo Card (populated in PCIe slot 2 on Riser 1A)	SED/OPAL	Up to 4 TB

NOTE:Your computer will either support two 3.5 inch hard-drives or four 2.5 inch hard-drives, depending on the configuration.

NOTE:Front Load Hard-Disk Drives are not hot swappable.

Audio

Table 1. Audio specificationsAudio specifications
Feature	Specification
Controller	Waves MaxxAudio ProSupport
Type	Two-channel high-definition audio
Interface	Universal audio jack Stereo headset

Video card

Table 1. Video card specificationsThe following table contains the video card specifications
Controller	Type	CPU Dependency	Graphics memory type	Capacity	External display support	Maximum resolution
Intel UHD Graphics 630	UMA	Intel Core i3 - 8100/9100 Intel Core i5 - 8600/8500/9400/9500/9600 Intel Core i7 - 8700/9700/9700K Intel Core i9 - 9900/9900K	Integrated	Shared system memory	DisplayPort supported through Rear USB Type-C port DP/HDMI/VGA/DVI supported through Rear USB Type-C port	4096 x 2304
Intel UHD Graphics P630	UMA	Intel Xeon G	Integrated	Shared system memory	DP/HDMI/VGA/DVI supported through Rear USB Type-C port	4096 x 2304
NVIDIA Quadro P400	Discrete	N/A	GDDR5	2 GB	3 mDP 1.4	7680 x 4320
NVIDIA Quadro P620	Discrete	N/A	GDDR5	2 GB	mDP	2560 x 1600 x 32 bpp at 60 Hz
NVIDIA T400	Discrete	N/A	GDDR6	2 GB	mDP	3840 x 2160 at 120 Hz 5120 x 2880 at 60 Hz
NVIDIA Quadro P1000	Discrete	N/A	GDDR5	4 GB	mDP	1920 x 1200 x 32 bpp at 60 Hz
NVIDIA T600	Discrete	N/A	GDDR6	4 GB	mDP	3840 x 2160 at 120 Hz 5120 x 2880 at 60 Hz 7680 x 4320 at 60 Hz
NVIDIA T1000	Discrete	N/A	GDDR6	4 GB	mDP	3840 x 2160 at 120 Hz 5120 x 2880 at 60 Hz 7680 x 4320 at 60 Hz
AMD WX3200	Discrete	N/A	GDDR5	4 GB	mDP	1 port 7680 x 4320 at 60 Hz 2 ports 5120 x 2880 at 60 Hz 4 ports 3840 x 2160 at 60 Hz 1920 x 1080 at 60 Hz
AMD Radeon Pro WX4100	Discrete	N/A	GDDR5	4 GB	mDP/DisplayPort	5120 x 2880
NVIDIA Quadro P2000	Discrete	N/A	GDDR5	5 GB	mDP/DisplayPort	5120 x 2880
NVIDIA RTX2080B	Discrete	N/A	GDDR6	8 GB	DisplayPort / HDMI	Single DisplayPort 1.4a 7680 x 4320 (8K) at 60 Hz Dual DisplayPort 1.4a 7680 x 4320 (8K) at 120 Hz HDMI 2.0b 4096x2160 (4K) at 60 Hz
NVIDIA Quadro P4000	Discrete	N/A	GDDR5	8 GB	DisplayPort	5120 x 2880
NVIDIA RTX4000	Discrete	N/A	GDDR5	8 GB	DisplayPort / Type-C	DisplayPort 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz USB type-C 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz
NVIDIA Quadro P5000	Discrete	N/A	GDDR5X	16 GB	DVI-D/DisplayPort	5120 × 2880
NVIDIA RTX5000	Discrete	N/A	GDDR6	16 GB	DisplayPort / Type-C	DisplayPort 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60Hz USB type-C 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz
NVIDIA RTX A4000	Discrete	N/A	GDDR6	16 GB	VESA DisplayPort	DisplayPort 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 3200 x 24bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz
NVIDIA RTX A4500	Discrete	N/A	GDDR6	20 GB	VESA DisplayPort	DisplayPort 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz
NVIDIA RTX A5500	Discrete	N/A	GDDR6	24 GB	VESA DisplayPort	DisplayPort 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz
NVIDIA Quadro P6000	Discrete	N/A	GDDR5X	24 GB	DVI-D/DisplayPort	5120 × 2880
NVIDIA RTX6000	Discrete	N/A	GDDR6	24 GB	DisplayPort / Type-C	DisplayPort 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz USB type-C 7680 x 4320 x 24bpp at 120 Hz 7680 x 4320 x 36bpp at 60 Hz 5120 x 2880 x 24bpp at 60 Hz

NOTE:Please see the processor specification section for Xeon G SKU.

NOTE:Xeon SKUs with "G" suffix support Intel UHD Graphics.

NOTE:If the graphics card power rating exceeds 75 Watts, then connect the graphics card power cable to the graphics card power connector on the system board. (Dual RTX4000, RTX5000 and RTX6000 will need dual power supply).

NOTE:NVIDIA RTX A4000/A4500/A5500 graphics cards are only compatible with the updated chassis.

Communication

Table 1. Communication specificationsThe following table contains the network adapter specifications
Feature	Specification
Network adapter	Integrated Intel 10/100/1000 Mb/s Ethernet (RJ45) Integrated Aquantia 10 GB/s Ethernet (RJ45) Intel X550-T2 10 GbE dual port PCIe network card (RJ45) Intel X710-T2L-t 10 GbE dual port PCIe network card (RJ45)

NOTE:Wake on LAN (WoL) is not supported on the Intel X550-T2 network card and the Intel X710-T2L-t network card.

Media card-reader

Table 1. Media card-reader specificationsThe following table contains the media card-reader specifications
Feature	Specification
Type	One SD-card slot
Supported cards	SD SDHC SDXC

System board connectors

Table 1. System board connectors The following table contains the system board connectors specifications
Feature	Specification
M.2 Connectors	Two (2280 Key-M)
Serial ATA (SATA) connector	Four
Riser 1A
PCIe X16 slot	Slot 1 (bottom): Full Height Double width PCIex16 Gen 3 or Single Width PCIex8 Gen 3
PCIe X8 slot	Slot 2 (top): Full Height Single Width PCIex8 Gen 3
Riser 1B
PCIe-32 bit	Slot 1 (bottom): Full Height PCI 32/33 Slot 2 (top): Full Height PCI 32/33
Riser 2
PCIe X4 slot	Fixed Riser for Slot 3 (on all chassis): Full Height Single Width PCIeX4 Gen 3

Ports and connectors

Table 1. Front ports and connectorsThe following table contains the details of the systems ports and connectors
Feature	Specification
Memory card reader	SD 4.0 memory card reader
USB	One USB 3.1 Gen2 Type-C port Two USB 3.1 Gen 1 Type-A ports
Audio	Universal audio jack.

Table 2. Rear ports and connectorsThe following table contains the details of the systems rear ports and connectors
Feature	Specification
USB	Two USB 3.1 Gen2 Type-C ports (with UMA video support)
Network adapter	One 1 Gb RJ45 One 10 Gb RJ45
Serial port	One serial port

Operating system

Your Precision 3930 Rack supports the following operating systems:

Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Pro National Academic, 64-bit
Windows 11 Pro for Workstations, 64-bit
Windows 10 Pro, 64-bit
Windows 10 Pro for Workstations, 64-bit
Windows 10 Home, 64-bit
Windows 10 Pro for National Academic, 64-bit
Red Hat Enterprise Linux 8.0
Red Hat Enterprise Linux 7.5
Ubuntu 16.04 LTS
Ubuntu 18.04 LTS
Ubuntu 20.04 LTS

Operating conditions

For information on Product Safety, EMC and Environmental data sheets https://www.dell.com/learn/product-info-datasheets-safety-emc-environmental

Table 1. Operating conditionsThe following table lists the operating conditions.
Test	Condition
Temperature range	Operating: 10–35°C (50°F–95°F) for all system configurations Operating: 10–45°C (50°F–113°F) for specific system configurations (<=80W proccessors, SSDs and Enterprise HDDs, GPU=Nvidia Quadro P400, P2000, P4000) Storage: -40°C to 65°C (-40°F to 149°F)
Relative humidity	Operating: 10% to 85% (Max dew point temperature = 40°C) (noncondensing). Storage: 10% to 90% (Max dew point temperature = 60°C) (noncondensing).
Airborne contaminant level	G1 as defined by ISA-S71.04-1985.
Vibration	(maximum)*: operating=0.26 GRMS; Storage=2.0 GRMS.
Shock	(maximum): operating=10 G†; Storage=71 G‡.

NOTE:

*Measured using a random vibration spectrum that simulates user environment.† Measured using a 2-microsecond half-sine pulse when the hard drive is in use.

‡ Measured using a 2-microsecond half-sine pulse when the hard drive head is in parked position.
