Dell Pro 3 16 P316260: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Pro 3 16 P316260.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Pro 3 16 P316260.
Description		Values
Front height		11.16 mm (0.44 in.)
Rear height		15.41 mm (0.61 in.)
Width		358.60 mm (14.12 in.)
Depth		253.40 mm (9.98 in.)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		1.91 kg (4.21 lb)

Intel Core Ultra Series 3 processors

The following table lists the details of the Intel Core Ultra Series 3 processors that are supported on your Dell Pro 3 16 P316260.

NOTE:The following processor specifications tables only apply to computers shipped with Intel Core Ultra Series 3 processors.

Table 1. Intel Core Ultra Series 3 processors The following table lists the details of the Intel Core Ultra Series 3 processors that are supported on your Dell Pro 3 16 P316260.
Description	Option one	Option two	Option three	Option four	Option five
Type	Intel Core Ultra 5 332 vPro	Intel Core Ultra 5 335 vPro	Intel Core Ultra 7 355	Intel Core Ultra 7 365 vPro	Intel Core Ultra 5 336H vPro
Wattage	25 W	25 W	25 W	25 W	25 W
Total cores	6	8	8	8	12
Number of Performance-cores	2	4	4	4	4
Number of Efficient-cores	None	None	None	None	4
Number of Low Power Efficient-cores	4	4	4	4	4
Total threads	6	8	8	8	12
Speed	Up to 4.4 GHz	Up to 4.6 GHz	Up to 4.7 GHz	Up to 4.8 GHz	Up to 4.6 GHz
Performance-core frequency
Base frequency	2.5 GHz	2.2 GHz	2.3 GHz	2.4 GHz	1.9 GHz
Maximum turbo frequency	4.4 GHz	4.6 GHz	4.7 GHz	4.8 GHz	4.6 GHz
Efficient-core frequency
Base frequency	1.9 GHz	1.6 GHz	1.7 GHz	1.8 GHz	1.5 GHz
Maximum turbo frequency	Not applicable	Not applicable	Not applicable	Not applicable	3.4 GHz
Low Power Efficient-core frequency
Base frequency	1.9 GHz	1.6 GHz	1.7 GHz	1.8 GHz	1.5 GHz
Maximum turbo frequency	3.3 GHz	3.4 GHz	3.5 GHz	3.6 GHz	3.2 GHz
Processor cache	12 MB	12 MB	12 MB	12 MB	18 MB
Integrated graphics	Intel Graphics	Intel Graphics	Intel Graphics	Intel Graphics	Intel Graphics
X^e-cores	2	4	1	2	2
GPU AI performance	Up to 18 TOPS	Up to 40 TOPS	Up to 40 TOPS	Up to 40 TOPS	Up to 37 TOPS
Neural Processing Unit (NPU) AI performance	Up to 46 TOPS	Up to 47 TOPS	Up to 49 TOPS	Up to 49 TOPS	Up to 47 TOPS
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Intel Core Series 3 processors

The following table lists the details of the Intel Core Series 3 processors that are supported on your Dell Pro 3 16 P316260.

NOTE:The following processor specifications tables only apply to computers shipped with Intel Core Series 3 processors.

Table 1. Intel Core Series 3 processors The following table lists the details of the Intel Core Series 3 processors that are supported on your Dell Pro 3 16 P316260.
Description	Option one	Option two	Option three
Type	Intel Core 3 304	Intel Core 5 315	Intel Core 5 320
Wattage	15 W	15 W	15 W
Total cores	5	6	6
Number of Performance-cores	1	2	2
Number of Efficient-cores	None	None	None
Number of Low Power Efficient-cores	4	4	4
Total threads	5	6	6
Speed	Up to 4.3 GHz	Up to 4.4 GHz	Up to 4.6 GHz
Performance-core frequency
Base frequency	1.5 GHz	1.5 GHz	1.5 GHz
Maximum turbo frequency	4.3 GHz	4.4 GHz	4.6 GHz
Low Power Efficient-core frequency
Base frequency	1.4 GHz	1.4 GHz	1.4 GHz
Maximum turbo frequency	3.3 GHz	3.3 GHz	3.4 GHz
Processor cache	6 MB	6 MB	6 MB
Integrated graphics	Intel Graphics	Intel Graphics	Intel Graphics
X^e-cores	1	2	2
GPU AI performance	Up to 9 TOPS	Up to 18 TOPS	Up to 20 TOPS
Neural Processing Unit (NPU) AI performance	Up to 15 TOPS	Up to 15 TOPS	Up to 16 TOPS
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.
Description	Option four	Option five	Option six
Type	Intel Core 5 330	Intel Core 7 350	Intel Core 7 360
Wattage	15 W	15 W	15 W
Total cores	6	6	6
Number of Performance-cores	2	2	2
Number of Efficient-cores	None	None	None
Number of Low Power Efficient-cores	4	4	4
Total threads	6	6	6
Speed	Up to 4.6 GHz	Up to 4.8 GHz	Up to 4.8 GHz
Performance-core frequency
Base frequency	1.5 GHz	1.5 GHz	1.5 GHz
Maximum turbo frequency	4.6 GHz	4.8 GHz	4.8 GHz
Low Power Efficient-core frequency
Base frequency	1.4 GHz	1.4 GHz	1.4 GHz
Maximum turbo frequency	3.4 GHz	3.6 GHz	3.6 GHz
Processor cache	6 MB	6 MB	6 MB
Integrated graphics	Intel Graphics	Intel Graphics	Intel Graphics
X^e-cores	2	2	2
GPU AI performance	Up to 20 TOPS	Up to 21 TOPS	Up to 21 TOPS
Neural Processing Unit (NPU) AI performance	Up to 16 TOPS	Up to 17 TOPS	Up to 17 TOPS
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Chipset

The following table lists the details of the chipset that is supported by your Dell Pro 3 16 P316260.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell Pro 3 16 P316260.
Description	Option one	Option two
Processors	Intel Core Ultra Series 3	Intel Core Series 3
Chipset	Integrated with the processor	Integrated with the processor
DRAM bus width	64-bit	64-bit
Flash EPROM	16 MB + 32 MB	8 MB + 32 MB
PCIe bus	Up to Gen5	Up to Gen4

Operating system

Your Dell Pro 3 16 P316260 supports the following operating systems:

Windows 11 Home
Windows 11 Pro
Windows 11 Pro National Education
Ubuntu Linux 24.04 LTS

Memory

The following table lists the memory specifications that are supported by your Dell Pro 3 16 P316260.

Table 1. Memory specificationsThe following table lists the memory specifications of your computer.
Description	Option one	Option two
Memory slots	Two SODIMM slots	One SODIMM slot
Memory type	DDR5	DDR5
Memory speed	5600 MT/s	5600 MT/s
Maximum memory configuration	64 GB	48 GB
Minimum memory configuration	16 GB	8 GB
Memory size per slot	16 GB, or 32 GB	8 GB, 16 GB, 32 GB, or 48 GB
Memory configurations supported	16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel 16 GB: 2 x 8 GB, DDR5, 5600 MT/s, dual-channel 32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, dual-channel 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, dual-channel	8 GB: 1 x 8 GB, DDR5, 5600 MT/s, single-channel 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel 32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel 48 GB: 1 x 48 GB, DDR5, 5600 MT/s, single-channel

External ports and slots

The following table lists the external ports and slots on your Dell Pro 3 16 P316260.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell Pro 3 16 P316260.
Description	Values
Network port	One RJ45 ethernet port (1 Gbps)
USB ports	Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort 2.1 One USB 3.2 Gen 1 port (5 Gbps) One USB 3.2 Gen 1 port (5 Gbps) with PowerShare
Audio port	One global headset jack
Video port(s)	One HDMI 2.1 port
Power-adapter port	Two Type-C Thunderbolt 4 (40 Gbps) with Power Delivery and DisplayPort 2.1
Security-cable slot	One Kensington security-cable slot
SIM-card slot	One nano-SIM card slot (optional)

Internal slots

The following table lists the internal slots of your Dell Pro 3 16 P316260.

Table 1. Internal slotsThe following table lists the internal slots on your Dell Pro 3 16 P316260.
Description	Values
M.2	One M.2 Key-E 2230 slot for WLAN card One M.2 Key-B 3042/3052 slot for WWAN card (optional) One M.2 Key-M 2230 slot for solid-state drive NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Dell Pro 3 16 P316260.

Table 1. Ethernet specifications
The following table provides the specifications of Ethernet that is supported by your Dell Pro 3 16 P316260.
Description	Values
Model	Intel I219-LM
Transfer rate	10/100/1000 Mbps

WLAN module

The following table lists the Wireless Local Area Network (WLAN) module specifications of your Dell Pro 3 16 P316260.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell Pro 3 16 P316260.
Description	Option one	Option two	Option three	Option four
Model number	Intel BE211	Intel BE213	Intel AX211	MediaTek MT7920
Transfer rate	Up to 5760 Mbps	Up to 2880 Mbps	Up to 2400 Mbps	Up to 1200 Mbps
Frequency bands supported	2.4 GHz 5 GHz 6 GHz	2.4 GHz 5 GHz 6 GHz	2.4 GHz 5 GHz 6 GHz	2.4 GHz 5 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth Core Specification	Bluetooth Core 6.0	Bluetooth Core 6.0	Bluetooth 5.4	Bluetooth Core 6.0
NOTE:These wireless cards are qualified against the listed Bluetooth Core specifications.

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) modules that are supported in your Dell Pro 3 16 P316260.

NOTE: WWAN support is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on the WWAN card depends on your region and mobile carrier's requirements.

NOTE:For instructions on how to setup SIM or eSIM connections on your computer, see the SIM/eSIM Setup Guide for Windows available with your product documentation at Dell Support Site.

Table 1. WWAN module specificationsThe following table lists the Wireless Wide Area Network (WWAN) modules that are supported in your Dell Pro 3 16 P316260.
Description	Option one	Option two
Model number	DW5826e-m Qualcomm Snapdragon SDX12 Global LTE-Advanced	DW5933e-m, MediaTek T700 Global 5G Modem
Cellular standards	4G	5G
Form factor	M.2 3042 Key-B	M.2 3052 Key-B
Host interface	USB 3.0 USB 2.0	PCIe Gen3
Network standard	LTE FDD/TDD WCDMA GPS/GLONASS/Galileo/BDS/QZSS	NR FR1 (Sub6) FDD/TDD LTE FDD/TDD WCDMA/HSPA+ GPS/GLONASS/Galileo/BDS/QZSS
Transfer data rate	LTE: Download: 600 Mbps (CAT12) Upload: 150 Mbps (CAT13) WCDMA: Download: 42 Mbps Upload: 5.76 Mbps UMTS: Download: 384 kbps Upload: 384 kbps	SA: Download: 4.67 Gbps Upload: 1.25 Gbps NSA: Download: 3.74 Gbps Upload: 835 Mbps LTE: Download: 1.6 Gbps (CAT19) Upload: 211 Mbps UMTS: Download: 384 kbps Upload: 384 kbps Download: DC-HSPA+: 42 Mbps (CAT24) Upload: 11.5 Mbps (CAT7)
Operating frequency bands	LTE FDD (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B32, B66, B71) LTE TDD (B38, B39, B40, B41, B42, B43, B48) WCDMA (B1, B2, B4, B5, B6, B8, B9, B19)	NR (n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8)
Power supply	DC 3.135 V to 4.4 V, Typical: 3.3 V	DC 3.135 V to 4.4 V, Typical: 3.3 V
SIM card	Supported through external SIM slot	Supported through external SIM slot
eSIM with dual SIM (DSSA)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)
Antenna diversity	Supported	Supported
Radio on/off	Supported	Supported
Wake on wireless	Supported	Supported
Temperature	Normal operating temperature: -30°C to 70°C (-22°F to 158°F) Extended operating temperature: -40°C to 85°C (-40°F to 185°F) Storage temperature: -40°C to 85°C (-40°F to 185°F)	Normal operating temperature: -10°C to 55°C (14°F to 131°F) Extended operating temperature: -40°C to 85°C ( -40°F to 185°F) Storage temperature: -60°C to 100°C (-76°F to 212°F)
Antenna connector	WWAN Main Antenna × 1 WWAN Diversity Antenna × 1	WWAN Main Antenna × 1 WWAN Diversity Antenna × 1 4 x 4 MIMO Antenna × 2
NOTE:For instructions to find your computer's International Mobile Equipment Identity (IMEI) number, search in the Knowledge Base Resource at Dell Support Site.

Audio

The following table lists the audio specifications of your Dell Pro 3 16 P316260.

Table 1. Audio specificationsThe following table provides the detailed audio specifications of Dell Pro 3 16 P316260.
Description		Values
Audio controller		Realtek ALC3329B
Stereo conversion		Supported with SoundReal
Internal audio interface		High definition audio Interface
External audio interface		Global headset port
Number of speakers		2
Internal-speaker amplifier		Supported (audio codec integrated)
External volume controls		Keyboard shortcut controls
Speaker output:
Average		2 W x 2 = 4 W
Peak		2.5 W x 2 = 5 W
Microphone		Digital-array microphones in camera assembly

Storage

This section lists the storage options on your Dell Pro 3 16 P316260.

Your Dell Pro 3 16 P316260 supports one M.2 2230 solid-state drive.

Table 1. Storage specifications
The following table provides the different storage options available on Dell Pro 3 16 P316260.
Storage type	Interface type	Capacity
512GB SSD TLC M.2 2230 PCIe NVMe Gen5 SED Ready	PCIe Gen5 x4 NVMe, up to 128 GT/s	Up to 512 GB
M.2 2230 solid state drive, QLC	PCIe Gen4 x4 NVMe, up to 64 GT/s	Up to 2 TB
M.2 2230 solid state drive,TLC	PCIe Gen4 x4 NVMe, up to 64 GT/s	Up to 1 TB

Keyboard

The following table lists the keyboard specifications of your Dell Pro 3 16 P316260.

Table 1. Keyboard specificationsThe following table lists the keyboard specifications of your Dell Pro 3 16 P316260.
The following table provides the detailed keyboard specifications of Dell Pro 3 16 P316260.
Description	Values
Keyboard type	Standard non-backlit keyboard Standard backlit keyboard
Keyboard layout	Belgian,French European: AZERTY Others: QWERTY
Number of keys	United States and Canada: 99 keys United Kingdom: 100 keys Portuguese (Brazil), French Canadian (Quebec): 101 keys Japan: 103 keys
Key pitch	Horizontal = 18.05 mm Vertical = 19.05 mm
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS Setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search Dell Support site. For more information, see Keyboard function keys.

Keyboard shortcuts

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Subsequently, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 1. List of keyboard shortcuts
The following table lists the keyboard shortcuts and their descriptions.
Function key	Behavior
F1	Mute or unmute audio
F2	Decrease volume
F3	Increase volume
F4	Mute or unmute microphone
F5	ROW : Dictation German : Co-pilot NOTE:Depending on the keyboard language, the behaviour of the F5 key may vary.
F6	Click keyboard backlight (optional). NOTE:Non-backlight keyboards have the F10 function key without the backlight icon and do not support the toggle keyboard backlight function. NOTE:Toggle to cycle the keyboard backlight status through off, low-backlight, and high-backlight.
F8	Decrease display brighntess
F9	Increase display brighntess
F10	Print screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Behavior
Fn + F1	Operating system behaviour-specific F1 behaviour
Fn + F2	Operating system behaviour-specific F2 behaviour
Fn + F3	Operating system behaviour-specific F3 behaviour
Fn + F4	Operating system behaviour-specific F4 behaviour
Fn + F5	Operating system behaviour-specific F5 behaviour
Fn + F6	Operating system behaviour-specific F6 behaviour
Fn + F7	Operating system behaviour-specific F7 behaviour
Fn + F8	Operating system behaviour-specific F8 behaviour
Fn + F9	Operating system behaviour-specific F9 behaviour
Fn + F10	Operating system behaviour-specific F10 behaviour
Fn + F11	Operating system behaviour-specific F11 behaviour
Fn + F12	Operating system behaviour-specific F12 behaviour
Fn + Copilot	Operating system context behaviour
Fn + Esc	Toggle function key lock
Fn + PgUp (Cursor up)	Scroll up the document or page
Fn + PgDn (Cursor down)	Scroll down the document or page

Camera

The following table lists the camera specifications of your Dell Pro 3 16 P316260.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Dell Pro 3 16 P316260.
Description	Option one	Option two	Option three
Number of cameras	One	Two	Two
Camera type	HD camera	FHD RGB HDR camera	FHD RGB HDR+IR camera
Camera location	Front, above the display	Front, above the display	Front, above the display
Camera sensor type	CMOS sensor technology	CMOS sensor technology	CMOS sensor technology
Camera resolution:
Still image	0.92 megapixels	2.07 megapixels	2.07 megapixels
Video	1280 x 720 (HD) at 30 fps	1920 x 1080 (FHD) at 30 fps	1920 x 1080 (FHD) at 30 fps
Infrared camera resolution:
Still image	Not applicable	Not applicable	0.13 megapixels
Video	Not applicable	Not applicable	360 x 360 at 15 fps
Diagonal viewing angle:
Camera	75 degrees	83 degrees	83 degrees
Infrared camera	Not applicable	Not applicable	81.3 degrees

Touchpad

The following table lists the touchpad specifications of your Dell Pro 3 16 P316260.

Table 1. Touchpad specificationsThe following table provides the detailed touchpad specifications of Dell Pro 3 16 P316260.
Description		Values
Touchpad resolution		>300 DPI
Touchpad dimensions:
Horizontal		128 mm (5.04 in.)
Vertical		78.50 mm (3.09 in.)
Touchpad gestures		For more information about the touchpad gestures that are available on: Windows, search Microsoft Support Site. Ubuntu, search Ubuntu Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell Pro 3 16 P316260.

Table 1. Power-adapter specificationsThe following table provides the detailed power adapter specifications of Dell Pro 3 16 P316260
Description	Option one	Option two	Option three
Type	65W AC wall mount adapter, USB Type-C,2-pin	65W AC adapter, USB Type C	105W AC adapter, USB Type C
Power-adapter dimensions:
Height	31.00 mm (1.22 in.)	26.50 mm (1.04 in.)	26.50 mm (1.04 in.)
Width	41.50 mm (1.63 in.)	60.00 mm (2.36 in.)	60.00 mm (2.36 in.)
Depth	48.50 mm (1.91 in.)	96.00 mm (3.37 in.)	122.00 mm (4.80 in.)
Input voltage	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC
Input frequency	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz
Input current (maximum)	1.7 A	1.7 A	1.7 A
Output current (continuous)	20 V/3.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)	20 V/3.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)	20 V/5.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)
Rated output voltage	20 VDC/15 VDC/9 VDC/5 VDC	20 VDC/15 VDC/9 VDC/5 VDC	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Pro 3 16 P316260.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Pro 3 16 P316260.
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 60 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer with a 45 Wh battery is connected to a 65 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your Dell Pro 3 16 P316260.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Pro 3 16 P316260.
Description	Option one	Option two	Option three
Battery type	3-cell lithium-ion (45 Wh)	3-cell lithium-ion (57 Wh)	3-cell ithium-ion (70 Wh)
Battery voltage (nominal)	11.25 VDC	11.25 VDC	11.25 VDC
Battery weight (maximum)	0.19 kg (0.42 lb)	0.24 kg (0.53 lb)	0.27 kg(0.59 lb)
Battery dimensions:
Height	6.50 mm (0.26 in.)	6.50 mm (0.26 in.)	6.50 mm (0.26 in.)
Width	272 mm (10.71 in.)	272 mm (10.71 in.)	272 mm (10.71 in.)
Depth	74.90 mm (2.95 in.)	74.90 mm (2.95 in.)	74.90 mm (2.95 in.)
Temperature range:
Operating	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 70°C (32°F to 158°F)	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 70°C (32°F to 158°F)	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 70°C (32°F to 158°F)
Storage	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate, when the computer is turned off)
Standard	3 hours	3 hours	3 hours
ExpressCharge	2 hours	2 hours	2 hours
ExpressCharge boost	From 0% up to 35% in as little as 20 minutes	From 0% up to 35% in as little as 20 minutes	From 0% up to 35% in as little as 20 minutes
Coin-cell battery	None	None	None
NOTE:You can control the battery charging time, duration, start and end time, and so on, using the settings on the Dell Optimizer application. For more information about Dell Optimizer application, search Dell Support Site. CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Power requirements(for computers shipped with 3-cell, 45 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

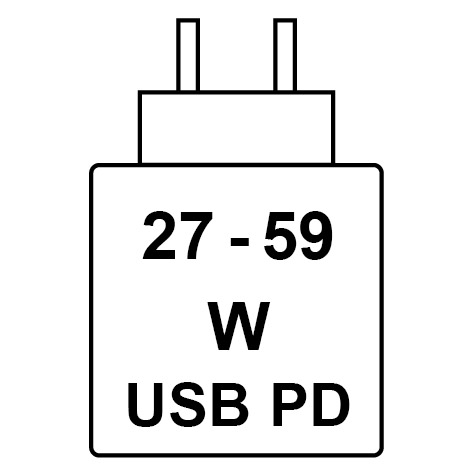

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 59 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power requirements(for computers shipped with 3-cell, 57 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 75 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power requirements(for computers shipped with 3-cell, 70 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 93 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Pro 3 16 P316260.

Table 1. Display specifications
The following table provides the detailed display specifications of Dell Pro 3 16 P316260.
Description	Option one	Option two
Display type	16-inch, Wide Ultra Extended Graphics Array (WUXGA)	16-inch, Wide Ultra Extended Graphics Array (WUXGA)
Display-panel technology	In-Plane Switching (IPS), White Light Emitting Diode (WLED)	In-Plane Switching (IPS), White Light Emitting Diode (WLED)
Display-panel dimensions (active area):
Height	344.68 mm (13.57 in.)	344.68 mm (13.57 in.)
Width	215.42 mm (8.48 in.)	215.42 mm (8.48 in.)
Diagonal	406.46 mm (16 in.)	406.46 mm (16 in.)
Display-panel native resolution	1920 x 1200	1920 x 1200
Luminance (typical)	400 nits	400 nits
Megapixels	2.30	2.30
Color gamut	62.5% sRGB	62.5% sRGB
Color depth	6-bit + FRC	6-bit + FRC
Pixels Per Inch (PPI)	141.50	141.50
Contrast ratio	Minimum: 800:1 Typical: 1000:1	Minimum: 800:1 Typical: 1000:1
Response time (maximum)	35 ms	35 ms
Refresh rate	60 Hz	60 Hz
Horizontal view angle	Minimum: +/- 80 degrees Typical: +/- 89 degrees	Minimum: +/- 80 degrees Typical: +/- 89 degrees
Vertical view angle	Minimum: +/- 80 degrees Typical: +/- 89 degrees	Minimum: +/- 80 degrees Typical: +/- 89 degrees
Pixel pitch	0.179 mm	0.179 mm
Power consumption (maximum)	5.65 W	5.60 W
Anti-glare vs glossy finish	Anti-glare	Anti-glare
Touch options	Non-Touch	Touch

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Dell Pro 3 16 P316260.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell Pro 3 16 P316260.
Description	Values
Sensor technology	Trans-capacitive sensing
Sensor resolution	500 dpi
Sensor pixel size	X: 108 Y: 88

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro 3 16 P316260.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell Pro 3 16 P316260.
Controller	External display support	Memory size	Processor
Intel Graphics	Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort 2.1 One HDMI 2.1 port	Shared system memory	Intel Core Ultra 5 332 vPro Intel Core Ultra 5 335 vPro Intel Core Ultra 7 355 Intel Core Ultra 7 365 vPro Intel Core Ultra 5 336H vPro Intel Core 3 304 Intel Core 5 315 Intel Core 5 320 Intel Core 5 330 Intel Core 7 350 Intel Core 7 360

Hardware security

The following table lists the hardware security of your Dell Pro 3 16 P316260.

Table 1. Hardware security The following table provides the hardware security details on your Dell Pro 3 16 P316260.
Hardware security
Kensington security-cable slot
Chassis intrusion switch
Trusted Platform Module (TPM) 2.0 (FIPS 140-3 level 1 Certified / TCG Certified)
SPI Flash Tamper Detection Circuit
Dell SafeBIOS including Dell Off-host BIOS Verification
BIOS Resilience
BIOS Recovery and additional BIOS Controls
SafeID including Trusted Platform Module (TPM) 2.0
Self-Encrypting Drives (SED)
D-Pedigree (Secure Supply Chain Functionality)
Quantum-resistant BIOS verification and signing updates
Quantum-resistant embedded controller (EC)

Operating and storage environment

This table lists the operating and storage specifications of your Dell Pro 3 16 P316260.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Pro 3 16 P316260.
Description	Operating	Storage
Temperature range	0°C to 35°C (32 °F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10,000 ft)	-15.2 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

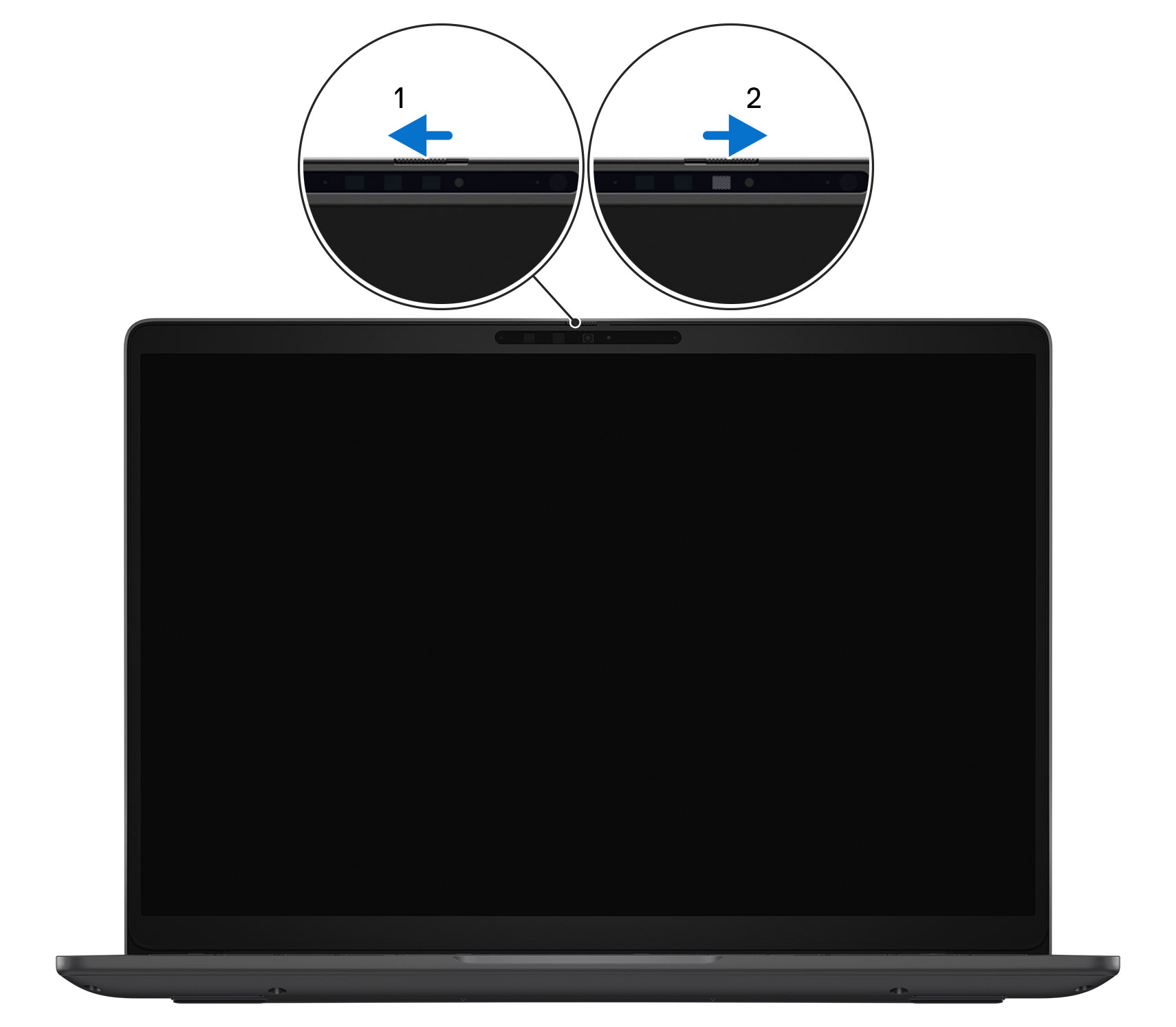

Using the privacy shutter

Slide the privacy shutter to the left to access the camera lens.
Slide the privacy shutter to the right to cover the camera lens.
Figure 1. Camera shutter

ComfortView Plus

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 inches and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Dell Optimizer

Dell Optimizer is an AI-based software application that allows you to customize your computer settings for power and battery, and more.

For Dell Pro 3 16 P316260 with Dell Optimizer, you can:

Extend the battery life of your computer with Intelligent Battery Extender and Dynamic Charge.
Tune the performance, power consumption, cooling, and fan noise with selectable thermal modes.
Access and secure your computer depending on your physical presence.
Download and redeem the apps that are purchased with your computer.

For more information about configuring and using these features, search for Dell Optimizer at the Dell Support Site.

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell Pro 3 16 P316260: технические характеристики и спецификации

Dimensions and weight

Intel Core Ultra Series 3 processors

Intel Core Series 3 processors

Chipset

Operating system

Memory

External ports and slots

Internal slots

Ethernet

WLAN module

WWAN module

Audio

Storage

Keyboard

Keyboard shortcuts

Camera

Touchpad

Power adapter

Power adapter requirements

Battery

Power requirements(for computers shipped with 3-cell, 45 Wh battery)

Power requirements(for computers shipped with 3-cell, 57 Wh battery)

Power requirements(for computers shipped with 3-cell, 70 Wh battery)

Display

Fingerprint reader

GPU—Integrated

Hardware security

Operating and storage environment

Using the privacy shutter

ComfortView Plus

Dell Optimizer

Dell support policy
