Dimensions and weight
The following table lists the height, width, depth, and weight of your Dell Pro 14 Essential PV14255.
| Description | Plastic chassis | Aluminum chassis | |
|---|---|---|---|
| Height | |||
| Front height | 16.90 mm (0.66 in.) | 15.86 mm (0.62 in.) | |
| Rear height | 18.07 mm ( 0.71 in.) | 17.31 mm (0.68 in.) | |
| Maximum height | 19.90 mm (0.78 in.) | 18.90 mm (0.74 in.) | |
| Width | 314 mm (12.36 in.) | 314 mm (12.36 in.) | |
| Depth | 226.15 mm (8.90 in.) | 226.15 mm (8.90 in.) | |
| Weight NOTE:The weight of your
computer depends on the configuration ordered and manufacturing
variability.
|
|
|
|
Processor
The following table lists the details of the processors that are supported by your Dell Pro 14 Essential PV14255.
| Description | Option one | Option two | Option three | Option four | |
|---|---|---|---|---|---|
| Processor type |
AMD Ryzen AI 7 350 |
AMD Ryzen AI 5 330 |
AMD Ryzen 7 250 |
AMD Ryzen 5 220 |
|
| Processor wattage |
15 W |
15 W |
20 W |
15 W |
|
| Processor total core count |
8 |
4 |
8 |
6 |
|
| Processor total thread count
NOTE:Intel Hyper-Threading Technology is only available on Performance-cores.
|
16 |
8 |
16 |
12 |
|
| Processor speed |
Up to 5.00 GHz |
Up to 4.50 GHz |
Up to 5.10 GHz |
Up to 4.90 GHz |
|
| Processor cache |
|
|
|
|
|
| Integrated graphics |
AMD Radeon 860M Graphics |
AMD Radeon 820M Graphics |
AMD Radeon 780M Graphics | AMD Radeon 740M Graphics | |
Chipset
The following table lists the details of the chipset that is supported by your Dell Pro 14 Essential PV14255.
| Description | Values |
|---|---|
| Chipset |
Integrated with the processor |
| Processor |
AMD Ryzen AI 7 350/AMD Ryzen AI 5 330/AMD Ryzen 7 250/AMD Ryzen 5 220 |
| DRAM bus width |
128-bit |
| Flash EPROM |
32 MB |
| PCIe bus |
Up to Gen4 |
Operating system
Your Dell Pro 14 Essential PV14255 supports the following operating systems:
- For 220/250 processors
- Windows 11 Home
- Windows 11 Pro
- Windows 11 Education – National Academic
- Ubuntu Linux 24.04.2 LTS
- For AI 330/350 processors
- Windows 11 Home NextGen
- Windows 11 Pro NextGen
- Ubuntu Linux 24.04.2 LTS
Memory
The following table lists the memory specifications that are supported by your Dell Pro 14 Essential PV14255.
| Description | Values |
|---|---|
| Memory slots |
Two SODIMM slots |
| Memory type |
Dual-channel DDR5 |
| Memory speed |
5600 MT/s |
| Maximum memory configuration |
64 GB |
| Minimum memory configuration |
8 GB |
| Memory size per slot |
8 GB or 16 GB or 32 GB |
| Memory configurations supported |
|
External ports and slots
The following table lists the external ports and slots on your Dell Pro 14 Essential PV14255.
| Description | Values |
|---|---|
| USB ports |
|
| Audio port |
One headset (headphone and microphone combo) port |
| Video port(s) |
One HDMI 1.4 port |
| Media-card reader |
One SD-card slot |
| Power-adapter port |
One power-adapter port (4.50 mm standard plug) |
| Security-cable slot |
One wedge-shaped lock slot |
Internal slots
The following table lists the internal slots of your Dell Pro 14 Essential PV14255.
| Description | Values |
|---|---|
| M.2 |
NOTE:To learn more about the features of
different types of M.2 cards, search Dell Support Site.
|
Wireless module
The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro 14 Essential PV14255.
| Description | Plastic chassis | Aluminum chassis |
|---|---|---|
| Model number | Realtek Wi-Fi 6 RTL8852BE | Realtek Wi-Fi 6E RTL8852CE |
| Transfer rate | 1201 Mbps | 2402 Mbps |
| Frequency bands supported | 2.4 GHz/5 GHz | 2.4 GHz/5 GHz/6 GHz |
| Wireless standards |
|
|
| Encryption |
|
|
| Bluetooth wireless card NOTE:The functionality of
the Bluetooth wireless card may vary based on the operating
system. |
Bluetooth 5.3 | Bluetooth 5.3 |
Audio
The following table lists the audio specifications of your Dell Pro 14 Essential PV14255.
| Description | Values | |
|---|---|---|
| Audio controller |
Realtek ALC3204 |
|
| Stereo conversion |
Supported |
|
| Internal audio interface |
High Definition Audio (HDA) inteface |
|
| External audio interface |
One headset (headphone and microphone combo) port |
|
| Number of speakers |
Two |
|
| Internal-speaker amplifier |
Supported (Audio codec integrated) |
|
| External volume controls |
Keyboard shortcut controls |
|
| Speaker output: | ||
| Average |
2 W x 2 = 4 W |
|
| Peak |
2.5 W x 2 = 5 W |
|
| Microphone |
|
|
Storage
This section lists the storage options on your Dell Pro 14 Essential PV14255.
Your Dell Pro 14 Essential PV14255 supports one M.2 2230 solid state drive. The M.2 2230 solid state drive is the primary storage drive of your computer.
| Storage type | Interface type | Capacity |
|---|---|---|
|
M.2 2230 solid state drive, Class 25 |
Gen4 PCIe NVMe |
512 GB/1 TB/2 TB |
|
M.2 2230 solid state drive, Class 35 |
Gen4 PCIe NVMe |
256 GB |
Media-card reader
The following table provides the specification of media cards that are supported by your Dell Pro 14 Essential PV14255.
| Description | Values |
|---|---|
| Media-card slot type |
One SD-card slot |
| Media-cards supported |
|
|
NOTE:The maximum
capacity of the media-card reader varies depending on the standard
of the media card that is inserted in your computer.
|
|
Keyboard
The following table lists the keyboard specifications of your Dell Pro 14 Essential PV14255.
| Description | Values |
|---|---|
| Keyboard type |
|
| Keyboard layout |
QWERTY |
| Number of keys |
|
| Key pitch |
Horizontal = 19.05 mm Vertical = 18.05 mm |
| Keyboard shortcuts |
Some keys on your keyboard have two symbols on
them. These keys can be used to type alternate characters or to
perform secondary functions.
NOTE:You can define
the primary behavior of the function keys (F1–F12) by changing
Function Key Behavior in the BIOS
Setup program.
NOTE:If Copilot in
Windows is not available on your computer, pressing the Copilot
key launches Windows search. For more information about Copilot
in Windows, see the Knowledge Base Resource at the Dell Support site.
|
Keyboard shortcuts of Dell Pro 14 Essential PV14255
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).
| Function key | Primary behavior |
|---|---|
| F1 | Mute or unmute audio |
| F2 | Decrease volume |
| F3 | Increase volume |
| F4 | Play or pause |
| F5 | KB Illumination/Backlight |
| F6 | Decrease brightness |
| F7 | Increase brightness |
| F8 | Switch to external display |
| F10 | Print screen |
| F11 | Home |
| F12 | End |
The Fn key is also used with selected keys on the keyboard to invoke secondary functions.
| Function key | Secondary behavior |
|---|---|
| Fn + F1 | Operating system and application-specific F1 behavior |
| Fn + F2 | Operating system and application-specific F2 behavior |
| Fn + F3 | Operating system and application-specific F3 behavior |
| Fn + F4 | Operating system and application-specific F4 behavior |
| Fn + F5 | Operating system and application-specific F5 behavior |
| Fn + F6 | Operating system and application-specific F6 behavior |
| Fn + F7 | Operating system and application-specific F6 behavior |
| Fn + F8 | Operating system and application-specific F8 behavior |
| Fn + F10 | Operating system and application-specific F10 behavior |
| Fn + F11 | Operating system and application-specific F11 behavior |
| Fn + F12 | Operating system and application-specific F12 behavior |
| Fn + Esc | Toggle fn key lock |
| Fn + S | Toggle scroll lock |
| Fn + B | Pause or break |
| Fn + R | System request |
| Fn + P | Privacy screen |
| Fn + Copilot | Open the application menu |
| Fn + Space bar | Open the emoji menu |
| Fn + T | Toggle ultraperformance mode |
| Fn + Left arrow | Home |
| Fn + Right arrow | End |
Camera
The following table lists the camera specifications of your Dell Pro 14 Essential PV14255.
| Description | Plastic chassis | Aluminum chassis | ||
|---|---|---|---|---|
| Number of cameras | One | One | ||
| Camera type | HD RGB camera | FHD RGB camera | ||
| Camera location | Front camera | Front camera | ||
| Camera sensor type | CMOS sensor technology | CMOS sensor technology | ||
| Camera resolution: | ||||
| Still image | 0.92 megapixel | 2.07 megapixel | ||
| Video | 1280 x 720 (HD) at 30 fps | 1920 x 1080 (FHD) at 30 fps | ||
| Diagonal viewing angle | 75 degrees | 82.20 degrees | ||
Touchpad
The following table lists the touchpad specifications of your Dell Pro 14 Essential PV14255.
| Description | Values | |
|---|---|---|
| Touchpad resolution: | ||
| Horizontal |
>= 300 dpi |
|
| Vertical |
>= 300 dpi |
|
| Touchpad dimensions: | ||
| Horizontal |
115 mm (4.52 in.) |
|
| Vertical |
80 mm (3.14 in.) |
|
| Touchpad gestures | For more information about the touchpad gestures that are available on:
|
|
Power adapter
The following table lists the power adapter specifications of your Dell Pro 14 Essential PV14255.
| Description | Values | |
|---|---|---|
| Type |
65 W |
|
| Connector dimensions: | ||
| External diameter |
4.50 mm |
|
| Internal diameter |
2.90 mm |
|
| Power-adapter dimensions: | ||
| Height |
29.50 mm |
|
| Width |
47.00 mm |
|
| Depth |
108.00 mm |
|
| Power-adapter weight (maximum) |
0.265 kg |
|
| Input voltage |
100 VAC–240 VAC |
|
| Input frequency |
50 Hz–60 Hz |
|
| Input current (maximum) |
1.60 A/1.70 A |
|
| Output current (continuous) |
3.34 A |
|
| Rated output voltage |
19.50 VDC |
|
| Temperature range: | ||
| Operating |
0°C to 40°C (32°F to 104°F) |
|
| Storage |
-40°C to 70°C (-40°F to 158°F) |
|
|
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
|
||

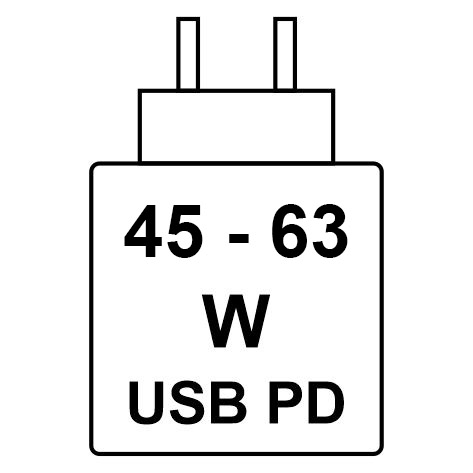

Power adapter requirements of Dell Pro 14 Essential PV14255
The following table lists the power adapter requirements for your Dell Pro 14 Essential PV14255.
| Description | Value |
|---|---|
| Power that is required from a power adapter to achieve optimal performance | 60 W |
| Power that charges the computer at a slower speed
NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.
|
Less than 63 W |
| Minimum power that is required from a power adapter to operate the computer and charge the battery
NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.
|
45 W |
| USB Power Delivery (PD) fast charging | Supported |
| ExpressCharge mode | Supported NOTE:Ensure that
the computer with a 41 Wh battery is connected to a 65 W
power adapter for this feature to be supported.
|
Battery
The following table lists the battery specifications of your Dell Pro 14 Essential PV14255.
| Description | Plastic chassis | Aluminum chassis | |||
|---|---|---|---|---|---|
| Option one | Option two | Option one | Option two | ||
| Battery type | 3-cell, 41 Wh, Lithium Ion Polymer, ExpressCharge, ExpressCharge Boost | 4-cell, 54 Wh, Lithium Ion Polymer, ExpressCharge | 4-cell, 54 Wh, Lithium Ion Polymer, ExpressCharge | 4-cell, 64 Wh, Lithium Ion Polymer, ExpressCharge | |
| Battery voltage | 11.25 VDC | 15 VDC | 15 VDC | 15.20 VDC | |
| Battery weight (maximum) | 0.17 kg (0.39 lb) | 0.24 kg (0.53 lb) | 0.24 kg (0.53 lb) | 0.26 kg (0.57 lb) | |
| Battery dimensions: | |||||
| Height | 5.75 mm (0.22 in.) | 5.75 mm (0.22 in.) | 5.75 mm (0.22 in.) | 5.75 mm (0.22 in.) | |
| Width | 206.40 mm (8.12 in.) | 271.90 mm (10.66 in.) | 271.90 mm (10.66 in.) | 271.90 mm (10.66 in.) | |
| Depth | 82 mm (3.22 in.) | 82 mm (3.22 in.) | 82 mm (3.22 in.) | 82 mm (3.22 in.) | |
| Temperature range: | |||||
| Operating |
|
|
|
|
|
| Storage | –20°C to 60°C (-4°F to 140°F) | –20°C to 60°C (-4°F to 140°F) | –20°C to 60°C (-4°F to 140°F) | –20°C to 60°C (-4°F to 140°F) | |
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | |
| Battery charging time
(approximate) NOTE:Control
the charging time, duration, start and end time, and so on, using
the Dell Power Manager application. For more information about Dell
Power Manager, search in the Knowledge Base Resource at Dell Support Site.
|
|
|
|
|
|
| Coin-cell battery | Not supported | Not supported | Not supported | Not supported | |
|
CAUTION:Operating and storage temperature ranges may differ among
components, so operating or storing the device outside these ranges
may impact the performance of specific components.
CAUTION:Dell
Technologies recommends that you charge the battery regularly for
optimal power consumption. If your battery charge is depleted,
connect the power adapter, turn on your computer, and then restart
your computer to reduce the power consumption.
|
|||||
Power requirements (for computers shipped with 3-cell, 41 Wh battery)

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 55 Watts in order to achieve the maximum charging speed.
This computer supports USB Power Delivery (PD) fast charging.
Power requirements (for computers shipped with 4-cell, 54 Wh battery)

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 53 Watts in order to achieve the maximum charging speed.
This computer supports USB Power Delivery (PD) fast charging.
Power requirements (for computers shipped with 4-cell, 64 Wh battery)

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 63 Watts in order to achieve the maximum charging speed.
This computer supports USB Power Delivery (PD) fast charging.
Display
The following table lists the display specifications of your Dell Pro 14 Essential PV14255.
| Description | Option one | Option two | |
|---|---|---|---|
| Display type |
14" Full High Definition Plus (FHD+), ComfortView |
14" Quad High Definition Plus (QHD+), ComfortView Plus |
|
| Touch options |
Not supported |
Not supported |
|
| Display-panel technology |
In-Plane Switching (IPS) with Wide-viewing Angle (WVA) |
In-Plane Switching (IPS) with Wide-viewing Angle (WVA) |
|
| Display-panel dimensions (active area): | |||
| Height |
301.59 mm (11.87 in.) |
301.59 mm (11.87 in.) |
|
| Width |
188.50 mm (7.42 in.) |
188.50 mm (7.42 in.) |
|
| Diagonal |
355.65 mm (14 in.) |
355.65 mm (14 in.) |
|
| Display-panel native resolution |
1920 x 1200 |
2560 x 1600 |
|
| Luminance (typical) |
300 nits |
300 nits |
|
| Megapixels |
2.30 |
4.09 |
|
| Color gamut |
45% NTSC |
100% sRGB |
|
| Pixels Per Inch (PPI) |
162 |
216 |
|
| Contrast ratio (minimum) |
|
|
|
| Response time (maximum) |
35 ms |
35 ms |
|
| Refresh rate |
60 Hz |
120 Hz |
|
| Horizontal view angle |
|
|
|
| Vertical view angle |
|
|
|
| Pixel pitch |
0.157 x 0.157 mm |
0.117 x 0.117 mm |
|
| Power consumption (maximum) |
3.68 W |
4.80 W |
|
| Anti-glare vs glossy finish |
Anti-glare |
Anti-glare |
|
Fingerprint reader (optional)
The following table lists the specifications of the optional fingerprint reader of your Dell Pro 14 Essential PV14255.
| Description | Option one | Option two |
|---|---|---|
| Sensor technology | Capacitive | Capacitive |
| Sensor resolution | 500 dpi | 508 dpi |
| Sensor pixel size |
108 mm x 88 mm |
108 mm x 88 mm |
GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro 14 Essential PV14255.
| Controller | Memory size | Processor |
|---|---|---|
|
AMD Radeon Graphics |
Shared system memory |
AMD Ryzen 5 220/AMD Ryzen 7 250 |
|
AMD Radeon 820M Graphics |
Shared system memory |
AMD Ryzen AI 5 330 |
|
AMD Radeon 860M Graphics |
Shared system memory |
AMD Ryzen AI 7 350 |
Multiple display support matrix
The following table lists the multiple display support matrix for your Dell Pro 14 Essential PV14255.
| Graphics Card | Direct Graphics Controller Direct Output Mode | Supported external displays with computer internal display on | Supported external displays with computer internal display off |
|---|---|---|---|
| AMD Radeon Graphics | Not supported | 3 | 4 |
| AMD Radeon 820M Graphics | Not supported | 3 | 4 |
| AMD Radeon 860M Graphics | Not supported | 3 | 4 |
Operating and storage environment
This table lists the operating and storage specifications of your Dell Pro 14 Essential PV14255.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
| Description | Operating | Storage |
|---|---|---|
| Temperature range |
0°C to 40°C (32 °F to 104°F) |
-40°C to 65°C (-40°F to 149°F) |
| Relative humidity (maximum) |
90% (non-condensing) |
95% (non-condensing) |
| Vibration (maximum)* |
0.66 GRMS |
Not Applicable |
| Shock (maximum) |
140 G† |
Not Applicable |
| Altitude range |
Not Applicable |
Not Applicable |
|
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
|
||
* Measured using a random vibration spectrum that simulates the user environment.
† Measured using a 2 ms half-sine pulse.
Dell support policy
For information about Dell support policy, search Dell Support Site.
ComfortView
Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Dell ComfortView software technology reduces harmful blue light emissions to make extended screen time easy on your eyes.
ComfortView mode can be enabled and configured using the Dell CinemaColor application.
ComfortView mode complies with TÜV Rheinland's requirement for low blue light displays.
To reduce the risk of eye strain, it is also recommended that you:
- Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
- Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
- Take an extended break for 20 minutes every two hours.
- Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
ComfortView Plus
Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.
Low blue light mode is enabled at the factory, so no further configuration is necessary.
To reduce the risk of eye strain, it is also recommended that you:
- Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
- Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
- Take an extended break for 20 minutes every two hours.
- Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
