Dell Pro Rugged 10 Tablet RA00260: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Height:
Front height	25.40 mm (1.00 in.)
Rear height	25.40 mm (1.00 in.)
Width	262.50 mm (10.33 in.)
Depth	188.00 mm (7.40 in.)
Weight NOTE:The weight of your tablet depends on the configuration that you ordered.	Minimum—1.04 kg (2.29 lb)

Processor

The following table lists the details of the processors supported by your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Processor
The following table provides the various processor options that are supported for Dell Pro Rugged 10 Tablet RA00260.
Description	Option one	Option two	Option three	Option four	Option five
Processor type	Intel Core Ultra 7 268V, vPro Enterprise	Intel Core Ultra 7 266V, vPro Enterprise	Intel Core Ultra 5 238V, vPro Enterprise	Intel Core Ultra 5 236V, vPro Enterprise	Intel Core Ultra 5 226V
Processor wattage	24 W	24 W	24 W	24 W	24 W
Processor total core count	8	8	8	8	8
Performance-cores	4	4	4	4	4
Efficient-cores	4	4	4	4	4
Processor total thread count NOTE:Intel Hyper-Threading Technology is only available on Performance-cores.	8	8	8	8	8
Processor speed	Up to 5 GHz	Up to 5 GHz	Up to 4.7 GHz	Up to 4.7 GHz	Up to 4.5 GHz
Performance-cores frequency
Processor base frequency	2.2 GHz	2.2 GHz	2.1 GHz	2.1 GHz	2.1 GHz
Maximum turbo frequency	5 GHz	5 GHz	4.7 GHz	4.7 GHz	4.5 GHz
Efficient-cores frequency
Processor base frequency	2.2 GHz	2.2 GHz	2.1 GHz	2.1 GHz	2.1 GHz
Maximum turbo frequency	3.7 GHz	3.7 GHz	3.5 GHz	3.5 GHz	3.5 GHz
Processor cache	12 MB	12 MB	8 MB	8 MB	8 MB
Integrated graphics	Intel Arc 140V Graphics	Intel Arc 140V Graphics	Intel Arc 130V Graphics	Intel Arc 130V Graphics	Intel Arc 130V Graphics
AI technology	Intel AI Boost	Intel AI Boost	Intel AI Boost	Intel AI Boost	Intel AI Boost
Neural Processing Units (NPUs)	Six-tile NPU, supporting up to 48 TOPs	Six-tile NPU, supporting up to 48 TOPs	Five-tile NPU, supporting up to 40 TOPs	Five-tile NPU, supporting up to 40 TOPs	Five-tile NPU, supporting up to 40 TOPs
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Chipset

The following table lists the details of the chipset that is supported by your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Chipset	Integrated in the processor
Processor	Intel Core Ultra 7/5
DRAM bus width	64-bit
Flash EPROM	64 MB
PCIe bus	Up to PCIe 5.0

Operating system

Your Dell Pro Rugged 10 Tablet RA00260 supports the following operating systems:

Windows 11 Home
Windows 11 Pro
Windows 11 Downgrade
Ubuntu Linux 24.04 LTS

Memory

The following table lists the memory specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Dell Pro Rugged 10 Tablet RA00260.
Description		Values
Memory slots		Memory on Package NOTE:The memory is integrated on the system board and is not upgradable.
Memory type		LPDDR5x
Memory speed		8533 MT/s
Maximum memory configuration		32 GB
Minimum memory configuration		16 GB
Memory configurations supported		16 GB: LPDDR5x, 8533 MT/s, dual channel 32 GB: LPDDR5x, 8533 MT/s, dual channel

External ports and slots

The following table lists the external ports and slots on your Dell Pro Rugged 10 Tablet RA00260.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Network port	RJ45 Ethernet port (optional)
USB ports	Two USB 3.2 Gen 2 (10 Gbps) Type-C ports with DisplayPort Alt Mode/USB4/Power Delivery One USB 3.2 Gen 1 (5 Gbps) port with PowerShare NOTE: Connect the USB Type-C power adapter to only one of the three USB Type-C ports. NOTE: You can connect a Dell Docking Station to this port. For more information, search in the Knowledge Base Resource at Dell Support Site.
Optional bay	One optional I/O bay: RJ45 Ethernet port, 1 GbE USB 3.2 Gen 1 (5 Gbps) port Global headset jack 1D-2D barcode scanner Blank
Audio port	One global headset jack (optional)
Video port(s)	Supported using USB 3.2 Gen 2 Type-C ports with DisplayPort
Media-card reader	One microSD-card slot
Smart-card reader	One smart-card reader slot (optional)
Power-adapter port	65 W AC/100 W AC adapter, USB Type-C NOTE:You can connect a Dell Docking Station to this port. For more information, see the knowledge base article 000124295 at Dell Support Site.
Security-cable slot	One wedge-shaped lock slot
SIM-card slot	One nano-SIM card slot (optional)
Docking port	Supported

Internal slots

The following table lists the internal slots of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Internal slotsThe following table lists the internal slots on your Dell Pro Rugged 10 Tablet RA00260.
Description	Values
M.2	One M.2 2230 slot for solid-state drive One M.2 2230 slot for Wi-Fi and Bluetooth card One M.2 3052 slot for WWAN card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Ethernet (optional)

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Ethernet specifications (optional)
The following table provides the specifications of Ethernet that is supported by your Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Model	Intel Ethernet i219LM
Transfer rate	10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Model number	Intel BE201
Transfer rate	Up to 5760 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (Wi-Fi 802.11ac) Wi-Fi 6E (Wi-Fi 802.11ax) Wi-Fi 7 (Wi-Fi 802.11be)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.4

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Dell Pro Rugged 10 Tablet RA00260.

NOTE: The WWAN module is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on this module may vary depending on your region and the support that is offered by your mobile carrier.

NOTE:For instructions on how to setup SIM or eSIM connections on your tablet, see the SIM/eSIM Setup Guide for Windows available with your product documentation at Dell Support Site.

Table 1. WWAN module specificationsThe following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Model number	Qualcomm Snapdragon X72 Global 5G (DW5934e)
Form factor	M.2 3052 Key-B
Host interface	PCIe Gen3
Network standard	NR FR1 (Sub6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Galileo/Beidou
Transfer data rate	5G NR: DL 4.14Gbps/ UL 900 Mbps LTE: DL 2.0 Gbps (CAT20) / UL 211 Mbps (CAT18) UMTS: DL DC-HSPA+ Rel 8:42 Mbps / UL 5.76 Mbps
Operating frequency bands	NR (n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n67, n70, n71, n75, n76, n77, n78, n79, n91, n92, n93, n94) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B67, B68, B70, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8)
Power supply	DC 3.135 V to 3.63 V, typical 3.30 V
SIM card	Supported through external SIM slot
eSIM with dual SIM (DSSA)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)
Antenna diversity	Supported
Radio on/off	Supported
Wake On Wireless WAN	Not supported
Operating temperature	Normal operating temperature: –30°C to 70°C (-22°F to 158°F) Extended operating temperature: –40°C to 85°C (-40°F to 185°F) Storage temperature: –40°C to 85°C (-40°F to 185°F)
Antenna connector	WWAN main antenna x 1 WWAN diversity antenna x 1 4 x 4 MIMO antenna x 2
NOTE:For instructions to find your tablet's International Mobile Equipment Identity (IMEI) number, search Dell Support Site.

GPS module

The following table lists the nFore NF6807Q module supported on your Dell Pro Rugged 10 Tablet RA00260.

Table 1. GNSS L1 (GPS, GLONASS, Galileo, and Beidou) GNSS L1 (GPS, GLONASS, Galileo, and Beidou)
GNSS L1 (GPS, GLONASS, Galileo, and Beidou)
Interface	UART
Performance
Receiver type	L1
Navigation update rate (maximum)	1 Hz–10 Hz
Position accuracy	2 m (horizontal) 3 m (vertical)
Supported protocol	NMEA
Security features	Anti-jamming
Absolute maximum ratings
Power supply voltage	0 V (minimum) 3.6 V (maximum)
Storage temperature	-40°C to 125°C (-40°F to 257°F)
Operating conditions
Power supply voltage	3.0 V (minimum) 3.6 V (maximum)
Operating temperature	-40°C to 85°C (-40°F to 185°F)

NOTE:For more information about how to set up GPS in Dell Rugged Control Center, see Setting up the GPS.

NOTE:For more information about how to split the COM ports using Device Manager, see Splitting the GPS COM port.

Setting up the GPS

About this task

Steps

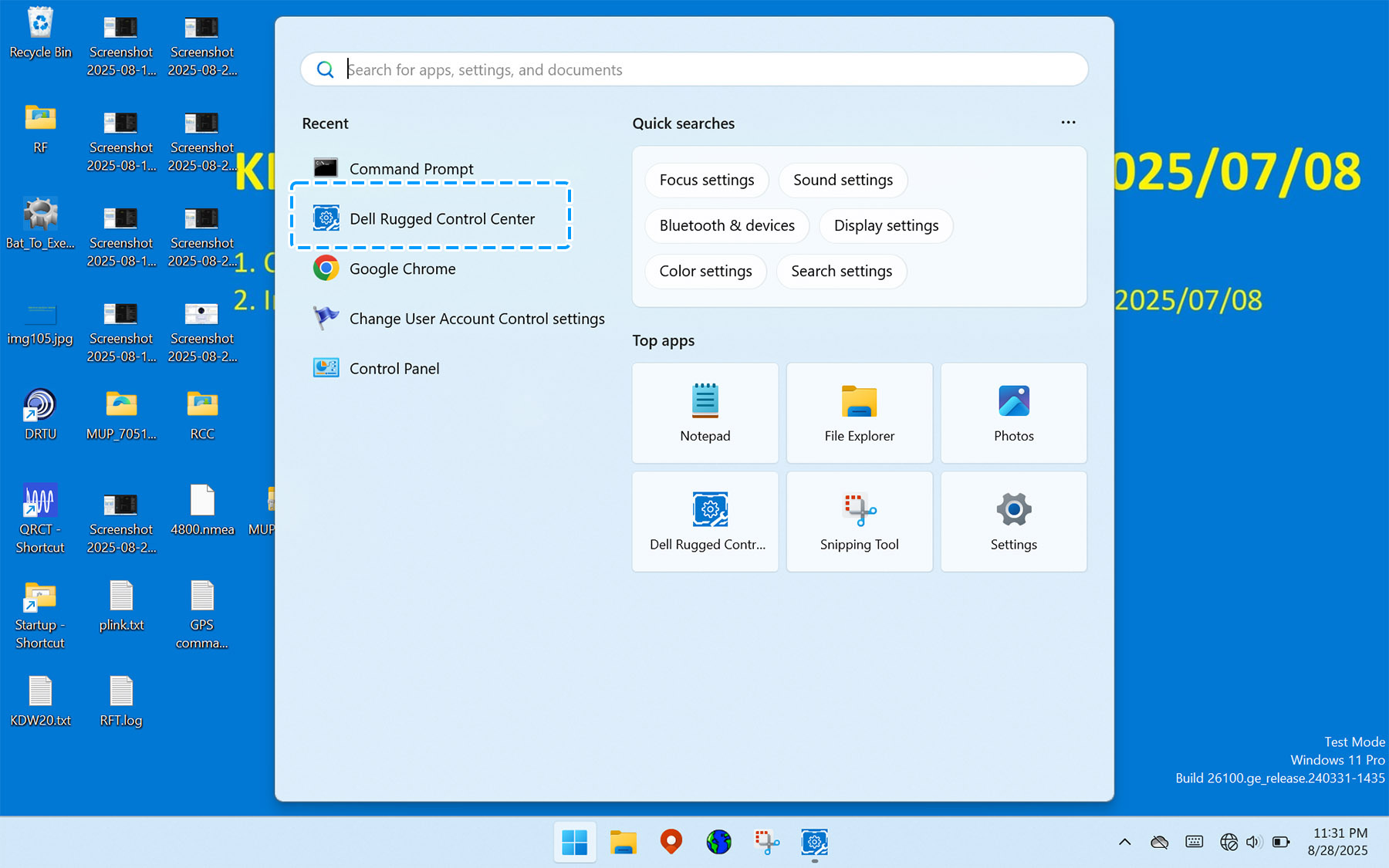

Open Dell Rugged Control Center.
Figure 1. Dell Rugged Control Center

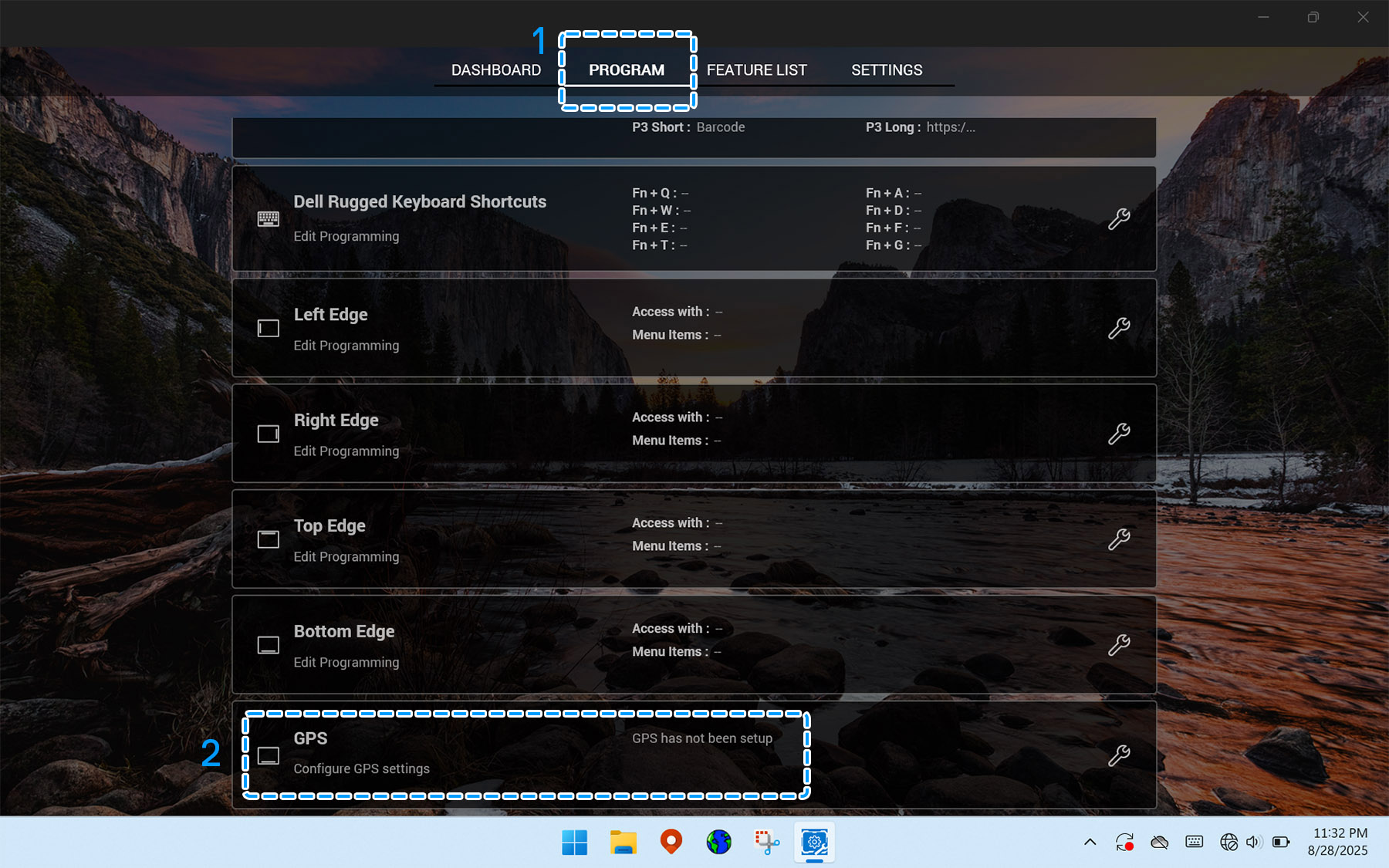

Select PROGRAM and click GPS.
Figure 2. GPS

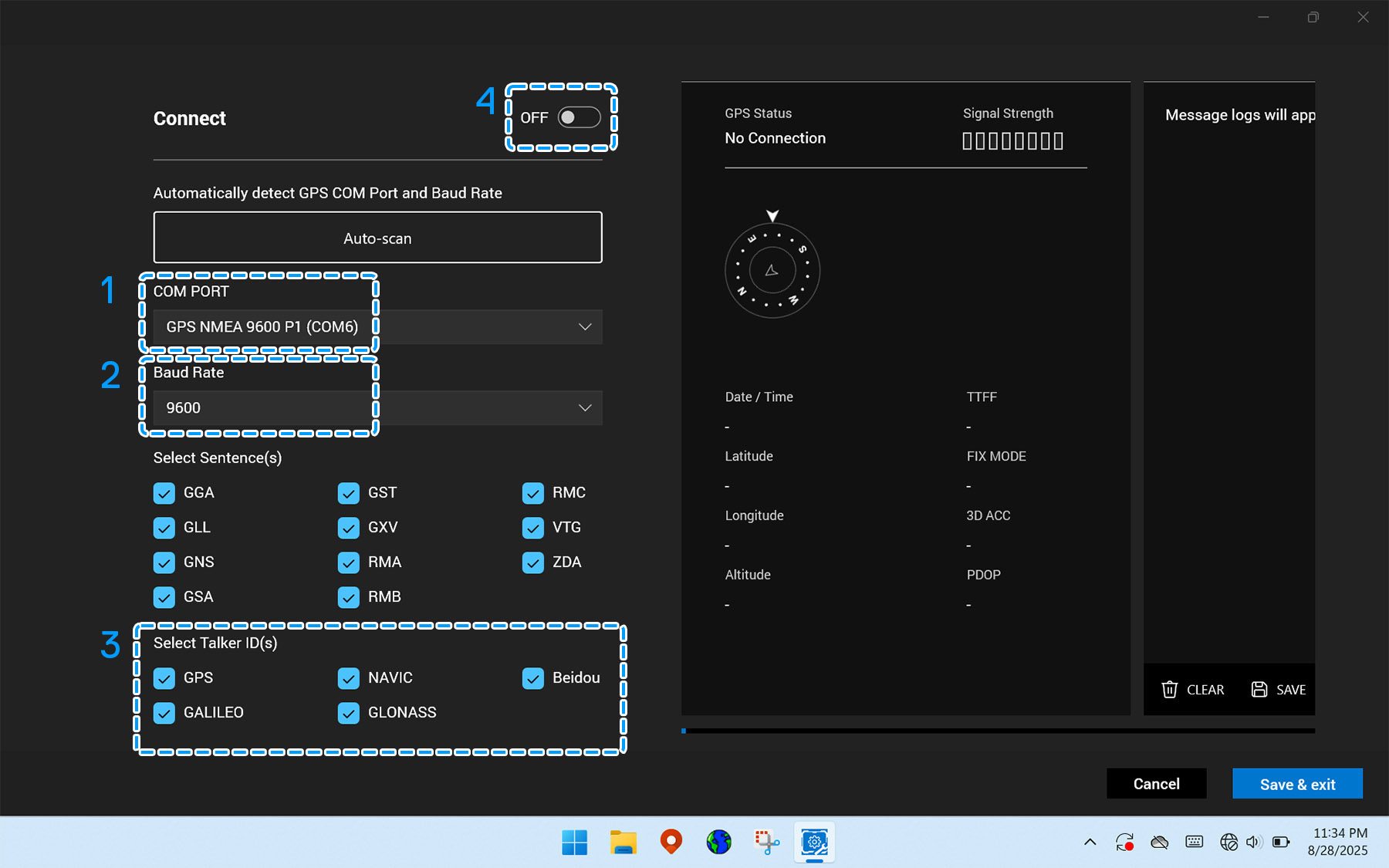

Set the fields to the following parameters:
Table 1. Set parametersSet parameters
Steps Fields Parameters
1 COM PORT GPS NEMA 9600 P1
2 Baud Rate 9600
3 Select Talker ID(s) Select all satellites.
4 Connect Toggle to ON.
Figure 3. GPS

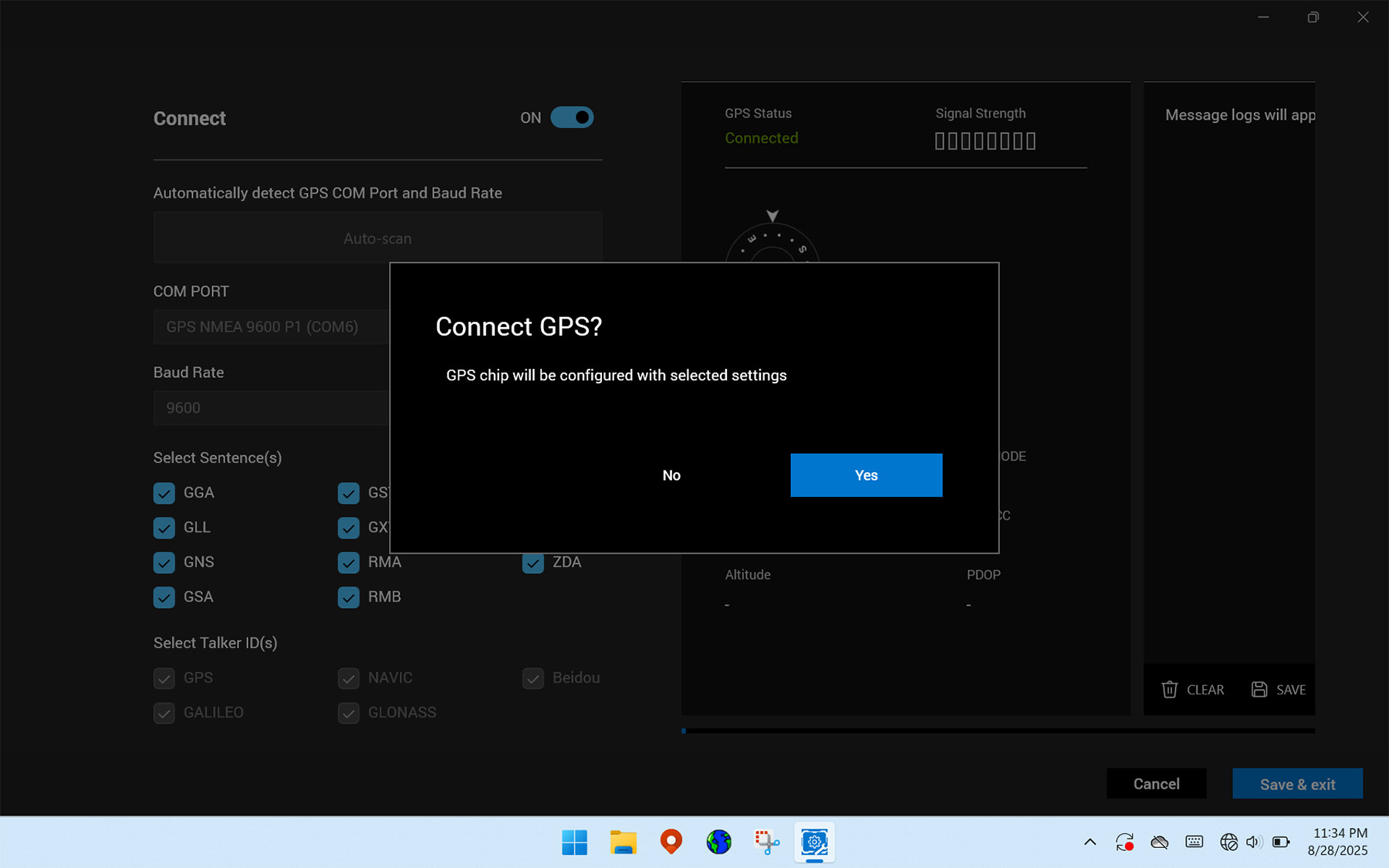

A dialog box opens requesting confirmation to configure GPS using the selected settings.
Figure 4. GPS
Click Yes to confirm.

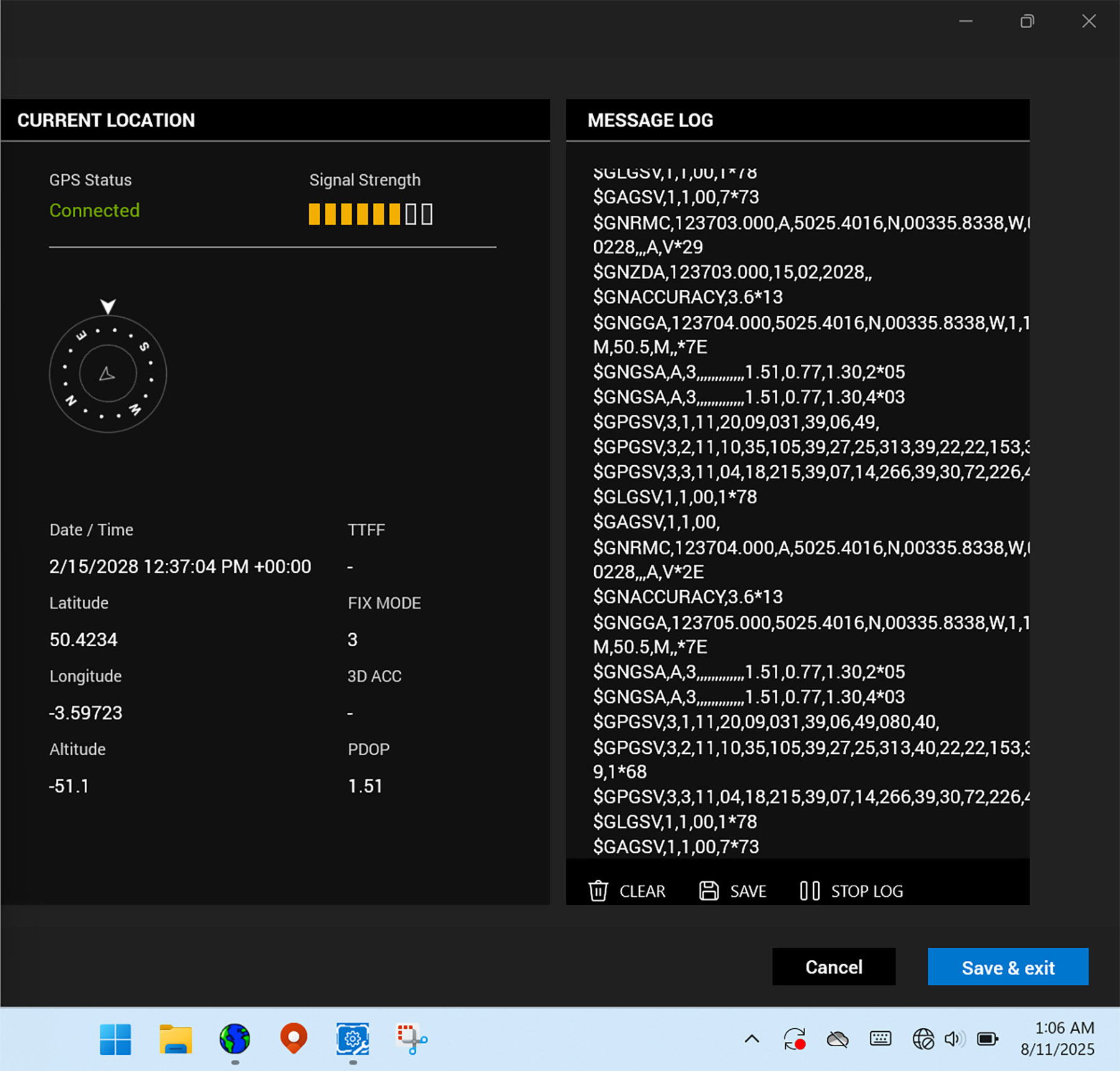

Dell RCC displays the GPS Status, Signal Strength, Date/Time, and other details indicating GPS is connected.
Figure 5. GPS Status

Table 1. Set parametersSet parameters
Steps	Fields	Parameters
1	COM PORT	GPS NEMA 9600 P1
2	Baud Rate	9600
3	Select Talker ID(s)	Select all satellites.
4	Connect	Toggle to ON.

Splitting the GPS COM port

About this task

GPS COM port splitting is a technique that allows multiple applications to access the same GPS data stream from a single GPS device. Only one program can use a COM port at a time, but with a splitter, you can create virtual COM ports that mirror the original data.

Steps

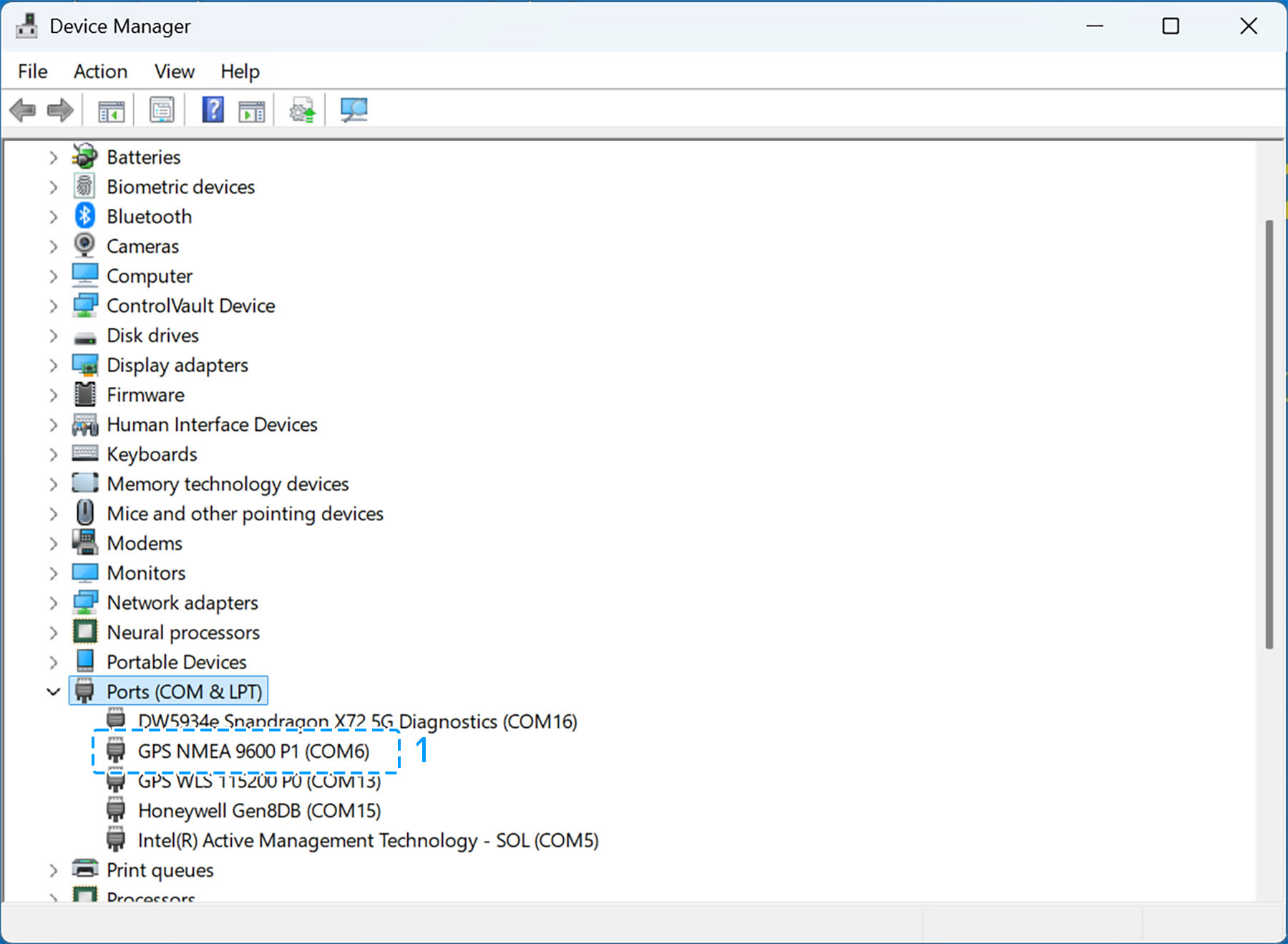

Go to Device Manager > Ports (COM & LPT) and select the port you want to split.
Figure 1. Device manager - Ports (COM & LPT)
The GPS NMEA 9600 P1 (COM6) Properties window opens.

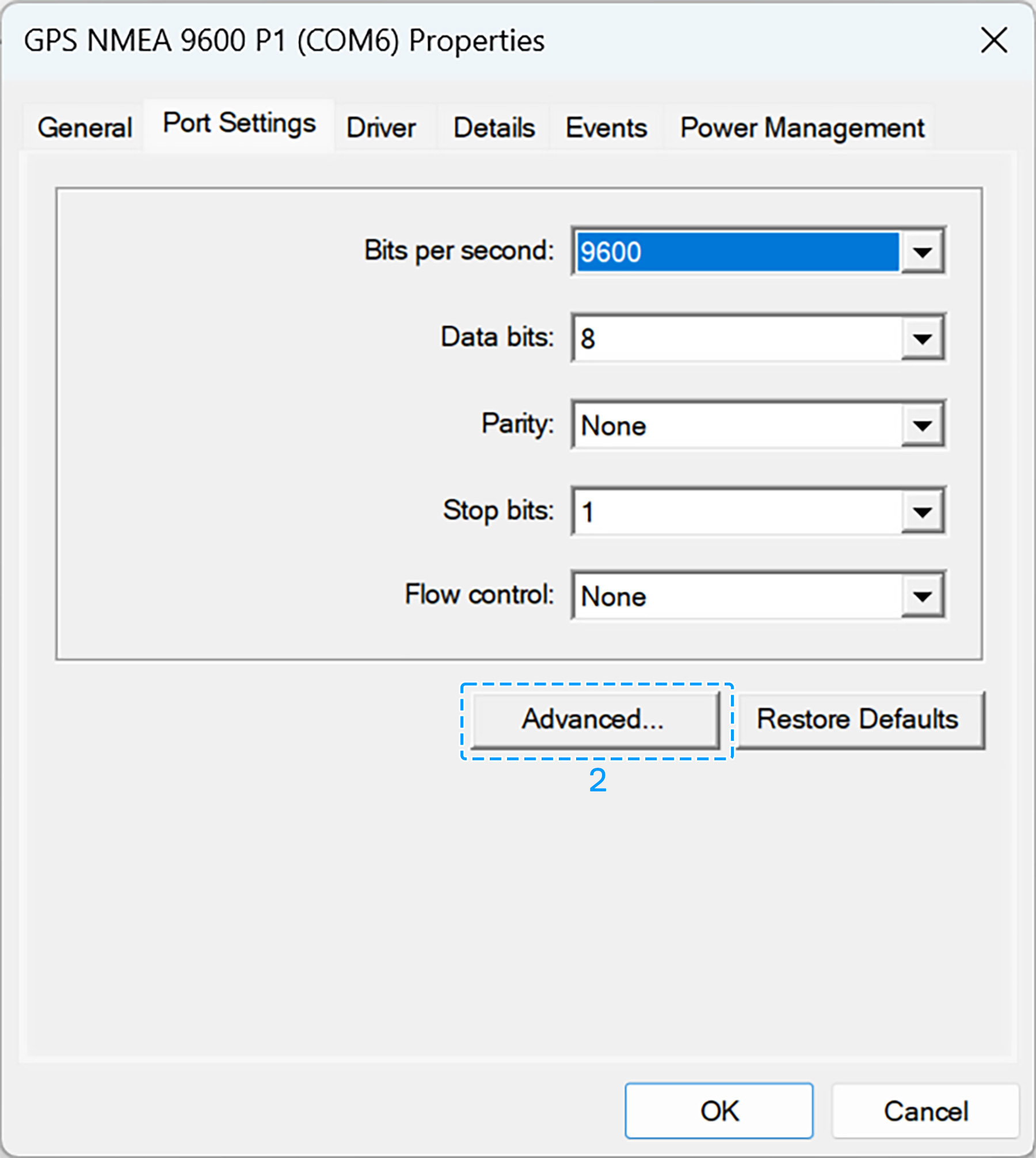

Select Port settings and click Advanced.
Figure 2. Device manager - Advanced

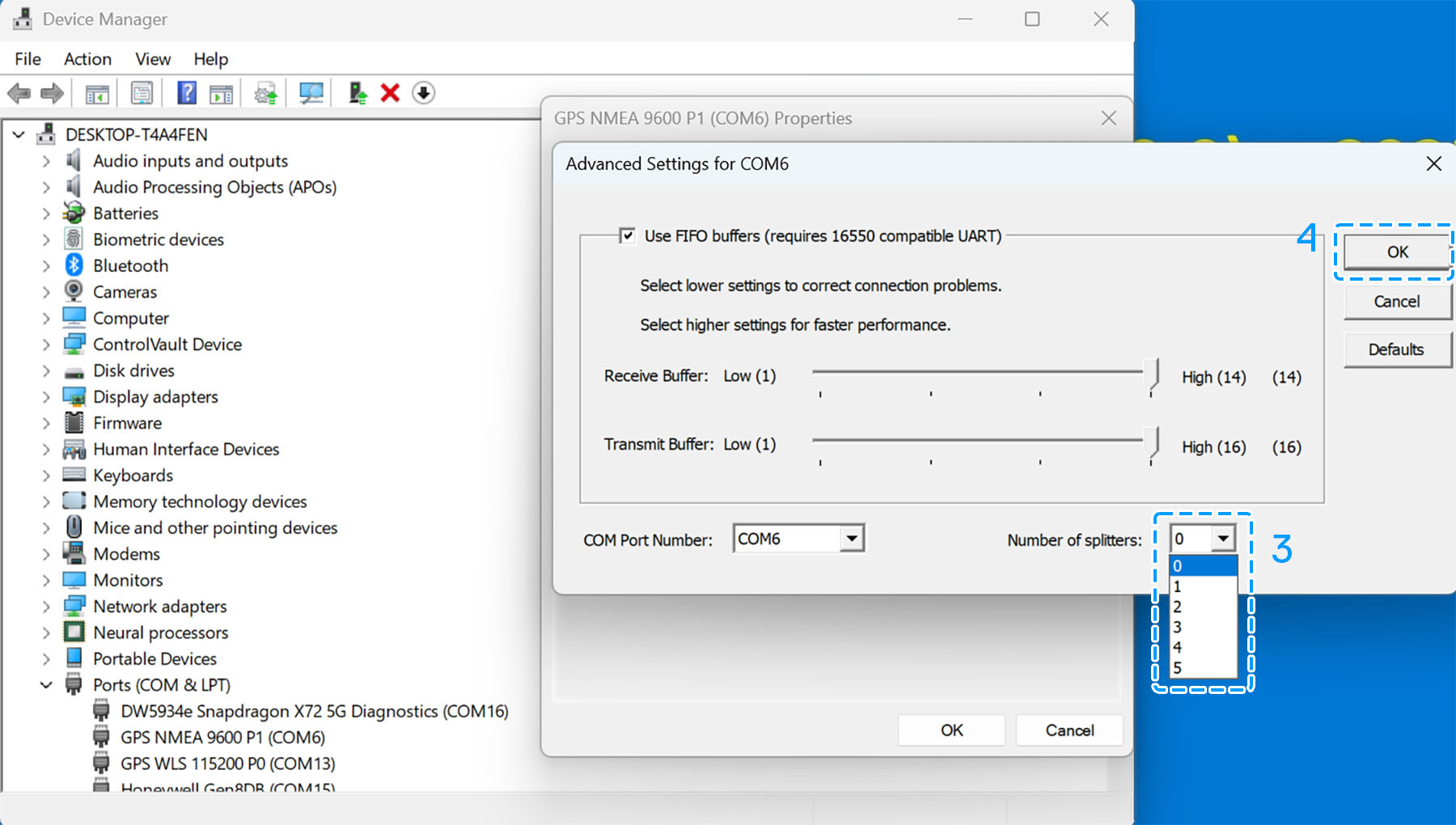

Set the number of split ports using the drop-down menu Number of splitters: and click OK.
Figure 3. Number of splitters
Close GPS NMEA 9600 P1 (COM6) Properties window and verify if the ports are split.

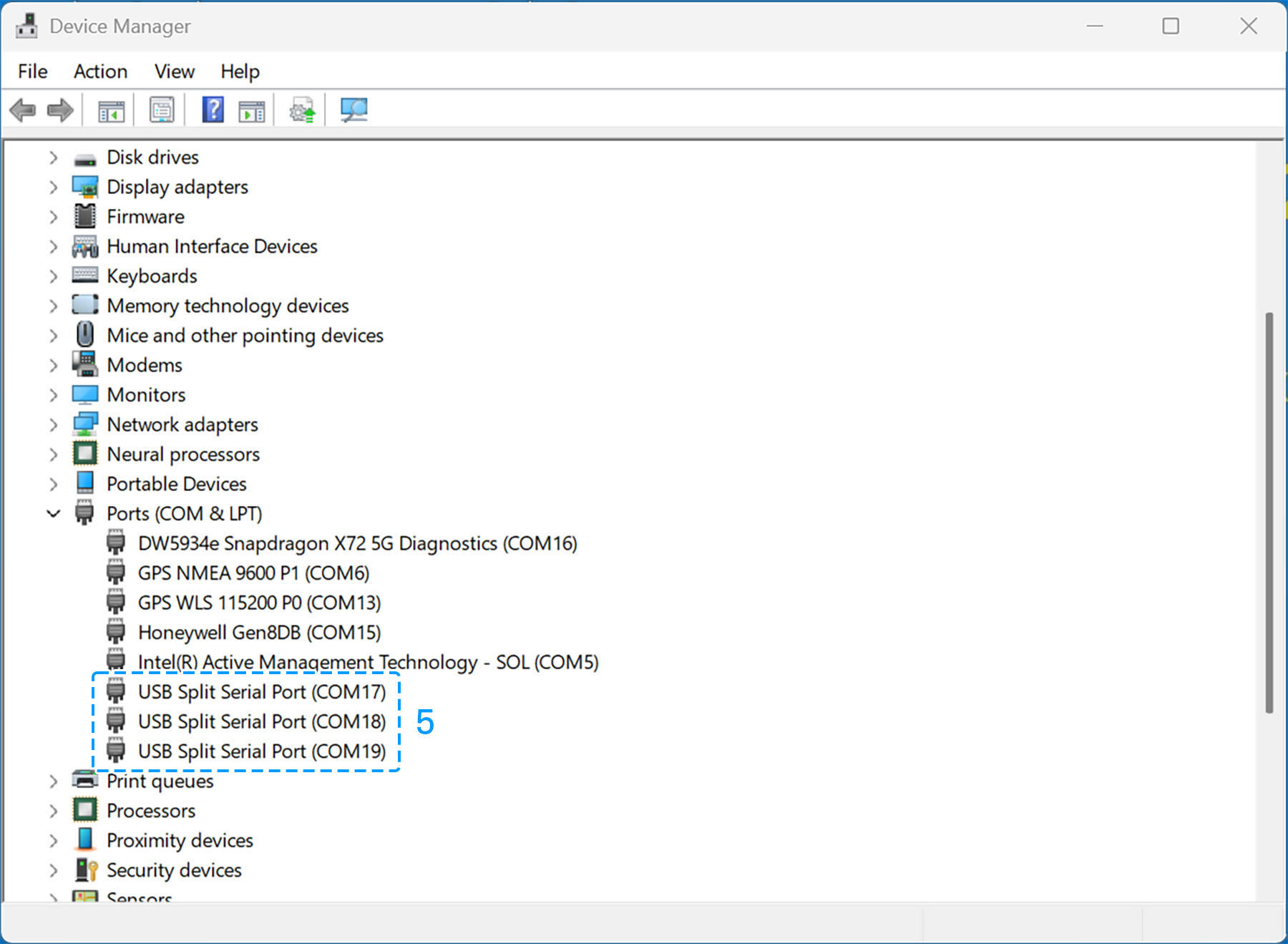

NMEA split ports are displayed.
Figure 4. NMEA split port

Audio

The following table lists the audio specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Dell Pro Rugged 10 Tablet RA00260.
Description		Values
Audio controller		Realtek ALC3204-GC
Stereo conversion		Supported
Internal audio interface		Intel High Definition Audio (HDA)
External audio interface		One global headset jack
Number of speakers		Two
Internal-speaker amplifier		Supported
External volume controls		Supported
Speaker output:
Average		2 W x 2 = 4 W
Peak		2.5 W x 2 = 5 W
Microphone		Dual-array microphones

Storage

This section lists the storage options on your Dell Pro Rugged 10 Tablet RA00260.

Your Dell Pro Rugged 10 Tablet RA00260 supports one M.2 2230 solid-state drive.

Table 1. Storage specifications
The following table provides the different storage options available on Dell Pro Rugged 10 Tablet RA00260.
Storage type	Interface type	Capacity
M.2 2230 solid-state drive, QLC	PCIe NVMe Gen4 x4	2 TB
M.2 2230 solid-state drive, TLC	PCIe NVMe Gen4 x4	256 GB, 512 GB, 1 TB
M.2 2230 solid-state drive, TLC, SED	PCIe NVMe Gen4 x4	256 GB, 512 GB

Media-card reader

The following table provides the specification of media cards that are supported by your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Media-card reader specificationsThe following table provides the specification of media cards that are supported by your Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Media-card slot type	One microSD 4.0 card
Media-cards supported	microSecure Digital (mSD) microSecure Digital High Capacity (mSDHC) microSecure Digital Extended Capacity (mSDXC) USH-I USH-II Multi-Media
NOTE:The maximum capacity of the media-card reader varies depending on the standard of the media card that is inserted in your tablet.

Camera

The following table lists the camera specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Front camera specifications
The following table provides the detailed camera specifications of Dell Pro Rugged 10 Tablet RA00260.
Description	Front camera
Number of cameras	Two
Camera type	8M RGB camera/VGA IR camera
Camera location	Front
Camera sensor type	CMOS sensor technology
Camera resolution:
Still image	3840 x 2160 megapixels
Video	1920 x 1080 at 30 fps
Infrared camera resolution:
Video	640 x 480 at 30 fps
Diagonal viewing angle:
Camera	88.1 degrees
Infrared camera	77.3 degrees

Table 2. Rear camera specifications
The following table provides the detailed camera specifications of Dell Pro Rugged 10 Tablet RA00260.
Description	Rear camera
Number of cameras	One
Camera type	11M RGB camera
Camera location	Rear
Camera sensor type	CMOS sensor technology
Camera resolution:
Still image	3976 x 2736 megapixels
Video	1920 x 1080 at 30 fps
Infrared camera resolution:
Video	N/A
Diagonal viewing angle:
Camera	97.0 degrees
Infrared camera	N/A

Power adapter

The following table lists the power adapter specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Dell Pro Rugged 10 Tablet RA00260.
Description	Option one	Option two
Type	65 W AC adapter, USB Type-C	100 W AC adapter, USB Type-C
Power-adapter dimensions:
Height	22 mm (0.86 in.)	26.50 mm (1.04 in.)
Width	55 mm (2.16 in.)	60 mm (2.36 in.)
Depth	66 mm (2.59 in.)	122 mm (4.80 in.)
Input voltage	100 VAC–240 VAC	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz	50 Hz–60 Hz
Input current (maximum)	1.70 A	1.70 A
Output current (continuous)	20 V/3.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)	20 V/5 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)
Rated output voltage	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements of Dell Pro Rugged 10 Tablet RA00260

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your tablet, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Pro Rugged 10 Tablet RA00260.
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the tablet at a slower speed. NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W
Minimum power that is required from a power adapter to operate the tablet and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the tablet with an 18 Wh battery is connected to a 65 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Pro Rugged 10 Tablet RA00260.
Description	Option one	Option two
Battery type	2-cell, 18 Wh, Lithium Ion Polymer, ExpressCharge Capable, Hot-swappable battery	2-cell, 18 Wh, Lithium Ion Polymer, ExpressCharge Capable, Long Cycle Life, Hot-swappable battery
Battery voltage	9 VDC	9 VDC
Battery weight (maximum)	0.10 kg (0.23 lb)	0.10 kg (0.23 lb)
Battery dimensions:
Height	12 mm (0.47 in.)	12 mm (0.47 in.)
Width	95.65 mm (3.76 in.)	95.65 mm (3.76 in.)
Depth	53 mm (2.08 in.)	53 mm (2.08 in.)
Temperature range:
Operating	-15°C to 60°C (5°F to 140°F)	-15°C to 60°C (5°F to 140°F)
Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time using the Dell Power Manager application. For more information about Dell Power Manager, search Dell Support Site.	0°C to 15°C (32°F to 59°F) — 4 hours (when the tablet is off) 16°C to 45°C (60.8°F to 113°F) — 2 hours (when the tablet is off) 46°C to 50°C (114.8°F to 122°F) — 3 hours (when the tablet is off)	0°C to 15°C (32°F to 59°F) — 4 hours (when the tablet is off) 16°C to 45°C (60.8°F to 113°F) — 2 hours (when the tablet is off) 46°C to 50°C (114.8°F to 122°F) — 3 hours (when the tablet is off)
Coin-cell battery	CR2025	CR2025
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption. NOTE:Battery charging is not supported when the temperature is below 0°C (32°F) or above 50°C (122°F). During these conditions, the power button and user-programmable buttons may flash amber and green. Move the tablet to a location of suitable battery temperature to resume charging. If moving the tablet is not feasible, connect the tablet to the power adapter for continuous operation or replace the depleted battery with a fully charged one.

Power requirements

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 47 Watts in order to achieve the maximum charging speed.

This tablet supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Display specificationsThe following table provides the detailed display specifications of your Dell Pro Rugged 10 Tablet RA00260.
Description		Values
Display type		10.1-inch, Full High Definition Plus (FHD+)
Touch options		Yes
Display-panel technology		Wide View Angle (WVA), Color Active Matrix TFT LCD, WLED-Backlit
Display-panel dimensions (active area):
	Height	136.08 mm (5.36 in.)
	Width	217.73 mm (8.57 in.)
	Diagonal	256.76 mm (10.11 in.)
Display-panel native resolution		1920 x 1200
Luminance (typical)		1000 nits
Megapixels		2.304
Color gamut		100% sRGB (typical)
Pixels Per Inch (PPI)		224
Contrast ratio (minimum)		1000:1
Response time (maximum)		35 ms
Refresh rate		60 Hz
Horizontal view angle		+/- 88 degrees (minimum)
Vertical view angle		+/- 88 degrees (minimum)
Pixel pitch		0.113 mm x 0.113 mm
Power consumption (maximum)		6.37 W
Anti-glare vs glossy finish		Anti-Glare

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell Pro Rugged 10 Tablet RA00260.
Description	Values
Sensor technology	Capacitive
Sensor resolution	363 dpi
Sensor pixel size	0.07 x 0.07

Sensors

The following table lists the sensors of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Sensor The following table lists the sensor of your Dell Pro Rugged 10 Tablet RA00260.
Sensor support
Ambient-Light Sensor (ALS)
eCompass/Magnetometer
Proximity Sensor (SAR)
Hall Effect Sensor
Screen Rotation support
Gyro + Accelerometer (for positional sensing)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro Rugged 10 Tablet RA00260.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell Pro Rugged 10 Tablet RA00260.
Controller	Memory size	Processor
Intel Arc 140V GPU	Shared system memory	Intel Core Ultra 7 268V, vPro Enterprise Intel Core Ultra 7 266V, vPro Enterprise
Intel Arc 130V GPU	Shared system memory	Intel Core Ultra 5 238V, vPro Enterprise Intel Core Ultra 5 236V, vPro Enterprise Intel Core Ultra 5 226V

External display support

The following table lists the external display support for your Dell Pro Rugged 10 Tablet RA00260.

Table 1. External display supportThe following table lists the external display support for your Dell Pro Rugged 10 Tablet RA00260.
Graphics card	Supported external displays with tablet display enabled	Supported external displays with tablet display disabled
Intel Arc 140V Graphics	3 (incloud eDP)	3 (incloud eDP)
Intel Arc 130V Graphics	3 (incloud eDP)	3 (incloud eDP)

Hardware security

The following table lists the hardware security of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Hardware security The following table provides the hardware security details on your Dell Pro Rugged 10 Tablet RA00260.
Hardware security
Wedge-shaped lock slot
Trusted Platform Module (TPM) 2.0 discrete
FIPS 140-2 certification for TPM
FIPS 140-3 certification for ControlVault 3+
TCG Certification for TPM (Trusted Computing Group)
Touch fingerprint reader (palm-rest/power button/MoH/MoC/CV3)
Contacted Smart Card and ControlVault 3+
Contactless Smart Card, NFC, and ControlVault 3+
Chassis Intrusion Detection
BIOS - TPM clear and/or system boot lock after chassis intrusion detection

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Contactless smart-card reader specificationsThe following table lists the contactless smart-card reader specifications on your Dell Pro Rugged 10 Tablet RA00260.
Title	Description	Dell ControlVault 3+ contactless smart-card reader with NFC
Felica Card Support	Reader and software capable of supporting Felica contactless cards	Yes
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC-compliant tag information	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer to Peer mode	Yes
EMVCo Compliant	Compliant with EMVCO smart-card standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart-card standards	Yes
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for OS to utilize	Yes
PC/SC OS interface	Personal Computer/Smart-card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit-card Interface Device for OS level drivers	Yes
Windows Certified	Device certified by Microsoft WHCK	Yes
Dell ControlVault support	Device connects to Dell ControlVault for usage and processing	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC	Yes

NOTE:125 KHz proximity cards are not supported.

Table 2. Supported cardsThe following table lists the supported cards on your Dell Pro Rugged 10 Tablet RA00260.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	iClass (Legacy)
	iClass SEOS
NXP/Mifare	Mifare DESFire 8K White PVC Cards
	Mifare Classic 1K White PVC Cards
	NXP Mifare Classic S50 ISO Card
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80K Dual+ 1 K Mifare
	SCE6.0 nonFIPS 80K Dual+ 1 K Mifare
	SCE6.0 FIPS 144K Dual + 1K Mifare
	SCE6.0 nonFIPS 144K Dual + 1 K Mifare
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K
Oberthur	ID-One Cosmo 64 RSA D V5.4 T=0 card

Table 3. RFID card RFID card
RFID card description	Card type
HID jCOP readertest3 A card (14443a)	ISO/IEC 14443A (Type 4)
NXP/Mifare-Mifare DESFire 8K White PVC Cards	ISO/IEC 14443A (Type 4)
NXP/Mifare-Mifare Classic 1K White PVC Cards	ISO/IEC 14443A (Type 2)
NXP/Mifare-NXP Mifare Classic S50 ISO Card	ISO/IEC 14443A (Type 2)
NXP/Mifare-NXP Mifare Mifare DESFire	ISO/IEC 14443A (Type 4)
G&D idOnDemand-SCE3.2 144K	ISO/IEC 14443A (Type 4)
idOnDemand-Oberthur OCS5.2 80K	ISO/IEC 14443A (Type 4)
HID 1430 1L	ISO/IEC 14443A (Type 2)
HID DESFire D8H	ISO/IEC 14443A (Type 4)
OBERTHUR-Oberthur ID-One Cosmo 64 RSA D V5.4 T=0 card	ISO/IEC 14443 (Type 4)
G&D-SCE6.0 FIPS 80K Dual+ 1 K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE6.0 non-FIPS 80K Dual+ 1 K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE6.0 FIPS 144K Dual + 1K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE6.0 non-FIPS 144K Dual + 1 K Mifare	ISO/IEC 14443A (Type 4)
G&D-SCE7.0 FIPS 144K	ISO/IEC 14443A (Type 4)
FeliCa Standard RC-S962 (RC-S888 chip)	6319-4 (Type 3)
FeliCa Lite-S RC-S966 (RC-S966 chip)	6319-4 (Type 3)
HID DESFIRE 4K Standard - 1450NGGNN	ISO/IEC 14443A (Type 4)
iClass 16K/16 - 2002PGGMN	ISO/IEC 15693 (iClass)
iClass SR 16K/16 - 2002HPGGMN	ISO/IEC 15693 (iClass)
ISO Card MiFARE 1K - 1430NGGNN	ISO/IEC 14443A (Type 2)
iClass 2k Tag - 2060PKSMN	ISO/IEC 15693 (iClass)
iClass Clamshell - 2080PMSMV	ISO/IEC 15693 (iClass)
iClass Prox 16K/16 - 2022BGGMNN	ISO/IEC 15693 (iClass)
NIST PIV1	ISO/IEC 14443A (Type 4)
Oberthur ID-One PIV	ISO/IEC 14443A (Type 4)
OBERTHUR-Oberthur ID-One Cosmo 128K V5.4 card	ISO/IEC 14443A (Type 4)
Gemalto TOP DL GX4 144K card	ISO/IEC 14443A (Type 4)
HID Seos Card	ISO/IEC 14443A (Type 4)

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Dell Pro Rugged 10 Tablet RA00260.

Table 1. Contacted smart-card reader specificationsThe following table lists the contacted smart-card reader specifications on your Dell Pro Rugged 10 Tablet RA00260.
Title	Description	Dell ControlVault 3+ smart-card reader
ISO 7816 -3 Class A Card Support	Reader capable of reading 5 V powered smart-card	Yes
ISO 7816 -3 Class B Card Support	Reader capable of reading 3 V powered smart-card	Yes
ISO 7816 -3 Class C Card support	Reader capable of reading 1.8 V powered smart-card	Yes
ISO 7816-1 Compliant	Specification for the reader	Yes
ISO 7816 -2 Compliant	Specification for smart-card device physical characteristics (size, and location of connection points.)	Yes
T = 0 support	Cards support character level transmission	Yes
T = 1 support	Cards support block level transmission	Yes
EMVCo Compliant	Compliant with EMVCo (for electronic payment standards) smart-card standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart-card standards	Yes
PC/SC OS interface	Personal Computer/Smart-card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit-card Interface Device for OS level drivers.	Yes
Windows Certified	Device certified by WHCK	Yes
FIPS 201-2/ FIPS 201-3 (PIV/HSPD-12) Compliant using GSA	Device compliant with FIPS 201-2/ FIPS 201-3/PIV/HSPD-12 requirements	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC	Yes

Operating and storage environment

This table lists the operating and storage specifications of your Dell Pro Rugged 10 Tablet RA00260.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Operating and storage environment
The following table lists the operating and storage environment conditions of Dell Pro Rugged 10 Tablet RA00260.
Description	Operating	Storage
Temperature range	-29°C to 63°C (-20.2°F to 145.4°F)	-51°C to 71°C (-59.8°F to 159.8°F)
Relative humidity (maximum)	10% to 95% [maximum dew point temperature = 26°C (78.8°F)]	5% to 95% [maximum dew point temperature = 33°C (91.4°F)]
Vibration (maximum)^*	Vertical: 1.08 GRMS Transverse: 0.21 GRMS Longitudinal: 0.76 GRMS	Vertical: 7.70 GRMS Transverse: 7.70 GRMS Longitudinal: 7.70 GRMS
Shock (maximum)	40 G†	185 G†
Altitude range	12,192 m (40,000 ft)	12,192 m (40,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. NOTE:Battery charging is not supported when the temperature is below 0°C (32°F) or above 50°C (122°F). During these conditions, the power button and user-programmable buttons may flash amber and green. Move the tablet to a location of suitable battery temperature to resume charging. If moving the tablet is not feasible, connect the tablet to the power adapter for continuous operation or replace the depleted battery with a fully charged one. NOTE:When operating on battery power at temperatures below –15°C (5°F), the tablet may not complete startup or system performance may be reduced. Allow the tablet to warm up or move it to a warmer area [above –15°C (5°F)] within 15 minutes. Alternatively, you may also connect the power adapter to ensure that the tablet completes startup properly and achieve optimal system performance. ^{* Measured using a random vibration spectrum that simulates the user environment.} ^{† Measured using a 2 ms half-sine pulse.}

ComfortView Plus

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this tablet is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Dell Pro Rugged 10 Tablet RA00260: технические характеристики и спецификации

Dimensions and weight

Processor

Chipset

Operating system

Memory

External ports and slots

Internal slots

Ethernet (optional)

Wireless module

WWAN module

GPS module

Setting up the GPS

About this task

Steps

Splitting the GPS COM port

About this task

Steps

Audio

Storage

Media-card reader

Camera

Power adapter

Power adapter requirements of Dell Pro Rugged 10 Tablet RA00260

Battery

Power requirements

Display

Fingerprint reader (optional)

Sensors

GPU—Integrated

External display support

Hardware security

Contactless smart-card reader

Contacted smart-card reader

Operating and storage environment

ComfortView Plus
