Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Pro 13 Premium PA13250.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Pro 13 Premium PA13250.
Description	Values
Display Panel	Full High Definition Plus (FHD+)	Full High Definition Plus (FHD+), Battery saving, ComfortView Plus	Quad High Definition Plus (QHD+), Battery saving, ComfortView Plus
Height:
Front height	16.85 mm (0.66 in)	16.85 mm (0.66 in)	16.85 mm (0.66 in)
Rear height	18.08 mm (0.71 in)	17.20 mm (0.67 in)	17.20 mm (0.67 in)
Maximum height	20.05 mm (0.79 in)	17.95 mm (0.71 in)	17.95 mm (0.71 in)
Width	295.64 mm (11.64 in)	295.64 mm (11.64 in)	295.64 mm (11.64 in)
Depth	208.93 mm (8.23 in)	208.93 mm (8.23 in)	208.93 mm (8.23 in)
Weight (Minimum) NOTE:The weight of your computer depends on the configuration that is offered.	1.201 kg (2.65 lb)	1.071 kg (2.36 lb)	1.155 kg (2.55 lb)

Processor

The following table lists the details of the processors that are supported on your Dell Pro 13 Premium PA13250.

Table 1. Processor The following table lists the details of the processors that are supported in your Dell Pro 13 Premium PA13250.
Description	Option one	Option two	Option three	Option four
Type	Intel Core Ultra 5 236V vPro Enterprise	Intel Core Ultra 5 238V vPro Enterprise	Intel Core Ultra 7 266V vPro Enterprise	Intel Core Ultra 7 268V vPro Enterprise
Wattage	17 W	17 W	17 W	17 W
Core count	8	8	8	8
Thread count	8	8	8	8
Speed	up to 4.7 GHz	up to 4.7 GHz	up to 5 GHz	up to 5 GHz
Cache	8 MB	8 MB	12 MB	12 MB
Integrated graphics	Intel Arc Graphics 130V	Intel Arc Graphics 130V	Intel Arc Graphics 140V	Intel Arc Graphics 140V

Chipset

The following table lists the details of the chipset that is supported by your Dell Pro 13 Premium PA13250.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell Pro 13 Premium PA13250.
Description	Values
Chipset	Integrated in the processor
Processor	Intel Core Ultra 5/7
DRAM bus width	64-bit
Flash EPROM	64 MB
PCIe bus	up to Gen4

Operating system

Your Dell Pro 13 Premium PA13250 supports the following operating systems:

Windows 11 24H2
Windows 11 23H2
Windows 10 22H2
Ubuntu Linux 24.04

NOTE: Windows 10 22H2 is only for custom configured computers downgraded by end users from Windows 11. Windows 10 22H2 downgraded installations are supported by customer's internal IT and are subjected to the Microsoft Windows 10 End of Support plan.

Memory

The following table lists the memory specifications of your Dell Pro 13 Premium PA13250.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Dell Pro 13 Premium PA13250.
Description		Values
Memory slots		Onboard memory
Memory type		LPDDR5x
Memory speed		8533 MT/s
Maximum memory configuration		32 GB
Minimum memory configuration		16 GB
Memory configurations supported		16 GB, 1 x 16 GB, LPDDR5x, 8533 MT/s 32 GB, 1 x 32 GB, LPDDR5x, 8533 MT/s

External ports and slots

The following table lists the external ports and slots of your Dell Pro 13 Premium PA13250.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell Pro 13 Premium PA13250.
Description	Values
USB ports	One USB 3.2 Gen 1 (5 Gbps) with PowerShare port
Audio port	One global headset jack
Video port(s)	Two Thunderbolt 4 (40 Gbps) with DisplayPort Alt Mode/USB Type-C/USB4/Power Delivery ports One HDMI 2.1 port
Media-card reader	Not supported
Power-adapter port	Supported through the Thunderbolt 4 ports available on the computer
Security-cable slot	One wedge-shaped security slot
SIM-card slot	One nano-SIM card slot (optional)

Internal slots

The following table lists the internal slots of your Dell Pro 13 Premium PA13250.

Table 1. Internal slotsThe following table lists the internal slots on your Dell Pro 13 Premium PA13250.
Description	Values
M.2	One M.2 2230 slot for solid-state drive One M.2 3052 slot for 5G WWAN card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro 13 Premium PA13250.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell Pro 13 Premium PA13250.
Description	Values
Model number	Intel WiFi 7 BE201 NOTE:The wireless module is integrated on the system board.
Transfer rate	5670 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.4

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Dell Pro 13 Premium PA13250.

NOTE: The WWAN module is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on this module may vary depending on your region and the support that is offered by your mobile carrier.

NOTE:For instructions on how to setup SIM or eSIM connections on your computer, see the SIM/eSIM Setup Guide for Windows available with your product documentation at Dell Support Site.

Table 1. WWAN module specificationsThe following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Dell Pro 13 Premium PA13250.
Description	Values
Model number	Qualcomm Snapdragon X72 Global 5G Modem (DW5934e)
Form factor	M.2 3052 Key-B
Host interface	PCIe Gen3
Network standard	NR FR1(Sub6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Galileo/Beidou
Transfer data rate	5G NR: DL 4.14Gbps/UL 900Mbps LTE: DL 2.0Gbps (CAT20)/UL 211Mbps (CAT18) UMTS: DL DC-HSPA+ Rel8:42 Mbps/UL 5.76 Mbps
Operating frequency bands	NR(n1, n2, n3, n5, n7, n8, n12, n13, n14, 18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n67, n70, n71, n75, n76, n77, n78, n79, n91, n92, n93, n94) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B67, B68, B70, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8)
Power supply	DC 3.135V to 3.63V, typical 3.3V
SIM card	Supported through external SIM slot
eSIM with dual SIM (DSSA)	Supported
Antenna diversity	Supported
Radio on/off	Supported
Wake On Wireless WAN	Supported in Morden Standby mode
Operating temperature	Normal operating temperature: –30°C to +70°C Extended operating temperature: –40°C to +85°C Storage temperature: –40°C to +85°C
Antenna connector	WWAN Main Antenna x 1 WWAN Diversity Antenna x 1 4x4 MIMO Antenna x 2
NOTE:For instructions to find your computer's International Mobile Equipment Identity (IMEI) number, search Dell Support Site.

Audio

The following table lists the audio specifications of your Dell Pro 13 Premium PA13250.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Dell Pro 13 Premium PA13250.
Description		Values
Audio controller		Cirrus CS42L43 and Cirrus CS35L56
Stereo conversion		Supported
Internal audio interface		High-definition audio
External audio interface		Global headset jack
Number of speakers		Four
Internal-speaker amplifier		Supported (audio codec integrated)
External volume controls		Keyboard shortcut controls
Speaker output:
Average		2 W
Peak		2.5 W
Microphone		Digital-array microphones in camera assembly

Storage

This section lists the storage options on your Dell Pro 13 Premium PA13250.

Your computer supports the following storage configuration:

One M.2 2230 solid-state drive

The M.2 2230 solid-state drive is the primary drive of your computer.

Table 1. Storage specifications
The following table provides the different storage options available on Dell Pro 13 Premium PA13250.
Storage type	Interface type	Capacity
M.2 2230 solid state drive, Class 35	TLC PCIe Gen4 NVMe	256 GB/512 GB/1 TB
M.2 2230 solid-state drive, Self-encrypting drive, Opal 2.0, Class 35	TLC PCIe Gen4 NVMe	512 GB
M.2 2230 solid state drive, Class 25	QLC PCIe Gen4 NVMe	2 TB

Keyboard

The following table lists the keyboard specifications of your Dell Pro 13 Premium PA13250.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Dell Pro 13 Premium PA13250.
Description	Values
Keyboard type	Battery-saving mini LED backlit zero-lattice keyboard
Keyboard layout	QWERTY
Number of keys	English US, English International, Arabic, Canada bilingual (MUI), Chinese traditional, French-Canadian, Greek, Hebrew, Korean, Russian, Thai, Ukrainian: 79 keys French-Canadian Quebec, Belgian, Bulgarian, Czech & Slovakian (MUI), Danish, English UK, Estonian, French European, German, Hungarian, Icelandic, Italian, Nordic (MUI), Norwegian, Portugese Iberian, Slovenian, Spanish (Castillian), Spanish (Latin America), Swedish/Finnish, Swiss European (MUI), Turkish, Turkish (F): 80 keys Japanese: 83 keys Portuguese Brazilian: 81 keys
Key pitch	X=18.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Keyboard shortcuts of Dell Pro 13 Premium PA13250

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Later, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.

Table 1. Function key primary behavior
The following table lists the keyboard shortcuts and their descriptions.
Function key	Primary behavior
F1	Mute or unmute audio
F2	Decrease volume
F3	Increase volume
F4	Microphone Mute
F5	Keyboard Illumination/Backlight
F6	Decrease brightness
F7	Increase brightness
F8	Switch to external display
F9	Stealth mode
F10	Print screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application-specific F1 behavior
Fn + F2	Operating system and application-specific F2 behavior
Fn + F3	Operating system and application-specific F3 behavior
Fn + F4	Operating system and application-specific F4 behavior
Fn + F5	Operating system and application-specific F5 behavior
Fn + F6	Operating system and application-specific F6 behavior
Fn + F7	Operating system and application-specific F6 behavior
Fn + F8	Operating system and application-specific F8 behavior
Fn + F9	Operating system and application-specific F9 behavior
Fn + F10	Operating system and application-specific F10 behavior
Fn + F11	Operating system and application-specific F11 behavior
Fn + F12	Operating system and application-specific F12 behavior
Fn + Ctrl	Open the application menu
Fn + Esc	Toggle between multimedia and function key behavior
Fn + PgUp	Scroll up the document or page
Fn + PgDn	Scroll down the document or page
Fn + Home	Move to the beginning of the document
Fn + End	Move to the end of the document
Copilot	Launch Copilot in Windows NOTE: If Copilot in Windows is not available on your computer, the Copilot key launches Recall. If both Recall and Copilot in Windows are not available on your computer, the Copilot key launches Windows Search. For more information about Copilot in Windows and Recall, search in the Knowledge Base Resource at the Dell Support Site.

Camera

The following table lists the camera specifications of your Dell Pro 13 Premium PA13250.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Dell Pro 13 Premium PA13250.
Description			Values
Number of cameras			Two
Camera type			There are 2 camera options: IR Camera IR Camera with Presence Detection (Synaptics)
Camera location			Front camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			8.0 megapixel
Video			2560 x 1440 at 30 fps NOTE:The default resolution for video is set at 1080p. For more information about changing the camera resolution, search for information about changing the camera resolution in Windows 11 at the Microsoft Support Site.
Infrared camera resolution:
Video			640 x 360 at 30 fps
Diagonal viewing angle:
Camera			88.1 degrees
Infrared camera			86.6 degrees

Touchpad

The following table lists the touchpad specifications of your Dell Pro 13 Premium PA13250.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Dell Pro 13 Premium PA13250.
Description		Values
Touchpad resolution:		>300 dpi
Touchpad dimensions:
Horizontal		125 mm (4.92 in.)
Vertical		71 mm (2.79 in.)
Touchpad gestures		For more information about the touchpad gestures available on Windows, search Microsoft Support Site.

Touchpad with collaboration controls (optional)

The following table lists the touchpad specifications of your Dell Pro 13 Premium PA13250 (for computers shipped with Collaboration Touchpad).

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Dell Pro 13 Premium PA13250.
Description		Values
Touchpad type		Collaboration Touchpad
Collaboration controls on touchpad		Four controls are available to control video, share screen, chat, and mute functions during conference calls. The controls are visible on the touchpad during any conference calls. Compatible with Zoom and Teams for work or school.
Collaboration controls settings		Control brightness manually or configure icon brightness to automatically adjust to the ambient light. Customize settings to activate collaboration controls with a single tap or a double tap. Customize specific controls to be activated or deactivated.
Collaboration controls functionality		Video icon: Turn on or off the camera. White icon: The camera is turned on. Red icon: The camera is off. Share screen icon: Tap once to share your screen. Tap again to stop sharing. Chat icon: Show or hide the chat window. The icon blinks when you receive a new chat message. Microphone icon: Turn on or mute the microphone. White icon: The microphone is turned on. Red icon: The microphone is muted.
Required apps for collaboration controls		Dell Optimizer Version 6.0 or higher Zoom Client Version 5.9.3 or higher Teams for work or school (Windows desktop) Version 1.6.00.24078 and higher
Touchpad resolution:
Horizontal		>300 dpi
Vertical		Not supported
Touchpad dimensions:
Horizontal		125 mm (4.92 in.)
Vertical		71 mm (2.79 in.)
Touchpad gestures		For more information about touchpad gestures available on Windows, see the Microsoft Knowledge Base article at Microsoft Support Site.
NOTE:To enjoy the collaboration touchpad (CTP) controls feature on your keyboard, ensure that you have the latest versions of the Dell Optimizer app and Zoom or Teams for work or school that is installed on your computer. Dell Optimizer offers a modular installation which allows you to select the modules you want to install. Install the collaboration touchpad module within the Dell Optimizer app to enjoy the functionality of collaboration controls. For more information, search for Dell Optimizer in the Knowledge Base Resource at the Dell Support Site. NOTE:For more information about how to configure and use your collaboration controls, search for the Collaboration Touchpad Reference Guide in the Knowledge Base Resource at Dell Support Site. Or, watch the video at Dell Collaboration Touchpad. NOTE:Collaboration Touchpad is supported only on Teams for work or school (Windows desktop) application. Teams for home and Teams on web are not supported.

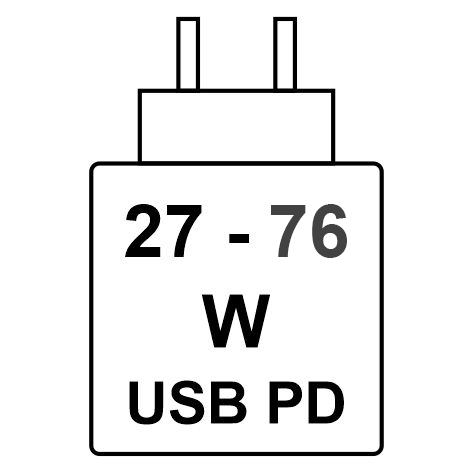

Power adapter

The following table lists the power adapter specifications of your Dell Pro 13 Premium PA13250.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Dell Pro 13 Premium PA13250.
Description	Option one	Option two	Option three	Option four
Type	60 W AC ultralight mini adapter, USB Type-C	65 W AC adapter, USB Type-C	100 W AC adapter, USB Type-C	105 W AC adapter, USB Type-C
Power-adapter dimensions:
Height	31.00 mm (1.22 in)	31.00 mm (1.22 in)	26.50 mm (1.04 in)	26.50 mm (1.04 in)
Width	41.50 mm (1.63 in.)	41.50 mm (1.63 in.)	60.00 mm (2.36 in.)	60.00 mm (2.36 in.)
Depth	48.50 mm (1.91 in.)	48.50 mm (1.91 in.)	122.00 mm (4.80 in.)	122.00 mm (4.80 in.)
Input voltage	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC
Input frequency	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz
Input current (maximum)	1.7 A	1.7 A	1.7 A	1.7 A
Output current (continuous)	20 V/3.25 A 15 V/3 A 9 V/3 A 5 V/3 A	20 V/3.25 A 15 V/3 A 9 V/3 A 5 V/3 A	20 V/3.25 A 15 V/3 A 9 V/3 A 5 V/3 A	20 V/5.25 A 15 V/3 A 9 V/3 A 5 V/3 A
Rated output voltage	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. NOTE: Upon depletion of current 100 W AC adapter inventory, the Dell Pro 13/14 Premium will begin shipping with a 105 W AC adapter. In accordance with the system design of the Dell Pro 13/14 Premium, the computers will draw up to a maximum of 100 W when connected to the 105 W AC adapter. This is expected behavior and does not impact the system’s performance, functionality, or charging operation.

Power adapter requirements of Dell Pro 13 Premium PA13250 (for computers shipped with 2-cell, 40 Wh battery)

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Pro 13 Premium PA13250 (for computers that are shipped with 2-cell, 40 Wh battery).

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Pro 13 Premium PA13250.
Description	Value
Power that is required from a power adapter to achieve optimal performance	45 W
Power that charges the computer at a slower speed NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W
Minimum power that is required from a power adapter to operate the computer and charge the battery NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer is connected to a 100 W power adapter for this feature to be supported. NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen. Select Power > Battery Configuration > ExpressCharge, then press Enter.

Power adapter requirements of Dell Pro 13 Premium PA13250 (for computers shipped with 3-cell, 60 Wh battery)

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Pro 13 Premium PA13250 (for computers that are shipped with 3-cell, 60 Wh battery).

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Pro 13 Premium PA13250.
Description	Value
Power that is required from a power adapter to achieve optimal performance	45 W
Power that charges the computer at a slower speed NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W
Minimum power that is required from a power adapter to operate the computer and charge the battery NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer is connected to a 100 W power adapter for this feature to be supported. NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen. Select Power > Battery Configuration > ExpressCharge, then press Enter.

Battery

The following table lists the battery specifications of your Dell Pro 13 Premium PA13250.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Pro 13 Premium PA13250.
Description	Option one	Option two	Option three	Option four
Battery type	2-cell, 40 Wh, Lithium Ion, ExpressCharge 2.0, ExpressCharge Boost	2-cell, 40 Wh, Lithium Ion, ExpressCharge 2.0, ExpressCharge Boost, Long Life Cycle	3-cell, 60 Wh, Lithium Ion, ExpressCharge, ExpressCharge Boost	3-cell, 60 Wh, Lithium Ion, ExpressCharge, ExpressCharge Boost, Long Life Cycle
Battery voltage	7.80 VDC	7.80 VDC	11.70 VDC	11.70 VDC
Battery weight (maximum)	155 gm	155 gm	215 gm	215 gm
Battery dimensions:
Height	6.15 mm (0.24 in.)	6.15 mm (0.24 in.)	6.15 mm (0.24 in.)	6.15 mm (0.24 in.)
Width	248 mm (9.76 in.)	248 mm (9.76 in.)	248 mm (9.76 in.)	248 mm (9.76 in.)
Depth	65.10 mm (2.56 in.)	65.10 mm (2.56 in.)	65.10 mm (2.56 in.)	65.10 mm (2.56 in.)
Temperature range:
Operating	0°C to 60°C (32°F to 140°F)	0°C to 60°C (32°F to 140°F)	0°C to 60°C (32°F to 140°F)	0°C to 60°C (32°F to 140°F)
Storage	–20°C to 60°C (-4°F to 140°F)	–20°C to 60°C (-4°F to 140°F)	–20°C to 60°C (-4°F to 140°F)	–20°C to 60°C (-4°F to 140°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the settings on the MyDell (replaced with Dell Optimizer) application (Power option). For more information about MyDell (replaced with Dell Optimizer) application, search in the Knowledge Base Resource at Dell Support Site.	Express Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 45°C normal express charge 46 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Standard Charge/Predominately AC User Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): 16 - 45°C target charge time from 0 to 35% RSOC is 20 mins for Accelerated Charge	Express Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 45°C normal express charge 46 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Standard Charge/Predominately AC User Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): 16 - 45°C target charge time from 0 to 35% RSOC is 20 mins for Accelerated Charge	Express Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 45°C normal express charge 46 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Standard Charge/Predominately AC User Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): 16 - 45°C target charge time from 0 to 35% RSOC is 20 mins for Accelerated Charge	Express Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 45°C normal express charge 46 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Standard Charge/Predominately AC User Charge Method: 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours 16 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): 16 - 45°C target charge time from 0 to 35% RSOC is 20 mins for Accelerated Charge
Coin-cell battery	Not Supported	Not Supported	Not Supported	Not Supported
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Power requirements (for computers shipped with 2-cell, 40 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 76 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power requirements (for computers shipped with 3-cell, 60 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 79 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Pro 13 Premium PA13250.

Table 1. Display specificationsThe following table provides the detailed display specifications of your Dell Pro 13 Premium PA13250.
Description	Option one	Option two	Option three
Display type	Full High Definition Plus (FHD+)	Full High Definition Plus (FHD+), Battery saving, ComfortView Plus	Quad High Definition Plus (QHD+), Battery saving, ComfortView Plus
Touch options	No	No	Yes
Display-panel technology	Wide-viewing angle (WVA/IPS)	Wide-viewing angle (WVA/IPS)	Wide-viewing angle (WVA/IPS)
Display-panel dimensions (active area):
Height	178.78 mm	178.78 mm	178.80 mm
Width	286.04 mm	286.04 mm	286.08 mm
Diagonal	337.31 mm	337.31 mm	337.36 mm
Display-panel native resolution	1920 x 1200	1920 x 1200	2560 x 1600
Luminance (typical)	300 nits	400 nits	500 nits
Megapixels	2.3	5.1	4.1
Color gamut	45% NTSC	100% sRGB	100% sRGB
Pixels Per Inch (PPI)	170 ppi	170 ppi	227 ppi
Contrast ratio (typical)	800:1	1500:1	1500:1
Response time (maximum)	35 ms	35 ms	35 ms
Refresh rate	48 Hz to 60 Hz	30 Hz to 60 Hz	48 Hz to 60 Hz
Horizontal view angle	+/- 85 degrees (typ.)	+/- 85 degrees (typ.)	+/- 85 degrees (typ.)
Vertical view angle	+/- 85 degrees (typ.)	+/- 85 degrees (typ.)	+/- 85 degrees (typ.)
Pixel pitch	0.14 mm x 0.14 mm	0.14 x 0.14 mm	0.11 x 0.11 mm
Power consumption (maximum)	3.77 W	2.45 W	3.28 W
Anti-glare vs glossy finish	Anti-glare	Anti-glare	Anti-reflection/Anti-smudge

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Dell Pro 13 Premium PA13250.

NOTE:The fingerprint reader is on the power button.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell Pro 13 Premium PA13250.
Description	Values
Sensor technology	Trans-capacitive sensing
Sensor resolution	500 dpi
Sensor pixel size	X: 108 Y: 88

Sensors

The following table lists the sensors of your Dell Pro 13 Premium PA13250.

Table 1. Sensor The following table lists the sensor of your Dell Pro 13 Premium PA13250.
Sensor support
Accelerometer (ST Micro LIS2DW12TR): On the base of the system board
Accelerometer (ST Micro LNG2DMTR-GP): On the hinge-up midboard in the upsell configuration for a clamshell computer with MIPI RGB+IR camera
Ambient Light Sensor (optional)
Proximity for SAR compliance (for the WWAN module) Near Field Proximity Sensor
Hall Effect Sensor
Sensor Hub (integrated)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro 13 Premium PA13250.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell Pro 13 Premium PA13250.
Controller	Memory size	Processor
Intel Arc Graphics 130V	Shared system memory	Intel Core Ultra 5
Intel Arc Graphics 140V	Shared system memory	Intel Core Ultra 7

Multiple display support matrix

The following table lists the multiple display support matrix for your Dell Pro 13 Premium PA13250.

Table 1. Multiple display support matrixThe following table provides the multiple display support matrix for your Dell Pro 13 Premium PA13250.
Graphics Card	Direct Graphics Controller Direct Output Mode	Supported external displays with computer internal display on	Supported external displays with computer internal display off
Intel Arc Graphics	Not applicable	2	3

Hardware security

The following table lists the hardware security of your Dell Pro 13 Premium PA13250.

Table 1. Hardware security The following table provides the hardware security details on your Dell Pro 13 Premium PA13250.
Hardware security
Trusted Platform Module (TPM) 2.0 discrete
FIPS 140-2 certification for TPM
Trusted Computing Group (TCG) Certification for TPM
SED SSD NVMe, SSDSSD (Opal and non-Opal) per SDL
One wedge-shaped lock slot
SED (Opal 2.0 only - PCIe Interface)
Windows Hello - Fingerprint Reader (optional)
Mechanical privacy shutter for camera (only for metal laptops)
Chassis Intrusion Detection

Operating and storage environment

This table lists the operating and storage specifications of your Dell Pro 13 Premium PA13250.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Pro 13 Premium PA13250.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (4.64 ft to 5518.4 ft)	-15.2 m to 10668 m (4.64 ft to 19234.4 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell support policy

For information about Dell support policy, search Dell Support Site.

ComfortView Plus

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Dell Optimizer

Dell Optimizer is an AI-based software application that allows you to customize your computer settings for power and battery, collaboration touchpad, and more.

For Dell Pro 13 Premium PA13250 with Dell Optimizer, you can:

Extend the battery life of your computer with Intelligent Battery Extender and Dynamic Charge.
Tune the performance, power consumption, cooling, and fan noise with selectable thermal modes.
Access Zoom and Microsoft Teams meeting controls with the Collaboration Touchpad.
Access and secure your computer depending on your physical presence.
Download and redeem the apps that are purchased with your computer.

For more information about configuring and using these features, search for Dell Optimizer at the Dell Support Site.
