Dell Pro Precision 5 14S PW514260: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Pro Precision 5 14S PW514260.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Pro Precision 5 14S PW514260.
Description		Values
Front height		0.42 in (10.80 mm)
Rear height		0.58 in (14.72 mm)
Width		12.42 in. (315.5 mm)
Depth		8.9 in. (226 mm)
Minimum Weight NOTE:The weight of your computer depends on the configuration that you ordered.		3.12 lbs (1.42 kg)

Processor

The following table lists the details of the processors that are supported on your Dell Pro Precision 5 14S PW514260.

Table 1. Processor The following table lists the details of the processors that are supported on your Dell Pro Precision 5 14S PW514260.
Description	Option one	Option two	Option three	Option four	Option five	Option six
Type	Intel Core Ultra 5 336H vPro	Intel Core Ultra 7 366H vPro	Intel Core Ultra 9 386H vPro	Intel Core Ultra 5 338H vPro	Intel Core Ultra 7 368H vPro	Intel Core Ultra 9 388H vPro
Wattage	25 W	25 W	25 W	25 W	25 W	25 W
Total cores	12	16	16	12	16	16
Number of Performance-cores	4	4	4	4	4	4
Number of Efficient-cores	4	8	8	4	8	8
Number of Low Power Efficient-cores	4	4	4	4	4	4
Total threads NOTE:: Intel Hyper-Threading Technology is only available on Performance-cores.	12	16	16	12	16	16
Speed	Up to 3.7 GHz	Up to 3.8 GHz	Up to 3.8 GHz	Up to 3.7 GHz	Up to 3.8 GHz	Up to 4.0 GHz
Performance-core frequency
Base frequency	1.9 GHz	2.0 GHz	2.1 GHz	1.9 GHz	2.0 GHz	2.1 GHz
Maximum turbo frequency	4.6 GHz	4.8 GHz	4.9 GHz	4.7 GHz	5 GHz	5.1 GHz
Efficient-core frequency
Base frequency	1.5 GHz	1.6 GHz	1.6 GHz	1.5 GHz	1.6 GHz	1.6 GHz
Maximum turbo frequency	3.4 GHz	3.6 GHz	3.7 GHz	3.4 GHz	3.8 GHz	3.8 GHz
Thermal Mode/Thermal Design Power (TDP)
Cool	27 W	27 W	27 W	27 W	27 W	27 W
Optimized	27 W	27 W	27 W	27 W	27 W	27 W
Quiet	33 W	33 W	33 W	33 W	33 W	33 W
Ultra performance	36 W	36 W	36 W	36 W	36 W	36 W
NOTE:Processor clock speeds and thermal design power differ according to the thermal mode selected in the Dell Optimizer app on your computer.
Cache	18 MB	18 MB	18 MB	18 MB	18 MB	18 MB
Integrated graphics	Intel Graphics	Intel Graphics	Intel Graphics	Intel Arc Pro B370	Intel Arc Pro B390	Intel Arc Pro B390
Neural Processing Unit (NPU) performance	47 TOPS	50 TOPS	50 TOPS	47 TOPS	50 TOPS	50 TOPS
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Chipset

The following table lists the details of the chipset that is supported on your Dell Pro Precision 5 14S PW514260.

Table 1. Chipset The following table lists the details of the chipset that is supported on your Dell Pro Precision 5 14S PW514260.
Description	Values
Chipset	System on Chip (SOC)
Processor	Series 3 Intel® Core™ Ultra 5 336H vPro® Series 3 Intel® Core™ Ultra 7 366H vPro® Series 3 Intel® Core™ Ultra 9 386H vPro® Series 3 Intel® Core™ Ultra 5 338H vPro® Series 3 Intel® Core™ Ultra 7 368H vPro® Series 3 Intel® Core™ Ultra 9 388H vPro®
DRAM bus width	64-bit
Flash EPROM	16 MB + 32 MB
PCIe bus	Up to Gen5

Operating system

Your Dell Pro Precision 5 14S PW514260 supports the following operating systems:

Windows 11 Home
Windows 11 Pro
Ubuntu® Linux® 24.04
Red Hat Linux® 10.3 Enterprise

NOTE:Configurations without both an IR camera and fingerprint reader do not ship with Windows Hello Enhanced Sign-in Security (ESS), which is required to run Recall. See Windows 11 Copilot+ PC Features.

Memory

The following table lists the memory specifications that are supported by your Dell Pro Precision 5 14S PW514260.

Table 1. Memory specificationsThe following table lists the memory specifications of your computer.
Description	Values
Memory slots	One
Memory type	Dual-channel LPDDR5x
Memory speed	8533 MT/s
Maximum memory configuration	64 GB
Minimum memory configuration	16 GB
Memory size per slot	16 GB, 32 GB, 64 GB
Memory configurations supported	16 GB, LPCAMM2, 8533 MT/s 32 GB, LPCAMM2, 8533 MT/s 64 GB, LPCAMM2, 8533 MT/s

External ports and slots

The following table lists the external ports and slots on your Dell Pro Precision 5 14S PW514260.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell Pro Precision 5 14S PW514260.
Description	Values
Network port	One RJ45 ethernet port (1 Gbps)
USB ports	Two Thunderbolt™ 4 (40 Gbps) ports with Power Delivery and DisplayPort™ One USB 3.2 Gen 1 (5 Gbps) port with PowerShare One USB 3.2 Gen 1 (5 Gbps) port
Audio port	One headset (headphone and microphone combo) port
Video port(s)	One HDMI 2.1 port
Media-card reader	Not supported
Power-adapter port	Two TBT4/USB4 Type-C® port with Power Delivery One USB 3.2 Gen 1 Type-A port with PowerShare
Security-cable slot	One wedge-shaped lock slot
SIM-card slot	One nano-SIM card slot (optional)
Smart card reader	Supported (optional)

Internal slots

The following table lists the internal slots of your Dell Pro Precision 5 14S PW514260.

Table 1. Internal slotsThe following table lists the internal slots on your Dell Pro Precision 5 14S PW514260.
Description	Values
M.2	One M.2 2230/2280 slot for solid-state drive One M.2 2230 slot for Wi-Fi and Bluetooth card One M.2 3042-4G/3052-5G slot for WWAN card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Ethernet specifications
The following table provides the specifications of Ethernet that is supported by your Dell Pro Precision 5 14S PW514260.
Description	Values
Model	Intel I219-LM
Transfer rate	10/100/1000 MT/s

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro Precision 5 14S PW514260.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell Pro Precision 5 14S PW514260.
Description	Values
Model number	Intel Wi-Fi 7 BE211
Transfer rate	Up to 5 Gbps
Frequency bands supported	2.4 GHz 5 GHz 6 GHz NOTE:The 6 GHz frequency is only supported on computers that are installed with the Windows 11 operating system.
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be) NOTE:Wi-Fi 7 standard is only supported on computers that are installed with the Windows 11 operating system.
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 6.0 wireless card

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) modules that are supported in your Dell Pro Precision 5 14S PW514260.

NOTE: The WWAN module is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on this module may vary by region and mobile carrier support.

NOTE:For instructions on how to setup SIM or eSIM connections on your computer, see the SIM/eSIM Setup Guide for Windows available with your product documentation at Dell Support Site.

Table 1. WWAN module specificationsThe following table lists the Wireless Wide Area Network (WWAN) modules that are supported in your Dell Pro Precision 5 14S PW514260.
Description	Option one	Option two
Model number	MediaTek T700 Global 5G Modem (DW5933e-m)	Qualcomm Snapdragon SDX12 Global LTE-Advanced, CAT12 (DW5826e-m)
Form factor	M.2 3052 Key-B	M.2 3042 Key-B
Host interface	PCIe Gen3	USB 3.0/2.0
Network standard	NR FR1(Sub6) FDD/TDD, LTE FDD/TDD,WCDMA/HSPA+, GPS/GLONASS/Galileo/BDS/QZSS	LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Beidou/Galileo/QZSS
Transfer data rate	SA: DL 4.67 Gbps / UL 1.25 Gbps NSA: DL 3.74 Gbps / UL 835 Mbps LTE: DL 1.6 Gbps (CAT19) / UL 211 Mbps UMTS: DL 384 kbps / UL 384 kbps DL DC-HSPA+: 42 Mbps (CAT24) / UL 11.5 Mbps (CAT7)	Up to 600 Mbps DL (CAT12) Up to 150 Mbps UL
Operating frequency bands	For example NR(n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79)) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8)	LTE(B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B32, B38, B39, B40, B41, B42, B43, B48, B66, B71) HSPA+ (1,2,4,5,6,8,9,19)
Power supply	DC 3.135V to 4.4V, typical 3.3V	DC 3.135 V to 4.4 V, Typical 3.3 V
SIM card	Supported through external SIM slot	Supported through external SIM slot
eSIM with dual SIM (DSSA)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)
Antenna diversity	Supported	Supported
Radio on/off	Supported	Supported
Wake on wireless WAN	Supported	Supported
Operating temperature	Normal: -10°C to + 5°C Extended: -20°C to +65°C Storage: –60°C to +100°C	Normal: -30°C to + 70°C Extended: -40°C to +85°C Normal: -40°C to +85°C
Antenna connector	WWAN TX0 & PRX Connector × 1 WWAN DRX Combined GPS Connector × 1 WWAN MIMO PRX Connector × 1 WWAN TX1 & MIMO DRX Connector × 1	WWAN Main Antenna x 1 WWAN Diversity Antenna X 1
NOTE:For instructions to find your computer's International Mobile Equipment Identity (IMEI) number, search Dell Support Site.

Audio

The following table lists the audio specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Audio specificationsThe following table provides the detailed audio specifications of Dell Pro Precision 5 14S PW514260.
Description		Values
Audio controller		Cirrus Logic CS42L45
Stereo conversion		Supported
Internal audio interface		Soundwire Interface
External audio interface		One global headset port
Number of speakers		2
Internal-speaker amplifier		Supported
External volume controls		Keyboard shortcut controls
Speaker output:
Average		2 W
Peak		2.5 W
Microphone		Dual digital-array microphones

Storage

This section lists the storage options on your Dell Pro Precision 5 14S PW514260.

Your Dell Pro Precision 5 14S PW514260 supports one of the following storage configurations:

256 GB SSD TLC M.2 2230 PCIe Gen4
512 GB SSD TLC M.2 2230 PCIe Gen4
1 TB SSD TLC M.2 2230 PCIe Gen4
512 GB SSD TLC M.2 2230 PCIe Gen5 SED Ready (Opal certified)
1 TB SSD TLC with DRAM M.2 2280 PCIe Gen5 SED Ready (Opal certified)
2 TB SSD TLC with DRAM M.2 2280 PCIe Gen5 SED Ready (Opal certified)

Table 1. Storage specifications
The following table provides the different storage options available on Dell Pro Precision 5 14S PW514260.
Storage type	Interface type	Capacity
M.2 2280 solid state drive, TLC with DRAM, Self-Encrypting Ready	SATA AHCI, up to 6 Gbps	Upto 2 TB
M.2 2230 solid state drive, TLC NOTE:To replace your M.2 2280 with an M.2 2230 SSD, you must purchase the Dell SSD bracket kit to self-install the M.2 2230 SSD in the SSD slot.	PCIe Gen3.0x4 NVMe, up to 32 Gbps	Up to 1 TB
M.2 2280 Class 40 Self Encrypting Opal 2.0	PCIe Gen3.0x2 NVMe, up to 16 Gbps	Up to 1 TB
M.2 2280 Class 40 SED (Self-Encrypting Drive)	SATA AHCI, up to 1.5 Gbps	256 GB, 512 GB and 1 TB

Keyboard

The following table lists the keyboard specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Keyboard specificationsThe following table lists the keyboard specifications of your Dell Pro Precision 5 14S PW514260.
The following table provides the detailed keyboard specifications of Dell Pro Precision 5 14S PW514260.
Description	Values
Keyboard type	Mini LED backlit keyboard Standard non-backlit keyboard
Keyboard layout	Belgian and French European: AZERTY Others: QWERTY
Number of keys	Arabic, Canada (Bilingual) (MUI), Chinese (Traditional), English International, English US, Greek, Hebrew, Korean, Thai: 79 keys Hungarian, Belgian, Czech/Slovak (MUI), English UK, French (European), German, Italian, Nordic (MUI), Portuguese, Spanish (Castillian), Icelandic, Spanish (Latin America), Swiss/European, Turkish: 80 keys Portuguese (Brazil): 81 keys Japanese: 83 keys
Key pitch	X=19.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:Press Fn+Esc to switch the primary behavior of the function keys (F1–F12) between two modes - multimedia key mode and function key mode. NOTE:You can define the primary behavior of the function keys (F1F12) by changing Function Key Behavior in the BIOS Setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search Dell Support site.

Keyboard shortcuts of Dell Pro Precision 5 14S PW514260

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Later, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.

Table 1. Function key primary behavior
The following table lists the keyboard shortcuts and their descriptions.
Function key	Primary behavior
F1	Mute or unmute audio
F2	Decrease volume
F3	Increase volume
F4	Microphone Mute
F5	Dictation (for non-German layout)
F6	Keyboard Illumination/Backlight
F7	Decrease brightness
F8	Increase brightness
F9	Switch to external display
F10	Print screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application-specific F1 behavior
Fn + F2	Operating system and application-specific F2 behavior
Fn + F3	Operating system and application-specific F3 behavior
Fn + F4	Operating system and application-specific F4 behavior
Fn + F5	Operating system and application-specific F5 behavior
Fn + F6	Operating system and application-specific F6 behavior
Fn + F7	Operating system and application-specific F6 behavior
Fn + F8	Operating system and application-specific F8 behavior
Fn + F9	Operating system and application-specific F9 behavior
Fn + F10	Operating system and application-specific F10 behavior
Fn + F11	Operating system and application-specific F11 behavior
Fn + F12	Operating system and application-specific F12 behavior
Fn + Ctrl	Open the application menu
Fn + Esc	Toggle between multimedia and function key behavior
Fn + PgUp	Scroll up the document or page
Fn + PgDn	Scroll down the document or page
Fn + Home	Move to the beginning of the document
Fn + End	Move to the end of the document
Fn + S	Scroll lock
FB + B	Pause
Fn + Ctrl + B	Break
Fn + R	SysReq
Fn + Shift + B	Unobtrusive mode
Copilot	Launch Copilot in Windows NOTE: If Copilot in Windows is not available on your computer, the Copilot key launches Recall. If both Recall and Copilot in Windows are not available on your computer, the Copilot key launches Windows Search. For more information about Copilot in Windows and Recall, search in the Knowledge Base Resource at the Dell Support Site.

Camera

The following table lists the camera specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Dell Pro Precision 5 14S PW514260.
Description	Values	Values	Values
Number of cameras	One	Two	Two
Camera type	RGB FHD camera	RGB FHD	8MP RGB and IR camera
Camera location	Front	Front	Front
Camera sensor type	CMOS sensor technology	CMOS sensor technology	CMOS sensor technology
Camera resolution:
Still image	2.07 megapixel	2.07 megapixel	8.29 megapixels
Video	1920 x 1080 (FHD) at 30 fps	1920 x 1080 (FHD) at 30 fps	2560 x 1440 (QHD) at 30 fps
Infrared camera resolution:
Video	Not applicable	360 x 360 at 15 fps	360 x 360 at 15fps
Diagonal viewing angle:
Camera	83 degrees	83 degrees	84.7 degrees
Infrared camera	Not applicable	81.3 degrees	81.3 degrees
NOTE:Configurations without both an IR camera and fingerprint reader do not ship with Windows Hello Enhanced Sign-in Security (ESS), which is required to run Recall. See Windows 11 Copilot+ PC Features.

Touchpad

The following table lists the touchpad specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Touchpad specificationsThe following table provides the detailed touchpad specifications of Dell Pro Precision 5 14S PW514260.
Description		Values
Touchpad resolution		>300 DPI
Touchpad dimensions:
Horizontal		128 mm
Vertical		78.5 mm
Touchpad gestures		For more information about the touchpad gestures that are available on: Windows, search Microsoft Support Site. Ubuntu, search Ubuntu Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Dell Pro Precision 5 14S PW514260.
Description	Option one	Option two	Option three	Option 4	Option 5
Type	65 W AC adapter	100 W AC adapter	105 W AC adapter	65W AC small form factor adapter, USB Type-C , 2-pin	65W AC cable adapter
Power-adapter dimensions:
Height	26.5 mm (1.04 in.)	26.5 mm (1.04 in.)	26.5 mm (1.04 in.)	31 mm (1.22 in.)	31 mm (1.22 in.)
Width	60 mm (2.36 in.)	60 mm (2.36 in.)	60 mm (2.36 in.)	41.5 mm (1.63 in.)	41 mm (1.61 in.)
Depth	96.5 mm(3.8 in.)	122 mm (4.80 in.)	122 mm (4.80 in.)	48.5 mm (1.91 in.)	63 mm (2.48 in.)
Input voltage	100 VAC–240 VAC	100 VAC–240 VAC	100 VAC–240 VAC	100 VAC–240VAC	100 VAC–240VAC
Input frequency	50 Hz–60 Hz	50 Hz–60 Hz	50 Hz–60 Hz	50 Hz–60 Hz	50 Hz–60 Hz
Input current (maximum)	1.70 A	1.70 A	1.70 A	1.70 A	1.70 A
Output current (continuous)	20 V/5 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/5 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/5.25 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)	20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)
Rated output voltage	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 35°C (32°F to 90°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Pro Precision 5 14S PW514260.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Pro Precision 5 14S PW514260.
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 60 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported

Battery

The following table lists the battery specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Pro Precision 5 14S PW514260.
Description	Option two	Option three
Battery type	3-cell lithium-ion (57 Wh)	3-cell lithium-ion (70 Wh)
Battery voltage (nominal)	11.25 VDC	11.7 VDC
Battery weight (maximum)	0.24 kg (0.53 lb)	0.265 kg(0.59 lb)
Battery dimensions:
Height	6.50 mm (0.26 in.)	6.50 mm (0.26 in.)
Width	272 mm (10.71 in.)	272 mm (10.71 in.)
Depth	74.90 mm (2.95 in.)	74.90 mm (2.95 in.)
Temperature range:
Operating	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 70°C (32°F to 158°F)	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 70°C (32°F to 158°F)
Storage	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate, when the computer is turned off)
Standard	3 hours	3 hours
ExpressCharge	2 hours	2 hours
ExpressCharge boost	From 0% up to 35% in as little as 20 minutes	From 0% up to 35% in as little as 20 minutes
Coin-cell battery	None	None
NOTE:You can control the battery charging time, duration, start and end time, and so on, using the settings on the Dell Optimizer application. For more information about Dell Optimizer application, search Dell Support Site. CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Power requirements (for 3-cell lithium-ion, 57 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

Pictpgram for power charging requirements — Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 59 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power requirements (for 3-cell lithium-ion, 70 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

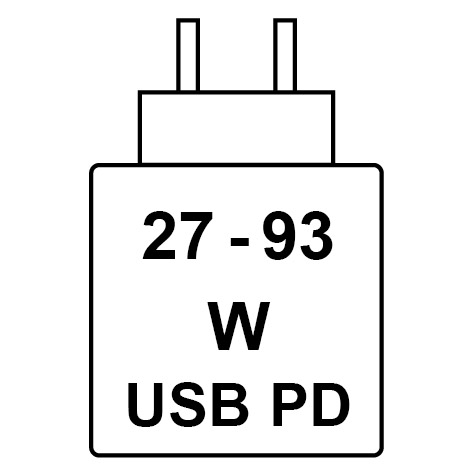

Pictogram of power charging requirements — Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 93 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Display specifications
The following table provides the detailed display specifications of Dell Pro Precision 5 14S PW514260.
Description	Option one	Option two	Option three	Option four	Option 5	Option 6
Display type	14-inch, Full High Definition+ (FHD+)	14-inch, Full High Definition+ (FHD+)	14-inch, Full High Definition+ (FHD+)	14-inch Full High Definition+ (FHD+)	14-inch Quad High Definition+ (QHD+)	14-inch, Full High Definition+ (FHD+), Organic Light Emitting Diode (OLED)
Display-panel technology	In-Plane Switching (IPS)	In-Plane Switching (IPS)	In-Plane Switching (IPS)	In-Plane Switching (IPS)	In-Plane Switching (IPS)	Active Matrix Organic Light Emitting Diode (AMOLED)
Display-panel dimensions (active area):
Height	188.5 mm (7.42 in.)	188.5 mm (7.42 in.)	188.5 mm (7.42 in.)	188.5 mm (7.42 in.)	188.5 mm (7.42 in.)	188.64 mm (7.42 in.)
Width	301.59 mm (11.87 in.)	301.59 mm (11.87 in.)	301.59 mm (11.87 in.)	301.59 mm (11.87 in.)	301.59 mm (11.87 in.)	301.82 mm (11.87 in.)
Diagonal	355.6 mm (14.00 in.)	355.6 mm (14.00 in.)	355.6 mm (14.00 in.)	355.6 mm (14.00 in.)	355.6 mm (14.00 in.)	355.92 mm (14.00 in.)
Display-panel native resolution	1920 x 1200	1920 x 1200	1920 x 1200	1920 x 1200	2560 x 1440	1920 x 1200
Luminance (typical)	400 nits	400 nits	400 nits	500 nits	500 nits	300 nits
Megapixels	2.30	2.30	2.30	2.3	4.1	2.3
Color gamut	45% NTSC	45% NTSC	100% (sRGB)	100% (sRGB)	100% (sRGB)	100% (DCI-P3)
Pixels Per Inch (PPI)	162	162	162	162	215.6	162
Contrast ratio (typical)	Minimum: 800:1 Typical: 1000:1	Minimum: 800:1 Typical: 1000:1	800:1	1200:1	1000:1	1,000,000:1 (typical)
Response time (maximum)	35 milliseconds	35 milliseconds	35 milliseconds	35 milliseconds	35 milliseconds	1 milliseconds
Refresh rate	60 Hz	60 Hz	60 Hz	20 to 120 Hz	120 Hz	60 Hz
Horizontal view angle	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 85 degrees(Typ)
Vertical view angle	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 89 degrees(Typ)	+/- 80 degrees(Min) +/- 85 degrees(Typ)
Pixel pitch	0.157 mm	0.157 mm	0.157 mm	0.157 mm	0.1178	0.157
Power consumption (maximum)	4.64 W	3.3 W	4.5 W	3.35 W	5.7 W	5.7 W
Anti-glare vs glossy finish	Anti-glare	Anti-Glare	Anti-Glare	Anti-Glare	Anti-Glare	Anti-Glare
Touch options	No	No	Yes	No	No	No

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell Pro Precision 5 14S PW514260.
Description	Values
Sensor technology	Capacitive
Sensor resolution	500 ppi
Sensor pixel size	108 mm x 88 mm

Sensors

The following table lists the sensors of your Dell Pro Precision 5 14S PW514260.

Table 1. Sensors The following table lists the sensors of your Dell Pro Precision 5 14S PW514260.
Sensors support
Low Power Vision AI Based User Presence Detection - Realtek
Accelerometer (for positional sensing)
Sensor Hub- Intel ISH
Hall Effect Sensor (Lid Close)
Adaptive Thermal Performance (Lap vs. Desk mode)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro Precision 5 14S PW514260.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell Pro Precision 5 14S PW514260.
Controller	External display support	Memory size	Processor
Intel Graphics	One HDMI 2.1 port DisplayPort 2.1 port using the USB Type-C port	Shared system memory	Intel Core Ultra 5 336H vPro, Intel Core Ultra 7 366H vPro, or Intel Core Ultra 9 386H vPro
Intel Arc Pro B370	One HDMI 2.1 port Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort 2.1	Shared system memory	Intel Core Ultra 5 338H vPro
Intel Arc Pro B390	One HDMI 2.1 port Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort 2.1	Shared system memory	Intel Core Ultra 7 368H vPro or Intel Core Ultra 9 388H vPro

External display support

The following table lists the external display support for your Dell Pro Precision 5 14S PW514260.

Table 1. External display supportThe following table lists the external display support for your Dell Pro Precision 5 14S PW514260.
Graphics card	Supported external displays with laptop display enabled	Supported external displays with laptop display disabled
Intel Graphics	Three 4K monitors One 8K monitor	Four 4K monitors Two 8K monitor
Intel Arc Pro B370
Intel Arc Pro B390

Hardware security

The following table lists the hardware security of your Dell Pro Precision 5 14S PW514260.

Table 1. Hardware security The following table provides the hardware security details on your Dell Pro Precision 5 14S PW514260.
Hardware security
Hardware TPM 2.0 discrete
Wedge lock slot
FIPS 140-3 certification for TPM
TCG Certificatication for TPM (Trusted Computing Group)
ControlVault 3 Advanced Authentication with FIPS 140-2 Level 3 Certification
Fingerprint Reader with Control Vault 3
Contacted Smart Card and Control Vault 3
Contactless Smart Card, NFC, and Control Vault 3
SED SSD NVMe, SSD and HDD
Statement of Non-Volatility
Post Quantum Cryptography(PQC)
Chassis Intrusion Detection

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Contacted smart-card reader specificationsThe following table lists the standards and features of contacted smart-card reader on your Dell Pro Precision 5 14S PW514260.
Capability	Description
ISO 7816 -3 Class A Card Support	Reader capable of reading 5 V powered smart card
ISO 7816 -3 Class B Card Support	Reader capable of reading 3 V powered smart card
ISO 7816 -3 Class C Card support	Reader capable of reading 1.8 V powered smart card
ISO 7816-1 Compliant	Specification for the reader
ISO 7816 -2 Compliant	Specification for smart card device physical characteristics (size, location of connection points, and so on)
T=0 support	Cards support character-level transmission
T=1 support	Cards support block-level transmission
EMVCo Compliant	Compliant with EMVCo (for electronic payment standards) smart card standards published to EMVCo Site
EMVCo Certified	Formally certified based on EMVCO smart card standards
PC/SC operating system interface	Personal Computer or Smart Card specification for integration of hardware readers into personal computer environments
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for OS level drivers
Windows Certified	Device certified by Microsoft WHCK
FIPS 201 (PIV/HSPD-12) Compliant via GSA	Device compliant with FIPS 201/PIV/HSPD-12 requirements
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Dell Pro Precision 5 14S PW514260.

Table 1. Contactless smart-card reader specificationsThe following table lists the standards and features of contactless smart-card reader on your Dell Pro Precision 5 14S PW514260.
Capability	Description
FeliCa Card Support	Reader and software capable of supporting FeliCa contactless cards
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 18092 compliant contactless cards and tokens
ISO 15693 Card Support	Reader and software capable of supporting ISO 15693 contactless cards
NFC Tag Support	Supports reading and processing of NFC compliant tag information
NFC Reader Mode	Support for NFC Forum Defined Reader mode
NFC Writer Mode	Support for NFC Forum Defined Writer mode
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer-to-Peer mode
EMVCo Compliant	Compliant with EMVCO smart card standards as published to EMVCo Site
EMVCo Certified	Formally certified based on EMVCO smart card standards
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for operating system to utilize
PC/SC OS interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for operating system level drivers
Windows Certified	Device compatible with Windows operating systems
Dell ControlVault support	The device connects to Dell ControlVault for usage and processing
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC

Table 2. Supported cardsThe following table lists the supported cards on your Dell Pro Precision 5 14S PW514260.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	iClass (Legacy)
	iClass SEOS
NXP/MIFARE	MIFARE DESFire 8K White PVC Cards
	MIFARE Classic 1K White PVC Cards
	NXP MIFARE Classic S50 ISO Card
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80K Dual+ 1 K Mifare
	SCE6.0 nonFIPS 80K Dual+ 1 K Mifare
	SCE6.0 FIPS 144K Dual + 1K Mifare
	SCE6.0 nonFIPS 144K Dual + 1 K Mifare
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K
Oberthur	ID-One Cosmo 64 RSA D V5.4 T = 0 card

Operating and storage environment

This table lists the operating and storage specifications of your Dell Pro Precision 5 14S PW514260.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Pro Precision 5 14S PW514260.
Description	Operating	Storage
Temperature range	0°C to 35°C (32 °F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10,000 ft)	-15.2 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell low blue light display

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Dell Optimizer

Dell Optimizer is an AI-based software application that allows you to customize your computer settings for power and battery, and more.

For Dell Pro Precision 5 14S PW514260 with Dell Optimizer, you can:

Extend the battery life of your computer with Intelligent Battery Extender and Dynamic Charge.
Tune the performance, power consumption, cooling, and fan noise with selectable thermal modes.
Access and secure your computer depending on your physical presence.
Download and redeem the apps that are purchased with your computer.

For more information about configuring and using these features, search for Dell Optimizer at the Dell Support Site.

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell Pro Precision 5 14S PW514260: технические характеристики и спецификации
