Dell Pro 13 Plus/ Pro 13 Plus 2-in-1 PB13250/PB13250 2-in-1 (Intel Core Ultra 200U Series): руководство по обслуживанию

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Dimensions and weight specifications	300 nits touch and non-touch screen 400 nits non-touch screen	400 nits thin and light non-touchscreen	2-in-1 300 nits FHD and touch
Height:
Front height	19.79 mm (0.78 in.)	19.78 mm (0.78 in.)	19.76 mm (0.78 in.)
Rear height	19.79 mm (0.78 in.)	19.78 mm (0.78 in.)	20.43 mm (0.80 in.)
Maximum Height	20.75 mm (0.82 in.)	19.95 mm (0.79 in.)	20.9 mm (0.82 in.)
Width	300 mm (11.81 in.)	300 mm (11.81 in.)	300 mm (11.81 in.)
Depth	215 mm (8.46 in.)	215 mm (8.46 in.)	215 mm (8.46 in.)
Weight NOTE:The weight of your computer depends on the configuration that is offered.	1.347 kg (2.97 lb) - minimum	1.238 kg (2.73 lb) - minimum	1.44 kg (3.18 lb) - minimum

Processor

The following table lists the details of the processors that are supported by your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. ProcessorThe following table provides the various processor options that are supported for Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Processor wattage	Processor core count	Processor thread count	Processor speed	Processor cache	Integrated graphics
Intel Core Ultra 5 225U	15 W	12	14	up to 4.8 GHz	12 MB	Intel Graphics
Intel Core Ultra 5 235U	15 W	12	14	up to 4.9 GHz	12 MB	Intel Graphics
Intel Core Ultra 7 255U	15 W	12	14	up to 5.2 GHz	12 MB	Intel Graphics
Intel Core Ultra 7 265U	15 W	12	14	up to 5.3 GHz	12 MB	Intel Graphics

Chipset

The following table lists the details of the chipset that is supported by your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Values
Chipset	Integrated in the processor
Processor	Intel Core Ultra 5/7
DRAM bus width	64-bit
Flash EPROM	64 MB
PCIe bus	Up to Gen4

Operating system

Your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1 supports the following operating systems:

Windows 11 Professional
Windows 11 Home
Ubuntu Linux 24.04

NOTE:If you downgrade your computer from Windows 11 to Windows 10 22H2, Dell Technologies support will follow the Microsoft Windows 10 End of Support plan.

Memory

The following table lists the memory specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Memory specificationsThe following table provides the various memory options that are supported for Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Values
Memory slots	Two SODIMM slots
Memory type	DDR5
Memory speed	5600 MT/s
Maximum memory configuration	64 GB
Minimum memory configuration	8 GB
Memory configurations supported	8 GB: 1 x 8 GB, DDR5, single-channel 16 GB: 2 x 8 GB, DDR5, dual-channel 16 GB: 1 x 16 GB, DDR5, single-channel 32 GB: 2 x 16 GB, DDR5, dual-channel 32 GB: 1 x 32 GB, DDR5, single-channel 64 GB: 2 x 32 GB, DDR5, dual-channel

External ports and slots

The following table lists the external ports and slots and specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1..

Table 1. External ports and slots
The following table lists the ports and connectors available on Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1..
Description	Values
USB ports	Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB Type-C/USB4/Power Delivery NOTE:You can connect a Dell Docking Station to these ports. For more information, search in the Knowledge Base Resources at Dell Support Site. One USB 3.2 Gen 1 port with Power Share One USB 3.2 Gen 1 port
Audio port	One global headset jack
Video port	One HDMI 2.1 Transition-minimized differential signaling (TMDS) port
Media-card reader	One smart card reader slot (optional)
Power-adapter port	Supported through the USB Type-C port.
Security-cable slot	One security-cable slot (wedge-shaped)
SIM-card Slot	Nano-SIM card slot (optional)

Internal slots

The following table lists the internal slots of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Internal slotsThe following table lists the internal slots on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Values
M.2	One M.2 2230 slot or M.2 2280 slot for solid state drive One M.2 2230 slot for WLAN One M.2 3042/3052 slot for WWAN (optional) NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Wireless module specificationsThe following table provides the wireless module specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Option one	Option two
Model number	Intel Wi-Fi 7 BE201	Intel Wi-Fi 6E AX211
Transfer rate	Up to 5760 Mbps	Up to 5760 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card	Bluetooth 5.4	Bluetooth 5.3
NOTE:The functionality of the Bluetooth wireless card may vary depending on the operating system that is installed on your computer.

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

NOTE: The WWAN module is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on this module depends on your region.

NOTE:For instructions on how to setup SIM or eSIM connections on your computer, see the SIM/eSIM Setup Guide available with your product documentation at Dell Support Site.

Table 1. WWAN module specificationsThe following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Option one	Option two
Model number	DW5826e, Qualcomm Snapdragon SDX12 Global LTE-Advanced, CAT12	DW5933e MediaTek T700 Global 5G Modem
Form factor	M.2 3052 Key-B	M.2 3052 Key-B
Host interface	USB 3.0/2.0	PCIe Gen3
Network standard	LTE FDD TDD WCDMA GPS BDS GLONASS Galileo QZSS	NR FR1(Sub6) FDD TDD, LTE FDD TDD, WCDMA HSPA+ GPS GLONASS BDS QZSS Galileo
Transfer data rate	Up to 600 Mbps DL (CAT12) Up to 150 Mbps UL	SA: DL 4.67 Gbps/UL 1.25 Gbps NSA: DL 3.74 Gbps/UL 835 Mbps LTE: DL 1.6 Gbps (CAT19)/UL 211 Mbps UMTS: DL 384 kbps/UL 384 kbps DL DC-HSPA+: 42 Mbps (CAT24)/UL 11.5 Mbps (CAT7)
Operating frequency bands	LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B32, B38, B39, B40, B41, B42, B43, B48, B66, B71) WCDMA (1,2,4,5,6,8,9,19)	NR (n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8)
Power supply	DC 3.135 V to 4.4 V, Typical 3.3 V	DC 3.135 V to 4.4 V, Typical 3.3 V
SIM card	Supported through the external SIM slot. NOTE:The availability of eSIM functionality that is embedded on the module depends on the region and specific carrier requirements.	Supported through the external SIM slot. NOTE:The availability of eSIM functionality that is embedded on the module depends on the region and specific carrier requirements.
eSIM with dual SIM (DSSA)	Supported	Supported
Antenna diversity	Supported	Supported
Radio on/off	Supported	Supported
Wake On Wireless	Supported	Supported
Temperature	Normal operating temperature: –30°C to +70°C Extended operating temperature: –40°C to +85°C Storage temperature: –40°C to +85°C	Normal operating temperature: -10°C to + 55°C Extended operating temperature: -40°C to +85°C Storage temperature: –60°C to +100°C
Antenna connector	WWAN Main Antenna x 1 WWAN Diversity Antenna x 1	WWAN TX0 and PRX Connector × 1 WWAN DRX Combined GPS Connector × 1 WWAN MIMO PRX Connector × 1 WWAN TX1 and MIMO DRX Connector × 1 4x4 MIMO Antenna x 2
NOTE:For instructions to find your computer's International Mobile Equipment Identity (IMEI) number, search in the Knowledge Base Resource at Dell Support Site.

Audio

The following table lists the audio specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description		Values
Audio controller		Cirrus Logic CS42L43
Stereo conversion		Supported
Internal audio interface		Soundwire Interface
External audio interface		Global headset jack
Number of speakers		Two
Internal-speaker amplifier		Supported (audio codec integrated)
External volume controls		Keyboard shortcut controls
Speaker output:
Average		2.0 W
Peak		2.5 W
Microphone		Dual-array microphones

Storage

This section lists the storage options on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

The availability of eSIM functionality that is embedded on the module depends on the region and specific carrier requirements.

Table 1. Storage specifications
The following table provides the different storage options available on Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Storage type	Interface type	Capacity
M.2 2280 solid-state drive, self-encrypting drive, TLC	PCIe Gen4 NVMe, up to 64 Gbps	2 TB
M.2 2280 solid-state drive, self-encrypting drive, TLC	PCIe Gen4 NVMe, up to 64 Gbps	1 TB
M.2 2230 solid-state drive, TLC	PCIe Gen4 NVMe, up to 64 Gbps	1 TB
M.2 2230 solid-state drive, TLC	PCIe Gen4 NVMe, up to 64 Gbps	512 GB
M.2 2230 solid-state drive, QLC	PCIe Gen4 NVMe, up to 64 Gbps	512 GB
M.2 2230 solid-state drive, TLC	PCIe Gen4 NVMe, up to 64 Gbps	256 GB

Keyboard

The following table lists the keyboard specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Values
Keyboard type	Standard backlit keyboard Standard non-backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 79 keys United Kingdom: 80 keys Japan: 83 keys
Key pitch	X=18.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS Setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, see the Knowledge Base Resource at the Dell Support site.

Keyboard function keys of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Later, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.

Table 1. Function key primary behavior
The following table lists the keyboard shortcuts and their descriptions.
Function key	Primary behavior
F1	Mute or unmute audio
F2	Decrease volume
F3	Increase volume
F4	Mute/Unmute
F5	Turn on or turn off keyboard backlight (optional). NOTE:Nonbacklight keyboards have the F10 function key without the backlight icon and do not support the toggle keyboard backlight function. NOTE:Toggle to cycle the keyboard backlight status through off, low-backlight, and high-backlight.
F6	Decrease brightness
F7	Increase brightness
F8	Switch to external display
F10	Print Screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application-specific F1 behavior
Fn + F2	Operating system and application-specific F2 behavior
Fn + F3	Operating system and application-specific F3 behavior
Fn + F4	Operating system and application-specific F4 behavior
Fn + F5	Operating system and application-specific F5 behavior
Fn + F6	Operating system and application-specific F6 behavior
Fn + F8	Operating system and application-specific F8 behavior
Fn + F9	Operating system and application-specific F9 behavior
Fn + F10	Operating system and application-specific F10 behavior
Fn + F11	Operating system and application-specific F11 behavior
Fn + F12	Operating system and application-specific F12 behavior
Fn + PrtScr	Turn off or on wireless
Fn + B	Pause or Break
Fn + Insert	Enable sleep state
Fn + S	Toggle scroll lock
Fn + H	Toggle between power and battery-status light or hard drive activity light
Fn + R	Snip screen
Fn + Ctrl	Open the application menu
Fn + Esc	Toggle between multimedia and function key behavior
Fn + PgUp	Scroll up the document or page
Fn + PgDn	Scroll down the document or page
Fn + Home	Move to the beginning of the document
Fn + End	Move to the end of the document

Camera

The following table lists the camera specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description			Values
Number of cameras			One
Camera type			There are 3 camera options: RGB camera RGB + IR camera MIPI + IR camera with Presence Detection (Synaptics)
Camera location			Front camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			2.07 megapixels 5.20 megapixels
Video			1920 x 1080 at 30 fps 2560 x 1440 at 30 fps
Infrared camera resolution:
Video			640 x 360 at 15 fps
Diagonal viewing angle:
Camera			80.20 degrees 91.20 degrees
Infrared camera			86.60 degrees

Touchpad

The following table lists the touchpad specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Touchpad specificationsThe following table provides the detailed touchpad specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description		Values
Touchpad resolution:		>=300dpi
Touchpad dimensions:
Horizontal		125 mm (4.92 in.)
Vertical		71 mm (2.80 in.)
Touchpad gestures		For more information about the touchpad gestures that are available on: Windows, search Microsoft Support Site. Ubuntu, search Ubuntu Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Option one	Option two	Option three
Type	60 W adapter, USB Type-C	65 W adapter, USB Type-C	100 W adapter, USB Type-C
Power-adapter dimensions:
Height	22 mm (0.86 in.)	28 mm (1.10 in.)	26.5 mm (1.04 in.)
Width	55 mm (2.16 in.)	51 mm (2.01 in.)	60 mm (2.36 in.)
Depth	66 mm (2.59 in.)	112 mm (4.41 in.)	122 mm (4.80 in.)
Input voltage	100 to 240 VAC	100 to 240 VAC	100 to 240 VAC
Input frequency	50 Hz to 60 Hz	50 to 60 Hz	50 to 60 Hz
Input current (maximum)	1.7 A	1.7 A	1.7 A
Output current (continuous)	20 V/3 A (continuous) 15 V/3 A (continuous) 9.0 V/3 A (continuous) 5.0 V/3 A (continuous)	20 V/3.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)	20 V/5 A (continuous) 15 V/3 A (continuous) 9.0 V/3 A (continuous) 5.0 V/3 A (continuous)
Rated output voltage	20 VDC/15 VDC/9 VDC/5 VDC	20 VDC/15 VDC/9 VDC/5 VDC	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 35°C (32°F to 95°F)
Storage	-20°C to 70°C (-4°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

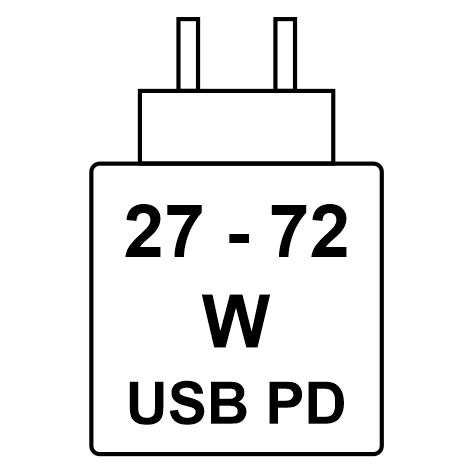

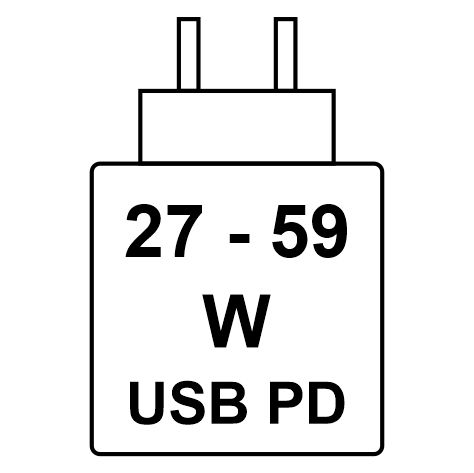

Power adapter requirements (for computers that are shipped with 3-cell, 45 Wh battery)

This section contains the power adapter requirements for the Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter that you use meets the following requirements:

Table 1. Power adapter requirements The following table lists the power adapter for your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that is required to charge the computer at a slower speed. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 60 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE: A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:The ExpressCharge mode is supported only when the computer with a 45 Wh battery is connected to a power adapter rated at 65 W or higher.

Power adapter requirements (for computers that are shipped with 3-cell, 55 Wh battery)

This section contains the power adapter requirements for the Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter that you use meets the following requirements:

Table 1. Power adapter requirements The following table lists the power adapter for your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that is required to charge the computer at a slower speed. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 60 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE: A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:The ExpressCharge mode is supported only when the computer with a 55 Wh battery is connected to a power adapter rated at 65 W or higher.

Battery

The following table lists the battery specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Option one	Option two	Option three	Option four
Battery type	3-cell, 45 Wh, ExpressCharge, ExpressCharge Boost	3-cell, 55 Wh, ExpressCharge, ExpressCharge Boost	3-cell, 45 Wh, Long Life Cycle, ExpressCharge, ExpressCharge Boost	3-cell, 55 Wh, Long Cycle Life, ExpressCharge, ExpressCharge Boost
Battery voltage	11.25 V	11.70 VDC	11.25 VDC	11.70 VDC
Battery weight (minimum)	0.20 Kg (0.44 lb)	0.22 kg (0.48 lb)	0.20 kg (0.44 lb)	0.22 kg (0.48 lb)
Battery dimensions:
Height	72.80 mm (2.83 in.)	72.80 mm (2.83 in.)	72.80 mm (2.83 in.)	72.80 mm (2.83 in.)
Width	254.80 mm (10.03 in.)	254.80 mm (10.03 in.)	254.80 mm (10.03 in.)	254.80 mm (10.03 in.)
Depth	6.30 mm (0.25 in.)	6.30 mm (0.25 in.)	6.30 mm (0.25 in.)	6.30 mm (0.25 in.)
Temperature range:
Operating	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)	0°C to 60°C (32°F to 140°F)	0°C to 60°C (32°F to 140°F)
Storage	–20°C to 65°C (-4°F to 149°F)	–20°C to 65°C (-4°F to 149°F)	–20°C to 60°C (-4°F to 140°F)	–20°C to 60°C (-4°F to 140°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE:Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information about Dell Power Manager, search in the Knowledge Base Resource at Dell Support Site.	Standard charge/Predominately AC User Charge Method: 0°C to15°C maximum allowable charge time from 0% to 100% RSOC is 4 hours 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 3 hours ExpressCharge Method: 16°C to 45°C maximum allowable charge time from 0% to 80% RSOC is 1 hour 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 2 hours ExpressCharge Boost charge Method: 16°C to 45°C maximum allowable charge time from 0% to 35% RSOC is 20 min	Standard charge/Predominately AC User Charge Method: 0°C to 15°C maximum allowable charge time from 0% to 100% RSOC is 4 hours 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 3 hours ExpressCharge Method: 16°C to 45°C maximum allowable charge time from 0% to 80% RSOC is 1 hour 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 2 hours ExpressCharge Boost charge Method: 16°C to 45°C maximum allowable charge time from 0% to 35% RSOC is 20 min	Standard charge/Predominately AC User Charge Method: 0°C to 15°C maximum allowable charge time from 0% to 100% RSOC is 4 hours 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 3 hours ExpressCharge Method: 16°C to 45°C maximum allowable charge time from 0% to 80% RSOC is 1 hour 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 2 hours ExpressCharge Boost charge Method: 16°C to 45°C maximum allowable charge time from 0% to 35% RSOC is 20 min	Standard charge/Predominately AC User Charge Method: 0°C to 15°C maximum allowable charge time from 0% to 100% RSOC is 4 hours 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 3 hours ExpressCharge Method: 16°C to 45°C maximum allowable charge time from 0% to 80% RSOC is 1 hour 16°C to 45°C maximum allowable charge time from 0% to 100% RSOC is 2 hours ExpressCharge Boost charge Method: 16°C to 45°C maximum allowable charge time from 0% to 35% RSOC is 20 min
Coin-cell battery	No	No	No	No
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Power requirements (for computers that are shipped with a 3-cell, 45 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 59 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power requirements (for computers that are shipped with a 3-cell, 55 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 72 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Display specificationsThe following table lists the display specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Option one	Option two	Option three	Option four	Option five
Display type	13.3-inch Full High Definition Plus (FHD+)	13.3-inch Full High Definition Plus (FHD+), ComfortView Plus	13.3-inch Full High Definition Plus (FHD+), ComfortView Plus	13.3-inch Full High Definition Plus (FHD+)	13.3-inch Full High Definition Plus (FHD+)
Touch options	No	Yes	No	Yes	No
Display-panel technology	In-plane Switching (IPS), White Light Emitting Diode (WLED)	In-plane Switching (IPS), White Light Emitting Diode (WLED)	In-plane Switching (IPS), White Light Emitting Diode (WLED)	In-plane Switching (IPS), White Light Emitting Diode (WLED)	In-plane Switching (IPS), Wide-viewing angle (WVA)
Display-panel dimensions (active area):
Height	178.78 mm (7.04 in.)	178.78 mm (7.04 in.)	178.78 mm (7.04 in.)	178.78 mm (7.04 in.)	178.78 mm (7.04 in.)
Width	286.04 mm (11.26 in.)	286.04 mm (11.26 in.)	286.04 mm (11.26 in.)	286.04 mm (11.26 in.)	286.04 mm (11.26 in.)
Diagonal	337.31 mm (13.20 in.)	337.31 mm (13.20 in.)	337.31 mm (13.20 in.)	337.31 mm (13.20 in.)	337.31 mm (13.20 in.)
Display-panel native resolution	1920 x 1200	1920 x 1200	1920 x 1200	1920 x 1200	1920 x 1200
Luminance (typical)	300 nits	300 nits	400 nits	300 nits	400 nits
Megapixels	2.304	2.304	2.304	2.304	2.304
Color gamut	45% NTSC	100% sRGB	100% sRGB	100% sRGB	45% NTSC
Pixels Per Inch (PPI)	170	170	170	170	170
Contrast ratio (typical)	800:1	900:01	1200:01	1000:01	800:01
Response time (maximum)	35 ms	35 ms	35 ms	35 ms	35 ms
Refresh rate	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz
Horizontal view angle	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)
Vertical view angle	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)
Pixel pitch	0.149 x 0.149 mm	0.149 x 0.149 mm	0.149 x 0.149 mm	0.149 x 0.149 mm	0.149 x 0.149 mm
Power consumption (maximum)	3.77 W	3.50 W	2.45 W	4.20 W	4.81 W
Anti-glare vs glossy finish	Anti-glare	Anti-glare	Anti-glare	Glossy	Anti-glare

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Values
Sensor technology	Trans-capacitive sensing
Sensor resolution	500 dpi
Sensor pixel size	108 mm x 88 mm

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. GPU—IntegratedThe following table lists the integrated graphics specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1
Controller	Memory size	Processor
Intel Graphics	Shared system memory	Intel Core Ultra 5/7

Multiple display support matrix

The following table lists the multiple display support matrix for your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Multiple display support matrixMultiple display support matrix
Graphics Card	Direct Graphics Controller Direct Output Mode	Supported external displays with computer internal display on	Supported external displays with computer internal display off
Intel Graphics	Integrated	3	4

Hardware security

The following table lists the hardware security of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Hardware security The following table provides the hardware security details on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Hardware security
Trusted Platform Module (TPM) 2.0 discrete
FIPS 140-2 certification for TPM
TCG Certification for Trusted Computing Group (TPM)
Fingerprint reader in power button with ControlVault 3+
Contacted Smart Card and ControlVault 3+
Contactless Smart Card, NFC, and ControlVault 3+
SED SSD NVMe, SSD, and hard drive (Opal and non-Opal) per SDL
Chassis intrusion detection
BIOS-TPM clear and/or system boot lock after chassis intrusion detection

Contactless smart card reader

This section lists the contactless smart card reader specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1. This module is only available in computers that are shipped with smart card readers.

Table 1. Contactless smart card reader specificationsThe following table lists the contactless smart card reader specifications on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Title	Description	Dell ControlVault 3 Plus Contactless smart card reader with NFC
FeliCa Card Support	Reader and software capable of supporting FeliCa contactless cards	Yes
Prox (Proximity) (125 KHz) Card support	Reader and software capable of supporting Prox /Proximity/125 KHz contactless cards	No
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 18092 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC compliant tag information	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer to Peer mode	Yes
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for operating system to utilize	Yes
PC/SC operating system interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for operating system level drivers	Yes
Dell ControlVault support	The device connects to Dell ControlVault for usage and processing	Yes

NOTE:125 KHz proximity cards are not supported.

Table 2. Contactless card types supportedThe following table lists the contactless card types supported on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Interface	Card type	Supported functionality
NFC Forum (Microsoft Proximity Device)	Type 1 tag	Read/Write NDEF
	Type 2 tag	Read/Write NDEF
	Type 3 tag	Read/Write NDEF
	Type 4 tag	Read/Write NDEF
	Type 5 tag	Read/Write NDEF
	P2P	Exchange NDEF
RFID (Microsoft Smartcard Device)	ISO14443A	Read UUID and APDU Exchange (ISO7816)
	ISO14443B	Read UUID and APDU Exchange (ISO7816)
	Sony FeliCa	Read UUID only
	Legacy iClass (ISO15693)	Read UUID only
	MIFARE Classic	Read UUID only
	Low Frequency (125 KHz )	Not supported

Table 3. Supported cardsThe following table lists the supported cards on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	DESFIRE 4K Standard - 1450NGGNN
	iClass 16K/16 - 2002PGGMN
	iClass SR 16K/16 - 2002HPGGMN
	iCLASS 2K tag
	iCLASS GP - 2003 PGGMN
	iClass Clamshell - 2080PMSMV
	iClass Prox 16K/16 - 2022BGGMNN
	MIFARE M1P 1430 NGGNN
	iclass Prox 2020BGGMNM
	DesFire D8P 1456CSGMN
	iCLASS MIFARE Px GM49Y 2623BNPGGBNAB
	iCLASS MIFARE Px 8M1L
	iClass SEOS JW 5006PGGMN
	Crescendo iCLASS Px G8H
	iCLASS Seos IY
	SEOS JMC4 J1Y 5806VNG1NNN4
	SEOS Key FOB 5266PNNA
	SEOS Clamshell 5656PMSAV
	SEOS + Prox 5106RGGMNN
	SEOS + DESFire 5906PNG1ANN7
	SEOS iClass 5006PGGMN7
	Seos Essential + Prox 551PPGGANN
	iCLASS 2K 2000PGGMN
	iCLASS 2K 3000PGGMN
	MIFARE DESFire 3700CPGGAN
	iCLASS DP
	DESFire 1Y
NXP/MIFARE	MIFARE DESFire 8K White PVC card
	MIFARE Classic 1K White PVC card
	NXP MIFARE Classic S50 ISO card
	MIFARE DESFire 2K
	MIFARE Plus S 2K/4K
	MIFARE Plus X 4K
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80K Dual + 1K MIFARE
	SCE6.0 nonFIPS 80K Dual + 1K MIFARE
	SCE6.0 FIPS 144K Dual + 1K MIFARE
	SCE6.0 nonFIPS 144K Dual + 1K MIFARE
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K
	ID-One Cosmo 64 RSA D V5.4 T = 0 card
	ID-One Cosmo 128K V5.5 card
Gemalto	TOP DL GX4 144K card
Sony	FeliCa RC-S962
	FeliCa RC-S965
	FeliCa RC-S966
PIVKey	C910 PKI
NIST	PIV1
IDENTIV	PIV programmed cards
IDENTIV	uTrust
Transport cards	Oyster (London) MIFARE DESFire
	T-Money (Korea)
	Octopus Card (Hong Kong)
	SUICA (Japan)

Table 4. Qualified NFC tagsThe following table lists the qualified NFC tags on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
NFC tag	Supported
Tap and do - NFC Forum Type 1 Tag - Topaz 512 (BCM920203)	Yes
Tap and do - NFC Forum Type 1 Tag - Topaz 512 (BCM20203T512)	Yes
Tap and do - NFC Forum Type 1 Tag - Topaz (BCM20203T96)	Yes
Tap and do - NFC Forum Type 2 Tag - MIFARE UltraLight	Yes
Tap and do - NFC Forum Type 2 Tag - MIFARE UltraLight C	Yes
Tap and do - NFC Forum Type 2 Tag - NTAG203	Yes
Tap and do - NFC Forum Type 3 Tag - FeliCa Lite RC-S965	Yes
Tap and do - NFC Forum Type 3 Tag - FeliCa RC-S962	Yes
Tap and do - NFC Forum Type 4 Tag - MIFARE DESFire EV1Card 2K	Yes
Tap and do - NFC Forum Type 4 Tag - MIFARE DESFire EV1Card 4K	Yes
Tap and do - NFC Forum Type 4 Tag - MIFARE DESFire EV1Card 8K	Yes
Tap and do - ISO 15693 - Tag-it Plus	Yes
HID I-code ISO card	Yes

Contacted smart card reader

The following table lists the contacted smart card reader specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Table 1. Contacted smart card reader specificationsThe following table lists the contacted smart card reader specifications on your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Title	Description	Dell ControlVault 3 Plus Contacted smart card reader
ISO 7816-3 Class A Card Support	Reader capable of reading 5 V powered smart card	Yes
ISO 7816-3 Class B Card Support	Reader capable of reading 3 V powered smart card	Yes
ISO 7816-3 Class C Card support	Reader capable of reading 1.8 V powered smart card	Yes
T = 0 support	Cards support character level transmission	Yes
T = 1 support	Cards support block level transmission	Yes
EMVCo Certified	Formally certified based on EMVCo smart card standards	Yes
PC/SC operating system interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for operating system level drivers	Yes
Windows Certified	Certified by the Windows Hardware Certification program	Yes
FIPS 201 (PIV/HSPD-12) Compliant	Device compliant with FIPS 201/PIV/HSPD-12 requirements	Yes
ISO 7816-1 Compliant	Specification for the physical characteristics of integrated circuit cards with contacts	Yes
ISO 7816-2 Compliant	Specification for the dimensions and location of the contacts	Yes
ISO 7816-3 Compliant	Specification for electrical interface and transmission protocols	Yes
ISO 7816-4 Compliant	Specification for organization, security and commands for interchange	Yes
Dell ControlVault support	Device connects to Dell ControlVault for usage and processing	Yes

Operating and storage environment

This table lists the operating and storage specifications of your Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Pro 13 Plus/Dell Pro 13 Plus 2-in-1.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (4.64 ft to 5518.4 ft)	-15.2 m to 10668 m (4.64 ft to 19234.4 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

ComfortView Plus

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
