Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Pro Max 16 MC16255.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Pro Max 16 MC16255.
Description		Values
Height:
	Front height	Configurations with plastic cover: 15.08 mm (0.59 in.) Configurations with aluminium cover: 13.78 mm (0.54 in.)
	Rear height	Configurations with plastic cover: 19.08 mm (0.75 in.) Configurations with aluminium cover: 18.36 mm (0.72 in.)
Width		358 mm (14.09 in.)
Depth		256 mm (10.08 in.)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		Minimum weight for configurations with plastic cover: 4.59 lb (2.08 kg) Minimum weight for configurations with aluminium cover: 4.64 lb (2.10 kg)

Processor

The following table lists the details of the processors that are supported on your Dell Pro Max 16 MC16255.

Table 1. Processor The following table lists the details of the processors that are supported on your Dell Pro Max 16 MC16255.
Description		Option one	Option two	Option three	Option four	Option five	Option six
Type		AMD Ryzen AI 5 PRO 340	AMD Ryzen AI 7 PRO 350	AMD Ryzen AI 9 HX PRO 370	AMD Ryzen AI 5 PRO 440	AMD Ryzen AI 7 PRO 450	AMD Ryzen AI 9 HX PRO 475
Total cores		6	8	12	6	8	12
Total threads NOTE:: Intel Hyper-Threading Technology is only available on Performance-cores.		12	16	24	12	16	24
Speed		Up to 4.8 GHz	Up to 5 GHz	Up to 5.1 GHz	Up to 4.8 GHz	Up to 5.1 GHz	Up to 5.2 GHz
Configurable Thermal Design Power (cTDP)		15 W–54 W	15 W–54 W	15 W–54 W	15 W–54 W	15 W–54 W	15 W–54 W
Thermal Mode/Thermal Design Power (TDP)
	Optimized	52 W	52 W	52 W	52 W	52 W	52 W
	Performance	54 W	54 W	60 W	54 W	54 W	60 W
Processor cache L2		6 MB	8 MB	12 MB	6 MB	8 MB	12 MB
Processor cache L3		16 MB	16 MB	24 MB	16 MB	16 MB	24 MB
Integrated graphics		AMD Radeon 840M Graphics	AMD Radeon 860M Graphics	AMD Radeon 890M Graphics	AMD Radeon 840M Graphics	AMD Radeon 860M Graphics	AMD Radeon 890M Graphics
AI technology		AMD Ryzen AI	AMD Ryzen AI	AMD Ryzen AI	AMD Ryzen AI	AMD Ryzen AI	AMD Ryzen AI
Neural Processing Unit (NPU) performance		Up to 50 TOPS	Up to 50 TOPS	Up to 50 TOPS	Up to 50 TOPS	Up to 50 TOPS	Up to 60 TOPS
NOTE:Tera Operations Per Second (TOPS) is an AI performance metric that measures how many trillions of operations per second an AI processor can perform.

Chipset

The following table lists the details of the chipset that is supported by your Dell Pro Max 16 MC16255.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell Pro Max 16 MC16255.
Description	Values
Chipset	Integrated with the processor
Processor	AMD Ryzen AI 5 PRO 340 AMD Ryzen AI 7 PRO 350 AMD Ryzen AI 9 HX PRO 370 AMD Ryzen AI 5 PRO 440 AMD Ryzen AI 7 PRO 450 AMD Ryzen AI 9 HX PRO 475
DRAM bus width	64-bit
Flash EPROM	Up to 64 MB
PCIe bus	Up to Gen4

Operating system

Your Dell Pro Max 16 MC16255 supports the following operating systems:

Windows 11 Home
Windows 11 Pro
Ubuntu Linux 24.04 LTS, 64-bit

Memory

The following table lists the memory specifications of your Dell Pro Max 16 MC16255.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Dell Pro Max 16 MC16255.
Description		Values
Memory slots		Onboard memory
Memory type		LPDDR5x
Memory speed		8000 MT/s
Maximum memory configuration		64 GB
Minimum memory configuration		16 GB
Memory configurations supported		16 GB: 1 x 16 GB, LPDDR5x, 8000 MT/s, dual-channel (onboard), Non-ECC 32 GB: 1 x 32 GB, LPDDR5x, 8000 MT/s, dual-channel (onboard), Non-ECC 64 GB: 1 x 64 GB, LPDDR5x, 8000 MT/s, dual-channel (onboard), Non-ECC

External ports and slots

The following table lists the external ports and slots on your Dell Pro Max 16 MC16255.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell Pro Max 16 MC16255.
Description	Values
Network port	One RJ45 ethernet port (1 Gbps)
USB ports	Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort One USB 3.2 Gen 1 (5 Gbps) port with PowerShare One USB 3.2 Gen 1 (5 Gbps) port
Audio port	One global headset port
Video port(s)	Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort One HDMI 2.1 port
Media-card reader	One microSD-card slot One optional smart-card reader slot
Power-adapter port	Supported via two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort
Security-cable slot	One wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your Dell Pro Max 16 MC16255.

Table 1. Internal slotsThe following table lists the internal slots on your Dell Pro Max 16 MC16255.
Description	Values
M.2	Two M.2 Key-M (2230/2280) slot for solid state drive One M.2 2230 Key-E slot for Wi-Fi and Bluetooth combo card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Ethernet

The following table lists the wired ethernet Local Area Network (LAN) specifications of your Dell Pro Max 16 MC16255.

Table 1. Ethernet specifications
The following table provides the specifications of Ethernet that is supported by your Dell Pro Max 16 MC16255.
Description	Values
Model	Integrated Realtek RTL8111H-CG
Transfer rate	10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro Max 16 MC16255.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell Pro Max 16 MC16255.
Description	Values
Model number	MediaTek Wi-Fi 7 MT7925
Transfer rate	Up to 2882 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	Wi-Fi 802.11 a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.4

Audio

The following table lists the audio specifications of your Dell Pro Max 16 MC16255.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Dell Pro Max 16 MC16255.
Description		Values
Audio controller		Realtek ALC3329
Stereo conversion		Supported
Internal audio interface		SoundWire inteface
External audio interface		One global headset port
Number of speakers		Two
Internal-speaker amplifier		Supported via Realtek ALC1708
External volume controls		Keyboard shortcut controls
Speaker output:
	Average	2 W x 2 = 4 W
	Peak	2.5 W x 2 = 5 W
Microphone		Dual-array digital microphones

Storage

This section lists the storage options on your Dell Pro Max 16 MC16255.

Your Dell Pro Max 16 MC16255 supports one M.2 2230/2280 solid state drive. The M.2 2230/2280 solid state drive is the primary storage drive of your computer.

Table 1. Storage specifications
The following table provides the different storage options available on Dell Pro Max 16 MC16255.
Storage type	Interface type	Capacity
M.2 2230 solid state drive	Gen 4 x4 PCIe NVMe	256 GB, 512 GB, or 1 TB
M.2 2280 solid state drive, Self-Encrypting	Gen 4 x4 PCIe NVMe	1 TB, 2 TB, or 4 TB

Media-card reader

The following table provides the specification of media cards that are supported by your Dell Pro Max 16 MC16255.

Table 1. Media-card reader specificationsThe following table provides the specification of media cards that are supported by your Dell Pro Max 16 MC16255.
Description	Values
Media-card slot type	microSD 4.0 card
Media-cards supported	microSecure Digital (mSD) microSecure Digital High Capacity (mSDHC) microSecure Digital Extended Capacity (mSDXC)
NOTE:The maximum capacity of the media-card reader varies depending on the standard of the media card that is inserted in your computer.

Keyboard

The following table lists the keyboard specifications of your Dell Pro Max 16 MC16255.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Dell Pro Max 16 MC16255.
Description	Values
Keyboard type	Standard backlit keyboard Standard non-backlit keyboard
Keyboard layout	QWERTY
Number of keys	Arabic, Canada (Bilingual) MUI, Chinese (Traditional), English International, English US, French (Canadian) (MUI), Greek, Hebrew, Korean, Russian, Thai, Ukrainian: 99 keys Belgian, Bulgarian, Czech/Slovak (MUI), Danish, English UK, Estonian, French (European), German, Hungarian, Italian, Nordic (MUI), Norwegian, Portuguese (Iberian), Slovenian, Spanish (Castillian), Spanish (Latin America), Swedish/Finnish, Swiss/European (MUI), Turkish, Turkish (F): 100 keys Portuguese (Brazil): 101 keys Japanese: 103 keys
Key pitch	X = 18.05 mm key pitch Y = 18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts.

Keyboard shortcuts of Dell Pro Max 16 MC16255

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Later, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.

Table 1. Function key primary behavior
The following table lists the keyboard shortcuts and their descriptions.
Function key	Primary behavior
F1	Mute or unmute audio
F2	Decrease volume
F3	Increase volume
F4	Microphone Mute
F5	Keyboard Illumination/Backlight
F6	Decrease brightness
F7	Increase brightness
F8	Switch to external display
F10	Print screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application-specific F1 behavior
Fn + F2	Operating system and application-specific F2 behavior
Fn + F3	Operating system and application-specific F3 behavior
Fn + F4	Operating system and application-specific F4 behavior
Fn + F5	Operating system and application-specific F5 behavior
Fn + F6	Operating system and application-specific F6 behavior
Fn + F7	Operating system and application-specific F6 behavior
Fn + F8	Operating system and application-specific F8 behavior
Fn + F9	Operating system and application-specific F9 behavior
Fn + F10	Operating system and application-specific F10 behavior
Fn + F11	Operating system and application-specific F11 behavior
Fn + F12	Operating system and application-specific F12 behavior
Fn + Ctrl	Open the application menu
Fn + Esc	Toggle between multimedia and function key behavior
Fn + PgUp	Scroll up the document or page
Fn + PgDn	Scroll down the document or page
Fn + Home	Move to the beginning of the document
Fn + End	Move to the end of the document
Copilot	Launch Copilot in Windows NOTE: If Copilot in Windows is not available on your computer, the Copilot key launches Recall. If both Recall and Copilot in Windows are not available on your computer, the Copilot key launches Windows Search. For more information about Copilot in Windows and Recall, search in the Knowledge Base Resource at the Dell Support Site.

Camera

The following table lists the camera specifications of your Dell Pro Max 16 MC16255.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Dell Pro Max 16 MC16255.
Description		Option one	Option two
Number of cameras		One	Two
Camera type		FHD RGB camera	FHD RGB and IR camera
Camera location		Front camera	Front camera
Camera sensor type		CMOS sensor technology	CMOS sensor technology
Camera resolution:
	Still image	2.07 megapixel	2.07 megapixel
	Video	1920 x 1080 (FHD) at 30 fps	1920 x 1080 (FHD) at 30 fps
Infrared camera resolution:
	Still image	N/A	0.23 megapixel
	Video	N/A	640 x 360 at 15 fps
Diagonal viewing angle:
	Camera	80.20 degrees	80.20 degrees
	Infrared camera	N/A	86.60 degrees

Touchpad

The following table lists the touchpad specifications of your Dell Pro Max 16 MC16255.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Dell Pro Max 16 MC16255.
Description		Values
Touchpad resolution:
	Horizontal	>= 300 dpi
	Vertical	>= 300 dpi
Touchpad dimensions:
	Horizontal	125 mm (4.92 in.)
	Vertical	88 mm (3.46 in.)
Touchpad gestures		For more information about the touchpad gestures that are available on: Windows, search Microsoft Support Site. Ubuntu, search Ubuntu Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell Pro Max 16 MC16255.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Dell Pro Max 16 MC16255.
Description		Option one	Option two
Type		100 W AC adapter, USB Type-C NOTE:This power adapter is supported by computers shipped only with integrated graphics installed.	130 W AC adapter, USB Type-C
Power-adapter dimensions:
	Height	26.50 mm (1.04 in.)	22 mm (0.87 in.)
	Width	60 mm (2.36 in.)	66 mm (2.60 in.)
	Depth	122 mm (4.80 in.)	143 mm (5.63 in.)
Input voltage		100 VAC - 240 VAC	100 VAC - 240 VAC
Input frequency		50 Hz - 60 Hz	50 Hz - 60 Hz
Input current (maximum)		1.70 A	1.80 A
Output current (continuous)		20 V/5 A 15 V/3 A 9 V/3 A 5 V/3 A	20 V/6.50 A 5 V/1 A
Rated output voltage		20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

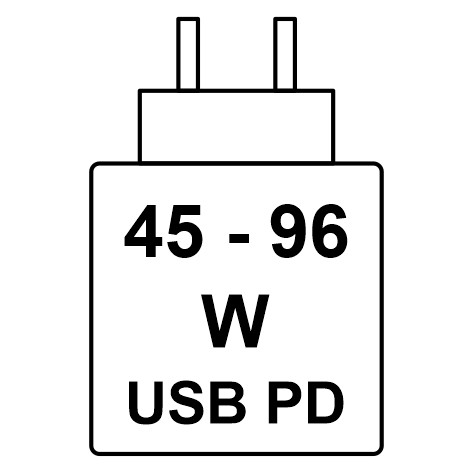

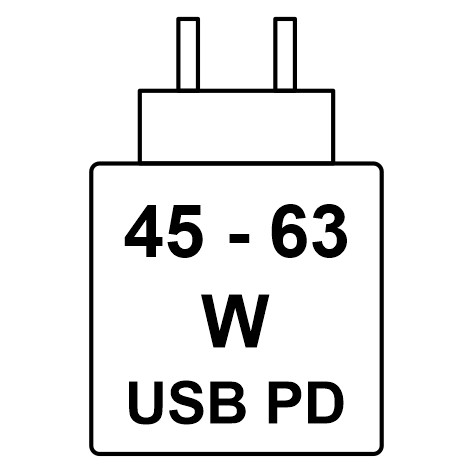

Power adapter requirements of Dell Pro Max 16 MC16255

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Pro Max 16 MC16255.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Pro Max 16 MC16255.
Description	Value
Power that is required from a power adapter to achieve optimal performance	100 W
Power that charges the computer at a slower speed NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 100 W
Minimum power that is required from a power adapter to operate the computer and charge the battery NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	45 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer with a 64 Wh battery is connected to a 100 W power adapter for this feature to be supported. NOTE:Ensure that the computer with a 96 Wh battery is connected to a 130 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your Dell Pro Max 16 MC16255.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Pro Max 16 MC16255.
Description		Option one	Option two	Option three	Option four
Battery type		4-cell, 64 Wh, Lithium Ion Polymer, ExpressCharge, ExpressCharge Boost, Standard Life	4-cell, 64 Wh, Lithium Ion Polymer, ExpressCharge, ExpressCharge Boost, Long Cycle Life	6-cell, 96 Wh, Lithium Ion Polymer, ExpressCharge, ExpressCharge Boost, Standard Life	6-cell, 96 Wh, Lithium Ion Polymer, ExpressCharge, ExpressCharge Boost, Long Cycle Life
Battery voltage		15.60 VDC	15.60 VDC	11.70 VDC	11.70 VDC
Battery weight (maximum)		0.255 kg (0.56 lb)	0.255 kg (0.56 lb)	0.351 kg (0.77 lb)	0.351 kg (0.77 lb)
Battery dimensions:
	Height	7.71 mm (0.30 in.)	7.71 mm (0.30 in.)	7.71 mm (0.30 in.)	7.71 mm (0.30 in.)
	Width	294.90 mm (11.61 in.)	294.90 mm (11.61 in.)	294.90 mm (11.61 in.)	294.90 mm (11.61 in.)
	Depth	77.50 mm (3.05 in.)	77.50 mm (3.05 in.)	77.50 mm (3.05 in.)	77.50 mm (3.05 in.)
Temperature range:
	Operating	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 60°C (32°F to 140°F)	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 60°C (32°F to 140°F)	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 60°C (32°F to 140°F)	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 60°C (32°F to 140°F)
	Storage	–20°C to 65°C (-4°F to 149°F)	–20°C to 65°C (-4°F to 149°F)	–20°C to 65°C (-4°F to 149°F)	–20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the Dell Power Manager application. For more information about Dell Power Manager, search in the Knowledge Base Resource at Dell Support Site.		ExpressCharge Boost - From 0% to 35% in almost 20 minutes ExpressCharge - 2 hours Standard charge - 3 hours	ExpressCharge Boost - From 0% to 35% in almost 20 minutes ExpressCharge - 2 hours Standard charge - 3 hours	ExpressCharge Boost - From 0% to 35% in almost 20 minutes ExpressCharge - 2 hours Standard charge - 3 hours	ExpressCharge Boost - From 0% to 35% in almost 20 minutes ExpressCharge - 2 hours Standard charge - 3 hours
Coin-cell battery		Not supported	Not supported	Not supported	Not supported
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Power requirements (for computers shipped with 4-cell, 64 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

Image of pictogram for 64 Wh battery — Figure 1. Pictogram for 64 Wh battery

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 63 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Power requirements (for computers shipped with 6-cell, 96 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

Image of pictogram for 96 Wh battery — Figure 1. Pictogram for 96 Wh battery

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 96 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Pro Max 16 MC16255.

Table 1. Display specifications
The following table provides the detailed display specifications of Dell Pro Max 16 MC16255.
Description		Option one	Option two	Option three	Option four
Display type		16" Full High Definition Plus (FHD+)	16" Quad High Definition Plus (QHD+), ComfortView Plus	16" Full High Definition Plus (FHD+)	16" Quad High Definition Plus (QHD+)
Touch options		Not supported	Not supported	Supported	Not Supported
Display-panel technology		Wide-Viewing Angle (WVA)	Wide-Viewing Angle (WVA)	Wide-viewing Angle (WVA)	Wide-viewing Angle (WVA)
Display-panel dimensions (active area):
	Height	215.42 mm (8.48 in.)	215.42 mm (8.48 in.)	215.42 mm (8.48 in.)	215.42 mm (8.48 in.)
	Width	344.68 mm (13.57 in.)	344.68 mm (13.57 in.)	344.68 mm (13.57 in.)	344.68 mm (13.57 in.)
	Diagonal	406.46 mm (16.00 in.)	406.46 mm (16.00 in.)	406.46 mm (16.00 in.)	406.46 mm (16.00 in.)
Display-panel native resolution		1920 x 1200	2560 x 1600	1920 x 1200	2560 x 1600
Luminance (typical)		400 nits	300 nits	400 nits	400 nits
Megapixels		2.3	4.1	2.3	4.1
Color gamut		45% NTSC	100% sRGB	45% NTSC	100% sRGB
Pixels Per Inch (PPI)		142	189	142	189
Contrast ratio (minimum)		1000:1	1000:1	1000:1	1000:1
Response time (maximum)		35 ms	35 ms	35 ms	35 ms
Refresh rate		60 Hz	120 Hz	60 Hz	120 Hz
Horizontal view angle		Minimum: 80 +/- degrees Typical: 85 +/- degrees	Minimum: 80 +/- degrees Typical: 85 +/- degrees	Minimum: 80 +/- degrees Typical: 85 +/- degrees	Minimum: 80 +/- degrees Typical: 89 +/- degrees
Vertical view angle		Minimum: 80 +/- degrees Typical: 85 +/- degrees	Minimum: 80 +/- degrees Typical: 85 +/- degrees	Minimum: 80 +/- degrees Typical: 85 +/- degrees	Minimum: 80 +/- degrees Typical: 89 +/- degrees
Pixel pitch		0.18 x 0.18	0.13 x 0.13	0.18 x 0.18	0.13 x 0.13
Power consumption (maximum)		4.45 W	4.80 W	5.60 W	5.97 W
Anti-glare vs glossy finish		Anti-glare	Anti-glare	Anti-glare	Anti-glare

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint reader of your Dell Pro Max 16 MC16255.

NOTE:The fingerprint reader is on the power button.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell Pro Max 16 MC16255.
Description	Values
Sensor technology	Capacitive sensing
Sensor resolution	500 dpi
Sensor pixel size	108 x 88 pixels

Sensors

The following table lists the sensors of your Dell Pro Max 16 MC16255.

Table 1. Sensor The following table lists the sensor of your Dell Pro Max 16 MC16255.
Sensor support
Accelerometer (for positional sensing)
Hall Effect Sensor

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro Max 16 MC16255.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell Pro Max 16 MC16255.
Controller	Memory size	Processor
AMD Radeon 840M Graphics	Shared system memory	AMD Ryzen AI 5 PRO 340 processors
AMD Radeon 860M Graphics	Shared system memory	AMD Ryzen AI 7 PRO 360 processors
AMD Radeon 890M Graphics	Shared system memory	AMD Ryzen AI 9 HX PRO 370 processors

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Dell Pro Max 16 MC16255.

Table 1. GPU—Discrete
The following table provides the detailed discrete graphics specifications of Dell Pro Max 16 MC16255.
Controller	Memory size	Memory type
NVIDIA RTX PRO 500-Blackwell	6 GB	GDDR7
NVIDIA RTX PRO 1000-Blackwell	8 GB	GDDR7

Multiple display support matrix

The following table lists the multiple display support matrix for your Dell Pro Max 16 MC16255.

Table 1. Multiple display support matrixThe following table provides the multiple display support matrix for your Dell Pro Max 16 MC16255.
Graphics Card	Direct Graphics Controller Direct Output Mode	Supported external displays with computer internal display on	Supported external displays with computer internal display off
AMD Radeon 840M Graphics	Not supported	3	4
AMD Radeon 860M Graphics	Not supported	3	4
AMD Radeon 890M Graphics	Not supported	3	4
NVIDIA RTX PRO 500-Blackwell	Not supported	3	4
NVIDIA RTX PRO 1000-Blackwell	Not supported	3	4

Hardware security

The following table lists the hardware security of your Dell Pro Max 16 MC16255.

Table 1. Hardware security The following table provides the hardware security details on your Dell Pro Max 16 MC16255.
Hardware security
One wedge-shaped lock slot
Windows Hello - Fingerprint Reader (optional)
Trusted Platform Module (TPM) 2.0 discrete
FIPS 140-2 certification for TPM
TCG Certification for TPM (Trusted Computing Group)
Fingerprint reader in power button available with and without ControlVault 3 Plus
ControlVault 3 Plus Advanced Authentication with FIPS 140-3 Level 3 Certification (optional)
Contacted Smart Card and ControlVault 3 Plus
Contactless Smart Card, NFC, and ControlVault 3 Plus
SED SSD NVMe, SSD per SDL

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Dell Pro Max 16 MC16255.

Table 1. Contactless smart-card reader specificationsThe following table lists the contactless smart-card reader specifications on your Dell Pro Max 16 MC16255.
Title	Description	Dell ControlVault 3 Plus Contactless smart-card reader with NFC
Felica Card Support	Reader and software capable of supporting Felica contactless cards	Yes
Prox (Proximity) (125kHz) Card support	Reader and software capable of supporting Prox /Proximity/125 kHz contactless cards	No
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC compliant tag information	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer to Peer mode	Yes
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for operating system to utilize	Yes
PC/SC operating system interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for operating system level drivers	Yes
Dell ControlVault support	The device connects to Dell ControlVault for usage and processing	Yes

NOTE:125 Khz proximity cards are not supported.

Table 2. Supported cardsThe following table lists the supported cards on your Dell Pro Max 16 MC16255.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	DESFIRE 4K Standard - 1450NGGNN
	iClass 16K/16 - 2002PGGMN
	iClass SR 16K/16 - 2002HPGGMN
	iCLASS 2K tag
	iCLASS GP - 2003 PGGMN
	iClass Clamshell - 2080PMSMV
	iClass Prox 16K/16 - 2022BGGMNN
	Mifare M1P 1430 NGGNN
	iclass Prox 2020BGGMNM
	DesFire D8P 1456CSGMN
	iCLASS MIFARE Px GM49Y 2623BNPGGBNAB
	iCLASS MIFARE Px 8M1L
	iClass SEOS JW 5006PGGMN
	Crescendo iCLASS Px G8H
	iCLASS Seos IY
	SEOS JMC4 J1Y 5806VNG1NNN4
	SEOS Key FOB 5266PNNA
	SEOS Clamshell 5656PMSAV
	SEOS + Prox 5106RGGMNN
	SEOS + DESFire 5906PNG1ANN7
	SEOS iClass 5006PGGMN7
	Seos Essential + Prox 551PPGGANN
	iCLASS 2K 2000PGGMN
	iCLASS 2K 3000PGGMN
	MIFARE DESFire 3700CPGGAN
	iCLASS DP
	DESFire 1Y
NXP/Mifare	Mifare DESFire 8K White PVC card
	Mifare Classic 1K White PVC card
	NXP Mifare Classic S50 ISO card
	Mifare DESFire 2K
	Mifare Plus S 2K/4K
	Mifare Plus X 4K
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80K Dual + 1K Mifare
	SCE6.0 nonFIPS 80K Dual + 1K Mifare
	SCE6.0 FIPS 144K Dual + 1K Mifare
	SCE6.0 nonFIPS 144K Dual + 1K Mifare
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K
	ID-One Cosmo 64 RSA D V5.4 T = 0 card
	ID-One Cosmo 128K V5.5 card
Gemalto	TOP DL GX4 144K card
Sony	Felica RC-S962
	Felica RC-S965
	Felica RC-S966
PIVKey	C910 PKI
NIST	PIV1
IDENTIV	PIV programmed cards
IDENTIV	uTrust
Transport cards	Oyster (London) MIFARE DESFire
	T-Money (Korea)
	Octopus Card (Hong Kong)
	SUICA (Japan)

Table 3. Qualified NFC tagsThe following table lists the qualified NFC tags on your Dell Pro Max 16 MC16255.
NFC tag	Supported
Tap and do - NFC Forum Type 1 Tag - Topaz 512 (BCM920203)	Yes
Tap and do - NFC Forum Type 1 Tag - Topaz 512 (BCM20203T512)	Yes
Tap and do - NFC Forum Type 1 Tag - Topaz (BCM20203T96)	Yes
Tap and do - NFC Forum Type 2 Tag - Mifare UltraLight	Yes
Tap and do - NFC Forum Type 2 Tag - Mifare UltraLight C	Yes
Tap and do - NFC Forum Type 2 Tag - NTAG203	Yes
Tap and do - NFC Forum Type 3 Tag - FeliCa Lite RC-S965	Yes
Tap and do - NFC Forum Type 3 Tag - FeliCa RC-S962	Yes
Tap and do - NFC Forum Type 4 Tag - Mifare DESFire EV1Card 2K	Yes
Tap and do - NFC Forum Type 4 Tag - Mifare DESFire EV1Card 4K	Yes
Tap and do - NFC Forum Type 4 Tag - Mifare DESFire EV1Card 8K	Yes
Tap and do - ISO 15693 - Tag-it Plus	Yes
HID I-code ISO card	Yes

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Dell Pro Max 16 MC16255.

Table 1. Contacted smart-card reader specificationsThe following table lists the contacted smart-card reader specifications on your Dell Pro Max 16 MC16255.
Title	Description	Dell ControlVault 3 smart-card reader
ISO 7816 -3 Class A Card Support	Reader capable of reading 5V powered smart mcard	Yes
ISO 7816 -3 Class B Card Support	Reader capable of reading 3V powered smart card	Yes
ISO 7816 -3 Class C Card support	Reader capable of reading 1.8V powered smart card	Yes
ISO 7816-1 Compliant	Specification for the reader	Yes
ISO 7816 -2 Compliant	Specification for smart card device physical characteristics (size, location of connection points, etc.)	Yes
T=0 support	Cards support character level transmission	Yes
T=1 support	Cards support block level transmission	Yes
EMVCo Compliant	Compliant with EMVCo (for electronic payment standards) smart card standards as posted to www.emvco.com	Yes
EMVCo Certified	Formally certified based on EMVCO smart card standards	Yes
PC/SC OS interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for OS level drivers.	Yes
Windows Certified	Device certified by WHCK	Yes
FIPS 201 (PIV/HSPD-12) Compliant via GSA	Device compliant with FIPS 201/PIV/HSPD-12 requirements	Yes
FIDO2 compliance	Dell ControlVault 3 Smart-card reader is compliant with the FIDO SPEC	Yes

Operating and storage environment

This table lists the operating and storage specifications of your Dell Pro Max 16 MC16255.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Pro Max 16 MC16255.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10,000 ft)	-15.2 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

ComfortView Plus

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Dell Optimizer

Dell Optimizer is an AI-based software application that allows you to customize your computer settings for power and battery, and more.

For Dell Pro Max 16 MC16255 with Dell Optimizer, you can:

Extend the battery life of your computer with Intelligent Battery Extender and Dynamic Charge.
Tune the performance, power consumption, cooling, and fan noise with selectable thermal modes.
Access and secure your computer depending on your physical presence.
Download and redeem the apps that are purchased with your computer.

For more information about configuring and using these features, search for Dell Optimizer at the Dell Support Site.
