Dimensions and weight
The following table lists the height, width, depth, and weight of your Dell Pro Max 14 Premium MA14250.
| Description | Values | |
|---|---|---|
| Height: | ||
| Front height |
|
|
| Rear height |
|
|
| Peak height |
|
|
| Width |
310.60 mm (12.23 in.) |
|
| Depth |
212.46 mm (8.36 in.) |
|
| Weight NOTE:The weight of your
computer depends on the configuration that you ordered.
|
Minimum: 1.61 kg (3.55 lb) |
|
Processor
The following table lists the details of the processors that are supported in your Dell Pro Max 14 Premium MA14250.
| Description | Option one | Option two | Option three | |
|---|---|---|---|---|
| Processor type |
Intel Core Ultra 7 255H |
Intel Core Ultra 7 265H vPro Enterprise |
Intel Core Ultra 9 285H vPro Enterprise |
|
| Processor wattage |
45 W |
45 W |
45 W |
|
| Processor total core count |
16 |
16 |
16 |
|
| Performance-cores |
6 |
6 |
6 |
|
| Efficient-cores |
8 |
8 |
8 |
|
| Low Power Efficient-cores |
2 |
2 |
2 |
|
| Processor total thread
counts NOTE:Intel
Hyper-Threading Technology is only available on
Performance-cores.
|
16 |
16 |
16 |
|
| Processor speed |
Up to 5.10 GHz |
Up to 5.30 GHz |
Up to 5.40 GHz |
|
| Performance-cores frequency | ||||
| Processor base frequency |
2.00 GHz |
2.20 GHz |
2.90 GHz |
|
| Maximum turbo frequency |
5.10 GHz |
5.30 GHz |
5.40 GHz |
|
| Efficient-cores frequency | ||||
| Processor base frequency |
1.50 GHz |
1.70 GHz |
2.70 GHz |
|
| Maximum turbo frequency |
4.50 GHz |
4.50 GHz |
4.40 GHz |
|
| Low Power Efficient-cores frequency | ||||
| Processor base frequency |
700 MHz |
700 MHz |
1.00 GHz |
|
| Maximum turbo frequency |
2.50 GHz |
2.50 GHz |
2.50 GHz |
|
| Processor cache |
24 MB |
24 MB |
24 MB |
|
| Integrated graphics |
Intel Arc 140T GPU |
Intel Arc Pro 140T GPU |
Intel Arc Pro 140T GPU |
|
| Neural Processing Units (NPU) Performance | Up to 13 TOPS |
Up to 13 TOPS |
Up to 13 TOPS |
|
Chipset
The following table lists the details of the chipset that is supported by your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| Chipset |
Integrated (Intel Arrow Lake-H) |
| Processor |
|
| DRAM bus width |
128-bit |
| Flash EPROM |
64 MB (SBIOS) + 32 MB (VBIOS) |
| PCIe bus |
Up to Gen5 |
Operating system
Your Dell Pro Max 14 Premium MA14250 supports the following operating systems:
- Windows 11 Home
- Windows 11 Pro
- Ubuntu Linux 24.04 LTS, 64-bit
Memory
The following table lists the memory specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Values | |
|---|---|---|
| Memory slots |
Onboard memory
NOTE:The memory
is integrated on the system board and is not upgradable.
|
|
| Memory type |
Dual-channel LPDDR5x |
|
| Memory speed |
8400 MT/s |
|
| Maximum memory configuration |
64 GB |
|
| Minimum memory configuration |
16 GB |
|
| Memory configurations supported |
|
|
External ports and slots
The following table lists the external ports and slots on your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| USB ports |
|
| Audio port |
One global headset port |
| Video port(s) |
|
| Media-card reader |
One microSD-card slot |
| Power-adapter port |
USB Type-C |
| Security-cable slot |
One wedge-shaped lock slot |
Internal slots
The following table lists the internal slots of your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| M.2 |
One M.2 Key-M (2230 or 2280) slot for a solid state drive NOTE:To learn more about the features of
different types of M.2 cards, search Dell Support Site.
|
Wireless module
The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| Model number |
Intel Wi-Fi 7 BE201 |
| Transfer rate |
Up to 5 Gbps |
| Frequency bands supported |
2.4 GHz/5 GHz/6 GHz
NOTE:The 6 GHz
frequency is only supported on computers that are installed with
the Windows 11 operating system.
|
| Wireless standards |
|
| Encryption |
|
| Bluetooth wireless card NOTE:The functionality of
the Bluetooth wireless card may vary based on the operating
system. |
Bluetooth 5.4 wireless card
NOTE:The wireless card is integrated on the
system board. |
Audio
The following table lists the audio specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Values | |
|---|---|---|
| Audio controller |
Cirrus Logic CS42L43 |
|
| Stereo conversion |
Supported |
|
| Internal audio interface |
SoundWire interface |
|
| External audio interface |
One global headset port |
|
| Number of speakers |
Four (Two tweeter speakers and two woofer speakers) |
|
| Internal-speaker amplifier |
Supported |
|
| External volume controls |
Keyboard shortcut controls |
|
| Speaker output: | ||
| Average |
|
|
| Peak |
|
|
| Microphone |
Dual digital-array microphones |
|
Storage
This section lists the storage options on your Dell Pro Max 14 Premium MA14250.
Your Dell Pro Max 14 Premium MA14250 supports:
| Storage type | Interface type | Capacity |
|---|---|---|
|
M.2 2280 solid state drive, TLC with DRAM, Self-Encrypting Ready |
PCIe NVMe Gen4 x4 |
up to 2 TB |
|
M.2 2230 solid state drive, TLC
NOTE:To replace your M.2 2280 with an M.2 2230
SSD, you must purchase the Dell SSD bracket kit to self-install
the M.2 2230 SSD in the SSD slot. |
PCIe NVMe Gen4 x4 |
up to 512 GB |
Media-card reader
The following table provides the specification of media cards that are supported by your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| Media-card slot type |
One microSD card slot |
| Media-cards supported |
|
|
NOTE:The maximum
capacity of the media-card reader varies depending on the standard
of the media card that is inserted in your computer.
|
|
Keyboard
The following table lists the keyboard specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| Keyboard type |
Zero-lattice, spill-resistant keyboard with battery-saving mini-LED backlit technology and standard AI hotkey |
| Keyboard layout |
QWERTY |
| Number of keys |
|
| Key pitch |
X=19.05 mm key pitch Y=18.05 mm key pitch
NOTE:The key travel distance is
1.0 mm. |
| Keyboard shortcuts |
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.
NOTE:You can define the primary behavior of the function keys (F1–F12) changing
Function Key Behavior in BIOS setup program.
|
Keyboard shortcuts
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).
| Function key | Primary behavior |
|---|---|
| F1 | Mute or unmute audio |
| F2 | Decrease volume |
| F3 | Increase volume |
| F4 | Microphone Mute |
| F5 | Keyboard Illumination/Backlight |
| F6 | Decrease brightness |
| F7 | Increase brightness |
| F8 | Switch to external display |
| F10 | Print screen |
| F11 | Home |
| F12 | End |
The Fn key is also used with selected keys on the keyboard to invoke secondary functions.
| Function key | Secondary behavior |
|---|---|
| fn + F1 | Operating system and application-specific F1 behavior |
| fn + F2 | Operating system and application-specific F2 behavior |
| fn + F3 | Operating system and application-specific F3 behavior |
| fn + F4 | Operating system and application-specific F4 behavior |
| Fn + F5 | Operating system and application-specific F5 behavior |
| fn + F6 | Operating system and application-specific F6 behavior |
| fn + F7 | Operating system and application-specific F6 behavior |
| fn + F8 | Operating system and application-specific F8 behavior |
| fn + F9 | Operating system and application-specific F9 behavior |
| Fn + F10 | Operating system and application-specific F10 behavior |
| fn + F11 | Operating system and application-specific F11 behavior |
| fn + F12 | Operating system and application-specific F12 behavior |
| fn + Ctrl | Open the application menu |
| fn + Esc | Toggle between multimedia and function key behavior |
| fn + PgUp | Scroll up the document or page |
| fn + PgDn | Scroll down the document or page |
| fn + Home | Move to the beginning of the document |
| fn + End | Move to the end of the document |
| Copilot | Launch Copilot in Windows NOTE: If Copilot in Windows is not available on
your computer, the Copilot key launches Recall. If both Recall
and Copilot in Windows are not available on your computer, the
Copilot key launches Windows Search. For more information about
Copilot in Windows and Recall, search in the Knowledge Base
Resource at the Dell Support Site. |
Camera
The following table lists the camera specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Values | ||
|---|---|---|---|
| Number of cameras |
One |
||
| Camera type |
8MP RGB and IR camera |
||
| Camera location |
Front camera |
||
| Camera sensor type |
CMOS sensor technology |
||
| Camera resolution: | |||
| Still image |
8.29 megapixels |
||
| Video |
2560 x 1440 at 30 fps |
||
| Infrared camera resolution: | |||
| Video |
640 x 400 at 30 fps |
||
| Diagonal viewing angle: | |||
| Camera |
88.1 degrees |
||
| Infrared camera |
86.6 degrees |
||
Touchpad
The following table lists the touchpad specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Values | |
|---|---|---|
| Touchpad resolution: | ||
| Horizontal |
> 300 dpi |
|
| Vertical |
> 300 dpi |
|
| Touchpad dimensions: | ||
| Horizontal |
130 mm (5.12 in.) |
|
| Vertical |
70 mm (2.76 in.) |
|
| Touchpad gestures | For more information about the touchpad gestures that are available on:
|
|
Power adapter
The following table lists the power adapter specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Option one | Option two |
|---|---|---|
| Type |
100 W AC adapter,
USB-C
NOTE:The 100 W AC adapter is only
available for purchase with computers that are shipped with
integrated graphics. |
130 W AC adapter, USB-C |
| Power-adapter dimensions: | ||
| Height |
26.50 mm (1.04 in.) |
22.00 mm (0.87 in.) |
| Width |
60.00 mm (2.36 in.) |
66.00 mm (2.60 in.) |
| Depth |
122.00 mm (4.80 in.) |
143.00 mm (5.63 in.) |
| Input voltage |
100 VAC to 240 VAC |
100 VAC to 240 VAC |
| Input frequency |
50 Hz to 60 Hz |
50 Hz to 60 Hz |
| Input current (maximum) |
1.70 A |
1.80 A |
| Output current (continuous) |
|
|
| Rated output voltage |
|
|
| Temperature range: | ||
| Operating |
0°C to 40°C (32°F to 104°F) |
0°C to 40°C (32°F to 104°F) |
| Storage |
-40°C to 70°C (-40°F to 158°F) |
-40°C to 70°C (-40°F to 158°F) |
|
CAUTION:Operating and storage temperature ranges may differ among
components, so operating or storing the device outside these
ranges may impact the performance of specific components.
|
||

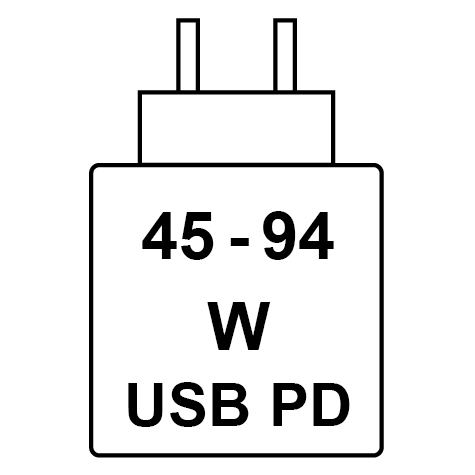

Power adapter requirements
The following table lists the power adapter requirements for your Dell Pro Max 14 Premium MA14250.
| Description | Value |
|---|---|
| Power that is required from a power adapter to achieve optimal performance | 60 W |
| Power that charges the computer at a
slower speed NOTE:A
warning message may appear informing you about the use of a
lower-powered adapter and slower charging speed.
|
Less than 60 W |
| Minimum power that is required from a
power adapter to operate the computer and charge the battery NOTE:A warning message
appears informing you about the use of a lower-powered adapter
and slower charging speed.
|
60 W |
| USB Power Delivery (PD) fast charging | Supported |
| ExpressCharge mode | Supported NOTE:Ensure the
computer with a 72 Wh battery is connected to a power adapter
that is rated 94 W and above to support this feature.
|
Battery
The following table lists the battery specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Option one | Option two | |
|---|---|---|---|
| Battery type |
4-cell, 72 Wh, ExpressCharge |
4-cell, 72 Wh, ExpressCharge, Long Life Cycle |
|
| Battery voltage |
15.6 VDC |
15.6 VDC |
|
| Battery weight (maximum) |
0.27 kg (0.60 lb) |
0.27 kg (0.60 lb) |
|
| Battery dimensions: | |||
| Height |
7.64 mm (0.30 in.) |
7.64 mm (0.30 in.) |
|
| Width |
266.62 mm (10.45 in.) |
266.62 mm (10.45 in.) |
|
| Depth |
72.68 mm (2.86 in.) |
72.68 mm (2.86 in.) |
|
| Temperature range: | |||
| Operating |
|
|
|
| Storage |
–20°C to 65°C (-4°F to 149°F) |
–20°C to 65°C (-4°F to 149°F) |
|
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions | |
| Battery charging time (approximate)
NOTE:You can control the
charging time, duration, start and end time using the Dell Power
Manager application. For more information about Dell Power Manager,
search Dell Support Site.
|
|
|
|
| Coin-cell battery |
Not supported |
Not supported |
|
|
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.
|
|||
Power requirements

The power that is delivered by the charger must be between a minimum of 45 Watts that is required by the radio equipment, and a maximum of 94 Watts in order to achieve the maximum charging speed.
This computer supports USB Power Delivery (PD) fast charging.
Display
The following table lists the display specifications of your Dell Pro Max 14 Premium MA14250.
| Description | Option one | Option two | |
|---|---|---|---|
| Display type |
14-inch, Full High Definition+ (FHD+) |
14-inch, Quad High Definition (UHD+ OLED) |
|
| Touch options |
Not supported |
Supported |
|
| Display-panel technology |
Wide-viewing angle (WVA) |
Wide-viewing angle (WVA) |
|
| Display-panel dimensions (active area): | |||
| Height |
188.50 mm (7.42 in.) |
188.50 mm (7.42 in.) |
|
| Width |
301.60 mm (11.87 in.) |
301.60 mm (11.87 in.) |
|
| Diagonal |
355.60 mm (14.00 in.) |
355.60 mm (14.00 in.) |
|
| Display-panel native resolution |
1920 x 1200 |
2880 x 1800 |
|
| Luminance (typical) |
400 nits |
400 nits |
|
| Megapixels |
2.30 |
5.18 |
|
| Color gamut |
100% sRGB |
100% DCI-P3 |
|
| Pixels Per Inch (PPI) |
162 ppi |
242 PPI |
|
| Contrast ratio (minimum) |
|
Typical: 1000000:1 |
|
| Response time (maximum) |
35 ms |
2 ms |
|
| Refresh rate |
30 Hz to 60 Hz |
30 Hz to 60 Hz |
|
| Horizontal view angle |
|
|
|
| Vertical view angle |
|
|
|
| Pixel pitch |
0.15708 mm |
0.1047 mm |
|
| Power consumption (maximum) |
2.5 W (at mosaic pattern, 60 Hz) |
5.63 W (at mosaic pattern, 60 Hz) |
|
| Anti-glare vs glossy finish |
Anti-glare |
Anti-reflection |
|
Fingerprint reader (optional)
The following table lists the specifications of the optional fingerprint-reader of your Dell Pro Max 14 Premium MA14250.
| Description | Values |
|---|---|
| Sensor technology |
Capacitive sensing |
| Sensor resolution |
500 dpi |
| Sensor pixel size |
108 x 88 pixels |
Sensors
The following table lists the sensors of your Dell Pro Max 14 Premium MA14250.
| Sensor support |
|---|
| Ambient Light Sensor |
| Windows Auto Brightness |
| IR User Proximity Detection |
| Accelerometer |
| Adaptive Thermal Performance (laptop compared with desktop
mode) requires Gyro/Accelerometer NOTE:This is for
thermal only.
|
| Hall Effect Sensor |
| Sensor Hub (integrated) |
GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Pro Max 14 Premium MA14250.
| Controller | Memory size | Processor |
|---|---|---|
|
Intel Arc 140T GPU |
Shared system memory |
Intel Core Ultra 7 processor |
|
Intel Arc Pro 140T GPU |
Shared system memory |
Intel Core Ultra 7/9 vPro Enterprise processors |
GPU—Discrete
The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Dell Pro Max 14 Premium MA14250.
| Controller | Memory size | Memory type |
|---|---|---|
|
NVIDIA RTX PRO 1000-Blackwell |
8 GB |
GDDR7 |
|
NVIDIA RTX PRO 2000-Blackwell |
8 GB |
GDDR7 |
Multiple display support matrix
The following table lists the multiple display support matrix for your Dell Pro Max 14 Premium MA14250.
| Graphics Card | Direct Graphics Controller Direct Output Mode | Supported external displays with computer internal display on | Supported external displays with computer internal display off |
|---|---|---|---|
|
Intel Arc 140T GPU |
Not supported |
3 |
4 |
|
Intel Arc Pro 140T GPU |
Not supported |
3 |
4 |
|
NVIDIA RTX PRO 1000-Blackwell |
Supported |
3 |
4 |
|
NVIDIA RTX PRO 2000-Blackwell |
Supported |
3 |
4 |
Hardware security
The following table lists the hardware security of your Dell Pro Max 14 Premium MA14250.
| Hardware security |
|---|
| One wedge-shaped lock slot |
| Windows Hello - Fingerprint reader (optional) |
| Trusted Platform Module (TPM) 2.0 discrete |
| FIPS 140-2 certification for TPM |
| TCG Certification for TPM (Trusted Computing Group) |
| Optional fingerprint reader in power button |
| SED SSD NVMe, SSD per SDL |
Operating and storage environment
This table lists the operating and storage specifications of your Dell Pro Max 14 Premium MA14250.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
| Description | Operating | Storage |
|---|---|---|
| Temperature range |
0°C to 35°C (32°F to 95°F) |
-40°C to 65°C (-40°F to 149°F) |
| Relative humidity (maximum) |
10% to 90% (non-condensing) |
0% to 95% (non-condensing) |
| Vibration (maximum)* |
0.66 GRMS |
1.30 GRMS |
| Shock (maximum) |
110 G† |
160 G† |
| Altitude range |
-15.2 m to 3048 m (49.87 ft to 10,000 ft) |
-15.2 m to 10,668 m (49.87 ft to 35,000 ft) |
|
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
|
||
* Measured using a random vibration spectrum that simulates the user environment.
† Measured using a 2 ms half-sine pulse.
Dell support policy
For information about Dell support policy, search Dell Support Site.
Dell low blue light display
Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.
Low blue light mode is enabled at the factory, so no further configuration is necessary.
To reduce the risk of eye strain, it is also recommended that you:
- Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
- Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
- Take an extended break for 20 minutes every two hours.
- Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
Dell Optimizer
Dell Optimizer is an AI-based software application that allows you to customize your computer settings for power and battery, and more.
- Extend the battery life of your computer with Intelligent Battery Extender and Dynamic Charge.
- Tune the performance, power consumption, cooling, and fan noise with selectable thermal modes.
- Access and secure your computer depending on your physical presence.
- Download and redeem the apps that are purchased with your computer.
For more information about configuring and using these features, search for Dell Optimizer at the Dell Support Site.
