Dell 14S DS14265: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell 14S DS14265.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell 14S DS14265.
Description		Values
Front height		6.89 mm (0.27 in.)
Rear height		11.40 mm (0.45 in.)
Width		313.70 mm (12.35 in.)
Depth		224.00 mm (8.82 in.)
Minimum Weight NOTE:The weight of your computer depends on the configuration that you ordered.		For computers shipped with (Non-Touch screen-FHD): 1.46 kg (3.22 lb) For computers shipped with (Touch screen-FHD OLED): 1.51 kg (3.33 lb)

Processor

The following table lists the details of the processors that are supported in your Dell 14S DS14265.

Table 1. Processor The following table lists the details of the processors that are supported in your Dell 14S DS14265.
Description	Option 1	Option 2
Processor type	AMD Ryzen AI 7 445: Worldwide excludes China, Hong Kong, and Taiwan AMD Ryzen AI 7 H 445: China, Hong Kong, and Taiwan	AMD Ryzen AI 5 430: Worldwide excludes China, Hong Kong, and Taiwan AMD Ryzen AI 5 H 430: China, Hong Kong, and Taiwan
Processor wattage	15 W-54 W	15 W-28 W
Processor total core count	6	4
Performance-cores	2	1
Efficient-cores	4	3
Processor total thread count	12	8
Processor speed	Up to 4.6 GHz	Up to 4.5 GHz
Performance-cores frequency
Processor base frequency	2.0 GHz	2.0 GHz
Maximum turbo frequency	4.6 GHz	4.5 GHz
Efficient-cores frequency
Processor base frequency	2.0 GHz	2.0 GHz
Maximum turbo frequency	3.4 GHz	3.4 GHz
Processor cache	L2: 6 MB L3: 8 MB	L2: 4 MB L3: 8 MB
Integrated graphics	AMD Radeon 840M Graphics	AMD Radeon 840M Graphics
Neural Processing Units (NPU) Performance	50 NTOPS	50 NTOPS

Chipset

The following table lists the details of the chipset that is supported on your Dell 14S DS14265.

Table 1. Chipset The following table lists the details of the chipset that is supported on your Dell 14S DS14265.
Description	Values
Chipset	Integrated in the processor
Processor	Worldwide excludes China, Hong Kong, and Taiwan: AMD Ryzen AI 7 445 AMD Ryzen AI 5 430 China, Hong Kong, and Taiwan: AMD Ryzen AI 7 H 445 AMD Ryzen AI 5 H 430
DRAM bus width	LPDDR5x Quad 32-bit channel
Flash EPROM	64 MB
PCIe bus	Up to Gen4

Operating system

Your Dell 14S DS14265 supports the following operating systems:

Windows 11 Home
Windows 11 Pro

Memory

The following table lists the memory specifications of your Dell 14S DS14265.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Dell 14S DS14265.
Description		Values
Memory slots		Onboard memory NOTE:The memory is integrated on the system board and is not upgradable.
Memory type		Dual-channel LPDDR5x
Memory speed		8000 MT/s
Maximum memory configuration		32 GB
Minimum memory configuration		16 GB
Memory configurations supported		16 GB, LPDDR5x, 8000 MT/s, dual-channel (onboard) 32 GB, LPDDR5x, 8000 MT/s, dual-channel (onboard)

External ports and slots

The following table lists the external ports and slots on your Dell 14S DS14265.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell 14S DS14265.
Description	Values
USB ports	Two USB 3.2 Gen 1 (5 Gbps) ports Two USB4 (40 Gbps) ports with Power Delivery and DisplayPort 2.1 NOTE: You can connect a Dell Docking Station to these ports. For more information, search in the Knowledge Base Resource at Dell Support Site.
Audio port	One global headset port
Video port(s)	Two USB4 (40 Gbps) ports with Power Delivery and DisplayPort 2.1 One HDMI 2.1 port
Media-card reader	Not supported
Power-adapter port	USB Type-C
Security-cable slot	Not applicable

Internal slots

The following table lists the internal slots of your Dell 14S DS14265.

Table 1. Internal slotsThe following table lists the internal slots on your Dell 14S DS14265.
Description	Values
M.2	One M.2 Key-M (2230) slot for a solid state drive One M.2 2230 Key-E slot for Wi-Fi and Bluetooth combo card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell 14S DS14265.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell 14S DS14265.
Description	Values
Model number	MediaTek MT7925
Transfer rate	Up to 2882 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (Wi-Fi 802.11n) Wi-Fi 5 (Wi-Fi 802.11ac) Wi-Fi 6E (Wi-Fi 802.11ax) Wi-Fi 7 (Wi-Fi 802.11be)
Encryption	128-bit AES-CCMP 256-bit AES-GCMP 256-GMAC
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.4 wireless card

Audio

The following table lists the audio specifications of your Dell 14S DS14265.

Table 1. Audio specificationsThe following table provides the detailed audio specifications of Dell 14S DS14265.
Description		Values
Audio controller		Cirrus Logic SmartAmps
Stereo conversion		Supported
Internal audio interface		Soundwire
External audio interface		One global headset port
Number of speakers		Two
Internal-speaker amplifier		Supported
External volume controls		Keyboard shortcut controls
Speaker output:
Average		2 W + 2 W = 4 W
Peak		10 W + 10 W = 20 W
Microphone		Dual-array digital microphones

Storage

This section lists the storage options on your Dell 14S DS14265.

Your Dell 14S DS14265 supports one M.2 solid state drive slot. The primary drive is the M.2 2230 solid-state drive:

512 GB SSD TLC M.2 2230 PCIe Gen4
1 TB SSD TLC M.2 2230 PCIe Gen4
2 TB SSD TLC M.2 2230 PCIe Gen4

Table 1. Storage specifications
The following table provides the different storage options available on Dell 14S DS14265.
Storage type	Interface type	Capacity
M.2 2230 solid state drive	PCIe NVMe Gen4 x4	Up to 2 TB

Keyboard

The following table lists the keyboard specifications of your Dell 14S DS14265.

Table 1. Keyboard specificationsThe following table lists the keyboard specifications of your Dell 14S DS14265.
The following table provides the detailed keyboard specifications of Dell 14S DS14265.
Description	Values
Keyboard type	Lattice, spill-resistant keyboard with traditional LED backlit technology and standard AI hotkey
Keyboard layout	QWERTY
Number of keys	Arabic, Canada (Bilingual) (MUI), English International, English US, Greek, Hebrew: 99 keys Belgian, Czech/Slovak (MUI), English UK, French (European), German, Hungarian, Italian, Nordic (MUI), Portuguese, Spanish (Castilian), Swiss/European, Turkish: 100 keys Japanese: 103 keys
Key pitch	X=18.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Keyboard function keys

The F1-F12 keys at the top of the keyboard are function keys. By default, these keys are used to perform specific functions defined by the software application in use.

You can run the specific functions that are indicated by the symbols on the function keys by pressing the function key with fn, for example, fn and F1. See the table below for the list of specific functions and the key combinations to run them.

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for tasks remain the same, regardless of the keyboard language.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.

Table 1. Specific functions of the keyboard keys
The following table lists the keyboard shortcuts and their descriptions.
Key combination for task	What the task does
fn and F1	Mutes audio
fn and F2	Decreases audio volume
fn and F3	Increases audio volume
fn and F4	Mic mute with LED indicator
fn and F5	Dictation (Built-in voice typing)
fn and F6	Keyboard backlight
fn and F7	Decreases display brightness
fn and F8	Increases display brightness
fn and F9	Switches to an external display
fn and F10	Print screen
fn and F11	Home
fn and F12	End
fn and esc	Locks the fn key on and off
fn and ctrl	Opens the menu of the software application

Keys with alternate characters

There are other keys on your keyboard with alternate characters. The symbols that are shown at the bottom of these keys are the main characters that are displayed when the key is pressed; the symbols that are shown at the top of these keys are displayed when the key is pressed with the shift key. For example, if you press 2, 2 is displayed; if you press shift and 2, @ is displayed.

Camera

The following table lists the camera specifications of your Dell 14S DS14265.

Table 1. Camera specificationsThe following table provides the detailed camera specifications of Dell 14S DS14265.
Description			Values
Number of cameras			One
Camera type			FHD RGB and IR with User Presence Detection (UPD) camera
Camera location			Front camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			2.07 megapixel
Video			1920 x 1080 (FHD) at 30 fps
Infrared camera resolution:
Video			360 x 360 at 15 fps
Diagonal viewing angle:
Camera			83.00 degrees
Infrared camera			81.30 degrees

Touchpad

The following table lists the touchpad specifications of your Dell 14S DS14265.

Table 1. Touchpad specificationsThe following table provides the detailed touchpad specifications of Dell 14S DS14265.
Description		Values
Touchpad resolution:		> 300 dpi
Touchpad dimensions:
Horizontal		130 mm (5.12 in.)
Vertical		90 mm (3.54 in.)
Touchpad gestures		For more information about the touchpad gestures available on Windows, search Microsoft Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell 14S DS14265.

Table 1. Power-adapter specificationsThe following table provides the detailed power adapter specifications of Dell 14S DS14265
Description		Values
Type		65 W AC adapter, USB-C
Power-adapter dimensions:
Height		26.50 mm (1.04 in.)
Width		60.00 mm (2.36 in.)
Depth		96.50 mm (3.80 in.)
Input voltage		100 VAC to 240 VAC
Input frequency		50 Hz to 60 Hz
Input current (maximum)		1.70 A
Output current (continuous)		20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9 V/3 A (Continuous) 5 V/3 A (Continuous)
Rated output voltage		20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating		0°C to 35°C (32°F to 95°F)
Storage		–40°C to 70°C (–40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements of Dell 14S DS14265

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell 14S DS14265.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell 14S DS14265.
Description	Value
Power that is required from a power adapter to achieve optimal performance	65 W
Power that charges the computer at a slower speed NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 65 W
Minimum power that is required from a power adapter to operate the computer and charge the battery NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE:Ensure that the computer with a 70 Wh battery is connected to a 65 W power adapter for this feature to be supported. NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen. Select Power > Battery Configuration > ExpressCharge, then press Enter.

Battery

The following table lists the battery specifications of your Dell 14S DS14265.

Table 1. Battery specificationsThe following table provides the detailed battery specifications of Dell 14S DS14265.
Description		Values
Battery type		3-cell, 70 Wh, ExpressCharge
Battery voltage		11.70 VDC
Battery weight (maximum)		0.26 kg (0.57 lb)
Battery dimensions:
Height		5.65 mm (0.22 in.)
Width		272.00 mm (10.71 in.)
Depth		84.70 mm (3.33 in.)
Temperature range:
Operating		Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0°C to 70°C (32°F to 158°F)
Storage		-20°C to 60°C (-40°F to 140°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the settings on the Dell Optimizer application. For more information about Dell Optimizer application, search Dell Support Site.		ExpressCharge: 2 hours Standard charge: 3 hours When the computer is off
Coin-cell battery		Not supported
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption. NOTE:To help preserve battery health, the battery may enter Storage Mode after an extended period of inactivity (approximately three weeks or longer). If the charge level becomes critically low during storage, the battery may disable certain functions as a protective measure. Connect the AC adapter to power on the computer and recharge the battery. For more information about Storage Mode, see Battery Storage Mode at Dell Support Site.

Power requirements (for computers shipped with 3-cell, 70 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

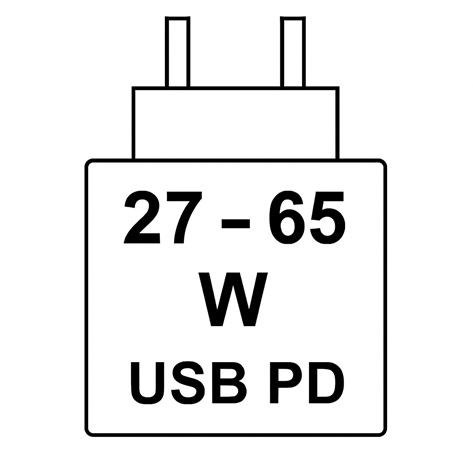

Pictogram for 70Wh battery — Figure 1. Pictogram for 70 Wh battery

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 65 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell 14S DS14265.

Table 1. Display specificationsThe following table provides the detailed display specifications of Dell 14S DS14265.
Description	Option one	Option two	Option three	Option four	Option five
Display type	14-inch, Full High Definition Plus (FHD+), ComfortView	14-inch, Full High Definition Plus (FHD+), ComfortView	14-inch, QHD+, ComfortView Plus	14-inch, Full High Definition+ (FHD+), ComfortView	14-inch, Full High Definition+ (FHD+)
Display-panel technology	In-Plane Switching (IPS), White Light Emitting Diode (WLED)	In-Plane Switching (IPS), White Light Emitting Diode (WLED)	In-Plane Switching (IPS), White Light Emitting Diode (WLED)	Organic Light Emitting Diode (OLED)	Organic Light Emitting Diode (OLED)
Display-panel dimensions (active area):
Height	188.50 mm	188.50 mm	188.50 mm	188.64 mm	188.64 mm
Width	301.59 mm	301.59 mm	301.59 mm	301.82 mm	301.82 mm
Diagonal	355.60 mm	355.60 mm	355.60 mm	355.92 mm	355.92 mm
Display-panel native resolution	1920 x 1200	1920 x 1200	2560 x 1600	1920 x 1200	1920 x 1200
Luminance (typical)	400 nits	400 nits	500 nits	300 nits	300 nits
Megapixels	2.3	2.3	4.1	2.3	2.3
Color gamut	45% NTSC (typical)	100% sRGB	100% sRGB	100% DCI-P3	100% DCI-P3 (90% min)
Pixels Per Inch (PPI)	162 ppi	162 ppi	215.6 ppi	162 ppi	162 ppi
Contrast ratio (typical)	800:1 (Typical)	800:1 (Typical)	1000:1	100000:1	100,000:1 (Typical)
Response time (maximum)	35 millisecond	35 millisecond	35 millisecond	1 millisecond	1 millisecond
Refresh rate	48-60 Hz (Fixed)	48-60 Hz (Fixed)	48-120 Hz (Fixed)	60 Hz (Fixed)	60 Hz (Fixed)
Horizontal view angle	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 85 degrees (min)	+/- 85 degrees (min)
Vertical view angle	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 80 degrees (min)	+/- 85 degrees (min)	+/- 85 degrees (min)
Pixel pitch	0.157 mm x 0.157 mm	0.157 mm x 0.157 mm	0.149 mm x 0.149 mm	0.157 mm x 0.157 mm	0.157 mm x 0.157 mm
Power consumption (maximum)	3.7 W	4.5 W	5.7 W	5.7 W	6.0 W
Anti-glare vs glossy finish	Anti-glare	Anti-glare	Anti-glare	Anti-glare	Glossy
Touch options	No	Yes	No	No	Yes

Sensors

The following table lists the sensors of your Dell 14S DS14265.

Table 1. SensorThe following table lists the sensor of your Dell 14S DS14265.
Sensor support
IR User Proximity Detection
Accelerometer (for positional sensing)
Adaptive Thermal Performance (laptop compared with desktop mode) requires Gyro/Accelerometer NOTE:This is for thermal only.
Hall Effect Sensor
Sensor Hub (integrated)

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell 14S DS14265.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell 14S DS14265.
Controller	Memory size	Processor
AMD Radeon 840M Graphics	Shared system memory	AMD Ryzen AI 7 445 AMD Ryzen AI 5 430

External display support

The following table lists the external display support for your Dell 14S DS14265.

Table 1. External display supportThe following table lists the external display support for your Dell 14S DS14265.
Graphics card	Supported external displays with laptop display enabled	Supported external displays with laptop display disabled
AMD Radeon 840M Graphics	3	4

Hardware security

The following table lists the hardware security of your Dell 14S DS14265.

Table 1. Hardware security The following table provides the hardware security details on your Dell 14S DS14265.
Hardware security
FIPS 140-3 certification for TPM
TCG Certification for TPM (Trusted Computing Group)
TPM 2.0 discrete
Chassis Intrusion Detection
BIOS - TPM clear and/or system boot lock after chassis intrusion detection

Operating and storage environment

This table lists the operating and storage specifications of your Dell 14S DS14265.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell 14S DS14265.
Description	Operating	Storage
Temperature range	0°C to 40°C (32°F to 104°F)	–40°C to 65°C (–40°F to 149°F)
Relative humidity (maximum)	Maximum 90% (non-condensing)	Maximum 90% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	Not applicable
Shock (maximum)	Not applicable	Not applicable
Altitude range	Not applicable	Not applicable
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell low blue light display

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

ComfortView

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Dell ComfortView software technology reduces harmful blue light emissions to make extended screen time easy on your eyes.

ComfortView mode can be enabled and configured using the Dell CinemaColor application.

ComfortView mode complies with TÜV Rheinland's requirement for low blue light displays.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

ComfortView Plus

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 inches and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply eye drops.
Take an extended break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Dell Optimizer

Dell Optimizer is an AI-based software application that allows you to customize your computer settings for power and battery, and more.

For Dell 14S DS14265 with Dell Optimizer, you can:

Extend the battery life of your computer with Intelligent Battery Extender and Dynamic Charge.
Tune the performance, power consumption, cooling, and fan noise with selectable thermal modes.
Download and redeem the apps that are purchased with your computer.

For more information about configuring and using these features, search for Dell Optimizer at the Dell Support Site.

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell 14S DS14265: технические характеристики и спецификации

Dimensions and weight

Processor

Chipset

Operating system

Memory

External ports and slots

Internal slots

Wireless module

Audio

Storage

Keyboard

Keyboard function keys

Keys with alternate characters

Camera

Touchpad

Power adapter

Power adapter requirements of Dell 14S DS14265

Battery

Power requirements (for computers shipped with 3-cell, 70 Wh battery)

Display

Sensors

GPU—Integrated

External display support

Hardware security

Operating and storage environment

Dell low blue light display

ComfortView

ComfortView Plus

Dell Optimizer

Dell support policy
