Dell 14 D14265: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell 14 D14265.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell 14 D14265.
Description		Values
Front height		11.35 mm (0.45 in.)
Rear height		14.30 mm (0.56 in.)
Width		313.30 mm (12.33 in.)
Depth		222.00 mm (8.74 in.)
Minimum Weight NOTE:The weight of your computer depends on the configuration that you ordered.		Minimum: 1.28 kg (2.82 lb) Maximum: 1.40 kg (3.09 lb)

Processor

The following table lists the details of the processors that are supported in your Dell 14 D14265.

Table 1. Processor (For computers shipped with AMD Ryzen 200 series) The following table lists the details of the processors that are supported in your Dell 14 D14265.
Description	Option one	Option two	Option three
Processor type	AMD Ryzen 3 210	AMD Ryzen 5 220	AMD Ryzen 7 250
Configurable Thermal Design Power (cTDP)	15 W–30 W	15 W–30 W	15 W–30 W
Thermal Mode/Thermal Design Power (TDP)
Optimized	19 W	19 W	19 W
Performance	24 W	24 W	24 W
Processor core count	4	6	8
Processor thread count	8	12	16
Processor speed	Up to 4.7 GHz	Up to 4.9 GHz	Up to 5.1 GHz
Processor cache L2	4 MB	6 MB	8 MB
Processor cache L3	8 MB	16 MB	16 MB
Integrated graphics	AMD Radeon 740M Graphics	AMD Radeon 740M Graphics	AMD Radeon 780M Graphics
Neural Processing Units (NPU) Performance	Not applicable	Not applicable	Up to 16 TOPS
Tera Operations Per Second (TOPS) is an AI performance metric that indicates how many trillions of operations an AI processor can perform per second.

Chipset

The following table lists the details of the chipset that is supported by your Dell 14 D14265.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell 14 D14265.
Description	Values
Chipset	Integrated with the processor
Processor	AMD Ryzen 3 210 AMD Ryzen 5 220 AMD Ryzen 7 250
DRAM bus width	64-bit
Flash EPROM	32 MB
PCIe bus	Up to Gen4

Operating system

Your Dell 14 D14265 supports the following operating systems:

Windows 11 Home
Windows 11 Pro
Ubuntu Linux 24.04.2 LTS

Memory

The following table lists the memory specifications that are supported by your Dell 14 D14265.

Table 1. Memory specificationsThe following table lists the memory specifications of your computer.
Description	Values
Memory slots	Two SODIMM slots
Memory type	DDR5
Memory speed	5600 MT/s
Maximum memory configuration	32 GB
Minimum memory configuration	8 GB
Memory size per slot	8 GB, 16 GB, or 32 GB
Memory configurations supported	8 GB: 1 x 8 GB, DDR5, 5600 MT/s, single-channel 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel 32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel 16 GB: 2 x 8 GB, DDR5, 5600 MT/s, dual-channel 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, dual-channel 24 GB: 1 x 8 GB + 1 x 16 GB, DDR5, 5600 MT/s, dual-channel

External ports and slots

The following table lists the external ports and slots on your Dell 14 D14265.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell 14 D14265.
Description	Values
USB ports	Two USB 3.2 Gen 1 (5 Gbps) ports Two USB 3.2 Gen 2 (10 Gbps) Type-C ports with Power Delivery and DisplayPort
Audio port	One global headset jack
Video port(s)	One HDMI 1.4 port
Media-card reader	Not supported
Power-adapter port	Two USB 3.2 Gen 2 (10 Gbps) Type-C ports with Power Delivery and DisplayPort NOTE:You can connect a Dell docking station to this port.
Security-cable slot	One wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your Dell 14 D14265.

Table 1. Internal slotsThe following table lists the internal slots on your Dell 14 D14265.
Description	Values
M.2	One M.2 2230 slot for solid-state drive One M.2 2230 slot for WiFi and Bluetooth combo card NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Dell 14 D14265.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell 14 D14265.
Description	Option one
Model number	MediaTek MT7922
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz 5 GHz 6 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card	Qualified against Bluetooth Core 5.3 wireless card
NOTE:These wireless cards are qualified against the listed Bluetooth Core specifications.

Audio

The following table lists the audio specifications of your Dell 14 D14265.

Table 1. Audio specificationsThe following table provides the detailed audio specifications of Dell 14 D14265.
Description		Values
Audio controller		Realtek ALC3356B
Stereo conversion		Supported
Internal audio interface		Soundwire audio interface
External audio interface		One global headset jack
Number of speakers		Two
Internal-speaker amplifier		Supported
External volume controls		Keyboard shortcut controls
Speaker output:
Average		2 W
Peak		2.5 W
Microphone		Digital-array microphones in camera assembly

Storage

This section lists the storage options on your Dell 14 D14265.

Your Dell 14 D14265 supports one M.2 2230 solid-state drive.

Table 1. Storage specifications
The following table provides the different storage options available on Dell 14 D14265.
Storage type	Interface type	Capacity
M.2 2230 solid state drive, Class 25	PCIe Gen4 x4 NVMe, up to 64 GT/s	Up to 1 TB
M.2 2230 solid state drive, Class 35	PCIe Gen4 x4 NVMe, up to 64 GT/s	Up to 256 GB

Keyboard

The following table lists the keyboard specifications of your Dell 14 D14265.

Table 1. Keyboard specificationsThe following table lists the keyboard specifications of your Dell 14 D14265.
The following table provides the detailed keyboard specifications of Dell 14 D14265.
Description	Values
Keyboard type	Backlit keyboard Non-backlit keyboard
Keyboard layout	QWERTY
Number of keys	United States and Canada: 79 keys United Kingdom: 80 keys Portuguese (Brazil), French Canadian (Quebec): 81 keys Japan: 83 keys
Key pitch	Horizontal = 19.05 mm Vertical = 18.05 mm
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS Setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search Dell Support site.

Keyboard shortcuts of Dell 14 D14265

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to enable the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Later, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.

Table 1. Function key primary behavior
The following table lists the keyboard shortcuts and their descriptions.
Function key	Primary behavior
F1	Mute or unmute audio
F2	Decrease volume
F3	Increase volume
F4	Mic mute with LED indicator
F5	Dictation
F6	KB Illumination/Backlight
F7	Decrease brightness
F8	Increase brightness
F9	Projector
F10	Snapshot(default)/Print screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application-specific F1 behavior
Fn + F2	Operating system and application-specific F2 behavior
Fn + F3	Operating system and application-specific F3 behavior
Fn + F4	Operating system and application-specific F4 behavior
Fn + F5	Operating system and application-specific F5 behavior
Fn + F6	Operating system and application-specific F6 behavior
Fn + F7	Operating system and application-specific F7 behavior
Fn + F8	Operating system and application-specific F8 behavior
Fn + F9	Operating system and application-specific F9 behavior
Fn + F10	Operating system and application-specific F10 behavior
Fn + F11	Operating system and application-specific F11 behavior
Fn + F12	Operating system and application-specific F12 behavior
Fn + Esc	Toggle fn key lock
Fn + S	Toggle scroll lock
Fn + B	Pause or break
Fn + R	System request
Fn + Right Ctrl	Open the application menu(keyboard without Windows Copilot key implementation)
Fn+Symbol (?/̥)	Open the application menu(BX without Copilot key only)
Fn + Space bar	Open the emoji menu
Fn + T	Toggle ultraperformance mode
Fn + Left arrow	Home
Fn + Right arrow	End
Fn+Right Alt	Right Control
Fn+ Up arrow	Page up
Fn+ Down arrow	Page down
Alt + Spacebar	Copilot
Alt + Spacebar w/ press and hold 2seconds	Copilot –press to talk
“Hey, Copilot!” with voice input	Copilot wake word
Number lock Disable	Numbers input
Number lock Enable	Cursor control keys (such as Home, End, Page up, page down, Arrow keys)

Camera

The following table lists the camera specifications of your Dell 14 D14265.

Table 1. Camera specificationsThe following table provides the detailed camera specifications of Dell 14 D14265.
Description			Values
Number of cameras			One
Camera type			HD RGB camera
Camera location			Front camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image			0.92 megapixel
Video			1280 x 720 (HD) at 30 fps
Infrared camera resolution:
Video			Not applicable
Diagonal viewing angle:
Camera			82.70 degrees
Infrared camera			Not applicable

Touchpad

The following table lists the touchpad specifications of your Dell 14 D14265.

Table 1. Touchpad specificationsThe following table provides the detailed touchpad specifications of Dell 14 D14265.
Description		Values
Touchpad resolution:		>300 DPI
Touchpad dimensions:
Horizontal		124 mm (4.88 in.)
Vertical		79 mm (3.11 in.)
Touchpad gestures		For more information about the touchpad gestures available on Windows, search Microsoft Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell 14 D14265.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Dell 14 D14265.
Description	Option one	Option two
Type	45 W AC adapter, USB Type C	65 W AC adapter, USB Type C
Power-adapter dimensions:
Height	26 mm (1.02 in.)	26.5 mm (1.04 in.)
Width	40 mm (1.57 in.)	60 mm (2.36 in.)
Depth	94 mm (3.70 in.)	96.5 mm (3.80 in.)
Input voltage	100 VAC–240 VAC	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz	50 Hz–60 Hz
Input current (maximum)	1.30 A	1.70 A
Output current (continuous)	20 V: 2.25 A 15 V: 3 A 9 V: 3 A 5 V: 3 A	20 V: 3.25 A 15 V: 3 A 9 V: 3 A 5 V: 3 A
Rated output voltage	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

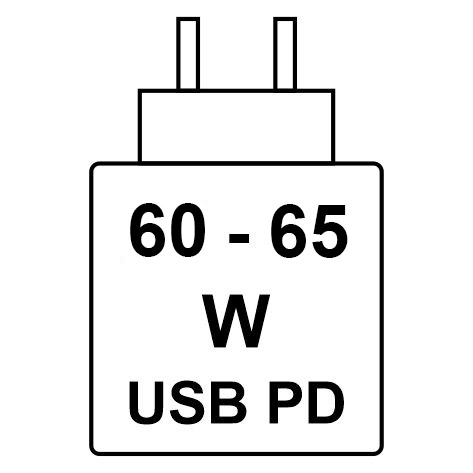

Power adapter requirements of Dell 14 D14265

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell 14 D14265.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell 14 D14265.
Description	Values for Computers Shipped with 45W AC Adapter, USB Type C	Values for Computers Shipped with 65W AC adapter, USB Type C
Power that is required from a power adapter to achieve optimal performance	45 W	65 W
Power that charges the computer at a slower speed NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 45 W	Less than 45 W
Minimum power that is required from a power adapter to operate the computer and charge the battery NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	45 W	65 W
USB Power Delivery (PD) fast charging	Supported	Supported
ExpressCharge mode	Not Supported	Supported NOTE:Ensure that the computer with a 41 Wh battery is connected to a 65 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your Dell 14 D14265.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell 14 D14265.
Description	Option one	Option two
Battery type	3-cell "smart" lithium-ion (41 Wh)	4-cell "smart" lithium-ion (54 Wh)
Battery voltage	11.25 VDC	15 VDC
Battery weight (minimum)	0.19 kg (0.41 lb)	0.24 kg (0.55 lb)
Battery dimensions:
Height	5.75 mm (0.22 in.)	5.75 mm (0.22 in.)
Width	206.40 mm (8.12 in.)	271.90 mm (10.70 in.)
Depth	82 mm (3.22 in.)	82 mm (3.22 in.)
Temperature range:
Operating	Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0°C to 60°C (32°F to 140°F)	Charge: 0°C to 45°C (32°F to 113°F) Discharge: 0°C to 60°C (32°F to 140°F)
Storage	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
Battery operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate, when the computer is turned off):
Standard (0 - 15°C)	4 hours	4 hours
Standard (16 - 50°C)	3 hours	3 hours
ExpressCharge (0 - 15°C)	4 hours	4 hours
ExpressCharge (16 - 45°C)	Normal express charge	Normal express charge
ExpressCharge (46 - 50°C)	3 hours	3 hours
Coin-cell battery	None	None
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Battery-status light

The following table lists the battery-status light of your Dell 14 D14265.

Table 1. Battery-status light behaviorBattery-status light
Power source	LED behavior	System power state	Battery charge level
AC adapter	Off	S0 or S5	100%
AC adapter	Solid white	S0 or S5	< 100%
Battery	Off	S0 or S5	11-100%
Battery	Solid amber	S0 or S5	< 10%

S0 (ON): The computer is turned on.
S3 (Sleep): Screen is off and computer is in sleep mode.
S4 (Hibernate): The computer consumes the least power in the Hibernate state than in the ON or OFF state. The computer is almost in the OFF state. The context data is written to a storage device, allowing you to resume from where you left after the computer is turned on.
S5 (OFF): The computer is in a shutdown state.

Power requirements

Image: Pictogram for 3-cell, 41 Wh battery and 4-cell, 54 Wh battery — Figure 1. Pictogram for 3-cell, 41 Wh battery and 4-cell, 54 Wh battery

The power that is delivered by the charger must be between a minimum of 60 Watts that is required by the radio equipment, and a maximum of 65 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell 14 D14265.

Table 1. Display specifications
The following table provides the detailed display specifications of Dell 14 D14265.
Description	Option one	Option two
Display type	14.0-inch Full High Definition Plus (FHD+)	14.0-inch Full High Definition Plus (FHD +), Low Blue Light
Touch options	None	Yes - In-Cell/On-Cell Touch, No Cover Glass (CG)
Display-panel technology	In-Plane Switching (IPS)	In-Plane Switching (IPS) with In/On-Cell Touch
Display-panel dimensions (active area):
Height	188.50 mm (7.42 in.)	188.50 mm (7.42 in.)
Width	301.60 mm (11.87 in.)	301.60 mm (11.87 in.)
Diagonal	355.6 mm (14 in.)	355.6 mm (14 in.)
Display-panel native resolution	1920 x 1200	1920 x 1200
Luminance (typical)	400 nits	400 nits
Megapixels	2.30	2.30
Color gamut	45% NTSC	100% sRGB
Pixels Per Inch (PPI)	161	162
Contrast ratio (minimum)	1000:1	1000:1
Response time (maximum)	35 ms	35 ms
Refresh rate	60 Hz	48/60 Hz
Horizontal view angle	80 degrees	80 degrees
Vertical view angle	80 degrees	80 degrees
Pixel pitch	0.158 mm	0.157 mm
Power consumption (maximum)	4.64 W	4.50 W
Anti-glare vs glossy finish	Anti-glare	Anti-Glare

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Dell 14 D14265.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Dell 14 D14265.
Description	Values
Sensor technology	Capacitive
Sensor resolution	500 dpi
Sensor pixel size	108 mm x 88 mm

Sensors

The following table lists the sensors of your Dell 14 D14265.

Table 1. Sensors The following table lists the sensors of your Dell 14 D14265.
Sensors support
Accelerometer for adaptive thermal

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell 14 D14265.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell 14 D14265.
Controller	Memory size	Processor
AMD Radeon 740M Graphics	Shared system memory	AMD Ryzen 3/5
AMD Radeon 780M Graphics	Shared system memory	AMD Ryzen 7

Hardware security

The following table lists the hardware security of your Dell 14 D14265.

Table 1. Hardware security The following table provides the hardware security details on your Dell 14 D14265.
Hardware security
Kensington security-cable slot
SafeID including Trusted Platform Module (TPM) 2.0
Trusted Platform Module TPM 2.0
Smart card keyboard (FIPS)
Microsoft 10 Device Guard and Credential Guard (Enterprise SKU)
Microsoft Windows Bitlocker
Local hard drive data wipe through BIOS (Secure Erase)
Self-encrypting storage drives (Opal, FIPS)

Operating and storage environment

This table lists the operating and storage specifications of your Dell 14 D14265.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell 14 D14265.
Description	Operating	Storage
Temperature range	10°C to 35°C (42 °F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	20% to 80% (non-condensing)	5% to 95% (non-condensing)
Vibration (maximum)^*	0.26 GRMS	1.37 GRMS
Shock (maximum)	40 G†	105 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10,000 ft)	-15.2 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell 14 D14265: технические характеристики и спецификации
