System specifications

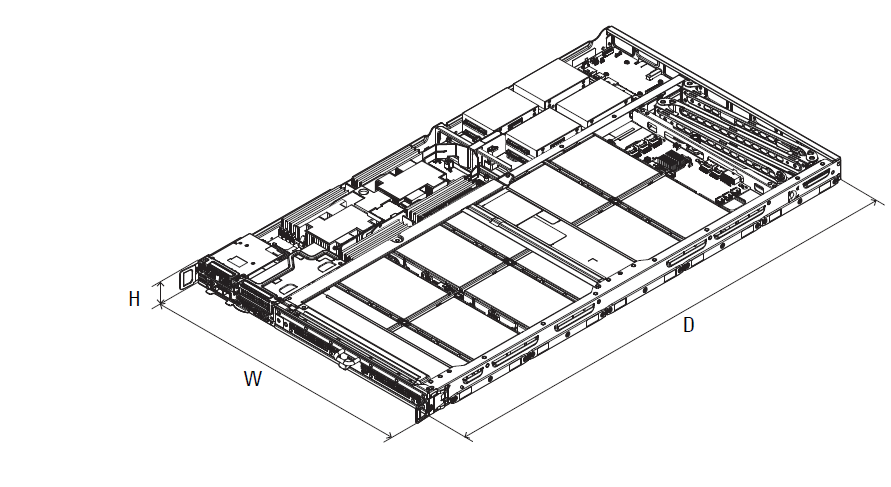

Figure 1. DSS 9600 dimensions

Table 1. DSS 9600 dimensions
Item	Description
Dimension (W x D x H)	527 mm x 930 mm x 47 mm (20.75 inch x 36.61 inch x 1.85 inch)
Weight (fully loaded)	26.06 kg (57.45 lb)

Processor specifications

The system is based on the Intel Xeon Processor Scalable Family and offers dual processor sockets.

System battery specifications

The system supports a CR 2032 3.0-V lithium coin cell system battery.

Expansion bus specifications

The system supports PCI express (PCIe) generation 3 expansion cards, which need to be installed on the server board using expansion card risers. The following is a list of supported expansion card risers.

Table 1. Expansion bus specification
PCIe slots	Description	Form factor
1	Dell mezzanine slot	x8
2	OCP	x8
3	OCP	x8
4	Main PCIe slot	x16 (PCIe low profile)
5	2nd PCIe slot	x16 (PCIe low profile)
6	4 x NVMe slot	x16

Memory specifications

The system supports DDR4 registered DIMMs (RDIMMs) and Load Reduced DIMMs (LRDIMMs).

NOTE:
Maximum memory is processor dependent.

Table 1. Memory specifications
Memory module sockets	Memory type	Memory capacity	Minimum RAM	Maximum RAM
Sixteen DIMM sockets	RDIMM	512 GB	32 GB with dual processors (minimum one memory module per processor)	512 GB
	LRDIMM	2048 GB	64 GB with dual processors (minimum one memory module per processor)	1024 GB

NOTE: Maximum available RAM is dependent on CPU SKU type.

USB ports

The system supports the following:

USB 3.0-compliant ports internally and on the front panel

The following table provides more information about the USB specifications:

Table 1. USB specifications
Internal	Front panel
Two 4-pin, USB 3.0-compliant port	Two 4-pin, USB 3.0-compliant port Micro-AB USB connector

NIC ports

The systems supports one embedded Network Interface Controller (NIC) port.

DisplayPort

The system supports one mini DisplayPort connector.

Environmental specifications

NOTE: For additional information about environmental measurements for specific system configurations, see http://Dell.com/environmental_datasheets.

Temperature specifications

Table 1. Temperature specifications
Temperature	Specifications
Storage	–40°C to 65°C (–40°F to 149°F)
Continuous operation (altitudes under 950 m / 3,117 ft)	10°C to 35°C (50°F to 95°F), avoiding direct sunlight
Fresh air	For information about fresh air, see Expanded Operating Temperature section.
Maximum temperature gradient (operation and storage)	20°C/h (36°F/h)

Relative humidity specifications

Table 1. Relative humidity specifications
Relative humidity	Specifications
Storage	5% to 95% RH with 33°C (91°F) maximum dew point. Atmosphere must be non-condensing at all times.
Operating	10% to 80% relative humidity with 29°C (84.2°)

Maximum vibration specifications

Table 1. Maximum vibration specifications
Maximum vibration	Specifications
Operating	0.26 Grms at 5 Hz to 350 Hz (all operational orientations)
Storage	1.88 Grms at 10 Hz to 500 Hz for 15 min (all six sides tested)

Maximum shock specifications

Table 1. Maximum shock specifications
Maximum shock	Specifications
Operating	24 executed shock pulses 6 G in the positive and negative x, y, z axis up to 11 ms (four pulses on each side of the system)
Storage	Six consecutively executed shock pulses of 71 G in the positive and negative x, y, z axes up to 2 ms (one pulse on each side of the system)

Maximum altitude specifications

Table 1. Maximum altitude specifications
Maximum altitude	Specifications
Operating	3,048 m (10,000 ft)
Storage	12,000 m (39,370 ft)

Operating temperature de-rating specifications

Table 1. Operating temperature de-rating specifications
Operating temperature de-rating	Specifications
Up to 35°C (95°F)	Maximum temperature is reduced by 1°C/300 m (1°F/547 ft) above 950 m (3,117 ft).
35°C to 40°C (95°F to 104°F)	Maximum temperature is reduced by 1°C/175 m (1°F/319 ft) above 950 m (3,117 ft).
40°C to 45°C (104°F to 113°F)	Maximum temperature is reduced by 1°C/125 m (1°F/228 ft) above 950 m (3,117 ft).

Particulate and gaseous contamination specifications

The following table defines the limitations that help avoid any equipment damage or failure from particulates and gaseous contamination. If the levels of particulates or gaseous pollution exceed the specified limitations and result in equipment damage or failure, you may need to rectify the environmental conditions. Re-mediation of environmental conditions is the responsibility of the customer.

Table 1. Particulate contamination specifications
Particulate contamination	Specifications
Air filtration	Data center air filtration as defined by ISO Class 8 per ISO 14644-1 with a 95% upper confidence limit. NOTE: This condition applies to data center environments only. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor. NOTE: Air entering the data center must have MERV11 or MERV13 filtration.
Conductive dust	Air must be free of conductive dust, zinc whiskers, or other conductive particles. NOTE: This condition applies to data center and non-data center environments.
Corrosive dust	Air must be free of corrosive dust. Residual dust present in the air must have a deliquescent point less than 60% relative humidity. NOTE: This condition applies to data center and non-data center environments.

Table 2. Gaseous contamination specifications
Gaseous contamination	Specifications
Copper coupon corrosion rate	<300 Å/month per Class G1 as defined by ANSI/ISA71.04-1985
Silver coupon corrosion rate	<200 Å/month as defined by AHSRAE TC9.9

NOTE: Maximum corrosive contaminant levels measured at ≤50% relative humidity.

Standard operating temperature specifications

Table 1. Standard operating temperature specifications
Standard operating temperature	Specifications
Continuous operation (altitudes under 950 m / 3,117 ft)	10°C to 35°C (50°F to 95°F), avoiding direct sunlight

NOTE: The system supports a maximum 165 W TDP.

Expanded operating temperature specifications

Table 1. Expanded operating temperature specifications
Expanded operating temperature	Specifications
≤10% of annual operating hours	5°C to 40°C (41°F to 104°F), avoiding direct sunlight on the equipment NOTE: Outside the standard operating temperature (10°C to 35°C / 50°F to 95°F), the system can operate for a maximum of 10% of its annual operating hours in temperatures as low as 5°C (41°F) and as high as 40°C (104°F). For temperatures between 35°C and 40°C (95°F and 104°F), de-rate maximum allowable temperature by 1°C per 175 m above 950 m (1°F per 319 ft).
≤1% of annual operating hours	–5°C to 45°C (23°F to 113°F) at 5% to 90% RH with 29°C (84°F) dew point NOTE: Outside the standard operating temperature (10°C to 35°C / 50°F to 95°F), the system can operate down to –5°C (23°F) or up to 45°C (113°F) for a maximum of 1% of its annual operating hours. For temperatures between 40°C and 45°C (104°F and 113°F), de-rate maximum allowable temperature by 1°C per 125 m above 950 m (1°F per 228 ft).

NOTE: When operating in the expanded temperature range, system performance may be impacted.

NOTE: When operating in the expanded temperature range, ambient temperature warnings may be reported on the LCD panel and in the System Event Log.

Expanded operating temperature restrictions

Do not perform a cold startup below 5°C (41°F).
The specified operating temperature is based on a maximum altitude of 950 m (3,116 ft).
PCIe Cards are not supported on slots 1, 2 and 3.
A maximum of six hard drives are supported on half width systems with a 165 W processor.
Redundant power supplies are required.
Non-Dell qualified peripheral cards and/or peripheral cards greater than 25 W are not supported.
