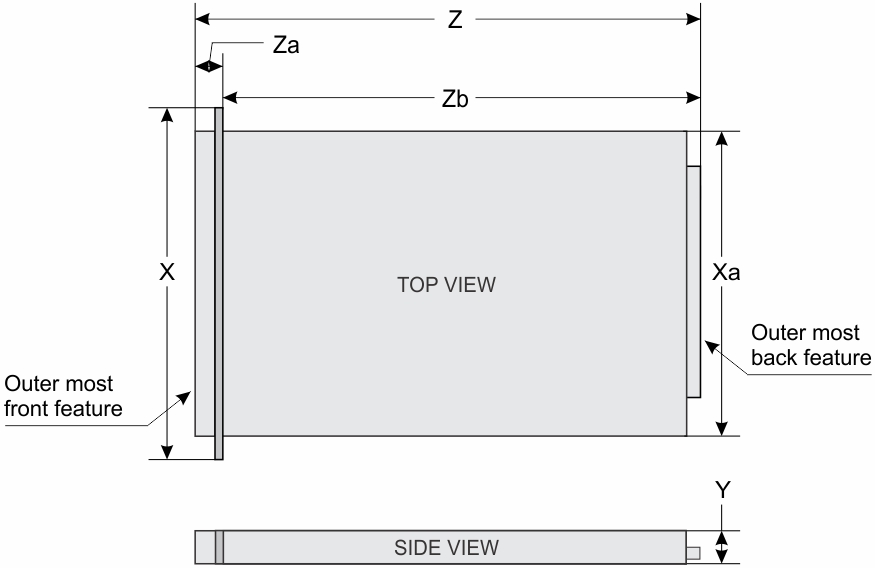

Chassis dimensions

Table 1. Dimensions of Dell DSS 1510 systemThe dimensions of Dell DSS 1510 system are as follows: X=482.4 mm, Xa=434.0 mm, Y=42.8 mm, Z=607.00 mm, Za=, Zb=.
System	X	Xa	Y	Z	Za	Zb
Dell DSS 1510	482.4 mm (18.9 inches)	434.0 mm (17.08 inches)	42.8 mm (1.68 inches)	660.4 mm (26 inches)	18.0 mm (0.70 inches)	642.4 mm (25.29 inches)

Chassis weight

Table 1. Chassis weightFor Four hard drive systems, the maximum chassis weight is 19.3 kg (42.6 lb). For Eight hard drive systems, the maximum chassis weight is 19.9 kg (43.7 lb).
System	Maximum weight
Four hard drive systems	19.3 kg (42.6 lb)
Eight hard drive systems	19.9 kg (43.7 lb)

Processor specifications

The DSS 1510 system supports up to one Intel Xeon EP E5-2600 v4, E5-2600 v3, E5-1600 v4, or E5-1600 v3 product family processor.

PSU specifications

The DSS 1510 system supports up to two AC power supply units (PSUs).

Table 1. PSU specificationsFor 495 W AC, platinum power supply unit, the maximum heat dissipation is 1871 BTU/hr, frequency is 50/60 Hz, voltage range is 100240 V AC autoranging and current is 6.5 A-3.5 A. For 550 W AC platinum PSU, the maximum heat dissipation is 2107 BTU/hr, frequency is 50/60 Hz, voltage range is 100240 V AC autoranging and current is 7.4 A-3.7 A.
PSU	Class	Heat dissipation (maximum)	Frequency	Voltage	Current
450 W AC	Platinum	1871 BTU/hr	50/60 Hz	100–240 V AC, autoranging	6.5 A-3.5 A
550 W AC	Platinum	2107 BTU/hr	50/60 Hz	100–240 V AC, autoranging	7.4 A-3.7 A

NOTE: : Heat dissipation is calculated by using the PSU wattage rating.

NOTE: : This system is also designed to connect to the IT power systems with a phase to phase voltage not exceeding 230 V.

System battery specifications

The DSS 1510 system supports CR 2032 3.0-V lithium coin cell system battery.

Expansion bus specifications

The DSS 1510 system supports PCI express (PCIe) generation 1, 2 and 3 expansion cards. The following table provides riser configurations for DSS 1510 systems:

Table 1. Expansion card riser specificationsThe expansion card riser has two PCIe slots. The dimensions of slot 1 are: Height=Half Height, Length=Half length, Link Width=x8. The dimensions of slot 2 are: Height=Half Height, Length=Half Length, Link Width=x8.
Expansion card riser	PCIe slot on the riser	Height	Length	Link
PCIE_G3_X8	Slot 1	Half Height	Half Length	x8
PCIE_G3_X8	Slot 2	Half Height	Half Length	x8

NOTE: : The expansion cards are not hot swappable.

Memory specifications

The DSS 1510 system supports DDR4 registered, Error Correcting Code (ECC) Spare Rank, Single Device Data Correction (SDDC) RDIMMs at 1866 MT/s, 2133 MT/s, or 2400 MT/s.

Table 1. Memory specificationsYour system supports 8 memory module sockets of 288-pins each. The system supports RDIMMs of memory capacity 8 GB, 16 GB, 32 GB or 64 GB single or dual rank. For system with single processor, the minimum RAM is 8 GB and the maximum RAM is up to 512 GB.
Memory module sockets	Memory capacity	Minimum RAM	Maximum RAM
Eight 288-pins	8 GB, 16 GB, 32 GB or 64 GB single or dual rank (RDIMMs)	8 GB with single processor	Up to 512 GB with single processor

Storage controller specifications

The DSS 1510 system supports PERC H330, PERC H730, and PERC H730P storage controllers.

Remote management port

The DSS 1510 system supports one dedicated 1Gbe Ethernet port with optional card and up to two optional shared NIC ports.

Hard drives

The DSS 1510 system supports:

Up to four 3.5-inch cabled hard drives
Up to four 3.5-inch hot swappable SAS, SATA, or Nearline SAS hard drives
Up to eight 2.5-inch, hot swappable SAS, SATA, SATA SSD, or Nearline SAS hard drives

USB ports

The DSS 1510 system supports one 9-pin, USB 3.0 and one 4-pin USB 2.0-compliant ports on the back panel.

NIC ports

The DSS 1510 system supports two 10/100/1000 Mbps Network Interface Controller (NIC) ports on the back panel.

Serial connector

The serial connector connects a serial device to the system. The DSS 1510 system supports one serial connector on the back panel, which is a 9-pin connector, Data Terminal Equipment (DTE), 16550-compliant.

VGA port

The Video Graphic Array (VGA) port enables you to connect the system to a VGA display. The DSS 1510 system supports one 15-pin VGA port on the back panel.

Video specifications

The DSS 1510 system supports Integrated Matrox G200 graphics card with 16 MB capacity.

Environmental specifications

NOTE: : For additional information about environmental measurements for specific system configurations, see Dell.com/environmental_datasheets.

Table 1. Temperature specificationsWhen the system is in continuous operation (for altitude less than 950 m or 3117 ft), the temperature specification ranges from 10°C to 35°C (50°F to 95°F) with no direct sunlight on the equipment. NOTE: Maximum of 145 W 22 core processor is supported in systems with eight 2.5-inches drives, two PCI slot chassis, and 75 W single wide active GPU. When the system is not in operation, the temperature specification is –40°C to 65°C (–40°F to 149°F). The Maximum temperature gradient for both opertaion and non-opertaional systems is 20°C/h (36°F/h). For information about fresh air, view the Expanded Operating Temperature section.
Temperature	Specifications
Storage	–40°C to 65°C (–40°F to 149°F)
Continuous operation (for altitude less than 950 m or 3117 ft)	10°C to 35°C (50°F to 95°F) with no direct sunlight on the equipment. NOTE: : Maximum of 145 W 22 core processor is supported in systems with eight 2.5-inches drives, two PCI slot chassis, and 75 W single wide active GPU.
Maximum temperature gradient (operating and storage)	20°C/h (36°F/h)

Table 2. Relative humidity specificationsFor a non-operational system, the ambient relative humidity ranges from 5% to 95% with 33°C (91°F) maximum dew point. Atmosphere must be non-condensing at all times. For an operational system, the ambient relative humidity ranges from 10% to 80% with 29°C (84.2°F) maximum dew point.
Relative humidity	Specifications
Storage	5% to 95% RH with 33°C (91°F) maximum dew point. Atmosphere must be non-condensing at all times.
Operating	10% to 80% relative humidity with 29°C (84.2°F) maximum dew point.

Table 3. Maximum vibration specificationsThe maximum vibration specification of an operational system is 0.26 Grms at 5 Hz to 350 Hz (all operation orientations).The maximum vibration specification of a non-operational system is 1.88 Grms at 10 Hz to 500 Hz for 15 min (all six sides tested).
Maximum vibration	Specifications
Operating	0.26 G_rms at 5 Hz to 350 Hz (all operation orientations).
Storage	1.88 G_rms at 10 Hz to 500 Hz for 15 min (all six sides tested).

Table 4. Maximum shock specificationsThe maximum shock specification of an operational system is six consecutively executed shock pulses in the positive and negative x, y, and z axes of 40 G for up to 2.3 ms. The maximum shock specification of a non-operational system is six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 ms.
Maximum shock	Specifications
Operating	Six consecutively executed shock pulses in the positive and negative x, y, and z axes of 40 G for up to 2.3 ms.
Storage	Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 ms.

Table 5. Maximum altitude specificationsThe maximum altitude of an operational system is 3048 m (10,000 ft). The maximum altitude of a non- operational system is 12,000 m (39,370 ft).
Maximum altitude	Specifications
Operating	30482000 m (10,0006560 ft)
Storage	12,000 m (39,370 ft)

Table 6. Operating temperature de-rating specificationsIf the operating temerature of a system is up to 35 °C (95 °F), the maximum temperature is reduced by 1 °C/300 m (1 °F/547 ft) above 950 m (3,117 ft). If the operating temperature of a system ranges from 35 °C to 40 °C (95 °F to 104 °F), the maximum temperature is reduced by 1 °C/175 m (1 °F/319 ft) above 950 m (3,117 ft). If the operating temperature of a system ranges from 40 °C to 45 °C (104 °F to 113 °F), the maximum temperature is reduced by 1 °C/125 m (1 °F/228 ft) above 950 m (3,117 ft).
Operating temperature de-rating	Specifications
Up to 35°C (95°F)	Maximum temperature is reduced by 1°C/300 m (1°F/547 ft) above 950 m (3,117 ft).
35°C to 40°C (95°F to 104°F)	Maximum temperature is reduced by 1°C/175 m (1°F/319 ft) above 950 m (3,117 ft).
40°C to 45°C (104°F to 113°F)	Maximum temperature is reduced by 1°C/125 m (1°F/228 ft) above 950 m (3,117 ft).

Particulate and gaseous contamination specifications

The following table defines the limitations that help avoid any equipment damage or failure from particulates and gaseous contamination. If the level of particulates or gaseous pollution exceed the specified limitations and result in equipment damage or failure, you may need to rectify the environmental conditions. Re-mediation of environmental conditions is the responsibility of the customer.

Table 1. Particulate contamination specifications
Particulate contamination	Specifications
Air filtration	Data center air filtration as defined by ISO Class 8 per ISO 14644-1 with a 95% upper confidence limit. NOTE: : This condition applies only to data center environments. Air filtration requirements do not apply to IT equipment designed to be used outside a data center, in environments such as an office or factory floor. NOTE: : Air entering the data center must have MERV11 or MERV13 filtration.
Conductive dust	Air must be free of conductive dust, zinc whiskers, or other conductive particles. NOTE: : This condition applies to data center and non-data center environments.
Corrosive dust	Air must be free of corrosive dust. Residual dust present in the air must have a deliquescent point less than 60% relative humidity. NOTE: : This condition applies to data center and non-data center environments.

Table 2. Gaseous contamination specifications
Gaseous contamination	Specifications
Copper coupon corrosion rate	<300 Å/month per Class G1 as defined by ANSI/ISA71.04-1985.
Silver coupon corrosion rate	<200 Å/month as defined by AHSRAE TC9.9.

NOTE: : Maximum corrosive contaminant levels measured at ≤50% relative humidity.
