Dell Chromebook 14 C1426M: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell Chromebook 14 C1426M.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Dell Chromebook 14 C1426M.
Description		Values
Front height		23.55 mm (0.92 in.)
Rear height		23.55 mm (0.92 in.)
Width		336 mm (13.20 in.)
Depth		236 mm (9.29 in.)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		1.81 kg (3.98 lb)

Processor

The following table lists the details of the processors that are supported on your Dell Chromebook 14 C1426M.

Table 1. Processor The following table lists the details of the processors that are supported on your Dell Chromebook 14 C1426M.
Description		Option one
Type		MediaTek MT8189
Wattage		4 W
Total cores		6
Speed		Up to 2.60 GHz
Performance-core frequency
Maximum turbo frequency		2.60 GHz
Efficient-core frequency
Maximum turbo frequency		2.00 GHz

Chipset

The following table lists the details of the chipset that is supported by your Dell Chromebook 14 C1426M.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Dell Chromebook 14 C1426M.
Description	Values
Chipset	System on a Chip
Processor	MediaTek MT8189
DRAM bus width	32-bit
Flash EPROM	8 MB
PCIe bus	Up to Gen2

Operating system

Your Dell Chromebook 14 C1426M supports the following operating systems:

ChromeOS

Memory

The following table lists the memory specifications of your Dell Chromebook 14 C1426M.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Dell Chromebook 14 C1426M.
Description		Values
Memory slots		Onboard NOTE:Memory is non-upgradable.
Memory type		LPDDR5/LPDDR5x
Memory speed		4800 MT/s
Maximum memory configuration		8 GB
Minimum memory configuration		4 GB
Memory configurations supported		4 GB: 1 x 4 GB, LPDDR5/LPDDR5x, 4800 MT/s, single-channel (onboard) 8 GB: 1 x 8 GB, LPDDR5/LPDDR5x, 4800 MT/s, single-channel (onboard)

External ports and slots

The following table lists the external ports and slots on your Dell Chromebook 14 C1426M.

Table 1. External ports and slots
The following table lists ports and connectors available on Dell Chromebook 14 C1426M.
Description	Values
USB ports	Two USB 3.2 Gen 1 (5 Gbps) Type-C with DisplayPort Alt Mode One USB 3.2 Gen 1 (5 Gbps) Type-A port
Audio port	One global headset jack
Video port(s)	Two USB 3.2 Gen 1 (5 Gbps) Type-C with DisplayPort Alt Mode
Media-card reader	Not supported
Power-adapter port	65 W AC adapter, USB Type-C
Security-cable slot	One wedge-shaped lock slot

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Dell Chromebook 14 C1426M.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Dell Chromebook 14 C1426M.
Description	Values
Model number	MediaTek MT7922 NOTE:The wireless card is integrated on the system board.
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.4

Audio

The following table lists the audio specifications of your Dell Chromebook 14 C1426M.

Table 1. Audio specificationsThe following table provides the detailed audio specifications of Dell Chromebook 14 C1426M.
Description		Values
Audio controller		Realtek ALC5650-CG
Stereo conversion		Supported
Internal audio interface		I2S interface
External audio interface		One global headset jack
Number of speakers		2
Internal-speaker amplifier		Supported
External volume controls		Supported
Speaker output:
Average		2 W
Peak		3 W
Microphone		Digital-array microphones in camera assembly

Storage

This section lists the storage options on your Dell Chromebook 14 C1426M.

Your Dell Chromebook 14 C1426M supports the following storage configurations:

eMMC

Table 1. Storage specifications
The following table provides the different storage options available on Dell Chromebook 14 C1426M.
Storage type	Interface type	Capacity
eMMC	Onboard	64 GB

Keyboard

The following table lists the keyboard specifications of your Dell Chromebook 14 C1426M.

Table 1. Keyboard specificationsThe following table lists the keyboard specifications of your Dell Chromebook 14 C1426M.
The following table provides the detailed keyboard specifications of Dell Chromebook 14 C1426M.
Description	Values
Keyboard type	Non-backlit keyboard
Keyboard layout	QWERTY
Number of keys	Non-backlit keyboard without numpad Arabic, English International, English US, Chinese (Simplified), Chinese (Traditional), Korean, Thai: 79 keys Belgian, Bulgarian, Canada (Bilingual) (MUI), Czech, Czech/Slovak, Danish, Dutch, English UK, Estonian, Finnish, French, French (Canadian), French (European),German, Greek, Hebrew, Hungarian, Italian, Nordic (MUI), Norwegian, Portuguese, Portuguese (Brazil), Russian, Slovak, Slovenian, Spanish (Castillian), Spanish (Latin America), Swedish/Finnish, Swiss, Swiss European (MUI), Turkish, Turkish (F), Ukrainian: 80 keys Japanese: 83 keys
Key pitch	Horizontal = 18.70 mm Vertical = 18.50 mm
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS Setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search Dell Support site.

Keyboard shortcuts

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Subsequently, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 1. List of keyboard shortcuts
The following table lists the keyboard shortcuts and their descriptions.
Function key	Redefined key (for multimedia control)	Behavior
F1	Fn + F1	Mute audio
F2	Fn + F2	Decrease volume
F3	Fn + F3	Increase volume
F4	Fn + F4	Play previous track/chapter
F5	Fn + F5	Play/Pause
F6	Fn + F6	Play the next track/chapter
F8	Fn + F8	Switch to external display
F9	Fn + F9	Search
F10	Fn + F10	Click keyboard backlight (optional). NOTE:Non-backlight keyboards have the F10 function key without the backlight icon and do not support the toggle keyboard backlight function. NOTE:Toggle to cycle the keyboard backlight status through off, low-backlight, and high-backlight.
F11	Fn + F11	Decrease brightness
F12	Fn + F12	Increase brightness

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Behavior
Fn + PrtScr	Turn off/on wireless
Fn + B	Pause/Break
Fn + Insert	Sleep
Fn + S	Toggle scroll lock
Fn + H	Toggle between power and battery-status light/hard-drive activity light
Fn + R	System request
Fn + Ctrl	Open application menu
Fn + Esc	Toggle Fn-key lock
Fn + PgUp	Page up
Fn + PgDn	Page down
Fn + Home	Home
Fn + End	End

Camera

The following table lists the camera specifications of your Dell Chromebook 14 C1426M.

Table 1. Camera specificationsThe following table provides the detailed camera specifications of Dell Chromebook 14 C1426M.
Description			Values
Number of cameras			One
Camera type			HD RGB Camera
Camera location			Front camera
Camera sensor type			CMOS sensor technology
Camera resolution:
Still image Video			0.92 megapixel
Still image Video			1280 x 720 (HD) at 30 fps
Diagonal viewing angle			83.50 degrees

Touchpad

The following table lists the touchpad specifications of your Dell Chromebook 14 C1426M.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Dell Chromebook 14 C1426M.
Description		Values
Touchpad resolution:		>300dpi
Touchpad dimensions:
Horizontal		105 mm
Vertical		65 mm
Touchpad gestures		For more information about the touchpad gestures available on Chromebook search Chrome Support Site.

Power adapter

The following table lists the power adapter specifications of your Dell Chromebook 14 C1426M.

Table 1. Power-adapter specificationsThe following table provides the detailed power adapter specifications of Dell Chromebook 14 C1426M
Description		Values
Type		65 W AC adapter, USB Type-C
Power-adapter dimensions:
Height		28.00 mm (1.10 in.)
Width		51.00 mm (2.01 in.)
Depth		112.00 mm (4.41 in.)
Input voltage		100 VAC – 240 VAC
Input frequency		50 Hz – 60 Hz
Input current (maximum)		1.70 A
Output current (continuous)		20 V/3.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)
Rated output voltage		20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
Operating		0°C to 40°C (32°F to 104°F)
Storage		-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements.

The following table lists the power adapter requirements for your Dell Chromebook 14 C1426M.

Table 1. Power adapter requirementsThe following table lists the power adapter requirements for your Dell Chromebook 14 C1426M.
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that charges the computer at a slower speed. NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 20 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE:A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	AC adapter rate is greater than 15W AC adapter rate is equal to 15W and battery RSOC is equal to or greater than 1%
USB Power Delivery (PD) fast charging	Not supported
ExpressCharge mode	Not supported

Battery

The following table lists the battery specifications of your Dell Chromebook 14 C1426M.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Dell Chromebook 14 C1426M.
Description		Values
Battery type		3-cell, 45 Wh, Lithium Ion, Long Life Cycle
Battery voltage		13.20 VDC
Battery weight (maximum)		0.20 Kg (0.44 lb)
Battery dimensions:
Height		6.30 mm (0.25 in.)
Width		254.80 mm (10.03 in.)
Depth		72.80 mm (2.87 in.)
Temperature range:
Operating		0°C to 60°C (32°F to 140°F)
Storage		-20°C to 65°C (-40°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate)		0°C~15°C: 4 hours (when the computer is off) 16°C~45°C: 3 hours (when the computer is off) 46°C~50°C: 3 hours (when the computer is off)
Coin-cell battery		Not supported
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Power requirements (for computers shipped with 3-cell, 45 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

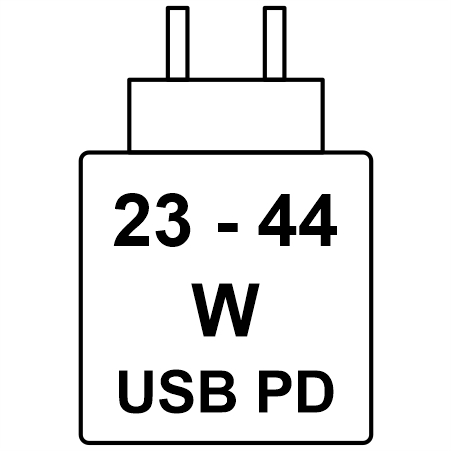

Figure 1. Pictogram for power charging requirements

The power that is delivered by the charger must be between a minimum of 23 Watts that is required by the radio equipment, and a maximum of 44 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Dell Chromebook 14 C1426M.

Table 1. Display specifications
The following table provides the detailed display specifications of Dell Chromebook 14 C1426M.
Description		Values
Display type		14-inch Full High Definition Plus(FHD+)
Touch options		No
Display-panel technology		Wide Viewing Angle (WVA)
Display-panel dimensions (active area):
Height		198.40 mm (7.81 in.)
Width		306.59 mm (12.07 in.)
Diagonal		355.60 mm (14 in.)
Display-panel native resolution		1920 x 1200
Luminance (typical)		400 nits
Megapixels		2.30
Color gamut		45% NTSC
Pixels Per Inch (PPI)		161.60
Contrast ratio (minimum)		600:1
Response time (maximum)		35 milliseconds
Refresh rate		60 Hz
Horizontal view angle (minimum)		+/- 80 degrees
Vertical view angle (minimum)		+/- 80 degrees
Pixel pitch		0.1571 mm x 0.1571 mm
Power consumption (maximum)		4.64 W
Anti-glare vs glossy finish		Anti-glare

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell Chromebook 14 C1426M.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Dell Chromebook 14 C1426M.
Controller	Memory size	Processor
Arm Mali-G57 MC2	Shared system memory	MediaTek MT8189

External display support

The following table lists the external display support for your Dell Chromebook 14 C1426M.

Table 1. External display supportThe following table lists the external display support for your Dell Chromebook 14 C1426M.
Graphics card	Supported external displays with laptop display enabled	Supported external displays with laptop display disabled
Arm Mali-G57 MC2	3	2

Hardware security

The following table lists the hardware security of your Dell Chromebook 14 C1426M.

Table 1. Hardware security The following table provides the hardware security details on your Dell Chromebook 14 C1426M.
Hardware security
One wedge-shaped lock slot

Operating and storage environment

This table lists the operating and storage specifications of your Dell Chromebook 14 C1426M.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Dell Chromebook 14 C1426M.
Description	Operating	Storage
Temperature range	0°C to 35°C (32 °F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.20 m to 3048 m (-49.87 ft to 10,000 ft)	-15.20 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell support policy

For information about Dell support policy, search Dell Support Site.

Dell Chromebook 14 C1426M: технические характеристики и спецификации
