Chassis dimensions

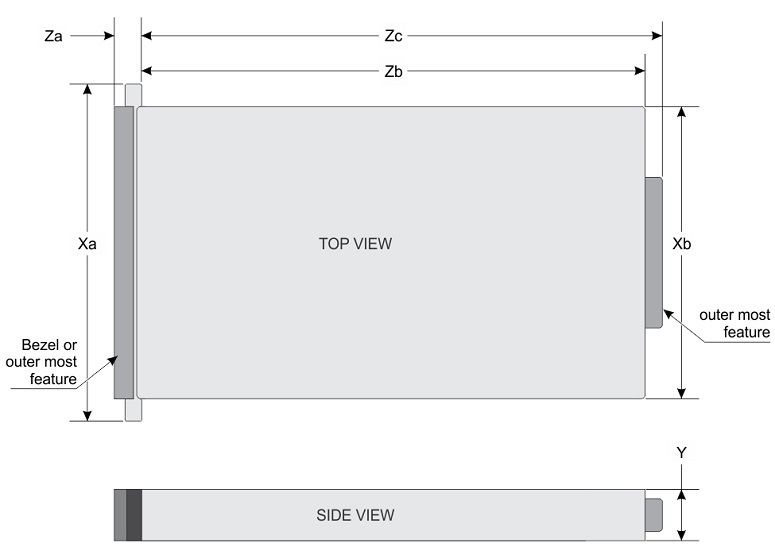

Table 1. PowerEdgeC6600 chassis dimensionsThis table provides the dimensions of the system:
Drives	Xa	Xb	Y	Za	Zb	Zc
Diskless/ 8 drives/ 16 drives	489.0 mm (19.25 inches)	448.0 mm (17.63 inches)	86.8 mm (3.41 inches)	42.0 mm (1.65 inches)	763.2 mm (30.04 inches)Ear to rear wall	799.97 mm (31.49 inches) - Ear to PSU handle 802.4 mm (31.60 inches) - Ear to handle velcro

NOTE:Zb is the nominal rear wall external surface where the system board I/O connectors reside.

System weight

Table 1. PowerEdge C6600 system weightThe table below shows the maximum weight of the system.
System configuration	Maximum weight (with all drives/SSDs)
8 x E3.s	41.1 kg (90.60 lb)
16 x 2.5-inch SAS/SATA	42.5 kg (93.69 lb)
16 x 2.5-inch NVMe	41.8 kg (92.15 lb)
Diskless	39.2 kg (86.42 lb)

Table 2. PowerEdgesystem weight handling recommendationsThis table shows the recommendations in handling the system weight.
Chassis weight	Description
40 lb–70 lb	Recommend two person to lift
70 lb–120 lb	Recommend three person to lift
≥ 121 lb	Recommend to use a server-lift

Drives

The PowerEdge C6600 system supports:

16 x 2.5-inch hot-swappable SAS/SATA/NVMe drives.
8 x E3.s NVMe SSD drives.

NOTE: For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Express Flash NVMe PCIe SSD User's Guide at Dell Support page >Browse all Products > Data Center Infrastructure > Storage Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Documentation > Manuals and Documents.

PSU specifications

The PowerEdge C6600 system supports up to two AC or DC power supply units (PSUs).

Table 1. PSU specifications This table describes PSU specifications for the system.
PSU	Class	Heat dissipation (maximum) (BTU/hr)	Frequency (Hz)	Voltage	AC		DC	Current (A)
PSU	Class	Heat dissipation (maximum) (BTU/hr)	Frequency (Hz)	Voltage	High line wattage	Low line wattage	DC	Current (A)
3200 W	N/A	12000 BTU/hr	50/60 Hz	277 V AC	3200 W	N/A	N/A	13.0 A
3200 W	N/A	12000 BTU/hr	N/A	336 V DC	N/A	N/A	3200 W	11.5 A
2800 W	Titanium	10500 BTU/hr	50/60 Hz	200-240 V AC	2800 W	N/A	N/A	15.6 A
2800 W	N/A	10500 BTU/hr	N/A	240 V DC	N/A	N/A	2800 W	13.6 A
2400 W	Platinum	9000 BTU/hr	50/60 Hz	100-240 V AC	2400 W	1400 W	N/A	16-13.5A
2400 W	N/A	9000 BTU/hr	N/A	240 V DC	N/A	N/A	2400 W	11.2 A
1800 W	Titanium	6750 BTU/hr	50/60 Hz	200-240 V AC	1800 W	N/A	N/A	10 A
1800 W	N/A	6750 BTU/hr	N/A	240 V DC	N/A	N/A	1800 W	8.2 A

NOTE:3200 W AC and DC power supplies are only available in North America.

NOTE:Heat dissipation is calculated using the PSU wattage rating.

NOTE:When selecting or upgrading the system configuration, to ensure optimum power utilization, verify the system power consumption with the Enterprise Infrastructure Planning Tool available at calc.

Environmental specifications

NOTE:For additional information about environmental certifications, refer to the Product Environmental Datasheet located with the Documentation on Dell Support.

Table 1. Continuous Operation Specifications for ASHRAE A3 This table describes the operational climatic range for category A3.
Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	5–40°C (41–104°F) with no direct sunlight on the equipment
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 85% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/175 m (33.8°F/574 Ft) above 900 m (2953 Ft)

Table 2. Continuous Operation Specifications for ASHRAE A4 This table describes the operational climatic range for category A4.
Allowable continuous operations
Temperature range for altitudes <= 900 m (<= 2953 ft)	5–45°C (41–113°F) with no direct sunlight on the equipment
Humidity percent range (non-condensing at all times)	8% RH with -12°C minimum dew point to 90% RH with 24°C (75.2°F) maximum dew point
Operational altitude de-rating	Maximum temperature is reduced by 1°C/125 m (33.8°F/410 Ft) above 900 m (2953 Ft)

Table 3. Common Environmental Specifications for ASHRAE A3 and A4 This table describes the shared requirements across all categories.
Allowable continuous operations
Maximum temperature gradient (applies to both operation and non-operation)	20°C in an hour* (36°F in an hour) and 5°C in 15 minutes (41°F in 15 minutes), 5°C in an hour* (41°F in an hour) for tape NOTE:* - Per ASHRAE thermal guidelines for tape hardware, these are not instantaneous rates of temperature change.
Non-operational temperature limits	-40 to 65°C (-104 to 149°F)
Non-operational humidity limits	5% to 95% RH with 27°C (80.6°F) maximum dew point
Maximum non-operational altitude	12,000 meters (39,370 feet)
Maximum operational altitude	3,048 meters (10,000 feet)

Table 4. Maximum vibration specificationsThe maximum vibration specification of an operational system is 0.21 Grms at 5 Hz to 500 Hz (all operation orientations).The maximum vibration specification of a nonoperational system is 1.88 Grms at 10 Hz to 500 Hz for 15 minutes (all six sides tested).
Maximum vibration	Specifications
Operating	0.21 G_rms at 5 Hz to 500 Hz (all operation orientations)
Storage	1.88 G_rms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)

Table 5. Maximum shock pulse specificationsThe maximum shock specification of an operational system is six consecutively executed shock pulses in the positive and negative x, y, and z axis of 40 G for up to 2.3 ms. The maximum shock specification of a nonoperational system is six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms.
Maximum shock pulse	Specifications
Operating	Six consecutively executed shock pulses in the positive and negative x, y, and z axis of 6 G for up to 11 ms. (4 pulse on each side of system)
Storage	Six consecutively executed shock pulses in the positive and negative x, y, and z axis (one pulse on each side of the system) of 71 G for up to 2 ms.

Thermal air restrictions

See the thermal air restrictions information for C6620 here.
See the thermal air restrictions information for C6615 here.

Thermal restriction matrix

See the thermal restriction matrix information for C6620 here
See the thermal restriction matrix information for C6615 here
