Dell Inspiron 27 7710 All-in-One: технические характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Inspiron 27 7710 All-in-One.

Table 1. Computer dimensions and weight (without stand)The following table provides the dimensions and weight of your computer without stand.
Description Values
Height
Front

394.82 mm (15.54 in.)

NOTE: The height of your computer varies depending on the stand installed.
Rear

399.74 mm (15.73 in.)

NOTE: The height of your computer varies depending on the stand installed.
Width

614.70 mm (24.20 in.)

Depth

41.80 mm (1.64 in.)

Weight
  • Non-touchscreen: 6.89 kg (15.19 lb)
  • Touchscreen: 7.18 kg (15.83 lb)
NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability.

Stand

The following table provides the height, width, depth, and weight of the stand supported by your Inspiron 27 7710 All-in-One.

Table 1. StandThe following table provides the dimensions and weight information of the stand for your computer.
Description Y stand Isosceles stand
Height 96.81 mm (3.81 in.) 97.56 mm (3.84 in.)
Width 72.25 mm (2.84 in.) 66.95 mm (2.63 in.)
Depth 199.55 mm (7.85 in.) 200.46 mm (7.89 in.)
Weight 0.24 kg (0.53 lb) 0.32 kg (0.71 lb)

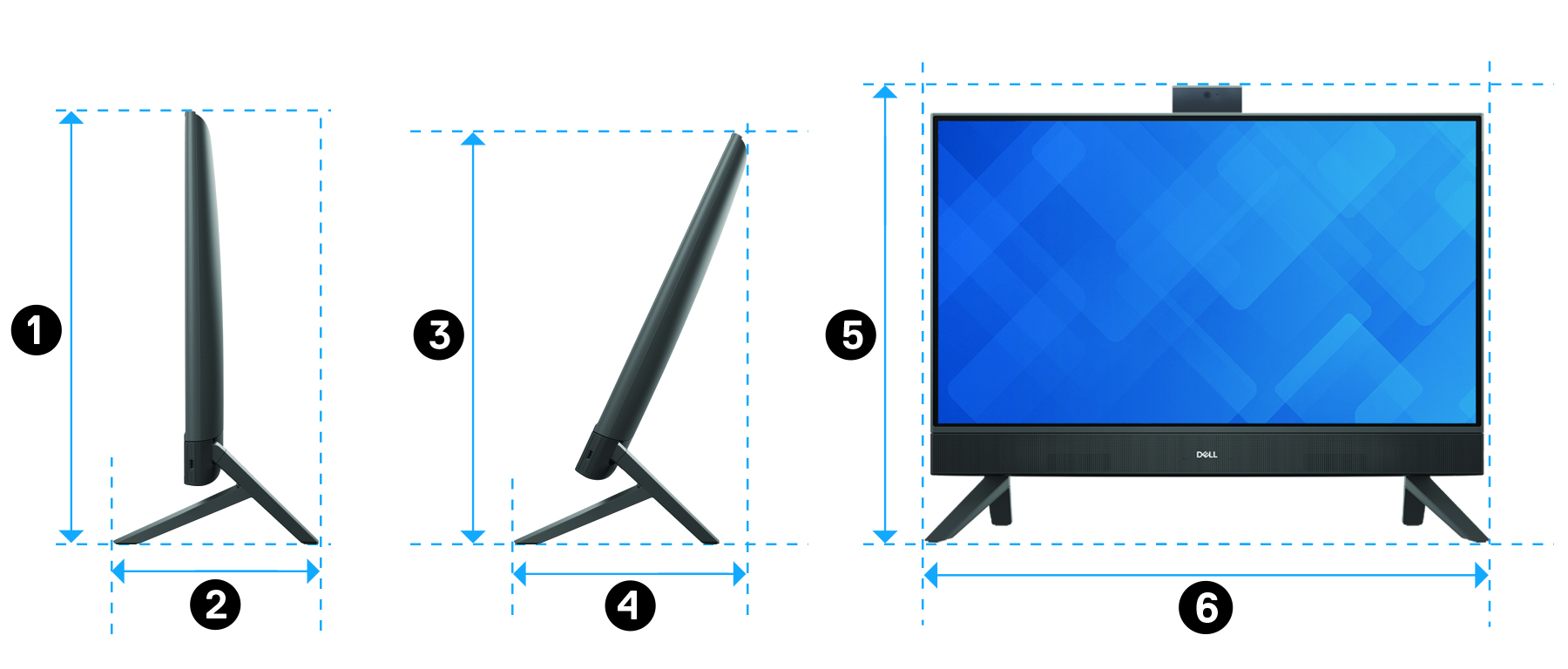

Y stand

Image: Y syand dimensions

The following table provides the dimensions of Y stand dimensions along with the computer.

Table 2. Y standThe following table provides the dimensions of Y stand dimensions along with the computer.
Description Dimensions
Image: One454.50 mm (17.89 in.)
Image: Two199.55 mm (7.85 in.)
Image: Three427.50 mm (16.83 in.)
Image: Four244.84 mm (9.63 in.)
Image: Five480.40 mm (18.91 in.)
Image: Six614.17 mm (24.17 in.)

Isosceles stand

Image: Isosceles dimensions

The following table provides the dimensions of Isosceles stand dimensions along with the computer.

Table 3. Isosceles standThe following table provides the dimensions of Isosceles stand dimensions along with the computer.
Description Dimensions
Image: One454.50 mm (17.89 in.)
Image: Two200.46 mm (7.89 in.)
Image: Three427.50 mm (16.83 in.)
Image: Four244.84 mm (9.63 in.)
Image: Five480.40 mm (18.91 in.)
Image: Six614.17 mm (24.17 in.)

Processor

The following table lists the details of the processors supported by your Inspiron 27 7710 All-in-One.

Table 1. Processor

The following table provides the various processor options supported for Inspiron 27 7710 All-in-One.
Description Option one Option two
Processor type

12th Generation Intel Core i5-1235U

12th Generation Intel Core i7-1255U

Processor wattage

15 W

15 W

Processor core count

10

10

Processor speed

Up to 4.40 GHz

Up to 4.70 GHz

Processor cache

12 MB

12 MB

Integrated graphics
  • Intel UHD Graphics
  • Intel Iris Xe Graphics
  • Intel UHD Graphics
  • Intel Iris Xe Graphics

Chipset

The following table lists the details of the chipset supported by your Inspiron 27 7710 All-in-One.

Table 1. Chipset

The following table provides the chipset specifications for Inspiron 27 7710 All-in-One.
Description Values
Chipset

Integrated in the processor

Processor

12th Generation Intel Core i5/i7

DRAM bus width

64-bit

Flash EPROM

32 MB

PCIe bus

Up to Gen4.0

Operating system

Your Inspiron 27 7710 All-in-One supports the following operating systems:

  • Windows 11 Home, 64-bit
  • Windows 11 Pro, 64-bit

Memory

The following table lists the memory specifications of your Inspiron 27 7710 All-in-One.

Table 1. Memory specifications

The following table provides the detailed memory specifications of Inspiron 27 7710 All-in-One.
Description Values
Memory slots

Two SODIMM slots

Memory type

DDR4

Memory speed

3200 MHz

Maximum memory configuration

32 GB

Minimum memory configuration

8 GB

Memory size per slot

4 GB, 8 GB, 16 GB, 32 GB

Memory configurations supported
  • 8 GB, 2 x 4 GB, DDR4, 3200 MHz
  • 8 GB, 1 x 8 GB, DDR4, 3200 MHz
  • 12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz
  • 16 GB, 2 x 8 GB, DDR4, 3200 MHz
  • 16 GB, 1 x 16 GB, DDR4, 3200 MHz
  • 24 GB, 1 x 8 GB + 1 x 16 GB, DDR4, 3200 MHz
  • 32 GB, 2 x 16 GB, DDR4, 3200 MHz
  • 32 GB, 1 x 32 GB, DDR4, 3200 MHz

Ports and connectors

The following table lists the external and internal ports available on your Inspiron 27 7710 All-in-One.

Table 1. Ports and connectors

The following table lists ports and connectors available on Inspiron 27 7710 All-in-One.
Description Values
External:
Network

One RJ45 port

USB
  • Three USB 3.1 Gen 1 ports with Power on/Wake-up support
  • One USB 3.1 Gen 2 port with PowerShare
  • One USB 3.2 Gen 2 (Type-C) port
    NOTE: You can connect a Dell Docking Station to this port. For more information, see the knowledge base article 000124295 at www.dell.com/support.
Audio

One Universal audio jack

Video
  • One HDMI 1.4b port
  • One HDMI-in 1.4b port
Media-card reader

One SD-card slot

Power port

One 4.5 mm x 2.9 mm DC-in

Security

Not supported

Internal:
SATA One SATA slot for 2.5-inch HDD
M.2
  • One M.2 2230 slot for WiFi and Bluetooth combo card
  • One M.2 2230/2280 slot for solid-state drive
NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Inspiron 27 7710 All-in-One.

Table 1. Ethernet specifications

The following table provides the Ethernet specifications of Inspiron 27 7710 All-in-One.
Description Values
Model number

RTL8111HSD-CG

Transfer rate

10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Inspiron 27 7710 All-in-One.

Table 1. Wireless module specifications

The following table provides the wireless module specifications of Inspiron 27 7710 All-in-One.
Description Option one Option two
Model number

Intel AX201

Intel AX211

Transfer rate

Up to 2400 Mbps

Up to 2400 Mbps

Frequency bands supported

2.4 GHz/5 GHz

2.4 GHz/5 GHz/6 GHz

Wireless standards
  • WiFi 802.11a/b/g
  • Wi-Fi 4 (WiFi 802.11n)
  • Wi-Fi 5 (WiFi 802.11ac)
  • Wi-Fi 6 (WiFi 802.11ax)
  • WiFi 802.11a/b/g
  • Wi-Fi 4 (WiFi 802.11n)
  • Wi-Fi 5 (WiFi 802.11ac)
  • Wi-Fi 6E (WiFi 802.11ax)
Encryption
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
  • 64-bit/128-bit WEP
  • AES-CCMP
  • TKIP
Bluetooth wireless card

Bluetooth 5.2

Bluetooth 5.2

NOTE: The version of the Bluetooth wireless card may vary depending on the operating system that is installed on your computer.

Audio

The following table lists the audio specifications of your Inspiron 27 7710 All-in-One.

Table 1. Audio specifications

The following table provides the detailed audio specifications of Inspiron 27 7710 All-in-One.
Description Values
Audio controller

Realtek ALC3289

Stereo conversion

Supported

Internal audio interface

High definition audio interface

External audio interface

Universal Audio Jack

Number of speakers

2

Internal-speaker amplifier

Supported

External volume controls

Not supported

Speaker output:
Average speaker output

5 W

Peak speaker output

6 W

Subwoofer output

Not supported

Microphone

Digital-array microphones

Storage

This section lists the storage options on your Inspiron 27 7710 All-in-One.

Your Inspiron 27 7710 All-in-One supports one of the following storage configurations:
  • One 2.5-inch hard-drive
  • One M.2 2230/2280 solid-state drive
  • One 2.5-inch hard-drive and one M.2 2230/2280 solid-state drive
The primary drive of your Inspiron 27 7710 All-in-One varies with the storage configuration. For computers shipped:
  • with a M.2 drive, the M.2 drive is the primary drive
  • without a M.2 drive, the 2.5-inch hard drive is the primary drive
Table 1. Storage specifications

The following table provides the different storage options available on Inspiron 27 7710 All-in-One.
Storage type Interface type Capacity

One 2.5-inch hard-drive

SATA AHCI, up to 6 Gbps

Up to 2 TB

One M.2 2230 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

Up to 1 TB

One M.2 2230 solid-state drive

PCIe Gen4 x4 NVMe, up to 64 Gbps

Up to 1 TB

One M.2 2280 QLC solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

Up to 1 TB

Media-card reader

The following table lists the media cards supported by your Inspiron 27 7710 All-in-One.

Table 1. Media-card reader specifications

The following table provides the media-card specifications of Inspiron 27 7710 All-in-One.
Description Values
Media-card type

One SD-card slot

Media-cards supported
  • Secure Digital (SD)
  • Secure Digital High Capacity (SDHC)
  • Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Camera

The following table lists the camera specifications of your Inspiron 27 7710 All-in-One.

Table 1. Camera specifications

The following table provides the detailed camera specifications of Inspiron 27 7710 All-in-One.
Description Values
Number of cameras

One

Camera type
  • FHD RGB Camera
  • FHD RGB + Infrared camera
Camera location

Front camera

Camera sensor type

CMOS sensor technology

Camera resolution:
Still image

2.07 megapixel

Video

1920 x 1080 (FHD) at 30 fps

Infrared camera resolution:
Still image

0.31 megapixel

Video

640 x 480 (VGA) at 30 fps

Diagonal viewing angle:
Camera

82 degrees

Infrared camera

77.3 degrees

Display

The following table lists the display specifications of your Inspiron 27 7710 All-in-One.

Table 1. Display specifications

The following table provides the detailed display specifications of Inspiron 27 7710 All-in-One.
Description Option one Option two
Display type

Full High Definition (FHD)

Full High Definition (FHD)

Touch options

Touch support with 10 touch points

No

Display-panel technology

Wide Viewing Angle (WVA)

Wide Viewing Angle (WVA)

Display-panel dimensions (active area):
Height

336.31 mm (13.24 in.)

336.31 mm (13.24 in.)

Width

597.88 mm (23.54 in.)

597.88 mm (23.54 in.)

Diagonal

685.98 mm (27.01 in.)

685.98 mm (27.01 in.)

Display-panel native resolution

1920 x 1080

1920 x 1080

Luminance (typical)

300 nits

300 nits

Megapixels

2.07

2.07

Color gamut

99% sRGB (typical)

99% sRGB (typical)

Pixels Per Inch (PPI)

81

81

Contrast ratio (min.)

700:1

700:1

Response time (max.)

28 ms

28 ms

Refresh rate

60 Hz

60 Hz

Horizontal view angle

+/- 85 degrees - minimum

+/- 85 degrees - minimum

Vertical view angle

+/- 85 degrees - minimum

+/- 85 degrees - minimum

Pixel pitch

0.3114 x 0.3114

0.3114 x 0.3114

Power consumption (maximum)

19.64 W

19.24 W

Anti-glare vs glossy finish

TrueLife

Anti-glare

Power adapter

The following table lists the power adapter specifications of your Inspiron 27 7710 All-in-One.

Table 1. Power adapter specifications

The following table provides the detailed power adapter specifications of Inspiron 27 7710 All-in-One.
Description Option one Option two
Type

90 W

130 W

Connector dimensions:
External diameter

4.50 mm

4.50 mm

Internal diameter

2.90 mm

2.90 mm

Power-adapter dimensions:
Height

1.30 mm (0.05 in.)

1 mm (0.03 in.)

Width

2 mm (0.08 in.)

3 mm (0.19 in.)

Depth

5 mm (0.20 in.)

6.10 mm (0.24 in.)

Input voltage

100 VAC–240 VAC

100 VAC–240 VAC

Input frequency

50 Hz–60 Hz

50 Hz–60 Hz

Input current (maximum)

1.50 A

2.50 A

Output current (continuous)

4.62 A

6.70 A

Rated output voltage

19.50 VDC

19.50 VDC

Temperature range:
Operating

0°C to 40°C (32°F to 104°F)

0°C to 40°C (32°F to 104°F)

Storage

-40°C to 70°C (-40°F to 158°F)

-40°C to 70°C (-40°F to 158°F)

CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 27 7710 All-in-One.

Table 1. GPU—Integrated

The following table provides the detailed integrated graphics specifications of Inspiron 27 7710 All-in-One.
Controller Memory size Processor

Intel Iris Xe Graphics

Shared system memory

12th Generation Intel Core i5/i7

Intel UHD Graphics

Shared system memory

12th Generation Intel Core i5/i7

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Inspiron 27 7710 All-in-One.

Table 1. GPU—Discrete

The following table provides the detailed discrete graphics specifications of Inspiron 27 7710 All-in-One.
Controller Memory size Memory type

NVIDIA GeForce MX550

2 GB

GDDR6

Operating and storage environment

This table lists the operating and storage specifications of your Inspiron 27 7710 All-in-One.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment

The following table lists the operating and storage environment conditions of Inspiron 27 7710 All-in-One.
Description Operating Storage
Temperature range

0°C to 35°C (32°F to 95°F)

-40°C to 65°C (-40°F to 149°F)

Relative humidity (maximum)

10% to 90% (non-condensing)

0% to 95% (non-condensing)

Vibration (maximum)*

0.66 GRMS

1.30 GRMS

Shock (maximum)

140 G†

160 G†

Altitude range

-15.2 m to 3048 m (-49.87 ft to 10000 ft)

-15.2 m to 10668 m (-49.87 ft to 35000 ft)

CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse.
