Dimensions and weight

System dimensions and weight (without stand)

Table 1. System dimensions and weight (without stand). The following table provides the dimensions and weight of your Inspiron 22-3280 without a stand.
Description		Values
Height		329.14 mm (12.96 in.)
Width		497.90 mm (19.60 in.)
Depth		43.50 mm (1.71 in.)
Weight:
	Touchscreen	5.15 kg (11.35 lb)
	Non-touchscreen	4.73 kg (10.43 lb)
		NOTE: The weight of your laptop varies depending on the configuration ordered and the manufacturing variability.

System dimensions (easel stand)

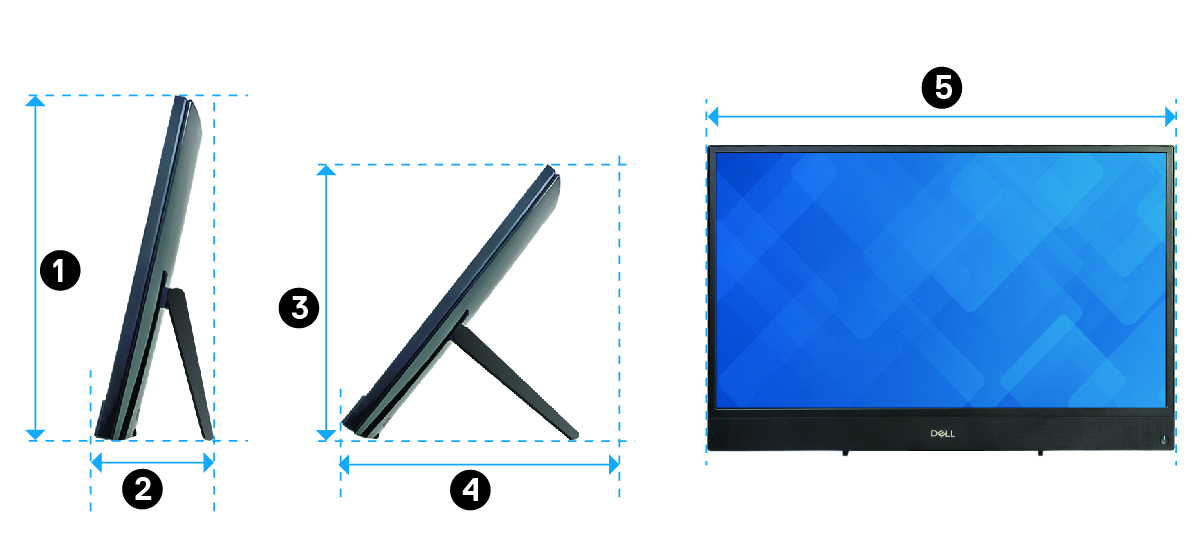

Image: System dimensions of your with an easel stand

Table 2. System dimensions (easel stand). The following table provides the system dimensions of your Inspiron 22-3280 with an easel stand.
Description	Values
	332.25 mm (13.08 in.)
	153.25 mm (6.03 in.)
	280.05 mm (11.03 in.)
	267.39 mm (10.53 in.)
	497.90 mm (19.60 in.)

System dimensions (pedestal stand)

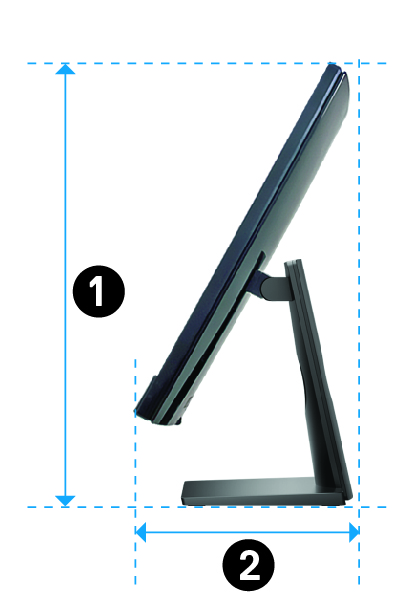

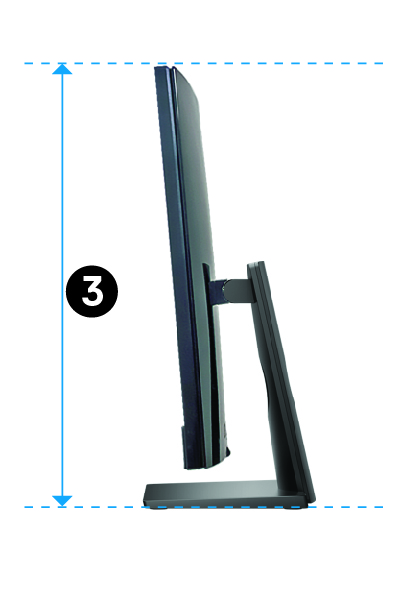

Image: System dimensions of your with a pedestal stand

Table 3. System dimensions (pedestal stand). The following table provides the system dimensions of your Inspiron 22-3280 with a pedestal stand.
Description	Values
	396.92 mm (15.62 in.)
	219.94 mm (8.66 in.)
	386.50 mm (15.22 in.)

Stand

Table 1. Stand. The following table provides the dimensions and weight information of the stand for your computer.
	Easel	Pedestal
Height	178.22 mm (7.02 in)	252.20 mm (9.93 in)
Width	139 mm (5.47 in)	220.00 mm (8.66 in)
Depth	35.52 mm (1.40 in)	180.40 mm (7.1 in)
Weight	0.54 kg (1.19 lb)	2.00 kg (4.41 lb)

Processors

Table 1. Processors. The following table provides the processor options of your computer.
Description	Values
Processors	8th Generation Intel Core i3	8th Generation Intel Core i5
Wattage	15 W	15 W
Core count	2	4
Thread count	4	8
Speed	Up to 3.9 GHz	Up to 3.9 GHz
L2 Cache	512 KB	1 MB
L3 Cache	4 MB	6 MB
Integrated graphics	Intel UHD Graphics 620	Intel UHD Graphics 620

Chipset

Table 1. Chipset.
The following table provides the chipset specifications for Inspiron 22-3280.
Description	Values
Chipset	Integrated in the processor
Processor	8th Generation Intel Core i3/i5
DRAM bus width	x64
Flash EPROM	16 MB
PCIe bus	Up to Gen3.0
External bus frequency	Up to 4 GT/s

Operating system

Windows 10 Home (64-bit)
Windows 10 Professional (64-bit)
Ubuntu

Memory

Table 1. Memory specifications.
The following table provides the detailed memory specifications of Inspiron 22-3280.
Description		Values
Slots		Two SODIMM slots
Type		DDR4
Speed		2400 MHz
Maximum memory		16 GB
Minimum memory		4 GB
Memory size per slot		4 GB, 8 GB, and 16 GB
Configurations supported		4 GB DDR4 at 2400 MHz (1 x 4 GB) 8 GB DDR4 at 2400 MHz (1 x 8 GB) 8 GB DDR4 at 2400 MHz (2 x 4 GB) 12 GB DDR4 at 2400 MHz (1 x 4 GB + 1 x 8 GB) 16 GB DDR4 at 2400 MHz (2 x 8 GB) 16 GB DDR4 at 2400 MHz (1 x 16 GB)

Intel Optane memory (optional)

Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.

NOTE: Intel Optane memory is supported on computers that meet the following requirements:
- 7 ^th Generation or higher Intel Core i3/i5/i7 processor
- Windows 10 64-bit version or higher (Anniversary Update)
- Latest version of Intel Rapid Storage Technology driver

Table 1. Intel Optane memory .
The following table provides the Intel Optane memory information for Inspiron 22-3280.
Description	Values
Type	Storage accelerator
Interface	PCIe 3.0x2
Connector	M.2 2230/2280
Configurations supported	16 GB
Capacity	Up to 16 GB

Ports and connectors

Table 1. Ports and connectors.
The following table lists ports and connectors available on Inspiron 22-3280.
Description	Values
External:
Network	One RJ-45 port
USB	One USB 3.1 Gen 1 port One USB 3.1 Gen 1 port with PowerShare One USB 3.1 Gen 1 port with Power-on/Wake-up support One USB 2.0 Gen 1 port with Power-on/Wake-up support
Audio	One headset port One HDMI 1.4 port
Video	One HDMI-out 1.4 port
Memory card reader	One SD-card slot
Power port	One 4.5 mm x 2.9 mm DC-in adapter port
Security	Not supported
Internal:
Connectors	Not supported
M.2	One M.2 2230/2280 card slot for solid-state drive/Intel optane memory One M.2 2230 card slot for Wi-Fi/Bluetooth combo card NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Communications

Ethernet

Table 1. Ethernet specifications . Provides the Ethernet specifications of your computer.
Description	Values
Model number	Realtek RTL8111HSD Ethernet controller (integrated on system board)
Transfer rate	10/100/1000 Mbps

Wireless module

Table 2. Wireless module specifications . The following table provides the wireless module specifications of your computer.
Description	Values
Model number	Intel 9462
Transfer rate	Up to 433 Mbps
Frequency bands supported	Dual band 2.4 GHz/5 GHz
Wireless standards	Wi-Fi 802.11a/b/g/n/ac
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5.0

Audio

Table 1. Audio specifications. Provides the audio specification of your computer.
Description	Values
Type	Integrated 2+2 channel High Definition Audio
Controller	Realtek ALC3246
Internal interface	High-definition audio
External interface	One headset port One HDMI 1.4 port

Storage

Table 1. Storage specifications.
The following table provides the different storage options available on your computer.
Storage type	Interface type	Capacity
2.5-inch hard drive (5400 RPM)	SATA AHCI, up to 6 Gbps	Up to 2 TB
2.5-inch hard drive (7200 RPM)	SATA AHCI, up to 6 Gbps	Up to 1 TB
M.2 2230 solid-state drive	PCIe Gen3.0x2 NVMe, up to 16 Gbps	Up to 1 GB
M.2 2280 solid-state drives	PCIe Gen3.0x4 NVMe, up to 32 Gbps	Up to 1 TB

Media-card reader

Table 1. Media-card reader specifications. The following table provides the media-card reader specifications of your computer.
Description	Values
Type	One SD card slot
Cards supported	SD card SD Extended Capacity (SDXC) card SD High Capacity (SDHC) card

Camera

Table 1. Camera specifications.
The following table provides the detailed camera specifications of Inspiron 22-3280.
Description		Values
Number of cameras		1
Type		HD fixed focus
Location		Front camera
Sensor type		CMOS sensor technology
Resolution:
	Still image	0.92 megapixel (HD)
	Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle		74.6 degrees

Display

Table 1. Display specifications.
The following table provides the detailed display specifications of Inspiron 22-3280.
Description		Values
Type		Full High-Definition (FHD)
Panel technology		In-Plane Switching (IPS)
Luminance (typical)		250 nits
Dimensions (active area):
	Height	287.00 mm (11.3 in)
	Width	489.30 mm (19.3 in)
	Diagonal	546.10 mm (21.5 in)
Native resolution		1920 x 1080
Megapixels		16.78
Pixels Per Inch (PPI)		102
Contrast ratio (min)		700:1
Response time (max)		25 msec rise/fall
Refresh rate		60 Hz
Horizontal view angle		+/- 85 degrees
Vertical view angle		+/- 85 degrees
Pixel pitch		0.248 mm
Power consumption (maximum)		11.2
Anti-glare vs glossy finish		Anti-glare
Touch options		Yes

Power adapter

Table 1. Power adapter specifications .
The following table provides the detailed power adapter specifications of Inspiron 22-3280.
Description		Values
Type		E4 90 W	E4 130 W
Diameter (connector)		4.5 mm x 2.9 mm	4.5 mm x 2.9 mm
Input voltage		100 VAC-240 VAC	100 VAC-240 VAC
Input frequency		50 Hz-60 Hz	50 Hz-60 Hz
Input current (maximum)		1.50 A	2.50 A
Output current (continuous)		4.62 A	6.70 A
Rated output voltage		19.50 VDC	19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	–40°C to 70°C (–40°F to 158°F)	–40°C to 70°C (–40°F to 158°F)

Video

Table 1. Video specifications. The following table provides the discrete graphics specifications of your computer.
Discrete graphics
Controller	External display support	Memory size	Memory Type
NVIDIA GeForce MX110	One HDMI 1.4 port	2 GB	GDDR5

Table 2. Video specifications. The following table provides the integrated graphics specifications of your computer.
Integrated graphics
Controller	External display support	Memory size	Processor
Intel UHD Graphics 620	One HDMI 1.4 port	Shared system memory	8 ^th Generation Intel Core i3/i5

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment.
The following table lists the operating and storage environment conditions for your system.
	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	–40°C to 65°C (–40°F to 149°F)
Relative humidity (maximum)	20% to 80% (non-condensing)	5% to 95% (non-condensing)
Vibration (maximum) ^*	0.26 GRMS	1.307GRMS
Shock (maximum)	40 G†	105 G‡
Altitude (maximum)	3,048 m (10,000 ft)	10,668 m (35,000 ft)

^{* Measured using a random vibration spectrum
that simulates user environment.}

^{† Measured
using a 2 ms half-sine pulse when the hard drive is in use.}

^{‡ Measured using a 2 ms half-sine pulse when
the hard-drive head is in parked position.}
