Dell Latitude 9330: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 9330.

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Latitude 9330.
Description		Values
Height:
	Front height	8.30 mm (0.32 in.)
	Rear height	14.12 mm (0.55 in.)
Width		296.35 mm (11.66 in.)
Depth		208.39 mm (8.20 in.)
Weight (maximum)		Minimum: 1.18 kg (2.6 lbs) NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

Processor

The following table lists the details of the processors supported by your Latitude 9330.

Table 1. Processor
The following table provides the various processor options supported for Latitude 9330.
Description	Option one	Option two	Option three
Processor type	12^th Generation Intel Core i5-1230U	12^th Generation Intel Core i5-1240U	12^th Generation Intel Core i7-1260U
Processor wattage	12 W	12 W	12 W
Processor core count	10	10	10
Processor thread count	12	12	12
Processor speed	1.00 Ghz to 4.40 GHz	1.10 GHz to 4.40 GHz	1.10 GHz to 4.70 GHz
Processor cache	12 MB	12 MB	12 MB
Integrated graphics	Intel Iris X^e Graphics	Intel Iris X^e Graphics	Intel Iris X^e Graphics

Chipset

The following table lists the details of the chipset supported by your Latitude 9330.

Table 1. Chipset
The following table provides the chipset specifications for Latitude 9330.
Description	Values
Chipset	Intel P-PCH
Processor	12^th Generation Intel Core i5/i7
DRAM bus width	64-bit
Flash EPROM	64 MB
PCIe bus	Up to Gen 4.0

Operating system

Your Latitude 9330 supports the following operating systems:

Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Downgrade (Windows 10 image)

Memory

The following table lists the memory specifications of your Latitude 9330.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Latitude 9330.
Description		Values
Memory slots		Onboard memory module
Memory type		Dual-channel LPDDR5 (Non-upgradable)
Memory speed		5200 MHz
Maximum memory configuration		32 GB
Minimum memory configuration		8 GB
Memory configurations supported		8 GB, 2 x 4 GB, LPDDR5, 5200 MHz, dual-channel 16 GB, 2 x 8 GB, LPDDR5, 5200 MHz, dual-channel 32 GB, 2 x 16 GB, LPDDR5, 5200 MHz, dual-channel

External ports

The following table lists the external ports on your Latitude 9330.

Table 1. External ports
The following table lists ports and connectors available on Latitude 9330.
Description	Values
USB ports	Two Thunderbolt 4 (USB Type-C) ports with DisplayPort Alt Mode and Power Delivery One USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode and Power Delivery
Audio port	One universal audio jack
Video port/ports	Via Thunderbolt 4 (USB Type-C) ports or USB 3.2 Gen 2 Type-C port
Media-card reader	Not supported
SIM-card slot	One Nano-SIM card slot (optional, only with WWAN config)
Power-adapter port	USB Type-C
Security-cable slot	One Wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your Latitude 9330.

Table 1. Internal slotsThe following table lists the internal slots on your Latitude 9330.
Description	Values
M.2	One M.2 2230 slot for solid-state drive One M.2 3042/3052 slot for WWAN module NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Latitude 9330.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Latitude 9330.
Description	Values
Model number	Intel Wi-Fi 6 AX211 (onboard) (Non-upgradable)
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	Wi-Fi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card	Bluetooth 5.2
	NOTE: The version of the Bluetooth wireless card may vary depending on the operating system that is installed on your computer.

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 9330.

Table 1. WWAN module specificationsThe following table provides the WWAN module specifications of your computer.
Description	Option one	Option two
Module	DW5821e. Qualcomm Snapdragon X20 Global Gigabit LTE, CAT16	DW5931e, Intel 5G 5000 Global Gigabit NR/LTE, 3GPP
Form Factor	M.2 3042 Key-B	M.2 3052 Key-B
Host interface	USB 3.0/2.0	PCIe Gen3
Network standard	LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Beidou/Galileo	NR FR1(Sub6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Galileo/BDS/QZSS
Transfer data rate	Up to 1 Gbps DL (CAT16) Up 150 Mbps UL	SA: DL 4.67Gbps / UL 1.25Gbps NSA: DL 3.74Gbps / UL 700Mbps LTE: DL 1.6Gbps (CAT19) / UL 150Mbps UMTS: DL 384 kbps / UL 384 kbps DL DC-HSPA+: 42 Mbps (CAT24) / UL 11.5 Mbps (CAT7)
Operating Frequency Bands	LTE(B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B42, B43, B46, B66) HSPA+ (1, 2, 4, 5, 6, 8, 9, 19)	NR(n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71*) WCDMA/HSPA+ (1, 2, 4, 5, 8) NOTE: Modem hardware supports but currently disabled.
Power supply	DC 3.135 V to 4.4 V, Typical 3.3 V	DC 3.135 V to 4.4 V, typical 3.3 V
SIM card	Supported through external SIM slot	Supported through external SIM slot
eSIM with Dual SIM (DSSA)	Supported (the availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)
Antenna Diversity	Supported	Supported
Radio On/Off	Supported	Supported
Wake On Wireless	Supported	Supported
Temperature	Normal operating temperature: -30°C to + 70°C Extended Operating temperature: -40°C to +85°C	Normal operating temperature: -10°C to +55°C Extended operating temperature: -30°C to +75°C Storage temperature: -40°C to +85°C
Antenna connector	One WWAN Main Antenna One WWAN Diversity Antenna Two 4 x 4 MIMO Antenna	Four WWAN Antenna Supported 4 x 4 MIMO Antenna
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, search in the Knowledge Base Resource at www.dell.com/support.

Audio

The following table lists the audio specifications of your Latitude 9330.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Latitude 9330.
Description		Values
Audio controller		Realtek ALC711-CG
Stereo conversion		Supported
Internal audio interface		SoundWire
External audio interface		Universal audio jack
Number of speakers		Four Two front-firing Two bottom-firing
Internal-speaker amplifier		Realtek ALC1319D
External volume controls		Keyboard shortcut controls
Speaker output:
	Average speaker output	4 x 2 W
	Peak speaker output	4 x 2.5 W
Subwoofer output		Not supported
Microphone		Quad-array microphones

Storage

This section lists the storage options on your Latitude 9330.

Your computer supports the following configuration:

M.2 2230, solid-state drive

Table 1. Storage specifications
The following table provides the different storage options available on Latitude 9330.
Storage type	Interface type	Capacity
M.2 2230, Class 35 solid-state drive	PCIe NVMe Gen4 x4	Up to 1 TB
M.2 2230, Class 35 solid-state drive, Opal self-encrypting	PCIe NVMe Gen4 x4	256 GB

Keyboard

The following table lists the keyboard specifications of your Latitude 9330.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Latitude 9330.
Description	Values
Keyboard type	Backlit
Keyboard layout	QWERTY
Number of keys	United States and Canada: 79 keys United Kingdom: 80 keys Japan: 83 keys
Keyboard size	X=18.05 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Camera

The following table lists the camera specifications of your Latitude 9330.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Latitude 9330.
Description		Values
Number of cameras		Two
Camera type		FHD RGB + IR camera with dual digital-array microphones
Camera location		Front camera
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	2.07 megapixel
	Video	1920 x 1080 at 30 fps
Infrared camera resolution:
	Still image	0.25 megapixel
	Video	640 x 400 at 30 fps
Diagonal viewing angle:
	Camera	82.0 degrees
	Infrared camera	75.8 degrees

Touchpad

The following table lists the touchpad specifications of your Latitude 9330.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Latitude 9330.
Description		Values
Touchpad resolution:
	Horizontal	4655
	Vertical	2731
Touchpad dimensions:
	Horizontal	115.00 mm (4.52 in.)
	Vertical	67.00 mm (2.63 in.)
Touchpad gestures		For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com.

Collaboration touchpad

The Collaboration Touchpad enables faster access to meeting controls when using Zoom. The controls for the mic, webcam, screen sharing, and chat are placed conveniently on the touchpad. The icons light up white or red based on the status of the controls.

Collaboration touchpad for Zoom requires you to install the below items for full functionality:

Dell Optimizer version 3.1 and above
- In-app Collaboration module in Dell Optimizer
Zoom Client version 5.9.3 and above

Also, enable the Collaboration Touchpad in the BIOS.

During Zoom meetings, the touchpad illuminates the collaboration shortcuts and they disappear when you leave the meeting. The shortcuts are not available when attending meetings from a browser or when you are on more than one Zoom meeting.

NOTE: The first iteration of Collaboration Touchpad only supports Zoom desktop application. We are continuously working to expand it to support other online meeting applications like Microsoft Teams, Cisco WebEx etc.

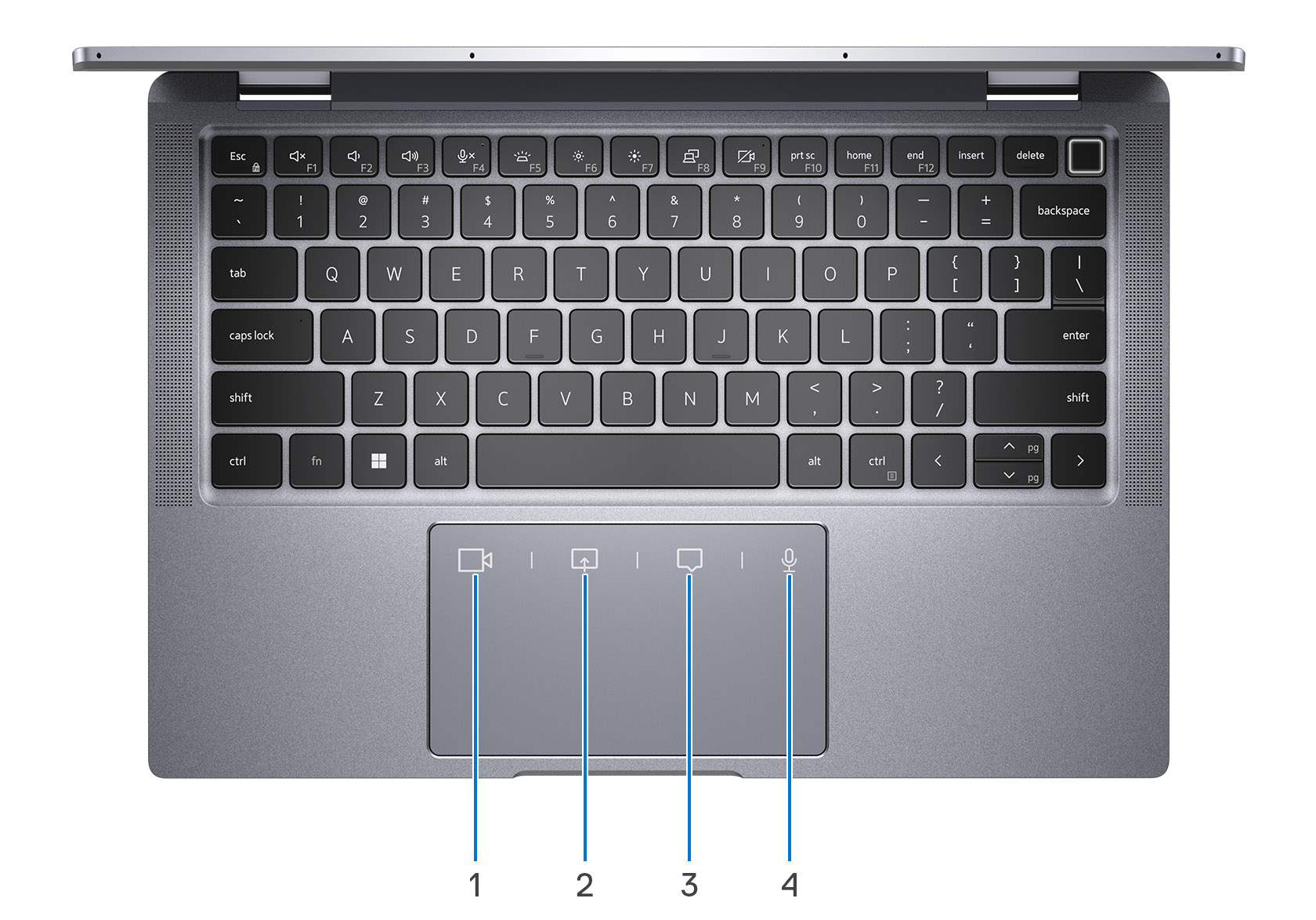

Collaboration touchpad buttons

Table 1. Collaboration TouchpadThe following table provides detailed behavior of the Collaboration Touchpad:
Feature	White icon	Red icon
Webcam	Sharing video stream	Not streaming
Share screen	Start/stop sharing desktop	NA
Chat	Open or close chat window	NA
Microphone	Mic active and sharing	Mic inactive or disabled

Power adapter

The following table lists the power adapter specifications of your Latitude 9330.

Table 1. Power adapter specifications
The following table provides the detailed power adapter specifications of Latitude 9330.
Description		Option one	Option two	Option three
Type		60 W USB Type-C Small Form Factor	65 W USB Type-C	90 W USB Type-C
Input voltage		100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC
Input frequency		50 to 60 Hz	50 to 60 Hz	50 to 60 Hz
Input current (maximum)		1.70 A	1.70 A	1.70 A
Output current (continuous)		20 V/3 A 15 V/3 A 9 V/3 A 5 V/3 A	20 V/3.25 A 15 V/3 A 9 V/3 A 5 V/3 A	20 V/3.25 A 15 V/3 A 9 V/3 A 5 V/3 A
Rated output voltage		20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Latitude 9330.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Latitude 9330.
Description		Values
Battery type		3-cell, 50 WHr Lithium-ion, ExpressCharge 2.0, ExpressCharge Boost, Long Cycle Life capable, integrated
Battery voltage		11.55 VDC
Battery weight (maximum)		0.21 kg (0.46 lb)
Battery dimensions:
	Height	5.10 mm (0.20 in.)
	Width	76.00 mm (2.99 in.)
	Depth	252.85 mm (9.95 in.)
Temperature range:
	Operating	Charge: 0°C to 50°C (32°F to 122°F) Discharge: 0°C to 60°C (32°F to 140°F)
	Storage	–40°C to 60°C (-4°F to 140°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.		Express Charge Method: ● 0 - 15°C maximum allowable charge time from 0 to 100% RSOC is 4 hours ● 16 - 45°C maximum allowable charge time from 0 to 100% RSOC is 2 hours ● 46 - 50°C maximum allowable charge time from 0 to 100% RSOC is 3 hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): ● 16 - 45°C target charge time from 0 to 35% RSOC is 20 mins for Accelerated Charge NOTE: Control the charging time, duration, start and end time, and so on, using the Dell Power Manager application. For more information about the Dell Power Manager, see, Me and My Dell on www.dell.com/.
Coin-cell battery		Not supported
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Display

The following table lists the display specifications of your Latitude 9330.

Table 1. Display specifications
The following table provides the detailed display specifications of Latitude 9330.
Description		Values
Display type		Quad High Definition Plus (QHD+)
Touch options		Yes
Display-panel technology		Wide Viewing Angle (WVA) with Low Blue Light
Display-panel dimensions (active area):
	Height	178.80 mm (7.03 in.)
	Width	286.08 mm (11.26 in.)
	Diagonal	337.35 mm (13.28 in.)
Display-panel native resolution		2560 x 1600
Luminance (typical)		500 nits
Megapixels		4.096
Color gamut		sRGB 100% typical
Pixels Per Inch (PPI)		227
Contrast ratio (min)		1200:1 min
Response time (max)		35 ms
Refresh rate		60 Hz
Horizontal view angle		+/- 80 degrees min, +/- 85 degrees typical
Vertical view angle		+/- 80 degrees min, +/- 85 degrees typical
Pixel pitch		0.11175 mm
Power consumption (maximum)		3.62 W
Anti-glare vs glossy finish		Glossy finish with Anti Reflection coating

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Latitude 9330.

NOTE: The fingerprint reader is located on the power button.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Latitude 9330.
Description	Values
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	108 x 88

Sensor

The following table lists the sensor of your Latitude 9330.

Table 1. Sensor The following table lists the sensor of your Latitude 9330.
Sensor support
Accelerometer (ST Micro LIS2DW12TR): On the base (system board)
Accelerometer+Gyroscope (ST Micro LSM6DSOUSTR): On Panel Side
E-Compass (ST Micro LIS2MDLTR): On Panel Side
P-sensor (ST Micro VL53L1X): On Panel Side
ALS for Panel Backlight Control

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 9330.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Latitude 9330.
Controller	Memory size	Processor
Intel Iris X^e Graphics	Shared system memory	12^th Generation Intel Core i5/i7 processors

Multiple display support matrix

The following table lists the multiple display support matrix for your Latitude 9330.

Table 1. Multiple display support matrixThe following table provides the multiple display support matrix for your Latitude 9330.
Graphics Card	Direct Graphics Controller Direct Output Mode	Supported external displays with computer internal display on	Supported external displays with computer internal display off
Intel Iris X^e Graphics	Not applicable	One 8K (7680 x 4320) @ 60Hz 30bpp Three 4K (4096 x 2304) @ 60Hz 36bpp Three 2K (2048 x 1080) @ 60Hz 36bpp	One 8K (7680 x 4320) @ 60Hz 30bpp Four 4K (4096 x 2304) @ 60Hz 36bpp Four 2K (2048 x 1080) @ 60Hz 36bpp

Hardware security

The following table lists the hardware security of your Latitude 9330.

Table 1. Hardware security The following table provides the hardware security details on your Latitude 9330.
Hardware security
Trusted Platform Module (TPM) 2.0 FIPS 140-2 Certified
Chassis Intrusion Detection
1 Wedge-shaped lock slot
Fingerprint reader

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 9330.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Latitude 9330.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (- 49.86 ft to 10,000 ft)	-15.2 m to 10668 m (- 49.86 ft to 35,000 ft)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell Latitude 9330: технические характеристики и спецификации
