Dell Latitude 7350 Detachable: руководство по обслуживанию

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 7350 Detachable.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Latitude 7350 Detachable.
Description		Values
Height:
	Front height	Without Smart Card reader: 8.93 mm (0.35 in.) With Smart Card reader: 12.13 mm (0.48 in.)
	Rear height	Without Smart Card reader: 8.93 mm (0.35 in.) With Smart Card reader: 12.13 mm (0.48 in.)
Width		Without Smart Card reader: 292.94 mm (11.53 in.) With Smart Card reader: 292.94 mm (11.53 in.)
Depth		Without Smart Card reader: 207.78 mm (8.18 in.) With Smart Card reader: 207.78 mm (8.18 in.)
Weight NOTE:The weight of your computer depends on the configuration that you ordered.		Without Smart Card reader: 0.79 kg (1.76 lb) With Smart Card reader: 0.86 kg (1.89 lb)

Processor

The following table lists the details of the processors that are supported for your Latitude 7350 Detachable.

Table 1. Processor
The following table provides the various processor options that are supported for Latitude 7350 Detachable.
Description		Option one	Option two
Processor type		Intel Core Ultra 5 134U	Intel Core Ultra 7 164U
Processor wattage		9 W	9 W
Processor total core count		12	12
Performance-cores		2	2
Efficient-cores		8	8
Processor total thread counts NOTE:Intel Hyper-Threading Technology is only available on Performance-cores.		14	14
Processor speed		Up to 4.4 GHz	Up to 4.8 GHz
Performance-cores frequency
	Processor base frequency	0.7 GHz	1.1 GHz
	Maximum turbo frequency	4.4 GHz	4.8 GHz
Efficient-cores frequency
	Processor base frequency	0.5 GHz	0.7 GHz
	Maximum turbo frequency	3.6 GHz	3.8 GHz
Processor cache		12 MB	12 MB
Integrated graphics		Intel Graphics	Intel Graphics

Chipset

The following table lists the details of the chipset that is supported by your Latitude 7350 Detachable.

Table 1. Chipset The following table lists the details of the chipset that is supported by your Latitude 7350 Detachable.
Description	Values
Chipset	Integrated in the processor
Processor	Intel Core Ultra 5/7 processors
DRAM bus width	16-bit
Flash EPROM	512 MB
PCIe bus	12 lanes

Operating system

Your Latitude 7350 Detachable supports the following operating systems:

Windows 11 Home
Windows 11 Professional

Memory

The following table lists the memory specifications of your Latitude 7350 Detachable.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Latitude 7350 Detachable.
Description		Values
Memory slots		Onboard NOTE:The memory is integrated on the system board and is not upgradable.
Memory type		Dual-channel, LPDDR5, LPDDR5x
Memory speed		6400 MT/s
Maximum memory configuration		32 GB
Minimum memory configuration		8 GB
Memory configurations supported		8 GB: LPDDR5, 6400 MT/s, dual-channel (onboard) 16 GB: LPDDR5x, 6400 MT/s, dual-channel (onboard) 32 GB: LPDDR5x, 6400 MT/s, dual-channel (onboard) NOTE: Supported memory options may differ depending on the configurations that are offered in your region.

External ports and slots

The following table lists the external ports and slots on your Latitude 7350 Detachable.

Table 1. External ports and slots
The following table lists ports and connectors available on Latitude 7350 Detachable.
Description	Values
USB ports	2 Thunderbolt 4 (40 Gbps) ports with DisplayPort Alt Mode/USB Type-C/USB4/Power Delivery 3.0 NOTE: You can connect a Dell Docking Station to this port. For more information, search in the Knowledge Base Resource at the Dell Support Site.
Audio port	One Universal audio port
Video port(s)	N/A
Media-card reader	N/A
Power-adapter port	USB Type-C power input
Security-cable slot	One wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your Latitude 7350 Detachable.

Table 1. Internal slotsThe following table lists the internal slots on your Latitude 7350 Detachable.
Description	Values
M.2	One M.2 2230 PCIe x4 One M.2 3042 WWAN card (Optional) NOTE:To learn more about the features of different types of M.2 cards, search Dell Support Site.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Latitude 7350 Detachable.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Latitude 7350 Detachable.
Description	Values
Model number	Intel BE200
Transfer rate	Up to 5760 Mbps
Frequency bands supported	2.4 GHz/5 GHz/6 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6E (WiFi 802.11ax) Wi-Fi 7 (WiFi 802.11be)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card NOTE:The functionality of the Bluetooth wireless card may vary based on the operating system.	Bluetooth 5.4

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 7350 Detachable.

NOTE:The WWAN module is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on this module is dependent on your region and your mobile carrier's requirements.

NOTE:For instructions on how to setup SIM or eSIM connections on your computer, see the SIM/eSIM Setup Guide for Windows available with your product documentation at the Dell Support Site.

Table 1. WWAN module specificationsThe following table provides the WWAN module specifications of your computer.
Description	Values
Model number	Qualcomm Snapdragon X62 Global 5G Modem (DW5932e)
Form Factor	M.2 3042 Key-B
Host Interface	PCIe Gen3
Network Standard	NR FR1 (Sub-6) FDD/TDD, LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Galileo/Beidou
Transfer data rate	5G NR: DL 3.5 Gbps/ UL 900 Mbps LTE: DL 1.6 Gbps (CAT19)/ UL 211 Mbps (CAT18) UMTS: DL DC-HSPA+ Rel8:42 Mbps / UL 5.76 Mbps
Operating Frequency Bands	NR (n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79) LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71) WCDMA/HSPA+ (1, 2, 4, 5, 8) Modem hardware supports but currently disabled
Power supply	DC 3.135 V to 3.63 V, Typical 3.3 V
SIM card	Supported through external SIM slot
eSIM with Dual SIM (DSSA)	Optional NOTE:The availability of optional eSIM functionality embedded on the module is dependent on the region and specific carrier requirements.
Antenna Diversity	Supported
Radio On/Off	Supported
Wake On Wireless	Supported
Temperature	Normal operating temperature: -10°C to +55°C Extended Operating temperature: -30°C to +75°C Storage temperature: -40°C to +85°
Antenna connector	WWAN main antenna x 1 WWAN diversity antenna x 1 4x4 MIMO antenna x 2
NOTE:For instructions on how to find your computer's International Mobile Equipment Identity (IMEI) number, search in the Knowledge Base Resource at the Dell Support Site.

Audio

The following table lists the audio specifications of your Latitude 7350 Detachable.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Latitude 7350 Detachable.
Description		Values
Audio controller		Realtek ALC713 + ALC1318
Stereo conversion		Supported
Internal audio interface		Sound wire ACX
External audio interface		One Universal audio port Two Thunderbolt 4 ports
Number of speakers		2
Internal-speaker amplifier		Supported
External volume controls		Volume-control buttons on chassis Shortcuts on Latitude 7350 Detachable Collaboration Keyboard (sold separately)
Speaker output:
	Average	2 W
	Peak	4 W
Microphone		Digital-array microphones

Storage

This section lists the storage options on your Latitude 7350 Detachable.

Your Latitude 7350 Detachable supports one M.2 2230 solid-state drive.

Table 1. Storage specifications
The following table provides the different storage options available on Latitude 7350 Detachable.
Storage type	Interface type	Capacity
M.2 2230, Class 35 solid-state drive	PCIe Gen 4 x4, up to 64 Gbps.	256 GB
M.2 2230, Class 35 solid-state drive	PCIe Gen 4 x4, up to 64 Gbps.	512 GB
M.2 2230, Class 35 solid-state drive	PCIe Gen 4 x4, up to 64 Gbps.	1 TB
M.2 2230, Class 25 solid-state drive	PCIe Gen 4 x4, up to 64 Gbps.	2 TB
M.2 2230, Class 35 solid-state drive (self-encrypting)	PCIe Gen 4 x4, up to 64 Gbps.	512 GB

Camera

The following table lists the camera specifications of your Latitude 7350 Detachable.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Latitude 7350 Detachable.
Description		Values
Number of cameras		Two
Camera type		World-facing camera: RGB camera User-facing camera: RGB and IR camera
Camera location		World-facing camera User-facing camera
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	World-facing camera: 3264 x 2448p (8 megapixels) User-facing camera: 3840 x 2160p (8 megapixels)
	Video	World-facing camera: 3264 x 2448p at 30 fps User-facing camera (with Windows Studio Effects enabled): 2560 x 1440p at 30 fps NOTE:Windows Studio Effects is enabled in Windows 11 by default. NOTE:The default resolution for video is set at 1080p. For more information about changing the camera resolution, search for information about changing the camera resolution in Windows 11 at the Microsoft Support Site.
Infrared camera resolution:
	Video	640 x 480p at 15 fps
Diagonal viewing angle:
	Camera	World-facing camera: 77.30 degrees User-facing camera: 88.10 degrees
	Infrared camera	77.30 degrees

Power adapter

The following table lists the power adapter specifications of your Latitude 7350 Detachable.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Latitude 7350 Detachable.
Description		Option one	Option two
Type		60 W adapter, USB-C	65 W adapter, USB-C
Power-adapter dimensions:
	Height	22 mm (0.86 in.)	28 mm (1.10 in.)
	Width	55 mm (2.16 in.)	51 mm (2.01 in.)
	Depth	66 mm (2.59 in.)	112 mm (4.41 in.)
Input voltage		100 VAC-240 VAC	100 VAC-240 VAC
Input frequency		50 Hz-60 Hz	50 Hz-60 Hz
Input current (maximum)		1.70 A	1.70
Output current (continuous)		20 V/3 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)	20 V/3.25 A (continuous) 15 V/3 A (continuous) 9 V/3 A (continuous) 5 V/3 A (continuous)
Rated output voltage		20 VDC 15 VDC 9 VDC 5 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
	Operating	0 °C–40°C (32 °F–104°F)	0 °C–40°C (32 °F–104°F)
	Storage	-20°C to 70°C (-4°F to 158°F)	-40°C to 70°C (-4°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

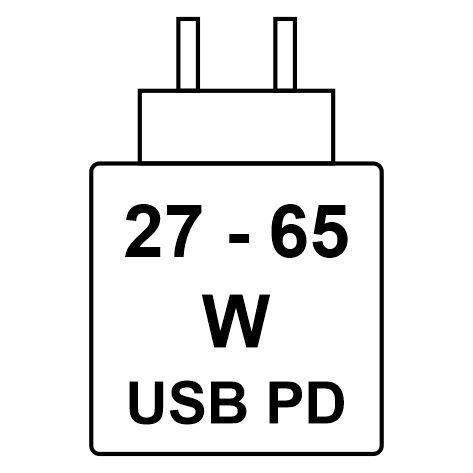

The following image is a pictogram of the power adapter requirements of your Latitude 7350 Detachable.

Power adapter requirements of Latitude 7350 Detachable

Image: Pictogram of power adapter requirements — Figure 1. Pictogram of power adapter requirements

Table 1. Description of power adapter requirementsDescription of power adapter requirements
Value	Description
65 W	Power that is required from a power adapter to achieve the maximum charging speed.
Below 45 W	The computer charges at a lower speed with this power supply. NOTE:A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.
27 W	Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.
USB PD	USB Power Delivery (PD) fast charging is supported. NOTE:Ensure that the computer is connected to a 65 W power adapter for this feature to be supported. NOTE:ExpressCharge mode must also be enabled in the BIOS Setup screen by selecting Power > Battery Configuration > ExpressCharge, then pressing Enter.

Battery

The following table lists the battery specifications of your Latitude 7350 Detachable.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Latitude 7350 Detachable.
Description		Option one	Option two
Battery type		3-cell, 46.5 Whr, "smart" lithium-ion (Polymer), ExpressCharge, and ExpressCharge Boost	3-cell, 46.5 Whr, "smart" lithium-ion (Polymer), ExpressCharge, and ExpressCharge Boost, Long Cycle Life
Battery voltage		11.55 VDC	11.55 VDC
Battery weight (maximum)		0.19 kg (0.41 lb)	0.19 kg (0.41 lb)
Battery dimensions:
	Height	4.21 mm (0.16 in.)	4.21 mm (0.16 in.)
	Width	250.16 mm (9.85 in.)	250.16 mm (9.85 in.)
	Depth	86.73 mm (3.41 in.)	86.73 mm (3.41 in.)
Temperature range:
	Operating	Charge: 0 °C–50°C (32 °F–122°F) Discharge: 0 °C–60°C (32 °F–140°F)	Charge: 0 °C–50°C (32 °F–122°F) Discharge: 0 °C–60°C (32 °F–140°F)
	Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the settings on the MyDell (replaced with Dell Optimizer) application (Power option). For more information about MyDell application, search Dell Support Site.		Express Charge Method: 0% to 80% in one hour Standard Charge/Predominately AC User Charge Method: 0% to 100% in three hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): 0% to 35% in 20 minutes	Express Charge Method: 0% to 80% in one hour Standard Charge/Predominately AC User Charge Method: 0% to 100% in three hours Express Charge Boost Charge Method (Fast Charge for Initial 35%): 0% to 35% in 20 minutes
Coin-cell battery		N/A	N/A
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

Display

The following table lists the display specifications of your Latitude 7350 Detachable.

Table 1. Display specifications
The following table provides the detailed display specifications of Latitude 7350 Detachable.
Description		Values
Display type		3K2K
Touch options		Touch support
Display-panel technology		QHD+
Display-panel dimensions (active area):
	Height	273.89 mm (10.78 in.)
	Width	182.59 mm (7.19 in.)
	Diagonal	329.17 mm (12.96 in.)
Display-panel native resolution		2880 x 1920
Luminance (typical)		500 nits
Megapixels		5.5
Color gamut		sRGB 100% (typical)
Pixels Per Inch (PPI)		267
Contrast ratio (minimum)		1200
Response time (maximum)		35 milliseconds
Refresh rate		60 Hz
Horizontal view angle		88 +/- degrees
Vertical view angle		88 +/- degrees
Pixel pitch		0.09 mm (0.004 in.)
Power consumption (maximum)		3.34 W
Anti-glare vs glossy finish		Glare
Panel duty cycle		12 hours a day, 7 days a week. NOTE:Avoid displaying static images for a long time, such as login screens. Prolonged display beyond this duration may result in image retention.

Guidelines for preventing image retention on the Latitude 7350 Detachable

User observation

The display panel in the Latitude 7350 Detachable is designed for typical usage of 12 hours a day, 7 days a week. Displaying static images, such as login screens, for longer than 12 hours may result in image retention, cause residual shadows, or burn-in marks to appear on the screen.

Users may notice ghosting or image retention when static content is displayed on the screen for more than 12 hours. This issue is especially true when the display brightness is set to maximum or when working in a hot environment.

Preventive measures

To minimize the risk of image retention:

Do not display static images for more than 12 hours at a time.
Maintain the brightness of your computer at a moderate level and avoid using it at maximum brightness for long durations.
Ensure that the computer is not used in high-temperature environments, such as near ovens or in direct sunlight.

NOTE:These measures are especially important in kiosk, signage, or enterprise login scenarios where static content is commonly displayed.

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Latitude 7350 Detachable.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Latitude 7350 Detachable.
Description	Values
Sensor technology	Capacitive
Sensor resolution	500 dpi
Sensor pixel size	108 x 88

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 7350 Detachable.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Latitude 7350 Detachable.
Controller	Memory size	Processor
Intel Graphics	Shared system memory	Intel Core Ultra 5/7 processors

External display support

The following table lists the external display support for your Latitude 7350 Detachable.

Table 1. External display supportThe following table lists the external display support for your Latitude 7350 Detachable.
Graphics card	Supported external displays with laptop display enabled	Supported external displays with laptop display disabled
Intel Graphics	2	3

Hardware security

The following table lists the hardware security of your Latitude 7350 Detachable.

Table 1. Hardware security The following table provides the hardware security details on your Latitude 7350 Detachable.
Hardware security
Face IR camera (Windows Hello-compliant) with ExpressSign-in 1.0 (Proximity Sensor), ExpressSign-in 2.0 (Camera Sensing)
Optional Windows Hello-compliant Fingerprint Reader
Optional Contacted Smartcard Reader and Contactless NFC Reader
Optional 512 GB, M.2 2230, PCIe Gen 3, Self-Encrypting, Class 35
Wedge-shaped lock slot

Contactless smart-card reader

This section lists the contactless smart-card reader specifications of your Latitude 7350 Detachable.

Table 1. Contactless smart-card reader specificationsThe following table lists the contactless smart-card reader specifications on your Latitude 7350 Detachable.
Title	Description	Dell ControlVault 3 Plus contactless smart-card reader with NFC
Felica Card Support	Reader and software capable of supporting Felica contactless cards	Yes
Prox (Proximity) (125kHz) Card support	Reader and software capable of supporting Prox /Proximity/125kHz contactless cards	No
ISO 14443 Type A Card Support	Reader and software capable of supporting ISO 14443 Type A contactless cards	Yes
ISO 14443 Type B Card Support	Reader and software capable of supporting ISO 14443 Type B contactless cards	Yes
ISO/IEC 21481	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO/IEC 18092	Reader and software capable of supporting ISO/IEC 21481 compliant contactless cards and tokens	Yes
ISO 15693 Card Support	Reader and software capable of supporting ISO15693 contactless cards	Yes
NFC Tag Support	Supports reading and processing of NFC compliant tag information	Yes
NFC Reader Mode	Support for NFC Forum Defined Reader mode	Yes
NFC Writer Mode	Support for NFC Forum Defined Writer mode	Yes
NFC Peer-to-Peer Mode	Support for NFC Forum Defined Peer to Peer mode	Yes
NFC Proximity OS Interface	Enumerates NFP (Near Field Proximity) device for operating system to utilize	Yes
PC/SC OS interface	Personal Computer/Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for operating system level drivers	Yes
Dell ControlVault support	The device connects to Dell ControlVault for usage and processing	Yes

NOTE:125 Khz proximity cards are not supported.

Table 2. Contactless card types supportedThe following table lists the contactless card types supported on your Latitude 7350 Detachable.
Interface	Card type	Supported functionality
NFC Forum (Microsoft Proximity Device)	Type 1 tag	Read/Write NDEF
	Type 2 tag	Read/Write NDEF
	Type 3 tag	Read/Write NDEF
	Type 4 tag	Read/Write NDEF
	Type 5 tag	Read/Write NDEF
	P2P	Exchange NDEF
RFID (Microsoft Smartcard Device)	ISO14443A	Read UUID and APDU Exchange (ISO7816)
	ISO14443B	Read UUID and APDU Exchange (ISO7816)
	Sony FeliCa	Read UUID only
	Legacy iClass (ISO15693)	Read UUID only
	Mifare Classic	Read UUID only
	Low Frequency (125 KHz )	Not supported

Table 3. Supported cardsThe following table lists the supported cards on your Latitude 7350 Detachable.
Manufacturer	Card
HID	jCOP readertest3 A card (14443a)
	1430 1L
	DESFire D8H
	DESFIRE 4K Standard - 1450NGGNN
	iClass 16K/16 - 2002PGGMN
	iClass SR 16K/16 - 2002HPGGMN
	iCLASS 2K tag
	iCLASS GP - 2003 PGGMN
	iClass Clamshell - 2080PMSMV
	iClass Prox 16K/16 - 2022BGGMNN
	Mifare M1P 1430 NGGNN
	iclass Prox 2020BGGMNM
	DesFire D8P 1456CSGMN
	iCLASS MIFARE Px GM49Y 2623BNPGGBNAB
	iCLASS MIFARE Px 8M1L
	iClass SEOS JW 5006PGGMN
	Crescendo iCLASS Px G8H
	iCLASS Seos IY
	SEOS JMC4 J1Y 5806VNG1NNN4
	SEOS Key FOB 5266PNNA
	SEOS Clamshell 5656PMSAV
	SEOS + Prox 5106RGGMNN
	SEOS + DESFire 5906PNG1ANN7
	SEOS iClass 5006PGGMN7
	Seos Essential + Prox 551PPGGANN
	iCLASS 2K 2000PGGMN
	iCLASS 2K 3000PGGMN
	MIFARE DESFire 3700CPGGAN
	iCLASS DP
	DESFire 1Y
NXP/Mifare	Mifare DESFire 8K White PVC card
	Mifare Classic 1K White PVC card
	NXP Mifare Classic S50 ISO card
	Mifare DESFire 2K
	Mifare Plus S 2K/4K
	Mifare Plus X 4K
G&D	idOnDemand - SCE3.2 144K
	SCE6.0 FIPS 80K Dual + 1K Mifare
	SCE6.0 nonFIPS 80K Dual + 1K Mifare
	SCE6.0 FIPS 144K Dual + 1K Mifare
	SCE6.0 nonFIPS 144K Dual + 1K Mifare
	SCE7.0 FIPS 144K
Oberthur	idOnDemand - OCS5.2 80K
	ID-One Cosmo 64 RSA D V5.4 T = 0 card
	ID-One Cosmo 128K V5.5 card
Gemalto	TOP DL GX4 144K card
Sony	Felica RC-S962
	Felica RC-S965
	Felica RC-S966
PIVKey	C910 PKI
NIST	PIV1
IDENTIV	PIV programmed cards
IDENTIV	uTrust
Transport cards	Oyster (London) MIFARE DESFire
	T-Money (Korea)
	Octopus Card (Hong Kong)
	SUICA (Japan)

Table 4. Qualified NFC tagsThe following table lists the qualified NFC tags on your Latitude 7350 Detachable.
NFC tag	Supported
Tap and do - NFC Forum Type 1 Tag - Topaz 512 (BCM920203)	Yes
Tap and do - NFC Forum Type 1 Tag - Topaz 512 (BCM20203T512)	Yes
Tap and do - NFC Forum Type 1 Tag - Topaz (BCM20203T96)	Yes
Tap and do - NFC Forum Type 2 Tag - Mifare UltraLight	Yes
Tap and do - NFC Forum Type 2 Tag - Mifare UltraLight C	Yes
Tap and do - NFC Forum Type 2 Tag - NTAG203	Yes
Tap and do - NFC Forum Type 3 Tag - FeliCa Lite RC-S965	Yes
Tap and do - NFC Forum Type 3 Tag - FeliCa RC-S962	Yes
Tap and do - NFC Forum Type 4 Tag - Mifare DESFire EV1Card 2K	Yes
Tap and do - NFC Forum Type 4 Tag - Mifare DESFire EV1Card 4K	Yes
Tap and do - NFC Forum Type 4 Tag - Mifare DESFire EV1Card 8K	Yes
Tap and do - ISO 15693 - Tag-it Plus	Yes
HID I-code ISO card	Yes

Contacted smart-card reader

The following table lists the contacted smart-card reader specifications of your Latitude 7350 Detachable.

Table 1. Contacted smart-card reader specificationsThe following table lists the contacted smart-card reader specifications on your Latitude 7350 Detachable.
Title	Description	Dell ControlVault 3 Plus smart-card reader
ISO 7816 -3 Class A card support	Reader capable of reading 5 V powered smart card	Yes
ISO 7816 -3 Class B card support	Reader capable of reading 3 V powered smart card	Yes
ISO 7816 -3 Class C card support	Reader capable of reading 1.8 V powered smart card	Yes
ISO 7816-1 compliant	Specification for the reader	Yes
ISO 7816 -2 compliant	Specification for smart card device physical characteristics (size, location of connection points, so on)	Yes
T=0 support	Cards support character level transmission	Yes
T=1 support	Cards support block level transmission	Yes
EMVCo certified	Formally certified based on EMVCO smart card standards	Yes
PC/SC operating system interface	Personal Computer or Smart Card specification for integration of hardware readers into personal computer environments	Yes
CCID driver compliance	Common driver support for Integrated Circuit Card Interface Device for OS level drivers.	Yes
Windows certified	Device certified by WHCK	Yes
FIPS 201 (PIV/HSPD-12) compliant	Device compliant with FIPS 201/PIV/HSPD-12 requirements	Yes
ISO 7816-1 compliant	Specification for the physical characteristics of integrated circuit cards with contacts	Yes
ISO 7816-2 compliant	Specification for the dimensions and location of the contacts	Yes
ISO 7816-3 compliant	Specification for electrical interface and transmission protocols	Yes
ISO 7816-4 compliant	Specification for organization, security and commands for interchange	Yes
Dell ControlVault support	Device connects to Dell ControlVault for usage and processing	Yes

Keyboard

The following table lists the keyboard specifications of your Latitude 7350 Detachable.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Latitude 7350 Detachable.
Description	Values
Keyboard type	Latitude 7350 Detachable Collaboration Keyboard with AI hot-key. NOTE:Co-pilot in Windows is available only in approved markets. NOTE:The Latitude 7350 Detachable Collaboration Keyboard is sold separately.
Keyboard layout	QWERTY
Number of keys	English US, English International, Canada (Bilingual): 80 keys English UK: 81 keys Japanese: 84 keys
Key pitch	X =19.05 mm key pitch Y =18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Keyboard shortcuts of Latitude 7350 Detachable

NOTE:The Latitude 7350 Detachable Collaboration Keyboard is sold separately.

NOTE:Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon on the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing Fn + Esc. Later, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE:You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 1. List of keyboard shortcuts
The following table lists the keyboard shortcuts and their descriptions.
Key	Primary behavior
Copilot	Launch Copilot in Windows. NOTE:If Copilot in Windows is not available on your computer, the Copilot key launches Windows Search. For more information about Copilot in Windows, search in the Knowledge Base Resource at the Dell Support Site.
F1	Mute audio
F2	Decrease volume
F3	Increase volume
F4	Mute microphone
F5	Toggle to cycle the keyboard backlight status through off, low-backlight, and high-backlight.
F6	Decrease display brightness
F7	Increase display brightness
F8	Switch to external display
F10	Print screen
F12	Insert

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application-specific F1 behavior
Fn + F2	Operating system and application-specific F2 behavior
Fn + F3	Operating system and application-specific F3 behavior
Fn + F4	Operating system and application-specific F4 behavior
Fn + F5	Operating system and application-specific F5 behavior
Fn + F6	Operating system and application-specific F6 behavior
Fn + F8	Operating system and application-specific F8 behavior
Fn + F9	Operating system and application-specific F9 behavior
Fn + F10	Operating system and application-specific F10 behavior
Fn + F11	Operating system and application-specific F11 behavior
Fn + F12	Operating system and application-specific F12 behavior
Fn + Ctrl	Open the application menu
Fn + Esc	Toggle Fn-key lock
Fn + Up arrow	Page up
Fn + Down arrow	Page down

Clickpad

The following table lists the clickpad specifications of your Latitude 7350 Detachable Keyboard (sold separately).

Table 1. Clickpad specificationsThe following table lists the clickpad specifications of your Latitude 7350 Detachable Keyboard (sold separately).
Description		Values
Clickpad type		Collaboration Touchpad
Collaboration controls on clickpad		Four controls are available to control video, share screen, chat, and mute functions during conference calls. Controls are visible on the clickpad during any conference calls. Compatible with Zoom and Teams for work or school.
Collaboration controls settings		Control brightness manually or configure icon brightness to automatically adjust to ambient light. Customize settings to activate collaboration controls with a single tap or a double tap. Customize specific controls to be activated or deactivated.
Collaboration controls functionality		Video icon: Turn on or off the camera. White icon: The camera is turned on. Red icon: The camera is off. Share screen icon: Tap once to share your screen. Tap again to stop sharing. Chat icon: Show or hide the chat window. The icon blinks when you receive a new chat message. Microphone icon: Turn on or mute the microphone. White icon: The microphone is turned on. Red icon: The microphone is muted.
Required apps for collaboration controls		Dell Optimizer Version 4.2.0 and higher Zoom Client Version 5.9.3 and higher Teams for work or school (Windows desktop) Classic Teams: Version 1.6.00.24078 and higher New Teams: Version 23285.3607.2525.937 and higher
Clickpad resolution:
	Horizontal	2622 DPI
	Vertical	1301 DPI
Clickpad dimensions:
	Horizontal	114 mm (4.49 in.)
	Vertical	60 mm (2.36 in.)
Clickpad gestures		For more information about clickpad gestures available on Windows, see the Microsoft Knowledge Base article at the Microsoft Support Site.
NOTE:To enjoy the collaboration touchpad (CTP) controls feature on your keyboard, ensure that you have the latest versions of the Dell Optimizer app and Zoom or Teams for work or school installed on your computer. Dell Optimizer offers modular installation which allows you to select the modules you want to install. Install the collaboration touchpad module within the Dell Optimizer app to enjoy the functionality of collaboration controls. For more information, search for the Dell Optimizer User‘s Guide in the Knowledge Base Resource at the Dell Support Site. NOTE:For more information about how to configure and use your collaboration controls, search for the Collaboration Touchpad Reference Guide in the Knowledge Base Resource at the Dell Support Site. Or, watch the video at Dell Collaboration Touchpad Site. NOTE:Collaboration Touchpad is supported only on Microsoft Teams for work or school (Windows desktop) application. Microsoft Teams for home and Teams on web are currently not supported.

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 7350 Detachable.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Latitude 7350 Detachable.
Description	Operating	Storage
Temperature range	0 °C–35°C (32 °F–95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10,000 ft)	-15.2 m to 10,668 m (-49.87 ft to 35,000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell support policy

For information about Dell support policy, search Dell Support Site.

Low blue light

WARNING:Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
Take an extended break for 20 minutes every two hours.

Dell Optimizer

This section provides the Dell Optimizer specifications of your Latitude 7350 Detachable.

On Latitude 7350 Detachable with Dell Optimizer, the following features are supported:

ExpressConnect—Automatically joins the access point with the strongest signal, and directs bandwidth to conferencing applications when in use.
ExpressSign-in—The Intel Context Sensing Technology's proximity sensor detects your presence to instantly wake up the computer and login using the IR camera and Windows Hello feature. Windows locks when you walk away.
ExpressResponse—Prioritizes the most important applications. Applications open faster and perform better.
ExpressCharge—Extends the battery runtime and improves battery performance by adapting to your patterns.
Intelligent Audio—Collaborate like you’re in the same room. Intelligent Audio enhances your audio quality and reduces background noises, so you can hear and be heard, creating a better conference experience for all.

For more information about configuring and using these features, see Dell Optimizer User Guide.
