Dell Latitude 3140/Latitude 3140 2-in-1: характеристики и спецификации

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Dimensions and weightThe following table lists the height, width, depth, and weight of your Latitude 3140/Latitude 3140 2-in-1.
Description		Values
Height:
	Front height	20.90 mm (0.82 in.) - Laptop 21.40 mm (0.84 in.) - 2-in-1
	Rear height	20.90 mm (0.82 in.) - Laptop 21.40 mm (0.84 in.) - 2-in-1
Width		300.88 mm (11.84 in.)
Depth		204.88 mm (8.06 in.)
Weight NOTE:The weight of your computer depends on the configuration that is offered.		1.35 kg (2.97 lb) - Laptop 1.42 kg (3.12 lb) - 2-in-1

Processor

The following table lists the details of the processors that are supported in your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Processor The following table lists the details of the processors that are supported in your Latitude 3140/Latitude 3140 2-in-1.
Description		Option one	Option two
Processor type		Intel Processor N100	Intel Processor N200
Processor wattage		6 W	6 W
Processor total core count		4	4
Performance-cores		N/A	N/A
Efficient-cores		4	4
Processor total thread count NOTE:Intel Hyper-Threading Technology is only available on Performance-cores.		4	4
Processor speed		Up to 3.40 GHz	Up to 3.70 GHz
Frequency—Performance cores
	Processor base frequency	N/A	N/A
	Maximum turbo frequency	N/A	N/A
Frequency—Efficient cores
	Processor base frequency	0.8 Ghz	1 GHz
	Maximum turbo frequency	3.4 Ghz	3.7 Ghz
Thermal Mode/Thermal Design Power (TDP)
	Cool	N/A	N/A
	Optimized	4 to 10 W	4 to 10 W
	Quiet	N/A	N/A
	Ultra Performance	N/A	N/A
		NOTE: Processor clock speeds and thermal design power differ according to the thermal mode selected in the My Dell app on your computer.
Processor cache		6 MB	6 MB
Integrated graphics		Intel UHD Graphics	Intel UHD Graphics

Chipset

The following table lists the details of the chipset that is supported in your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Chipset The following table lists the details of the chipset that is supported in your Latitude 3140/Latitude 3140 2-in-1.
Description	Option one	Option two
Processors	Intel Processor N100	Intel Processor N200
Chipset	Integrated	Integrated
DRAM bus width	LP5 - 4800 MT/s	LP5 - 4800 MT/s
Flash EPROM	256 MB (32 MB)	256 MB (32 MB)
PCIe bus	Up to Gen3	Up to Gen3

Operating system

Your Latitude 3140/Latitude 3140 2-in-1 supports the following operating systems:

Windows 10 Home, 64-bit
Windows 10 Home National Academic, 64-bit
Windows 10 Pro, 64-bit
Windows 10 Pro National Academic, 64-bit
Windows 11 Home, 64-bit
Windows 11 Home National Academic, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Pro National Academic, 64-bit

Memory

The following table lists the memory specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Values
Memory slots		Onboard memory NOTE:The memory is integrated on the system board and is not upgradeable.
Memory type		Single-channel LPDDR5
Memory speed		4800 MT/s
Maximum memory configuration		8 GB
Minimum memory configuration		4 GB
Memory configurations supported		4 GB, Single-Channel LPDDR5, 4800 MT/s 8 GB, Single-Channel LPDDR5, 4800 MT/s

External ports and slots

The following table lists the external ports and slots on your Latitude 3140/Latitude 3140 2-in-1.

Table 1. External ports and slots
The following table lists ports and connectors available on Latitude 3140/Latitude 3140 2-in-1.
Description	Values
USB ports	One USB 3.2 Gen 1 port One USB 3.2 Gen 1 port with PowerShare One USB 3.2 Gen 2 Type-C port with DisplayPort (optional)
Audio port	One universal audio port
Video port(s)	One HDMI 1.4b port
Media-card reader	N/A
Power-adapter port	One 7.4 mm barrel-type
Security-cable slot	One wedge-shaped lock slot

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Latitude 3140/Latitude 3140 2-in-1.
Description	Values
Model number	Intel AX201
Transfer rate	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	WiFi 802.11a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth wireless card	Bluetooth 5.2

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Latitude 3140/Latitude 3140 2-in-1.

NOTE: The WWAN module is available only on certain configurations and in certain regions.

NOTE:Availability of the eSIM feature on this module depends your region.

NOTE:For instructions on how to setup SIM or eSIM connections on your computer, see the SIM/eSIM Setup Guide for Windows available with your product documentation at Dell Support Site.

Table 1. WWAN module specificationsThe following table lists the Wireless Wide Area Network (WWAN) module that is supported in your Latitude 3140/Latitude 3140 2-in-1.
Description	Values
Model number	Qualcomm Snapdragon X12 Global LTE-Advanced (DW5824e with eSIM option)
Form factor	M.2 3042 Key-B
Host interface	USB 2.0 USB 3.0
Network standard	LTE FDD/TDD, WCDMA/HSPA+, GPS/GLONASS/Beidou/Galileo
Transfer data rate	Up to 300 Mbps DL (CAT6) Up to 50 Mbps UL
Operating frequency bands	LTE (B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B41 HPUE, B42, B43, B48, B66, B71) HSPA+ (1, 2, 4, 5, 6, 8, 19)
Power supply	DC 3.13 V to 4.4 V, Typical 3.3 V
SIM card	Supported through internal SIM-card slot
eSIM with dual SIM (DSSA)	Supported (The availability of eSIM functionality embedded on the module is dependent on the region and specific carrier requirements)
Antenna diversity	Supported
Radio on/off	Supported
Wake On Wireless	Supported
Temperature	Normal operating temperature: -10°C to +55°C Extended operating temperature: -40°C to +85°C
Antenna connector	WWAN Main Antenna x 1 WWAN Diversity Antenna x 1
NOTE:For instructions to find your computer's International Mobile Equipment Identity (IMEI) number, search in the Knowledge Base Resource at Dell Support Site.

Audio

The following table lists the audio specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Values
Audio controller		Realtek ALC3246 codec
Stereo conversion		Supported
Internal audio interface		High definition audio
External audio interface		Universal audio jack
Number of speakers		Two stereo speakers
Internal-speaker amplifier		Supported (audio codec integrated)
External volume controls		Keyboard shortcut controls, volume buttons
Speaker output:
	Average	2 W
	Peak	2.5 W
Microphone		Single-integrated microphone, available with HD RGB camera or 5 MP RGB camera Dual-array microphones, available with HD RGB camera option

Storage

This section lists the storage options on your Latitude 3140/Latitude 3140 2-in-1.

Your Latitude 3140/Latitude 3140 2-in-1 supports one of the following storage configurations:

One 64 GB eMMC, on-board
One 128 GB Universal Flash Storage (UFS) Drive, on-board
One 128 GB M.2 2230 Solid-State Drive
One 256 GB M.2 2230 Solid-State Drive

The primary drive of your Latitude 3140/Latitude 3140 2-in-1 varies with the storage configuration.

For systems with an eMMC drive or UFS drive, the eMMC drive or UFS drive is the primary drive
For systems with an M.2 drive, the M.2 drive is the primary drive

Table 1. Storage specifications
The following table provides the different storage options available on Latitude 3140/Latitude 3140 2-in-1.
Storage type	Interface type	Capacity
eMMC	On-board	64 GB
Universal Flash Storage (UFS) Drive	On-board	128 GB
M.2 2230, Class 35 Solid-State Drive	Gen 3 PCIe x4 NVMe	128 GB
M.2 2230, Class 35 Solid-State Drive	Gen 4 PCIe x4 NVMe	256 GB

Keyboard

The following table lists the keyboard specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Latitude 3140/Latitude 3140 2-in-1.
Description	Values
Keyboard type	Standard non-backlit keyboard with captive keycaps
Keyboard layout	QWERTY
Number of keys	Arabic, English International, English US, French Canadian: 81 keys Belgian, Bulgarian, English UK, French European, German, Hungarian, Italian, Nordic, Slovenian, Spanish Castillian, Spanish Latin America, Swiss European: 82 keys Japanese: 85 keys
Keyboard size	X=18.70 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE:You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in the BIOS setup program. NOTE:If Copilot in Windows is not available on your computer, pressing the Copilot key launches Windows search. For more information about Copilot in Windows, search in the Knowledge Base Resource at the Dell Support site.

Camera

The following table lists the camera specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Values
Number of cameras		One (Laptop) Two (2-in-1)
Camera type		HD RGB camera, single-integrated microphone (camera option for laptop and 2-in-1) HD RGB camera, dual-array microphones (camera option for laptop and 2-in-1) 5 MP RGB camera, single-integrated microphone (camera option for 2-in-1 only)
Camera location		User-facing camera World-facing camera (2-in-1 only)
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	0.92 megapixels (HD) 4.92 megapixels (5 MP)
	Video	1280 x 720 at 30 fps (HD) 2560 x 1920 at 30 fps (5 MP)
Diagonal viewing angle		78.6° degrees (HD) 76.6° degrees (5 MP)

Touchpad

The following table lists the touchpad specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Values
Touchpad resolution:		>=300dpi
Touchpad dimensions:
	Horizontal	100 mm (3.94 in.)
	Vertical	55 mm (2.17 in.)
Touchpad gestures		For more information about the touchpad gestures available on Windows, see the Microsoft Knowledge Base article at Microsoft Support Site.

Power adapter

The following table lists the power adapter specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Power-adapter specifications
The following table provides the detailed power adapter specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Option one	Option two
Type		65 W AC adapter, 7.4 mm NOTE:Adapter weight: 0.22 kg (0.50 lb)	65 W AC adapter, USB-C NOTE:Adapter weight: 0.20 kg (0.44 lb)
Power-adapter dimensions:
	Height	28 mm (1.10 in.)	28 mm (1.10 in.)
	Width	47 mm (1.85 in.)	51 mm (2 in.)
	Depth	108 mm (4.25 in.)	122 mm (4.80 in.)
Input voltage		100 VAC to 240 VAC	100 VAC to 240 VAC
Input frequency		50 Hz to 60 Hz	50 Hz to 60 Hz
Input current (maximum)		1.60 A/1.70 A	1.70 A
Output current (continuous)		3.34 A (Continuous)	20 V / 3.25 A (Continuous) 15 V / 3 A (Continuous) 9 V / 3 A (Continuous) 5 V / 3 A (Continuous)
Rated output voltage		19.50 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Power adapter requirements

This section contains the power adapter requirements for Latitude 3140/Latitude 3140 2-in-1.

NOTE:If you did not purchase the Dell-branded power adapter that is recommended for your computer, ensure that the power adapter you use meets the following requirements:

Table 1. Power adapter requirements for Latitude 3140/Latitude 3140 2-in-1 The following table lists the power adapter for your Latitude 3140/Latitude 3140 2-in-1:
Description	Value
Power that is required from a power adapter to achieve optimal performance.	65 W
Power that is required to charge the computer at a slower speed. NOTE: A warning message may appear informing you about the use of a lower-powered adapter and slower charging speed.	Less than 60 W
Minimum power that is required from a power adapter to operate the computer and charge the battery. NOTE: A warning message appears informing you about the use of a lower-powered adapter and slower charging speed.	27 W
USB Power Delivery (PD) fast charging	Supported
ExpressCharge mode	Supported NOTE: Ensure that the computer is connected to a 65 W power adapter for this feature to be supported.

Battery

The following table lists the battery specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Option one	Option two
Battery type		3-cell, 41 Wh lithium battery	4-cell, 53 Wh lithium battery
Battery voltage		11.25 VDC	15 VDC
Battery weight (maximum)		0.19 kg (0.42 lb)	0.23 kg (0.51 lb)
Battery dimensions:
	Height	5.75 mm (0.23 in.)	5.75 mm (0.23 in.)
	Width	206.4 mm (8.13 in.)	239.1 mm (9.41 in.)
	Depth	82 mm (3.23 in.)	90.7 mm (3.57 in.)
Temperature range:
	Operating	0°C to 60°C (32°F to 140°F)	0°C to 60°C (32°F to 140°F)
	Storage	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions
Battery charging time (approximate) NOTE:You can control the charging time, duration, start and end time, and so on, using the settings on the MyDell application (Power option). For more information about MyDell application, search in the Knowledge Base Resource at Dell Support Site.		4 hours, when the computer is off and the room temperature is between 0°C and 15°C (32°F and 59°F)	2 hours, when the computer is off and the room temperature is between 16°C and 45°C (60.8°F and 113°F)
Coin-cell battery		CR2032	CR2032
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION:Dell Technologies recommends that you charge the battery regularly for optimal power consumption.

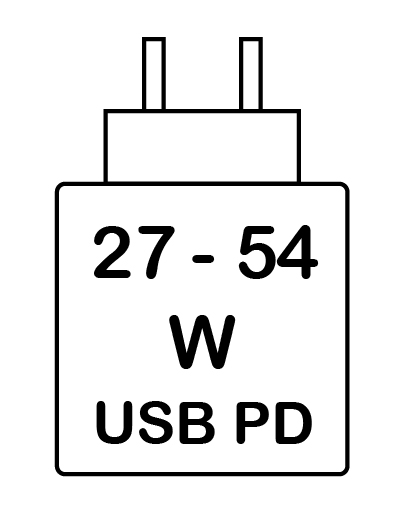

Power requirements (for computers shipped with 3-cell, 41 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 54 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

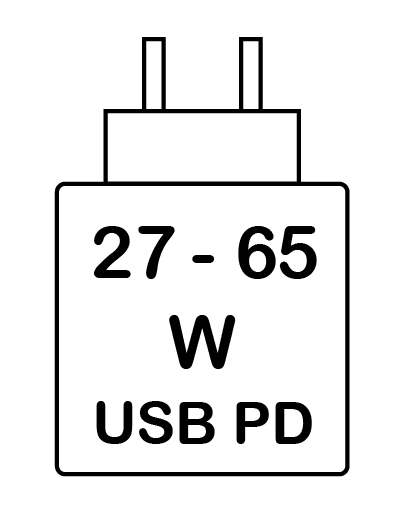

Power requirements (for computers shipped with 4-cell, 53 Wh battery)

NOTE: The information in this section is applicable to the European Union (EU) countries.

The power that is delivered by the charger must be between a minimum of 27 Watts that is required by the radio equipment, and a maximum of 65 Watts in order to achieve the maximum charging speed.

This computer supports USB Power Delivery (PD) fast charging.

Display

The following table lists the display specifications of your Latitude 3140/Latitude 3140 2-in-1.

Table 1. Display specifications
The following table provides the detailed display specifications of Latitude 3140/Latitude 3140 2-in-1.
Description		Option one	Option two
Display type		11.6" HD anti-glare, non-touch	11.6" HD anti-glare, touch, 2-in-1
Touch options		Non-touch	Touch, anti-fingerprint, Dragontrail Pro
Display-panel technology		TN	IPS
Display-panel dimensions (active area):
	Height	144 mm (5.67 in.)	144 mm (5.67 in.)
	Width	256.125 mm (10.08 in.)	256.125 mm (10.08 in.)
	Diagonal	294.64 mm (11.60 in.)	294.64 mm (11.60 in.)
Display-panel native resolution		1366 x 768	1366 x 768
Luminance (typical)		220 nits	220 nits
Megapixels		1.05	1.05
Color gamut		45% (NTSC)	50% (NTSC)
Pixels Per Inch (PPI)		135	135
Contrast ratio (minimum)		600:1 typical	700:1 typical
Response time (maximum)		20 ms	45 ms
Refresh rate		60 Hz	60 Hz
Horizontal view angle		+40/-40 degrees	-80/+80 degrees
Vertical view angle		+10/-30 degrees	-80/+80 degrees
Pixel pitch		0.1875 mm x 0.1875 mm	0.1875 mm x 0.1875 mm
Power consumption (maximum)		2.8 W	4 W
Anti-glare vs glossy finish		Anti-glare	Anti-glare

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 3140/Latitude 3140 2-in-1.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Latitude 3140/Latitude 3140 2-in-1.
Controller	External display support	Memory size	Processor
Intel UHD Graphics	One HDMI 1.4b port	Shared system memory	Intel Processor N100/Intel Processor N200

NOTE:Multi-display playback of videos is not supported during conference calls.

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 3140/Latitude 3140 2-in-1.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Latitude 3140/Latitude 3140 2-in-1.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	5% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	N/A
Shock (maximum)	160 G†	N/A
Altitude range	3048 m (10000 ft)	10668 m (35000 ft)
CAUTION:Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates the user environment.}

^{† Measured using a 2 ms half-sine pulse.}

Dell Latitude 3140/Latitude 3140 2-in-1: технические характеристики и спецификации
