Dell Vostro 14 3435: руководство по обслуживанию

Dimensions and weight

The following table lists the height, width, depth, and weight of your Vostro 14 3435.

Table 1. Dimensions and weight
The following table provides the detailed display specifications of Vostro 14 3435.
Description		Plastic	Aluminum
Height:
	Front height	18.62 mm (0.73 in.)	17.52 mm (0.69 in.)
	Rear height	19.48 mm (0.77 in.)	18.48 mm (0.73 in.)
Width		323.67 mm (12.74 in.)	323.67 mm (12.74 in.)
Depth		220.26 mm (8.67 in.)	219.76 mm (8.65 in.)
Weight NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.		Minimum: 1.50 kg (3.30 lb)	Minimum: 1.49 kg (3.29 lb)

Processor

The following table lists the details of the processors supported by your Vostro 14 3435.

Table 1. Processor
The following table provides the various processor options supported for Vostro 14 3435.
Description	Option one	Option two	Option three
Processor type	AMD Ryzen3 7330U	AMD Ryzen5 7530U	AMD Ryzen7 7730U
Processor wattage	15 W	15 W	15 W
Processor core count	4	6	8
Processor thread count	8	12	16
Processor speed	2.30 GHz to 4.30 GHz	2 GHz to 4.50 GHz	2 GHz to 4.50 GHz
Processor cache	10 MB	19 MB	20 MB
Integrated graphics	AMD Radeon Graphics	AMD Radeon Graphics	AMD Radeon Graphics

Chipset

The following table lists the details of the chipset supported by your Vostro 14 3435.

Table 1. Chipset
The following table provides the chipset specifications for Vostro 14 3435.
Description	Values
Chipset	Integrated
Processor	AMD Ryzen series
DRAM bus width	64-bit
Flash EPROM	16 MB
PCIe bus	Up to Gen3

Operating system

Your Vostro 14 3435 supports the following operating systems:

Windows 11 Home, 64-bit
Windows 11 Pro, 64-bit
Windows 11 Pro National Academic, 64-bit
Ubuntu Linux 22.04 LTS, 64-bit

Memory

The following table lists the memory specifications of your Vostro 14 3435.

Table 1. Memory specifications
The following table provides the detailed memory specifications of Vostro 14 3435.
Description	Values
Memory slots	Two-SoDIMM slots
Memory type	DDR4
Memory speed	3200 MHz
Maximum memory configuration	16 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB, 16 GB
Memory configurations supported	4 GB, 1 x 4 GB, DDR4, 3200 MHz 8 GB, 1 x 8 GB, DDR4, 3200 MHz 8 GB, 2 x 4 GB, DDR4, 3200 MHz, dual-channel 12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz, dual-channel 16 GB, 1 x 16 GB, DDR4, 3200 MHz 16 GB, 2 x 8 GB, DDR4, 3200 MHz, dual-channel

External ports

The following table lists the external ports of your Vostro 14 3435.

Table 1. External ports
The following table lists ports and connectors available on Vostro 14 3435.
Description	Values
Network port	One RJ-45 Ethernet Port 10/100/1000 Mbps
USB ports	One USB 3.2 Gen 1 Type-C port One USB 3.2 Gen 1 port One USB 2.0 port
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 1.4 port
Media-card reader	One SD-card slot
Power-adapter port	65 W AC Adapter, 4.50 mm x 2.90 mm barrel type
Security-cable slot	One wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your Vostro 14 3435.

Table 1. Internal slotsThe following table lists the internal slots on your Vostro 14 3435.
Description	Values
M.2	One M.2 2230 slot for Wi-Fi and Bluetooth combo card One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Vostro 14 3435.

Table 1. Ethernet specifications
The following table provides the Ethernet specifications of Vostro 14 3435.
Description	Values
Model number	Integrated Realtek RTL8111H
Transfer rate	10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules supported on your Vostro 14 3435.

Table 1. Wireless module specifications
The following table provides the wireless module specifications of Vostro 14 3435.
Description	Option one	Option two
Model number	Realtek RTL8821CE	Realtek RTL8852BE
Transfer rate	433 Mbps	1201 Mbps
Frequency bands supported	2.40 GHz/5 GHz	2.40 GHz/5 GHz
Wireless standards	Wi-Fi 802.11 a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac)	Wi-Fi 802.11 a/b/g Wi-Fi 4 (WiFi 802.11n) Wi-Fi 5 (WiFi 802.11ac) Wi-Fi 6 (WiFi 802.11ax)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 5.0	Bluetooth 5.3 NOTE: Particular versions of Microsoft Windows may not support the full Bluetooth 5.3 functionality.

Audio

The following table lists the audio specifications of your Vostro 14 3435.

Table 1. Audio specifications
The following table provides the detailed audio specifications of Vostro 14 3435.
Description		Values
Audio controller		Realtek ALC3254
Stereo conversion		Supported
Internal audio interface		High definition audio interface
External audio interface		One headset (headphone and microphone combo) port
Number of speakers		Two
Internal-speaker amplifier		Not supported
External volume controls		Keyboard shortcut controls
Speaker output:
	Average speaker output	2 W
	Peak speaker output	2.5 W
Subwoofer output		Not supported
Microphone		Carbon Black/ Titan Gray (Plastic): Single-integrated microphone Titan Gray (Aluminum): Dual array microphone

Storage

This section lists the storage options on your Vostro 14 3435.

Your Vostro 14 3435 supports one of the following storage configurations:

One M.2 2230/2280 solid-state drive

Table 1. Storage specifications
The following table provides the different storage options available on Vostro 14 3435.
Storage type	Interface type	Capacity
M.2 2230 solid-state drive	PCIe NVMe	Up to 1 TB
M.2 2280 solid-state drive	PCIe NVMe	Up to 2 TB

Media-card reader

The following table lists the media cards supported by your Vostro 14 3435.

Table 1. Media-card reader specifications
The following table provides the media-card specifications of Vostro 14 3435.
Description	Values
Media-card type	One SD card slot (optional)
Media-cards supported	Secure Digital (SD) Secure Digital High Capacity (SDHC) Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

The following table lists the keyboard specifications of your Vostro 14 3435.

Table 1. Keyboard specifications
The following table provides the detailed keyboard specifications of Vostro 14 3435.
Description	Values
Keyboard type	Carbon black, backlit Carbon black, non-backlit
Keyboard layout	QWERTY
Number of keys	United States and Canada: 79 keys United Kingdom: 80 keys Japan: 83 keys
Keyboard size	X= 18.70 mm key pitch Y= 19.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts.

Camera

The following table lists the camera specifications of your Vostro 14 3435.

Table 1. Camera specifications
The following table provides the detailed camera specifications of Vostro 14 3435.
Description		Carbon Black/Titan Gray (Plastic)	Titan Gray (Aluminum)
Number of cameras		One	One
Camera type		HD RGB camera	FHD RGB camera
Camera location		Front	Front Camera
Camera sensor type		CMOS sensor technology	CMOS sensor technology
Camera resolution:
	Still image	0.92 megapixel	2 Megapixel
	Video	1280 x 720 (HD) at 30 fps	1920 x 1080 (FHD) at 30 fps
Diagonal viewing angle:		78.6 degrees	82 degrees

Touchpad

The following table lists the touchpad specifications of your Vostro 14 3435.

Table 1. Touchpad specifications
The following table provides the detailed touchpad specifications of Vostro 14 3435.
Description		Values
Touchpad resolution:
	Horizontal	>300 dpi
	Vertical	>300 dpi
Touchpad dimensions:
	Horizontal	115 mm (4.52 in.)
	Vertical	70 mm (2.76 in.)
Touchpad gestures		For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com.

Power adapter

The following table lists the power adapter specifications of your Vostro 14 3435.

Table 1. Power adapter specifications
The following table provides the detailed power adapter specifications of Vostro 14 3435.
Description		Values
Type		65 W AC Adapter, 4.50 mm x 2.90 mm barrel type
Connector dimensions:
	External diameter	4.50 mm (0.18 in.)
	Internal diameter	2.90 mm (0.11 in.)
Power-adapter dimensions:
	Height	28.00 mm (1.10 in.)
	Width	108.00 mm (4.30 in.)
	Depth	47.00 mm (1.90 in.)
Power-adapter weight (maximum)		0.29 kg (0.64 lb)
Input voltage		100 VAC –240 VAC
Input frequency		50 Hz–60 Hz
Input current (maximum)		1.60 A / 1.70 A
Output current (continuous)		3.34 A
Rated output voltage		19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Vostro 14 3435.

Table 1. Battery specifications
The following table provides the detailed battery specifications of Vostro 14 3435.
Description		Option one	Option two
Battery type		3-cell, 41 Wh lithium ion	4-cell polymer 54 Wh lithium ion
Battery voltage		11.25 VDC	15.0 VDC
Battery weight (maximum)		0.19 kg (0.41 lbs)	0.24 kg (0.54 lbs)
Battery dimensions:
	Height	206.40 mm (8.12 in.)	271.90 mm (10.71 in.)
	Width	82 mm (3.23 in.)	82 mm (3.23 in.)
	Depth	5.75 mm (0.23 in.)	5.75 mm (0.23 in.)
Temperature range:
	Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
	Storage	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information about Dell Power Manager, search in the Knowledge Base Resource at www.dell.com/support.		4 Hours hours (when the computer is off)	4 Hours hours (when the computer is off)
Coin-cell battery		N/A	N/A
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Display

The following table lists the display specifications of your Vostro 14 3435.

Table 1. Display specifications
The following table provides the detailed display specifications of Vostro 14 3435.
Description		Option one	Option two
Display type		14.0 in. High Definition (HD)	14.0 in. Full HD (FHD)
Touch options		No	No
Display-panel technology		Twisted Nematic (TN)	Wide View Angle (WVA)
Display-panel dimensions (active area):
	Height	174.02 mm (6.85 in.)	174.02 mm (6.85 in.)
	Width	309.37 mm (12.18 in.)	309.37 mm (12.18 in.)
	Diagonal	355.60 mm (14.00 in.)	355.60 mm (14.00 in.)
Display-panel native resolution		1366 x 768	1920 x 1200
Luminance (typical)		220 nits	250 nits
Megapixels		1.05 M	2.10 M
Color gamut		NTSC 45%	NTSC 45%
Pixels Per Inch (PPI)		112	158
Contrast ratio (min.)		300:1	500:1
Response time (max.)		21 ms	35 ms
Refresh rate		60 Hz	60 Hz
Horizontal view angle		45 degrees (Left/Right)	85 degrees (Left/Right)
Vertical view angle		15 degrees (Up) / 35 degrees (Down)	85 degrees (Up) / 85 degrees (Down)
Pixel pitch		0.226 x 0.226 mm	0.161×0.161 mm
Power consumption (maximum)		2.50 W	3.90 W
Anti-glare vs glossy finish		Anti-glare	Anti-glare

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Vostro 14 3435.

Table 1. Fingerprint reader specifications
The following table provides the specifications of fingerprint reader of Vostro 14 3435.
Description	Values
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	108 x 88

Keyboard shortcuts of Vostro 14 3435

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 1. List of keyboard shortcuts
The following table lists the keyboard shortcuts and their descriptions.
Function key	Primary behavior
F1	Mute audio
F2	Decrease volume
F3	Increase volume
F4	Play/Pause
F5	Toggle keyboard backlight (optional)
F6	Decrease brightness
F7	Increase brightness
F8	Switch to external display
F10	Print screen
F11	Home
F12	End

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 2. Secondary behaviorThe following table lists the secondary behavior of each key with the Function (Fn) key.
Function key	Secondary behavior
Fn + F1	Operating system and application specific F1 behavior
Fn + F2	Operating system and application specific F2 behavior
Fn + F3	Operating system and application specific F3 behavior
Fn + F4	Operating system and application specific F4 behavior
Fn + F5	Operating system and application specific F5 behavior
Fn + F6	Operating system and application specific F6 behavior
Fn + F7	Operating system and application specific F7 behavior
Fn + F8	Operating system and application specific F8 behavior
Fn + F9	Operating system and application specific F9 behavior
Fn + F10	Operating system and application specific F10 behavior
Fn + F11	Operating system and application specific F11 behavior
Fn + F12	Operating system and application specific F12 behavior
Fn + PrtScr	Turn off/on wireless
Fn + B	Pause/Break
Fn + Insert	Sleep
Fn + S	Toggle scroll lock
Fn + H	Toggle between power and battery-status light/hard-drive activity light
Fn + R	System request
Fn + Ctrl	Open application menu
Fn + Esc	Toggle Fn-key lock
Fn + PgUp	Page up
Fn + PgDn	Page down
Fn + Home	Home
Fn + End	End

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Vostro 14 3435.

Table 1. GPU—Integrated
The following table provides the detailed integrated graphics specifications of Vostro 14 3435.
Controller	Memory size	Processor
AMD Radeon Graphics	Shared system memory	AMD Ryzen 3 AMD Ryzen 5 AMD Ryzen 7

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Vostro 14 3435.

Table 1. GPU—Discrete
The following table provides the detailed discrete graphics specifications of Vostro 14 3435.
Controller	Memory size	Memory type
NVIDIA GeForce MX550 (optional)	2 GB	GDDR6

Multiple display support matrix

The following table lists the multiple display support matrix for your Vostro 14 3435.

Table 1. Multiple display support matrixThe following table provides the multiple display support matrix for your Vostro 14 3435.
Graphics Card	Direct Graphics Controller Direct Output Mode	Supported external displays with computer internal display on	Supported external displays with computer internal display off
AMD Radeon Graphics	Not supported	1	1
NVIDIA GeForce MX550 (optional)	Supported	1	1

Hardware security

The following table lists the hardware security of your Vostro 14 3435.

Table 1. Hardware security The following table provides the hardware security details on your Vostro 14 3435.
Hardware security
Windows 10 Hello - Fingerprint Reader (optional)
Trusted Platform Module (TPM) 2.0
Camera shutter (for metal laptop only)
One wedge-shaped lock slot

Operating and storage environment

This table lists the operating and storage specifications of your Vostro 14 3435.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 1. Computer environment
The following table lists the operating and storage environment conditions of Vostro 14 3435.
Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)^*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

^{* Measured using a random vibration spectrum that simulates user environment.}

^{† Measured using a 2 ms half-sine pulse.}

ComfortView

WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

ComfortView mode can be enabled and configured using the Dell CinemaColor application.

ComfortView mode complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light: Dell ComfortView software technology reduces harmful blue light emissions to make extended screen time easy on your eyes.

To reduce the risk of eye strain, it is also recommended that you:

Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
Take an extended break for 20 minutes every two hours.

Color, material, and finish

This section details the color, material, and finish (CMF) specifications of your Vostro 14 3435.

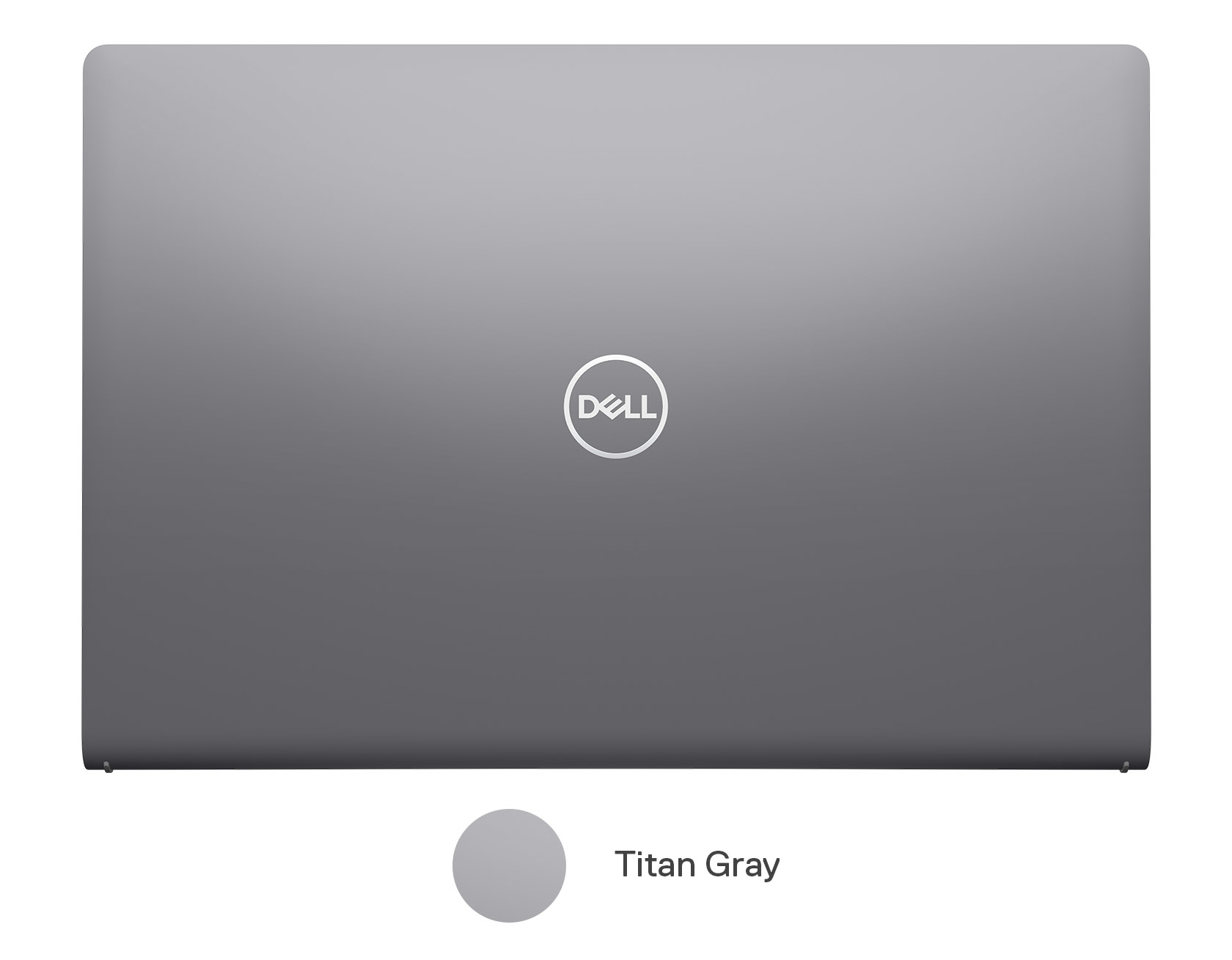

Titan Gray - Plastic

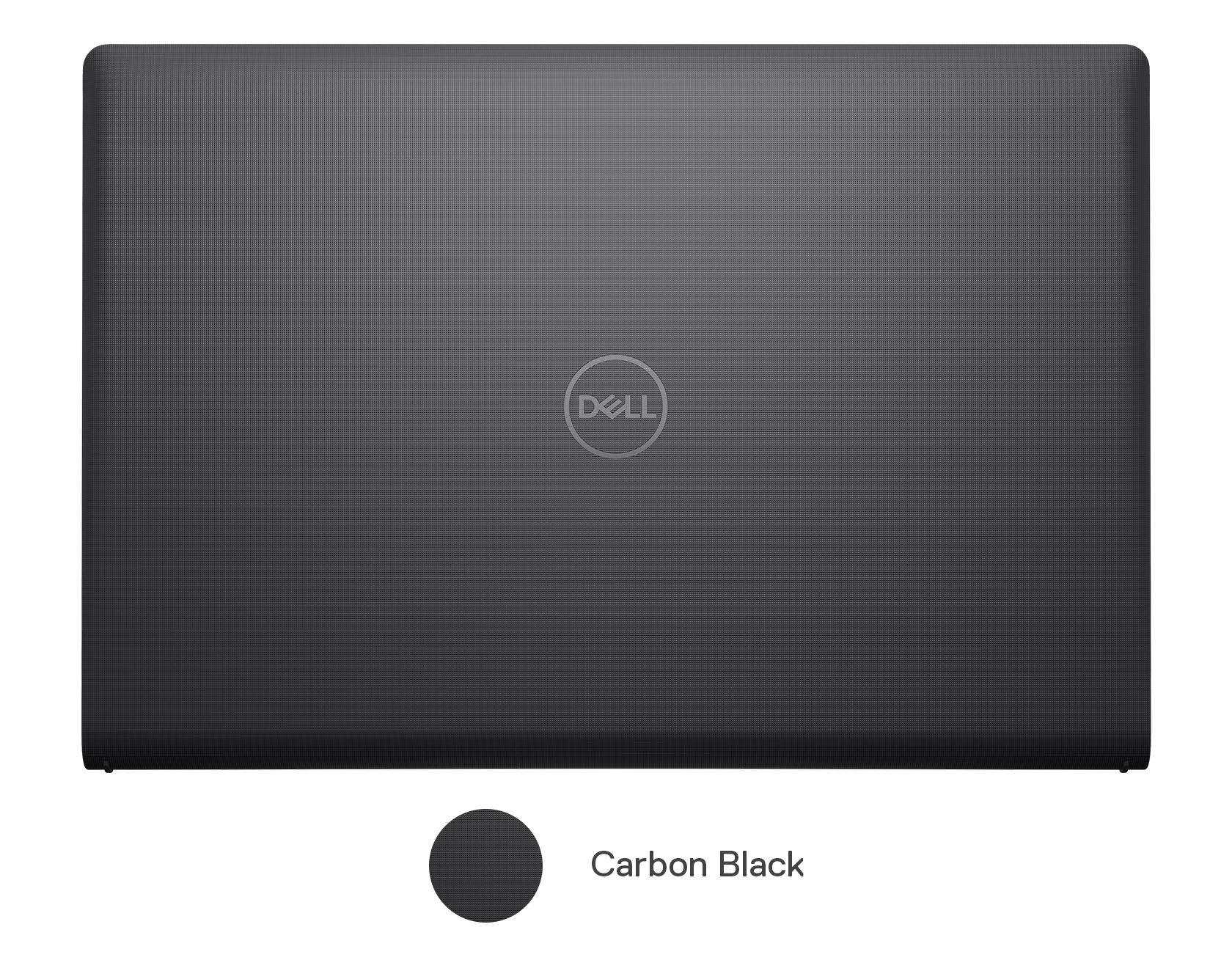

Carbon Black- Plastic

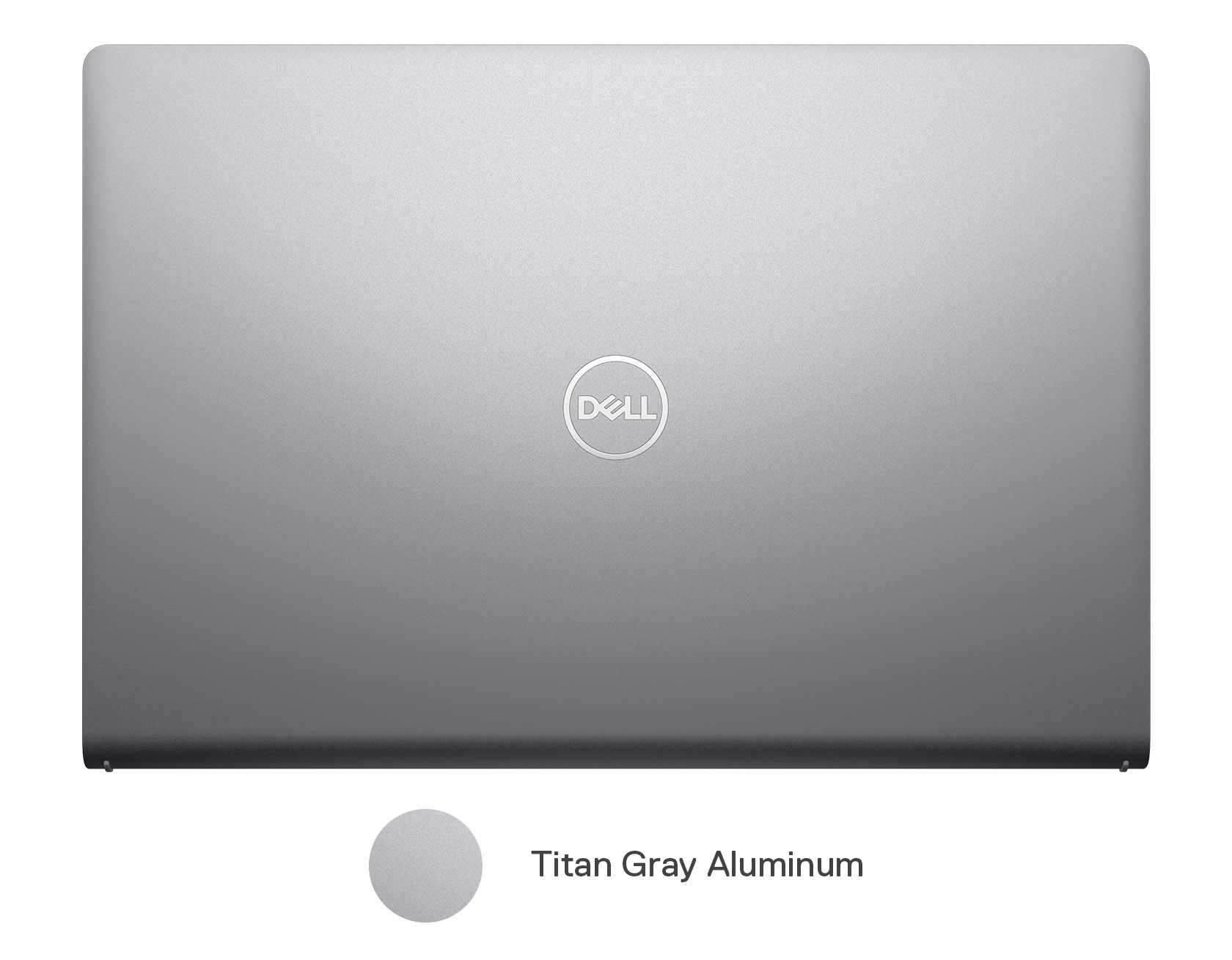

Gray - Aluminum

Table 1. CMF specificationsThe following table lists the CMF specifications of your Vostro 14 3435.
A Cover (Top)	Plastic Resin/ Molded + Micro Pattern and Polished (Baseline) / Molded + Polished + Paint (Upsell) Apollo, Resin (Baseline), Titan Gray, Dull (Upsell) Baseline – Micro Pattern XL L5109 and Fine Texture COL001216 / 3.5 ±1 gu Upsell – 10 ± 2gu	Aluminum/Stamping + CNC + Bead blast + Anodize *<0.5R hard EDGE Anodized Titan Gray, Bead blast 11 ± 3 gu
B Cover (Hinge up)	Plastic Resin Apollo COL001214	Plastic Resin Color Match to D cover
C Cover (Palmrest)	Plastic, Resin Baseline - As molded + Micro Pattern and polished Upsell - Molded + Polished + Paint ( WUVM)+ Printing Apollo, Resin (Baseline), Titan Gray, Dull (Upsell) Baseline - Micro Pattern XL L5109 and Fine Texture COL001216, 3.5 ± 1 gu I/O Icon - Concaved Polished #1200 Upsell -10 ± 2 gu , I/O Icon Printing Matte	Plastic, Resin Molded + Polished + Paint + Printing Baseline - Apollo Upsell - Titan Gray, Dull 10 ± 2 gu, I/O Icon Printing Matte
D Cover (Bottom)	Plastic Resin + 30% PCR Molded + Micro Pattern & Polished Baseline - Apollo, Resin Upsell - Titan Gray, Resin Micro Pattern XL L5109 and Fine Texture COL001216, 3.5 ± 1 gu, Sub Brand - Concaved Polished #5000	Plastic Resin + 30% PCR Molded + Polished + Paint + Printing Baseline - Apollo Upsell - Titan Gray 10 ± 2 gu, subbrand Printing Matte

NOTE: Titan Gray, Dull – Cool Gray 9C = RGB 117 120 123 HEX/HTML 75787B CMYK 30 22 17 57

NOTE: Apollo –19-4205 TPG RGB 64 65 69 HEX/HTML 404145 CMYK NA
